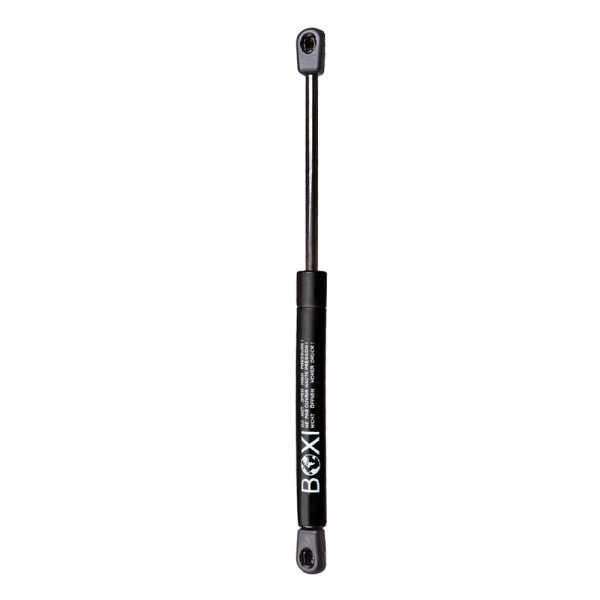

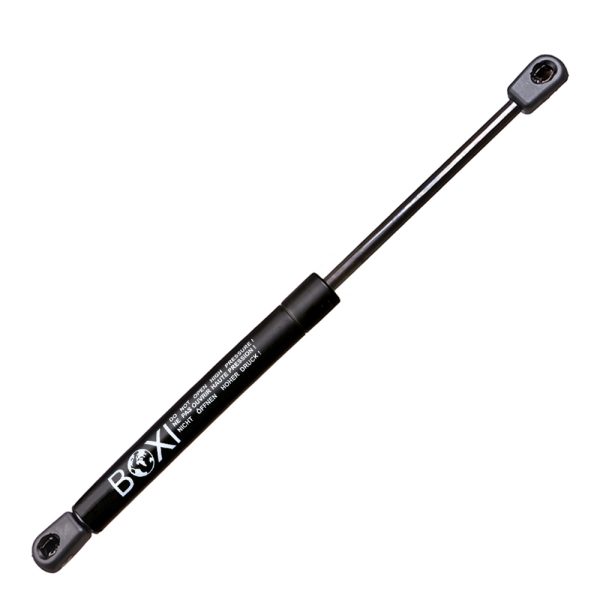

Qty(1) BOXI Universal 4040 Lift Support Extended Length 12.00 inches, Compressed Length 8.05 inches, Force 40.00 (lbs), 10mm Ball Socket 4040

BOXI SKU#: BXC300054650-1

$8.59

BOXI Universal 4040 Lift Support with 12 inch extended length and 8.05 inch compressed length. Compatible with automotive, truck, industrial, marine, ATV, and RV uses. Verify fitment before ordering.

OE / Interchange Part Numbers: 1030, 12177, 1578EV, 4040, 7058, 8195562, 8340ME, 95848, AC8330, AC83301030, AVM8340ME, C1611028

  • 5 Years Warranty

105 in stock

Placement on Vehicle:
Package Included:1pc Universal Lift Support

Qty(2) BOXI Universal 4040 Lift Supports Shocks
Extended Length 12.00 inches
Compressed Length 8.05 inches

Force: 178N = 40 Lbs.

Shaft End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″
Body End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.46 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

305
Stroke (in):

3.95
Stroke (mm):

101
Compressed Length (in)

Compressed Length (mm):

204
Force (Lbs)

Force (Newtons)

178
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95848, 12177, 7058, 1578EV, 4040, 8195562, 8340ME, 83-40ME, 994722, AC 8330 1030, AC83301030, AC8330-1030, AVM8340ME, AVM83-40ME, C1611028, C16-11028, CS120040, CS1200-40, CS1200408, CS1200-40-8, E95848, FMN117, FMR116

Reviews

There are no reviews yet.

Be the first to review “Qty(1) BOXI Universal 4040 Lift Support Extended Length 12.00 inches, Compressed Length 8.05 inches, Force 40.00 (lbs), 10mm Ball Socket 4040”
