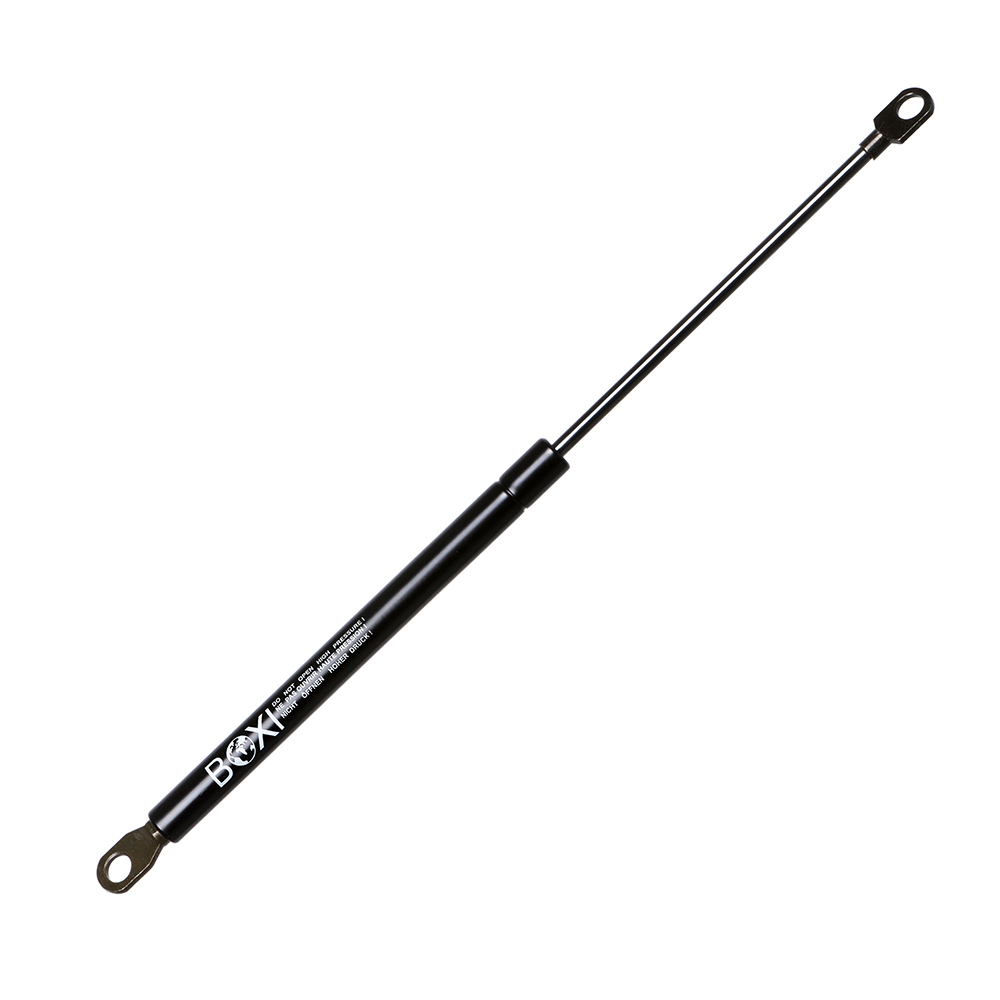

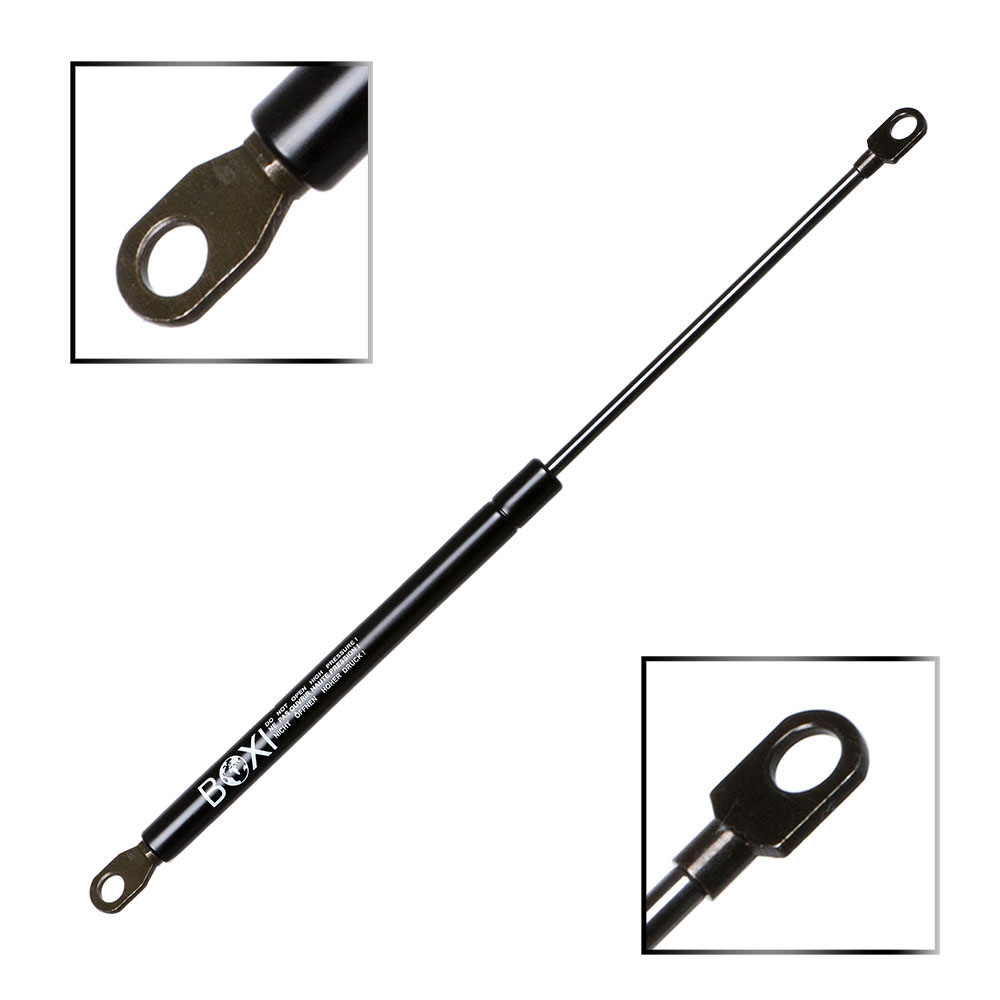

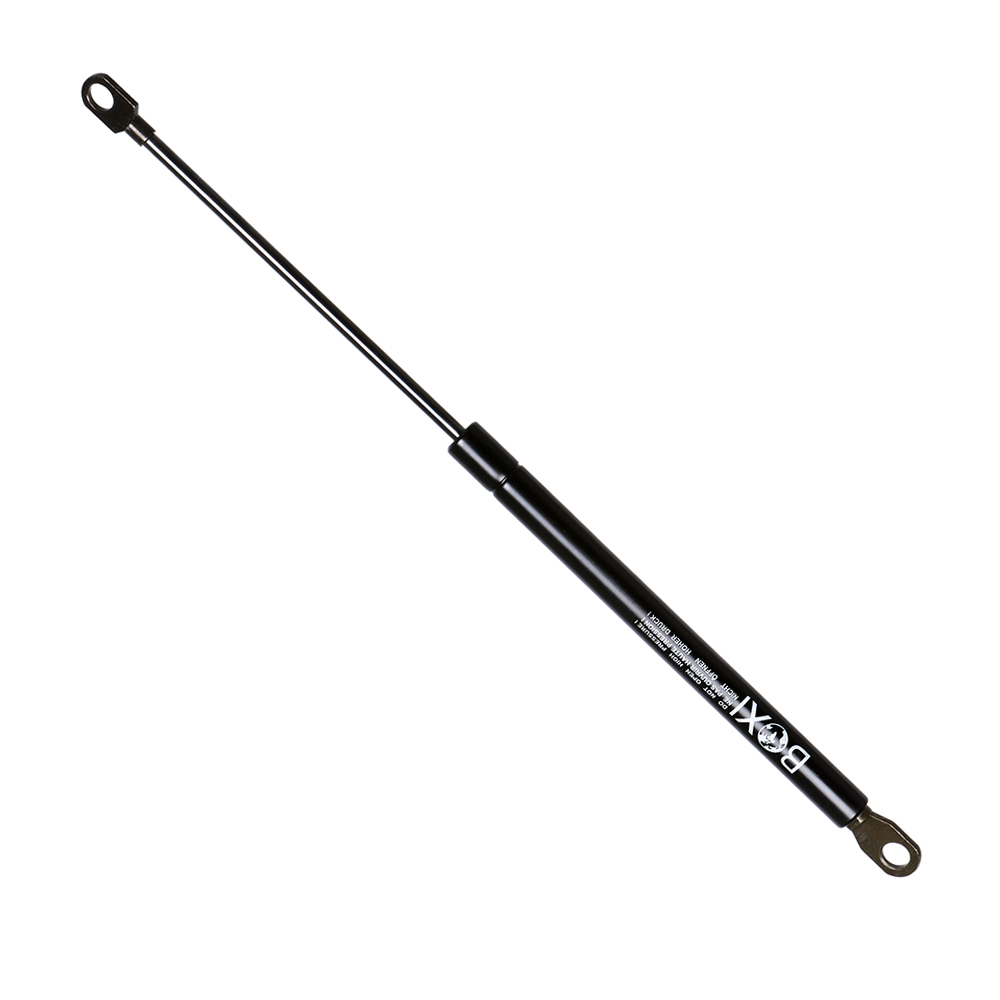

BOXI 1pc Gas Charged Universal Lift Support Strut Shock Gas Strut Shock Spring Support Extended Length 10 inches, Compressed Length 6.75 inches, 60lbs Force, 10.2mm Eyelet Ends SG459003, BX54604

BOXI SKU#: BXC300054604-1

$11.35

BOXI gas-charged universal lift support strut with 10-inch extension and 60lb force. Replaces OE# SG459003 and BX54604. Verify fitment before ordering.

OE / Interchange Part Numbers: 10078, 1007860, 14092, 1714EJ, 4037, 5171KB, 614269, 8195572, 901335, 95845, F95845, FSR60

  • 5 Years Warranty

77 in stock

Placement on Vehicle:
Package Included:1pc Universal Lift Support

Qty(1) BOXI Gas Charged Universal Lift Support Extended Length 10 inches, Compressed Length 6.75 inches, 60lbs Force, 10.2mm Eyelet ends SG459003, BX54604

Weight 0.32 lbs
Dimensions 11.81 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

254
Stroke (in):

3.25
Stroke (mm):

83
Compressed Length (in)

Compressed Length (mm):

171
Force (Lbs)

Force (Newtons)

267
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

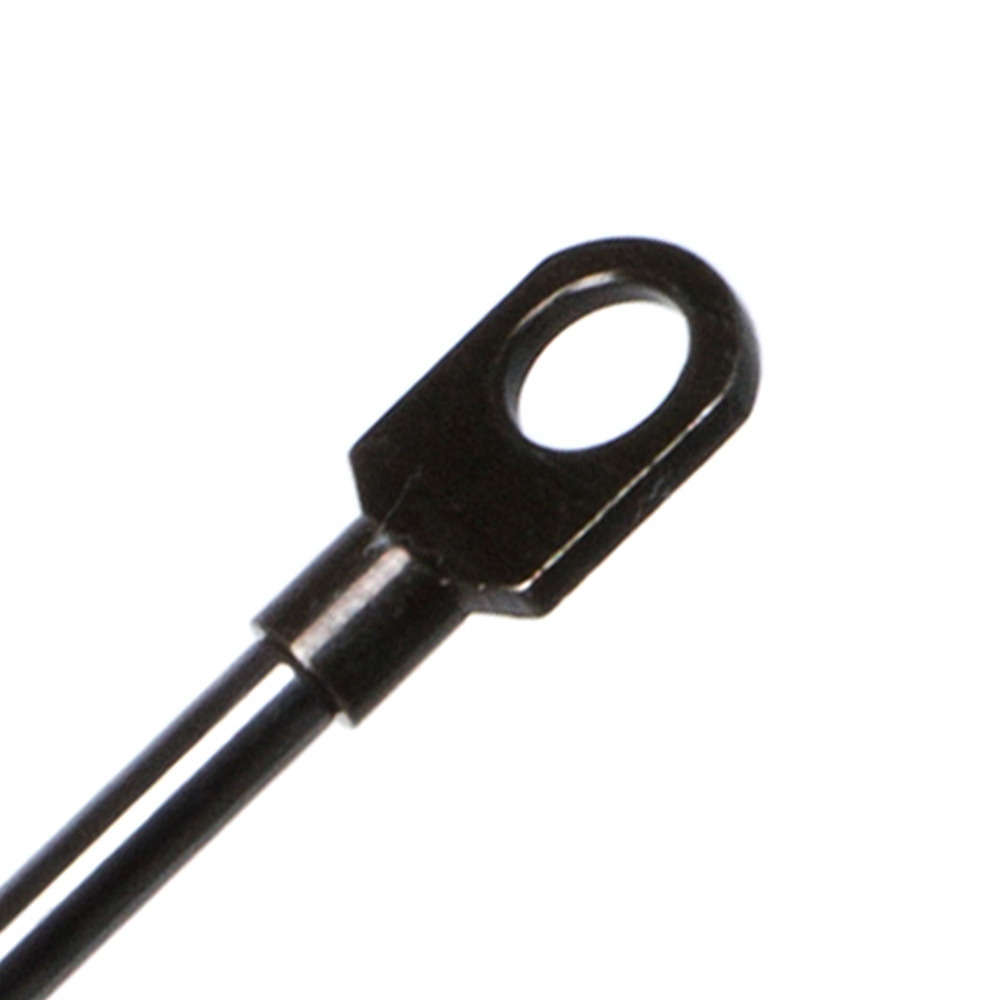

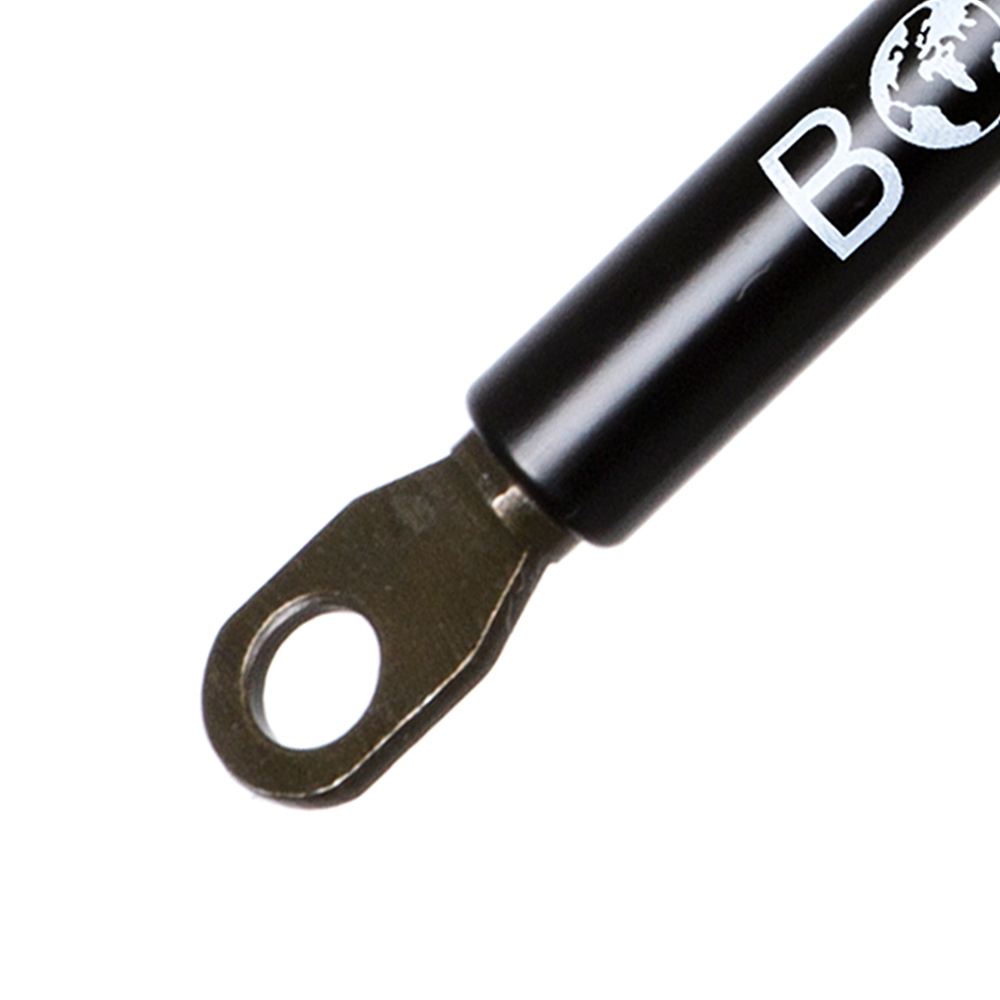

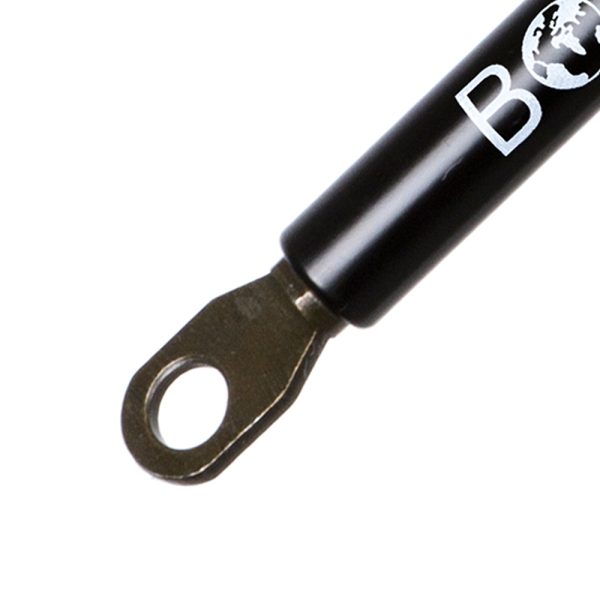

Eyelet Hole=10.2mm=13/32"=.402"
Shaft Connection:

Eyelet Hole=10.2mm=13/32"=.402"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95845, 10078, 1007860, 10078-60, 14092, 1714EJ, 4037, 5171KB, 614269, 6604, 8195572, 901335, F95845, FSR60, ML160, ML1-60, ML-1-60, SG459003, SL160, SL1-60, SL-160, SL-1-60, SL1601, SL1-60-1, SL-1601, SL-1-60-1, SL1605
