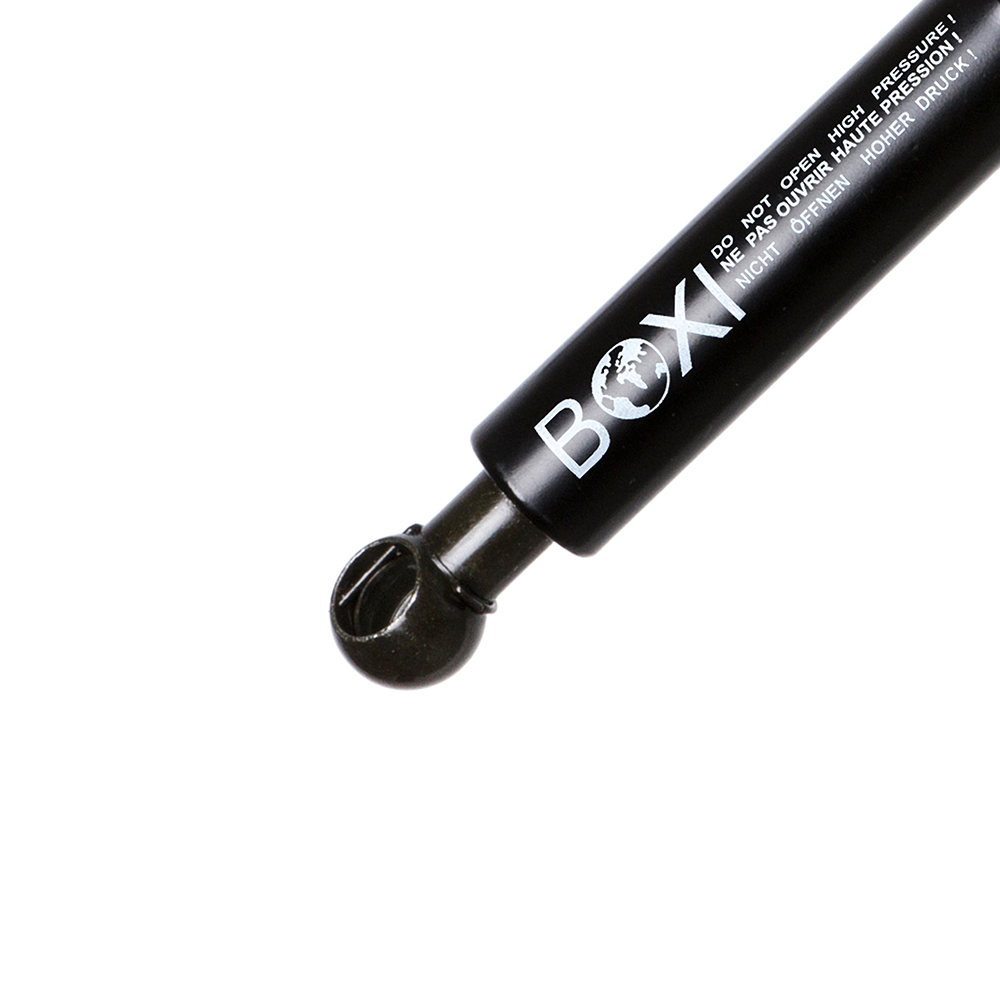

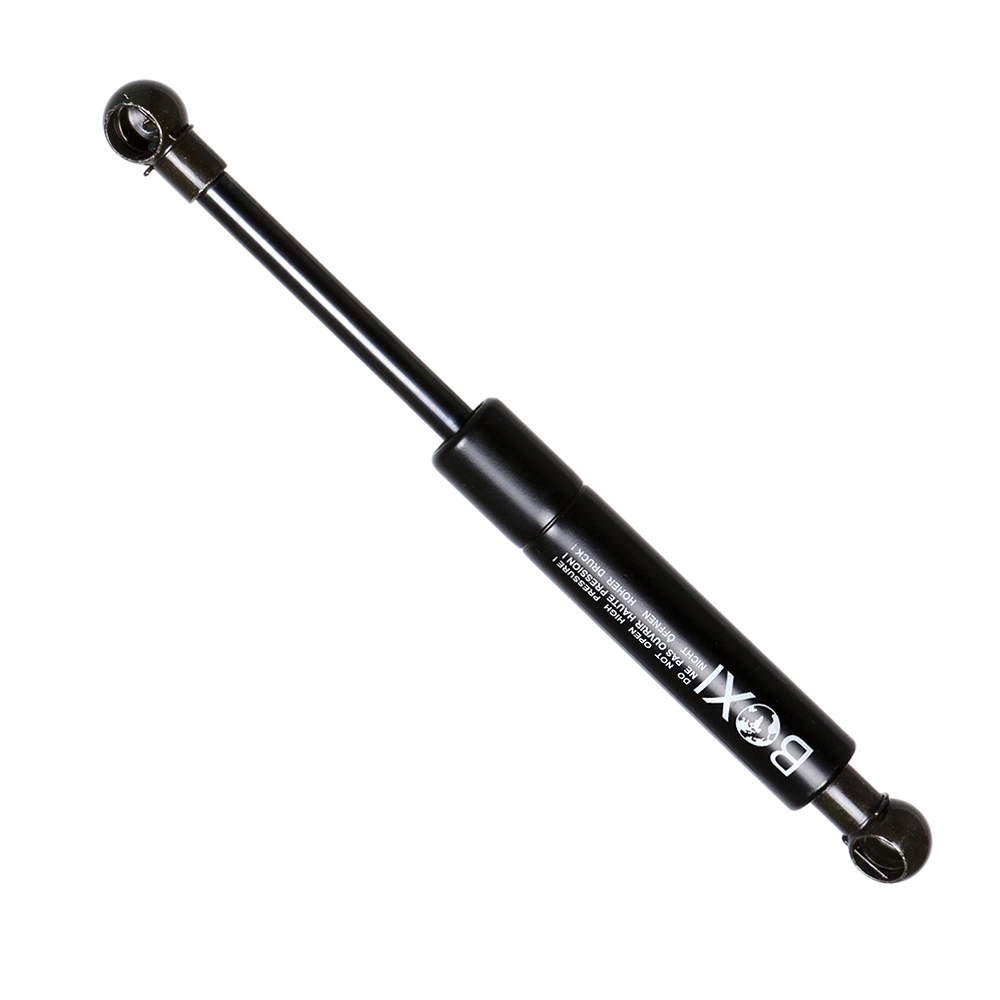

BOXI Qty(1) PM2047 SE1024M80BL 4567 Tonneau Cover lift Support 26.32 Inch Extended 13mm ends 85 Lbs Force Shock Strut
BOXI SKU#: BXC300054606-1
$15.69
BOXI tonneau cover lift support strut (PM2047 SE1024M80BL) is a 26.32″ extended replacement for OE number 4567. Compatible with universal tonneau cover applications. Verify fitment before ordering.
OE / Interchange Part Numbers: 202677, 2985EV, 4567, 713119, 7131191024, 713191024, 731191024, 95983, AVMSE1024M80B1, C1624797, C95983, D45833
38 in stock
Placement on Vehicle:
Package Included:1pc Universal Lift Support
Tonneau Cover 4567 Universal Lift Supports
Extended Length [in] 26.32
Compressed Length [in] 16.08
Force (lbs) 85.00
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 27.56 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 669 |
| Stroke (in): | 10.24 |
| Stroke (mm): | 261 |
| Compressed Length (in) | |
| Compressed Length (mm): | 408 |
| Force (Lbs) | |
| Force (Newtons) | 378 |
| Cylinder Diameter (in): | 0.87 |
| Cylinder Diameter (mm): | 22 |
| Rod Diameter (in): | 0.39 |
| Rod Diameter (mm): | 10 |

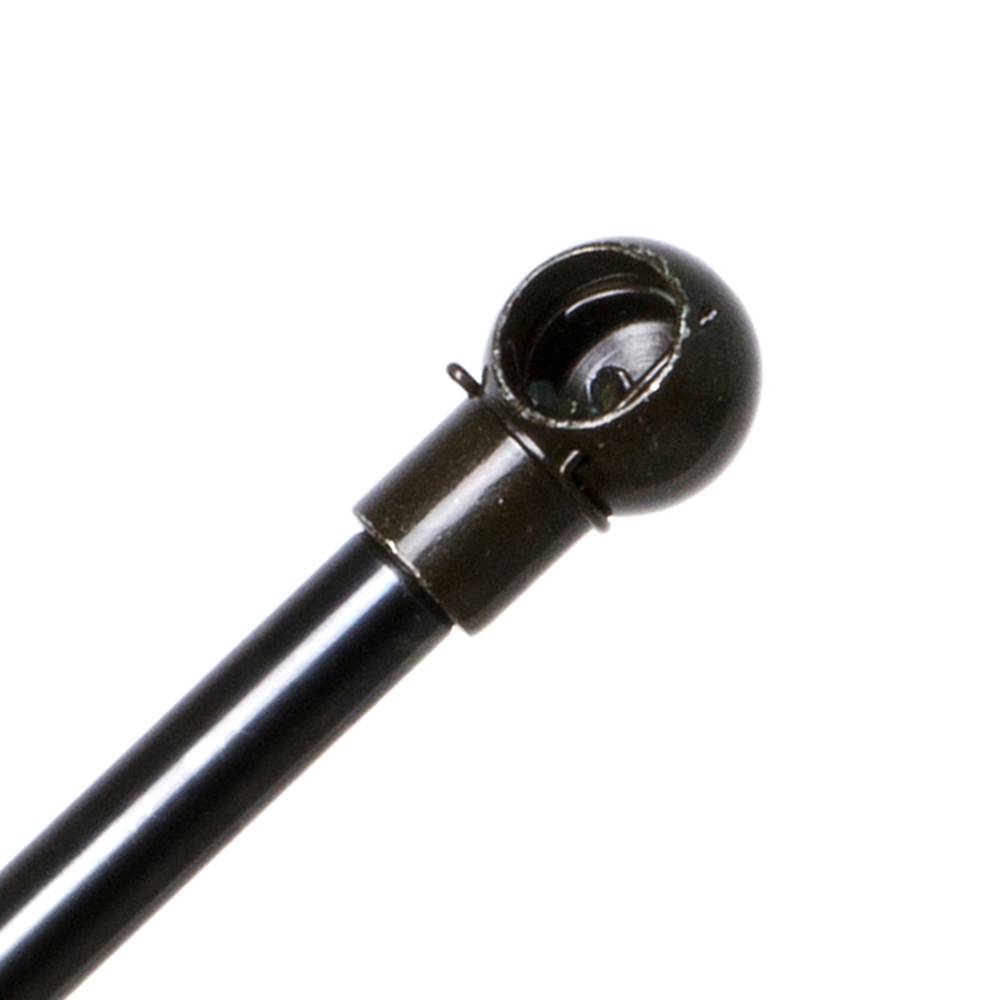

| Body Connection: | Ball Socket Long Cup (Steel) Type=13mm=1/2"=.50" |
| Shaft Connection: | Ball Socket Long Cup (Steel) Type=13mm=1/2"=.50" |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 95983, 202677, 2985EV, 4567, 713119, 7131191024, 713119-1024, 713191024, 731191024, 73119-1024, AVMSE1024M80B1, C1624797, C16-24797, C95983, D45833, D-45833, SE1024M80B1, SE1024M80BL, SE1024M80BL0870, SE1024M85, SE1024M-85 |
