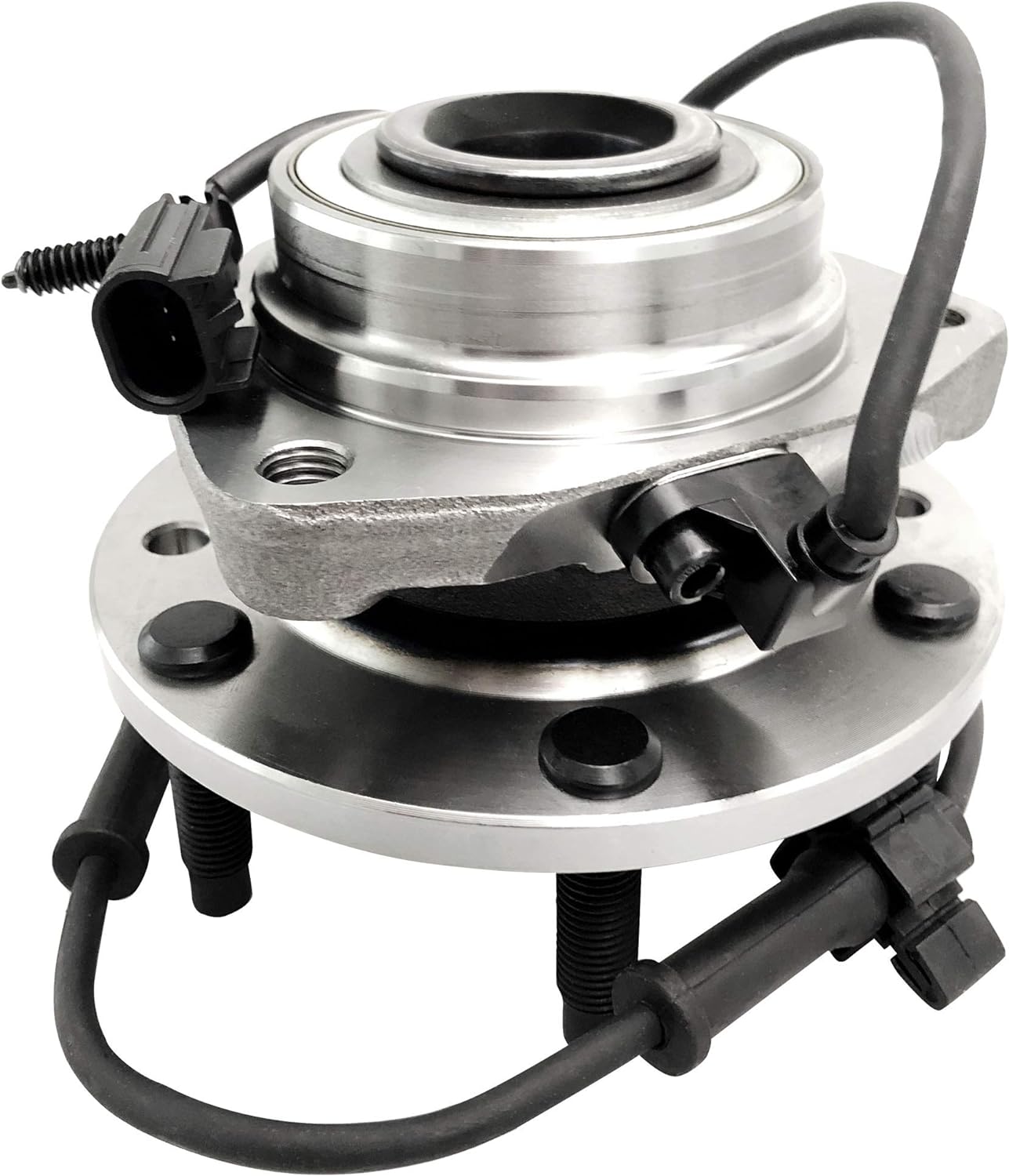

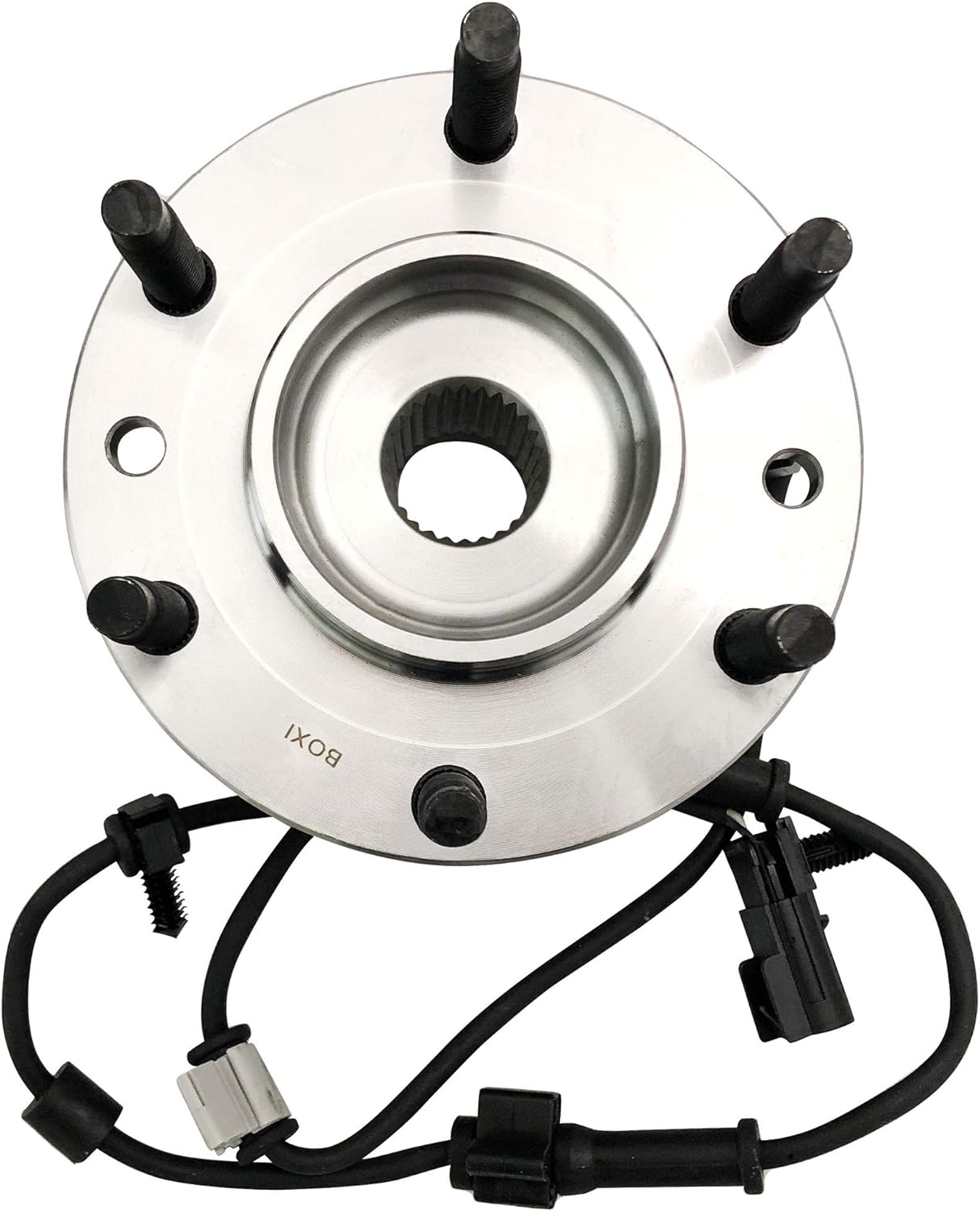

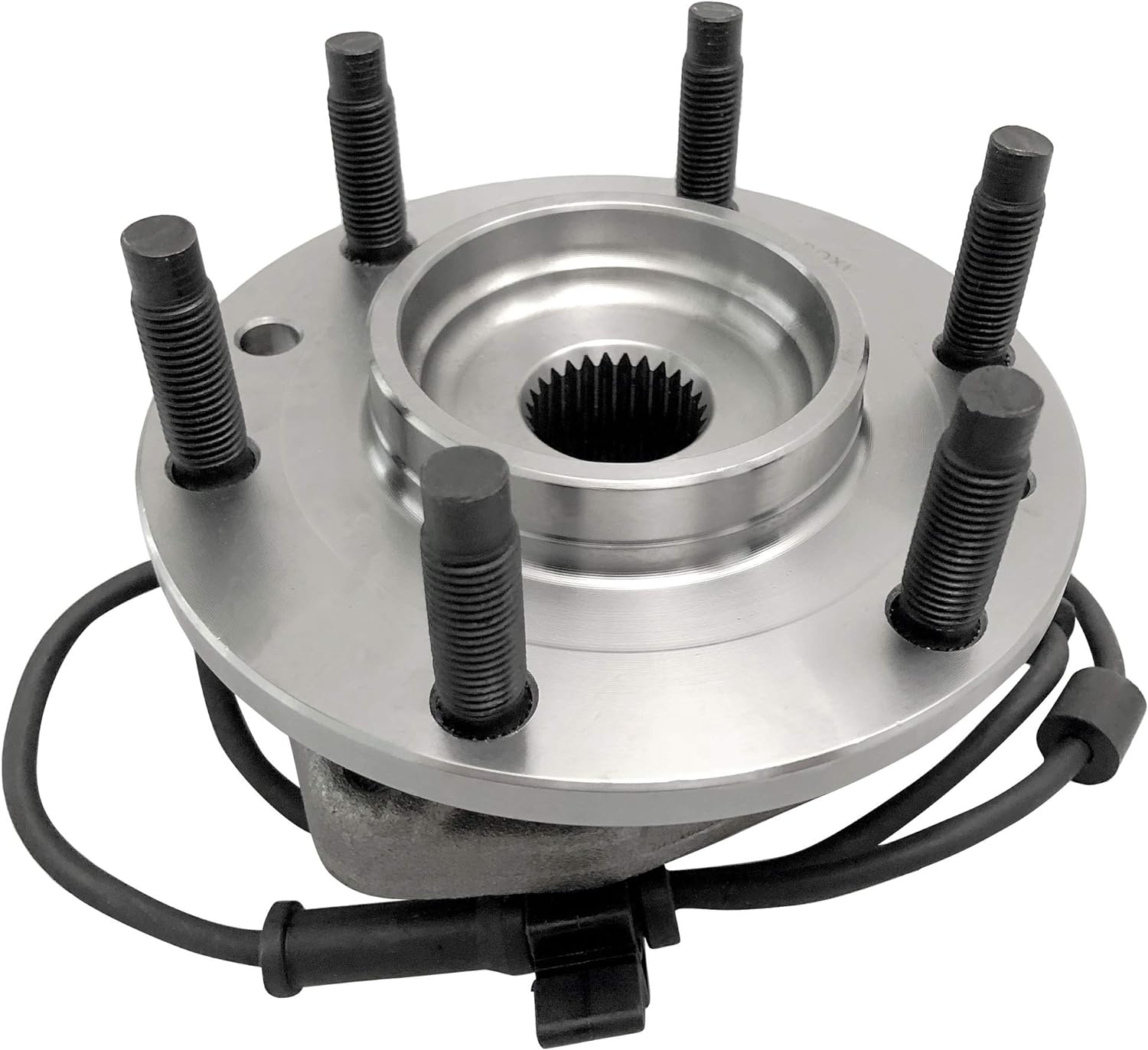

BOXI Front Left/Right Wheel Hub and Bearing Assembly Fit for 02-09 Chevy Trailblazer (EXT)/ 03-06 SSR, for GMC Envoy (XL) Denali/XUV, 04-07 for Buick Rainier, 02-04 for Oldsmobile Bravada 513188

BOXI SKU#: BX03200009-1

$49.01

BOXI Wheel Hub Bearing Assembly compatible with Chevy Trailblazer, GMC Envoy, Buick Rainier, and other vehicles. Replaces OEM 513188, 12413037, 12413257, 15130858. Verify fitment before ordering.

OE / Interchange Part Numbers: 12413257, 15130858, 51318812413037, 8124130370, 8151308580

  • Two Year Warranty

1 in stock

Placement on Vehicle:Front Driver or Passenger Side
Package Included:1pc Wheel Hub and Bearing Assembly

Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.

Fitment:
Fit for Buick Rainier 2004-2007
Fit for Chevrolet SSR 2003-2006
Fit for Chevrolet Trailblazer 2002-2009
Fit for GMC Envoy 2002-2009
Fit for Isuzu Ascender 2003-2008
Fit for Oldsmobile Bravada 2002-2004
Fit for Saab 9-7x 2005-2009

Replacement OEM ( Original Equipment Part) Number:513188 12413037 12413257 15130858 8124130370 8151308580

Package Included:1*Wheel hub bearing

Weight 9.79 lbs
Dimensions 6.69 × 6.3 × 5.98 in
Brand

BOXI
Condition

New
Material

Steel
Driven Or Non-Driven

Driven
Gasket Or Seal Included

Yes
Bearing Included

No
ABS Sensor Included

Yes
Terminal Gender

Female
Flange Shape

Triangle
Wiring Harness Included

Yes
Greaseable

No
Bearing Type

Ball
Flange Diameter (in)

5.925 Inch
Flange Diameter (mm)

151mm
Flange Offset (in)

1.850 Inch
Flange Offset (mm)

47mm
Hub Pilot Diameter (in)

3.614 Inch
Hub Pilot Diameter (mm)

91.8mm
Flange Outside Diameter (in)

5.930 Inch
Flange Outside Diameter (mm)

150.5mm
Total Hub Diameter (in)

5.930 Inch
Total Hub Diameter (mm)

151mm
Hub Centerbore Diameter (in)

5 Inch
Hub Centerbore Diameter (mm)

127mm
Total Hub Height (in)

4.650 Inch
Total Hub Height (mm)

118.1mm
Flange Bolt Size (in)

1.645 Inch
Flange Bolt Size (mm)

41.8mm
Number Of Splines

27
Number Of Terminals

1
Number Of Lugs

6
Number Of Mounting Bolts To Knuckle

3
Number Of Lug Bolts Included

6
Number Of Flange Bolts Included

6
Lug Bolt Thread Size

M12-1.50
Flange Bolt Thread Size

M12-1.75
Warranty Terms

Two Year
Interchange Part Number

8-12413-037-0, 8151308580, DL519188HD, WE60887, 516171, 402.62004, 402.62004E, BFS01213, SUS02888, 951056, WH513188, 725-0086, 104188, 104188HD, H513188, BRG BR930397, BRG BR930470, P513188, FW9188, BAR-5129-A, BHA52926, BHA52935, BHA53318, BHA84977, BKA14620, BKA15912, BKA21835, BKA21841, BKA65344, PSA56258, PSA59145, PSA59350, PSA69926, BHA52941, BHA53914, BHA84995, BKA15434, BKA18341, BKA21838, BKA52054, PSA56227, PSA58473, PSA59255, PSA59763, QHUB-6, NT513188, FW121, BR930470, BR930397, 91-49149, 7467245, 713188, 513188, 15130858, 12413257, 12413038, 12413037, 102033, 10012015, 051-6171
YearMakeModelSubmodelEngine
2004 – 2007BuickRainierCXLL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2004 – 2005BuickRainierCXL PlusL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2003 – 2006ChevroletSSRBaseV8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
V8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV
2004 – 2007ChevroletTrailblazerA
B		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2003 – 2008ChevroletTrailblazerBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2004 – 2006ChevroletTrailblazer EXTBL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2003 – 2006ChevroletTrailblazer EXTBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
LSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2006ChevroletTrailblazer EXTLTL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2004ChevroletTrailblazer EXTNorth FaceL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2007ChevroletTrailblazerLSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2009ChevroletTrailblazerLTL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2003ChevroletTrailblazerLTZL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2002 – 2004ChevroletTrailblazerNorth FaceL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005ChevroletTrailblazerQ
R		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2006 – 2009ChevroletTrailblazerSSV8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV
2005 – 2009GMCEnvoyDenaliV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2009GMCEnvoySLE
SLT		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005 – 2006GMCEnvoy XLDenaliV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2006GMCEnvoy XLSLE
SLT		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2004OldsmobileBravadaBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2006 – 2009Saab9-7x4.2iL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
5.3iV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2008 – 2009Saab9-7xAeroV8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV
2005Saab9-7xArcV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
LinearL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
