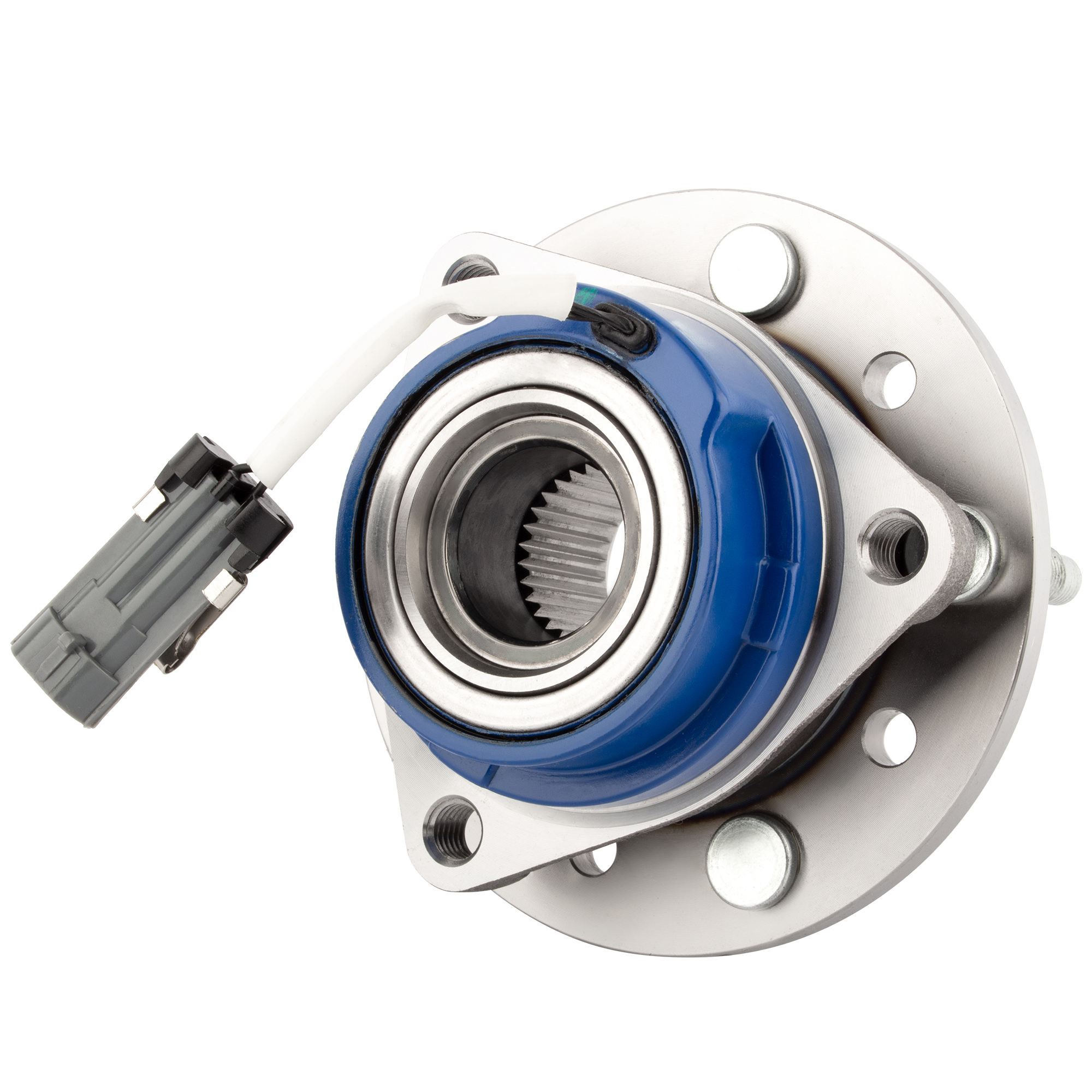

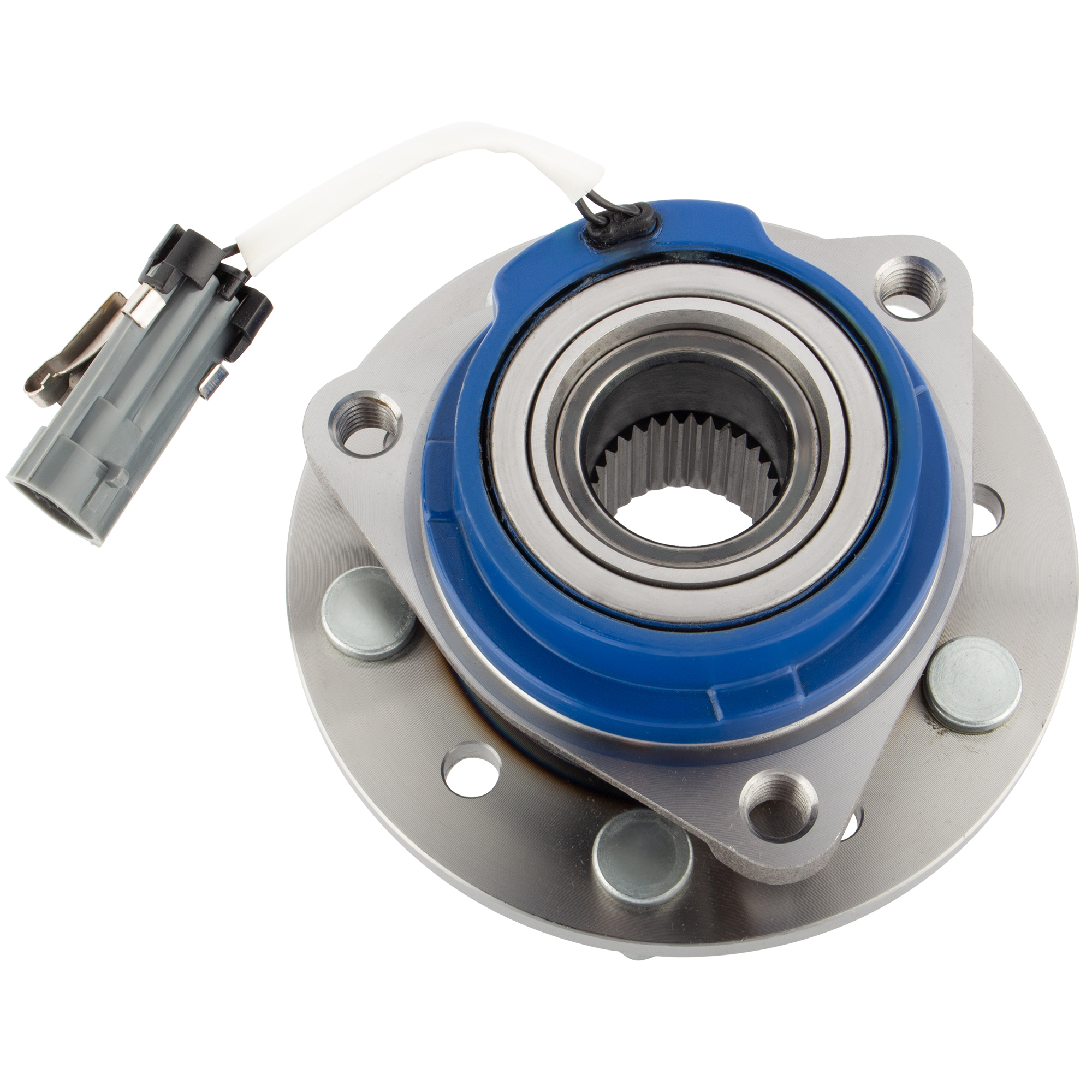

BOXI Front Wheel Hub and Bearing Fits for 04-05 Chev-y Classic /97-03 Malibu/99-04 for Oldsmobile Alero /97-99 Cutlass excluding Supreme Models /99-05 for Pontiac Grand AM (5 Lugs W/ABS) 513137

BOXI SKU#: BX03200017-1

$32.39

BOXI Front Wheel Hub and Bearing fits Chevy Malibu, Classic, Pontiac Grand AM, Oldsmobile Alero & Cutlass. Replaces OE 513137, BR930080. Verify fitment before ordering.

  • Two Year Warranty

1 in stock

Placement on Vehicle:Front Left or Right
Package Included:1pc Wheel Hub and Bearing Assembly

Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.

Fitment:
Compatible With 2004-2005 for Chevrole-t Classic 4-WHEEL w /ABS
Compatible With 1997-2003 for Chevrole-t Malibu 4-WHEEL w /ABS

Compatible With 1999-2004 for Oldsmobile Alero
Compatible With 1997-1999 for Oldsmobile Cutlass ex.Supreme Models

Compatible With 1999-2005 for Pontiac Grand AM

Replacement OEM ( Original Equipment Part) Number:513137 R930080P BR930080 713137 WB13137

Package Included:1*Wheel hub bearing

Weight 7.62 lbs
Dimensions 6.88 × 6.29 × 6.1 in
Brand

BOXI
Condition

New
Material

Steel
Driven Or Non-Driven

Driven
Gasket Or Seal Included

Yes
Bearing Included

No
ABS Sensor Included

Yes
Terminal Gender

Female
Flange Shape

Round
Wiring Harness Included

Yes
Greaseable

Yes
Bearing Type

Ball
Flange Diameter (in)

2.780 Inch
Flange Diameter (mm)

70.6mm
Flange Offset (in)

1.460 Inch
Flange Offset (mm)

37mm
Hub Pilot Diameter (in)

3.590 Inch
Hub Pilot Diameter (mm)

91.25mm
Total Hub Diameter (in)

5.730 Inch
Total Hub Diameter (mm)

145.5mm
Hub Centerbore Diameter (in)

4.530 Inch
Hub Centerbore Diameter (mm)

115mm
Total Hub Height (in)

4.130 Inch
Total Hub Height (mm)

104.8mm
Flange Bolt Size (in)

1.510 Inch
Flange Bolt Size (mm)

38.29mm
Number Of Splines

30
Number Of Terminals

1
Number Of Lugs

5
Number Of Mounting Bolts To Knuckle

3
Number Of Lug Bolts Included

5
Number Of Flange Bolts Included

5
Lug Bolt Thread Size

M12-1.75
Flange Bolt Thread Size

M12-1.50
Warranty Terms

Two Year
Interchange Part Number

DL513137HD, WE60735, 402.62014, 402.62014E, BFS01266, HUB00604, HUB00660, 951040, SB513137, WH513137, 730-0002, 3002FW, 104137, 104137HD, G513137, TXF513137, BRG BR930080, 20-1182, P513137, PS513137, FW9137, BAR-5126, BHA52925, BHA53300, BHA53659, BHA53888, BHA84970, BHA84988, BKA15756, BKA17561, BKA52047, PSA56188, PSA58458, PSA63530, QHUB-4, PT513137, NT513137, H513137, FW153, BR930080, 91-45582, 88957259, 7470562, 7470561, 7470018, 713137, 513137, 12429202, 12429201, 12413060, 12413040, 102031, 10014060
YearMakeModelSubmodelEngine
2004 – 2005ChevroletClassicBaseL4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC
2004ChevroletClassicLSL4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC
1997 – 2003ChevroletMalibuBaseL4 – 2.4L 2392cc 146ci GAS MFI vin T type LD9 – 4 valve DOHC
V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV
V6 – 3.1L 189ci GAS MFI vin M type L82 – 2 valve OHV
LSV6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV
V6 – 3.1L 189ci GAS MFI vin M type L82 – 2 valve OHV
1997ChevroletMalibuLXL4 – 2.4L 2392cc 146ci GAS MFI vin T type LD9 – 4 valve DOHC
1999 – 2004OldsmobileAleroGL
GLS
GX		L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC
L4 – 2.4L 2392cc 146ci GAS MFI vin T type LD9 – 4 valve DOHC
V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV
1997 – 1998OldsmobileCutlassBaseV6 – 3.1L 189ci GAS MFI vin M type L82 – 2 valve OHV
1999OldsmobileCutlassGLV6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV
V6 – 3.1L 189ci GAS MFI vin M type L82 – 2 valve OHV
1997 – 1999OldsmobileCutlassGLSV6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV
V6 – 3.1L 189ci GAS MFI vin M type L82 – 2 valve OHV
2003PontiacGrand AmBaseV6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV
1999 – 2005PontiacGrand AmGTL4 – 2.4L 2392cc 146ci GAS MFI vin T type LD9 – 4 valve DOHC
V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV
SEL4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC
L4 – 2.4L 2392cc 146ci GAS MFI vin T type LD9 – 4 valve DOHC
V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV
2000 – 2005PontiacGrand AmGT1V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV
2000 – 2004PontiacGrand AmSE1L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC
L4 – 2.4L 2392cc 146ci GAS MFI vin T type LD9 – 4 valve DOHC
V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV
SE2L4 – 2.4L 2392cc 146ci GAS MFI vin T type LD9 – 4 valve DOHC
V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV
