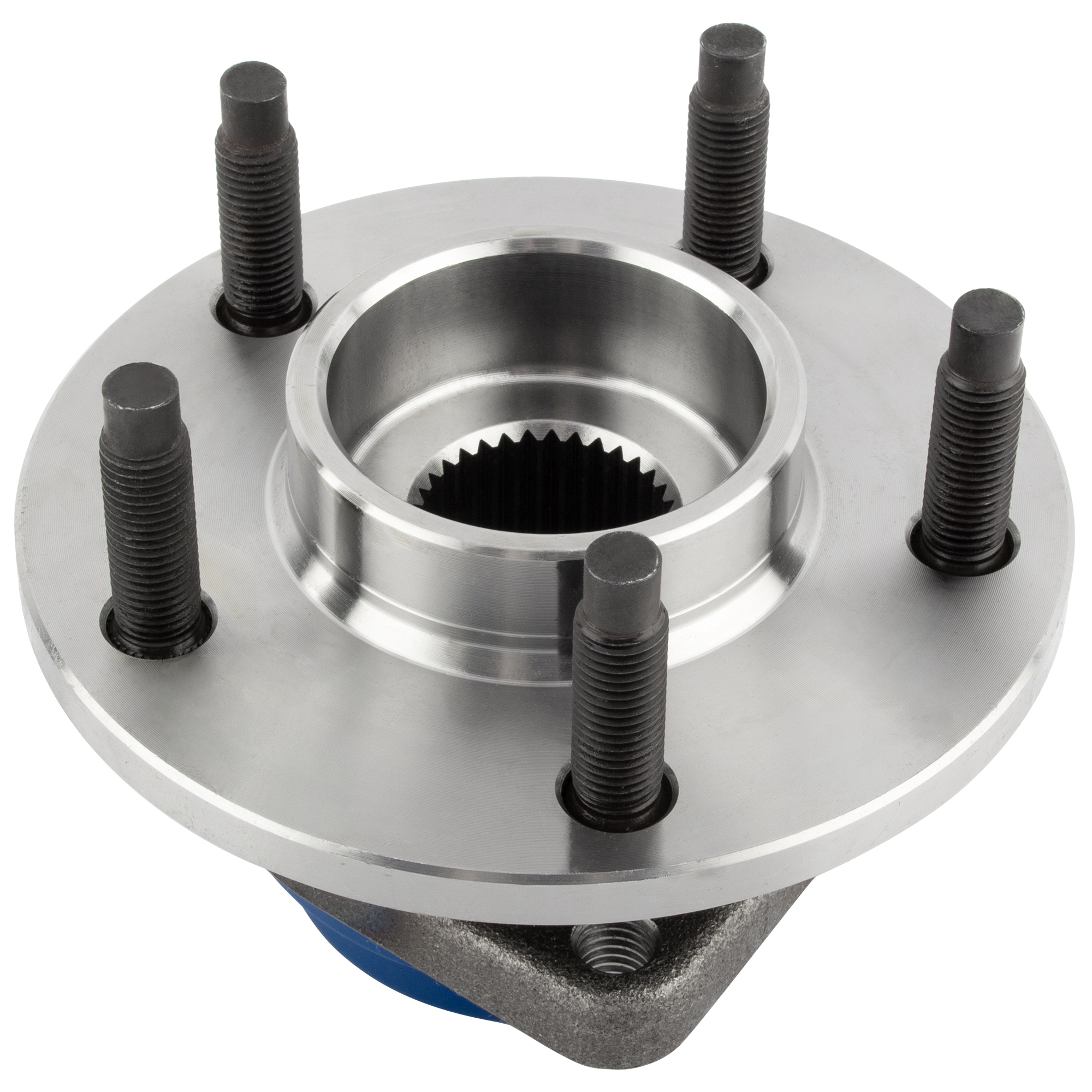

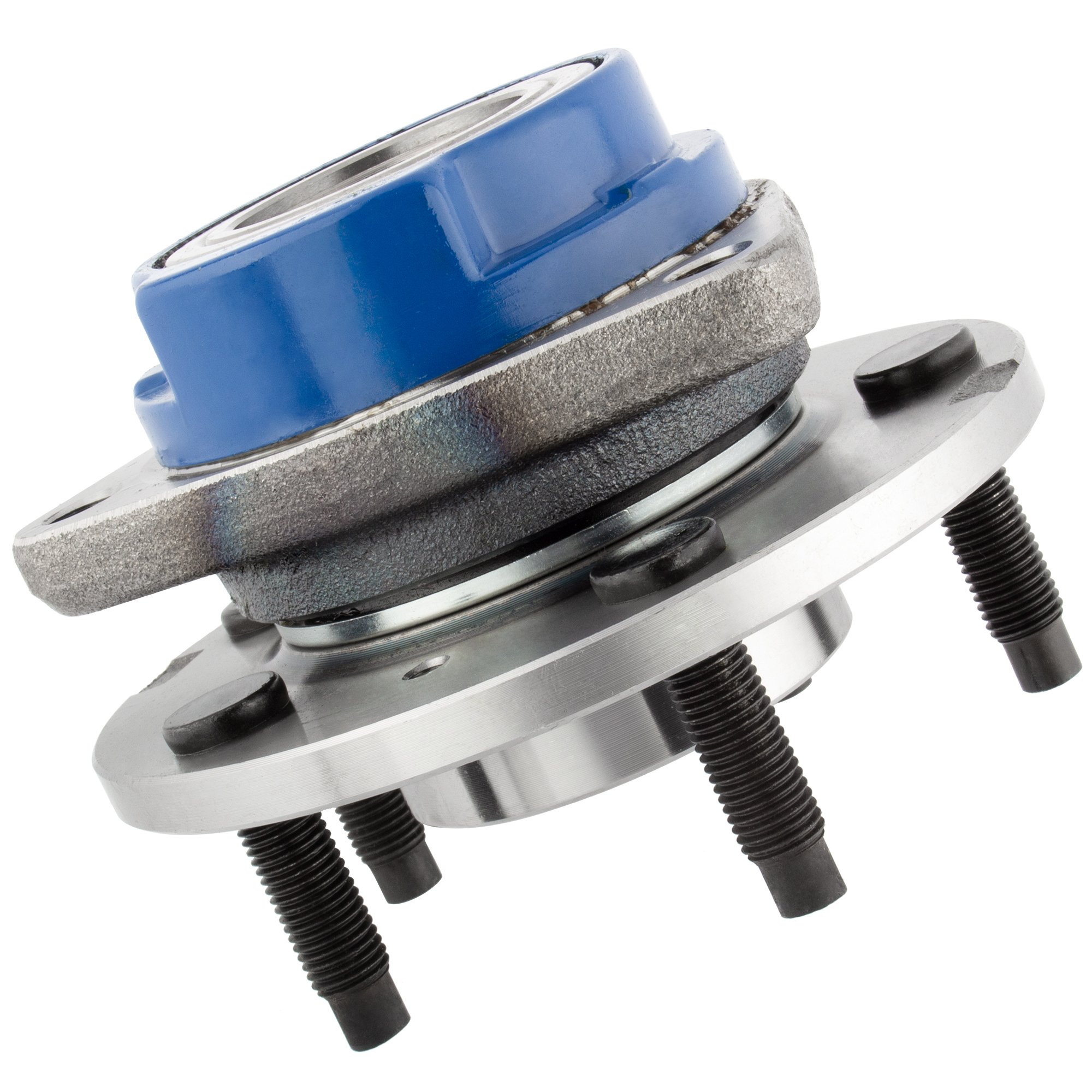

BOXI Front Wheel Hub and Bearing for 03-05 Chevy Venture Century for Pontiac Aztek / 03-07 Rendezvous Monte Carlo / 03-08 Grand Prix / 00-08 Chevy Impala / 03-04 Regal / 05 Allure Lacrosse 513203
BOXI SKU#: BX03200029-1
$36.57
BOXI front wheel hub and bearing assembly for non-ABS models. Fits 2000-2008 Chevy Impala, 2003-2007 Monte Carlo, 2003-2008 Grand Prix, and other specified vehicles. Replaces OE 513203. Verify fitment before ordering.
1 in stock
Placement on Vehicle:Front Left or Right
Package Included:1pc Wheel Hub and Bearing Assembly
Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.
Fitment:
2005 Allure (Non ABS)
2003 – 2005 Century (Non ABS)
2005 Lacrosse (Non ABS)
2003 – 2007 Rendezvous (FWD Non ABS)
2003 – 2004 Regal (Non ABS)
2000 – 2008 Chevy Impala (Non ABS)
2003 – 2007 Chevy Monte Carlo (Non ABS)
2003 – 2005 Chevy Venture (FWD Non ABS)
2003 – 2005 for Pontiac Aztek (FWD Non ABS)
2003 – 2008 for Pontiac Grand Prix (Non ABS)
Replacement OEM ( Original Equipment Part) Number:513203,BR930184,WB13160,WB13203
Package Included:1*Wheel hub bearing
| Weight | 7.97 lbs |
|---|---|
| Dimensions | 7.08 × 6.49 × 6.29 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | No |
| Flange Shape | Triangle |
| Wiring Harness Included | No |
| Greaseable | No |
| Bearing Type | Ball |
| Flange Diameter (in) | 5.728 Inch |
| Flange Diameter (mm) | 146mm |
| Flange Offset (in) | 1.654 Inch |
| Flange Offset (mm) | 42mm |
| Hub Pilot Diameter (in) | 3.539 Inch |
| Hub Pilot Diameter (mm) | 89.9mm |
| Flange Outside Diameter (in) | 5.730 Inch |
| Flange Outside Diameter (mm) | 145.5mm |
| Total Hub Diameter (in) | 5.730 Inch |
| Total Hub Diameter (mm) | 145mm |
| Hub Centerbore Diameter (in) | 4.530 Inch |
| Hub Centerbore Diameter (mm) | 115mm |
| Total Hub Height (in) | 4.290 Inch |
| Total Hub Height (mm) | 109mm |
| Flange Bolt Size (in) | 1.559 Inch |
| Flange Bolt Size (mm) | 39.6mm |
| Number Of Splines | 33 |
| Number Of Lugs | 5 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Number Of Lug Bolts Included | 5 |
| Number Of Flange Bolts Included | 5 |
| Lug Bolt Thread Size | M12-1.50 |
| Flange Bolt Thread Size | M12-1.75 |
| Warranty Terms | Two Year |
| Interchange Part Number | DL513203HD, WE60880, 400.62000E, 951069, SB513203, WH513160, WH513203, 730-0179, 104203, 104203HD, G513203, TXF513203, BRG BR930184, BRG BR930472, PS513203, FW9160, FW9203, BAR-5135, HA590048, HA590076, HA590085, BHA53365, BHA53939, BHA84979, BHA84997, QHUB-11, PT513203, NT513203, H513203, FW304, FW274, FW144, FW110, BR930472, BR930184, BK10036-40L1, 91-49150, 89047803, 88964096, 7467617, 7467558, 7467505, 713203, 513203, 513160, 12413216, 12413215, 12413196, 12413195, 12413139, 12413098, 12413097, 12413006, 12413005, 10334134, 10014074 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 | Buick | Allure | CX CXL | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| CXS | V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC | |||
| 2003 – 2005 | Buick | Century | Custom | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 2004 – 2005 | Buick | Century | Limited | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 2005 | Buick | Century | Special Edition | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 2005 | Buick | LaCrosse | CX CXL | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| CXS | V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC | |||
| 2003 – 2004 | Buick | Regal | GS | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV |
| LS | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | |||
| 2003 – 2007 | Buick | Rendezvous | CX CXL | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| V6 – 3.5L 213ci GAS MFI vin L – 2 valve OHV | ||||
| V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC | ||||
| 2003 – 2005 | Buick | Rendezvous | CX Plus | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| CXL Plus | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV | |||
| V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC | ||||
| 2005 | Buick | Rendezvous | ULTRA | V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC |
| 2008 | Chevrolet | Impala | 50th Anniversary Edition | V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV |
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| 2000 – 2005 | Chevrolet | Impala | Base | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | ||||
| 2000 – 2008 | Chevrolet | Impala | LS | V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV |
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | ||||
| 2003 | Chevrolet | Impala | LS Sport | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2006 – 2008 | Chevrolet | Impala | LT | V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV |
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci FLEX MFI vin 3 type LZG – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin R type LZ8 – 2 valve OHV | ||||
| LTZ | V6 – 3.9L 3880cc 237ci FLEX MFI vin 3 type LZG – 2 valve OHV | |||
| V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin R type LZ8 – 2 valve OHV | ||||
| 2003 – 2008 | Chevrolet | Impala | Police | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| V6 – 3.9L 3880cc 237ci FLEX MFI vin 3 type LZG – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin R type LZ8 – 2 valve OHV | ||||
| 2004 – 2008 | Chevrolet | Impala | SS | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV |
| V8 – 5.3L 5328cc 325ci GAS MFI vin C type LS4 – 2 valve OHV | ||||
| 2003 – 2007 | Chevrolet | Monte Carlo | LS | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV | ||||
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| SS | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV | |||
| V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | ||||
| V8 – 5.3L 5328cc 325ci GAS MFI vin C type LS4 – 2 valve OHV | ||||
| 2003 | Chevrolet | Monte Carlo | LS Competition LS Sport | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| SS High Sport SS Pace Car | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | |||
| 2005 – 2007 | Chevrolet | Monte Carlo | LT | V6 – 3.5L 3490cc 213ci FLEX MFI vin K type LZE – 2 valve OHV |
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | ||||
| 2006 | Chevrolet | Monte Carlo | LTZ | V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV |
| 2003 – 2004 | Chevrolet | Venture | Base | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2003 – 2005 | Chevrolet | Venture | LS LT Plus | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2003 | Chevrolet | Venture | Value Warner Bros. | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2003 – 2005 | Pontiac | Aztek | Base | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2004 – 2005 | Pontiac | Aztek | Rally | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2003 | Pontiac | Aztek | V | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2005 – 2008 | Pontiac | Grand Prix | Base | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| GXP | V8 – 5.3L 5328cc 325ci GAS MFI vin C type LS4 – 2 valve OHV | |||
| 2003 – 2007 | Pontiac | Grand Prix | GT | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 4 type L32 – 2 valve OHV |
| V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV | ||||
| V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | ||||
| 2004 | Pontiac | Grand Prix | GT1 GT2 | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| 2003 – 2005 | Pontiac | Grand Prix | GTP | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV |
| V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 4 type L32 – 2 valve OHV | ||||
| 2003 | Pontiac | Grand Prix | SE | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 2003 – 2005 | Pontiac | Montana | Base | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2005 | Pontiac | Montana | SV6 | V6 – 3.5L 213ci GAS MFI vin L – 2 valve OHV |
| V6 – 3.5L 3498cc 213ci GAS MPI type LX9 – 2 valve OHV |
