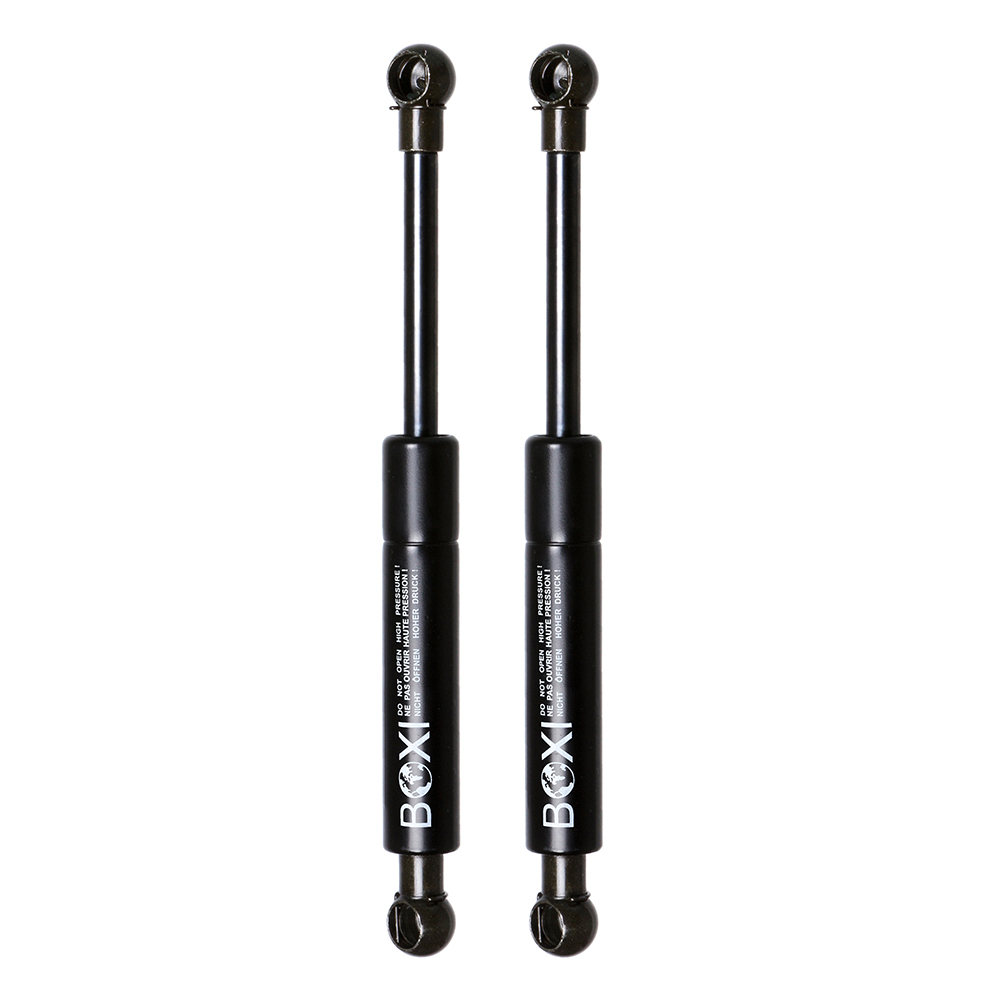

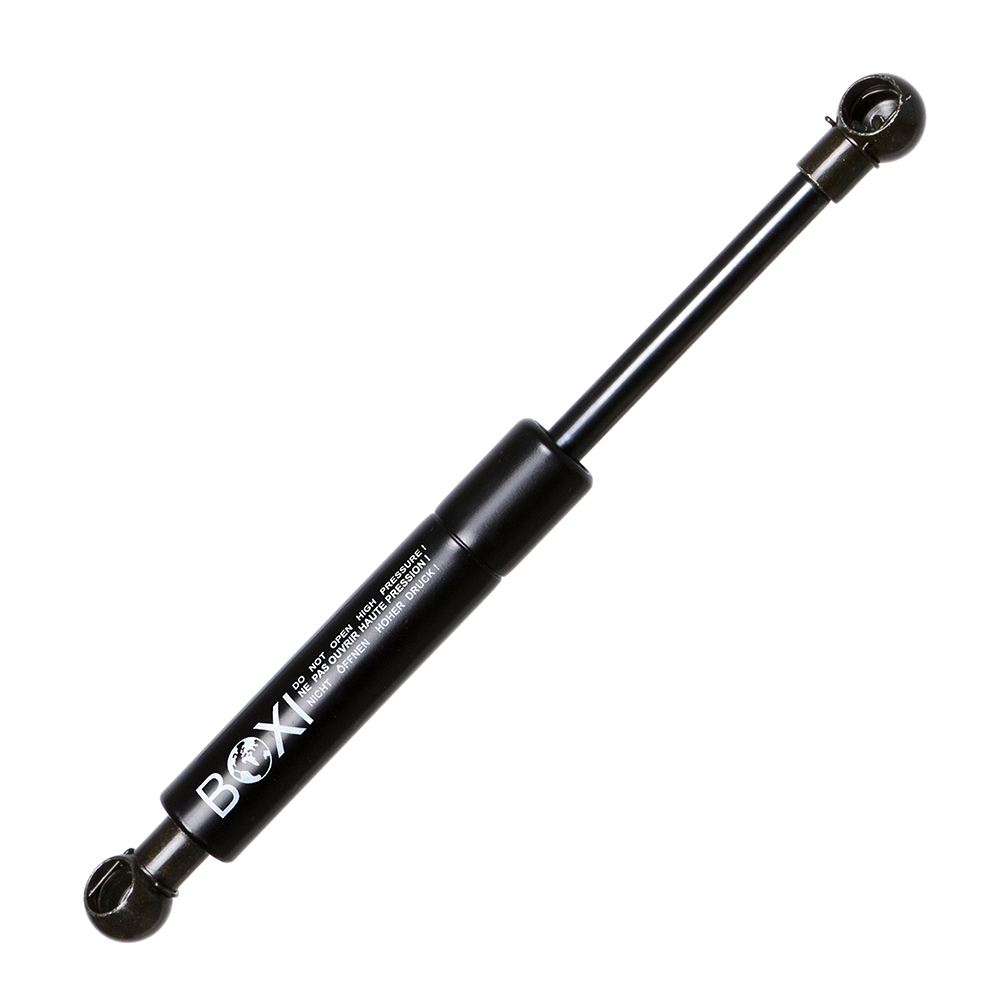

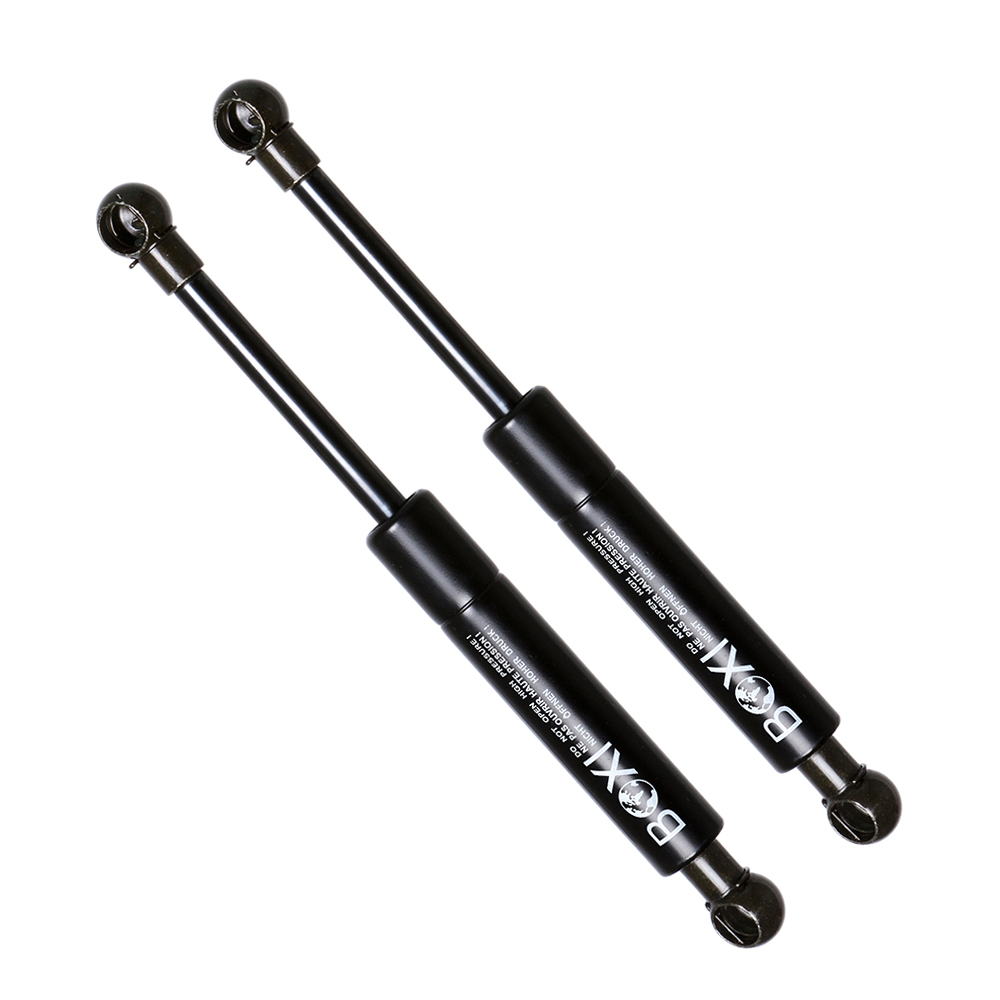

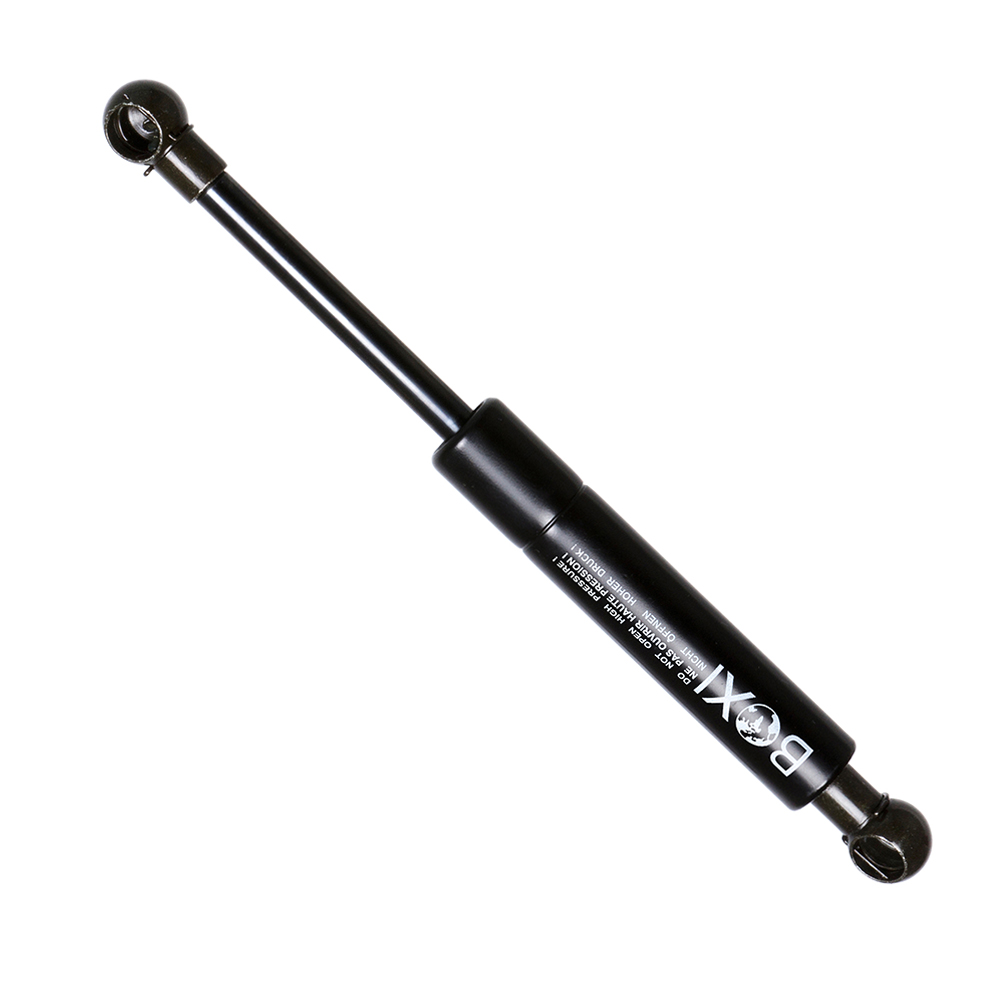

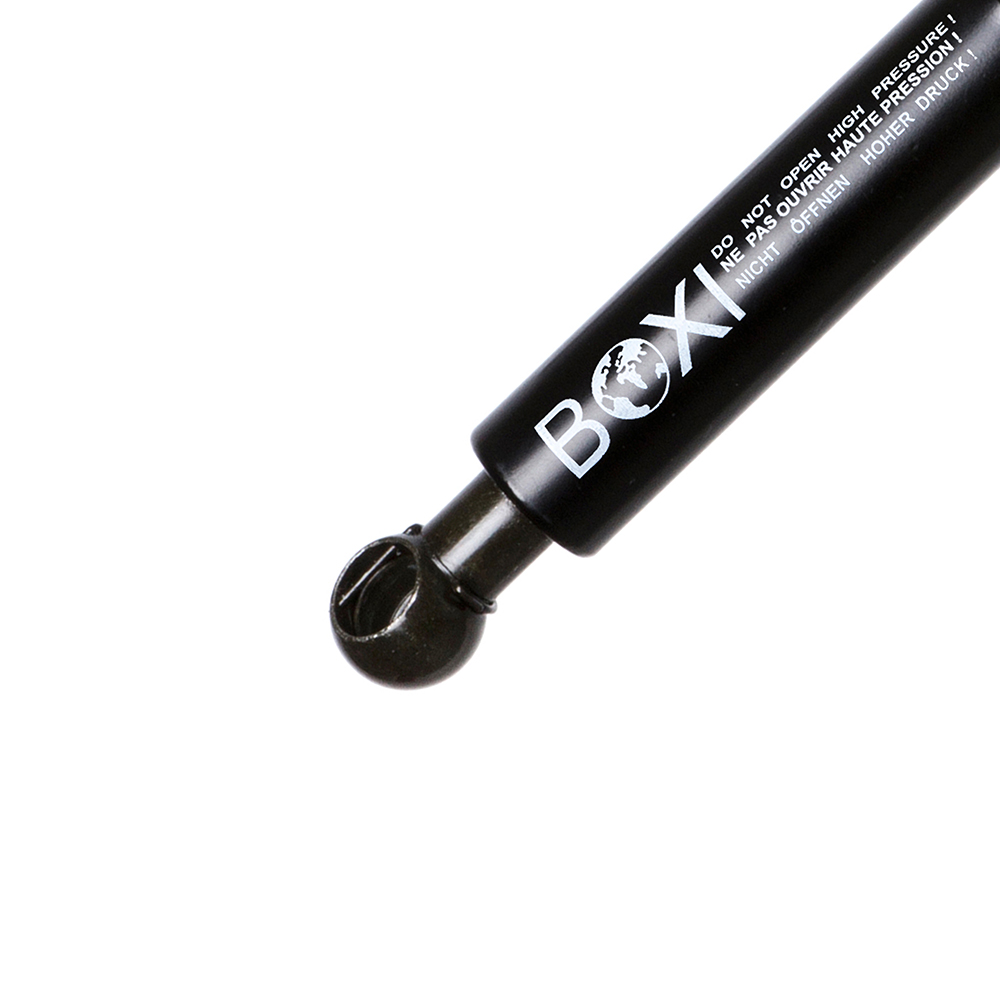

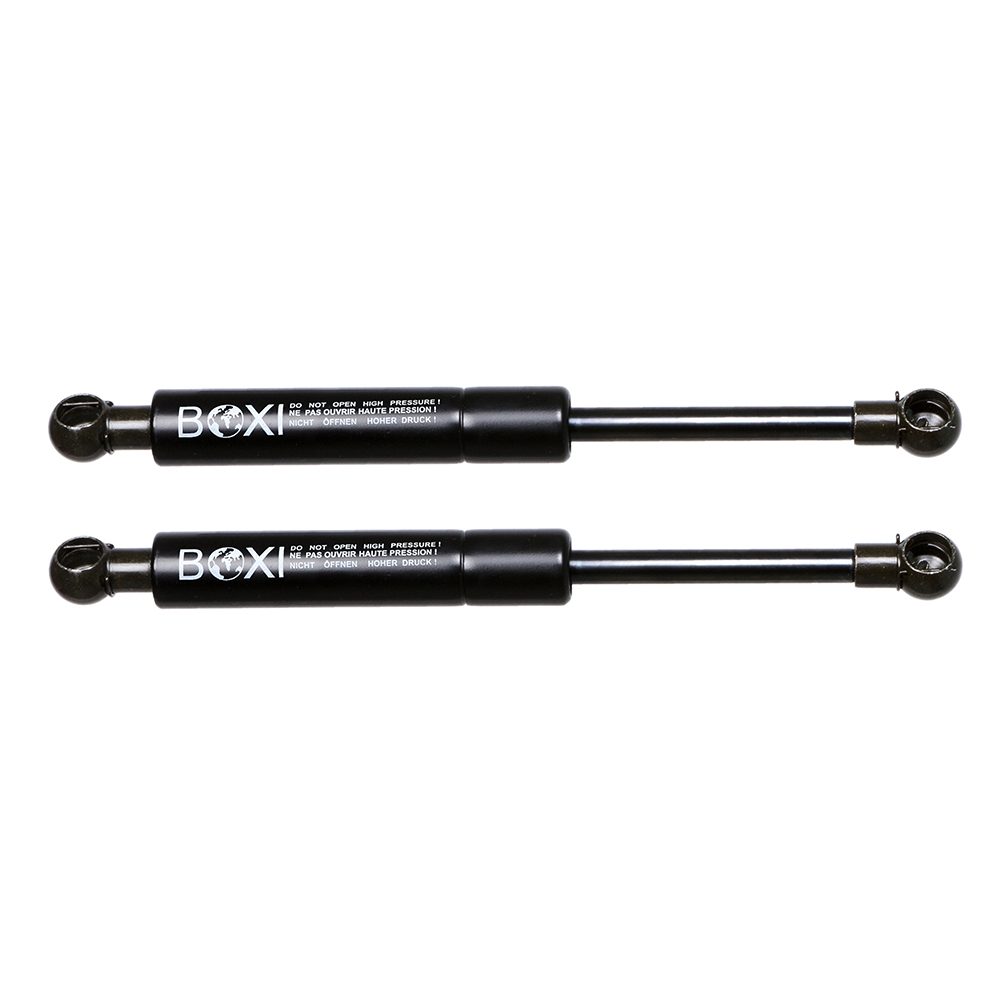

BOXI 28 inch 96 LB Gas Struts Shocks Lift Support Gas Spring for Heavy LIds RV Bed Truck Tonneau Cover Trap Basement Door TV Cabinet Tool Box 13mm(1/2″) Ball Socket Cup (Steel) 2 Pcs Set 6942

BOXI SKU#: BXC300054679-2

$19.29

BOXI 28-inch gas struts (2 pack) for RV beds, truck tonneau covers, heavy lids, and cabinets. 96 lb force. Verify fitment before ordering.

OE / Interchange Part Numbers: 6942

  • 5 Years Warranty

172 in stock

Package included:
2pcs Universal Lift Supports

Extended Length [in] 28.00
Compressed Length [in] 16.75
ext.ser.num 427N
Force (lbs) 96.00

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 2.38 lbs
Dimensions 25.59 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

711
Stroke (in):

11.25
Stroke (mm):

286
Compressed Length (in)

Compressed Length (mm):

425
Force (Lbs)

Force (Newtons)

427
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10
Body Connection:

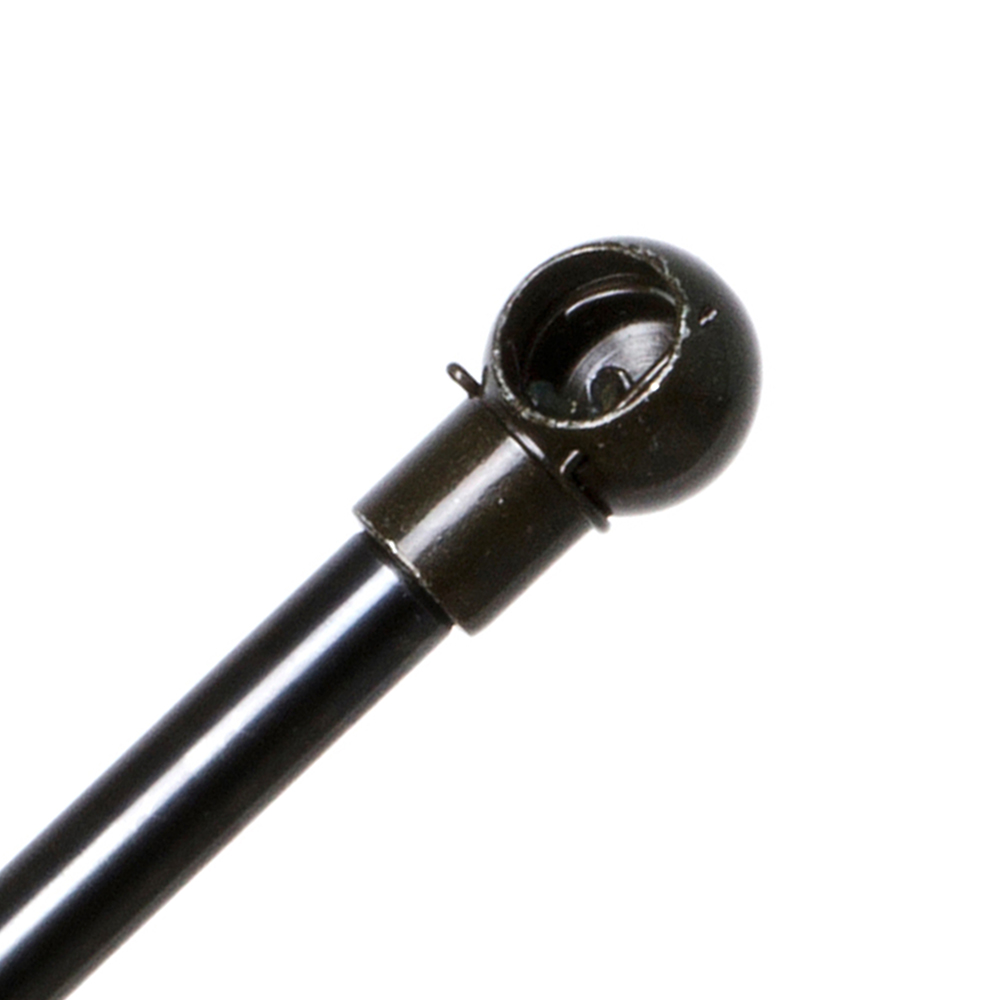

Ball Socket Long Cup (Steel) Type=13mm=1/2"=.50"
Shaft Connection:

Ball Socket Long Cup (Steel) Type=13mm=1/2"=.50"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

6942
