BOXI 2pcs Universal Lift Supports Struts Dampers Extended Length 10 Inches Compressed Length 6.75 Inches Froce 51 LBS for Tool Box Lid Boat Storage Lids Truck Topper Truck Cap / 4672 8196142 SL1-50-1

BOXI SKU#: BXC300054603-2

$26.99

BOXI 2-piece Universal Lift Supports / Gas Struts. Extended length 10 inches, compressed 6.75 inches, force 51 lbs. Universal fit for tool boxes, truck caps, storage lids, and many other applications. Reference OE numbers: 4672, 8196142, SL1-50-1. Verify fitment before ordering.

OE / Interchange Part Numbers: 1007850, 10079, 1007943, 1007945, 1713EO, 18915, 4672, 8196142, 95791, F95791, FRS40, FSR40

  • 5 Years Warranty

89 in stock

Placement on Vehicle:
Package Included:2pcs Universal Lift Supports

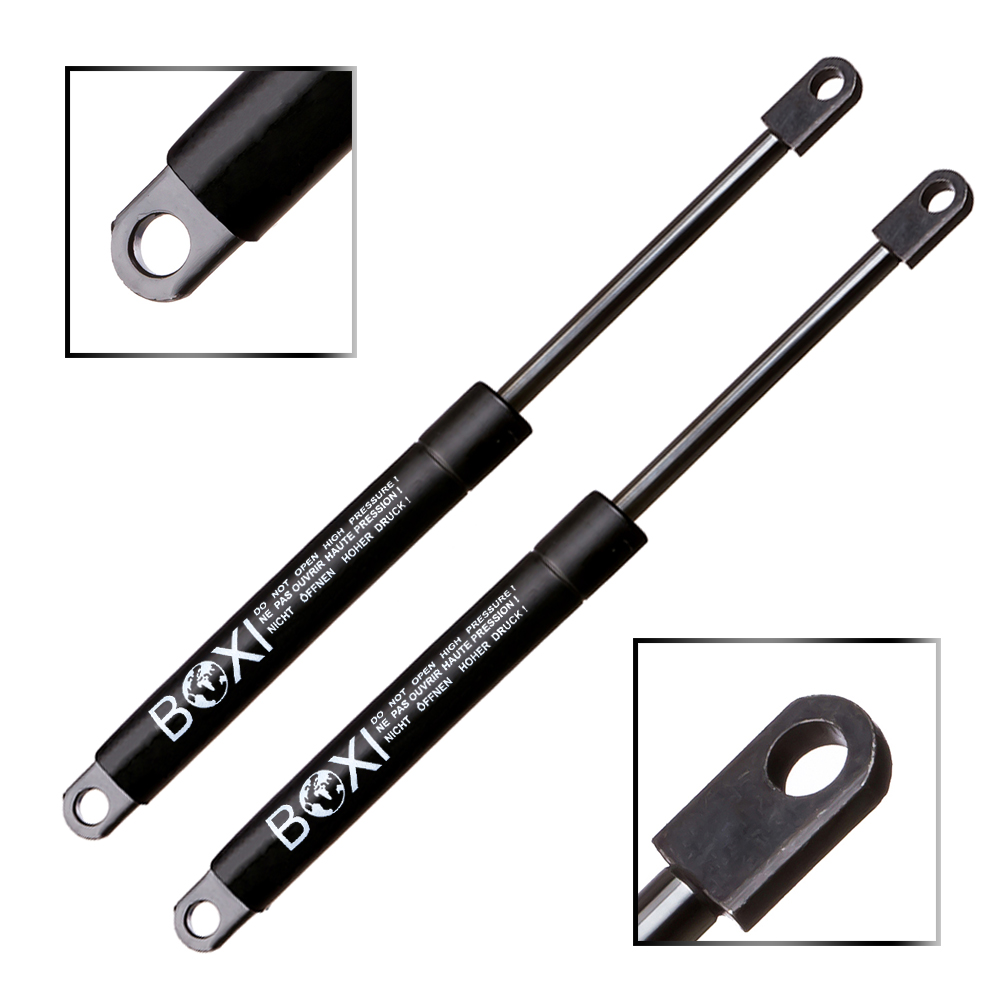

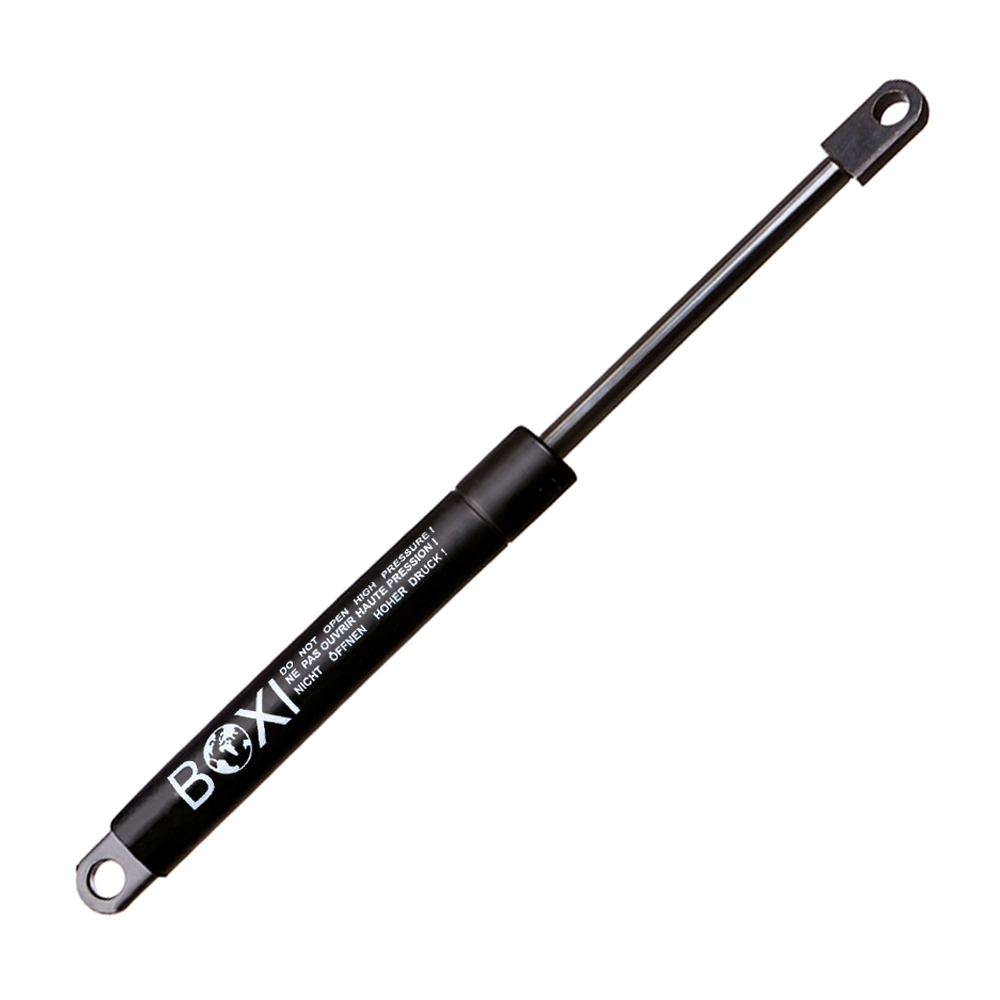

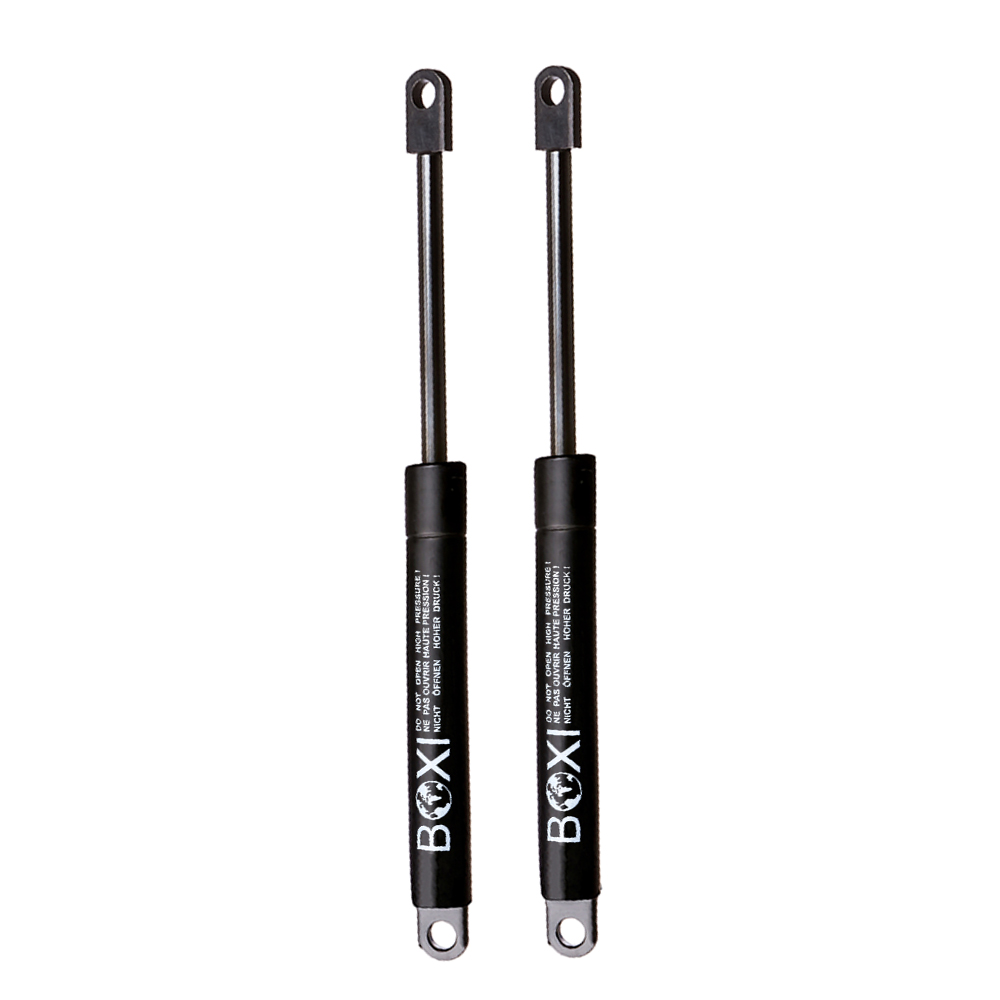

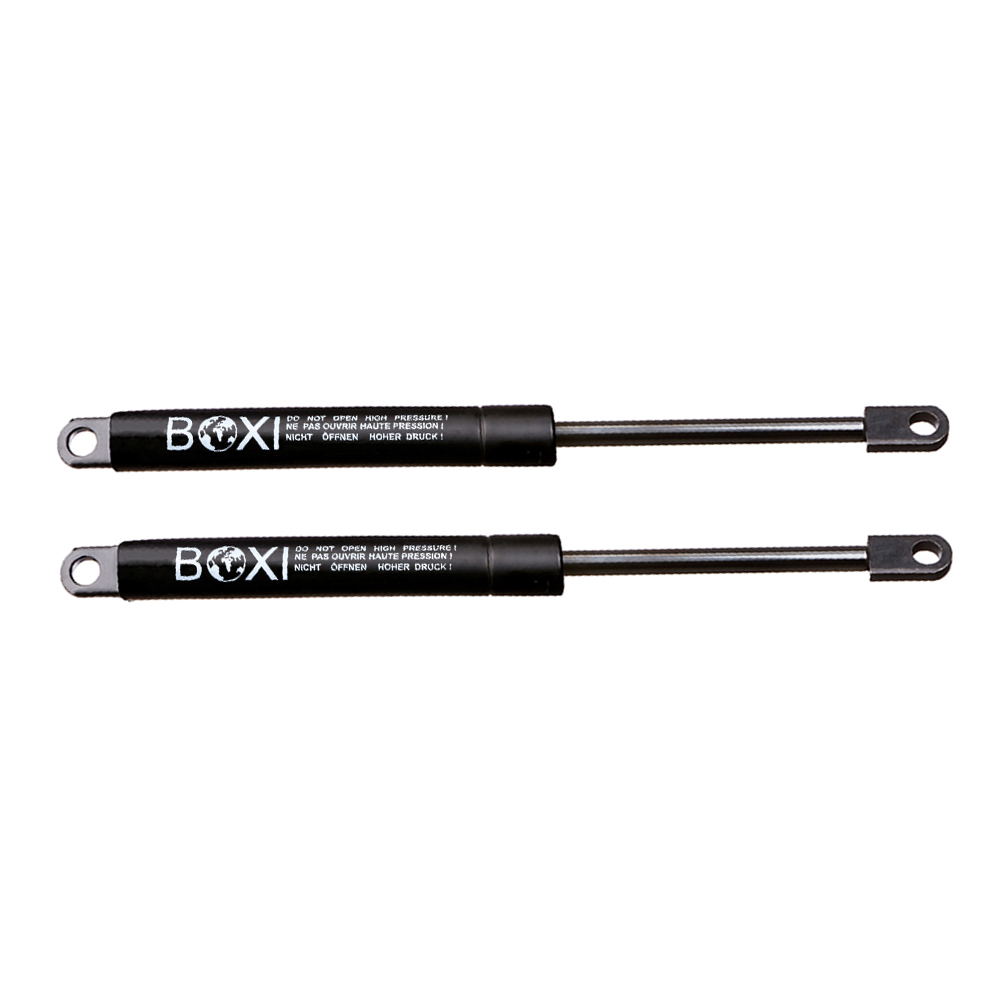

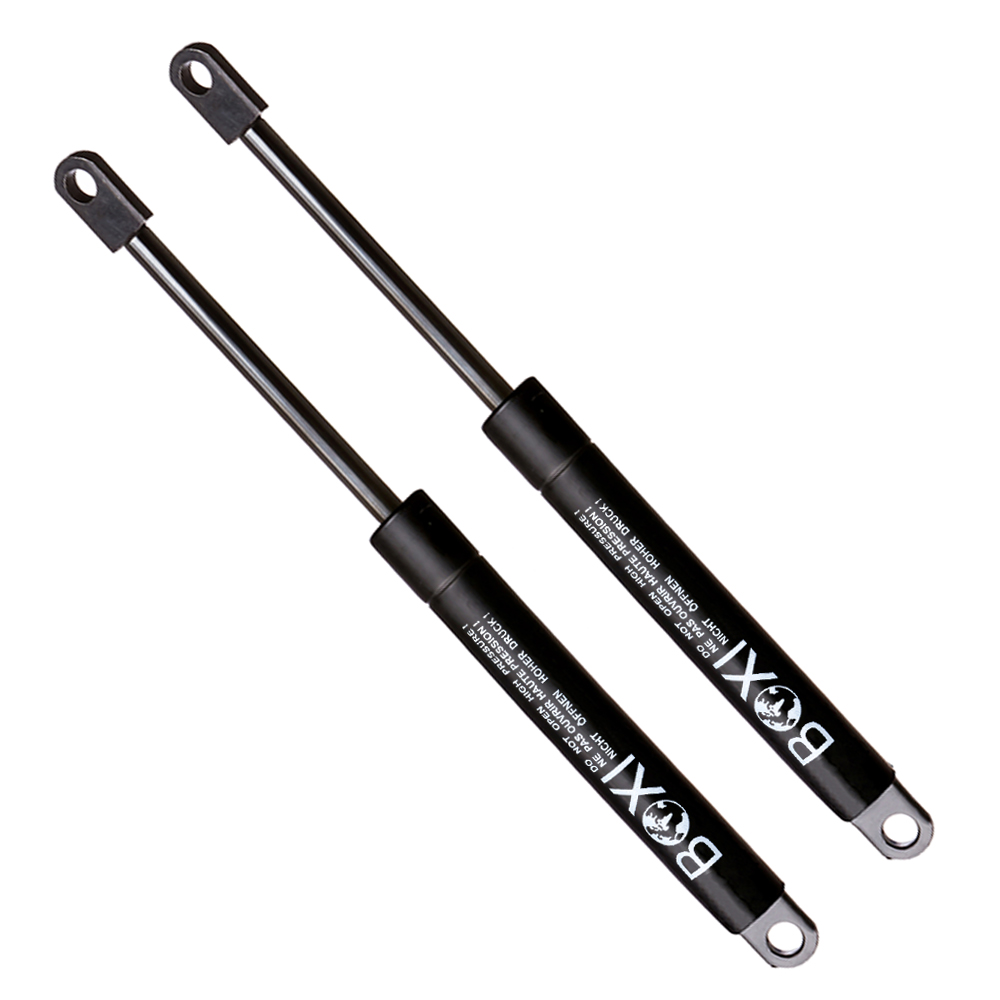

BOXI 2pcs Universal Lift Supports
Extended Length: 10.00 Inches
Compressed Length: 6.75 Inches

Force: 227N = 51 Lbs.

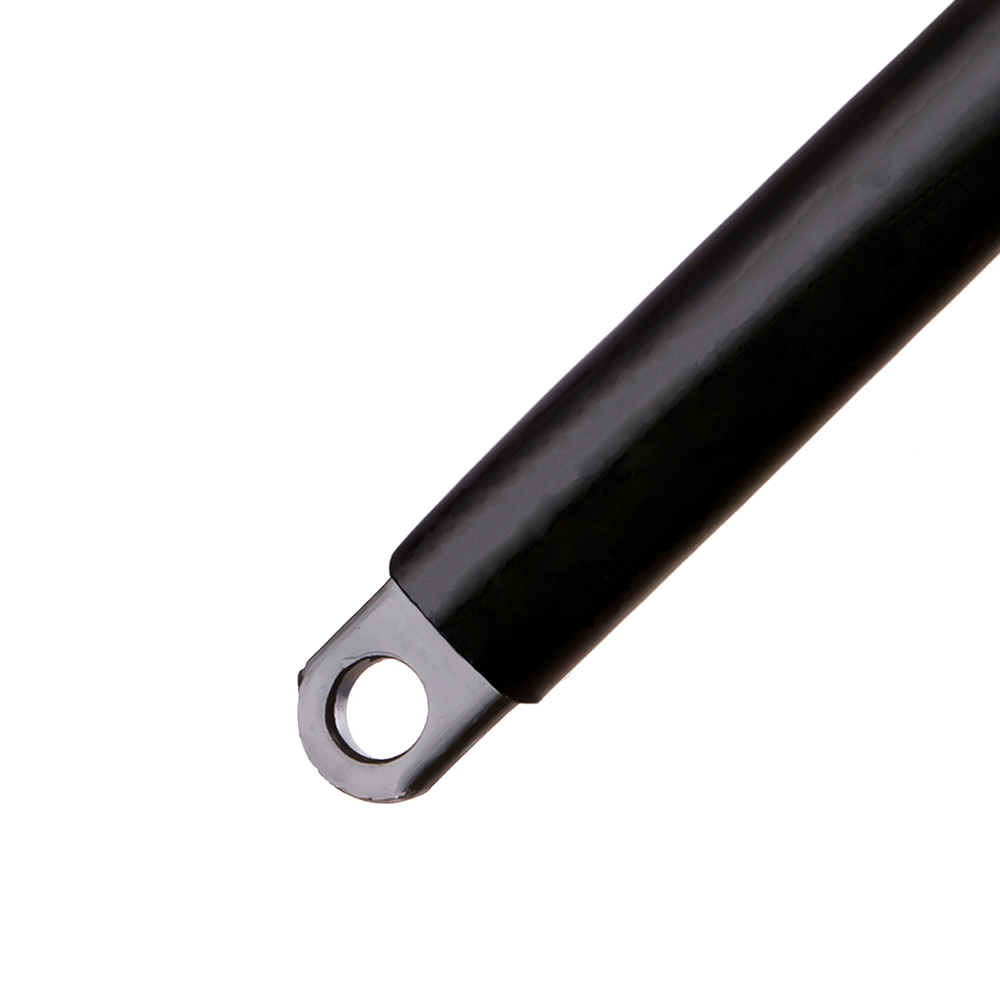

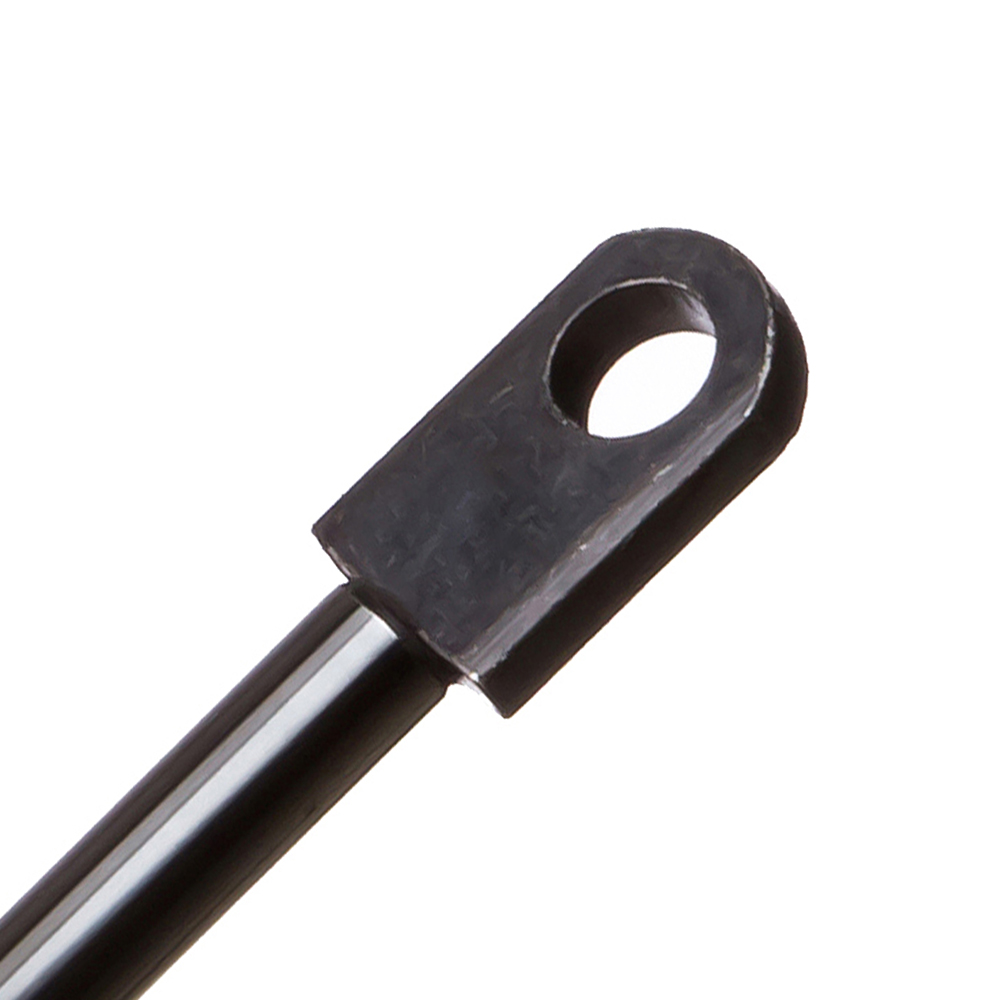

Shaft End Fitting: Eyelet Hole=10.2mm=13/32″=.402″
Body End Fitting: Eyelet Hole=10.2mm=13/32″=.402″

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.55 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

254
Stroke (in):

3.25
Stroke (mm):

83
Compressed Length (in)

Compressed Length (mm):

171
Force (Lbs)

Force (Newtons)

227
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

Eyelet Hole=10.2mm=13/32"=.402"
Shaft Connection:

Eyelet Hole=10.2mm=13/32"=.402"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95791, 1007850, 10078-50, 10079, 1007943, 1007945, 10079-45, 1713, 1713EO, 18915, 4672, 8196142, F95791, FRS40, FSR40, ML150, ML1-50, ML-1-50, SL150, SL1-50, SL-150, SL-1-50, SL1501, SL1-50-1, SL-1501, SL-1-50-1, SL1505, SL1-50-5, SL-1505, SL-1-50-5
