Free Shipping on All Orders — Plus Local Delivery & Pick-Up Options!

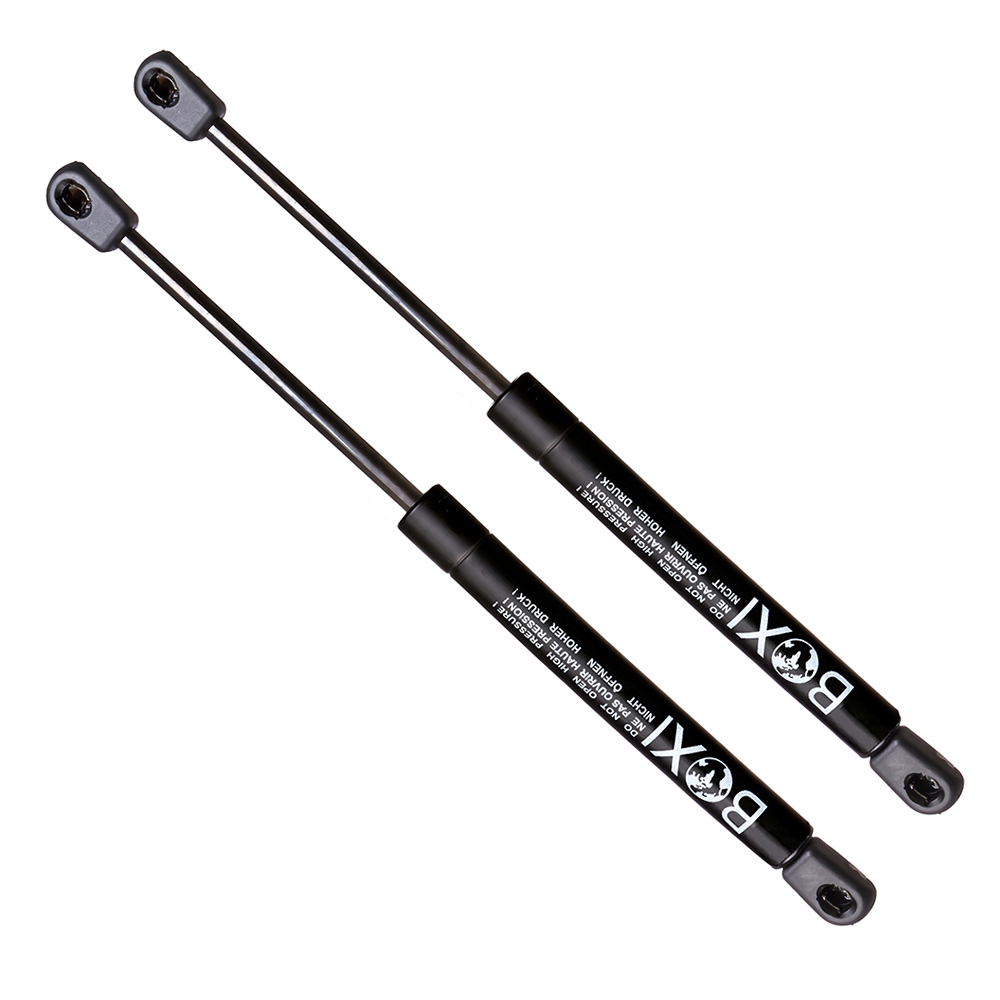

Qty(2) BOXI 4488 Universal Lift Supports Struts Shocks Gas Struts Extended Length 12″ / Compressed Length 8.05″ / Force 54lb / 10mm Ball Socket for RV Bed Toolbox Lid Rear Window Truck Canopy Cover

BOXI SKU#: BXC300054666-2

$15.99

BOXI Universal Gas Lift Supports (OE 4488) for RV, truck, and household applications. These gas struts feature 12″ extended and 8.05″ compressed length with 54lb force. Verify fitment before ordering.

OE / Interchange Part Numbers: 1579EQ, 1634EE, 4488, 613945, 647128, 7389IO, 7391IV, 7401QJ, 8195585, 8427IS, C1612104, ML1555

  • 5 Years Warranty

590 in stock

Package included:
2pcs Universal Lift Supports

Extended Length [in] 12.00
Compressed Length [in] 8.05
ext.ser.num 240N
Force (lbs) 54.00

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.8 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

305
Stroke (in):

3.95
Stroke (mm):

101
Compressed Length (in)

Compressed Length (mm):

204
Force (Lbs)

Force (Newtons)

240
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

1579EQ, 1634EE, 4488, 613945, 647128, 72502PK, 7250-2PK, 7389IO, 7391IV, 7401QJ, 8195585, 8427IS, C1612104, C16-12104, ML1555, ML15-55, ML-15-55, ML3555, ML35-55, ML-35-55, SG459005, SL1555, SL15-55, SL-1555, SL-15-55
