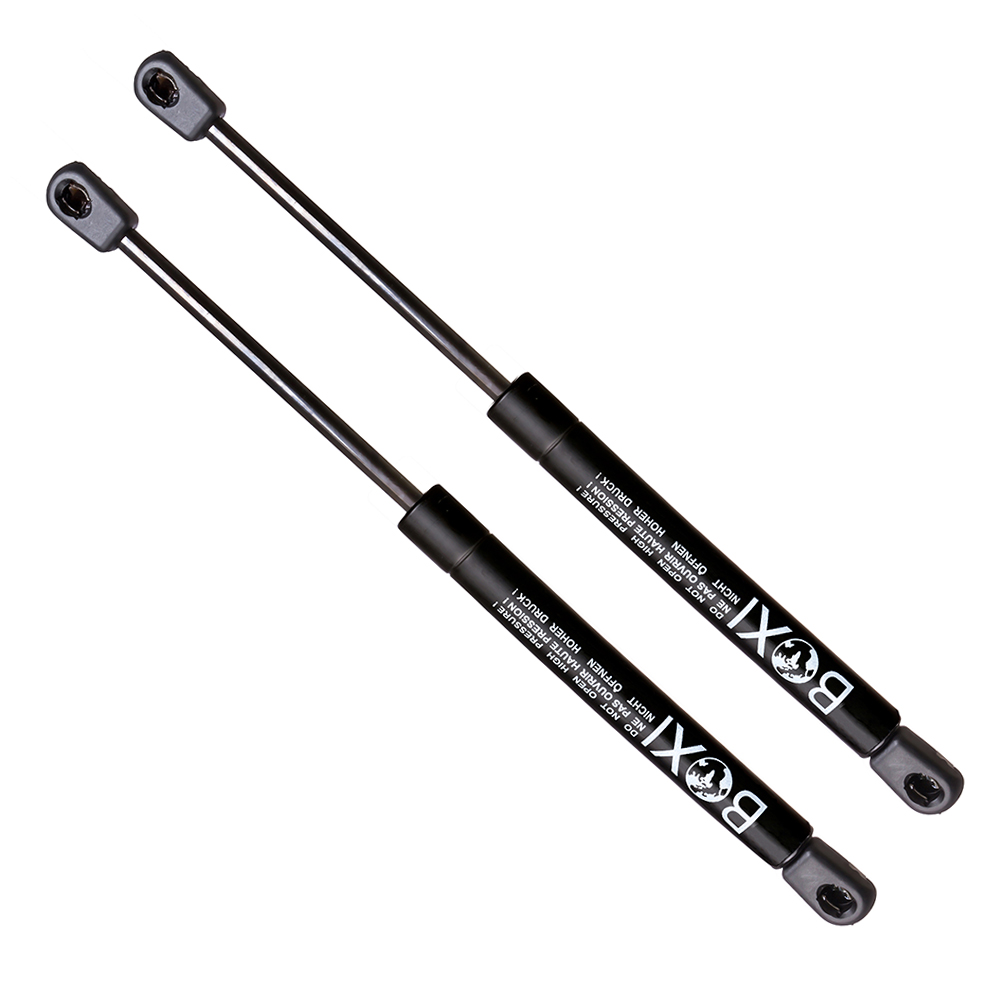

BOXI 2pcs Universal Lift Supports Struts Gas Struts Springs Supports Extended Length 15.00 Inches, Compressed Length 9.34 Inches, 26lb 10mm Ball Socket Shocks | OE#SG459030 6924 ACP65520

BOXI SKU#: BXC300054601-2

$21.59

BOXI Lift Supports Struts with extended length 15.00 inches and compressed 9.34 inches, 26lb force. Suitable for automotive, truck, marine, and household applications. OE# SG459030, 6924, ACP65520. Verify fitment before ordering.

OE / Interchange Part Numbers: 6924, 95684, ACP65520, E95684, SG459030

  • 5 Years Warranty

311 in stock

Placement on Vehicle:
Package Included:2pcs Universal Lift Supports

6924 Universal 15″ 26lb 10mm Ball Socket Lift Supports Struts
Extended Length: 15.00 Inches
Compressed Length: 9.34 Inches
Force: 116N = 26 Lbs.

Shaft End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″
Body End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.77 lbs
Dimensions 17.72 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

381
Stroke (in):

5.66
Stroke (mm):

144
Compressed Length (in)

Compressed Length (mm):

237
Force (Lbs)

Force (Newtons)

116
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95684, 3858LW, 6924, ACP65520, E95684, SG459030
