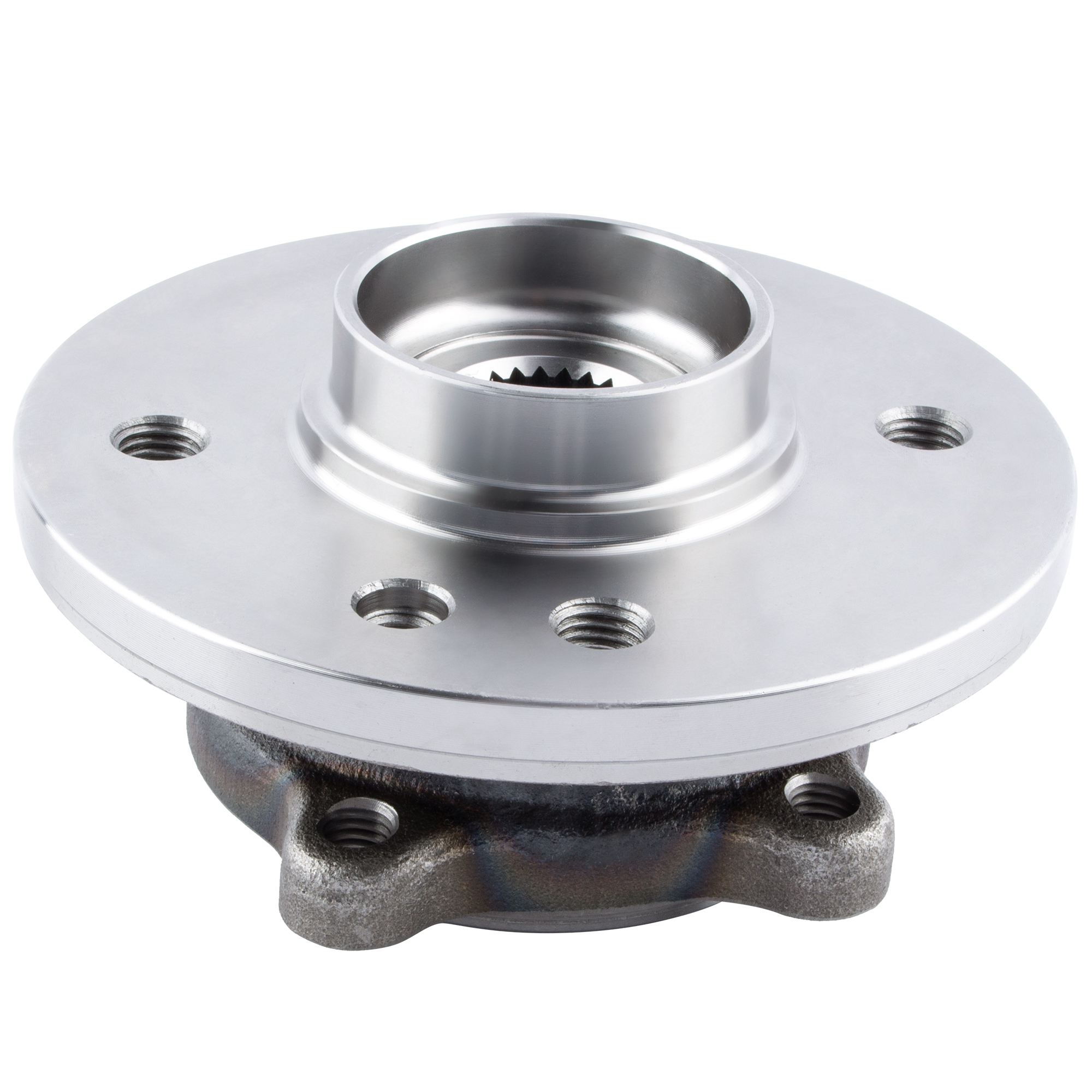

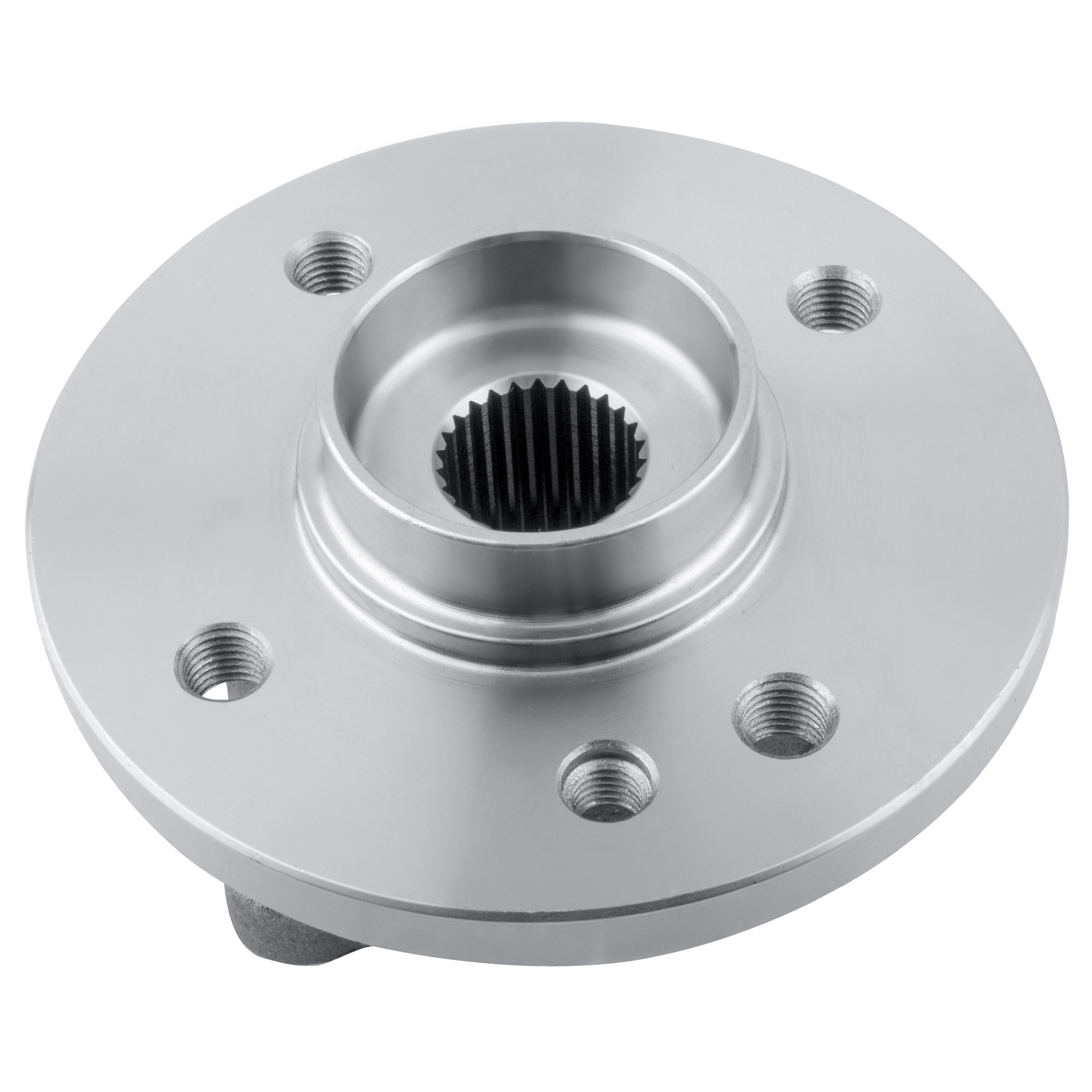

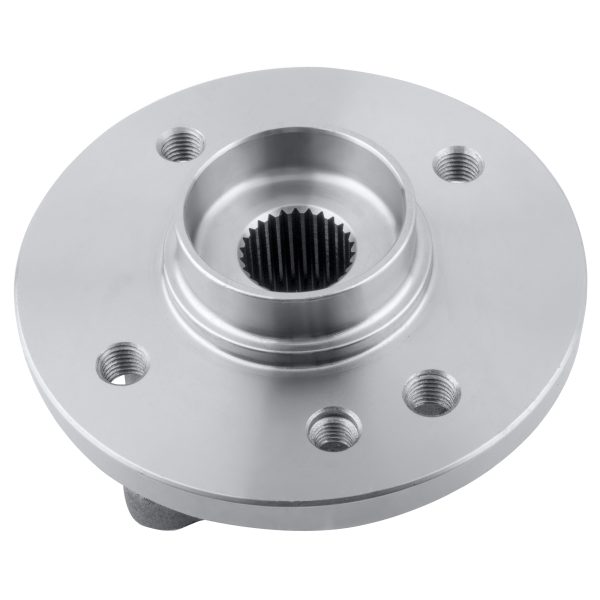

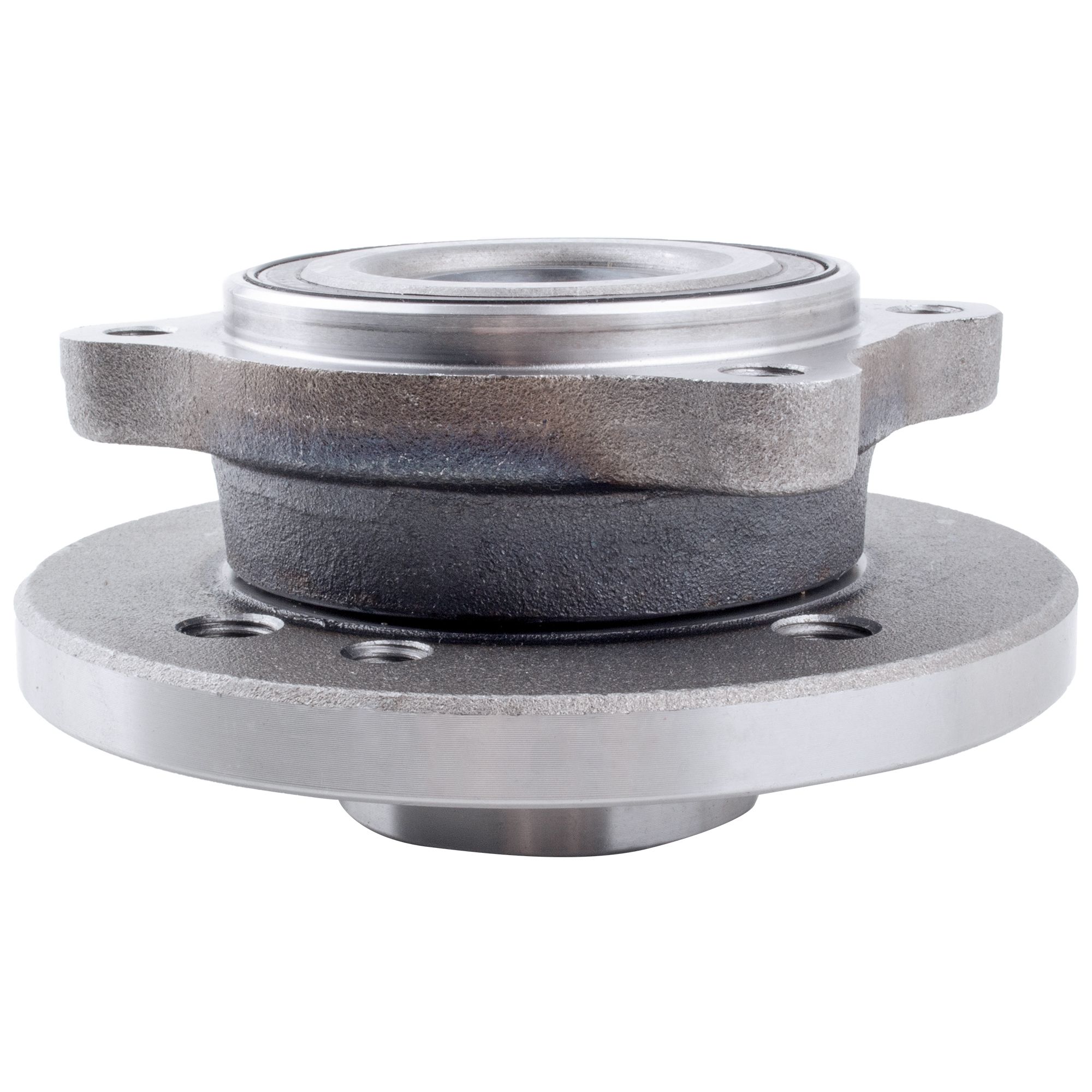

BOXI Front Left or Right Wheel Hub and Bearing Assembly 4 Lugs w/ABS for 2002-2006 Mi-ni Coop-er (Built Before 4/06 Production Date) 12mm Wheel Bolt Size 513226
BOXI SKU#: BX03200028-1
$35.52
BOXI Front Left or Right Wheel Hub and Bearing Assembly compatible with 2002-2006 Mini Cooper. Replaces OEM numbers 513226, 31226756889, and more. Verify fitment before ordering.
OE / Interchange Part Numbers: 31226756889, 31226776671, 513226, VKBA3674
1 in stock
Placement on Vehicle:Rear Left or Right
Package Included:1pc Wheel Hub and Bearing Assembly
Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.
Fitment:
2002 – 2006 for Mi-ni Coop-er (Built Before 4/06 Production Date) Wheel Bearing & Hub Assembly 12mm Wheel Bolt Size
Replacement OEM ( Original Equipment Part) Number:513226,31 20 6 779 735,31 22 6 756 889,31 22 6 776 671,31226756889,31226776671,VKBA3674
Package Included:1*Wheel hub bearing
| Weight | 6.51 lbs |
|---|---|
| Dimensions | 6.69 × 6.49 × 6.29 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | No |
| Flange Shape | Rectangle |
| Wiring Harness Included | No |
| Bearing Type | Ball |
| Flange Diameter (in) | 2.519 Inch |
| Flange Diameter (mm) | 137mm |
| Flange Offset (in) | 1.732 Inch |
| Flange Offset (mm) | 44mm |
| Hub Pilot Diameter (in) | 3.181 Inch |
| Hub Pilot Diameter (mm) | 80.8mm |
| Total Hub Diameter (in) | 5.400 Inch |
| Total Hub Diameter (mm) | 137.2mm |
| Hub Centerbore Diameter (in) | 3.940 Inch |
| Hub Centerbore Diameter (mm) | 100mm |
| Total Hub Height (in) | 2.830 Inch |
| Total Hub Height (mm) | 72mm |
| Number Of Splines | 26 |
| Number Of Lugs | 4 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Number Of Lug Bolts Included | 4 |
| Number Of Flange Bolts Included | 4 |
| Lug Bolt Thread Size | M10-1.50 |
| Flange Bolt Thread Size | M10-1.50 |
| Warranty Terms | Two Year |
| Interchange Part Number | 31 22 6 756 889, WE61653, 516247, 516372, 051-6247, 051-6372, C680, CR2340, 400.34000E, 22315, 31077, SB513226, 720-0362, 494226, BRG BR930374, 62BWKH01A, NSK BEARINGS62BWKH01A-Y-5, 62BWKH01A-Y-5CP-01, 62BWKH01A1-Y-5, 62BWKH01A1-Y-5C-01, 10016028, P513226, PS513226, QWB1268, 713649350, FW9226, VKBA3674, R162.50, BHA53638, BHA54069, BHA65725, PT513226, H513226, CT513226, BR930374, 91-44903, 713226, 513226, 101622 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2002 – 2006 | Mini | Cooper | Base | L4 – 1.6L 1600cc GAS MFI type W10B16A – 4 valve SOHC |
| S | L4 – 1.6L 1597cc 98ci GAS MPI Supercharged – 4 valve SOHC | |||
| L4 – 1.6L 1597cc 98ci GAS MPI Supercharged type W10B16 – 4 valve SOHC | ||||
| L4 – 1.6L 1600cc GAS MFI Supercharged type W11B16A – 4 valve SOHC | ||||
| 2006 | Mini | Cooper | Checkmate Park Lane | L4 – 1.6L 1597cc 98ci GAS MPI Supercharged type W10B16 – 4 valve SOHC |
| L4 – 1.6L 1597cc 98ci GAS MPI type W10B16 – 4 valve SOHC | ||||
| S Checkmate S Park Lane | L4 – 1.6L 1597cc 98ci GAS MPI Supercharged – 4 valve SOHC | |||
| Seven | L4 – 1.6L 1600cc GAS MFI type W10B16A – 4 valve SOHC | |||
| 2003 – 2006 | Mini | Cooper | Chili Salt | L4 – 1.6L 1597cc 98ci GAS MPI – 4 valve SOHC |
| L4 – 1.6L 1597cc 98ci GAS MPI type W10B16 – 4 valve SOHC | ||||
| L4 – 1.6L 1600cc GAS MFI type W10B16A – 4 valve SOHC | ||||
| Pepper | L4 – 1.6L 1597cc 98ci GAS MPI – 4 valve SOHC | |||
| L4 – 1.6L 1600cc GAS MFI type W10B16A – 4 valve SOHC | ||||
| S Chili S Salt | L4 – 1.6L 1597cc 98ci GAS MPI Supercharged – 4 valve SOHC | |||
| L4 – 1.6L 1597cc 98ci GAS MPI Supercharged type W10B16 – 4 valve SOHC | ||||
| S Hot Chili | L4 – 1.6L 1597cc 98ci GAS MPI Supercharged – 4 valve SOHC | |||
| 2002 | Mini | Cooper | Luxury Sport | L4 – 1.6L 1600cc GAS MFI type W10B16A – 4 valve SOHC |
