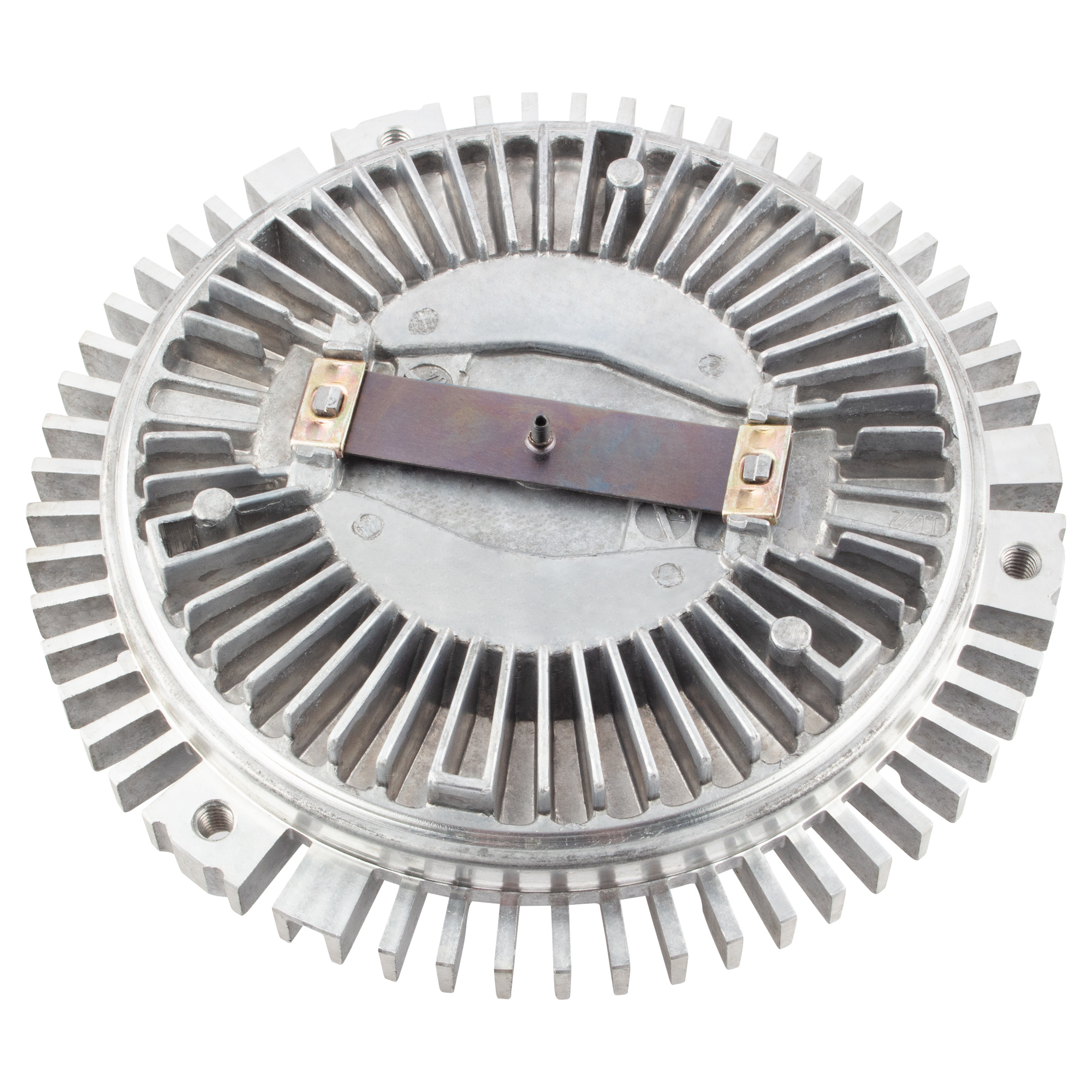

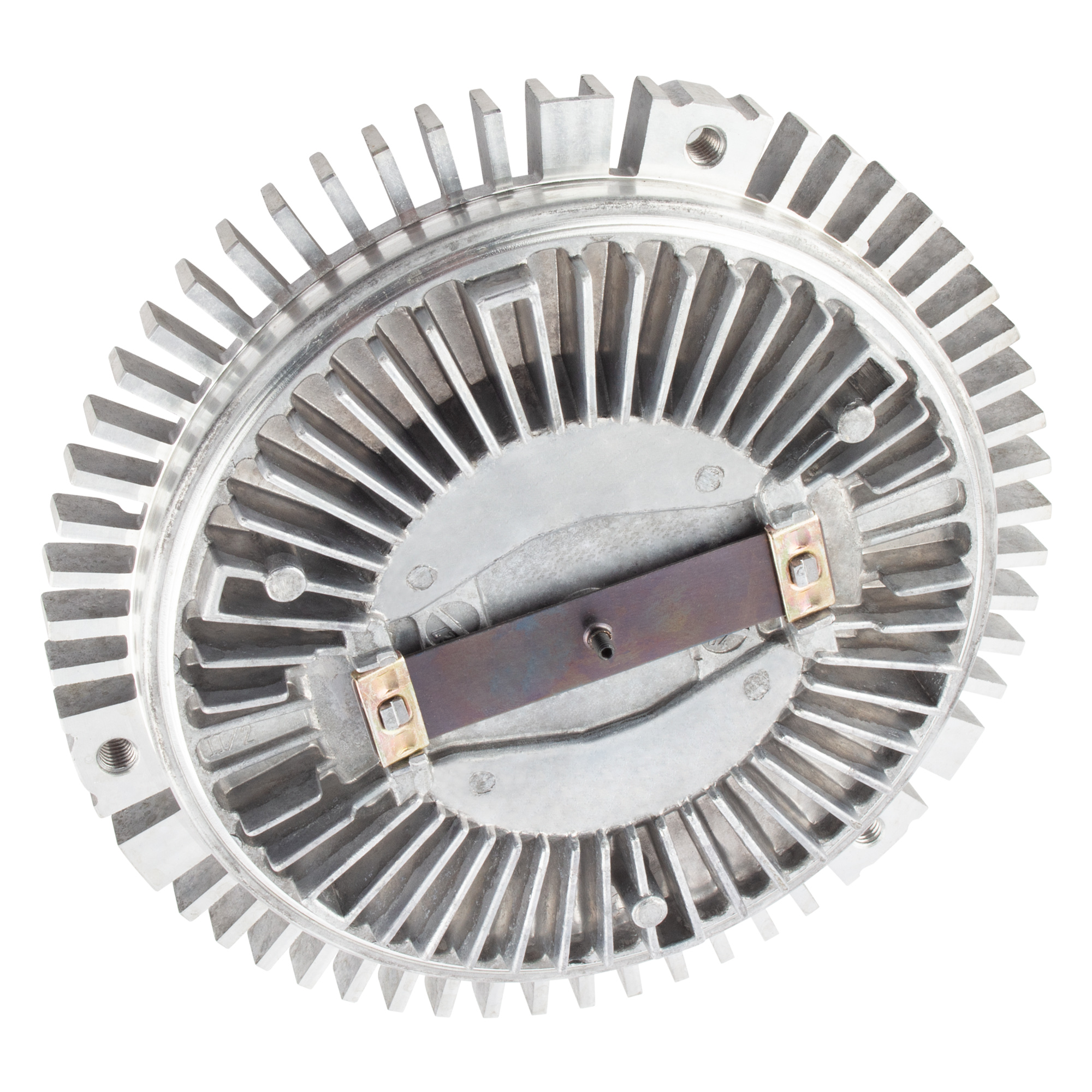

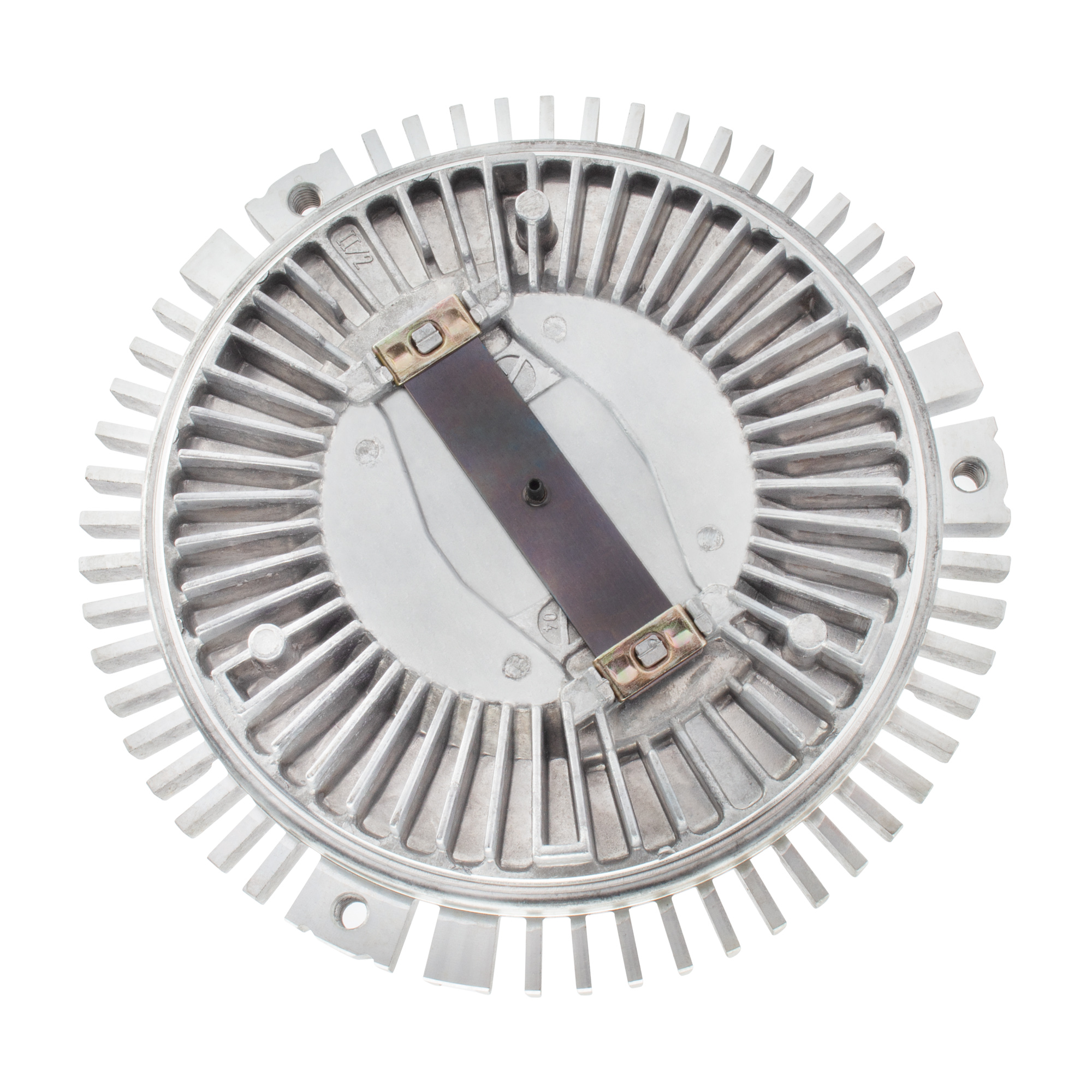

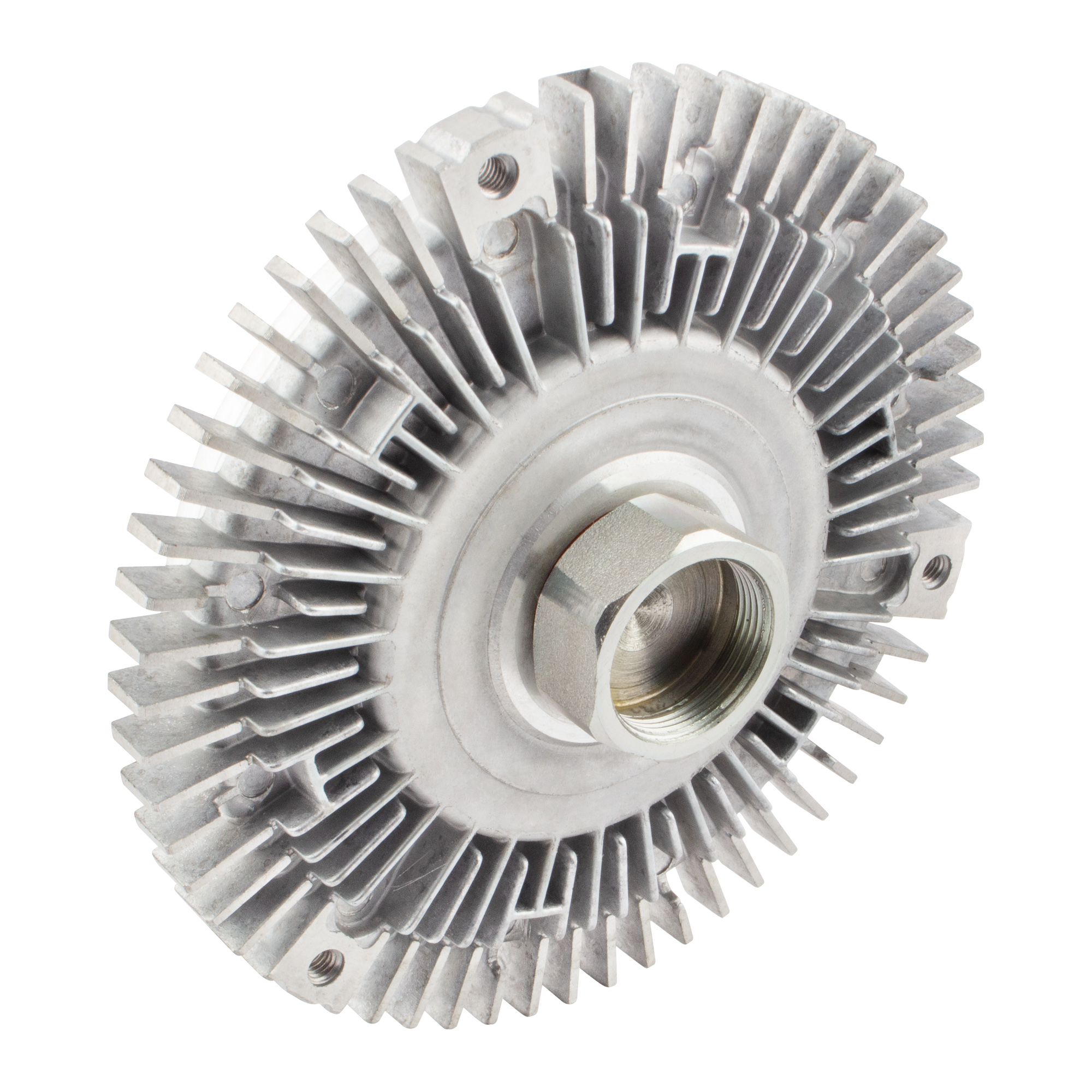

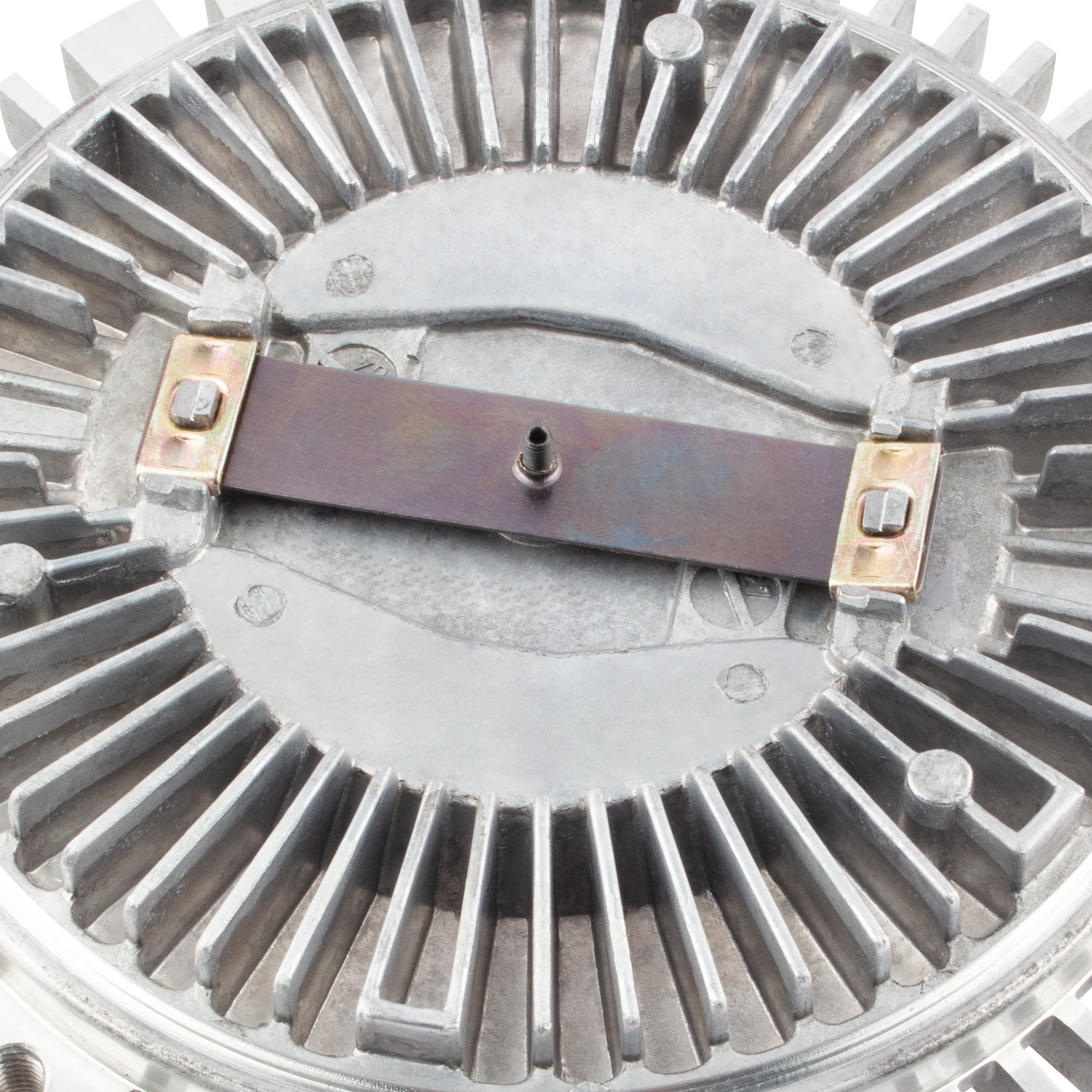

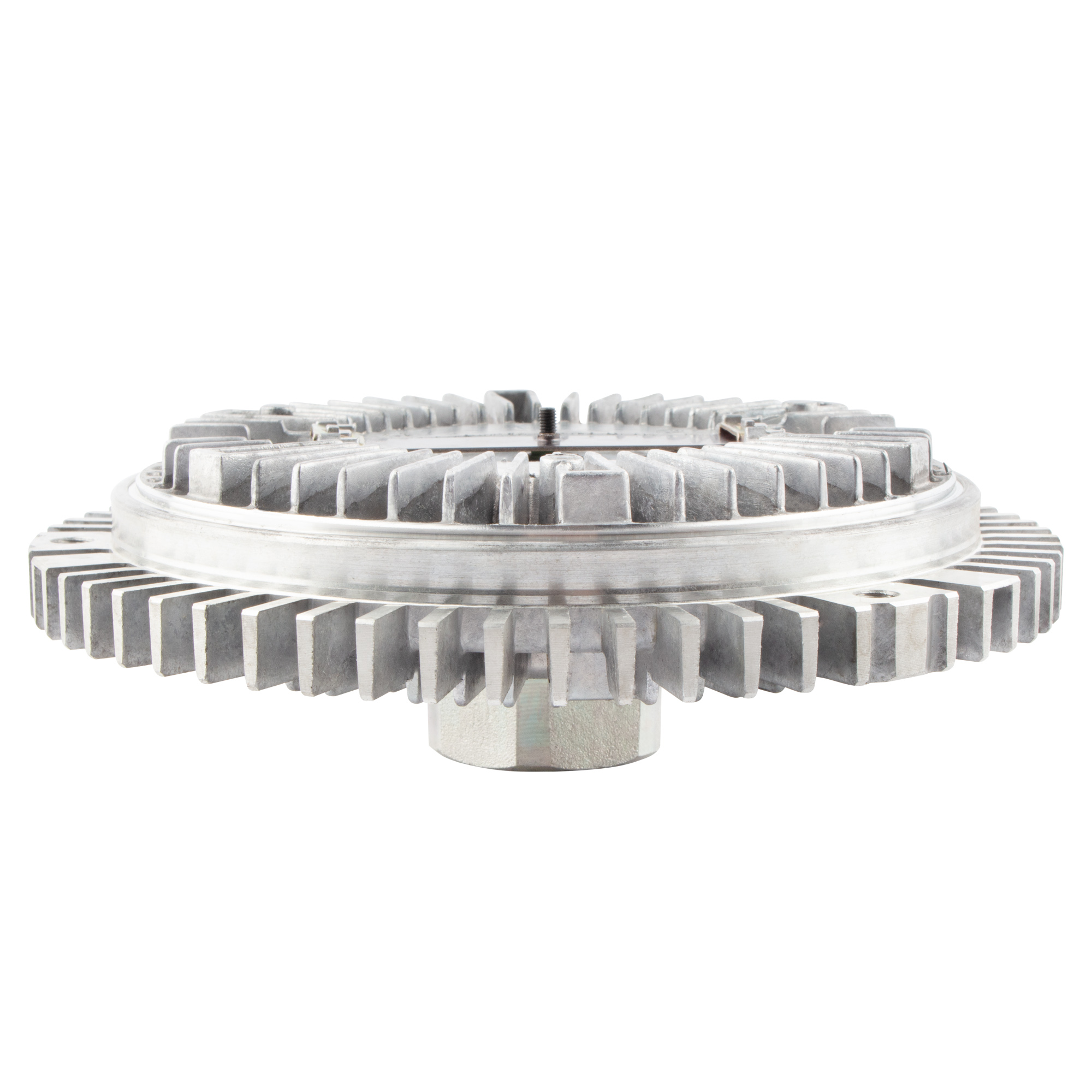

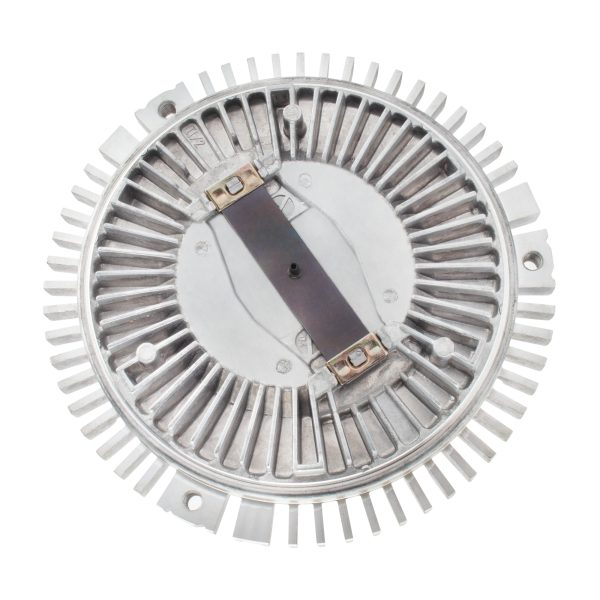

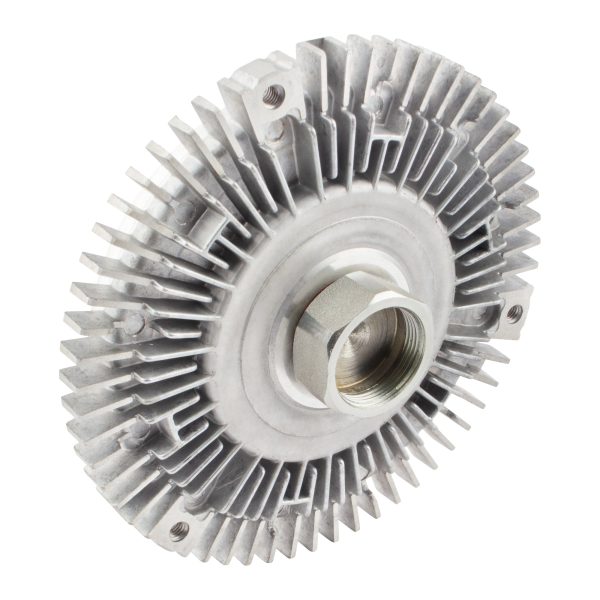

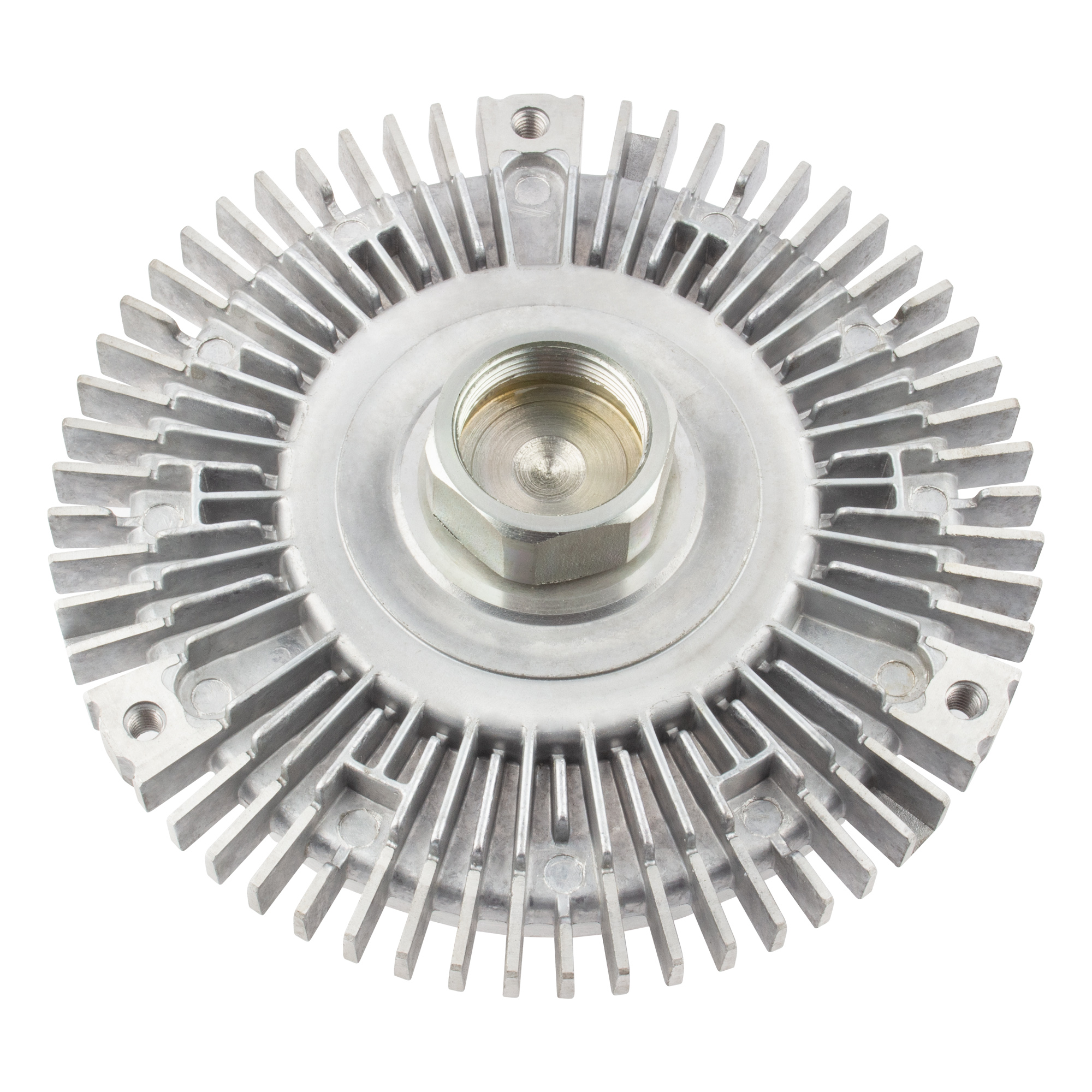

BOXI Cooling Fan Clutch for 1998-2003 Mercedes-Benz ML320 | Replaces OE #376731491
BOXI SKU#: BX01500024-1
$41.97
1 in stock
BOXIDirect-Fit OE ReplacementCooling Fan Clutch
Check if this part fits your vehicle
Select your vehicle to check fitment (3 compatible configurations)
Ship to Home
Available (1 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference
View All (9) →
Replaces OE #: 376731491, A1122000222, 1122000222, 130-0216, 215133 +4 more
Two Year Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications
View All Specifications →
- Package Included
- 1 x Cooling Fan Clutch
- Condition
- New
- Material
- Aluminum
- Rotation
- Counter-Clockwise
- Type
- Thermal
Direct-fit BOXI replacement part compatible with 1998-2003 Mercedes-Benz ML320 Base, 2003-2005 Mercedes-Benz ML350 Base, 2004-2005 Mercedes-Benz ML350 Special Edition. Replaces OE / interchange part numbers: 376731491, A1122000222, 1122000222, 130-0216, 215133, 922424, 46012, 2697. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Package Included
1 x Cooling Fan Clutch
Application Note
BOXI engine cooling fan clutchs are an ideal choice to replace your broken engine cooling fan clutchs. All engine cooling fan clutchs meet or exceed OEM specifications.
Application Note
Product description
Application Note
Replacement OEM ( Original Equipment Part) Number: 1122000222, A1122000222,130-0216, 947-2070, 376731491
Position & Application Summary
See Full Submodel & Engine Table →- Fit for Mercedes-Benz W163 ML320 1998-2003 3.2L—Engine Code M112
- Fit for Mercedes-Benz W163 ML350 2003-2005 3.7L—Engine Code M112
| Weight | 2.11 lbs |
|---|---|
| Dimensions | 6.81 × 6.54 × 2.4 in |
| Brand | BOXI |
| Condition | New |
| Material | Aluminum |
| Rotation | Counter-Clockwise |
| Type | Thermal |
| Duty Rating | Standard |
| Attachment Method | Bolt-On |
| Number Of Bolt Holes | 3 |
| Hardware Included | No |
| Bracket Included | No |
| Overall Diameter (in) | 6.300 Inch |
| Overall Diameter (mm) | 160mm |
| Overall Height (in) | 2.060 Inch |
| Overall Height (mm) | 52mm |
| Flange Diameter (in) | 1.440 Inch |
| Flange Diameter (mm) | 36mm |
| Fan Mount Diameter (in) | 5.310 Inch |
| Fan Mount Diameter (mm) | 134mm |
| Fan Mount Height (in) | 1.410 Inch |
| Fan Mount Height (mm) | 35mm |
| Warranty Terms | Two Year |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1998 – 2003 | Mercedes-Benz | ML320 | Base | V6 – 3.2L 3199cc GAS MFI type 112.942 – 3 valve SOHC |
| 2003 – 2005 | Mercedes-Benz | ML350 | Base | V6 – 3.7L 3699cc GAS MFI type 112.970 – 3 valve SOHC |
| 2004 – 2005 | Mercedes-Benz | ML350 | Special Edition | V6 – 3.7L 3699cc GAS MFI type 112.970 – 3 valve SOHC |
OEM & Aftermarket Interchange Part Numbers
| Brand | OEM Part Number | Aftermarket Interchange Number |
|---|---|---|
| Mercedes-Benz (OEM) | 376731491, A1122000222, 1122000222 | BX01500024-1, 130-0216, 215133 |
| Dorman | 376731491, A1122000222, 1122000222 | 130-0216, 947-2070 |
| StrongArm | 376731491, A1122000222, 1122000222 | 2697 |
| Aftermarket Interchange | 376731491, A1122000222, 1122000222 | 215133, 922424, 46012 |
