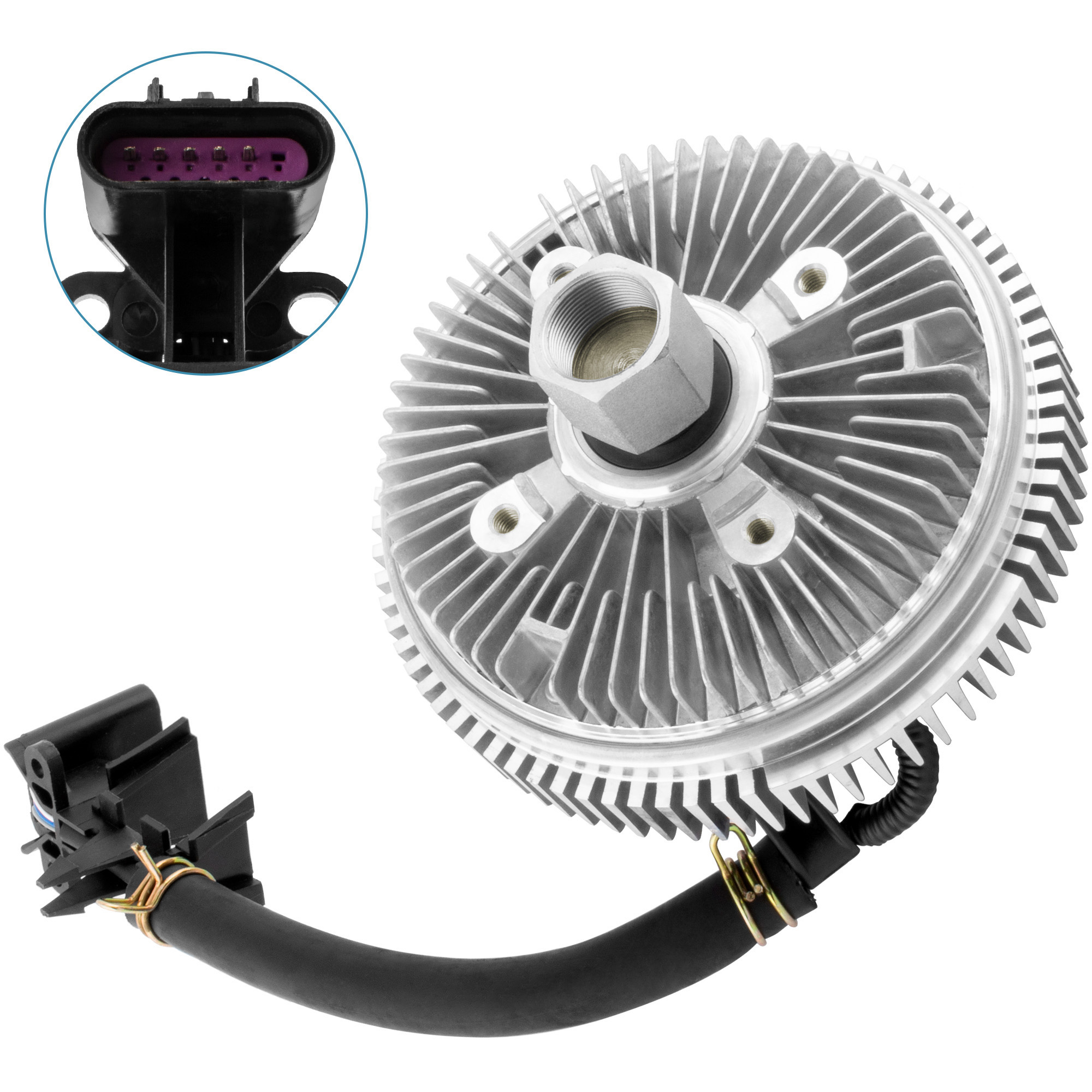

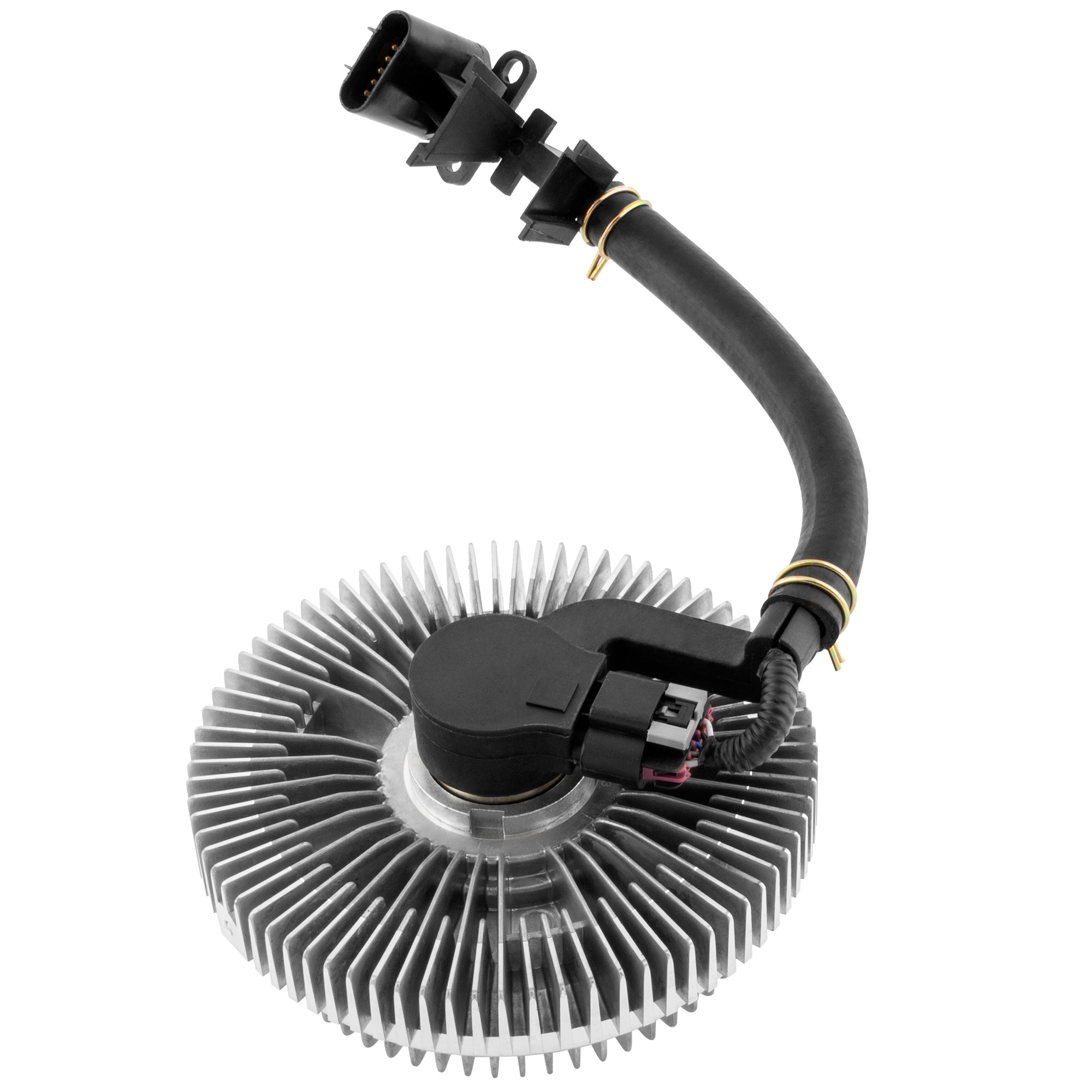

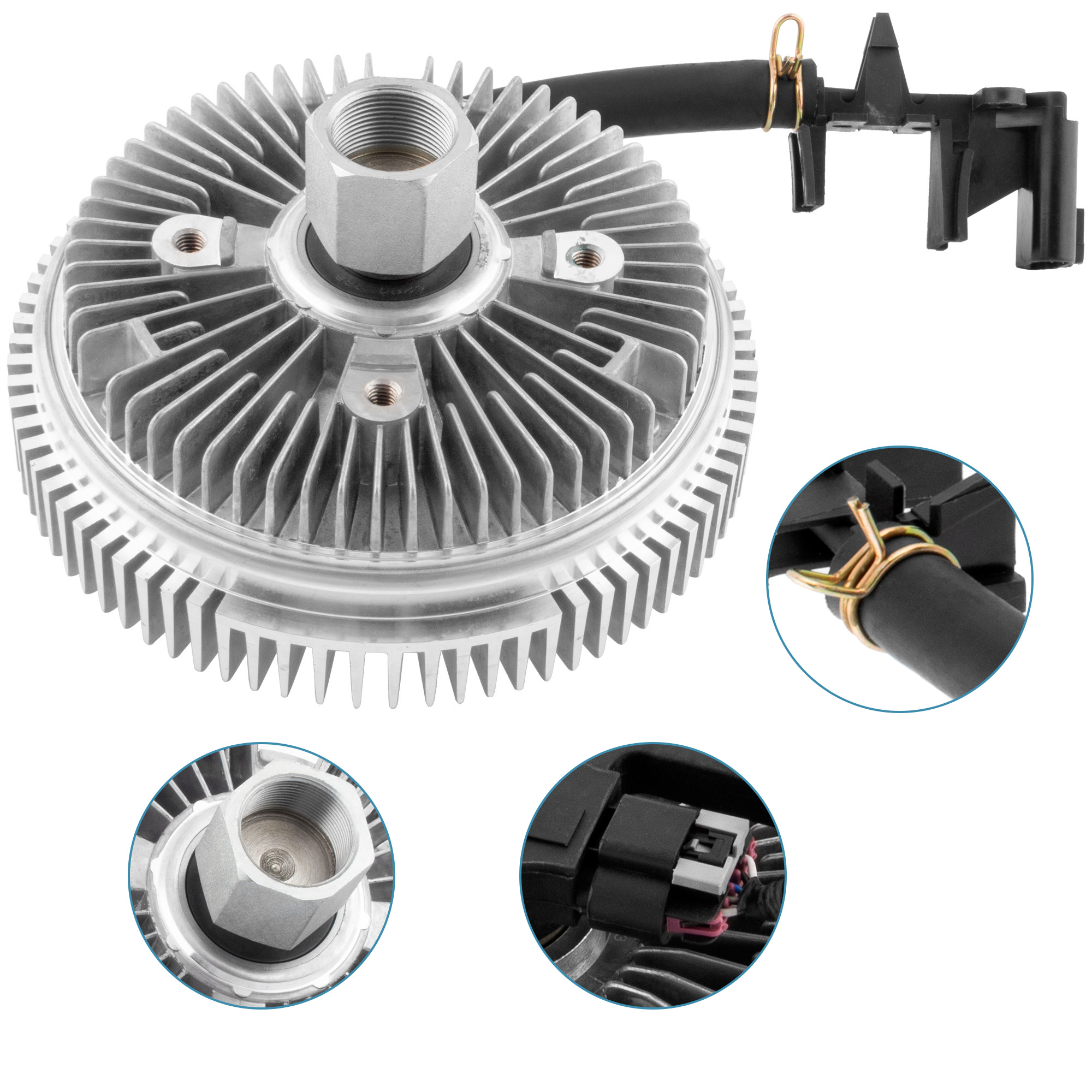

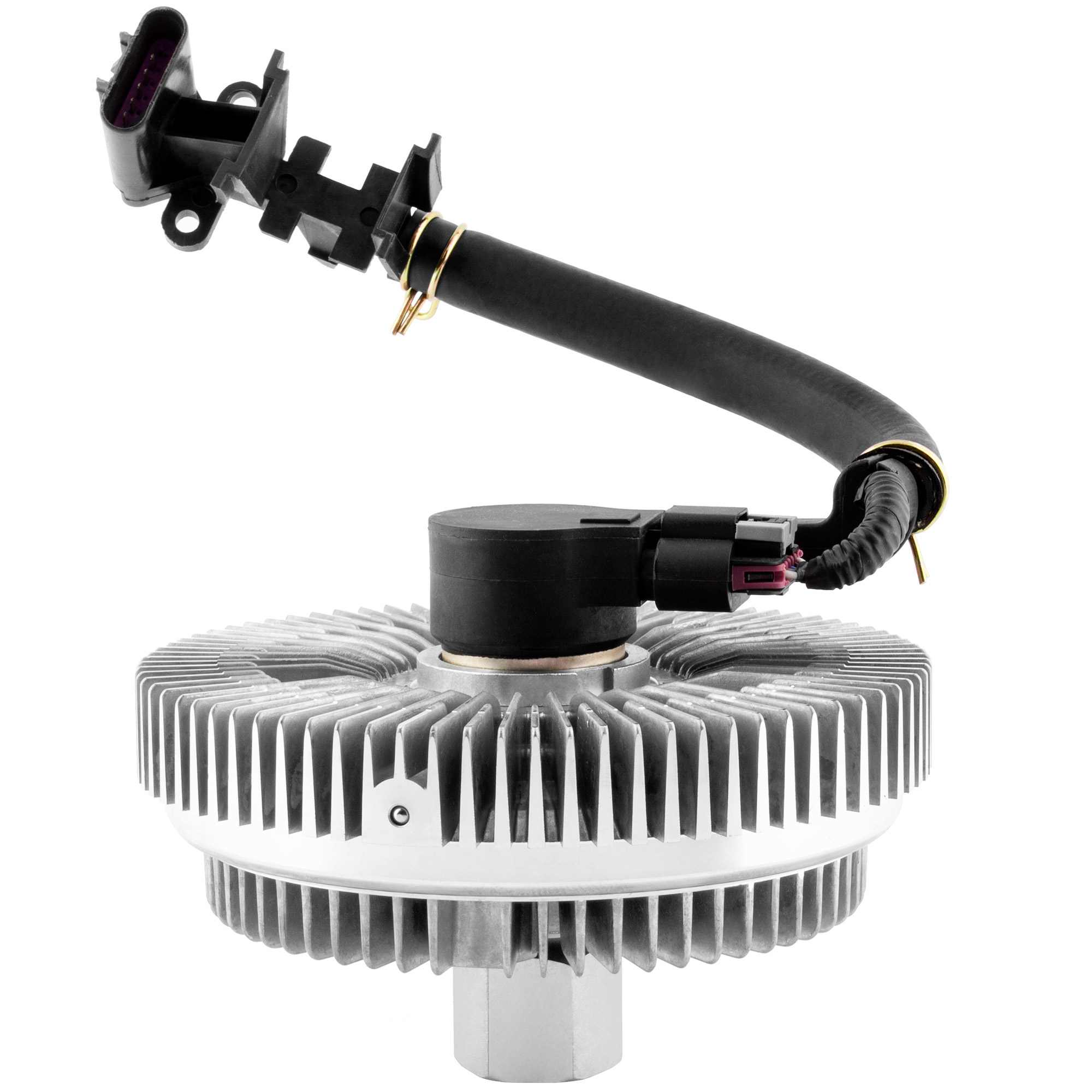

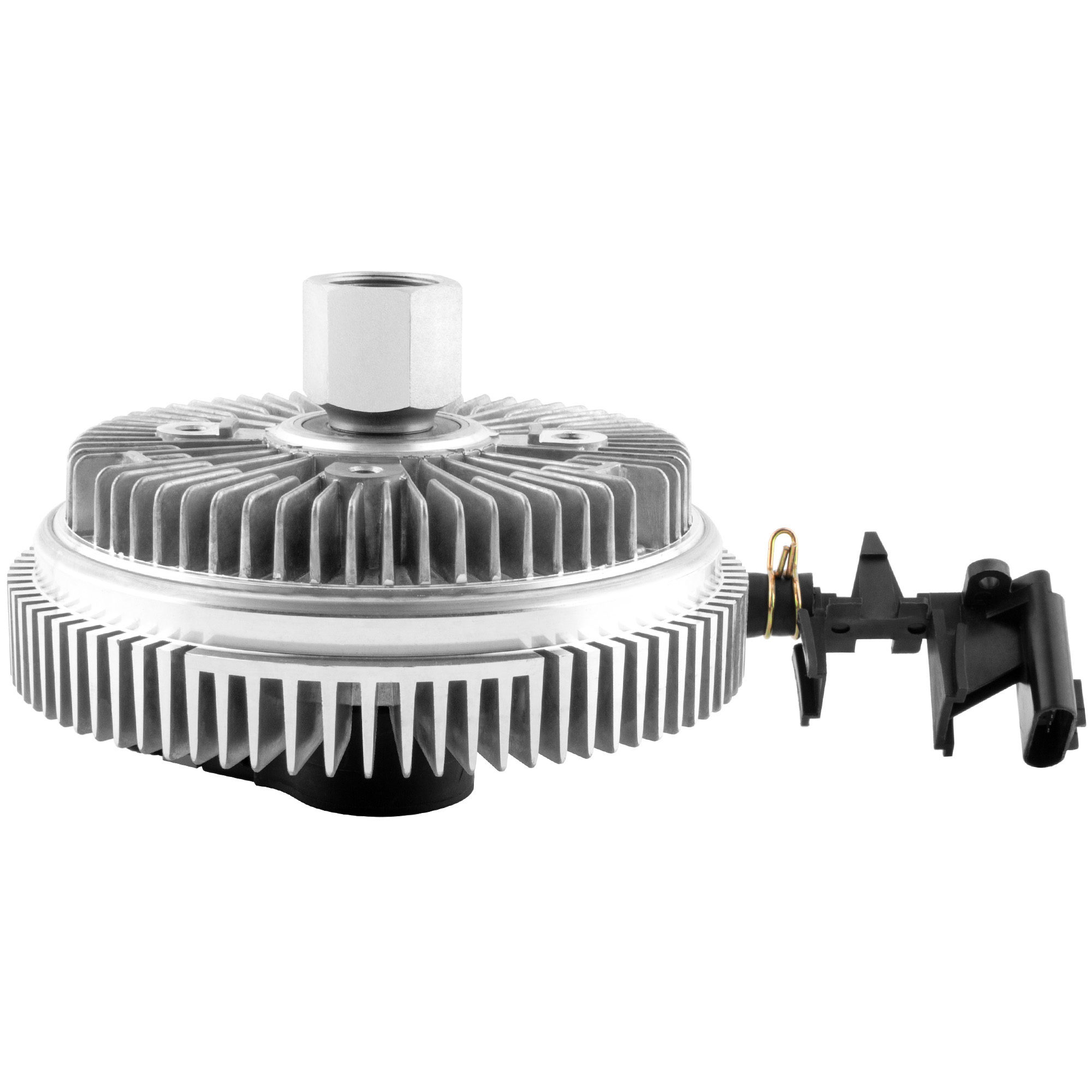

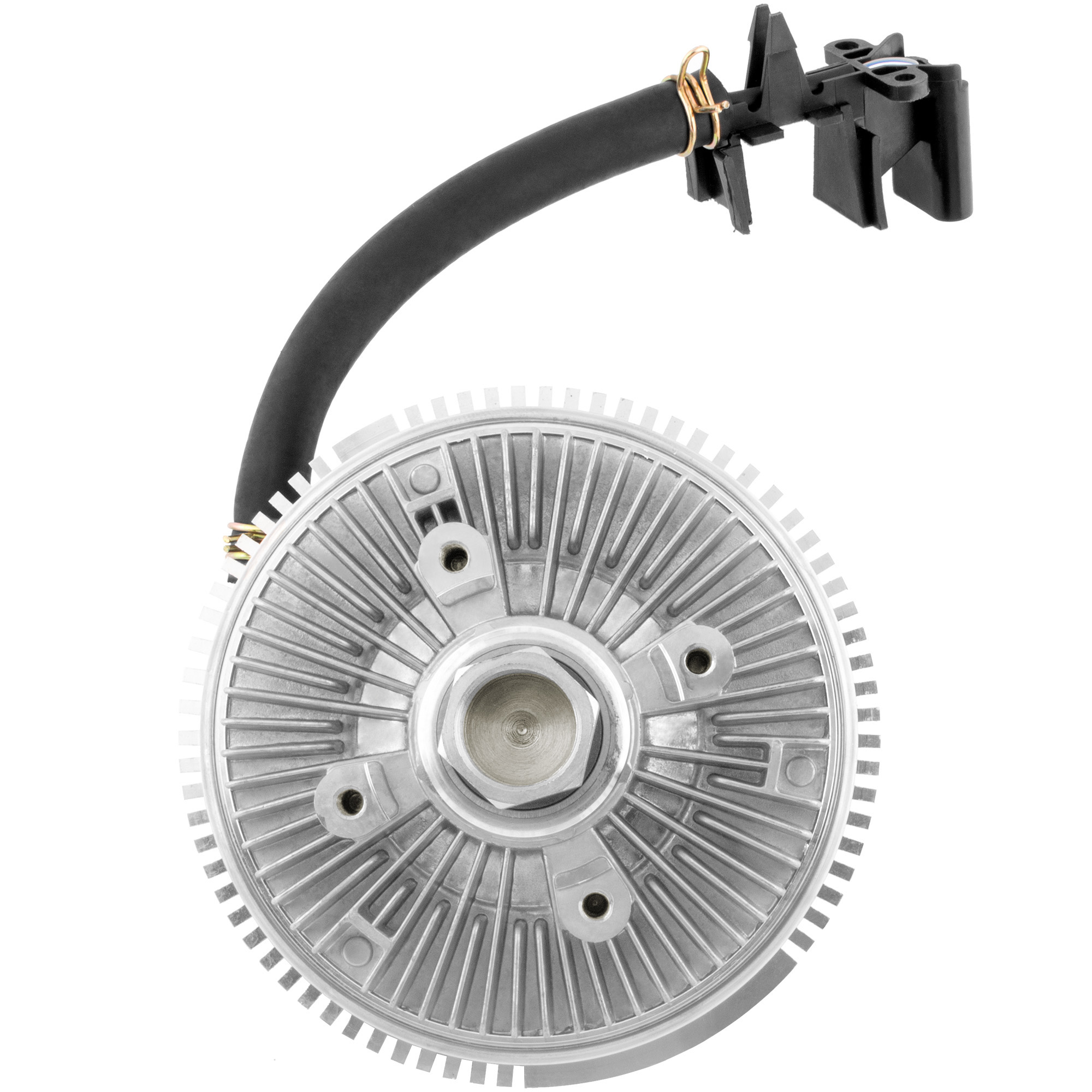

BOXI Cooling Fan Clutch for 2002-2009 Chevrolet Trailblazer | Replaces OE #1540133

BOXI SKU#: BX01500016-1

$75.99

  • Two Year Warranty

2 in stock

BOXIDirect-Fit OE ReplacementCooling Fan Clutch
Part #: BX01500016-1|Line: BOXI|Warranty: Two Year|In Stock (2)
Check if this part fits your vehicle Select your vehicle to check fitment (64 compatible configurations)
View Vehicle Fitment List
Ship to Home Available (2 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference View All (15) →
Replaces OE #: 1540133, 326748, 376734021, 622001, 922498 +10 more
Two Year Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications View All Specifications →
Package Included

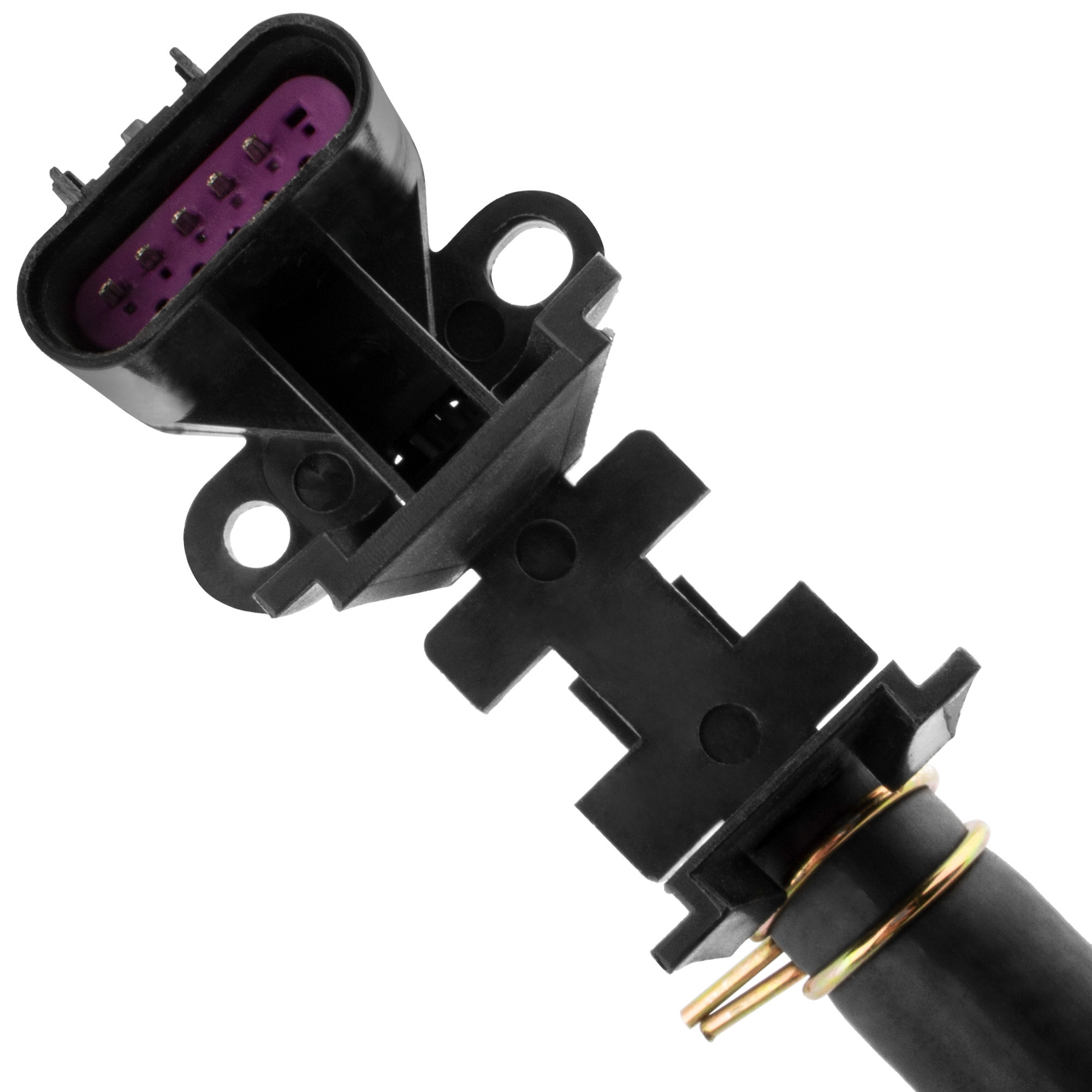

1 x Cooling Fan Clutch with Harness
Condition
New
Material
Aluminum
Rotation
Counter-Clockwise
Type
Electric

Direct-fit BOXI replacement part compatible with 2004-2007 Buick Rainier CXL, 2005-2007 Buick Rainier CXL, 2004 Buick Rainier CXL, 2004-2005 Buick Rainier CXL Plus and additional configurations. Replaces OE / interchange part numbers: 1540133, 326748, 376734021, 622001, 922498, 8-10383-029-0, SK622001, RCA83641. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.

Package Included 1 x Cooling Fan Clutch with Harness
Application Note BOXI engine cooling fan clutchs are an ideal choice to replace your broken engine cooling fan clutchs. All engine cooling fan clutchs meet or exceed OEM specifications.
Application Note Replacement OEM ( Original Equipment Part) Number: 25790869, 15293048, 376734021, 326748, 922498, 1540133, 622001, 326-748, 622-001, 15-40133, 3201

Position & Application Summary

See Full Submodel & Engine Table →
  • 2004-2005 for Buick Rainier CXL 4.2L L6
  • 2004-2007 for Buick Rainier CXL 5.3L V8
  • 2002-2009 for Chevy Trailblazer 4.2L L6
  • 2003-2008 for Chevy Trailblazer 5.3L V8
  • 2006-2009 for Chevy Trailblazer 6.0L V8
  • 2002-2009 for GMC Envoy 4.2L L6
  • 2003-2009 for GMC Envoy 5.3L V8
  • 2002-2005 for GMC Jimmy 4.3L V6
  • 2003-2007 for Isuzu Ascender 4.2L L6
  • 2003-2006 for Isuzu Ascender 5.3L V8
  • 2002-2004 for Olds-mobile Bravada 4.2L L6
  • 2006-2007 for Saab 9-7x 4.2i Sport Utility 4-Door
  • 2006-2007 for Saab 9-7x 5.3i Sport Utility 4-Door
  • 2005-2005 for Saab 9-7x Arc Sport Utility 4-Door
  • 2005-2005 for Saab 9-7x Linear Sport Utility 4-Door
Weight 6.49 lbs
Dimensions 8.26 × 8.26 × 7.48 in
Brand

BOXI
Condition

New
Material

Aluminum
Rotation

Counter-Clockwise
Type

Electric
Duty Rating

Severe
Attachment Method

Bolt-On
Number Of Bolt Holes

4
Hardware Included

No
Bracket Included

No
Overall Diameter (in)

7.480 Inch
Overall Diameter (mm)

190mm
Overall Height (in)

5.520 Inch
Overall Height (mm)

140mm
Flange Diameter (in)

1.440 Inch
Flange Diameter (mm)

36mm
Fan Mount Diameter (in)

3.250 Inch
Fan Mount Diameter (mm)

82mm
Fan Mount Height (in)

1.540 Inch
Fan Mount Height (mm)

39mm
Warranty Terms

Two Year

Compatible Vehicle Applications

Verify Year, Make, Model, Submodel, and Engine compatibility before ordering.

YearMakeModelSubmodelEngine
2004 – 2007BuickRainierCXLL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005 – 2007BuickRainierCXLV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2004BuickRainierCXL
CXL Plus		V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2004 – 2005BuickRainierCXL PlusL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005BuickRainierCXL PlusV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2003 – 2004ChevroletSSRBaseV8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2005 – 2006ChevroletSSRBaseV8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV
2004 – 2007ChevroletTrailblazerA
B		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2003 – 2008ChevroletTrailblazerBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2008ChevroletTrailblazerBaseV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2007ChevroletTrailblazerLSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2006 – 2007ChevroletTrailblazerLSV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2009ChevroletTrailblazerLTL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2006 – 2008ChevroletTrailblazerLTV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2003ChevroletTrailblazerLTZL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2002 – 2004ChevroletTrailblazerNorth FaceL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005ChevroletTrailblazerQ
R		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2006 – 2009ChevroletTrailblazerSSV8 – 6.0L 5967cc 364ci GAS MFI vin H type LS2 – 2 valve OHV
2004 – 2006ChevroletTrailblazer EXTBL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2003 – 2006ChevroletTrailblazer EXTBase
LS		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005 – 2006ChevroletTrailblazer EXTLS
LT		V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2003 – 2004ChevroletTrailblazer EXTLS
LT
North Face		V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2002 – 2006ChevroletTrailblazer EXTLTL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2002 – 2004ChevroletTrailblazer EXTNorth FaceL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005 – 2009GMCEnvoyDenaliV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2009GMCEnvoySLE
SLT		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005 – 2006GMCEnvoy XLDenaliV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2002 – 2006GMCEnvoy XLSLE
SLT		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005GMCEnvoy XLSLE
SLT		V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2003 – 2004GMCEnvoy XLSLE
SLT		V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2004 – 2005GMCEnvoy XUVSLE
SLT		L6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005GMCEnvoy XUVSLE
SLT		V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2004GMCEnvoy XUVSLE
SLT		V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2003IsuzuAscenderBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
BaseV8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2006IsuzuAscenderBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2003 – 2004IsuzuAscenderLimitedL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
LS
Limited		V8 – 5.3L 5328cc 325ci GAS MFI vin P type LM4 – 2 valve OHV
2005IsuzuAscenderLimited
S		V8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2003 – 2006IsuzuAscenderLSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2005 – 2006IsuzuAscenderLSV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2004 – 2005IsuzuAscenderSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2007 – 2008IsuzuAscenderSL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2002 – 2004OldsmobileBravadaBaseL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
2006 – 2007Saab9-7x4.2iL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC
5.3iV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
2005Saab9-7xArcV8 – 5.3L 5328cc 325ci GAS MFI vin M type LH6 – 2 valve OHV
LinearL6 – 4.2L 256ci GAS MFI vin S type LL8 – 4 valve DOHC

OEM & Aftermarket Interchange Cross-Reference

Click any highlighted OE number to view all compatible replacement parts for that factory number.

OEM & Aftermarket Interchange Part Numbers

BrandOEM Part NumberAftermarket Interchange Number
Buick / GM (OEM)25790869, 15293048BX01500016-1, 326748, 622001
SKP25790869, 15293048SK622001
StrongArm25790869, 152930483200
Aftermarket Interchange25790869, 15293048326748, 622001, 922498, 46024, 15-4994, 1540133, 376734021, 8-10383-029-0, RCA83641, RCA91501, WPA05231
