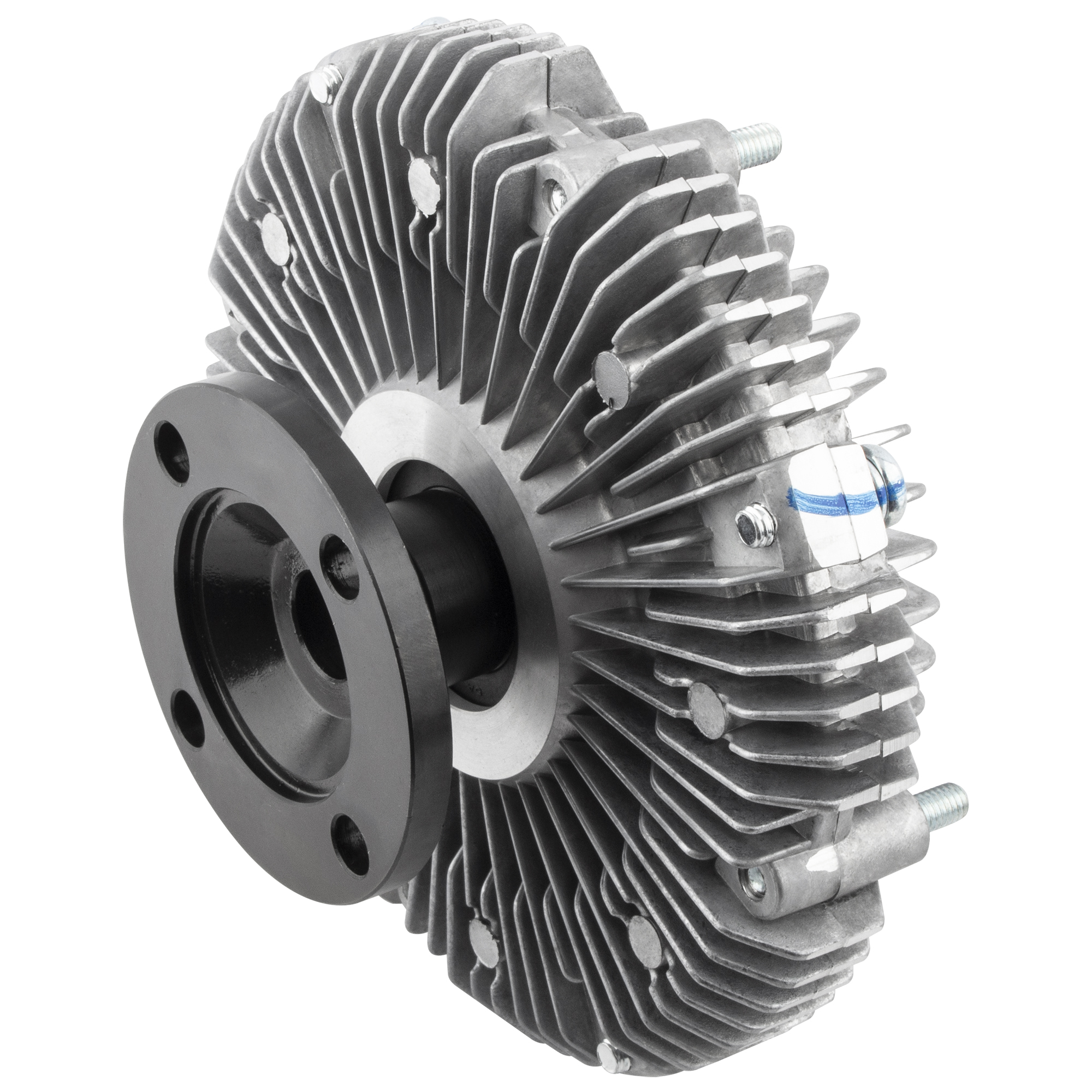

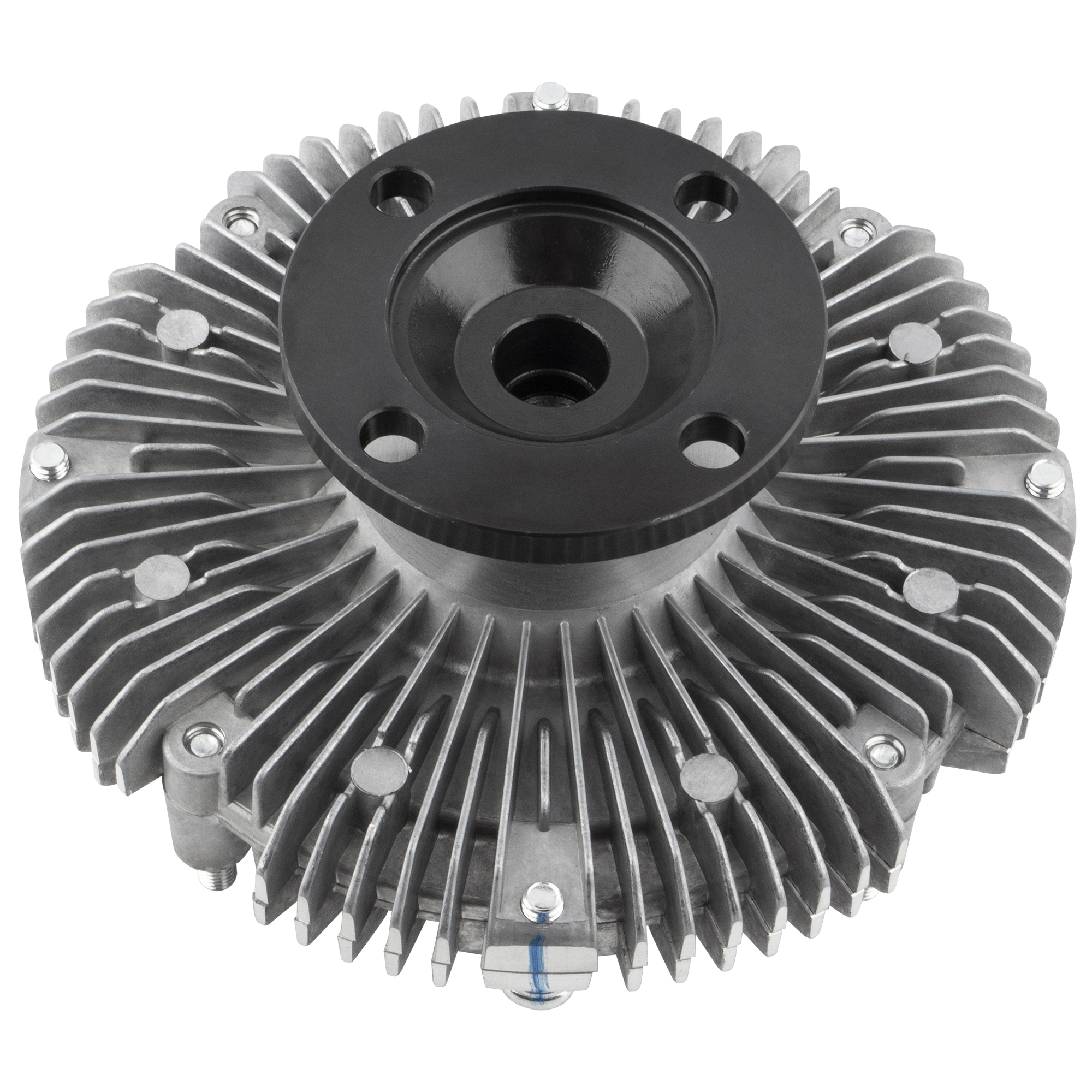

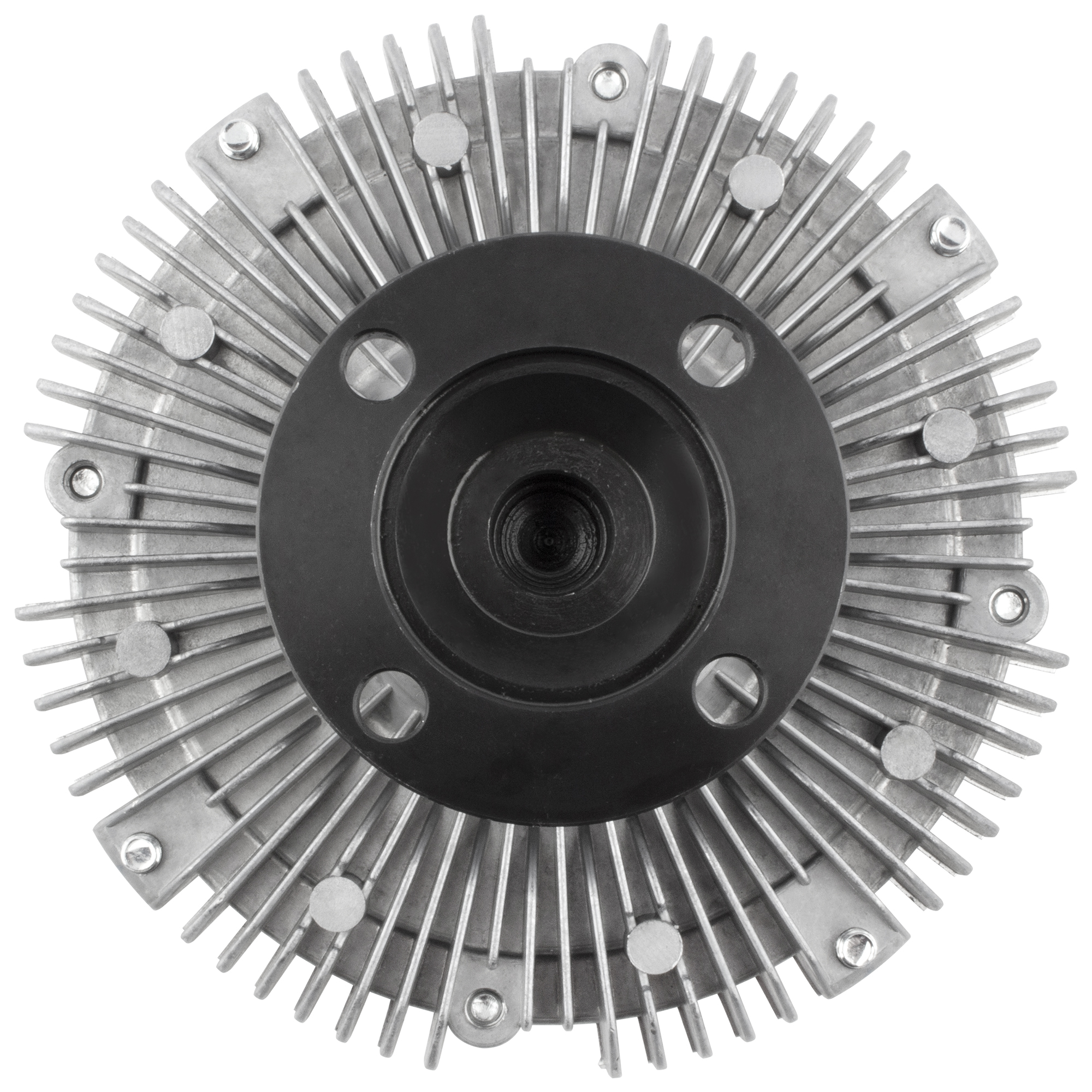

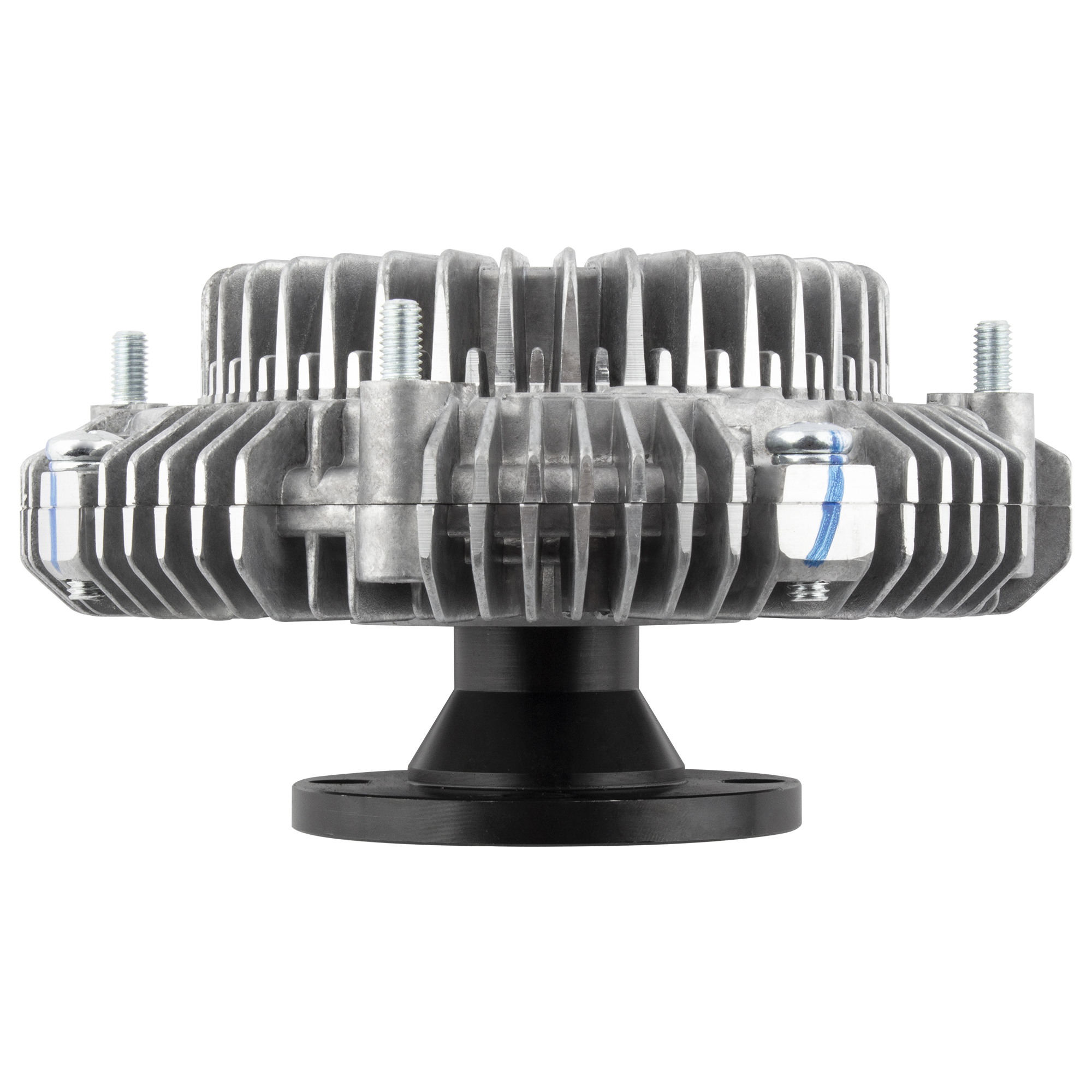

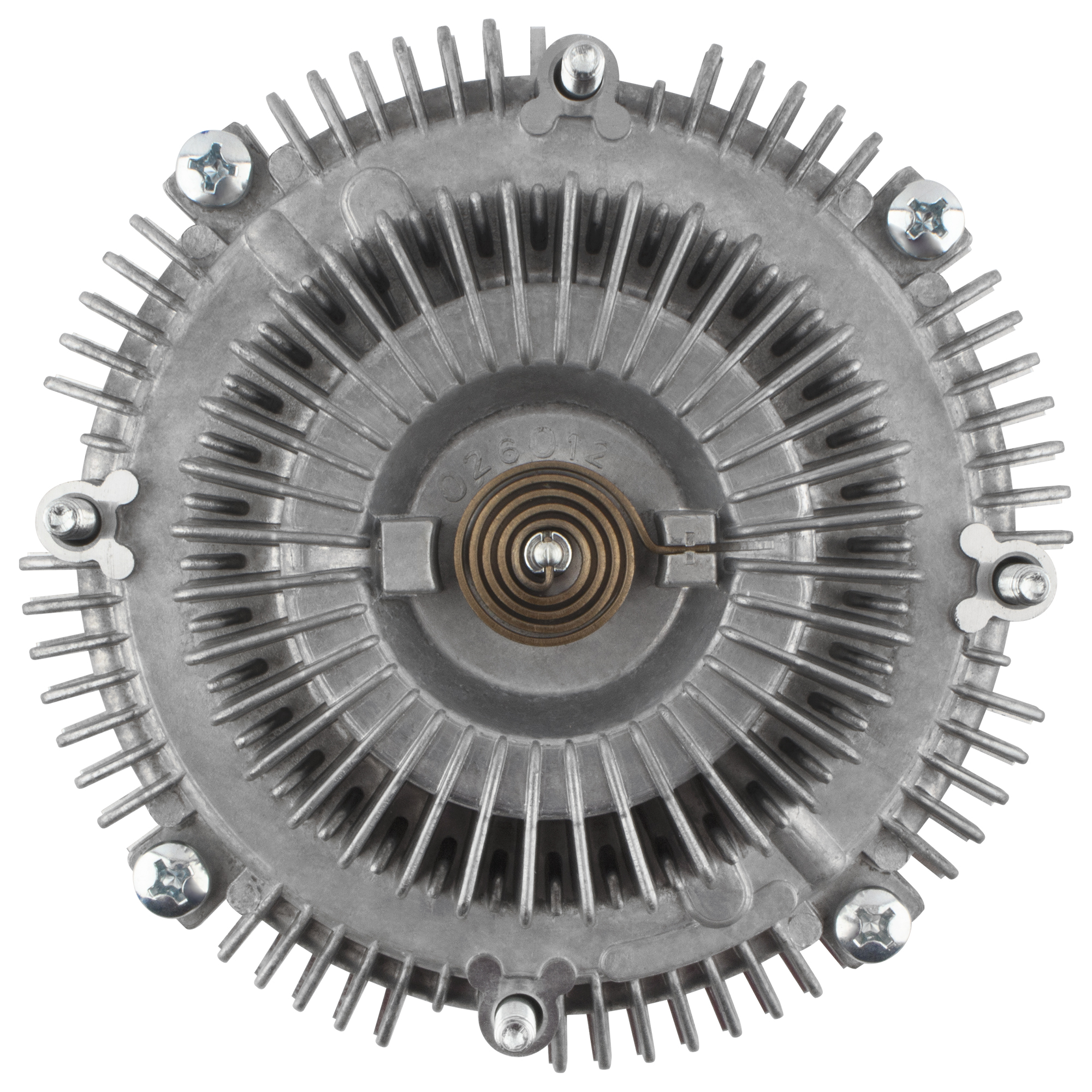

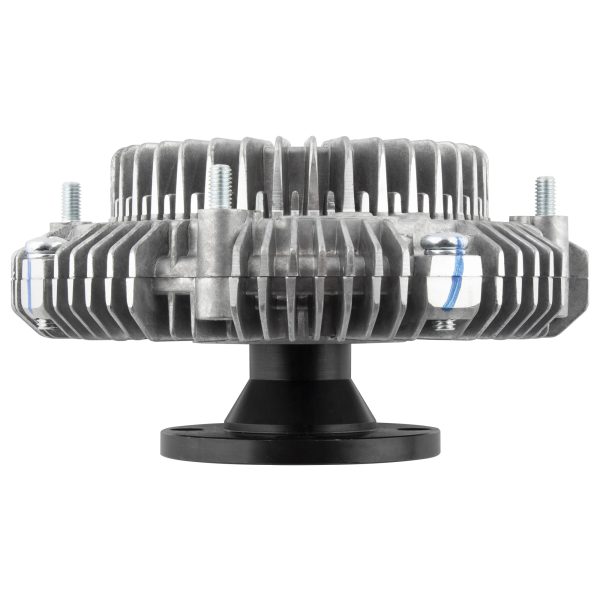

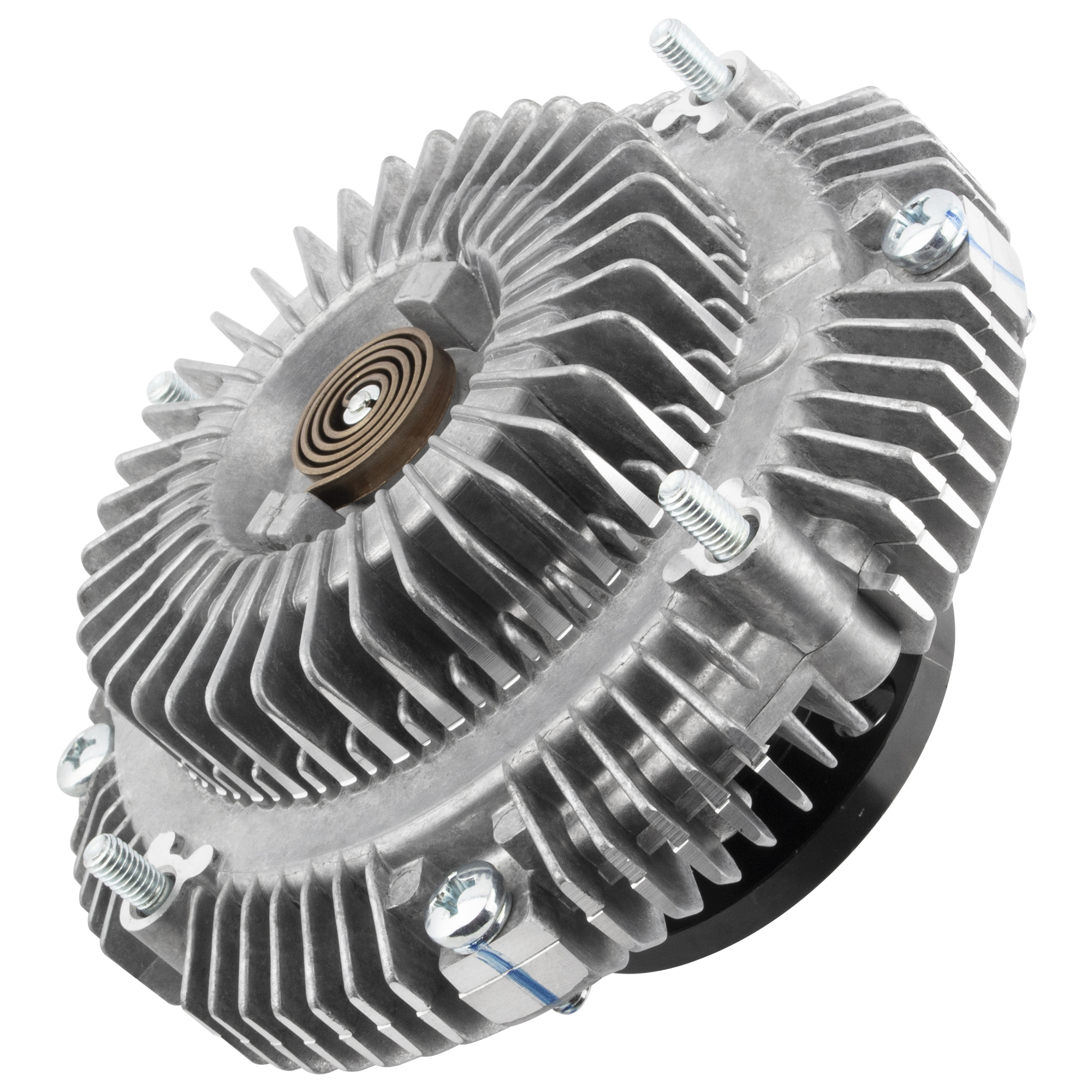

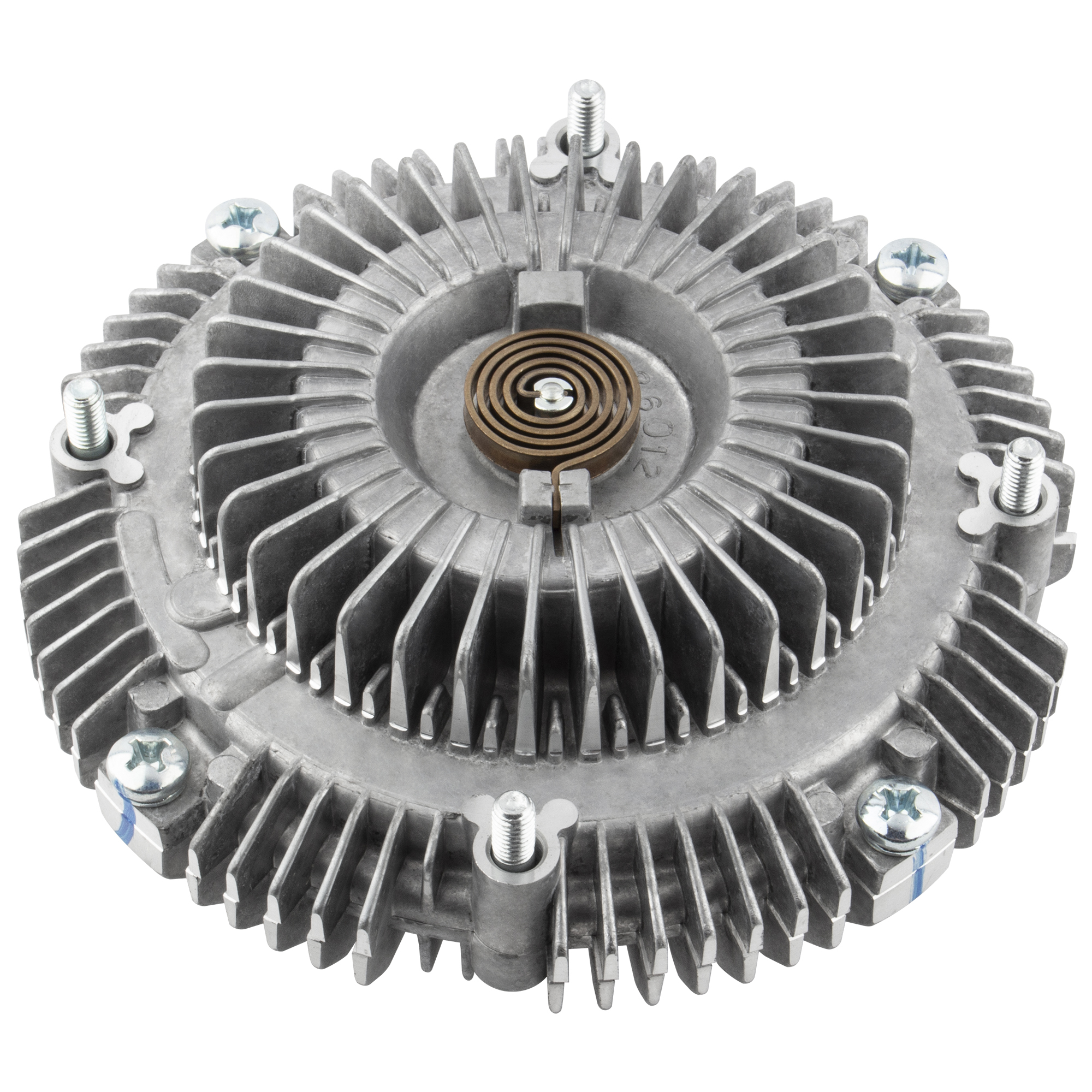

BOXI Cooling Fan Clutch for 1975-1992 Toyota Land Cruiser | Replaces OE #115076
BOXI SKU#: BX01500031-1
$30.55
1 in stock
BOXIDirect-Fit OE ReplacementCooling Fan Clutch
Check if this part fits your vehicle
Select your vehicle to check fitment (21 compatible configurations)
Ship to Home
Available (1 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference
View All (57) →
Replaces OE #: 115076, 1580280, 2657, 2911266, 8-97018-918-1 +52 more
Two Year Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications
View All Specifications →
- Package Included
- 1 x Cooling Fan Clutch
- Condition
- New
- Material
- Aluminum
- Rotation
- Clockwise
- Type
- Thermal
Direct-fit BOXI replacement part compatible with 1993-1994 Isuzu Rodeo LS, 1993-1994 Isuzu Rodeo S, 1992-1994 Isuzu Trooper LS, 1993-1994 Isuzu Trooper RS and additional configurations. Replaces OE / interchange part numbers: 115076, 1580280, 2657, 2911266, 8-97018-918-1, 8-97102-903-0, 8-97135-167-0, 1621061020. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Package Included
1 x Cooling Fan Clutch
Application Note
Product description
Application Note
Replacement OEM ( Original Equipment Part) Number:1621061120,2657,16210-61120,FCT-017,2911266,15-80280,1580280,115076,230-234
Position & Application Summary
See Full Submodel & Engine Table →- 1993-1994 for Isuzu Rodeo LS/S Sport Utility 4-Door
- 1992-1994 for Isuzu Trooper LS Sport Utility 4-Door
- 1993-1994 for Isuzu Trooper RS Sport Utility 2-Door
- 1994 for Isuzu Trooper RS Sport Utility 4-Door
- 1992-1994 for Isuzu Trooper S Sport Utility 4-Door
- 1989 for Toyota 4Runner DLX Sport Utility 2-Door
- 1988-1991 for Toyota 4Runner SR5 Sport Utility 2-Door
- 1990-1995 for Toyota 4Runner SR5 Sport Utility 4-Door
- 1975-1983 for Toyota Land Cruiser Base Sport Utility 2-Door
- 1975-1992 for Toyota Land Cruiser Base Sport Utility 4-Door
- 1977-1980 for Toyota Land Cruiser Base Standard Cab Pickup 2-Door
- 1981 for Toyota Land Cruiser BJ42 Sport Utility 2-Door
- 1983-1984 for Toyota Land Cruiser BJ42 Sport Utility 2-Door
- 1981-1984 for Toyota Land Cruiser BJ60 Sport Utility 4-Door
- 1986 for Toyota Land Cruiser BJ70 Sport Utility 2-Door
- 1986 for Toyota Land Cruiser HJ60 Sport Utility 4-Door
| Weight | 3.65 lbs |
|---|---|
| Dimensions | 6.49 × 6.49 × 3.93 in |
| Brand | BOXI |
| Condition | New |
| Material | Aluminum |
| Rotation | Clockwise |
| Type | Thermal |
| Duty Rating | Standard |
| Attachment Method | Bolt-On |
| Number Of Bolt Holes | 4 |
| Hardware Included | No |
| Bracket Included | No |
| Overall Diameter (in) | 6.650 Inch |
| Overall Diameter (mm) | 168mm |
| Overall Height (in) | 3.020 Inch |
| Overall Height (mm) | 76mm |
| Flange Diameter (in) | 3.070 Inch |
| Flange Diameter (mm) | 77mm |
| Fan Mount Diameter (in) | 4.090 Inch |
| Fan Mount Diameter (mm) | 104mm |
| Fan Mount Height (in) | 2.440 Inch |
| Fan Mount Height (mm) | 62mm |
| Warranty Terms | Two Year |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1993 – 1994 | Isuzu | Rodeo | LS S | V6 – 3.2L 3165cc GAS MFI vin V – 4 valve SOHC |
| 1992 – 1994 | Isuzu | Trooper | LS | V6 – 3.2L 3165cc GAS MFI vin W – 4 valve DOHC |
| S | V6 – 3.2L 3165cc GAS MFI vin V – 4 valve SOHC | |||
| 1993 – 1994 | Isuzu | Trooper | RS | V6 – 3.2L 3165cc GAS MFI vin W – 4 valve DOHC |
| 1989 | Toyota | 4Runner | DLX | V6 – 3.0L 2959cc GAS MFI vin V type 3VZ-E – 2 valve SOHC |
| 1988 – 1995 | Toyota | 4Runner | SR5 | V6 – 3.0L 2959cc GAS MFI vin V type 3VZ-E – 2 valve SOHC |
| 1988 – 1992 | Toyota | Land Cruiser | Base | L6 – 4.0L 3956cc GAS MFI vin F type 3FE – 2 valve OHV |
| 1975 – 1987 | Toyota | Land Cruiser | Base | L6 – 4.2L 4227cc GAS 2BBL vin F type 2F – 2 valve OHV |
| 1981 | Toyota | Land Cruiser | BJ42 | L6 – 4.2L 4228cc 258ci DIESEL vin B |
| 1983 – 1984 | Toyota | Land Cruiser | BJ42 | L6 – 4.2L 4228cc 258ci DIESEL vin B |
| 1981 – 1984 | Toyota | Land Cruiser | BJ60 | L6 – 4.2L 4228cc 258ci DIESEL vin B |
| 1986 | Toyota | Land Cruiser | BJ70 | L4 – 3.4L 3431cc 209ci DIESEL type 3B |
| HJ60 | L6 – 4.2L 4228cc 258ci DIESEL vin B | |||
| 1988 – 1993 | Toyota | Pickup | Base | V6 – 3.0L 2959cc GAS MFI vin V type 3VZ-E – 2 valve SOHC |
| 1988 – 1995 | Toyota | Pickup | DLX SR5 | V6 – 3.0L 2959cc GAS MFI vin V type 3VZ-E – 2 valve SOHC |
| 1993 | Toyota | T100 | Base One-Ton | V6 – 3.0L 2959cc GAS MFI vin V type 3VZ-E – 2 valve SOHC |
| 1994 | Toyota | T100 | DX | V6 – 3.0L 2959cc GAS MFI vin V type 3VZ-E – 2 valve SOHC |
| 1993 – 1994 | Toyota | T100 | SR5 | V6 – 3.0L 2959cc GAS MFI vin V type 3VZ-E – 2 valve SOHC |
OEM & Aftermarket Interchange Part Numbers
| Brand | OEM Part Number | Aftermarket Interchange Number |
|---|---|---|
| GM (OEM) | 89000162, 19189664 | BX01500031-1, 115076, 2657 |
| StrongArm | 89000162, 19189664 | 2657, 5586, 4876 |
| SKP | 89000162, 19189664 | SK36925 |
| Dorman | 89000162, 19189664 | 970-2070, 130-0185 |
| Aftermarket Interchange | 89000162, 19189664 | 115076, FCT-009, FCT-017, FCT-038, FCT-049, FC2657, LF234, GC824, 36754, KG2657, 2657TM, 402234, 402657, 140031, FC98, A5585, 922657, 77226, 36925, 274336, 2657TA, 22076, 215076, 1580280, 2911266, 8-97018-918-1, 8-97102-903-0, 8-97135-167-0, 1621061020, 1621061021, 1621061070, 1621061071, 1621061072, 1621061120, 1621061121, 1621061140, 1621061160, 1621065010, 1621065020, 1621065030, 1552408, 1552428, CWK922657, 1300139, 1300140, FFC5719T, 2911354, 7136925, 11136925 |
