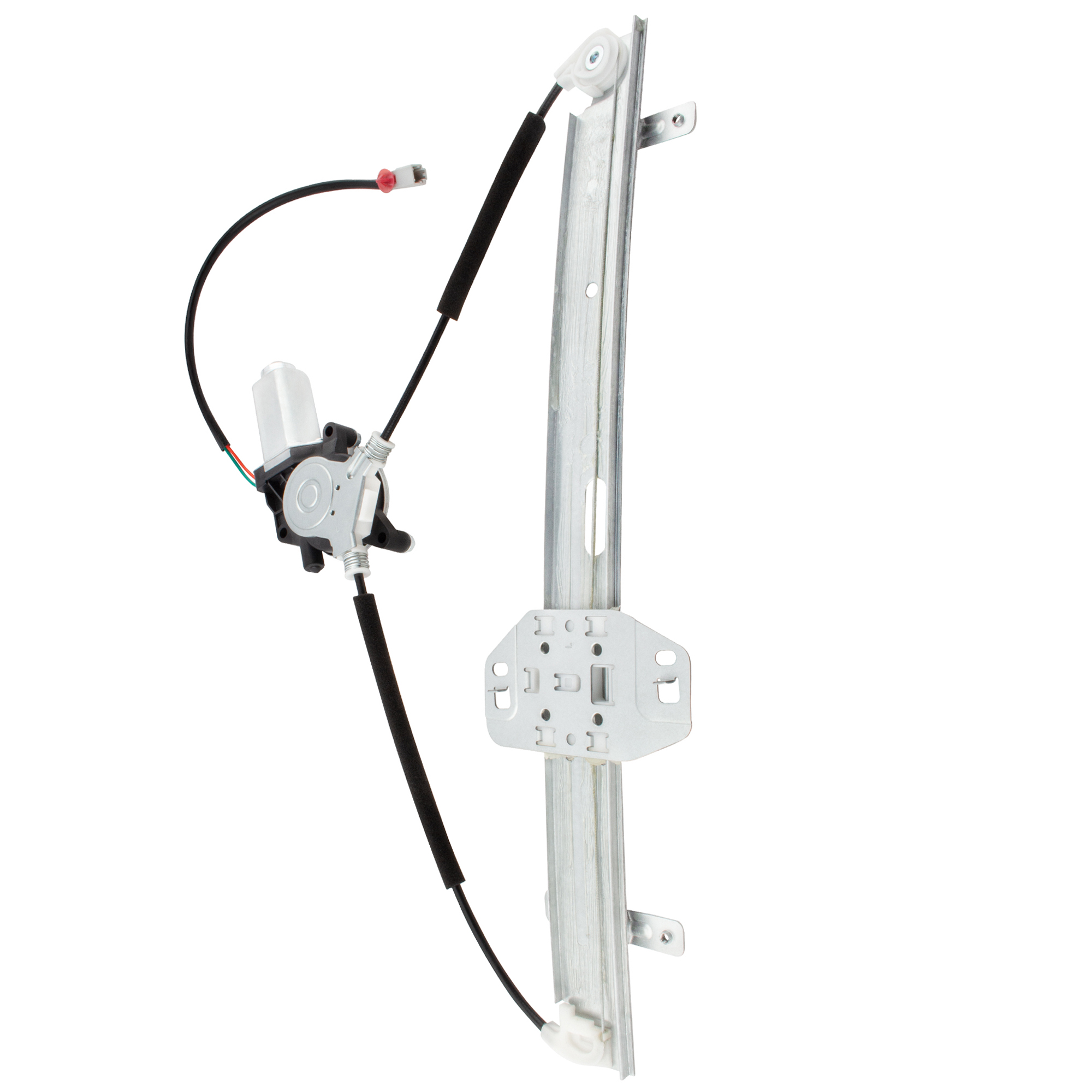

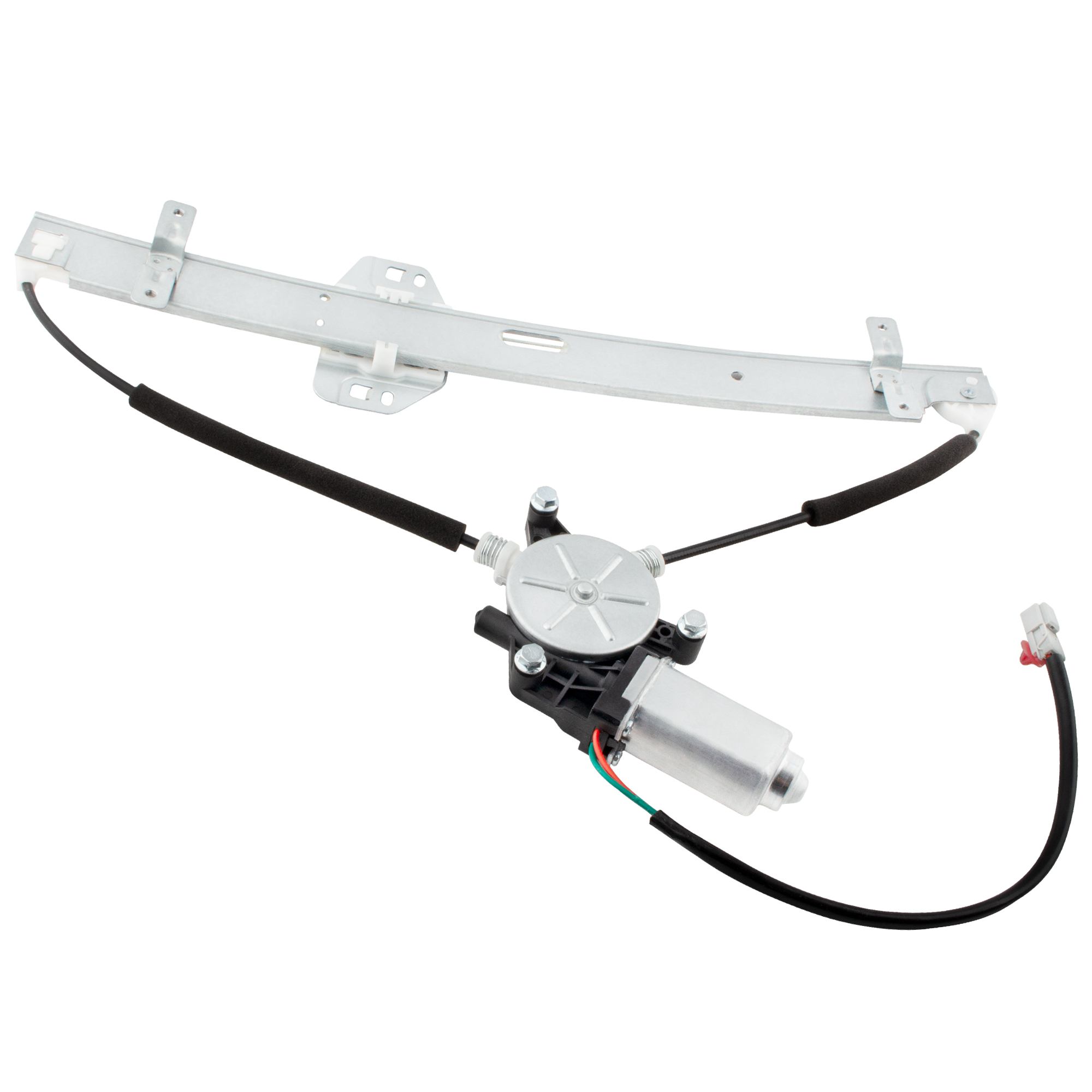

BOXI Window Regulator and Motor Assembly for 2003-2008 Honda Pilot | Replaces OE #384972
BOXI SKU#: BX00300174-1
$38.69
1 in stock
BOXIDirect-Fit OE ReplacementWindow Regulator and Motor Assembly
Check if this part fits your vehicle
Select your vehicle to check fitment (17 compatible configurations)
Ship to Home
Available (1 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference
View All (14) →
Replaces OE #: 384972, 88534, 82-4309JR, RPAH094, WLR4033 +9 more
Two Years Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications
View All Specifications →
- Placement on Vehicle
- Rear Left Driver Side
- Package Included
- 1x Power Window Regulator with Motor
- Notes
- Instruction is not included. Professional installation is recommended.
- Replaces OE Number
- 748-512; 72750S9VA03; 212-0051; 384972; 824309jr; 88534; SK748512; WLR4033; WPR1028LMB; 72750S9VA01; 72750S9VA02; 135-58590L
- Condition
- New
Direct-fit BOXI replacement part compatible with 2005 Honda Pilot EX, 2006-2008 Honda Pilot EX, 2003-2004 Honda Pilot EX, 2005 Honda Pilot EX-L and additional configurations. Replaces OE / interchange part numbers: 384972, 88534, 82-4309JR, RPAH094, WLR4033, SK748512, WPR1028LMB, 748-512. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Placement on Vehicle
Rear Left Driver Side
Package Included
1x Power Window Regulator with Motor
Notes
Instruction is not included. Professional installation is recommended.
Replaces OE Number
748-512; 72750S9VA03; 212-0051; 384972; 824309jr; 88534; SK748512; WLR4033; WPR1028LMB; 72750S9VA01; 72750S9VA02; 135-58590L
Position & Application Summary
See Full Submodel & Engine Table →- Honda Pilot 2003-2008
| Weight | 3.8 lbs |
|---|---|
| Dimensions | 24 × 12 × 3 in |
| Brand | BOXI |
| Condition | New |
| Material | Metal and Plastic |
| Surface Finish | Smooth |
| Placement on Vehicle | Rear, Left |
| Fitment Type | Direct Replacement |
| Lift Motor Included | Yes |
| Electric/Manual | Electric |
| Attachment Type | Bolt On |
| Hardwired or Plug-in | Plug-In |

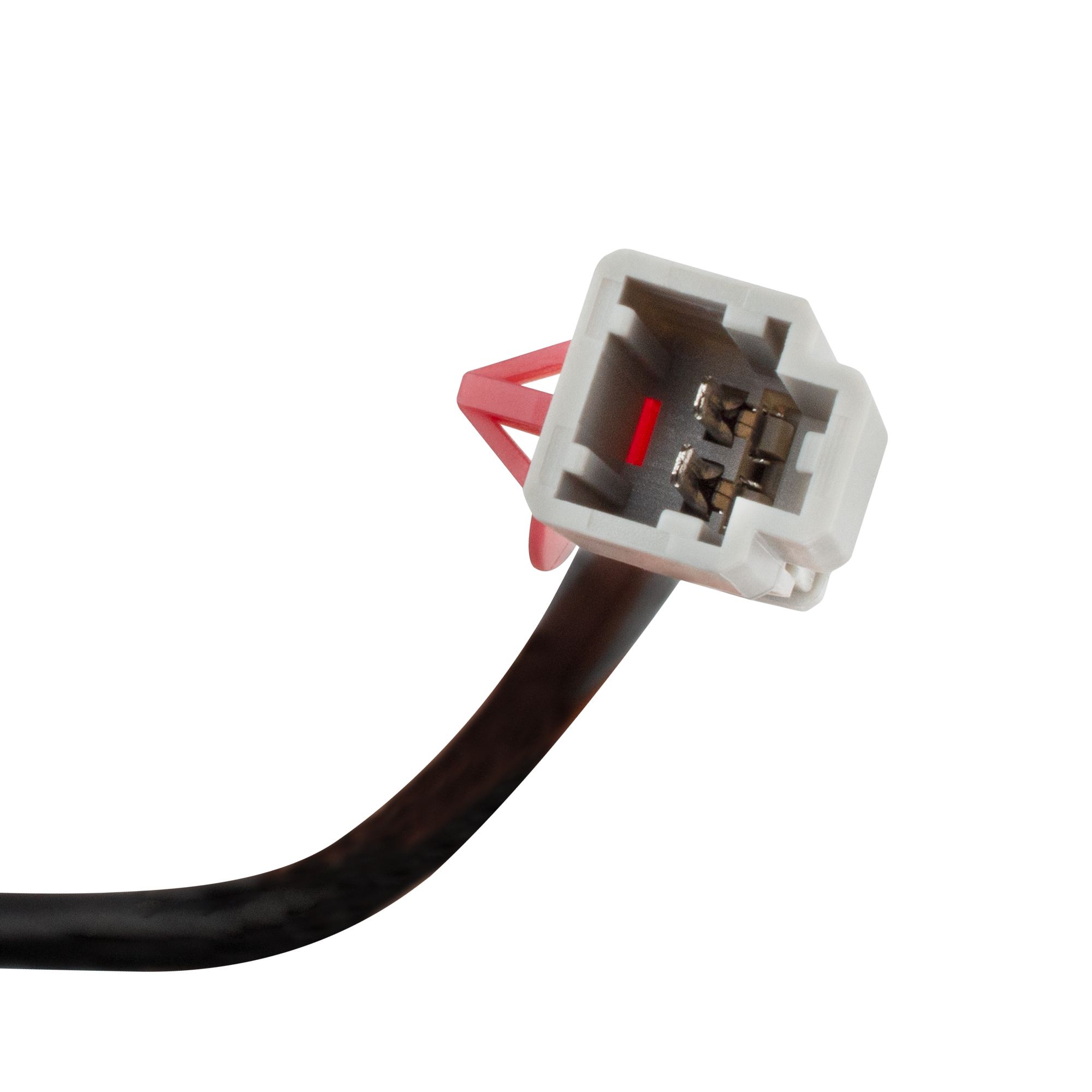

| Plug Type | 2 pins |
| Hardware Included | No |
| Rated Voltage | 12V |
| Warranty Terms | Two Years |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 | Honda | Pilot | EX EX-L LX | V6 – 3.5L 3471cc GAS MFI type J35A6 – 4 valve SOHC |
| 2006 – 2008 | Honda | Pilot | EX EX-L LX | V6 – 3.5L 3471cc GAS MFI type J35A9 – 4 valve SOHC |
| EX EX-L LX | V6 – 3.5L 3471cc GAS MFI type J35Z1 – 4 valve SOHC | |||
| 2003 – 2004 | Honda | Pilot | EX LX | V6 – 3.5L 3475cc GAS MFI type J35A4 – 4 valve SOHC |
| 2004 | Honda | Pilot | EX-L | V6 – 3.5L 3475cc GAS MFI type J35A4 – 4 valve SOHC |
| 2008 | Honda | Pilot | SE-L Special Edition Value Package | V6 – 3.5L 3471cc GAS MFI type J35A9 – 4 valve SOHC |
| Special Edition Value Package | V6 – 3.5L 3471cc GAS MFI type J35Z1 – 4 valve SOHC |
OEM & Aftermarket Interchange Part Numbers
| Brand | OEM Part Number | Aftermarket Interchange Number |
|---|---|---|
| Honda (OEM) | 72750-S9V-A02, 72750-S9V-A01 | BX00300174-1, 384972, 88534 |
| GM (OEM) | 12030666 | BX00300174-1, 384972, 88534 |
| SKP | 72750-S9V-A02, 72750-S9V-A01, 12030666 | SK748512 |
| TRQ / 1A Auto | 72750-S9V-A02, 72750-S9V-A01, 12030666 | WPR1028LMB |
| Dorman | 72750-S9V-A02, 72750-S9V-A01, 12030666 | 748-512, 212-0051 |
| Aftermarket Interchange | 72750-S9V-A02, 72750-S9V-A01, 12030666 | 384972, 88534, RPAH094, 1300-452710, 82-4309JR, WLR4033, 72750S9VA03 |
