BOXI 6pcs Upper Lower Ball Joint Outer Tie Rod Kit for Ford F-150 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 2WD/RWD ONLY | K8431 K8432 ES2078 ES2077

BOXI SKU#: BXM00191-6

$63.59

BOXI 6-piece front suspension kit for 1987-1996 Ford F-150 2WD/RWD includes ball joints and outer tie rod ends. Replaces OE# K8431, K8432, ES2078, ES2077. Verify fitment before ordering.

  • Two Year Warranty

21 in stock

Placement on Vehicle: Front, Left, Lower, Right, Upper

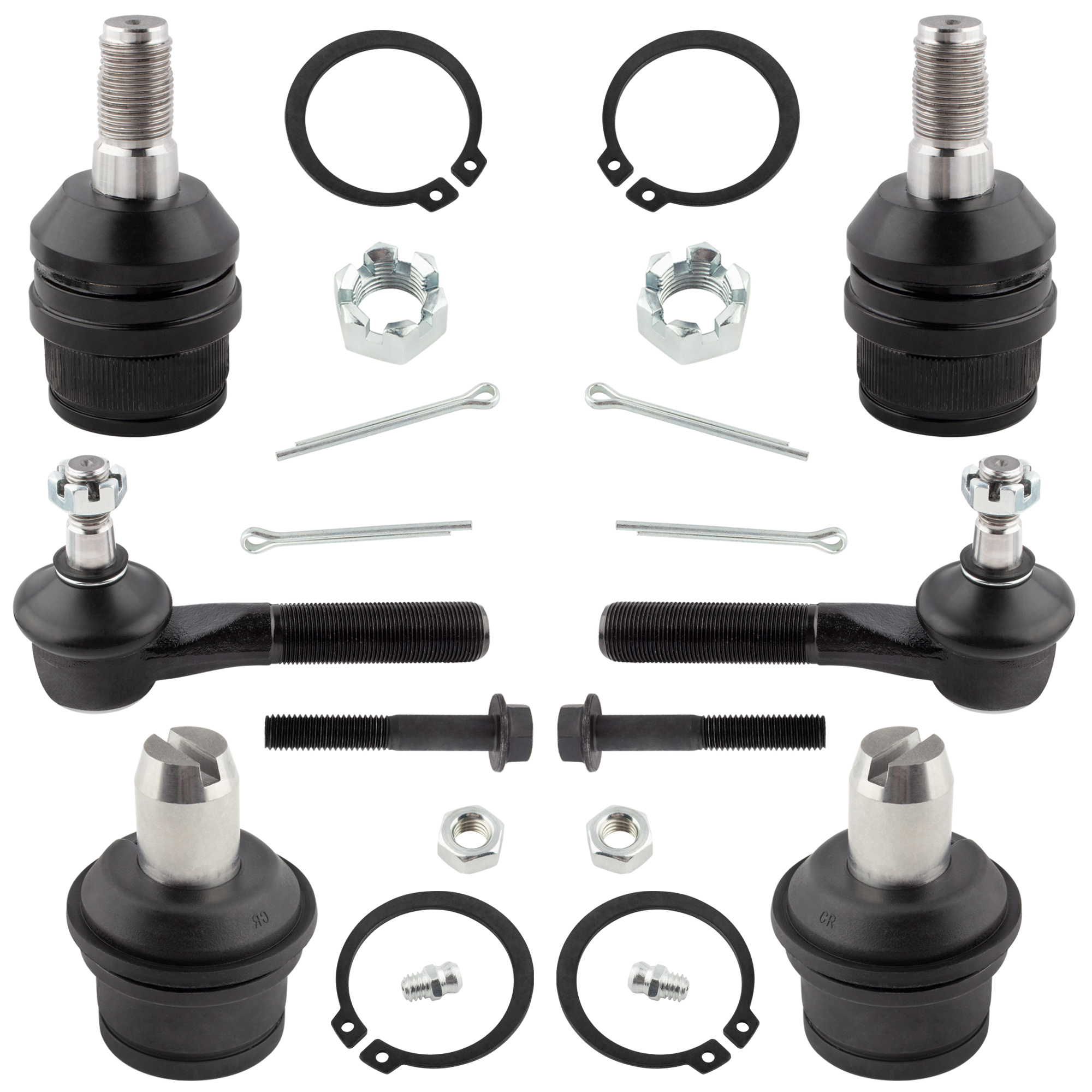

Package Included:

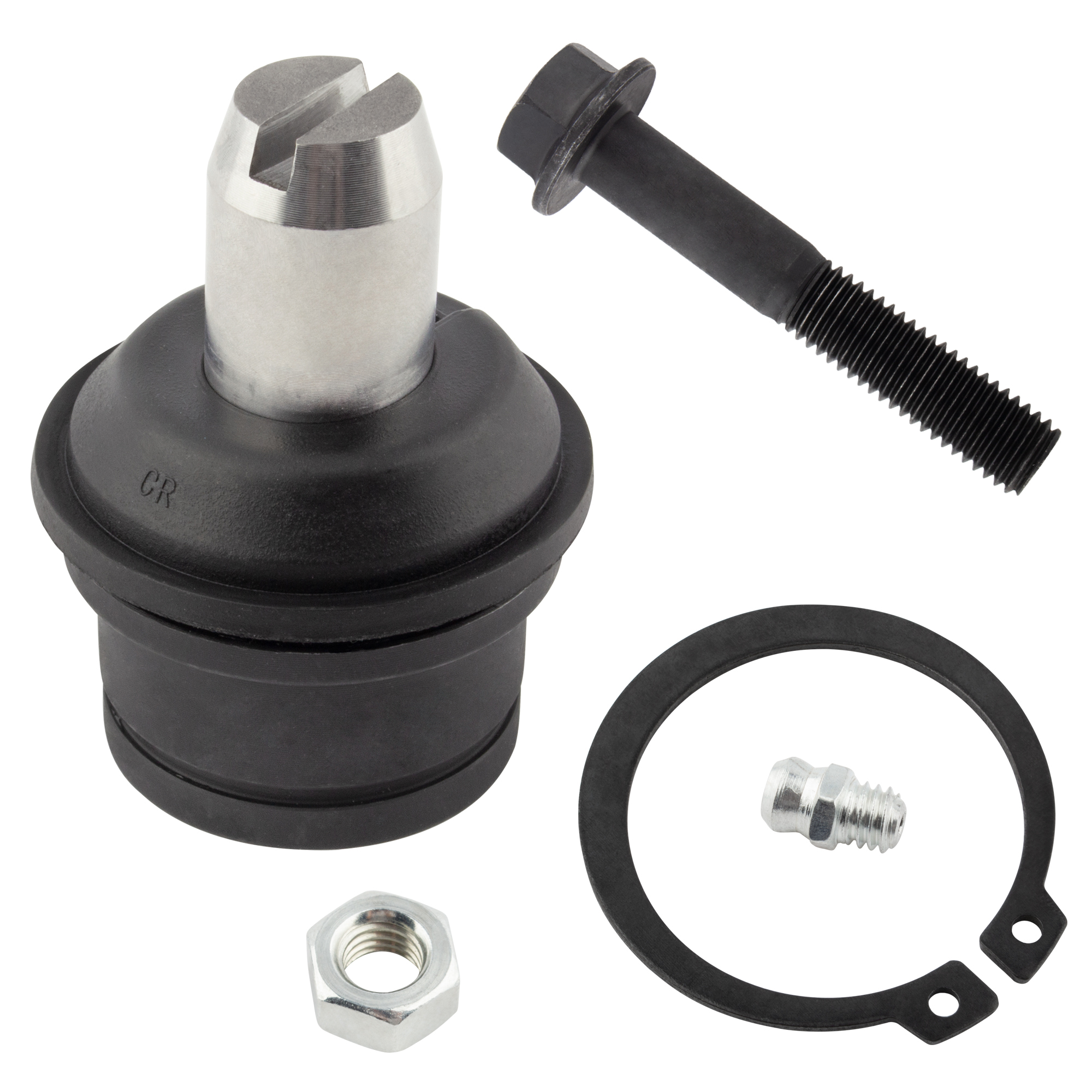

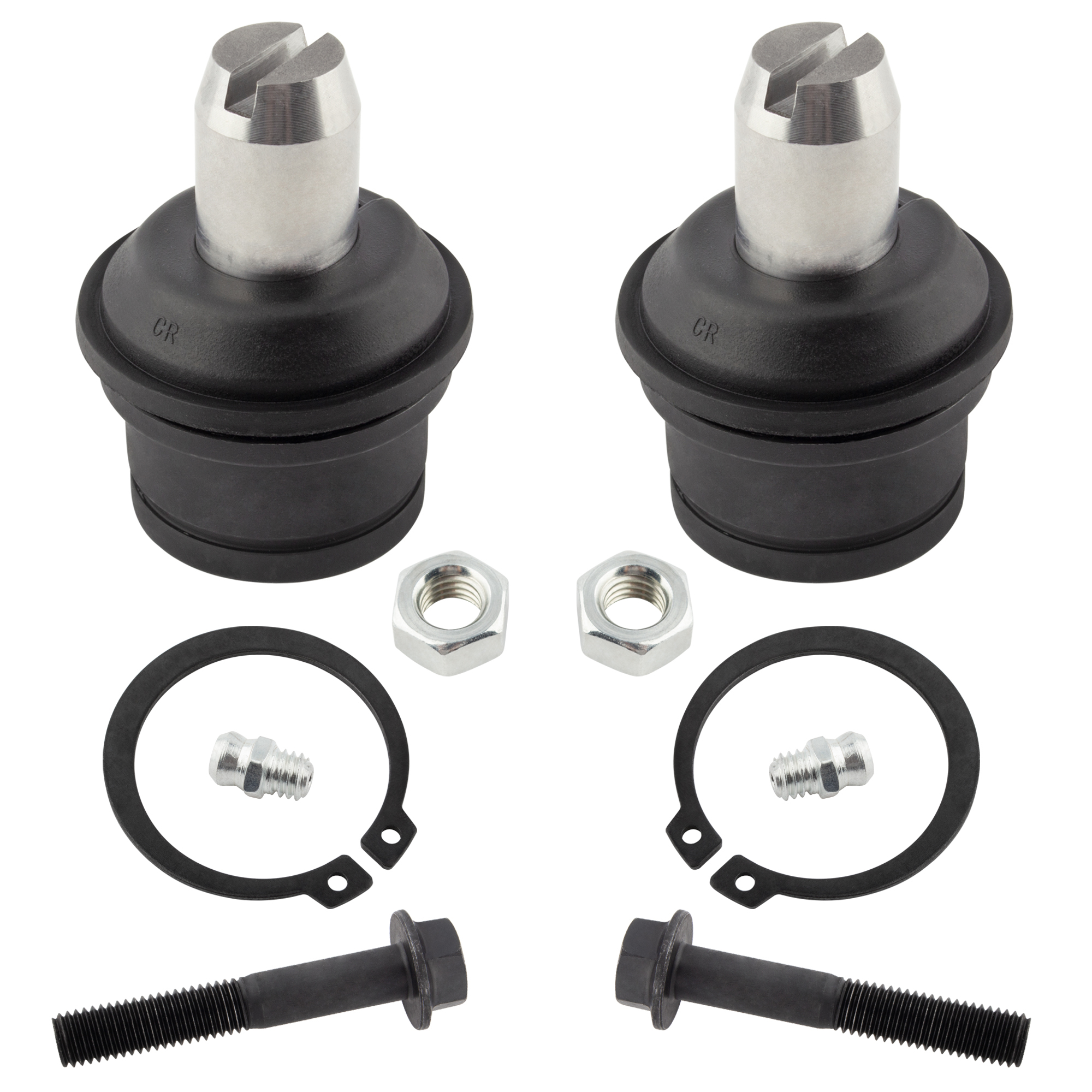

2x Front Lower Ball Joints – K8431

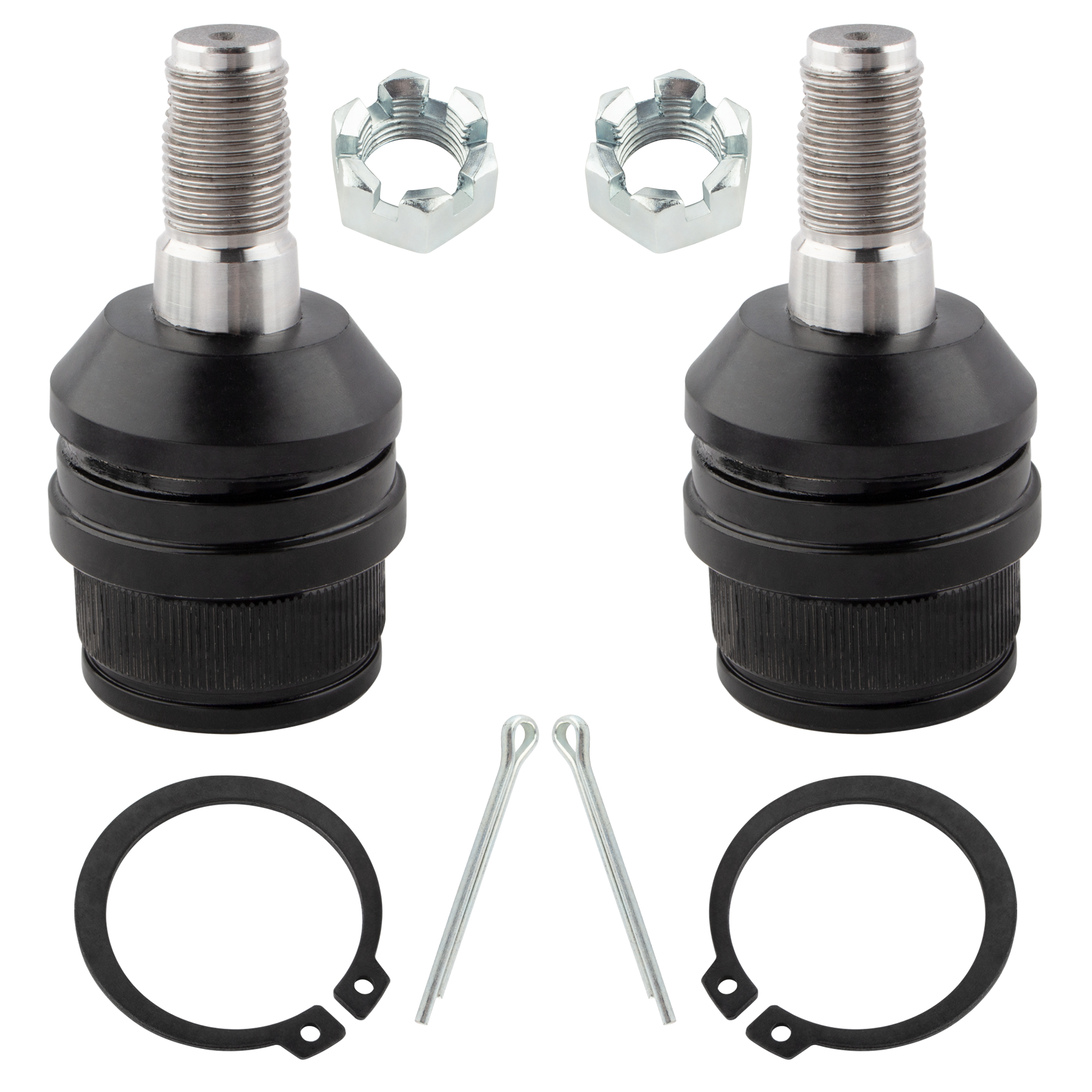

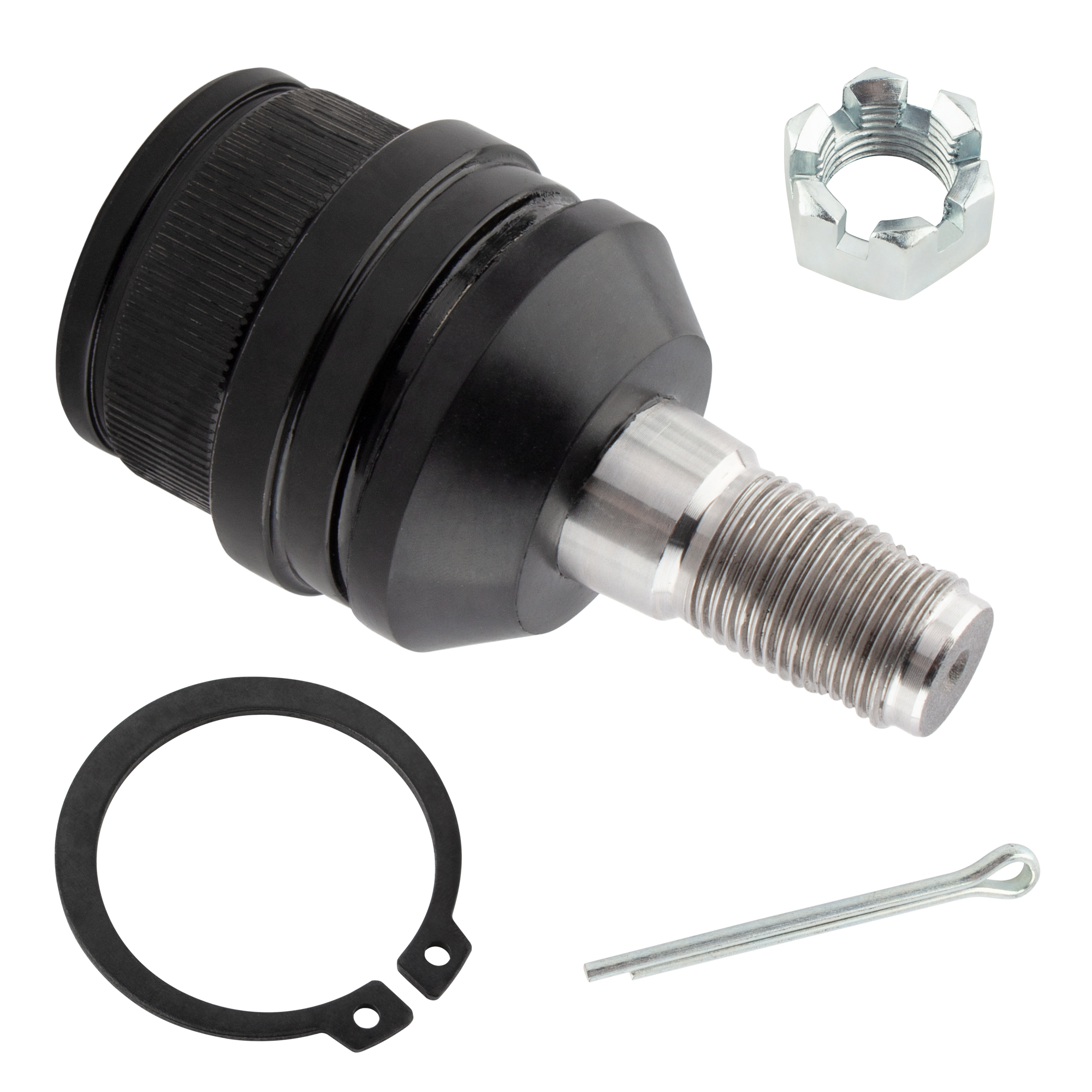

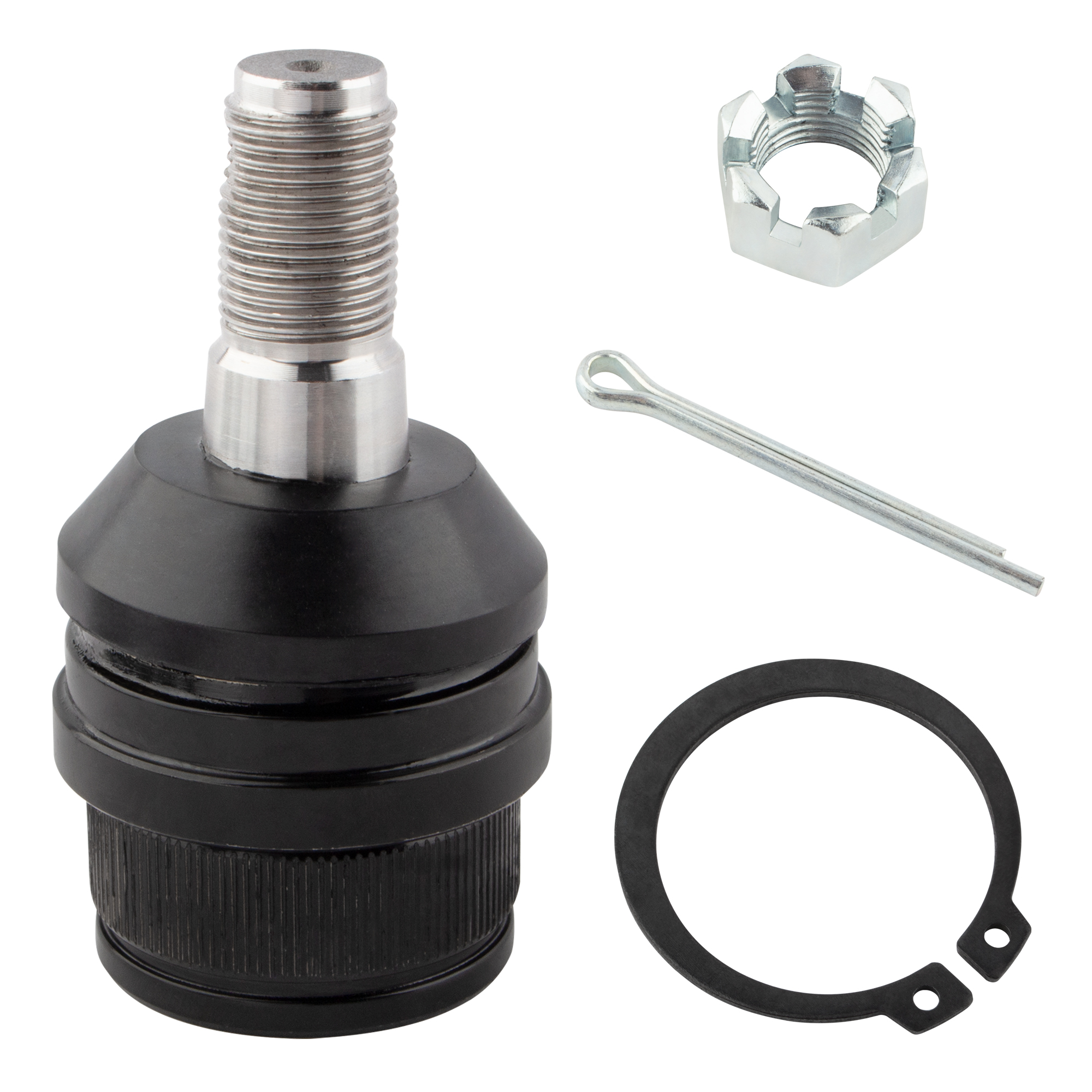

2x Front Upper Ball Joints – K8432

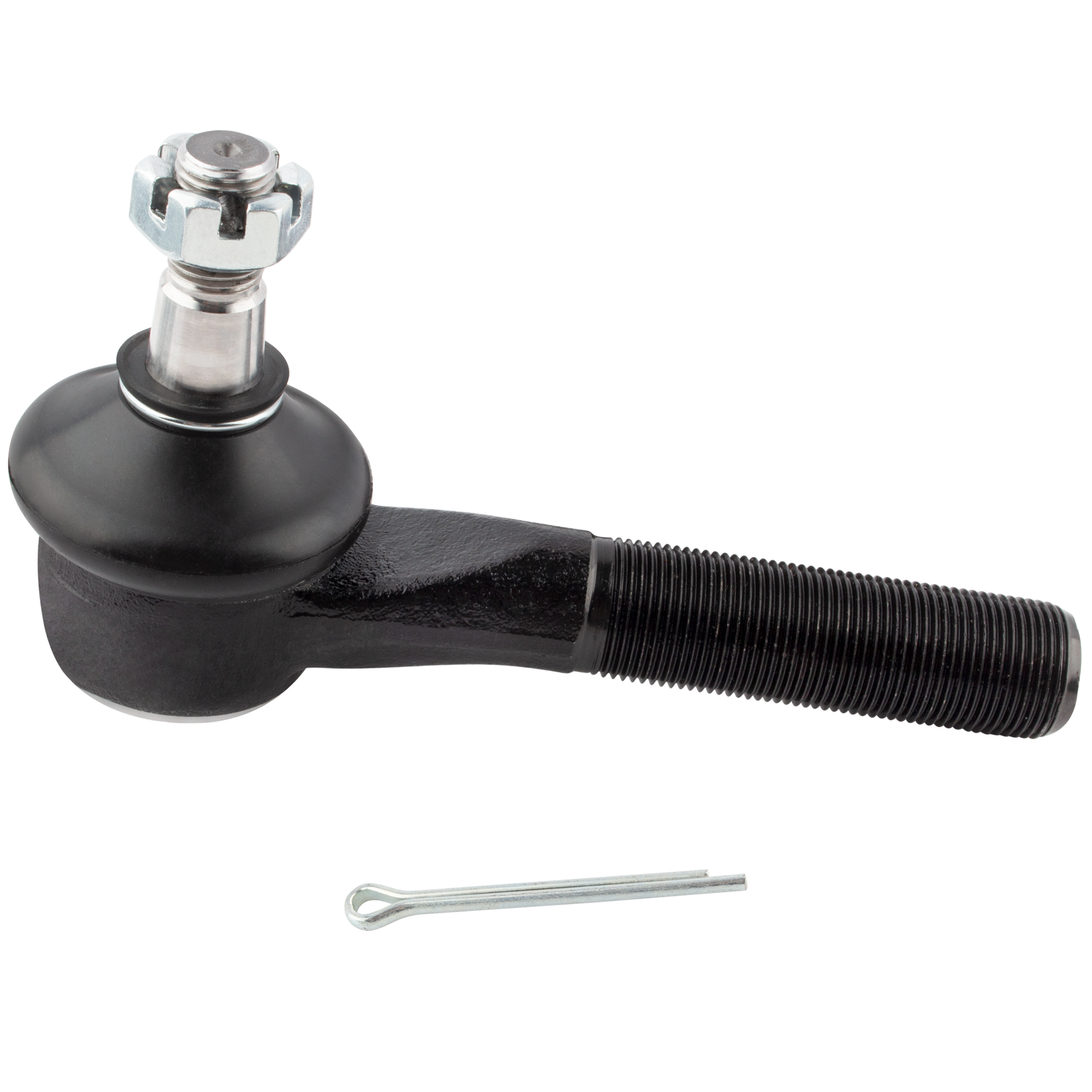

1x Front Outer Tie Rod End Link (Driver) – ES2078

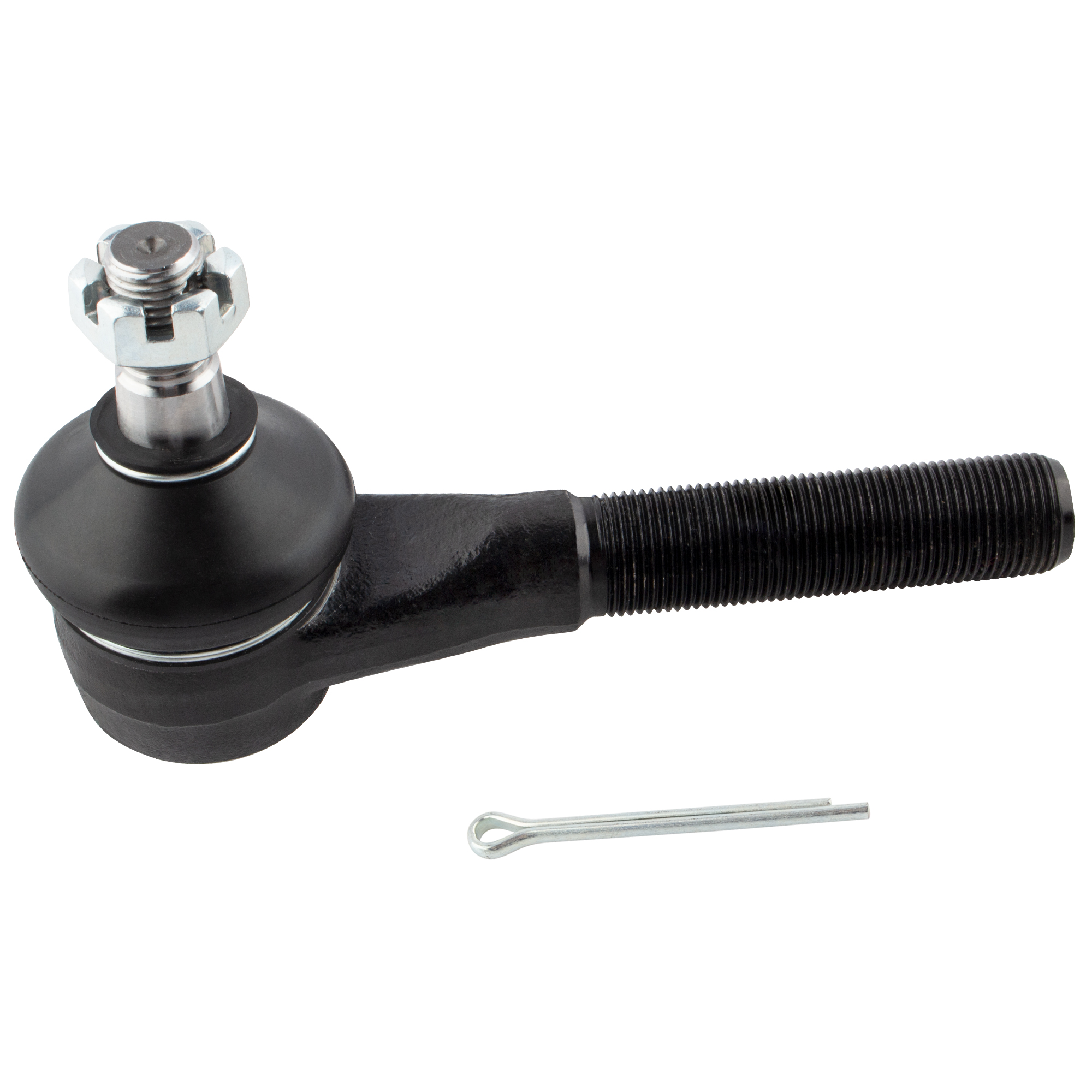

1x Front Outer Tie Rod End Link (Passenger) – ES2077

Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.

Fitment:
Replacement for Ford F-150 1987-1996 2WD/RWD ONLY

Replacement OEM ( Original Equipment Part) Number: K8431 K8432 ES2078 ES2077

Package Included:
2x Front Lower Ball Joints – K8431
2x Front Upper Ball Joints – K8432
1x Front Outer Tie Rod End Link (Driver) – ES2078
1x Front Outer Tie Rod End Link (Passenger) – ES2077

Placement on Vehicle: Front, Left, Lower, Right, Upper

Weight 8.49 lbs
Dimensions 7.13 × 6.61 × 3.7 in
Brand

BOXI
Condition

New
Attachment Method

Press-In
Dust Boot Material

Neoprene
Ball Joint Bearing Material

Polymer
Ball Stud Thread Size

3/4-16 Inch
Ball Stud Type

Threaded
Ball Stud Housing Material

High-Strength Steel
Dust Boot Included

Yes
Locking Nut Included

No
Grease Fitting Included

Yes
C Clips Included

Yes
Greaseable

Yes
Washer Included

No
Mounting Plate Included

No
Pre-Greased

Yes
Castle Nut Included

Yes
Cotter Pin Included

Yes
Warranty Terms

Two Year
Interchange Part Number

E7TZ-3050A, F6TZ3050AB, 65124, 2700-65124, 2710-326648, 285001, 285013, 02-85001, 02-85013, 0285001E, BK8431T, 610.65057, XK8431, XK8431T, TC1661, SUS00493, SUS01684, 531355, 533-244, 35K8431T, E6264, NS80006, IK8431T, 1K8431T, FA1627E, FA1627GL, 39801MT, 30014127, 260-1310FT, 260-1363, PK8431T, PK8431, BGK8431T, 4232494, 505-1132B, SK8431T, X15BJ0018, PSA63260, PSA66108, JBJ7021, 5051132B, E7TZ-3049A, F2UZ-3049A, F5UZ-3049A, ZZL133051, 66918, 2700-66918, 2710-326649, MOGK8432T, 285000, 285012, 02-85000, 02-85012, BK8432T, SUS00469, SUS00763, 539-994, 35K8432T, E6295, IK8432T, 1K8432T, FA1626, FA1626E, FA1626GL, 39802MT, 30014128, 260-1309FT, 2601309, PK8432T, PK8432, BGK8432T, 4232495, 500-1061, 500-1061B, VKDS4731, PSA63046, PSA63122, PSA65190, PSA65191, PSA66058, PS735, JBJ7025, SP9079, R240120, R240119, PSA63070, PSA59484, PSA59099, PSA30933, PSA30931, MK8432T, MK8431T, MK8431, MCS-104133, K8432T, K8432, K8431T, K8431, GK8432T, GK8431T, FK8432T, FK8431T, FA2002, FA1627, DG5051132, BJ85136XL, BJ85136, B8432, B8431PR, B8431, 536-510, 531-355, 531-271, 505-1132, 46D2132A, 45D2132, 45D0061, 31431, 31285, 305168, 305167, 2601310FT, 260-1310, 2601310, 260-1309, 104133HD, 104133, 104132HD, 104132
YearMakeModelSubmodelEngine
1987 – 1992FordF-150CustomL6 – 4.9L 4917cc 300ci GAS MFI vin Y – 2 valve OHV
V6 – 3.8L 3797cc 232ci GAS – 2 valve OHV
V6 – 3.8L 3797cc 232ci GAS 2BBL – 2 valve OHV
V8 – 5.0L 302ci GAS MFI vin N – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS 4BBL vin H – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS MFI vin H – 2 valve OHV
XLT LariatL6 – 4.9L 4917cc 300ci GAS MFI vin Y – 2 valve OHV
V8 – 5.0L 302ci GAS MFI vin N – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS 4BBL vin H – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS MFI vin H – 2 valve OHV
1995 – 1996FordF-150Eddie BauerL6 – 4.9L 4917cc 300ci GAS MFI vin Y – 2 valve OHV
V8 – 5.0L 302ci GAS MFI vin N – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS MFI vin H – 2 valve OHV
SpecialL6 – 4.9L 4917cc 300ci BI-FUEL MFI vin Z – 2 valve OHV
V8 – 5.0L 302ci GAS MFI vin N – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS MFI vin H – 2 valve OHV
1993 – 1995FordF-150LightningV8 – 5.8L 5753cc 351ci GAS MFI vin R – 2 valve OHV
1987 – 1989FordF-150RangerV6 – 3.8L 3797cc 232ci GAS 2BBL – 2 valve OHV
1987 – 1996FordF-150XLL6 – 4.9L 4917cc 300ci BI-FUEL MFI vin Z – 2 valve OHV
L6 – 4.9L 4917cc 300ci GAS MFI vin Y – 2 valve OHV
V6 – 3.8L 3797cc 232ci GAS – 2 valve OHV
V8 – 5.0L 302ci GAS MFI vin N – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS 4BBL vin H – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS MFI vin H – 2 valve OHV
1990 – 1996FordF-150XLTL6 – 4.9L 4917cc 300ci BI-FUEL MFI vin Z – 2 valve OHV
V6 – 3.8L 3797cc 232ci GAS – 2 valve OHV
V6 – 3.8L 3797cc 232ci GAS 2BBL – 2 valve OHV
V8 – 5.0L 302ci GAS MFI vin N – 2 valve OHV
V8 – 5.8L 5753cc 351ci GAS MFI vin H – 2 valve OHV
