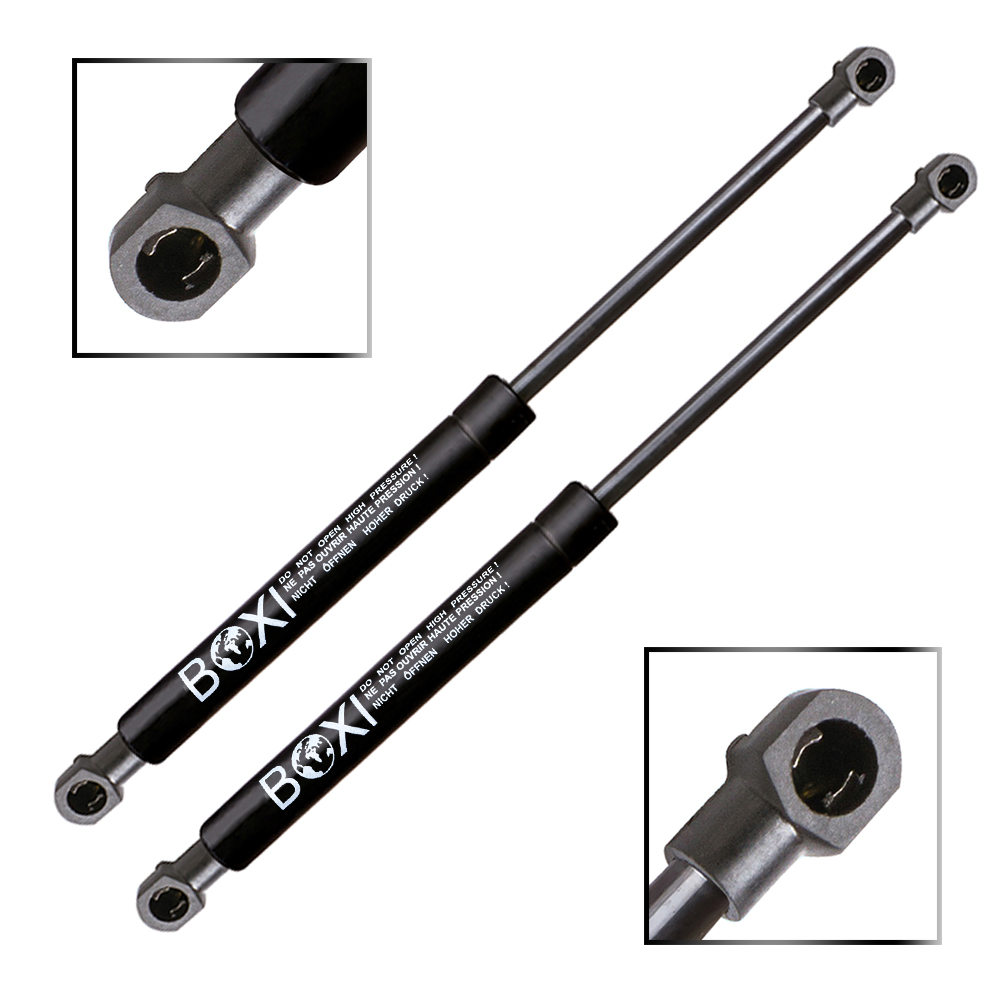

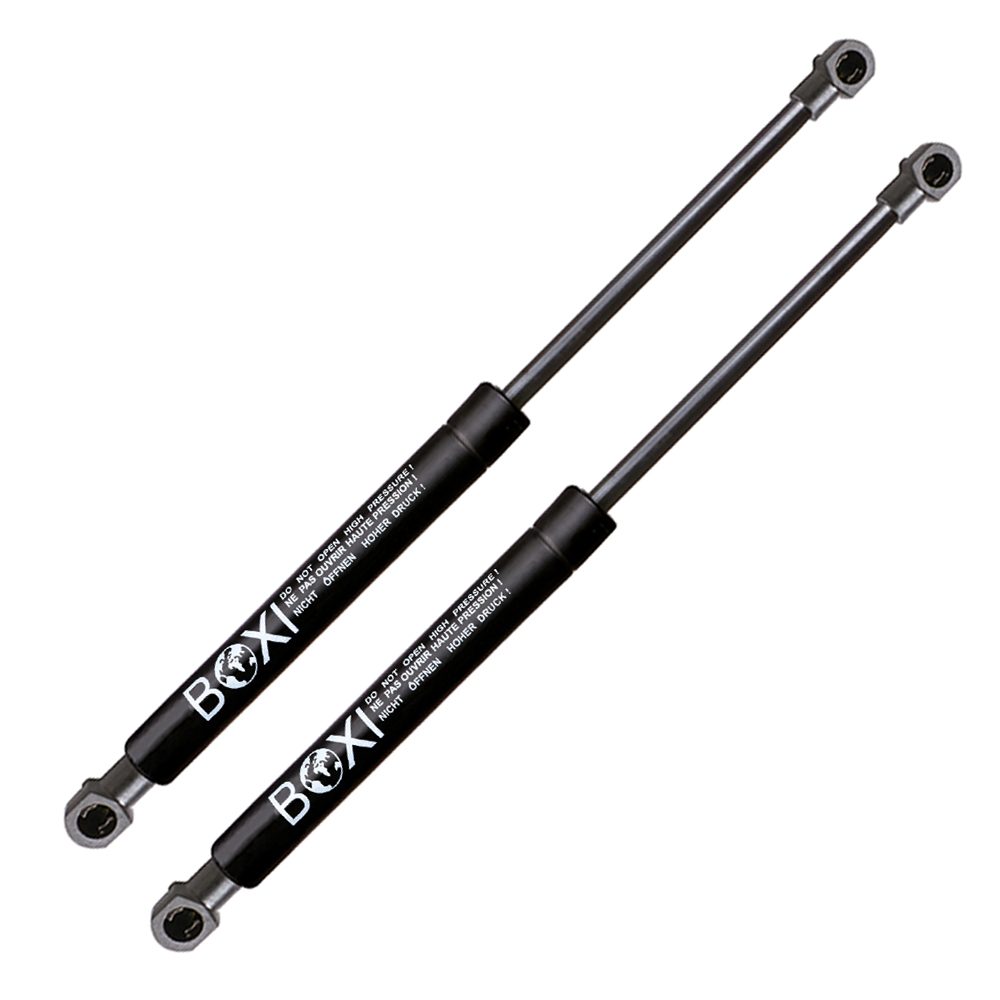

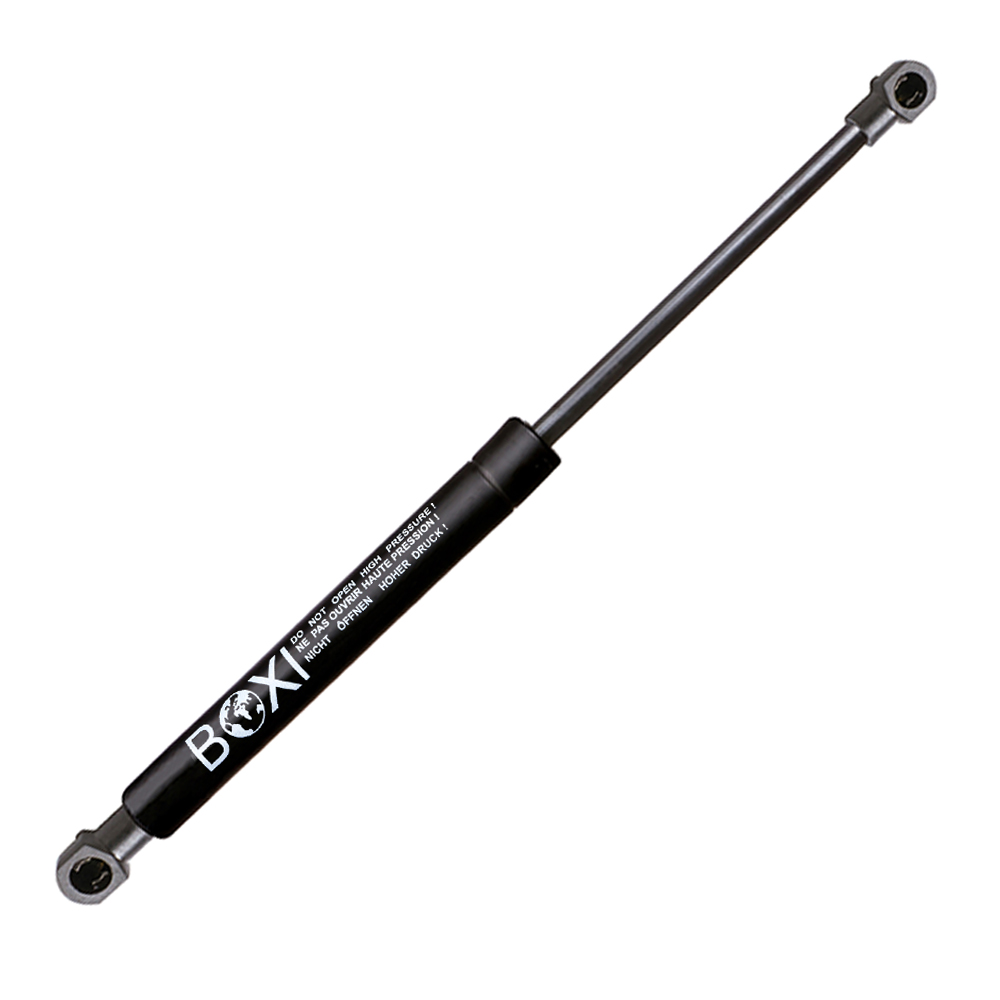

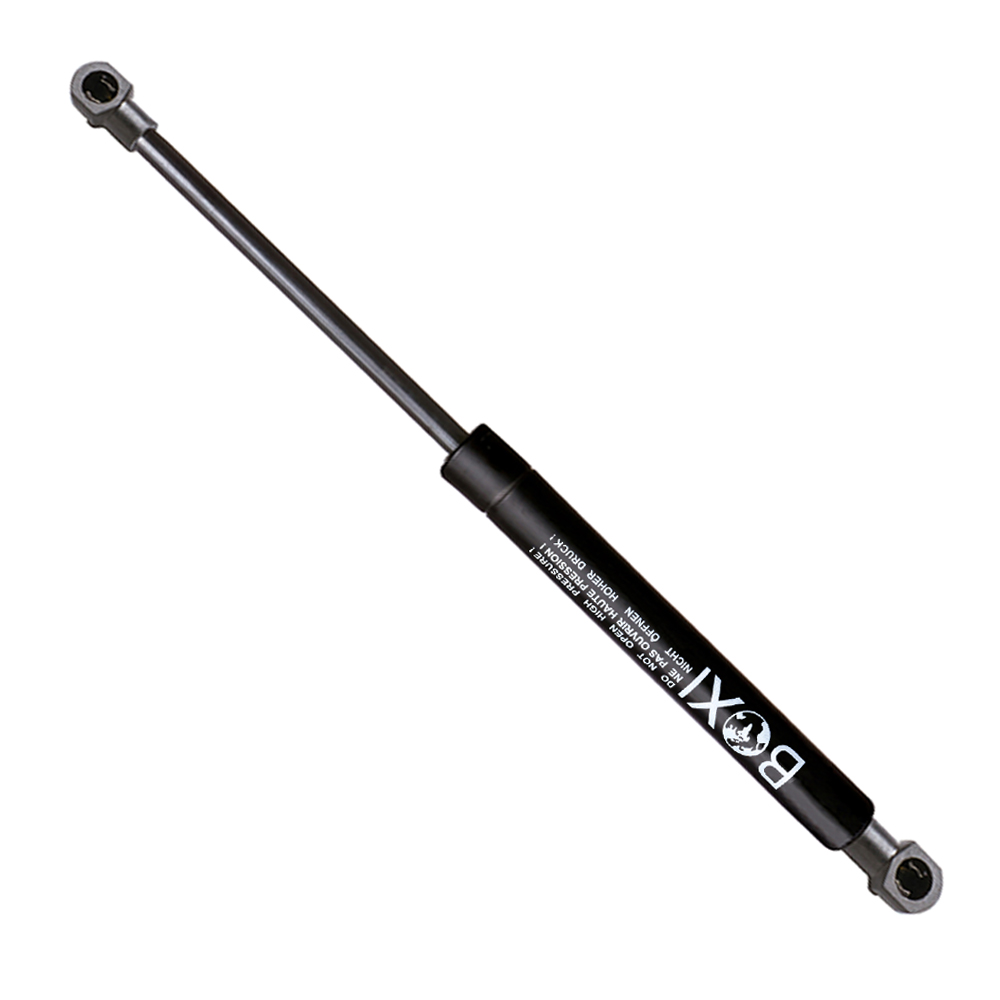

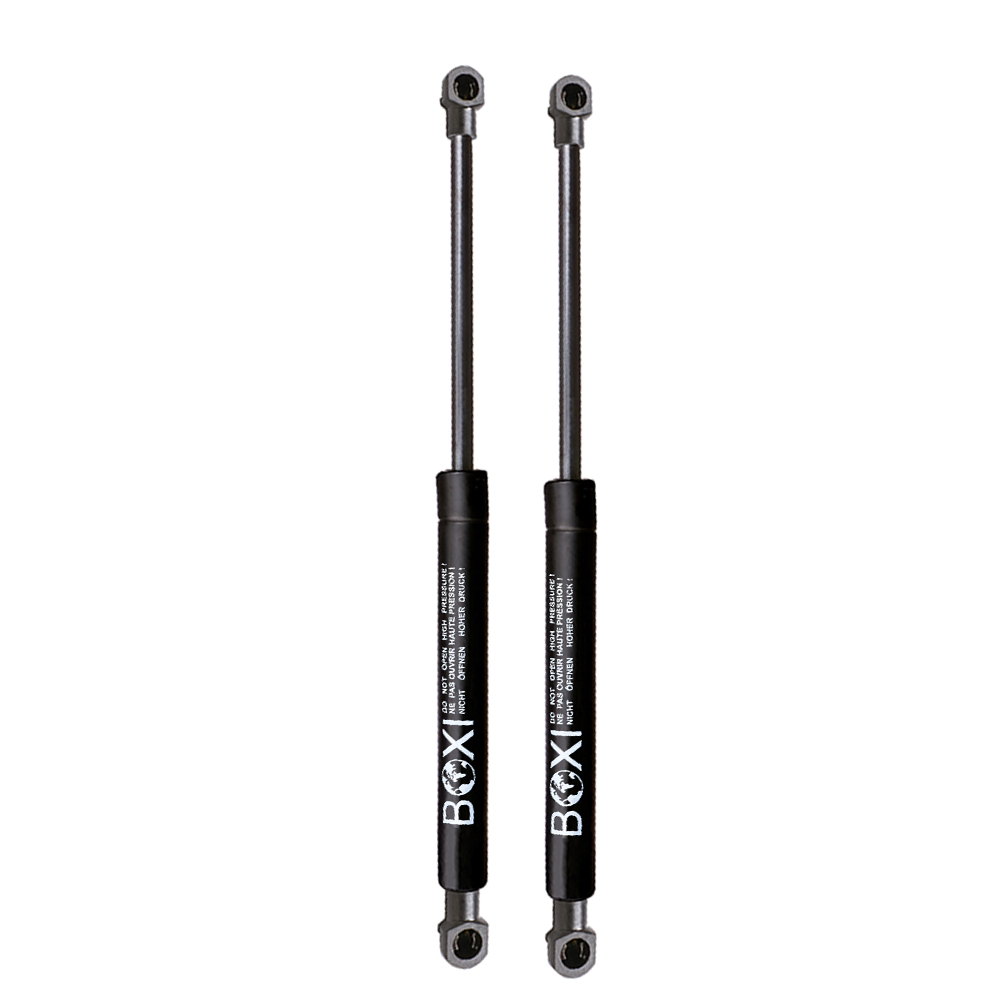

BOXI Qty (2) Trunk Lift Support Struts Gas Struts Shocks Gas Springs Support Lift Shocks for BMW E89 Z4 Convertible Coupe 2009 2010 2011 2012 2013 2014 2015 2016 | Replaces PM3395 1247191255

BOXI SKU#: BXC300002103-2

$18.40

BOXI Trunk Lift Support Struts compatible with BMW Z4 models from 2009 to 2016. Replaces OE numbers PM3395 and 1247191255. Verify fitment before ordering.

OE / Interchange Part Numbers: PM33951247191255

  • 5 Years Warranty

93 in stock

Placement on Vehicle:Rear Trunk
Package Included:2pcs Rear Trunk Lift Supports

Fits the following vehicles:
2009-2011 B-M-W Z4 2.3sDrivei Convertible 2-Door Trunk
2009-2011 B-M-W Z4 2.5si Convertible 2-Door Trunk
2009-2011 B-M-W Z4 3.0si Convertible 2-Door Trunk
2009-2011 B-M-W Z4 3.5sDrivei Convertible 2-Door Trunk
2009-2016 B-M-W Z4 Base Convertible 2-Door Trunk
2009-2011 B-M-W Z4 Base Coupe 2-Door Trunk
2009 B-M-W Z4 M Coupe Coupe 2-Door Trunk
2009 B-M-W Z4 M Roadster Convertible 2-Door Trunk
2009-2016 B-M-W Z4 sDrive28i Convertible 2-Door Trunk
2009-2016 B-M-W Z4 sDrive30i Convertible 2-Door Trunk
2009-2016 B-M-W Z4 sDrive35i Convertible 2-Door Trunk
2009-2016 B-M-W Z4 sDrive35is Convertible 2-Door Trunk

Weight 0.69 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

283
Stroke (in):

3.74
Stroke (mm):

95
Compressed Length (in)

Compressed Length (mm):

188
Force (Lbs)

Force (Newtons)

569
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

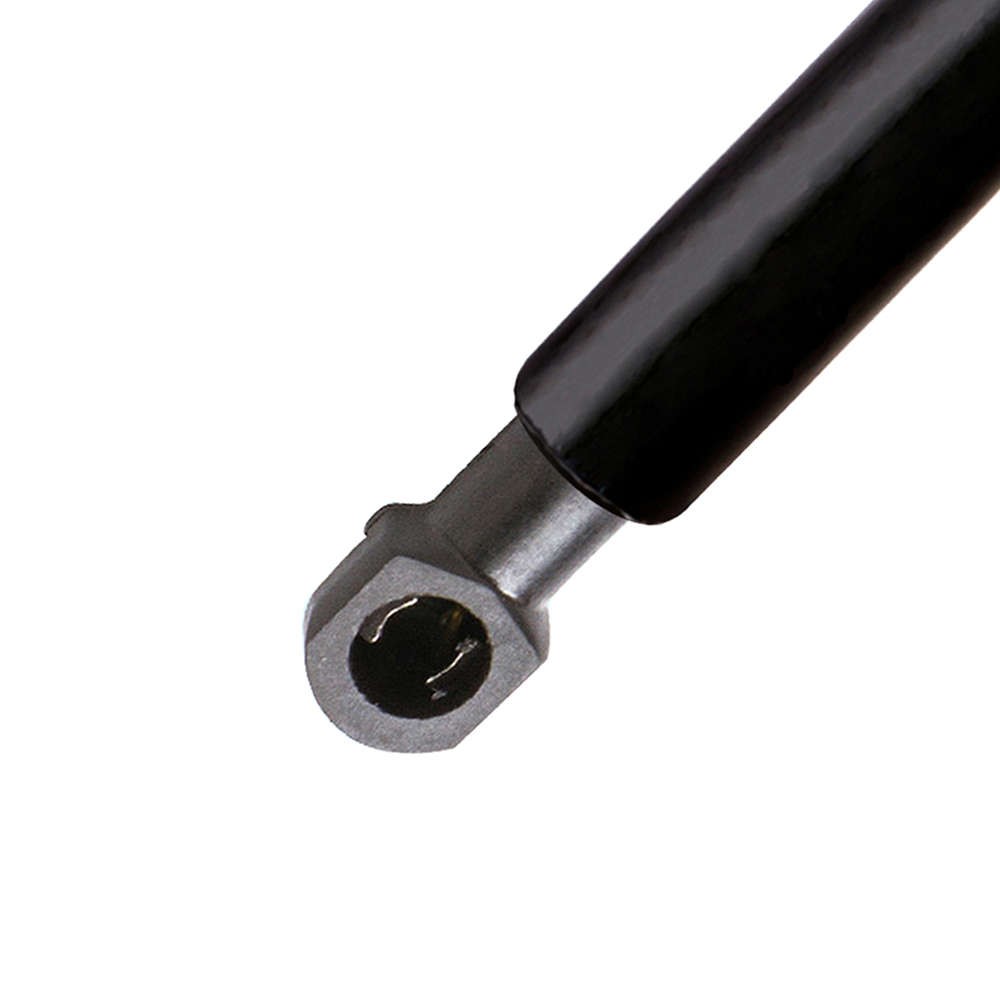

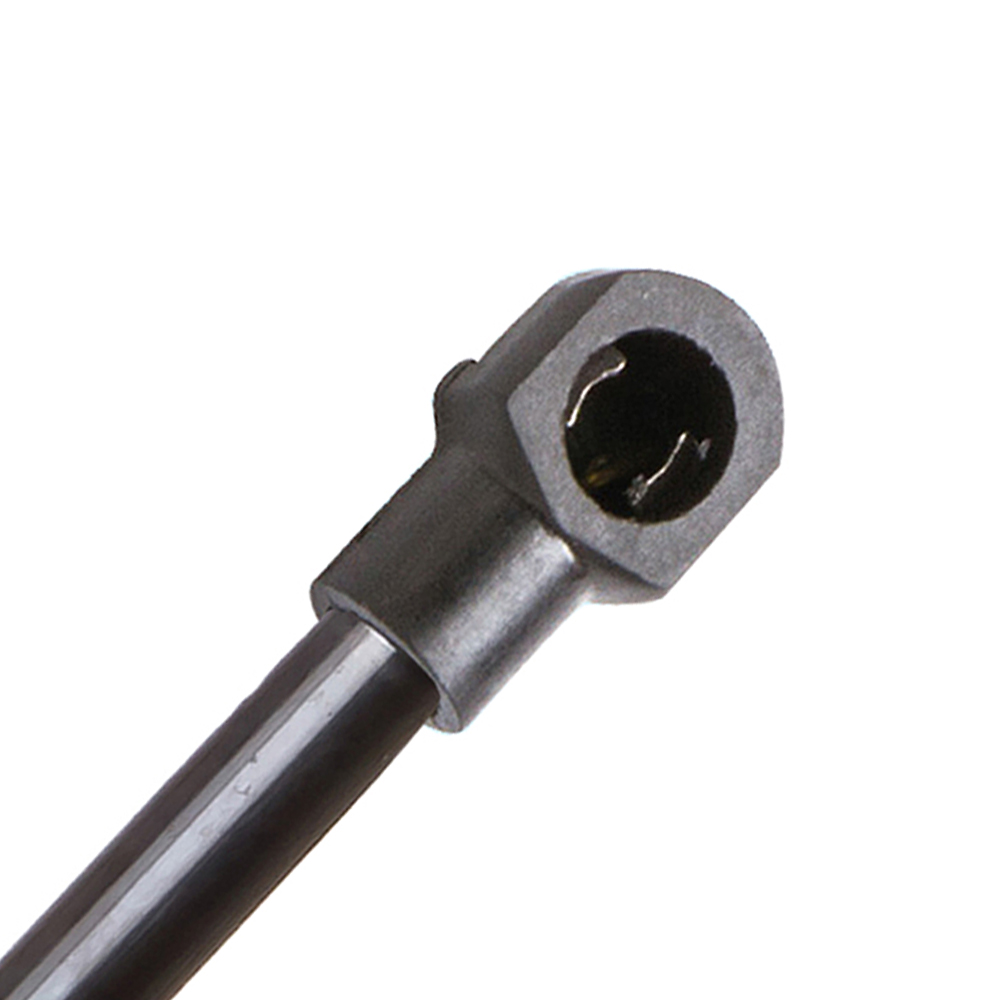

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

5B499514, 5B-499514, 51247191255, 51 24 7 191 255
YearMakeModelSubmodelEngine
2009 – 2010BMWZ43.0si Convertible 2-Door3.0L 2996CC l6 GAS DOHC Naturally Aspirated
2012 – 2016BMWZ4sDrive28i Convertible 2-Door2.0L 1997CC 122Cu. In. l4 GAS DOHC Turbocharged
2009 – 2011BMWZ4sDrive30i Convertible 2-Door3.0L 2996CC l6 GAS DOHC Naturally Aspirated
2009 – 2016BMWZ4sDrive35i Convertible 2-Door3.0L 2979CC l6 GAS DOHC Turbocharged
3.0L 2979CC l6 GAS DOHC Naturally Aspirated
2011 – 2016BMWZ4sDrive35is Convertible 2-Door3.0L 2979CC l6 GAS DOHC Turbocharged
