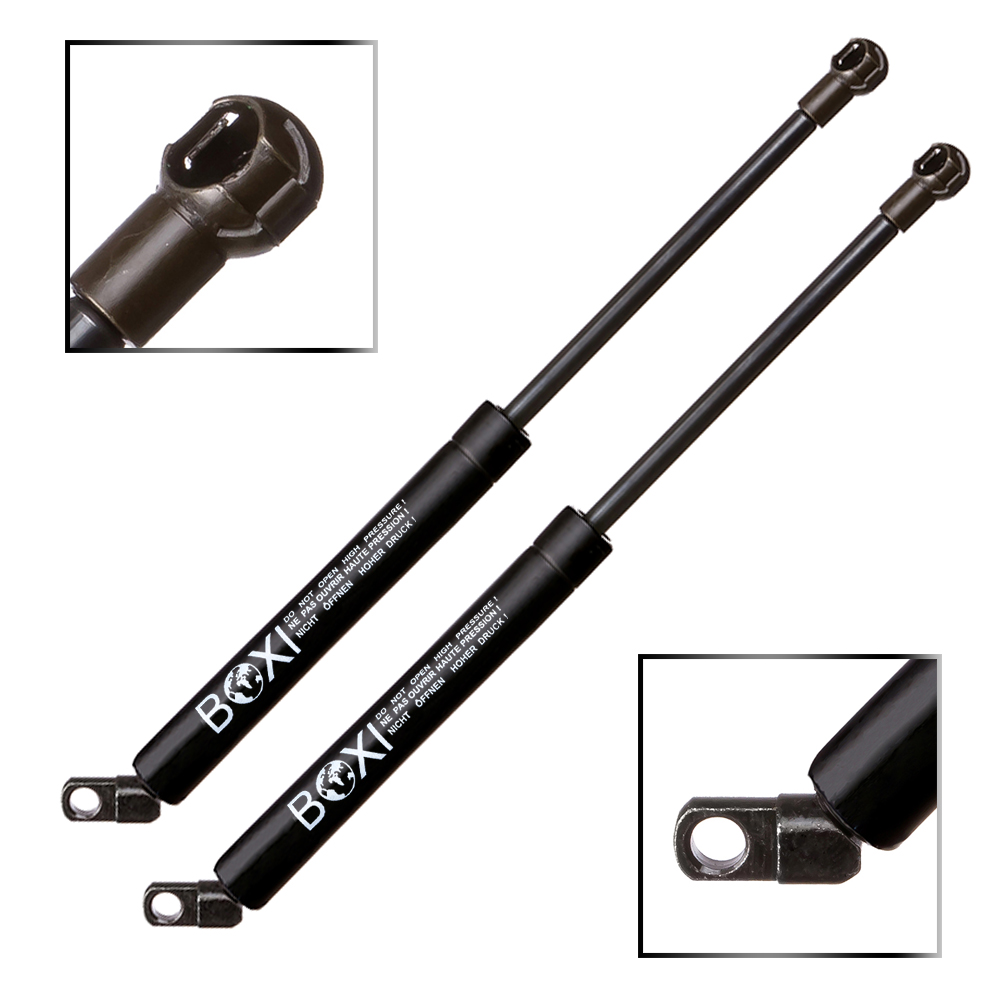

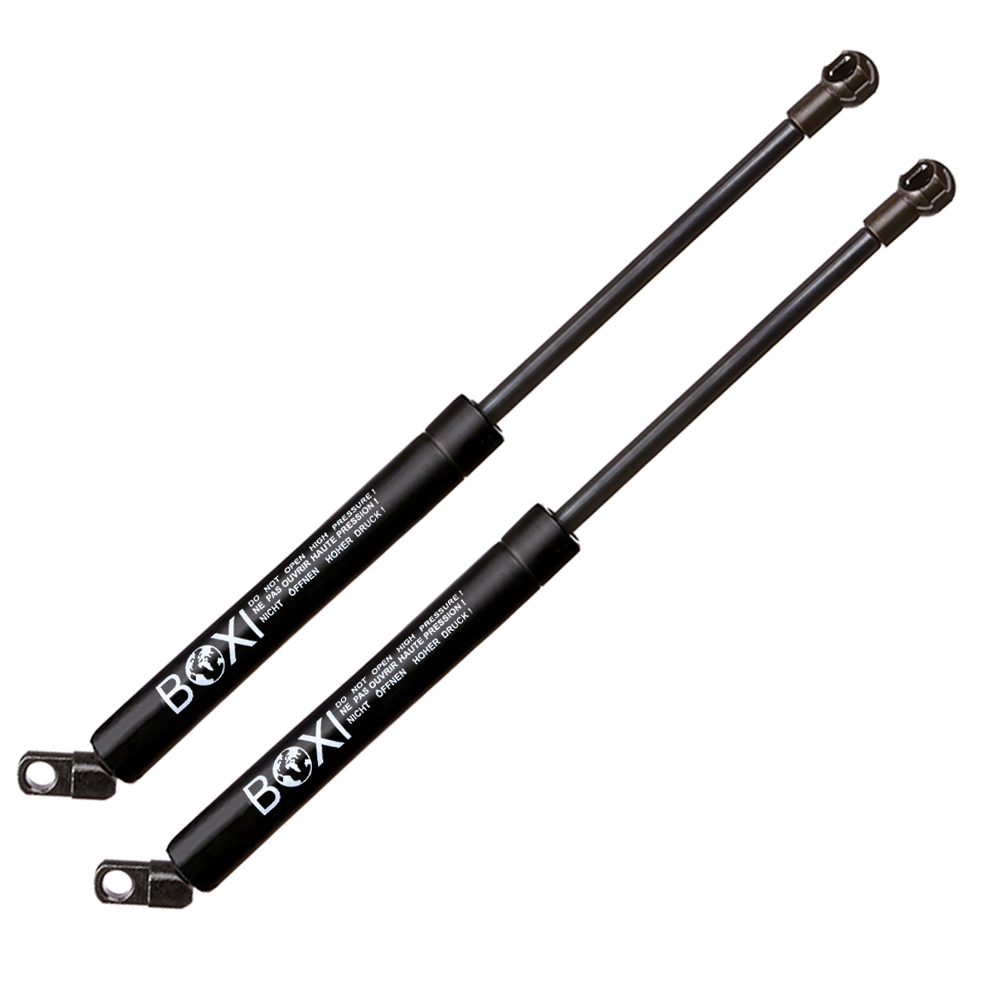

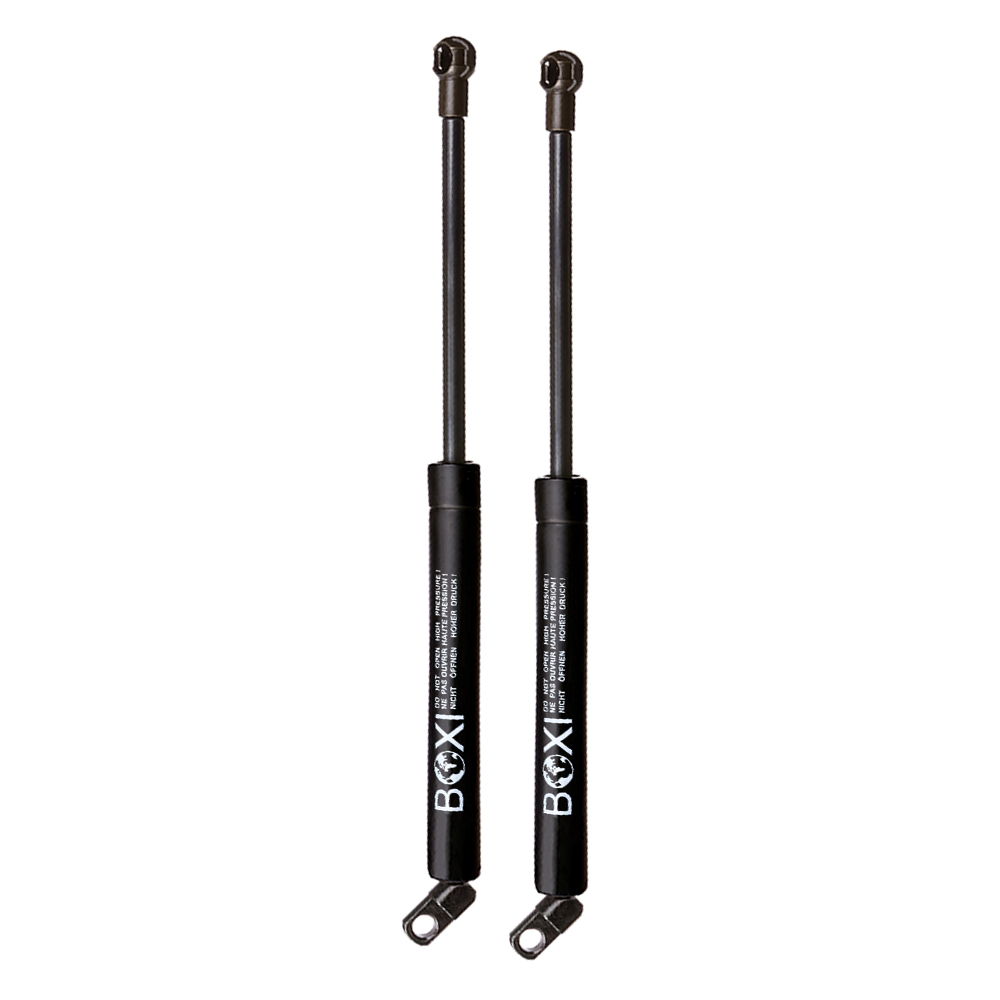

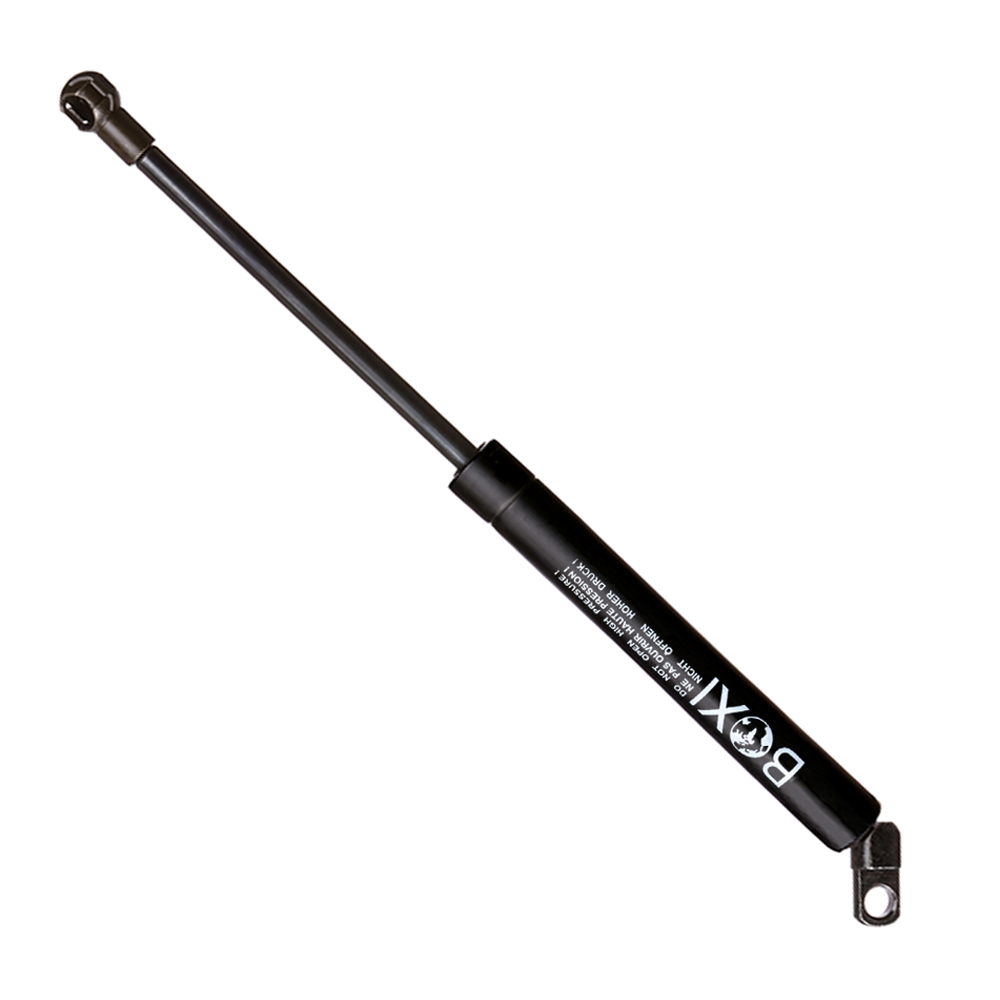

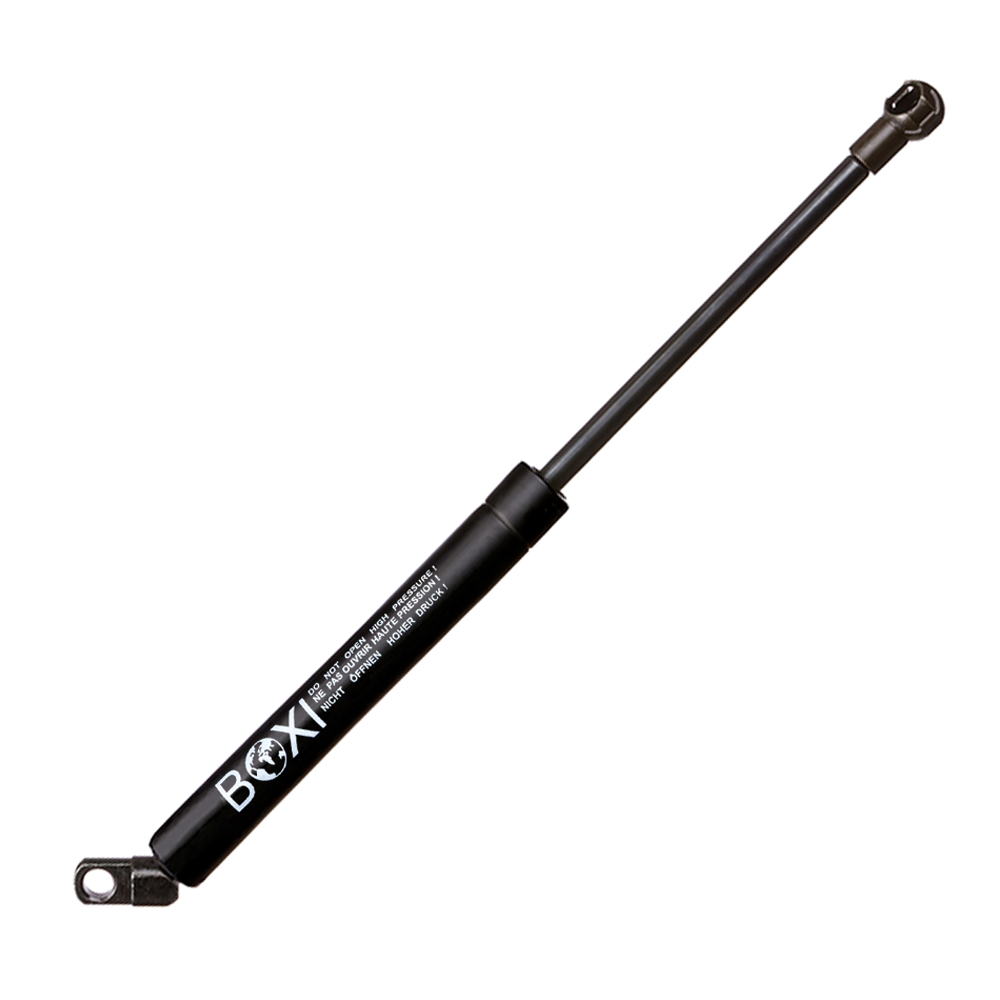

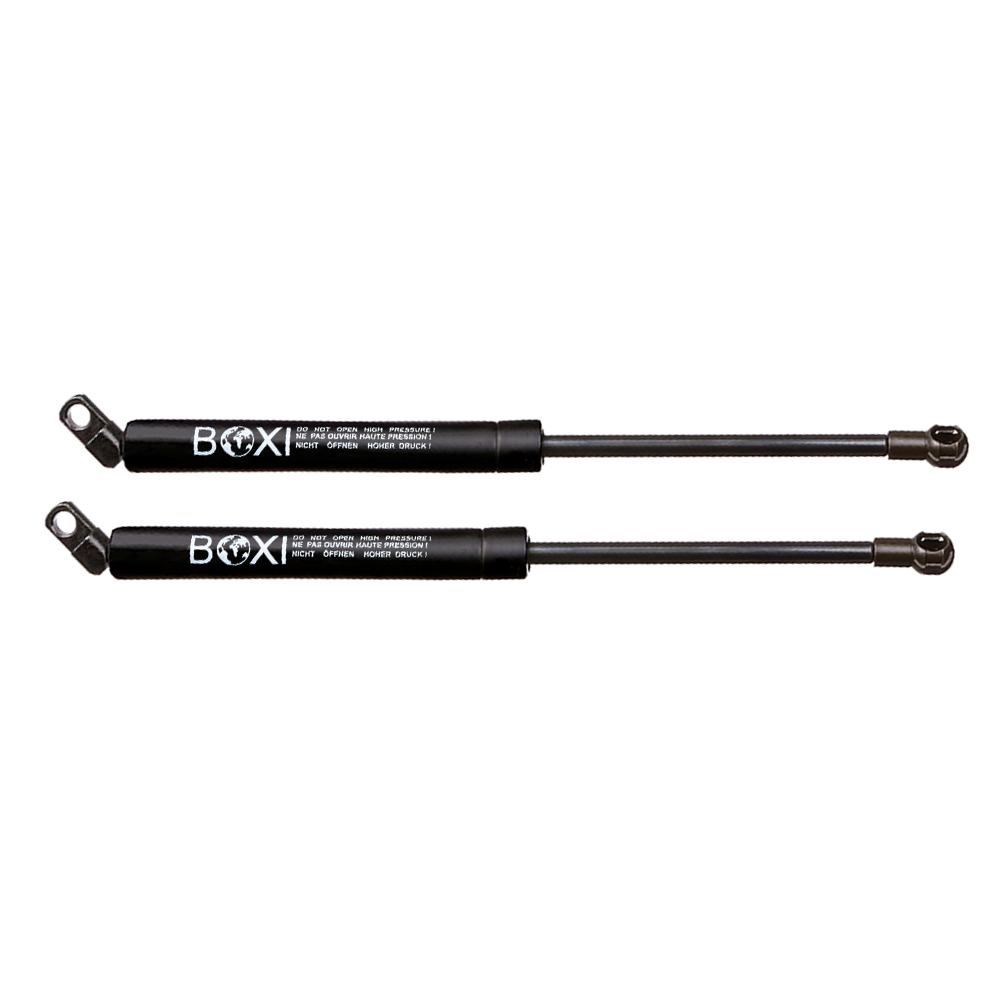

Qty(2) BOXI Trunk Gas Charged Lift Support for BMW 740i 1993-1995 / 740i 1997-2001 / 740iL 1993-2001 / 750iL 1988-2001 Trunk | Replaces 51248171480 4546 SG402027

BOXI SKU#: BXC300002052-2

$18.99

Set of two BOXI trunk gas-charged lift supports for BMW 7 Series sedans, including 740i, 740iL, and 750iL (E38 body code, 1988-2001). Replaces part numbers 51248171480 and 51248236506. Verify fitment before ordering.

OE / Interchange Part Numbers: 13678, 3286GW, 4546, 51248171480, 5B3286GW, 5B3286GWW, 613989, 7083ZY, 8194184, RB8795916, SG402027

  • 5 Years Warranty

19 in stock

Placement on Vehicle:Rear Trunk
Package Included:2pcs Rear Trunk Lift Supports

Extended Length [in] 12.30
Compressed Length [in] 8.56

Fits the following BMW 740i Years:

1993-1995,1997-2001 | Base Sedan | Body Code: E38

Fits the following BMW 740iL Years:

1993-2001 | Base Sedan | Body Code: E38

Fits the following BMW 750iL Years:

1988-2001 | Base Sedan | Body Code: E38

Weight 0.88 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

312
Stroke (in):

3.95
Stroke (mm):

100
Compressed Length (in)

Compressed Length (mm):

212
Force (Lbs)

Force (Newtons)

640
Cylinder Diameter (in):

0.75
Cylinder Diameter (mm):

19
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

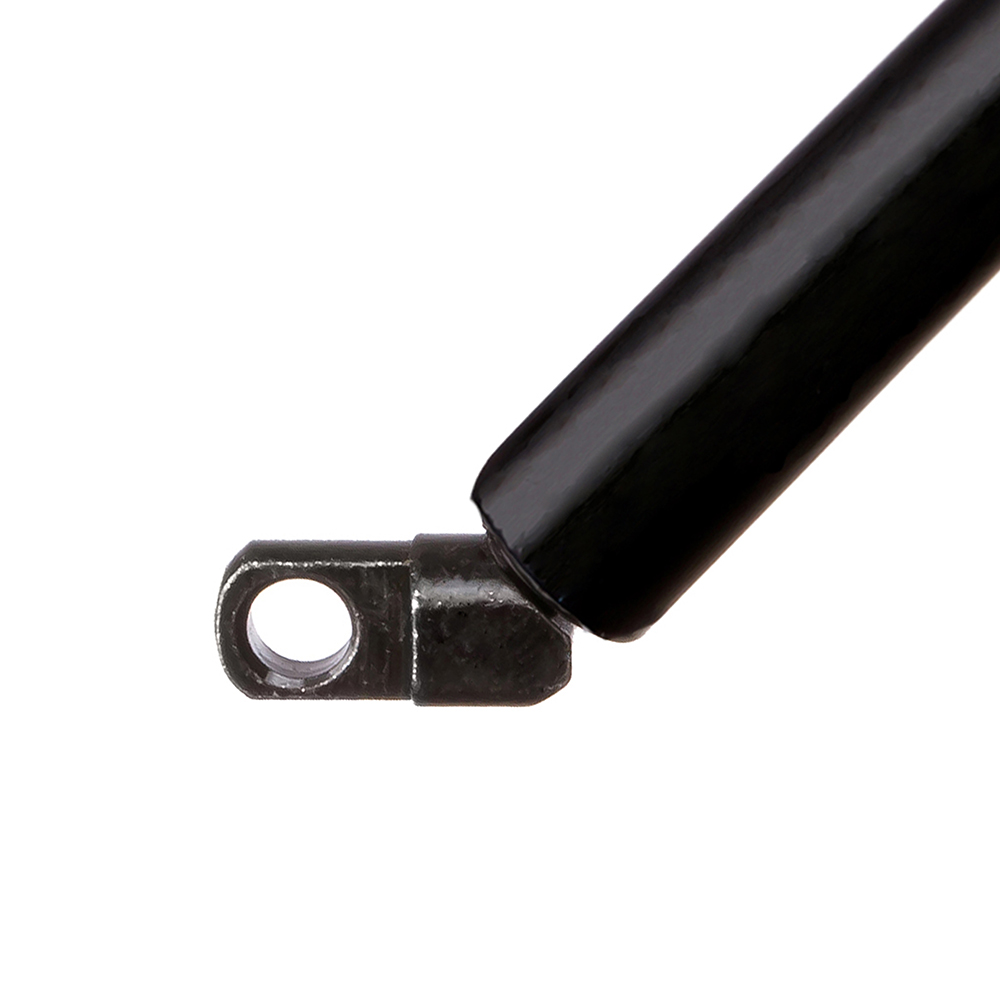

Body Connection:

Eyelet Hole

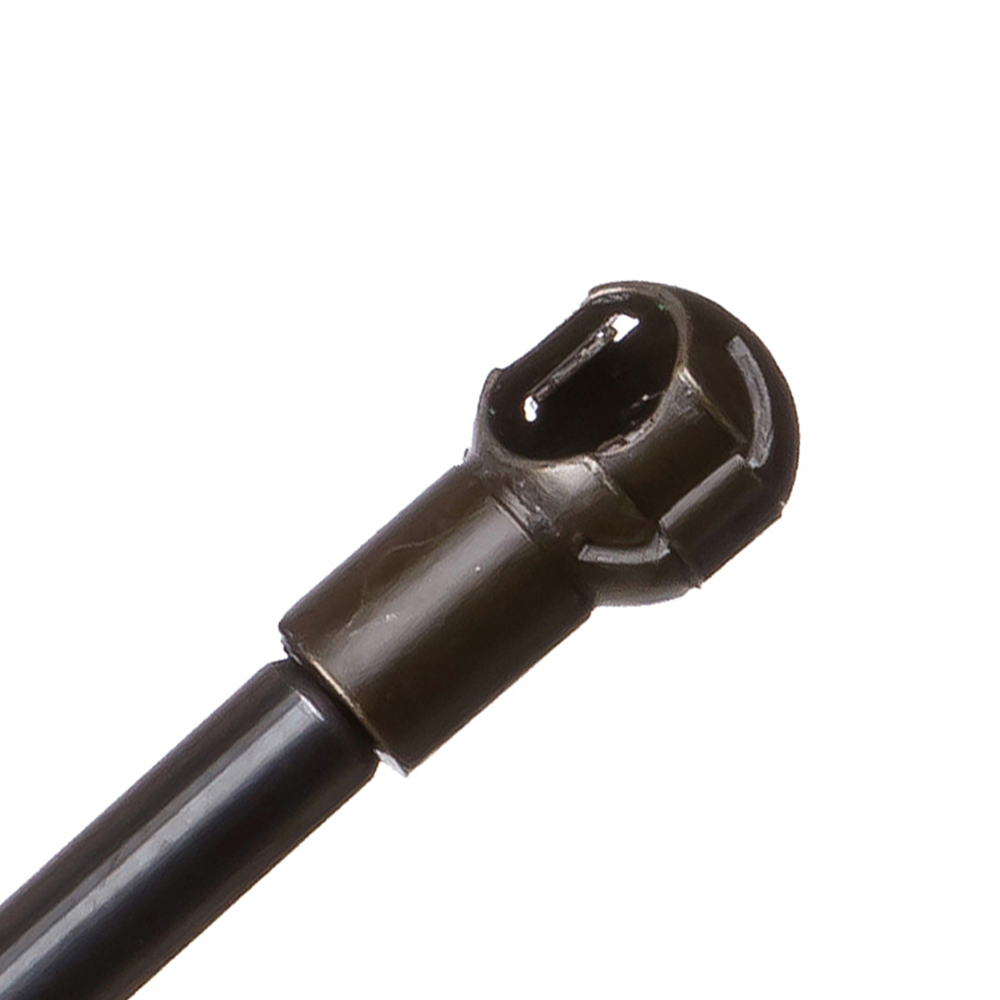

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

51241908431, 51248171480, 51248236506, 51 24 1 908 431, 51 24 8 171 480, 51 24 8 236 506, TFS613989, 613989, SG402027, E95916, D4546, 901697, 819-4184, 510-843, 4546
YearMakeModelSubmodelEngine
1995 – 2001BMW740iBaseV8 – 4.0L 3982cc GAS MFI type M60 – 4 valve DOHC
V8 – 4.4L 4398cc GAS MFI type M62 – 4 valve DOHC
1994 – 2001BMW740iLBaseV8 – 4.0L 3982cc GAS MFI type M60 – 4 valve DOHC
V8 – 4.4L 4398cc GAS MFI type M62 – 4 valve DOHC
1993 – 2001BMW750iLBaseV12 – 5.0L 4988cc GAS MFI type M70 – 2 valve SOHC
V12 – 5.4L 5379cc GAS MFI type M73 – 2 valve SOHC
V12 – 5.4L 5379cc GAS MFI type M73N – 2 valve SOHC
