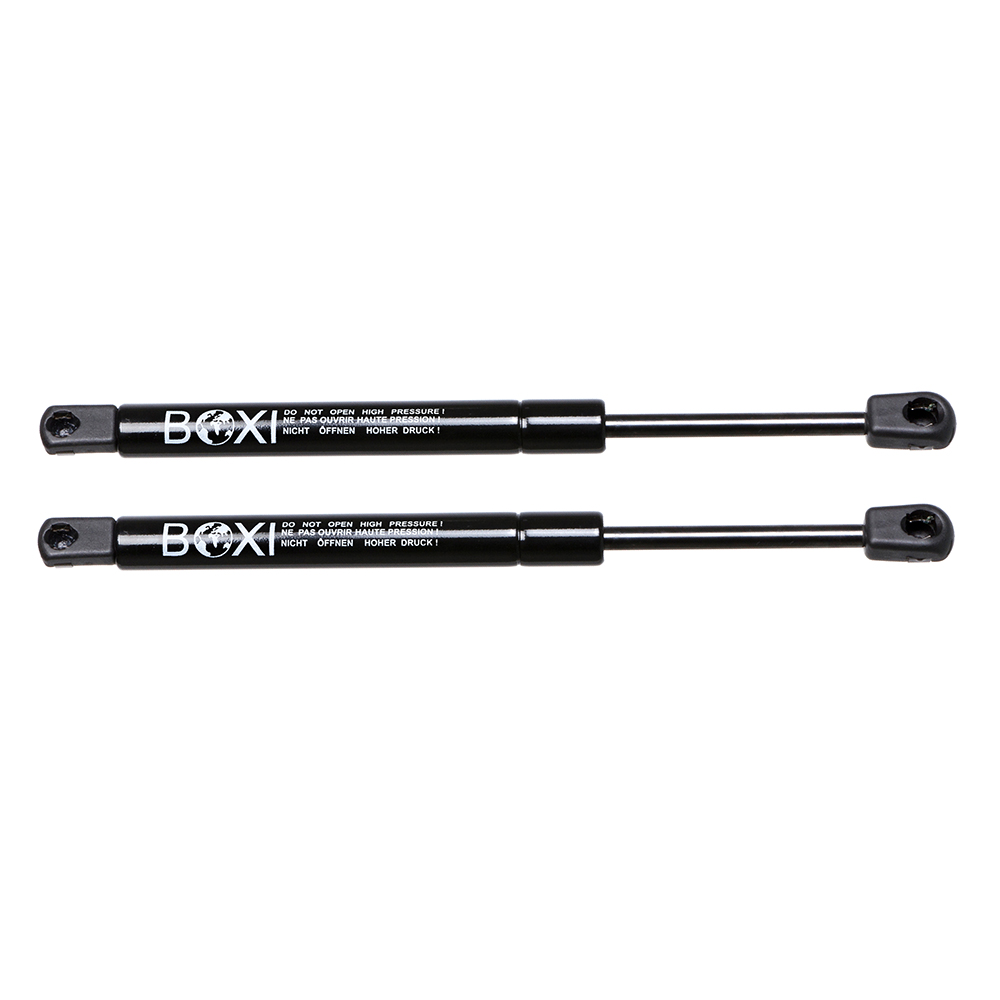

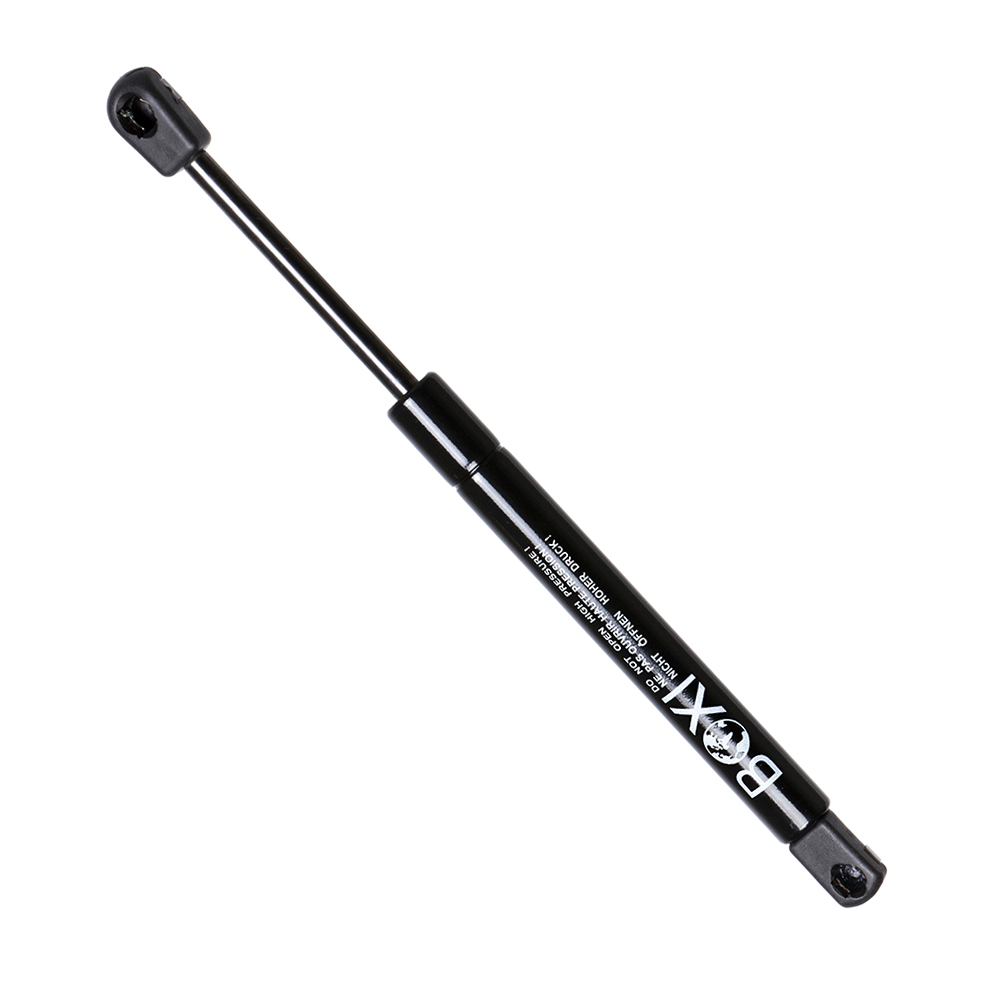

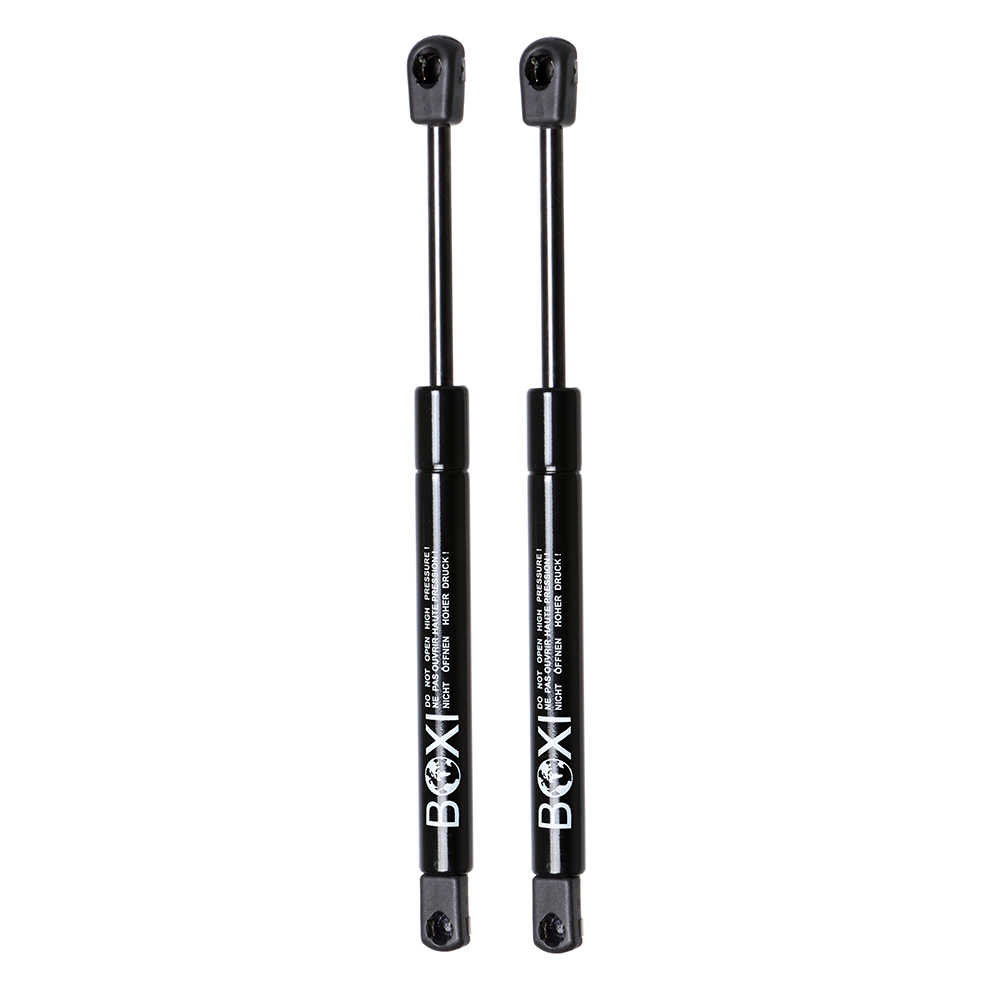

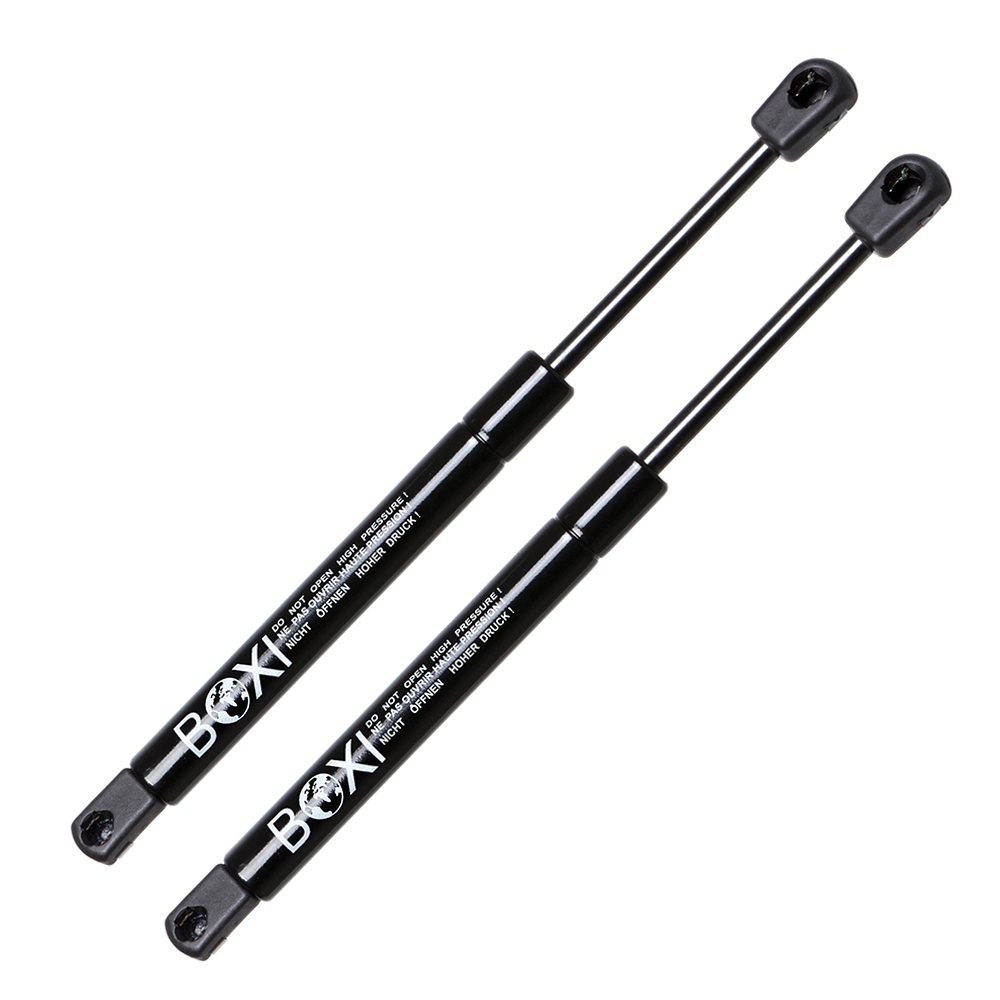

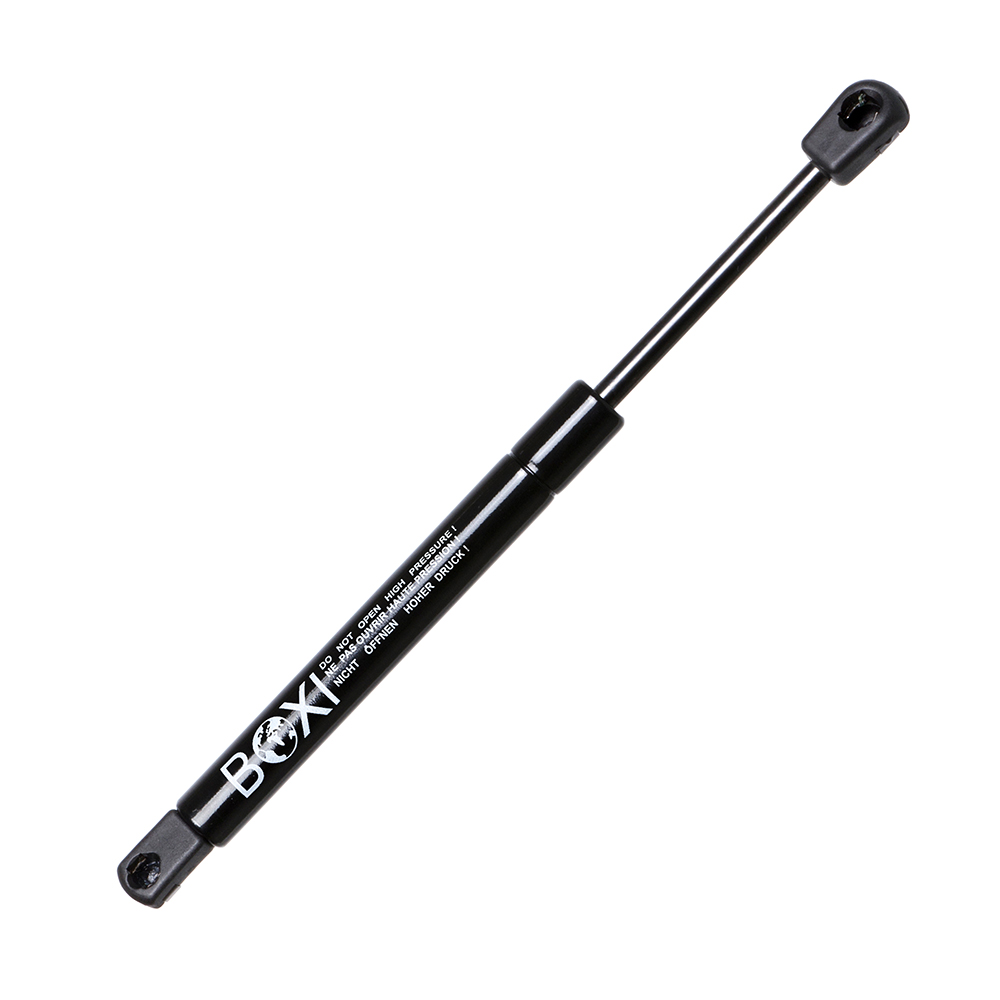

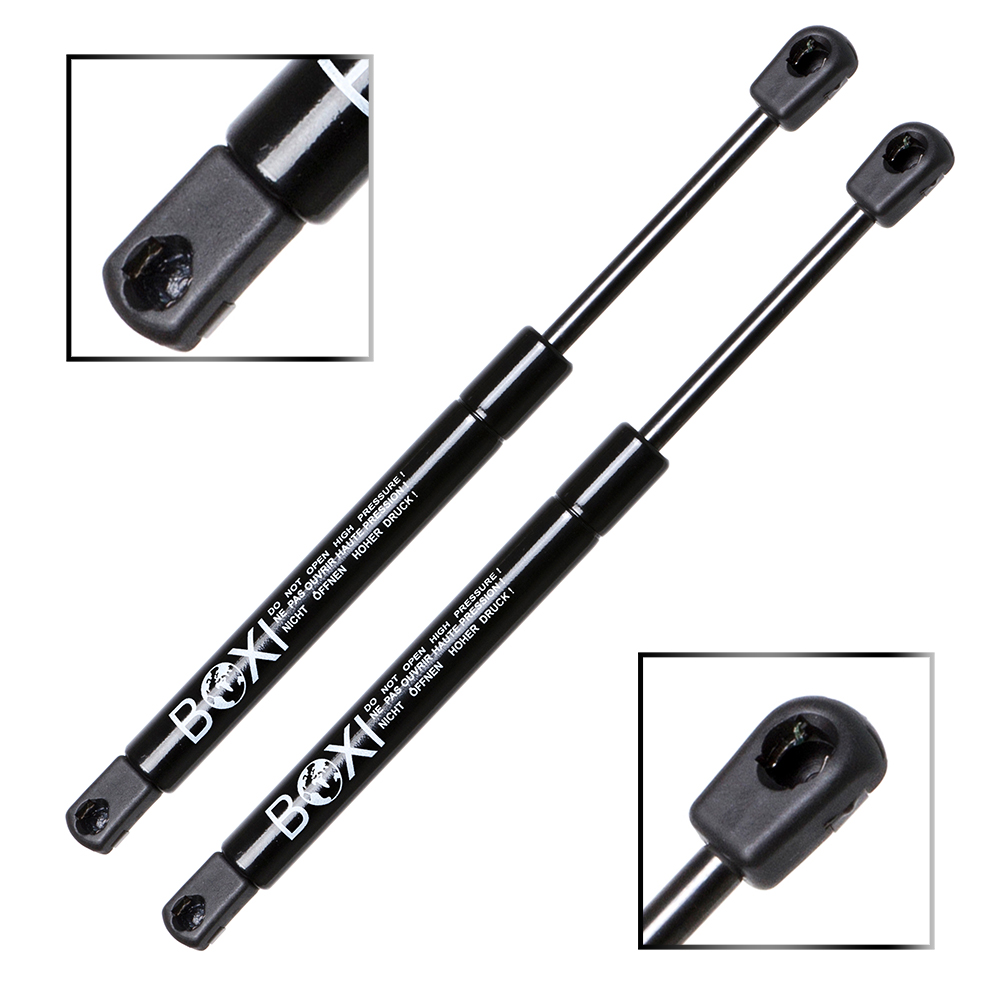

Qty(2) BOXI Liftgate Lift Supports Gas Struts Shocks Springs Fit for 2000-2001 Chevy Blazer for GMC Jimmy for Oldsmobile Bravada With Aluminum Liftgate excluding Drop Gate Type | Replace SG230049 6101

BOXI SKU#: BXC300027056-2

$24.03

BOXI liftgate lift supports fit 2000-2001 Chevy Blazer, GMC Jimmy, Oldsmobile Bravada with aluminum liftgate. Replaces OE SG230049 and 6101. Verify fitment before ordering.

  • 5 Years Warranty

32 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Fit: Chevrolet Blazer 2000 – 2001, GMC Jimmy 2000 – 2001, Oldsmobile Bravada 2000 – 2001 With Aluminum Liftgate (excluding Drop Gate Type)
Extended Length [in] 22.43
Compressed Length [in] 16.43

Fits the following Chevrolet Blazer Years:
2000-2001 | Base Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | LS Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | LT Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | Trailblazer Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | Xtreme Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)

Fits the following GMC Jimmy Years:
2000-2001 | Base Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | Diamond Edition Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | Envoy Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | SLE Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | SLS Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)
2000-2001 | SLT Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)

Fits the following Oldsmobile Bravada Years:
2000-2001 | Base Sport Utility | With Aluminum Liftgate (excluding Drop Gate Type)

Weight 1.87 lbs
Dimensions 23.62 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

570
Stroke (in):

7.86
Stroke (mm):

200
Compressed Length (in)

Compressed Length (mm):

370
Force (Lbs)

Force (Newtons)

698
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10

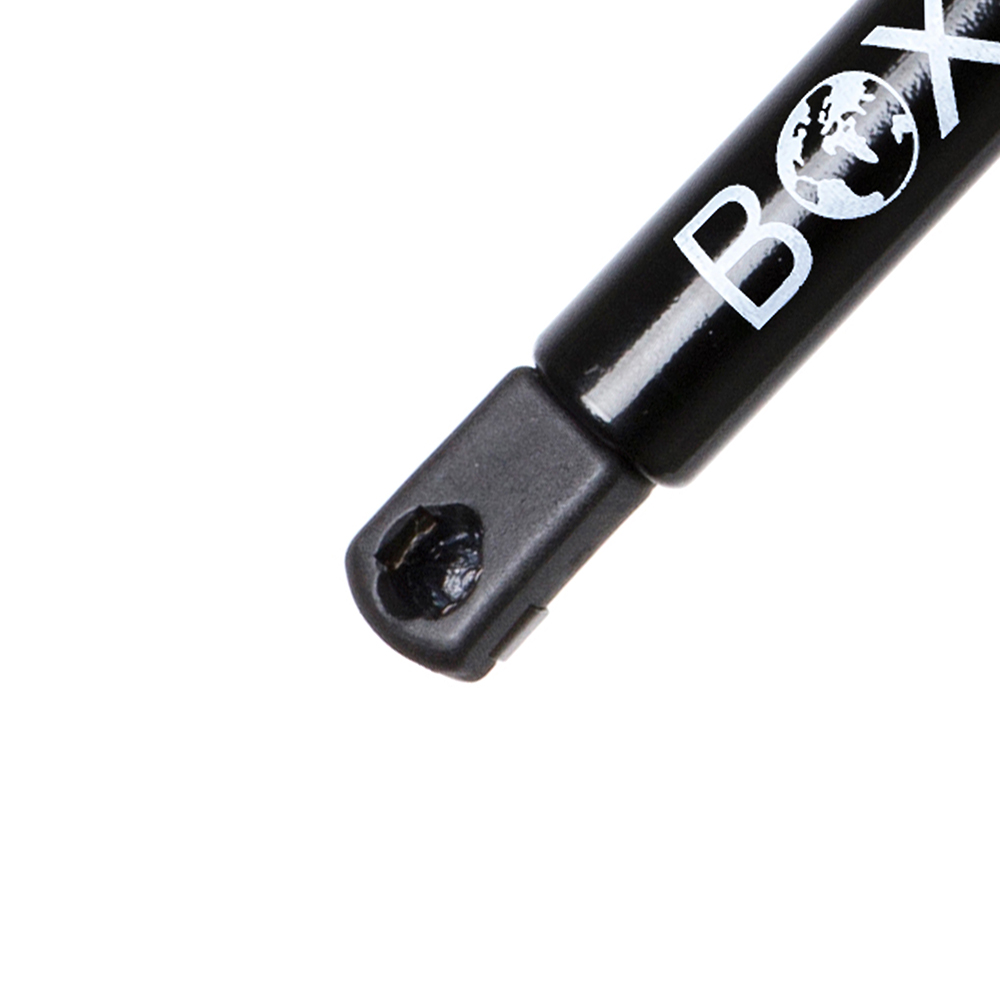

Body Connection:

Ball Socket

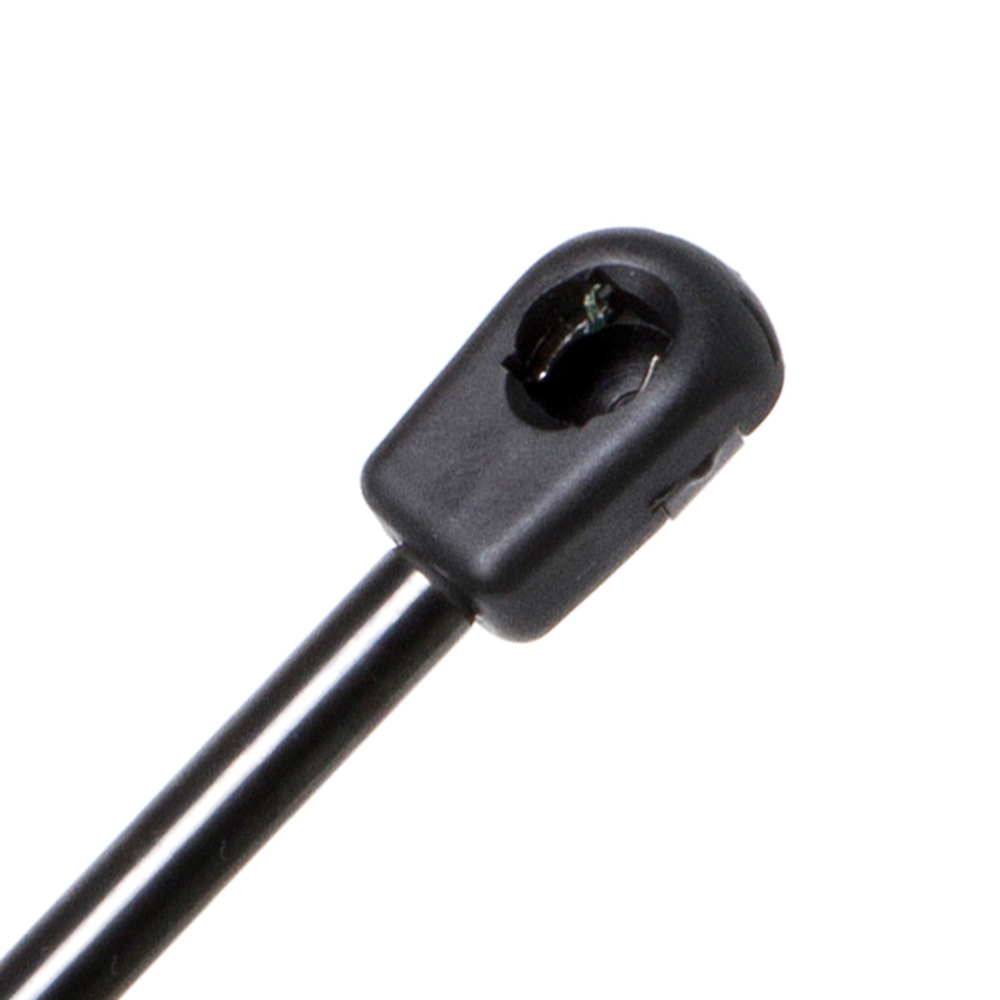

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

6101, TFS611572, 819-6842, 611572, SG230049, C96101, C6101, 510-1226, 15708521, 15678975, 15030549, 15013440, 15013439, 15003616, 15003615
YearMakeModelSubmodelEngine
2000 – 2001ChevroletBlazerLS
LT
TRAILBLAZER		V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2001ChevroletBlazerXtremeV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2000 – 2001GMCJimmyDiamond Edition
SLE
SLS
SLT		V6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2000GMCJimmyEnvoyV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2001GMCJimmySLV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
2000 – 2001OldsmobileBravadaBaseV6 – 4.3L 262ci GAS MFI vin W type L35 – 2 valve OHV
