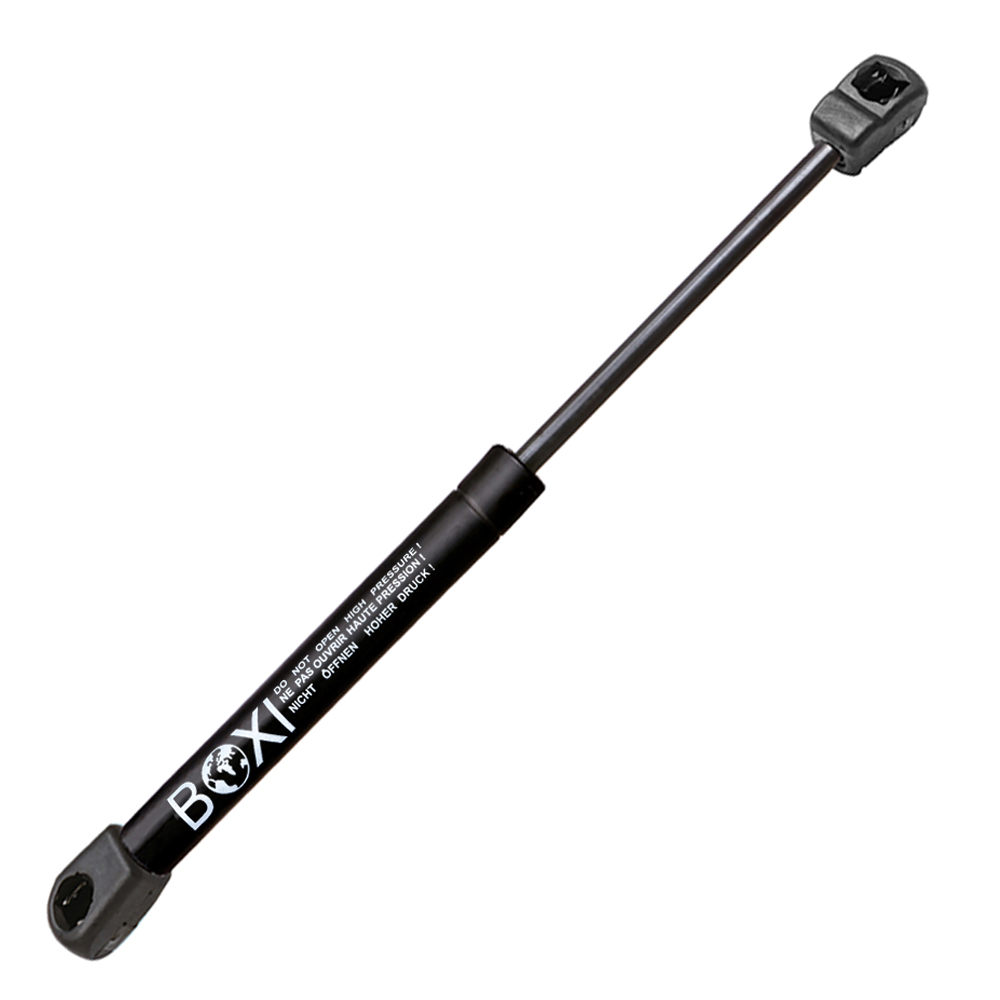

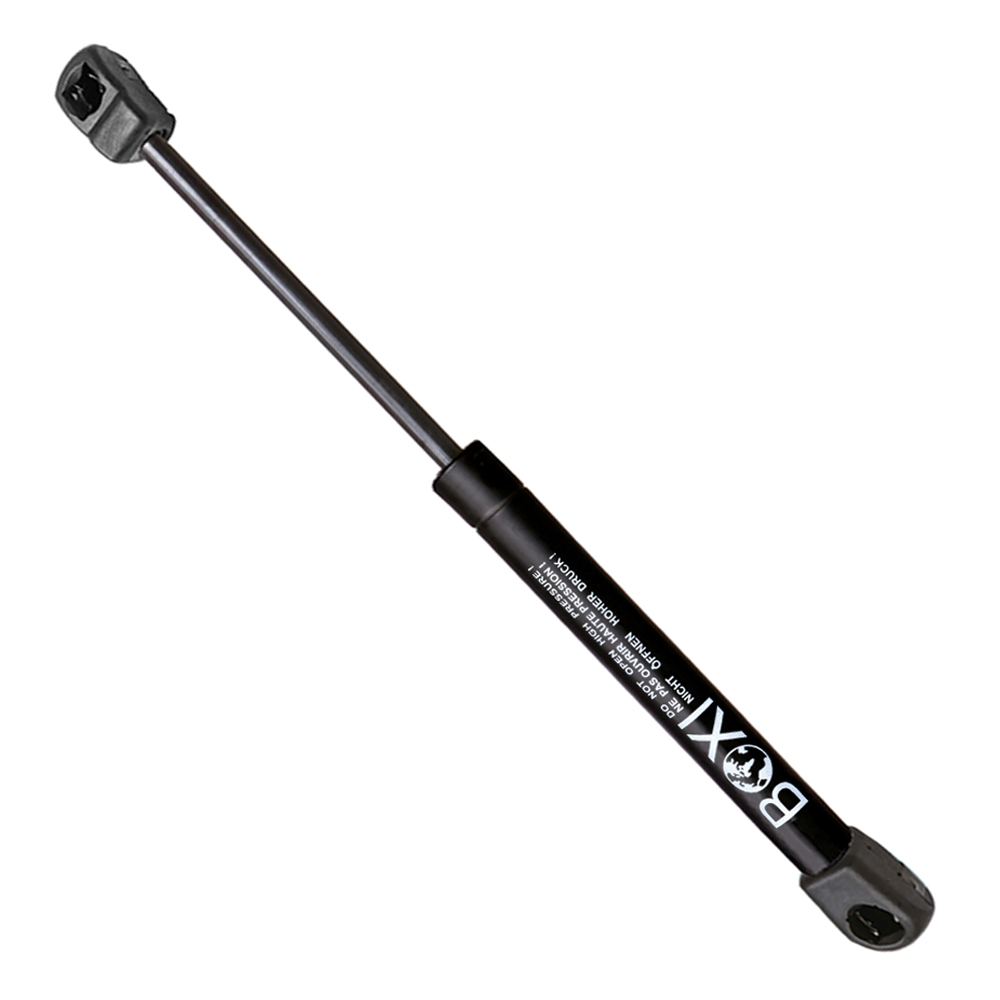

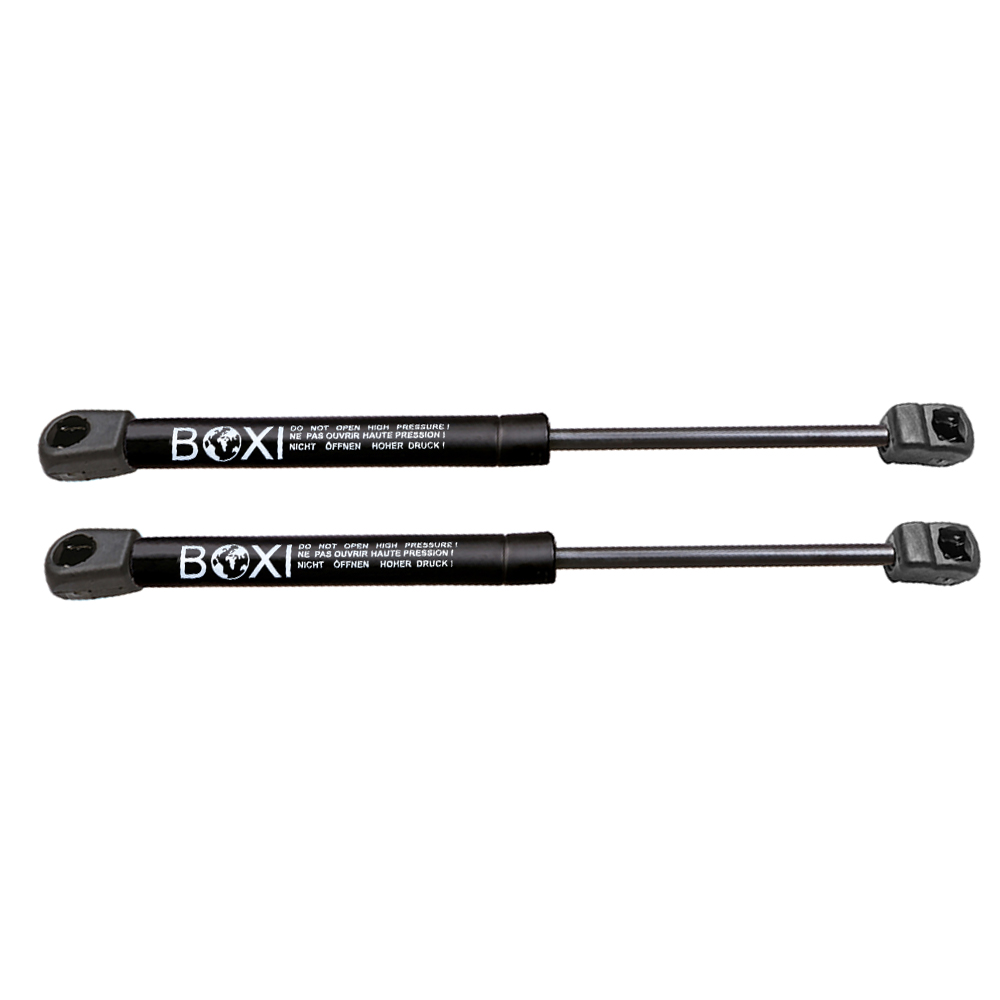

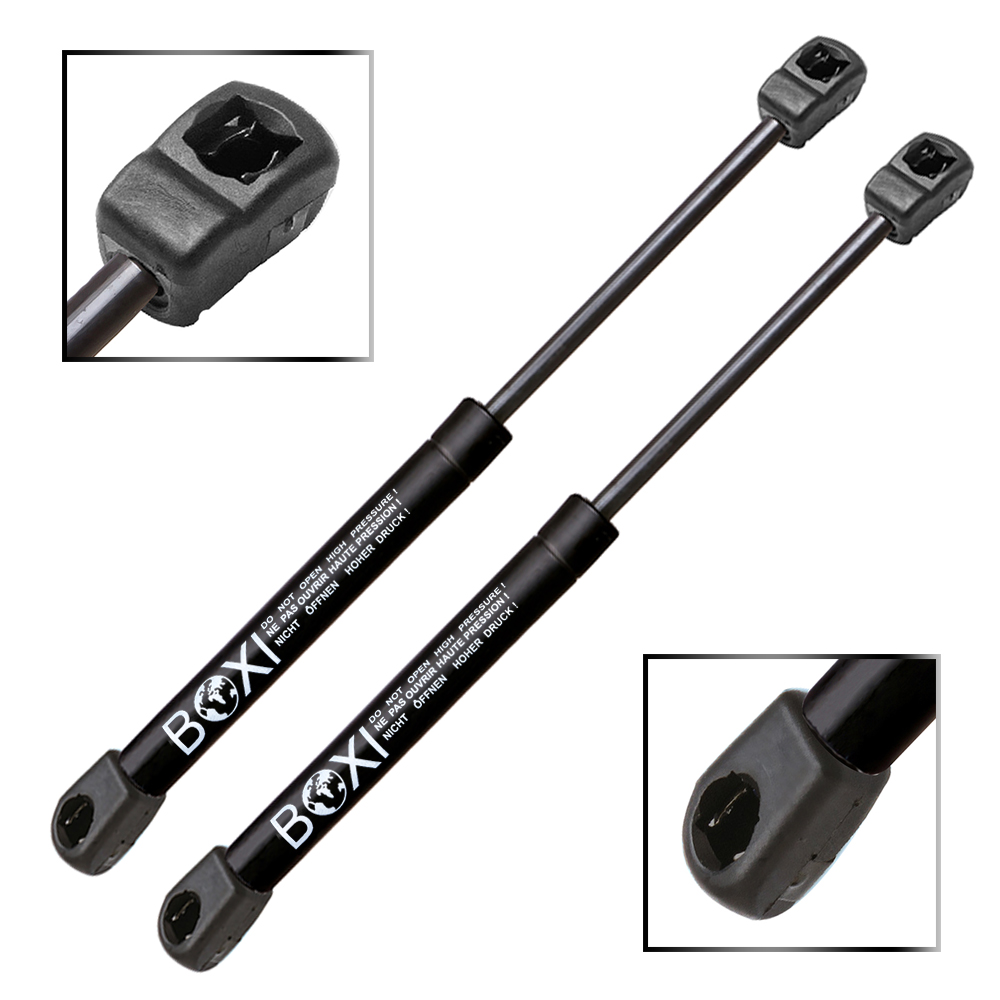

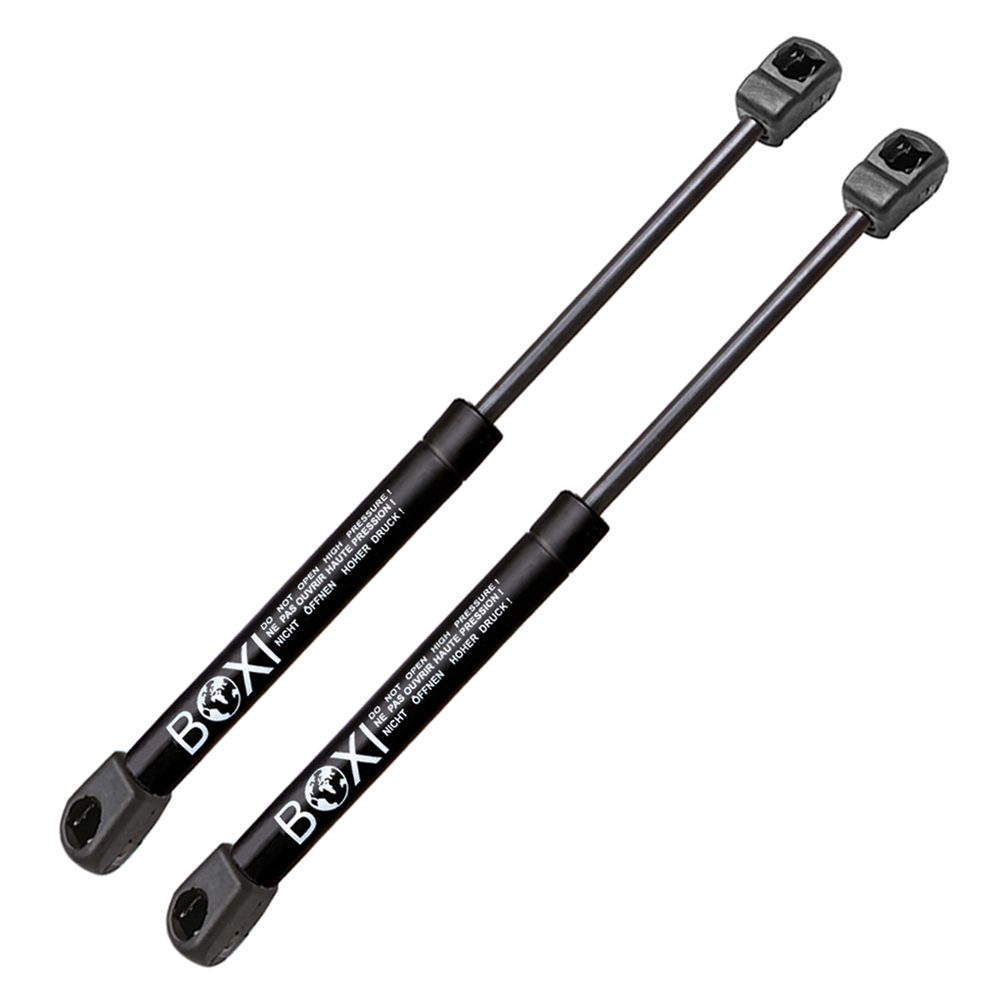

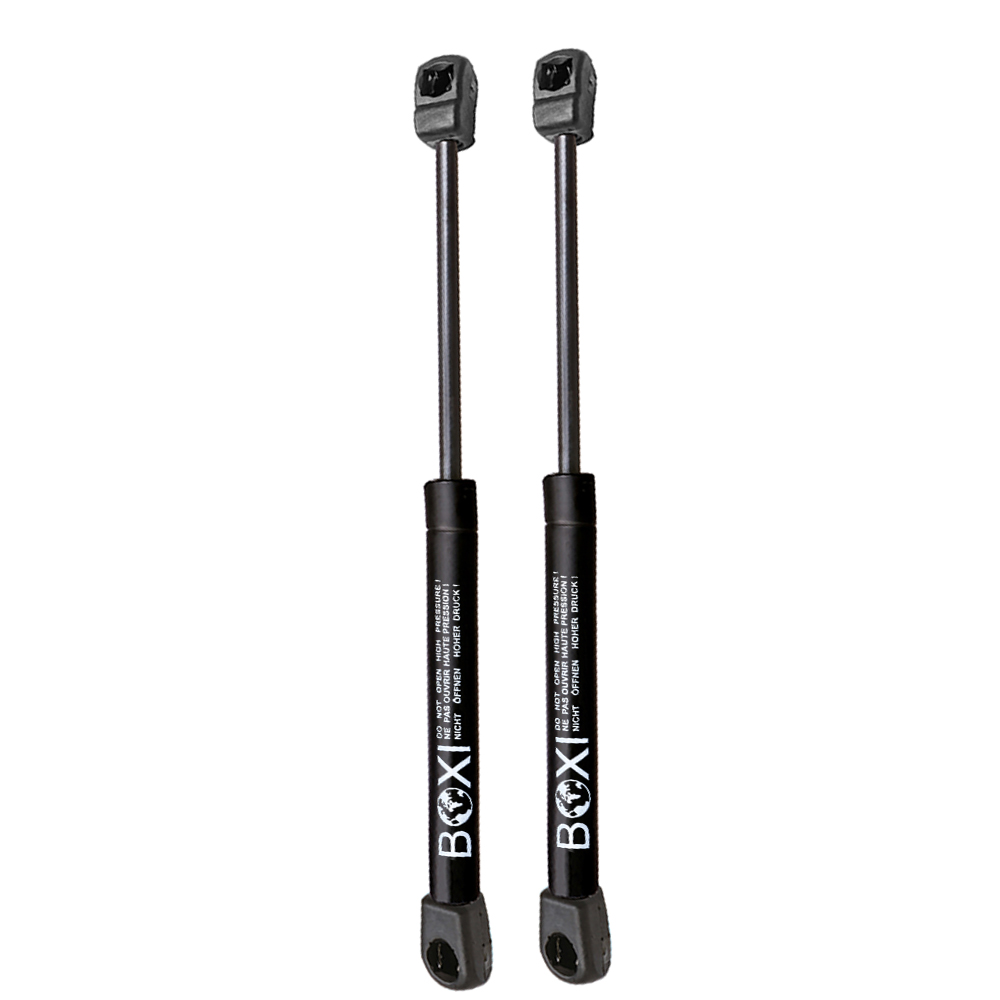

BOXI Rear Tailgate Lift Supports Shock Struts Compatible for Select Ford Model – Transit Connect 2014 2015 2016 2017 2018 2019 2020 2021 Mini Van 2-PC Set/Replace # SG204088 PM3336 DT11V406A10AE

BOXI SKU#: BXC300004316-2

$16.82

2-piece set of BOXI rear tailgate lift supports for 2014-2021 Ford Transit Connect cargo and passenger vans. Direct replacement for OE # SG204088, PM3336, DT11V406A10AE. Verify fitment before ordering.

OE / Interchange Part Numbers: 3B156578, 3B156578W, SG204088

  • 5 Years Warranty

58 in stock

Placement on Vehicle:Liftgate
Package included:2pcs Liftgate Lift Supports

Fits the following vehicles:
2014-2016 for FORD Transit Connect Titanium Mini Cargo Van 4-Door Liftgate
2014-2016 for FORD Transit Connect XL Mini Cargo Van 4-Door Liftgate
2014-2016 for FORD Transit Connect XLT Mini Cargo Van 4-Door Liftgate
2014-2020 for Ford Transit Connect Base Mini Passenger Van 4-Door Liftgate
2014-2020 for Ford Transit Connect Titanium Mini Passenger Van 4-Door Liftgate
2017-2020 for Ford Transit Connect XL Mini Cargo Van 4-Door Liftgate
2014-2020 for Ford Transit Connect XL Mini Passenger Van 4-Door Liftgate
2017-2020 for Ford Transit Connect XLT Mini Cargo Van 4-Door Liftgate

Weight 2.9 lbs
Dimensions 25.59 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

603
Stroke (in):

8.86
Stroke (mm):

225
Compressed Length (in)

Compressed Length (mm):

378
Force (Lbs)

Force (Newtons)

832
Cylinder Diameter (in):

1.1
Cylinder Diameter (mm):

28
Rod Diameter (in):

0.39
Rod Diameter (mm):

10

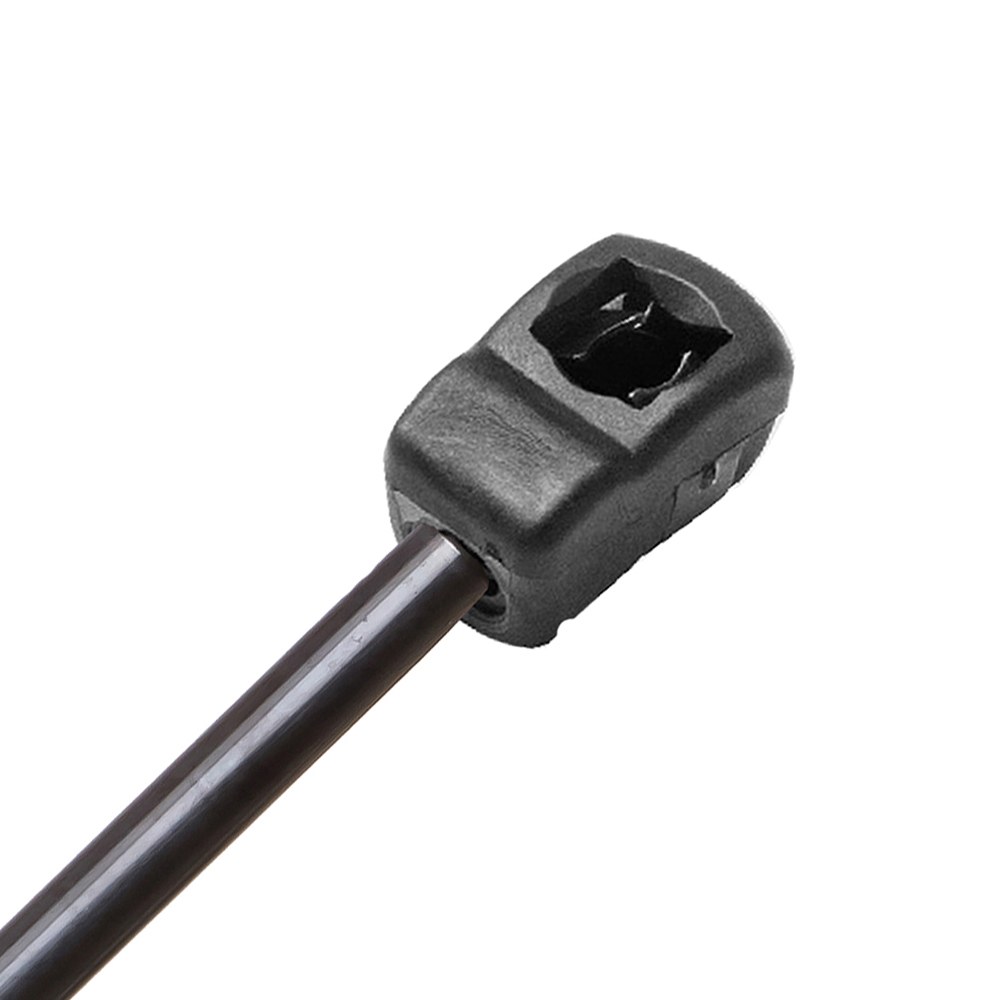

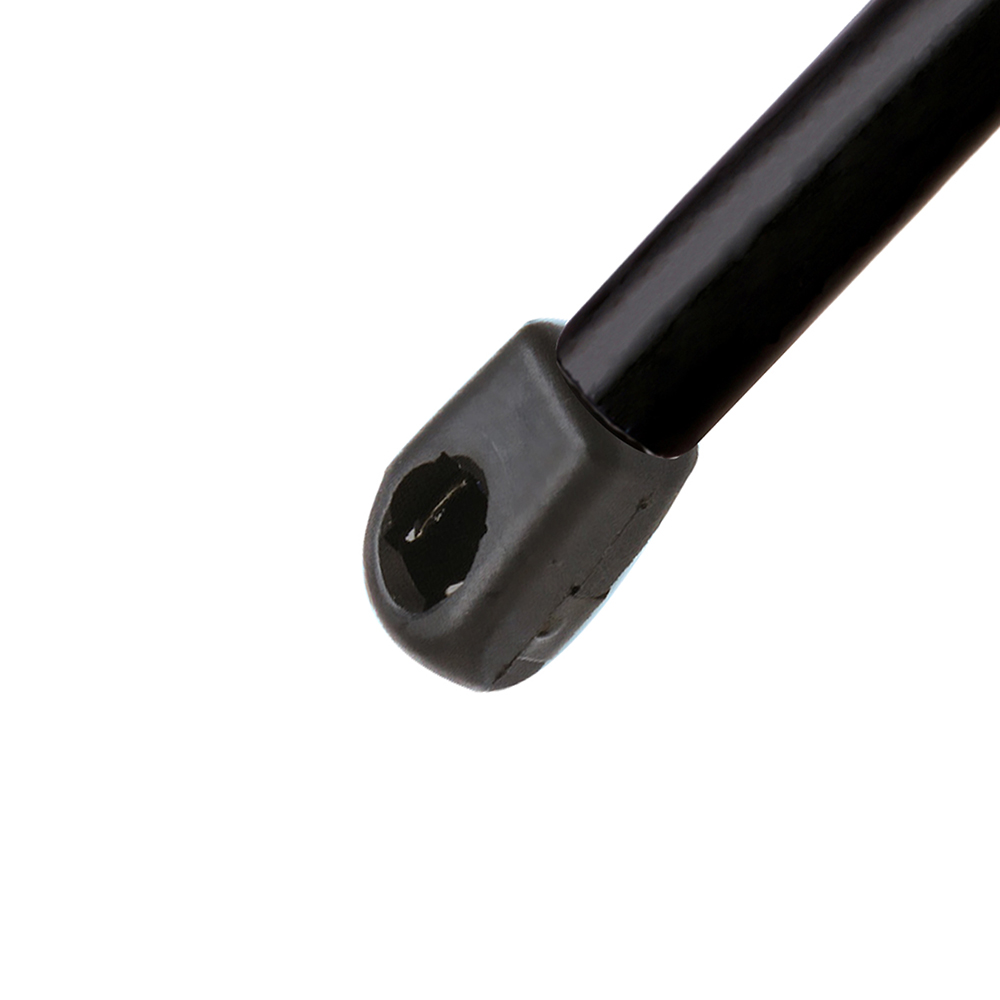

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

611067, SG204088, DT1Z-61406A10-A, DT1Z61406A10A, DT11-V406A10-AE, DT11V406A10AE
YearMakeModelSubmodelEngine
2014 – 2023FordTransit ConnectTitanium
XL
XLT		L4 – 1.6L 1596cc 97ci GAS DI Turbocharged vin X – 4 valve DOHC
L4 – 2.0L 1999cc 122ci FLEX DI vin 2 – 4 valve DOHC
L4 – 2.0L 1999cc 122ci GAS DI vin 2 – 4 valve DOHC
L4 – 2.5L 2488cc 152ci CNG MFI vin 7 – 4 valve DOHC
L4 – 2.5L 2488cc 152ci GAS MFI vin 7 – 4 valve DOHC
L4 – 2.5L 2488cc 152ci LPG MFI vin 7 – 4 valve DOHC
