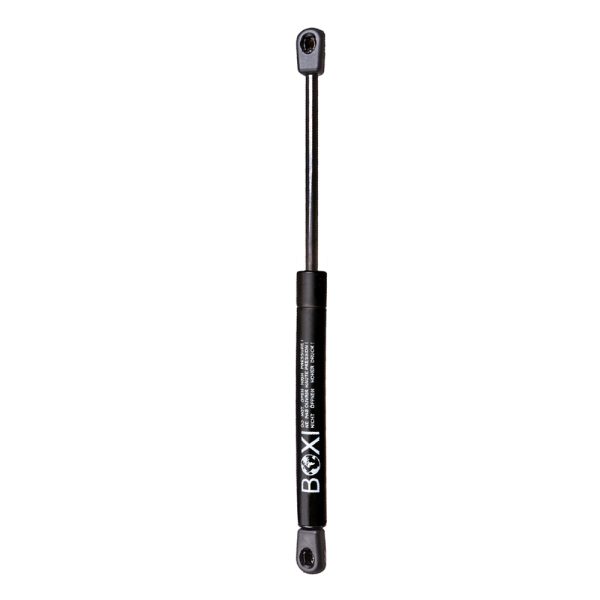

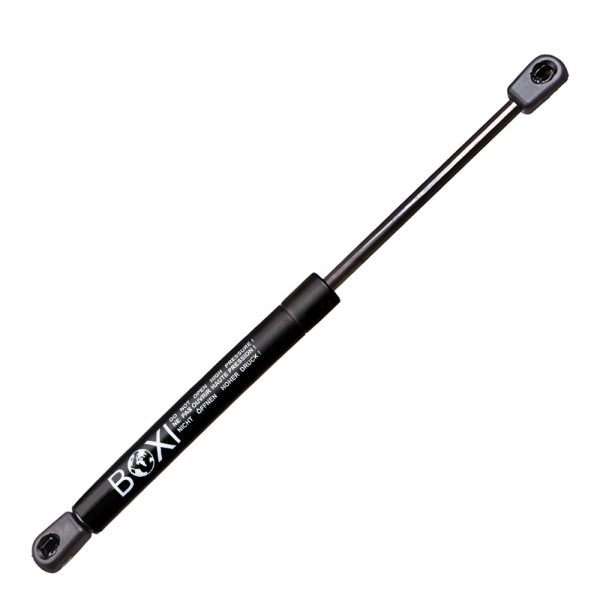

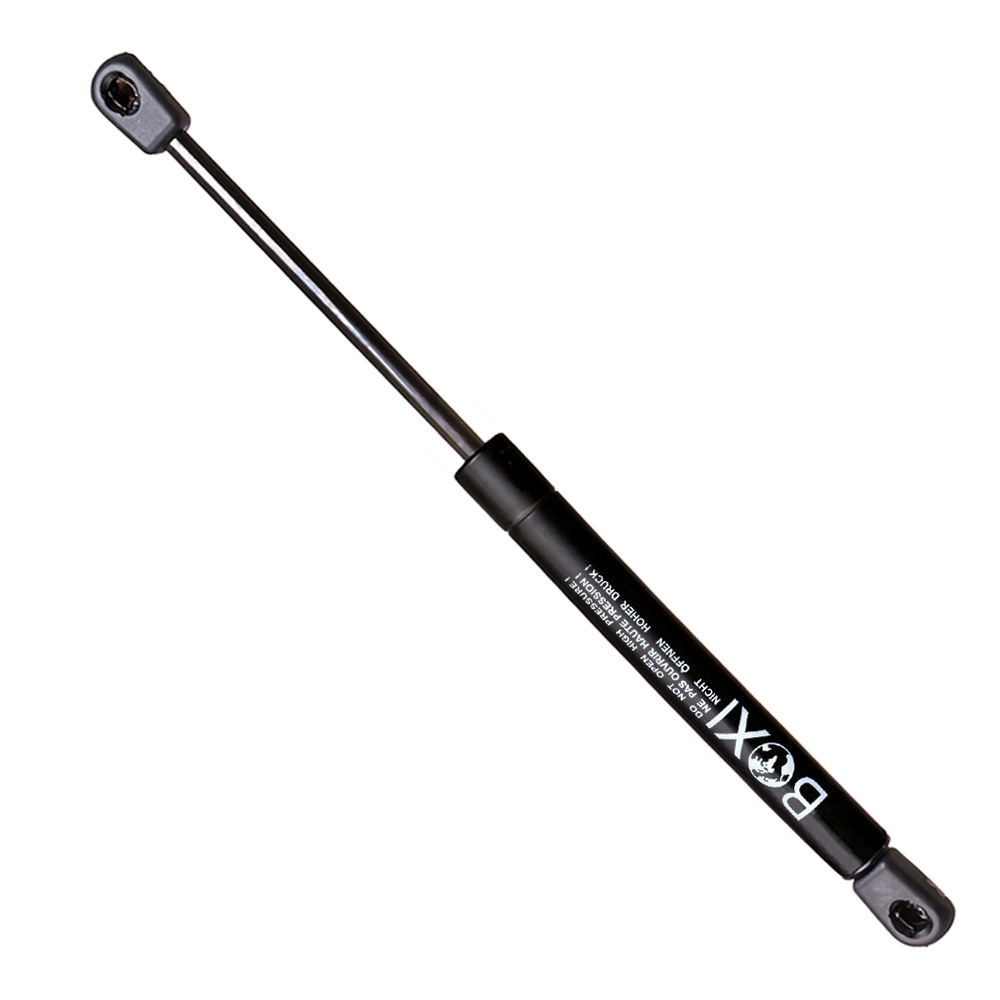

Qty(1) BOXI 6916 SG459022 Universal Lift Support Extended Length: 10.00″ Compressed Length: 6.75″ 82lbs Force 10mm Ball Socket Strut Shock for Tool Box Lid Boat Storage Lids Truck Topper Truck Cap

BOXI SKU#: BXC300054652-1

$8.99

BOXI 6916 SG459022 Universal Lift Support Strut – 10.00″ extended, 6.75″ compressed, 82lbs force, 10mm ball socket fittings. Ideal for tool box lids, truck caps, boat storage lids, and RV applications. Verify fitment before ordering.

OE / Interchange Part Numbers: 6916, 6916M10

  • 5 Years Warranty

99 in stock

Placement on Vehicle:
Package Included:1pc Universal Lift Support

Qty(2) BOXI 6916 Universal Lift Supports Shocks
Extended Length: 10.00 Inches
Compressed Length: 6.75 Inches

Force: 365N = 82 Lbs.

Shaft End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″
Body End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.31 lbs
Dimensions 11.81 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

254
Stroke (in):

3.25
Stroke (mm):

83
Compressed Length (in)

Compressed Length (mm):

171
Force (Lbs)

Force (Newtons)

365
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95610, 6916, 753329, F95610, SG459022

Reviews

There are no reviews yet.
