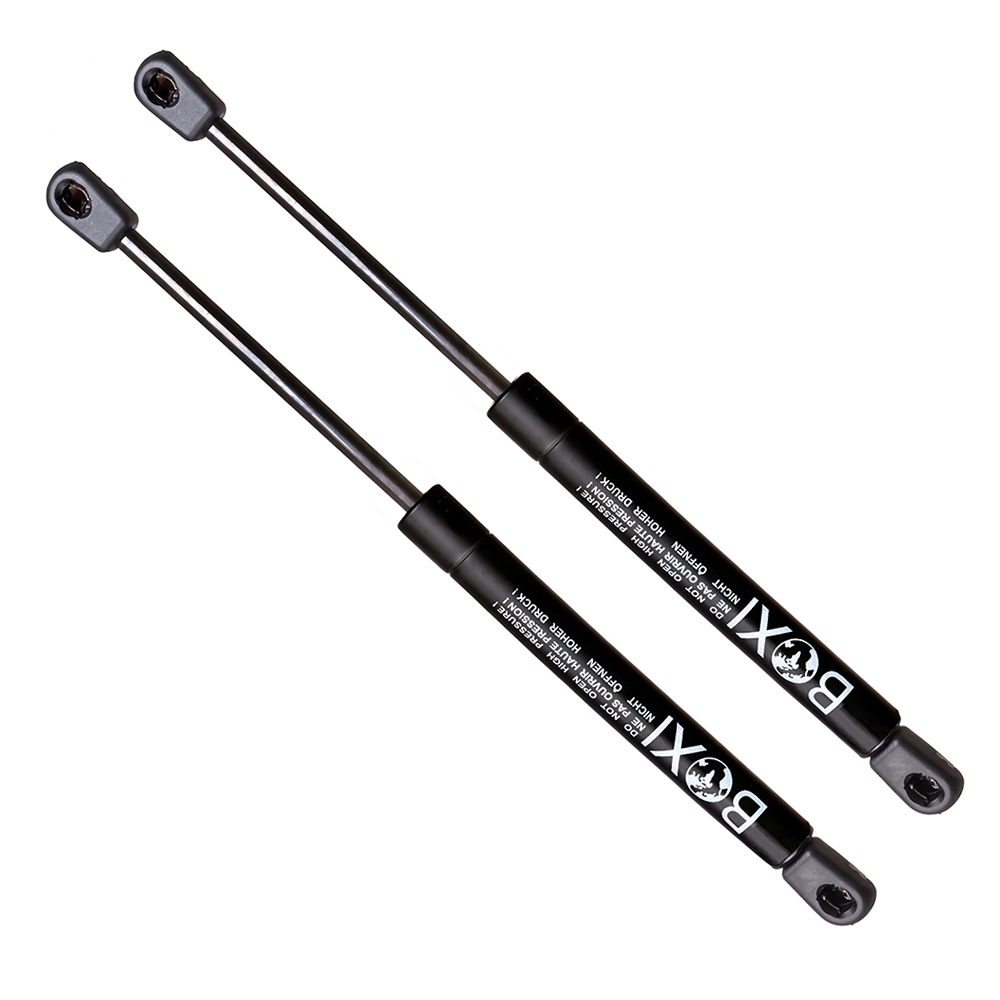

BOXI 2pcs Universal Lift Support for Camper Rear Glass Window Extended Length 12.99 in, Compressed Length 8.42IN, Force 30 Lbs/133 N Per Prop, 10mm(3/8″=.39″) Ball Socket, SE130P30 C1604464A

BOXI SKU#: BXC300054608-2

$16.59

BOXI Universal Lift Support designed for camper rear glass windows. Replaces OE numbers SE130P30 and C1604464A. Verify fitment before ordering.

OE / Interchange Part Numbers: C1604464, C1604464A, C1621703

  • 5 Years Warranty

653 in stock

Placement on Vehicle:
Package Included:2pcs Universal Lift Supports

Vehicle Location – Rear Glass Window

Extended Length [in] 12.99
Compressed Length [in] 8.42

Force (lbs) 30.00 per shock

Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8″=.39″
Body Connection: Ball Socket U Band (Nylon)=10mm=3/8″=.39″

Weight 0.86 lbs
Dimensions 15.75 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

330
Stroke (in):

4.59
Stroke (mm):

117
Compressed Length (in)

Compressed Length (mm):

213
Force (Lbs)

Force (Newtons)

133
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

SE130P30, CS1300-30, C16-04464A, C1604464A, C16-04464, C1604464, C1621703, C16-21703
