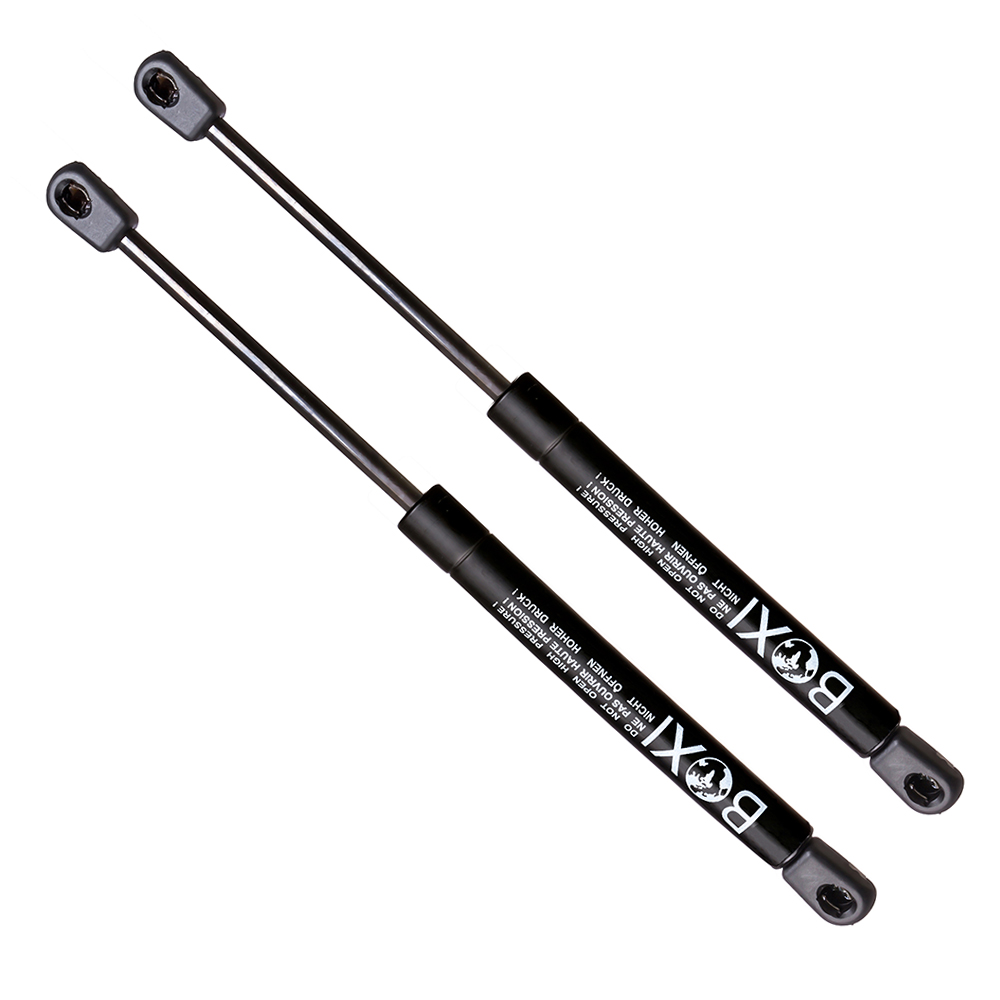

BOXI 2pcs Gas Charged Universal Lift Supports Struts Shocks Springs Dampers Extended Length 18.50 inches, Compressed Length 11.25 inches, 30 lbs Force, 10mm Ball Socket 6932

BOXI SKU#: BXC300054642-2

$18.58

BOXI 2-piece universal gas charged lift support struts (Part 6932). 18.50″ extended length, 30lb force with 10mm ball socket. Suitable for automotive, truck, RV, marine, and other universal applications. Verify fitment before ordering.

OE / Interchange Part Numbers: 12194, 525030, 6932, 8195668, 95692, D95692, GS525030, SPDGS525030

  • 5 Years Warranty

134 in stock

Placement on Vehicle:
Package Included:2pcs Universal Lift Supports

Extended Length [in] 18.50
Compressed Length [in] 11.25
ext.ser.num 133N
Force (lbs) 30.00

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.85 lbs
Dimensions 19.69 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

470
Stroke (in):

7.25
Stroke (mm):

184
Compressed Length (in)

Compressed Length (mm):

286
Force (Lbs)

Force (Newtons)

133
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95692, 12194, 320024, 525030, 6932, 8195668, D95692, GS525030, SPDGS525030, SPD-GS-5250-30
