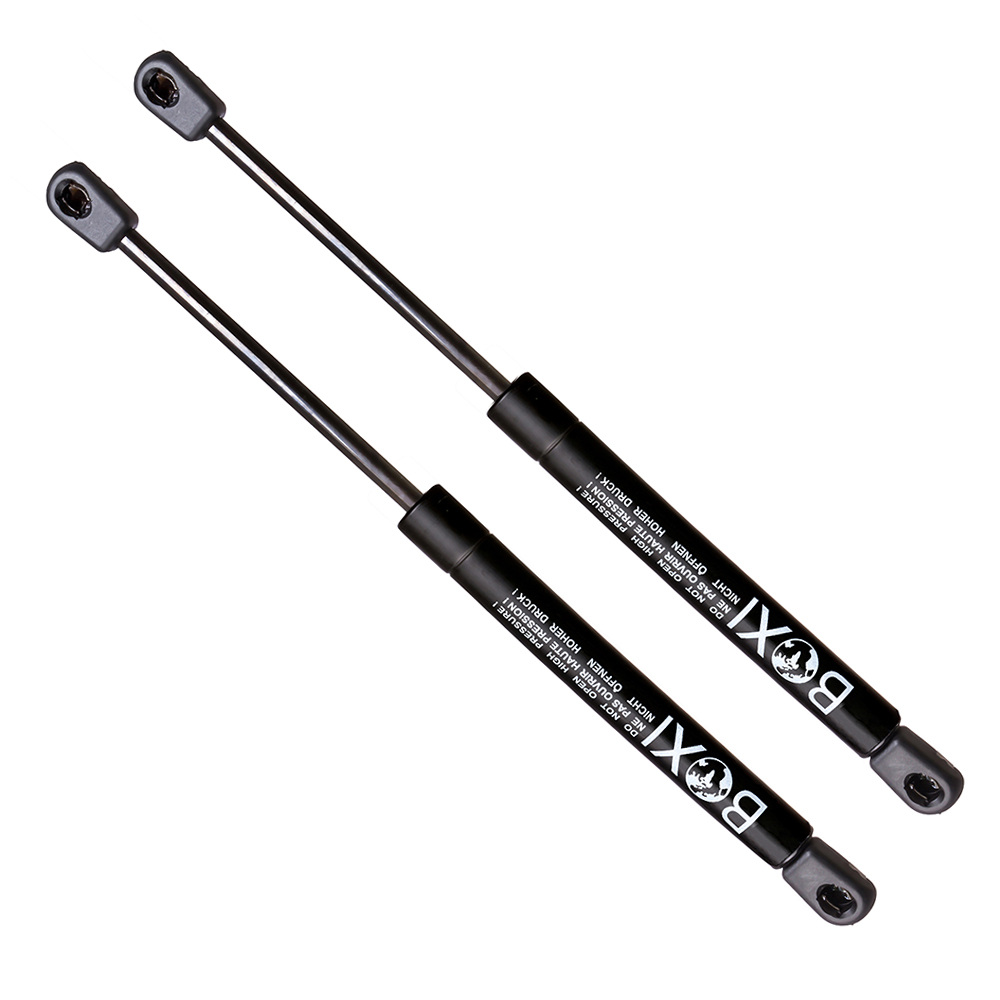

Qty(2) BOXI 4126 Universal Lift Supports Struts Extended Length: 13.00 Inches, Compressed Length: 8.40 Inches, Force: 55 Lbs. 10mm Ball Socket Shocks 4126

BOXI SKU#: BXC300054639-2

$15.69

BOXI 4126 universal lift supports struts, extended length 13 inches, compressed 8.4 inches, 55 lbs force. Fits automotive, industrial, marine, and RV applications. Verify fitment before ordering.

OE / Interchange Part Numbers: 1015903, 4126, 752770, 8196308, 95965, C1615120, E95965

  • 5 Years Warranty

143 in stock

Placement on Vehicle:
Package Included:2pcs Universal Lift Supports

Qty(2) BOXI 4126 Universal Lift Supports
Extended Length: 13.00 Inches
Compressed Length: 8.40 Inches

Force: 245N = 55 Lbs.

Shaft End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″
Body End Fitting: Ball Socket U Band (Nylon)=10mm=3/8″=.39″

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.64 lbs
Dimensions 15.75 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

330
Stroke (in):

4.6
Stroke (mm):

117
Compressed Length (in)

Compressed Length (mm):

213
Force (Lbs)

Force (Newtons)

245
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95965, 25469, 1015903, 10159-03, 4126, 6L2416C826AB, 6L9Z 16C826B, 6L9Z 16C826-B, 752770, 8196308, C1615120, C16-15120, E95965
