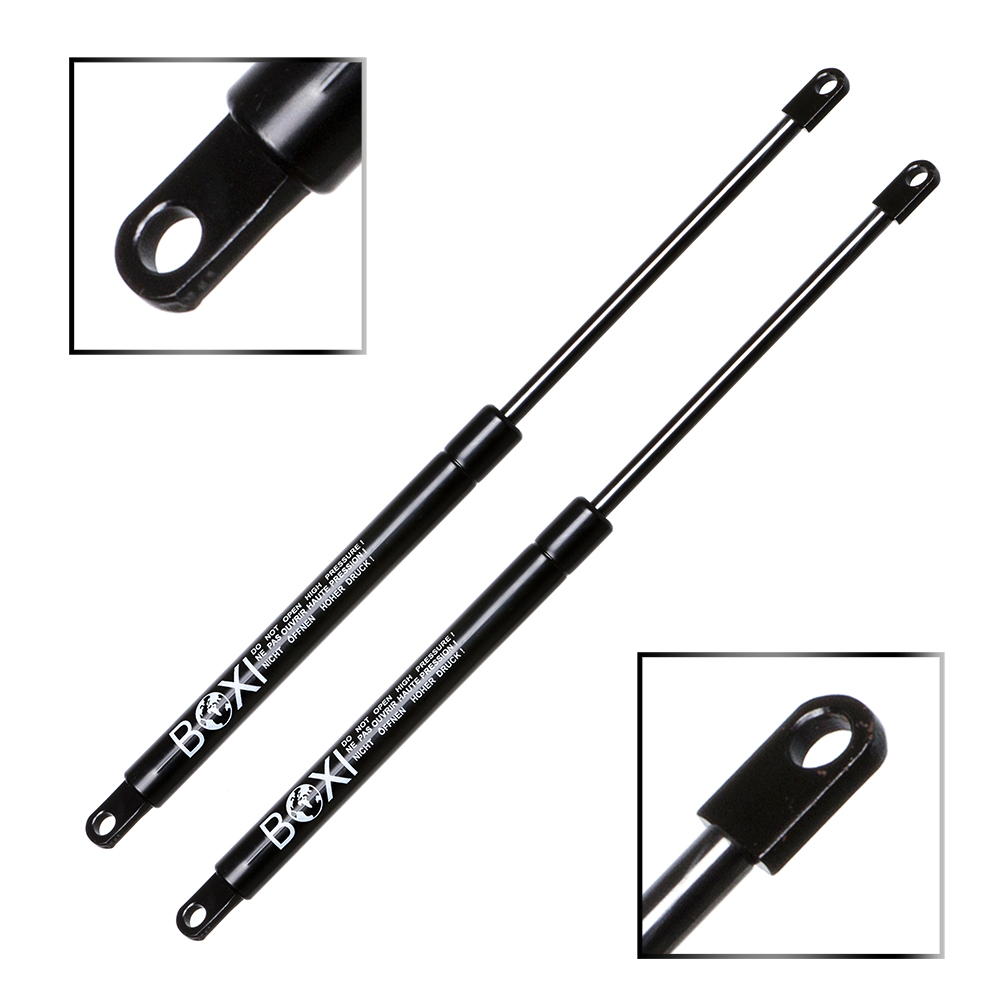

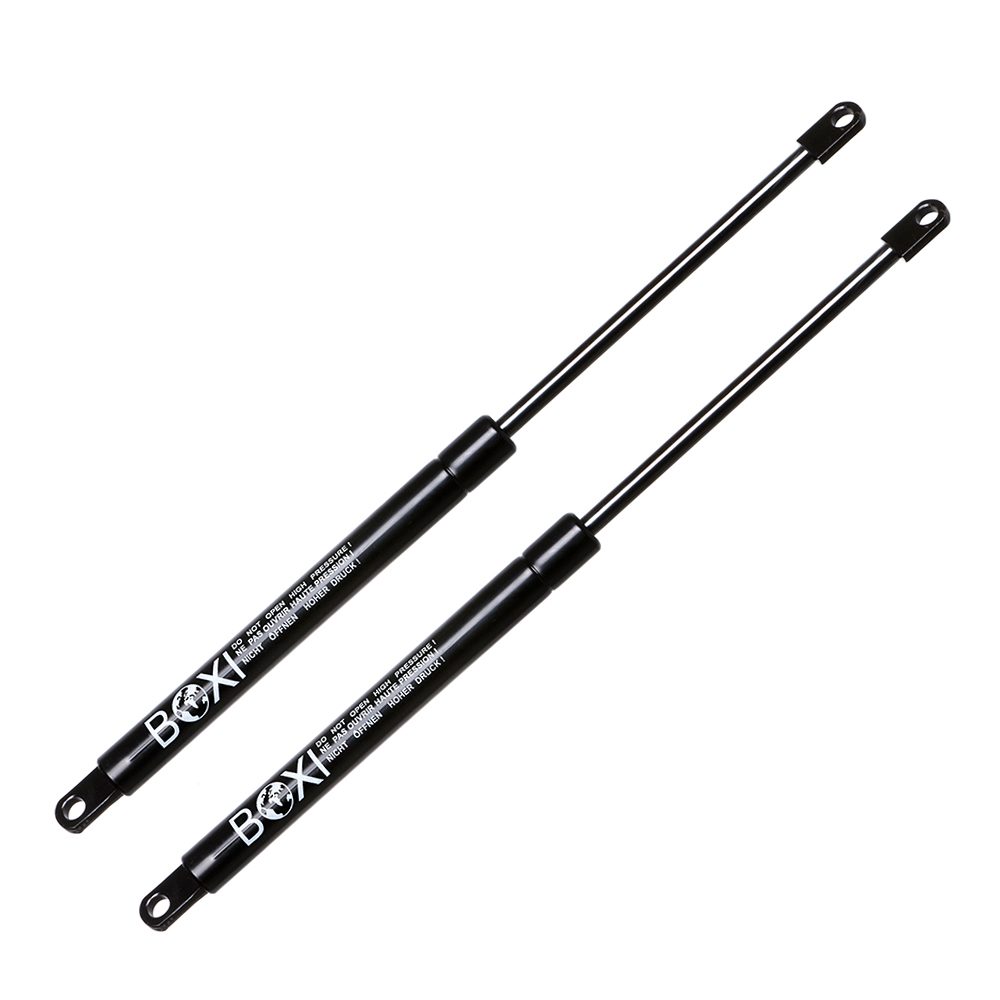

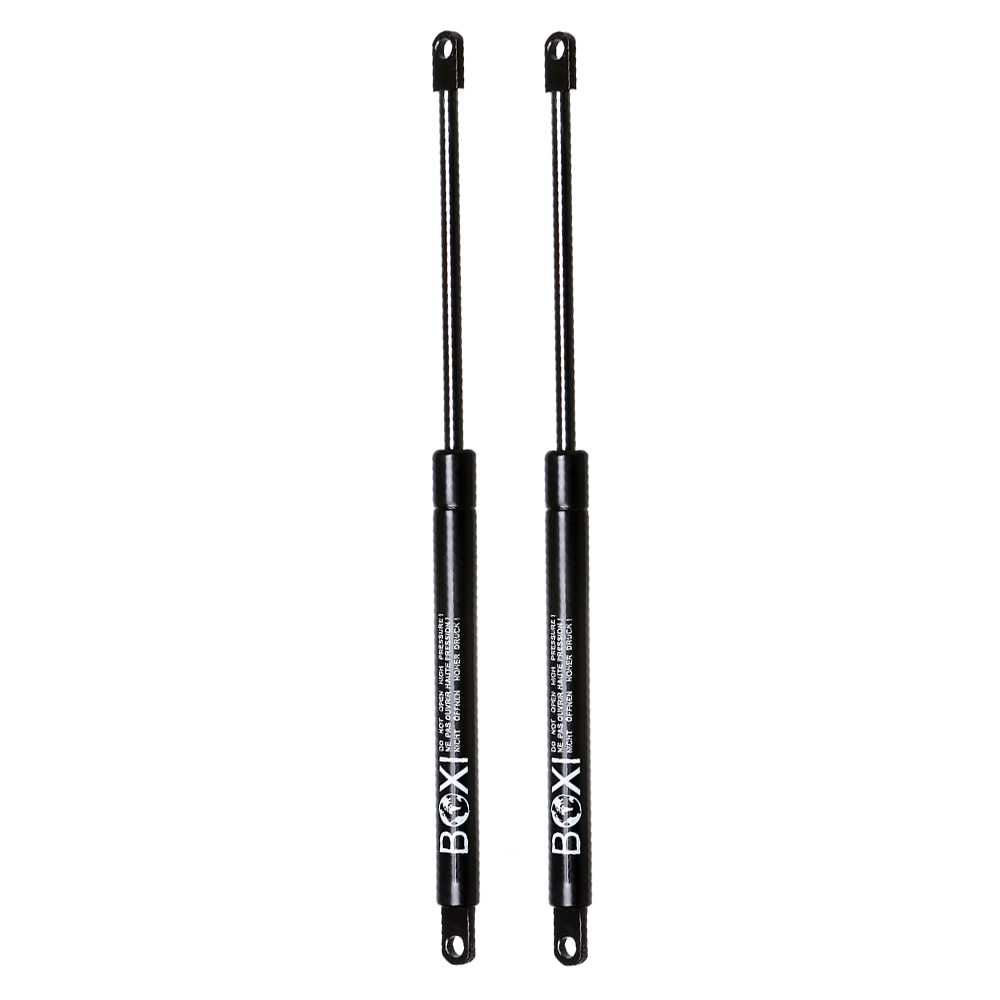

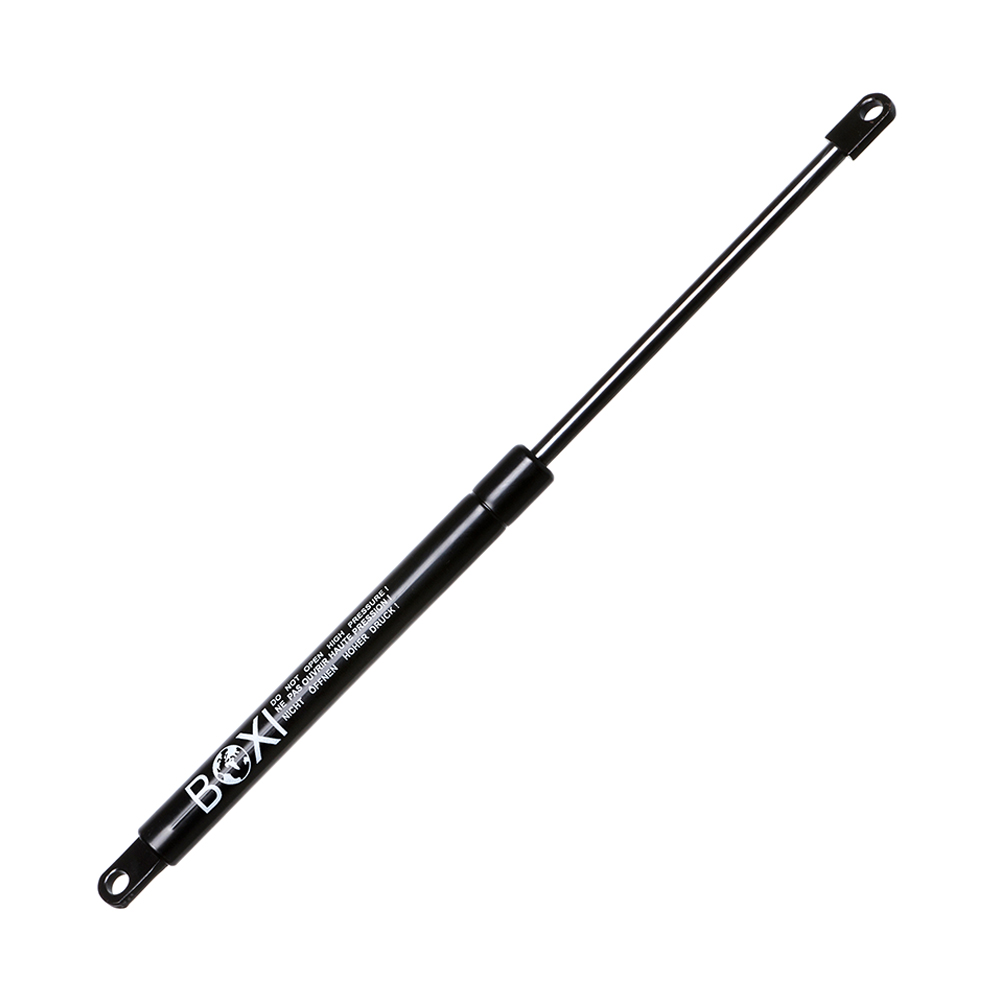

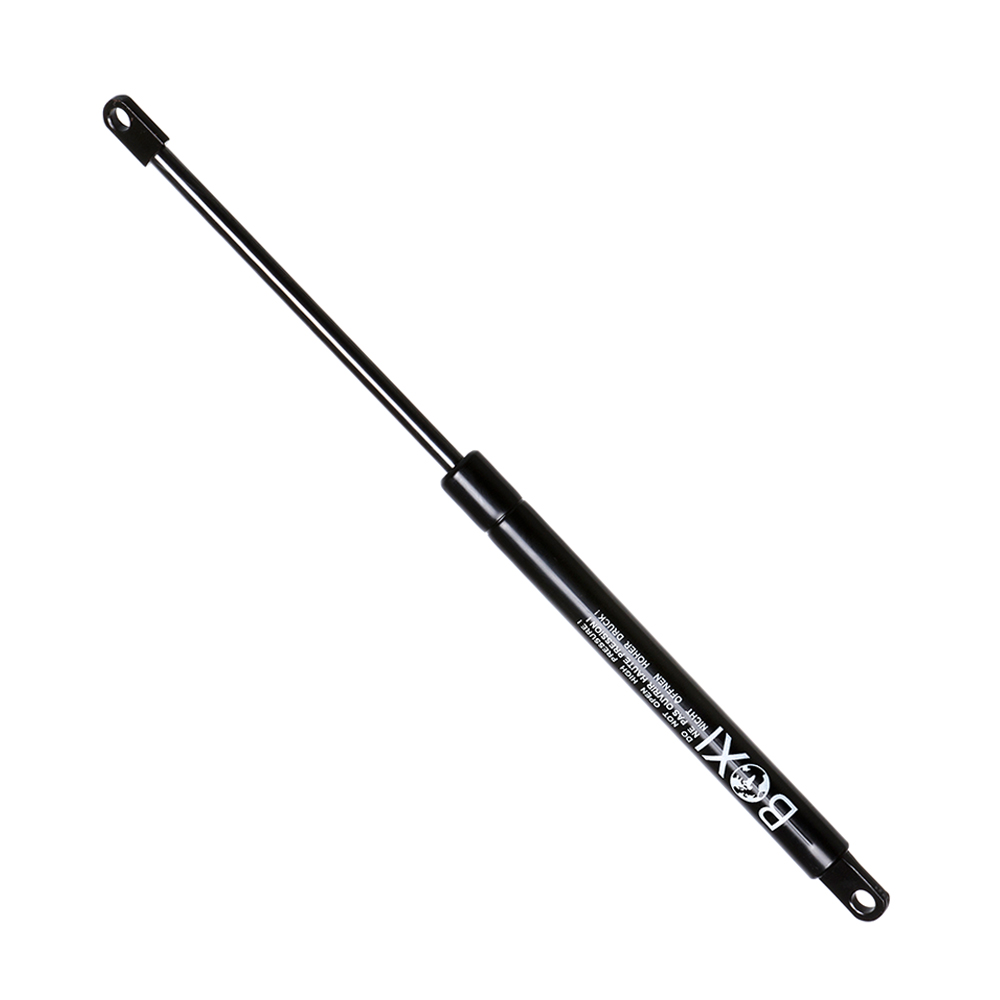

BOXI Lift Supports – Universal | Replaces OE #14093
BOXI SKU#: BXC300054609-2
$24.69
BOXI gas charged lift supports with 80lbs force and 10-inch extended length. Universal fit for automotive, truck, industrial, and more applications. Replaces OE SG459006. Verify fitment before ordering.
OE / Interchange Part Numbers: 14093, 4038, 8195573, 95846, F95846, ML180, SG459006, SL180, SL1801, SL1805, 5172KX, 10.2MM
159 in stock
Placement on Vehicle:
Package Included:2pcs Universal Lift Supports
Extended Length [in] 10.00
Compressed Length [in] 6.75
ext.ser.num 356N
Force (lbs) 80.00
Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 13.78 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 254 |
| Stroke (in): | 3.25 |
| Stroke (mm): | 83 |
| Compressed Length (in) | |
| Compressed Length (mm): | 171 |
| Force (Lbs) | |
| Force (Newtons) | 356 |
| Cylinder Diameter (in): | 0.59 |
| Cylinder Diameter (mm): | 15 |
| Rod Diameter (in): | 0.24 |
| Rod Diameter (mm): | 6 |

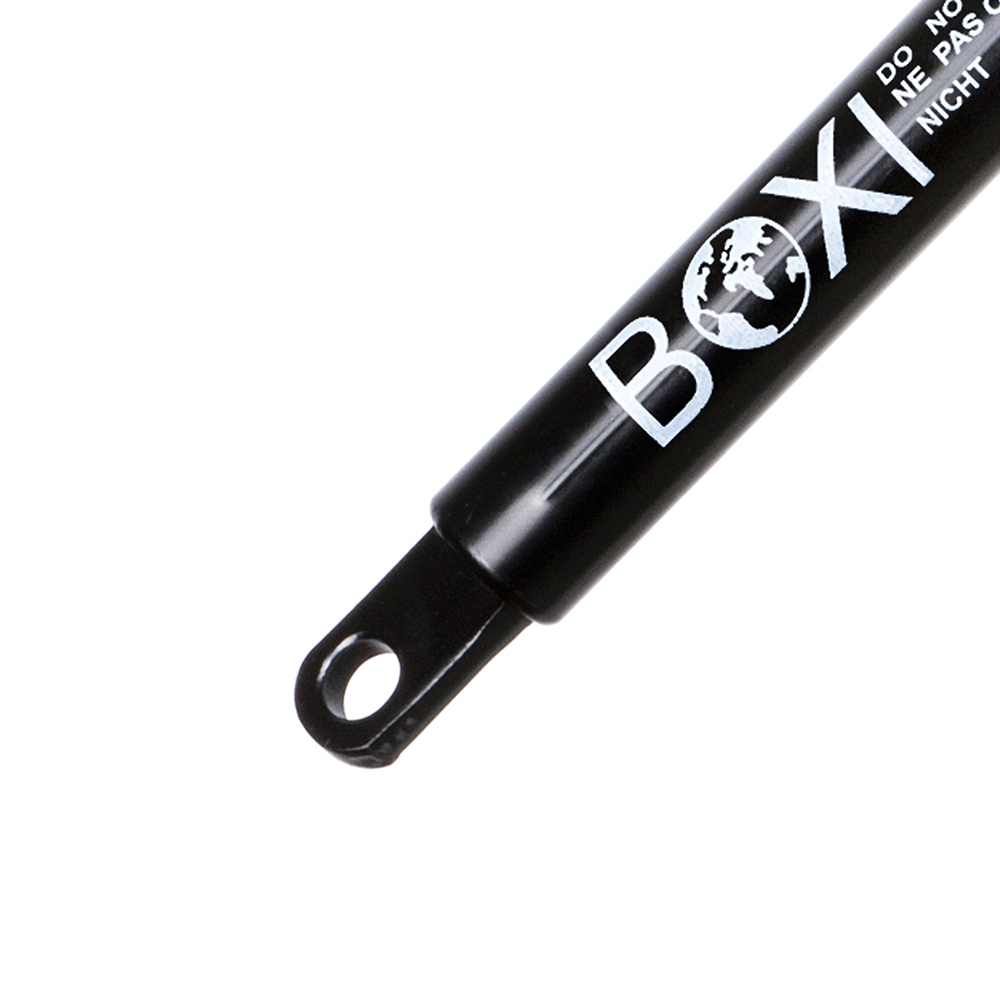

| Body Connection: | Eyelet Hole=10.2mm=13/32"=.402" |

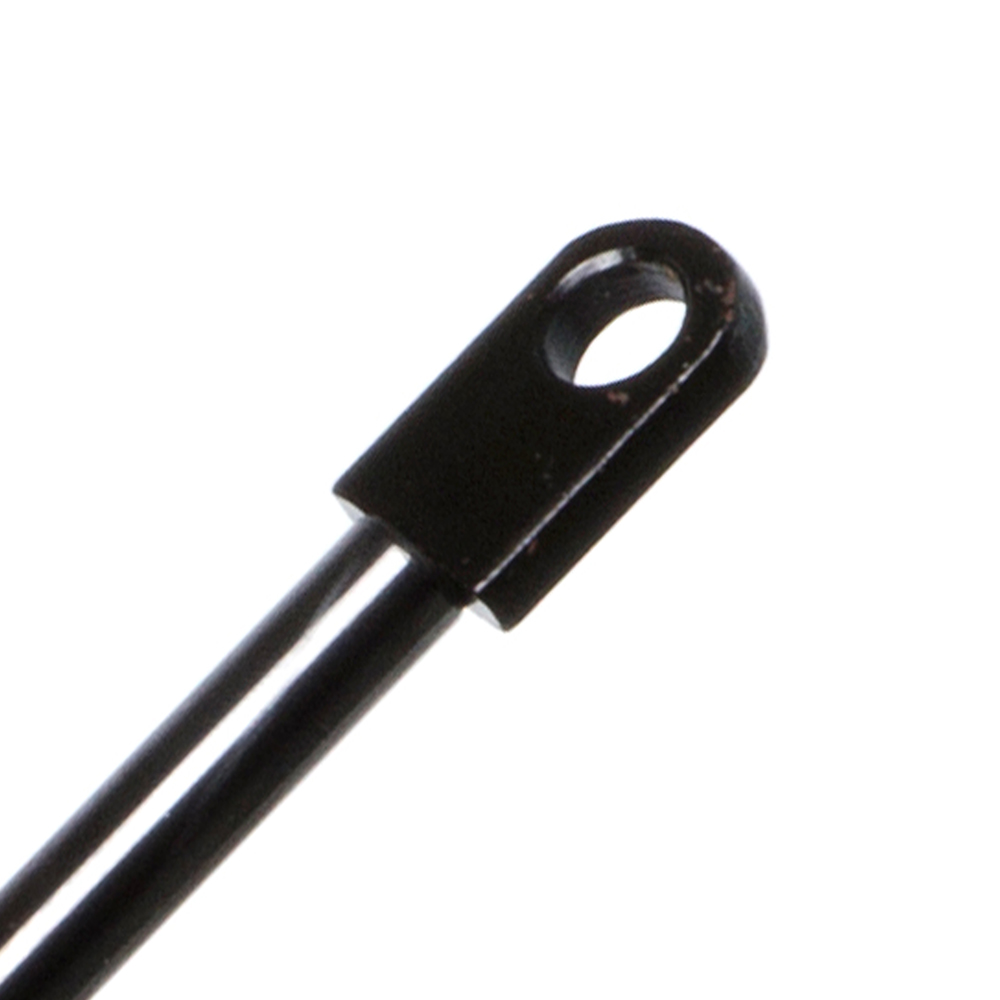

| Shaft Connection: | Eyelet Hole=10.2mm=13/32"=.402" |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 95846, 14093, 4038, 5172KX, 8195573, F95846, ML180, ML1-80, ML-1-80, SL180, SL1-80, SL-180, SL-1-80, SL1801, SL1-80-1, SL-1801, SL-1-80-1, SL1805, SL1-80-5, SL-1805, SL-1-80-5, SG459006 |
