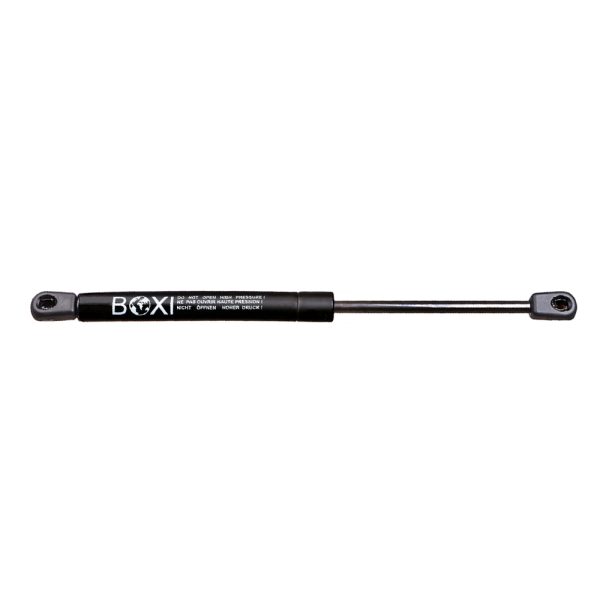

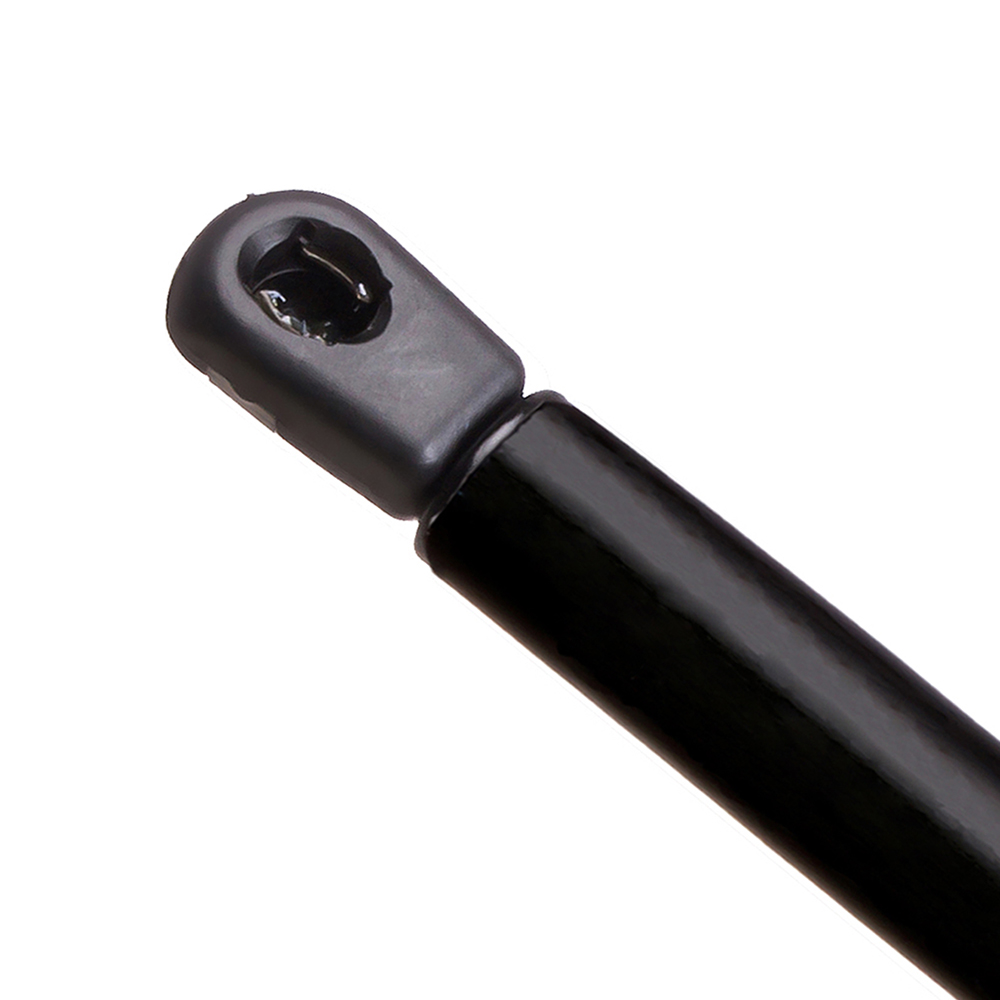

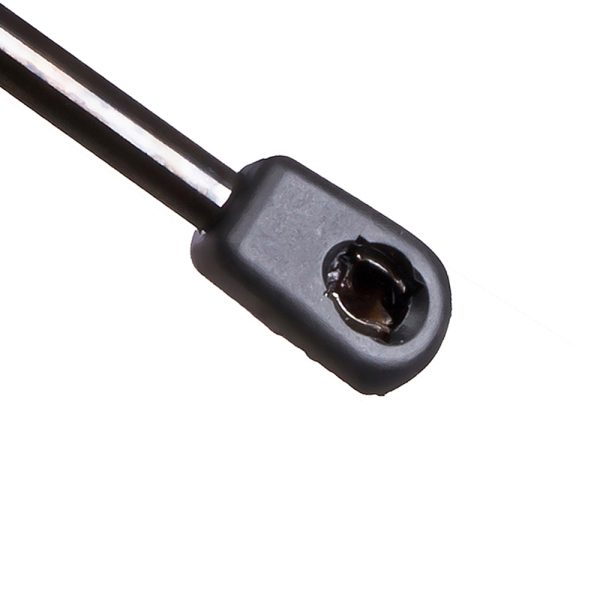

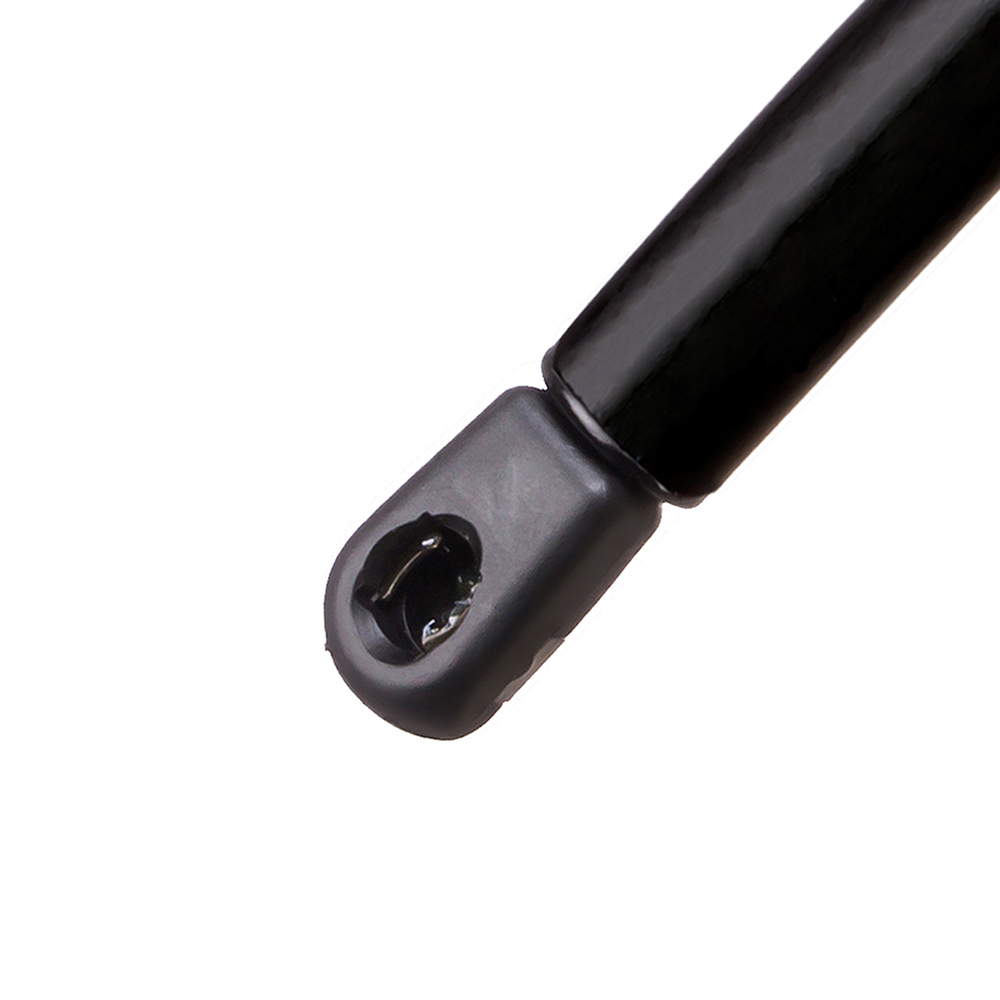

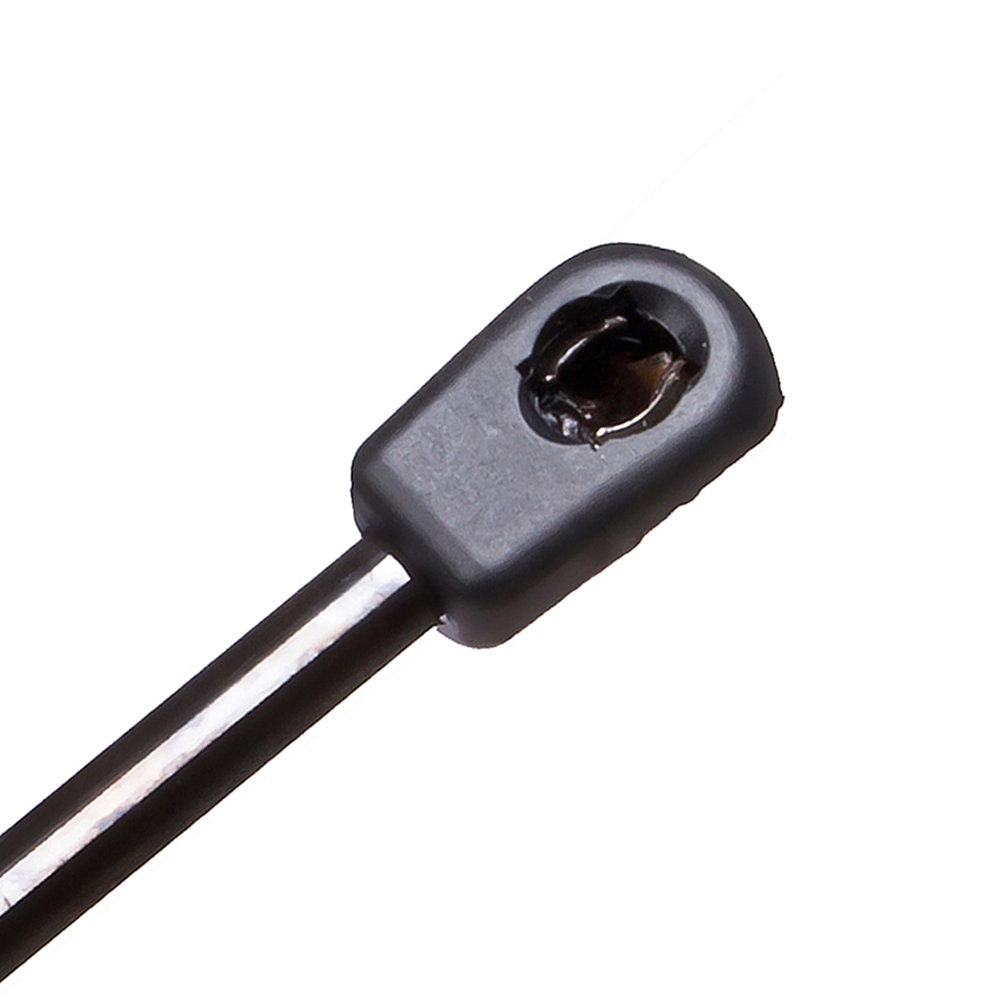

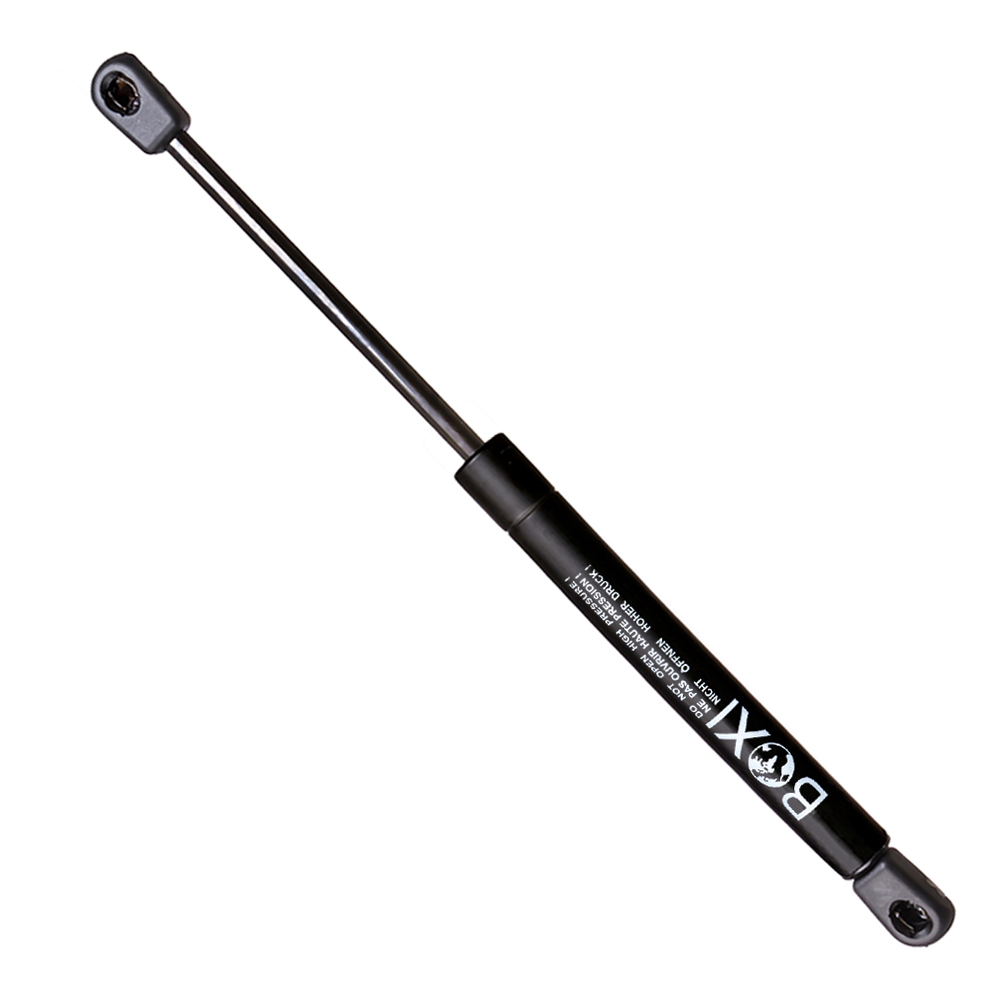

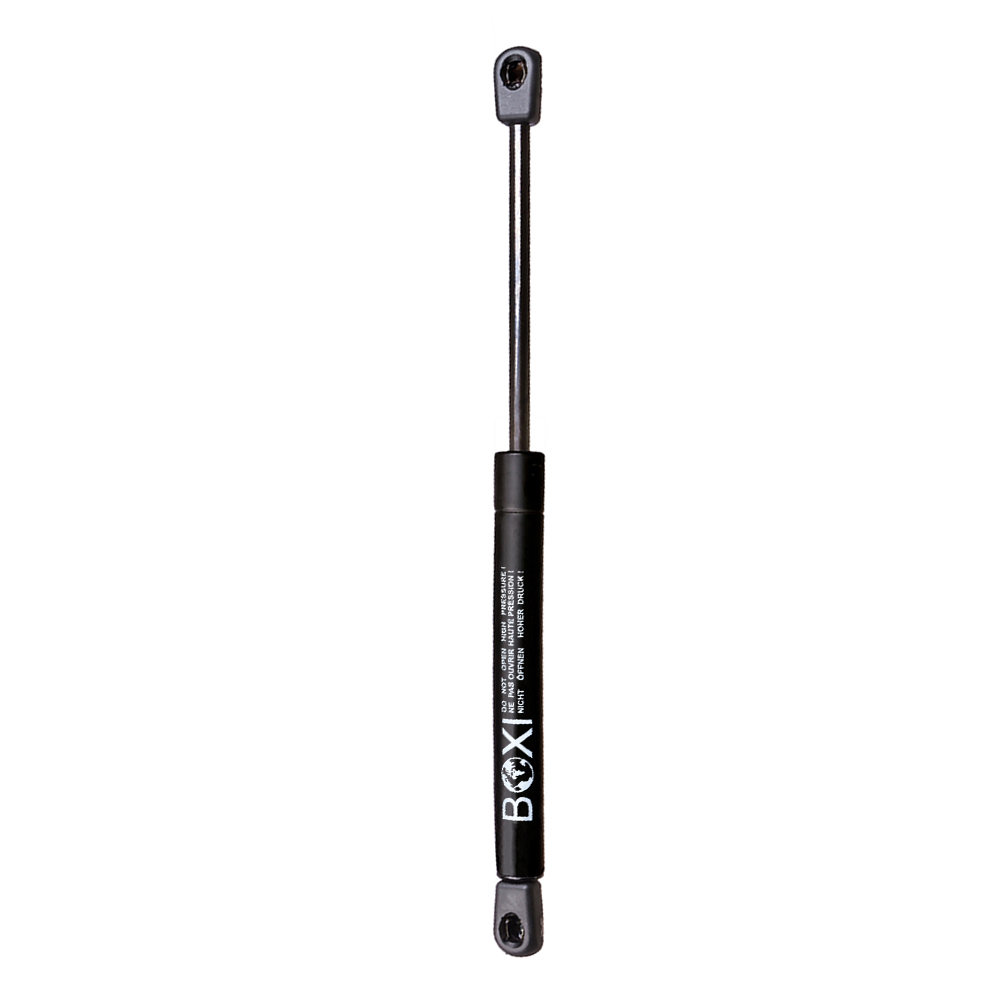

BOXI1pc Universal Lift Support Strut Shock Gas Strut Shock Spring Support Extended Length 12.00″, Compressed Length 8.05″, Force 30.00(lbs),10mm Ball Socket | 4420

BOXI SKU#: BXC300054636-1

$8.50

BOXI Universal Lift Support Strut for automotive, truck, industrial, and marine applications. Specs: 12in extended, 8.05in compressed, 30lbs force. Verify fitment before ordering.

OE / Interchange Part Numbers: 4420, 550018, 95290, E95290, SG459002

  • 5 Years Warranty

49 in stock

Placement on Vehicle:
Package Included:1pc Universal Lift Support

Extended Length [in] 12.00
Compressed Length [in] 8.05
ext.ser.num 133N
Force (lbs) 30.00

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.44 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

305
Stroke (in):

3.95
Stroke (mm):

101
Compressed Length (in)

Compressed Length (mm):

204
Force (Lbs)

Force (Newtons)

133
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8
Body Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Shaft Connection:

Ball Socket U Band (Nylon)=10mm=3/8"=.39"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95290, 4420, 550018, 8498IZ, E95290, SG459002
