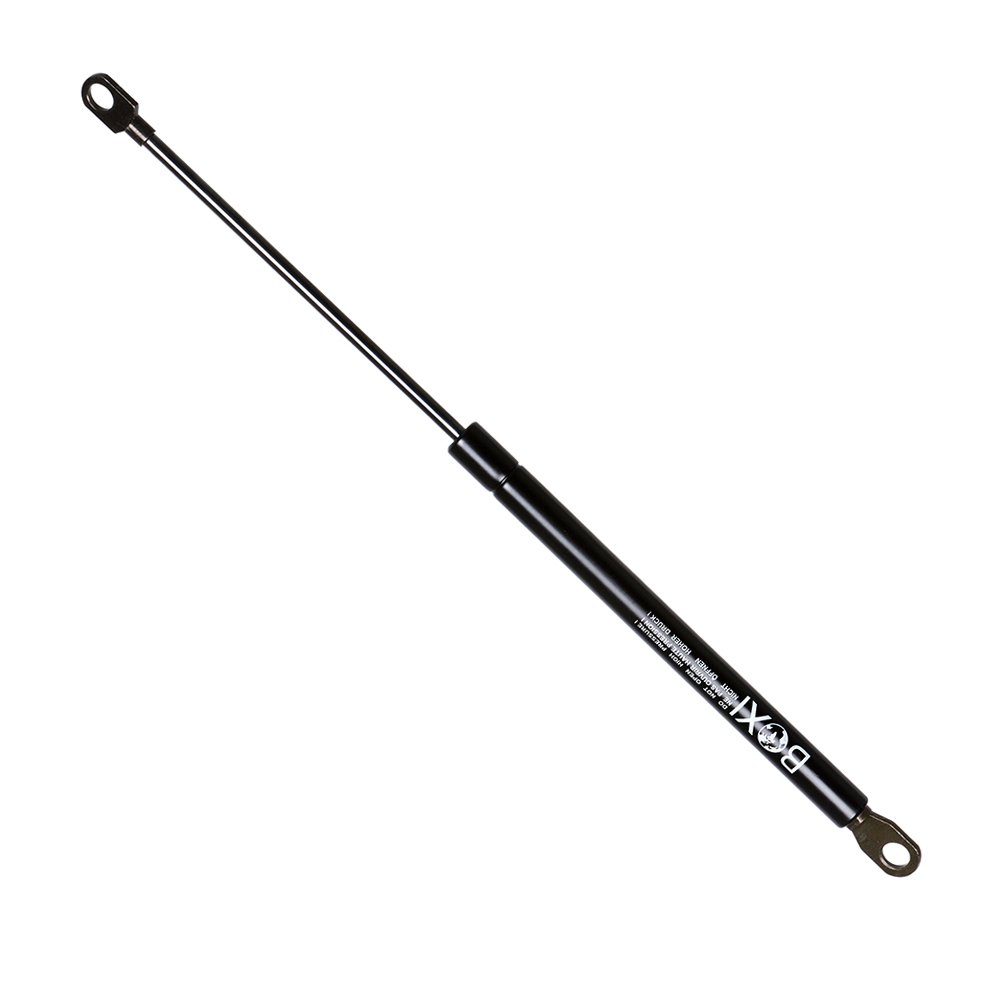

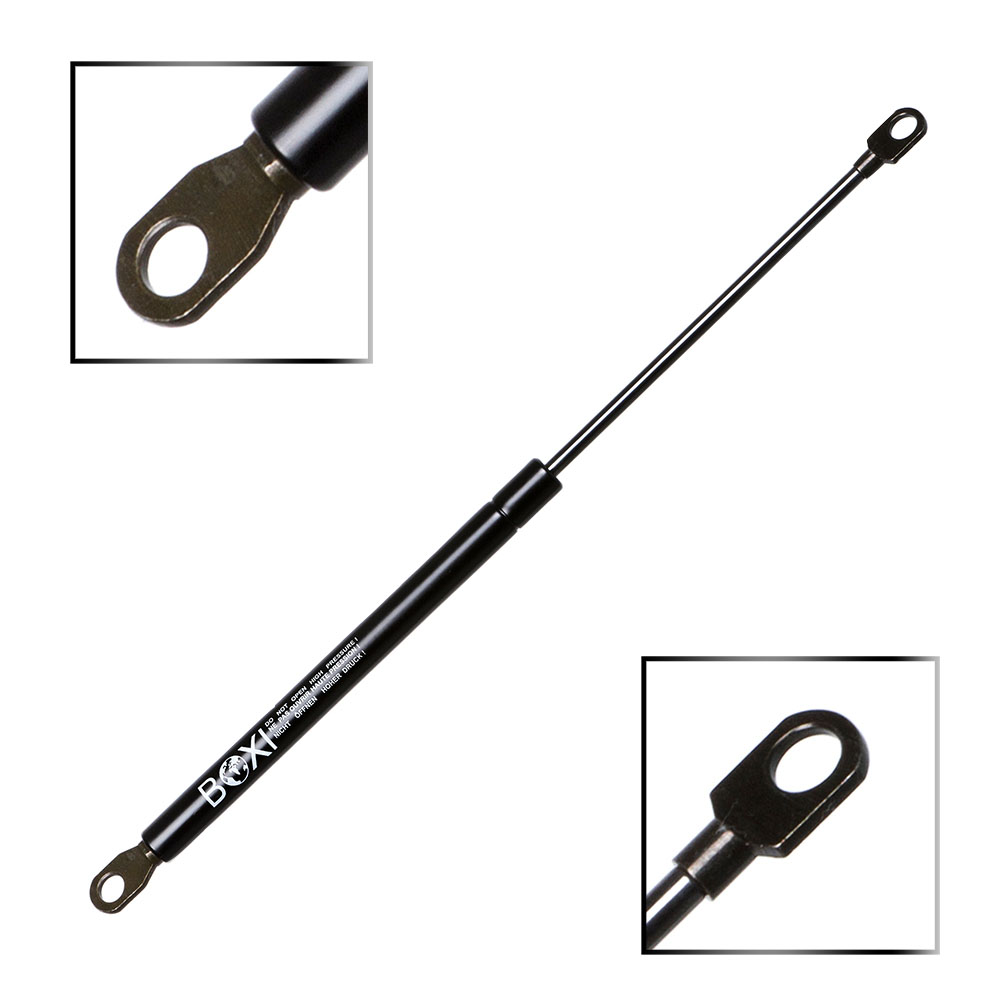

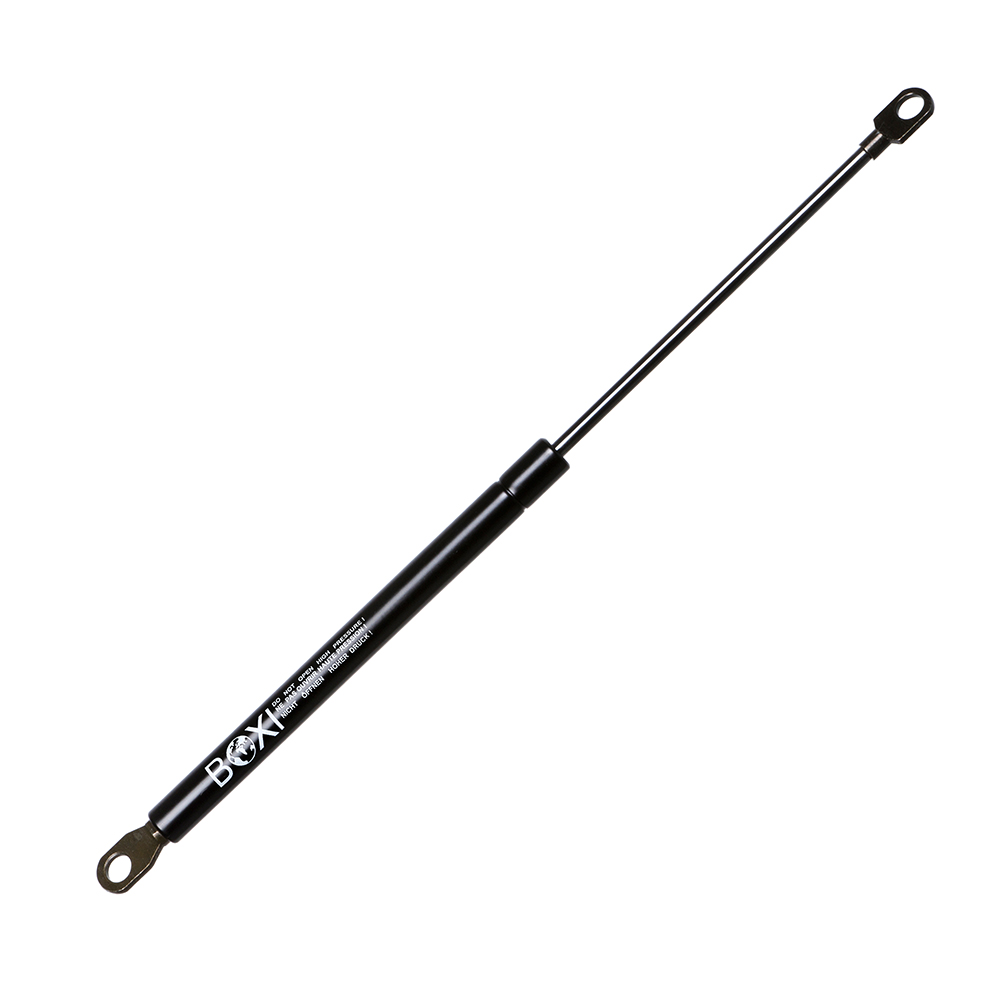

Qty(1) BOXI 4671 Universal Lift Support Strut Shock Extended Length 10.00 inches, Compressed Length 6.75 inches, Force (lbs) 26.00,Eyelet Hole=10.2mm 4671,SG459004

BOXI SKU#: BXC300054632-1

$11.99

BOXI 4671 Universal Lift Support Strut compatible with various vehicles and applications. OE numbers: 4671, SG459004. Verify fitment before ordering.

OE / Interchange Part Numbers: 10229, 4671, 5218KW, 8195570, 95960, F95960, SG459004

  • 5 Years Warranty

90 in stock

Placement on Vehicle:
Package Included:1pc Universal Lift Support

Qty(1) BOXI 4671 Universal Lift Support
Extended Length 10.00 inches
Compressed Length 6.75 inches

Force (lbs) 26.00
ext.ser.num 116N

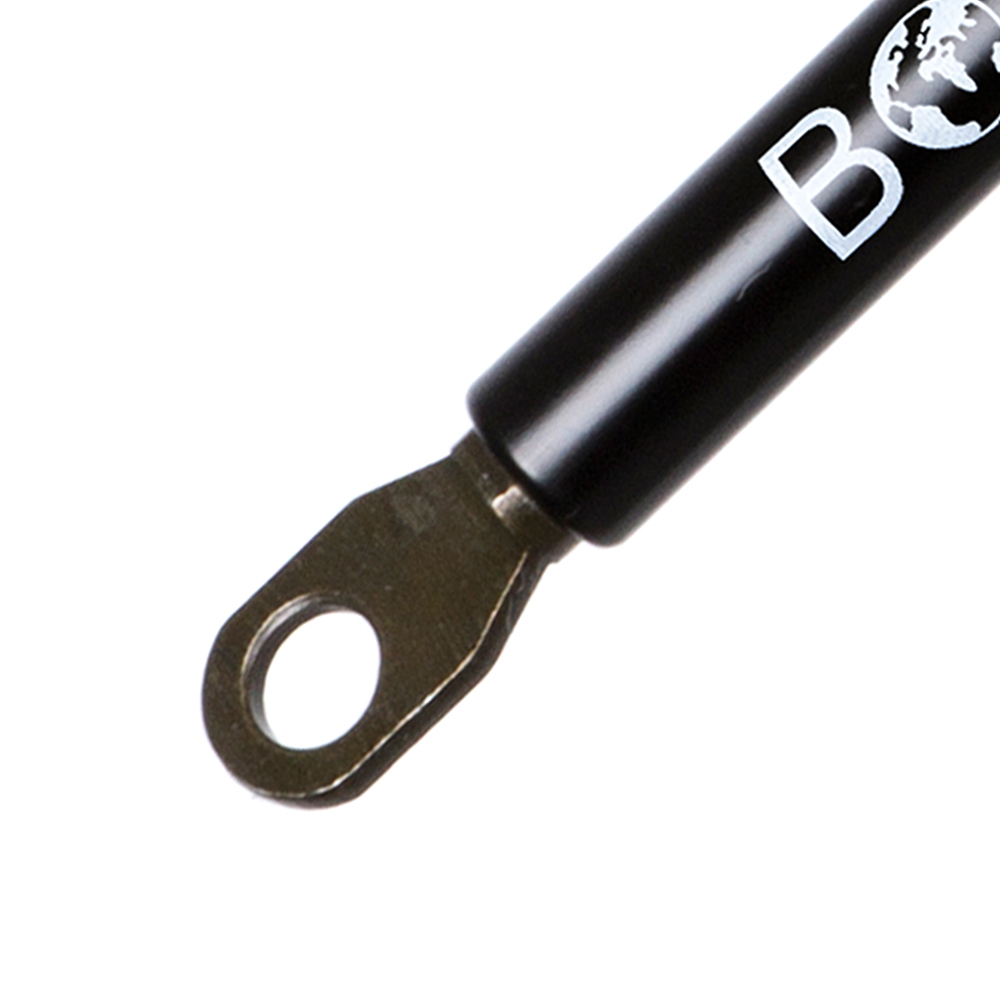

Body End Description Eyelet Hole=10.2mm=13/32″=.402″

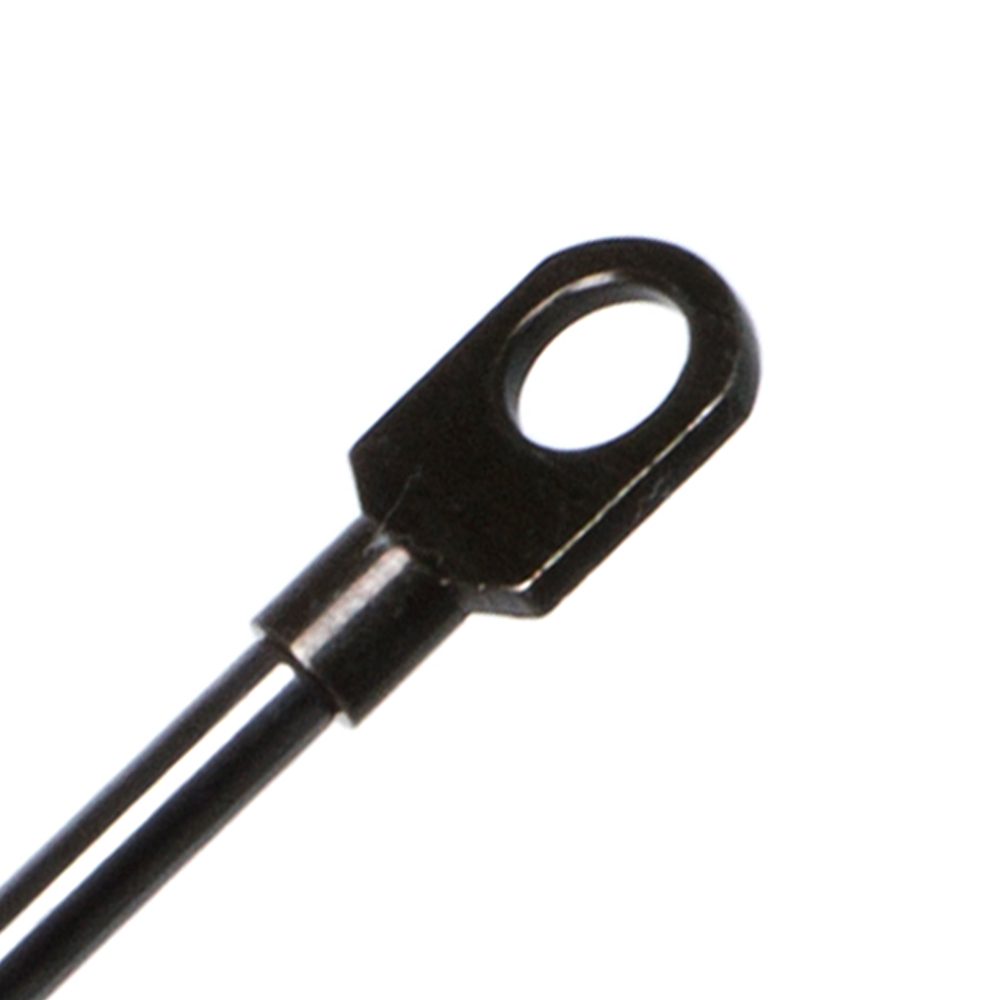

Shaft End Description Eyelet Hole=10.2mm=13/32″=.402″

Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.

Weight 0.31 lbs
Dimensions 11.81 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

254
Stroke (in):

3.25
Stroke (mm):

83
Compressed Length (in)

Compressed Length (mm):

171
Force (Lbs)

Force (Newtons)

116
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

Eyelet Hole=10.2mm=13/32"=.402"
Shaft Connection:

Eyelet Hole=10.2mm=13/32"=.402"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

95960, 10229, 1621, 3648, 4671, 5218KW, 8195570, F95960, SG459004
