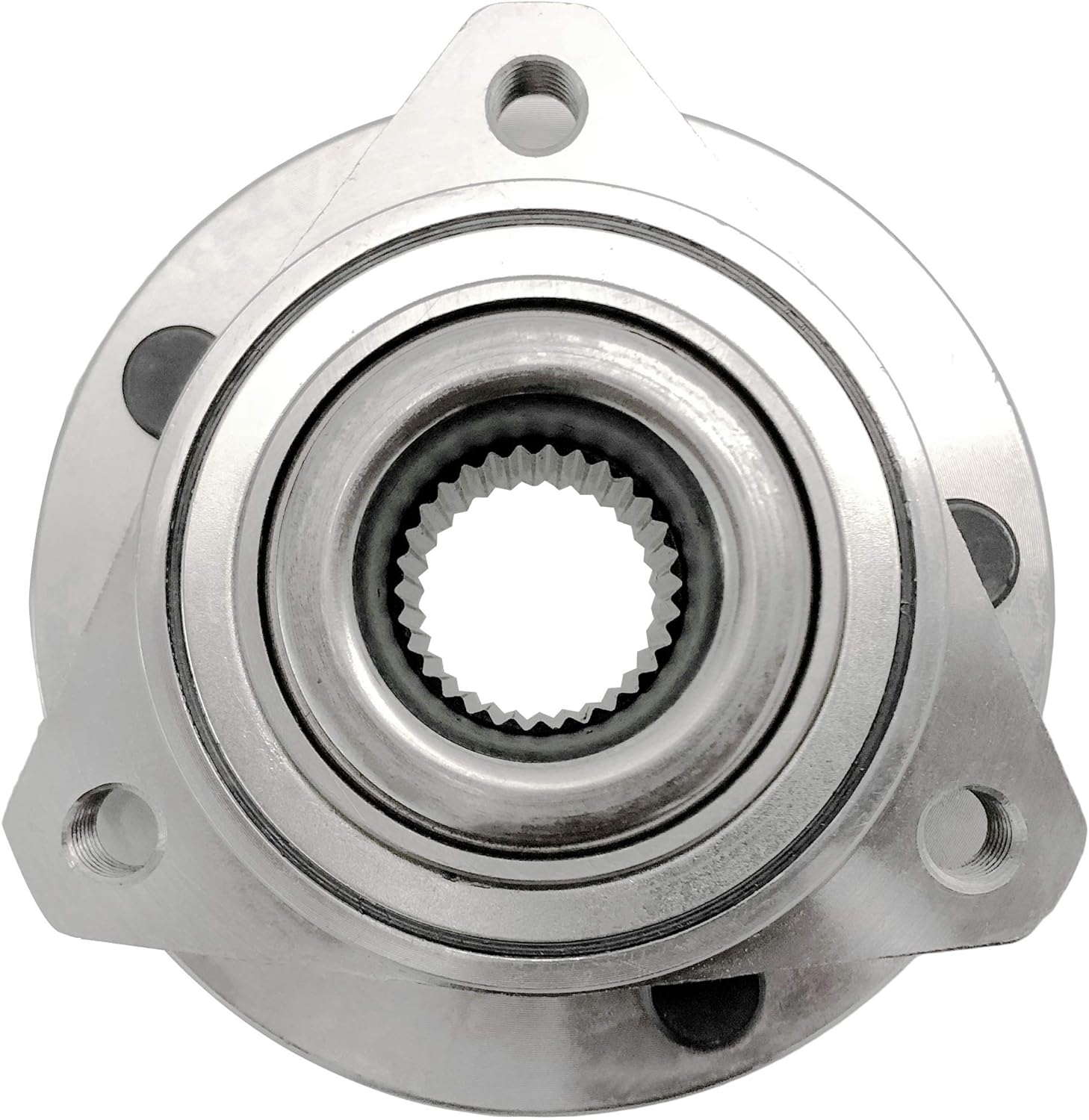

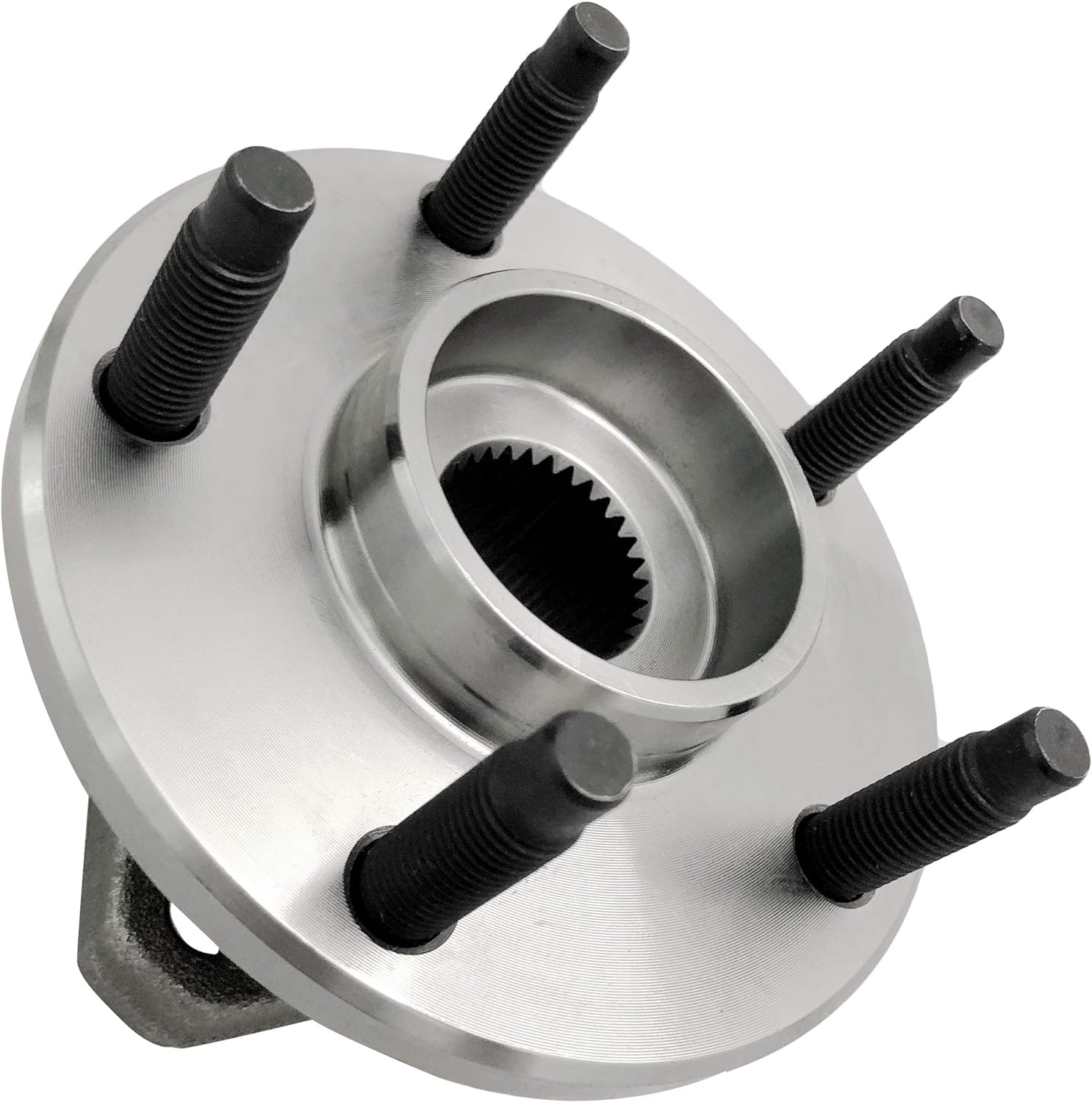

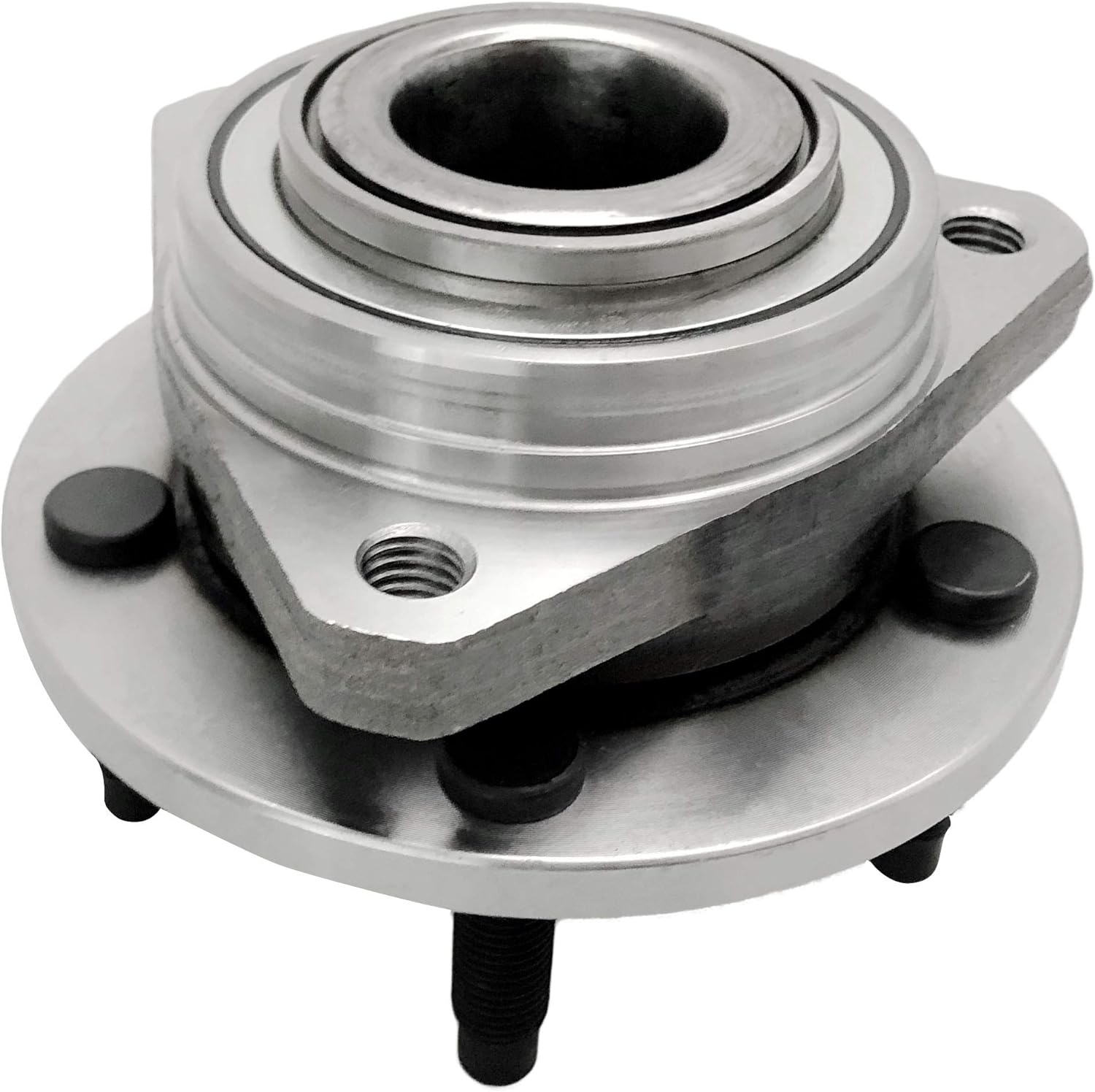

BOXI Front Driver or Passenger Side Wheel Hub and Bearing Assembly 5 Lugs Fits for Chevrolet Malibu 2004-2008 / for Pontiac G6 2005-2007 / Non-ABS Models 513215
BOXI SKU#: BX03200001-1
$41.05
BOXI front wheel hub and bearing assembly for Chevrolet Malibu 2004-2008 and Pontiac G6 2005-2007 non-ABS models. OE numbers: 513215, WE60975, HA590071, BR930314, 12413087, WB13215. Verify fitment before ordering.
OE / Interchange Part Numbers: 12413087, 513215WE60975, BR930314, HA590071, WB13215
1 in stock
Placement on Vehicle:Front Driver or Passenger Side
Package Included:1pc Wheel Hub and Bearing Assembly
Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.
Fitment:
Fits for Chevrolet Malibu 2004 – 2008 / Non-ABS MODELS
Fits for Pontiac G6 2005-2007 / Non-ABS MODELS
Replacement OEM ( Original Equipment Part) Number:513215 WE60975 HA590071 BR930314 12413087 WB13215
Package Included:1*Wheel hub bearing
| Weight | 7.53 lbs |
|---|---|
| Dimensions | 6.69 × 6.29 × 4.72 in |
| Brand | BOXI |
| Condition | New |
| Material | Steel |
| Driven Or Non-Driven | Driven |
| Gasket Or Seal Included | Yes |
| Bearing Included | No |
| ABS Sensor Included | No |
| Flange Shape | Triangle |
| Wiring Harness Included | No |
| Greaseable | No |
| Bearing Type | Ball |
| Flange Diameter (in) | 5.394 Inch |
| Flange Diameter (mm) | 137mm |
| Flange Offset (in) | 1.535 Inch |
| Flange Offset (mm) | 39mm |
| Hub Pilot Diameter (in) | 4.330 Inch |
| Hub Pilot Diameter (mm) | 110mm |
| Flange Outside Diameter (in) | 5.390 Inch |
| Flange Outside Diameter (mm) | 137mm |
| Total Hub Diameter (in) | 5.390 Inch |
| Total Hub Diameter (mm) | 137mm |
| Hub Centerbore Diameter (in) | 4.330 Inch |
| Hub Centerbore Diameter (mm) | 110mm |
| Total Hub Height (in) | 4.330 Inch |
| Total Hub Height (mm) | 110mm |
| Flange Bolt Size (in) | 1.515 Inch |
| Flange Bolt Size (mm) | 38.5mm |
| Number Of Splines | 33 |
| Number Of Terminals | 1 |
| Number Of Lugs | 5 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Number Of Lug Bolts Included | 5 |
| Number Of Flange Bolts Included | 3 |
| Lug Bolt Thread Size | M12-1.50 |
| Flange Bolt Thread Size | M12-1.75 |
| Warranty Terms | Two Year |
| Interchange Part Number | WE60975, 400.62008, 400.62008E, WH513215, 799-0159, 104215, BRG BR930314, P513215, FW9215, VKBA3669, BHA53482, BHA54000, BKA14477, BKA17738, BKA18159, BKA21739, BKA21856, BKA21879, BKA23855, BKA23857, BKA23859, BKA23861, BKA65350, QHUB-42, NT513215, HA590071, H513215, FW323, BR930314, 91-49280, 7467597, 713215, 513215, 22706425, 12413167, 12413088, 12413087, 10014079 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2004 – 2007 | Chevrolet | Malibu | Base | L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC |
| V6 – 3.5L 3498cc 213ci GAS MPI type LZ4 – 2 valve OHV | ||||
| LS LT | L4 – 2.2L 2198cc 134ci GAS MFI vin F type L61 – 4 valve DOHC | |||
| V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV | ||||
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| Maxx LS Maxx LT | V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV | |||
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| 2006 – 2007 | Chevrolet | Malibu | LTZ Maxx LTZ | V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV |
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| Maxx SS SS | V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | |||
| 2004 | Chevrolet | Malibu | Maxx | V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV |
| 2005 – 2007 | Pontiac | G6 | Base | L4 – 2.4L 2384cc 145ci GAS MFI vin B – 4 valve DOHC |
| V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV | ||||
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| GT | V6 – 3.5L 213ci GAS MFI vin 8 – 2 valve OHV | |||
| V6 – 3.5L 3490cc 213ci GAS MFI vin N type LZ4 – 2 valve OHV | ||||
| V6 – 3.5L 3498cc 213ci GAS MPI type LX9 – 2 valve OHV | ||||
| V6 – 3.5L 3498cc 213ci GAS MPI type LZ4 – 2 valve OHV | ||||
| V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | ||||
| 2006 – 2007 | Pontiac | G6 | GTP | V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC |
| V6 – 3.9L 3880cc 237ci GAS MFI vin 1 type LZ9 – 2 valve OHV | ||||
| 2005 – 2006 | Pontiac | G6 | SE | V6 – 3.5L 3498cc 213ci GAS MPI type LX9 – 2 valve OHV |
