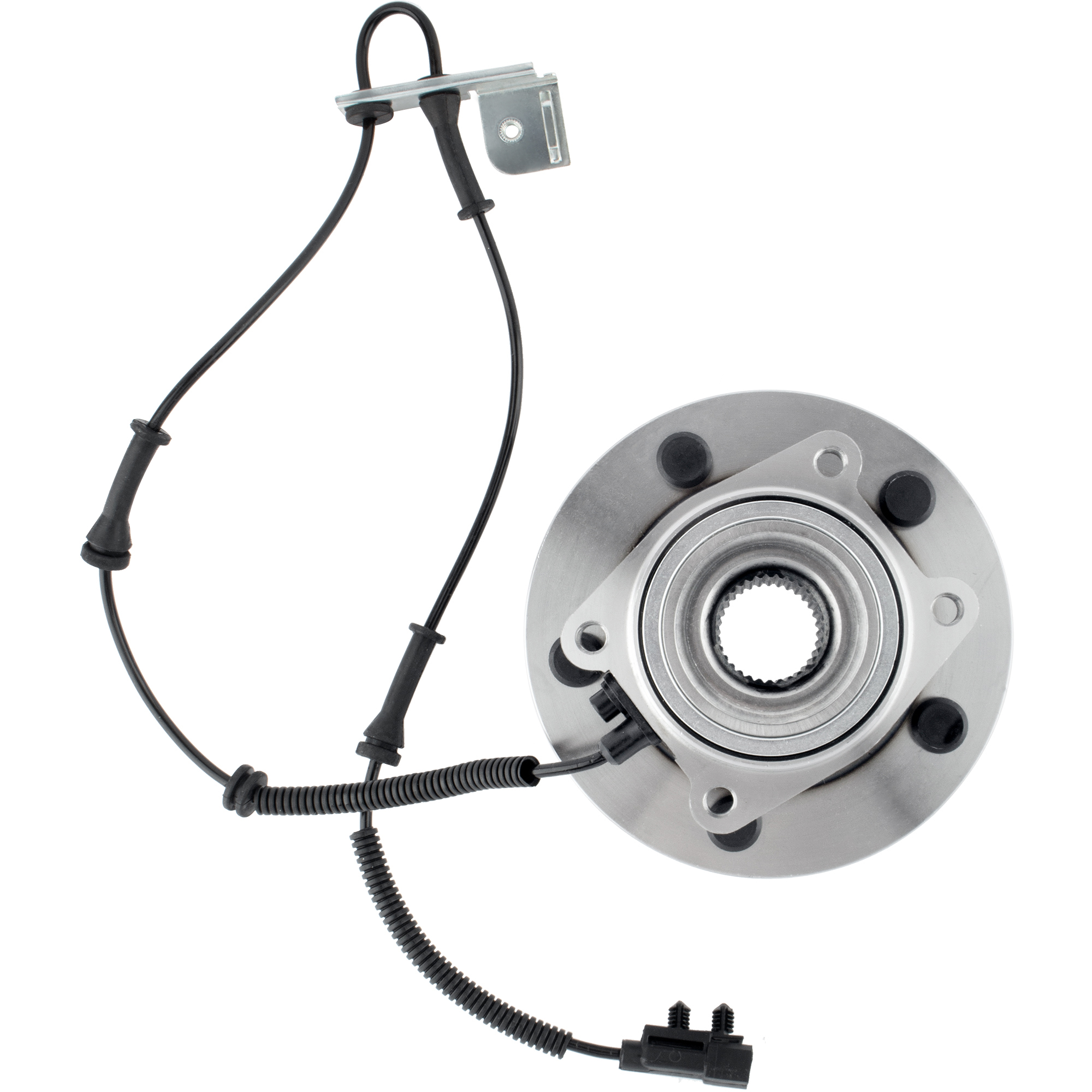

BOXI Front Left or Right Wheel Hub and Bearing Assembly 5 Lugs w/ABS Fit for 2008-2016 Town & Country / 2008-2017 for Dod-ge Grand Carav-an / 2009-2012 VW Routan 513273

BOXI SKU#: BX03200013-1

$48.06

BOXI front left/right wheel hub and bearing assembly (5 lugs w/ABS) for 2008-2016 Chrysler Town & Country, 2008-2017 Dodge Grand Caravan, 2009-2012 VW Routan. Replaces OEM 513273, 515136, 5154214AA. Verify fitment before ordering.

  • Two Year Warranty

1 in stock

Placement on Vehicle:Front Left or Right
Package Included:1pc Wheel Hub and Bearing Assembly

Please kindly check the YEAR/MAKE/MODEL of your vehicle based on our product description to make sure this item is compatible.

Fitment:
Compatible with: 2008-2016 Town & Country

Compatible with: 2008-2017 for Dod-ge Grand Carav-an

Compatible with: 2009-2012 VW Routan

Replacement OEM ( Original Equipment Part) Number:513273 515136 5154214AA

Package Included:1*Wheel hub bearing

Weight 9.6 lbs
Dimensions 6.88 × 6.49 × 6.29 in
Brand

BOXI
Condition

New
Material

Steel
Driven Or Non-Driven

Driven
Gasket Or Seal Included

Yes
Bearing Included

No
ABS Sensor Included

Yes
Terminal Gender

Male
Flange Shape

Trapezoid
Wiring Harness Included

Yes
Greaseable

No
Bearing Type

Ball
Flange Diameter (in)

6.370 Inch
Flange Diameter (mm)

162mm
Flange Offset (in)

1.910 Inch
Flange Offset (mm)

49mm
Hub Pilot Diameter (in)

3.346 Inch
Hub Pilot Diameter (mm)

85mm
Flange Outside Diameter (in)

6.370 Inch
Flange Outside Diameter (mm)

161.7mm
Total Hub Diameter (in)

6.370 Inch
Total Hub Diameter (mm)

162mm
Hub Centerbore Diameter (in)

5 Inch
Hub Centerbore Diameter (mm)

127mm
Total Hub Height (in)

4.150 Inch
Total Hub Height (mm)

105.5mm
Flange Bolt Size (in)

1.400 Inch
Flange Bolt Size (mm)

35.5mm
Number Of Splines

32
Number Of Terminals

1
Number Of Lugs

5
Number Of Mounting Bolts To Knuckle

4
Number Of Lug Bolts Included

5
Number Of Flange Bolts Included

5
Lug Bolt Thread Size

M12-1.50
Flange Bolt Thread Size

M10-1.50
Warranty Terms

Two Year
Interchange Part Number

7B0407621A, NT515136, 1411-313866, 051-6301, HA590243, WE60927, 94-313866, B-513273, 295-13273, 730-0264, 124273, MB25300, 513273, P513273, BR930688, 70-513273, WA513273, WA513273HD, WA515136, WA515136HD, WH513273, PT513273, NT513273, 713273, 515136, 4721578AD, 103142, 05154214AA
YearMakeModelSubmodelEngine
2008 – 2011ChryslerTown & CountryLXV6 – 3.3L 3301cc 201ci FLEX MFI vin E type EGV – 2 valve OHV
V6 – 3.3L 3301cc 201ci FLEX MFI vin H – 2 valve OHV
V6 – 3.3L 3301cc 201ci GAS MFI vin H – 2 valve OHV
V6 – 3.6L 3605cc 220ci GAS MPI type ERB – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type EGL – 2 valve OHV
V6 – 4.0L 3952cc 241ci GAS MFI vin X type EGQ – 4 valve SOHC
LimitedV6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3604cc 220ci GAS MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3605cc 220ci GAS MPI type ERB – 4 valve DOHC
V6 – 4.0L 3952cc 241ci GAS MFI vin X type EGQ – 4 valve SOHC
TouringV6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3604cc 220ci GAS MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3605cc 220ci GAS MPI type ERB – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type EGL – 2 valve OHV
V6 – 3.8L 3778cc 231ci GAS MFI vin P – 2 valve OHV
V6 – 4.0L 3952cc 241ci GAS MFI vin X type EGQ – 4 valve SOHC
2011ChryslerTown & CountryTouring LV6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3604cc 220ci GAS MFI vin G type ERB – 4 valve DOHC
2010ChryslerTown & CountryTouring PlusV6 – 3.8L 3778cc 231ci GAS MFI vin 1 type EGL – 2 valve OHV
V6 – 4.0L 3952cc 241ci GAS MFI vin X type EGQ – 4 valve SOHC
Walter P. Chrysler Signature SeriesV6 – 3.8L 3778cc 231ci GAS MFI vin 1 type EGL – 2 valve OHV
2008ChryslerTown & CountryTouring PremiumV6 – 4.0L 3952cc 241ci GAS MFI vin X type EGQ – 4 valve SOHC
2008 – 2011DodgeGrand CaravanC/VV6 – 3.3L 3301cc 201ci FLEX MFI vin E type EGV – 2 valve OHV
V6 – 3.3L 3301cc 201ci FLEX MFI vin H – 2 valve OHV
V6 – 3.3L 3301cc 201ci GAS MFI vin H – 2 valve OHV
V6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3604cc 220ci GAS MFI vin G type ERB – 4 valve DOHC
SXTV6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3604cc 220ci GAS MFI vin G type ERB – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type EGL – 2 valve OHV
V6 – 3.8L 3778cc 231ci GAS MFI vin P – 2 valve OHV
V6 – 4.0L 3952cc 241ci GAS MFI vin X type EGQ – 4 valve SOHC
2011DodgeGrand CaravanCrew
EXPRESS
Mainstreet
R/T
SE Canada Value Package		V6 – 3.6L 3604cc 220ci FLEX MFI vin G type ERB – 4 valve DOHC
V6 – 3.6L 3604cc 220ci GAS MFI vin G type ERB – 4 valve DOHC
2008 – 2010DodgeGrand CaravanSEV6 – 3.3L 3301cc 201ci FLEX MFI vin E type EGV – 2 valve OHV
V6 – 3.3L 3301cc 201ci FLEX MFI vin H – 2 valve OHV
V6 – 3.3L 3301cc 201ci GAS MFI vin H – 2 valve OHV
2008DodgeGrand CaravanValue PackageV6 – 3.8L 3778cc 231ci GAS MFI vin P – 2 valve OHV
V6 – 4.0L 3952cc 241ci GAS MFI vin X type EGQ – 4 valve SOHC
2009 – 2011VolkswagenRoutanComfortline
Exclusive
PRESTIGE
Trendline		V6 – 3.6L 3604cc 220ci GAS MFI vin G type CJRA – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type CGUA – 2 valve OHV
HighlineV6 – 3.6L 3604cc 220ci GAS MFI vin G type CJRA – 4 valve DOHC
V6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
S
SE		V6 – 3.6L 3604cc 220ci FLEX MFI vin G type CJRA – 4 valve DOHC
V6 – 3.8L 3778cc 231ci GAS MFI vin 1 type CGUA – 2 valve OHV
SELV6 – 3.6L 3604cc 220ci FLEX MFI vin G type CJRA – 4 valve DOHC
V6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
2009 – 2010VolkswagenRoutanExeclineV6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
2010 – 2011VolkswagenRoutanSEL PremiumV6 – 3.6L 3604cc 220ci FLEX MFI vin G type CJRA – 4 valve DOHC
V6 – 4.0L 3952cc 241ci GAS MFI vin X type CGVA – 4 valve SOHC
