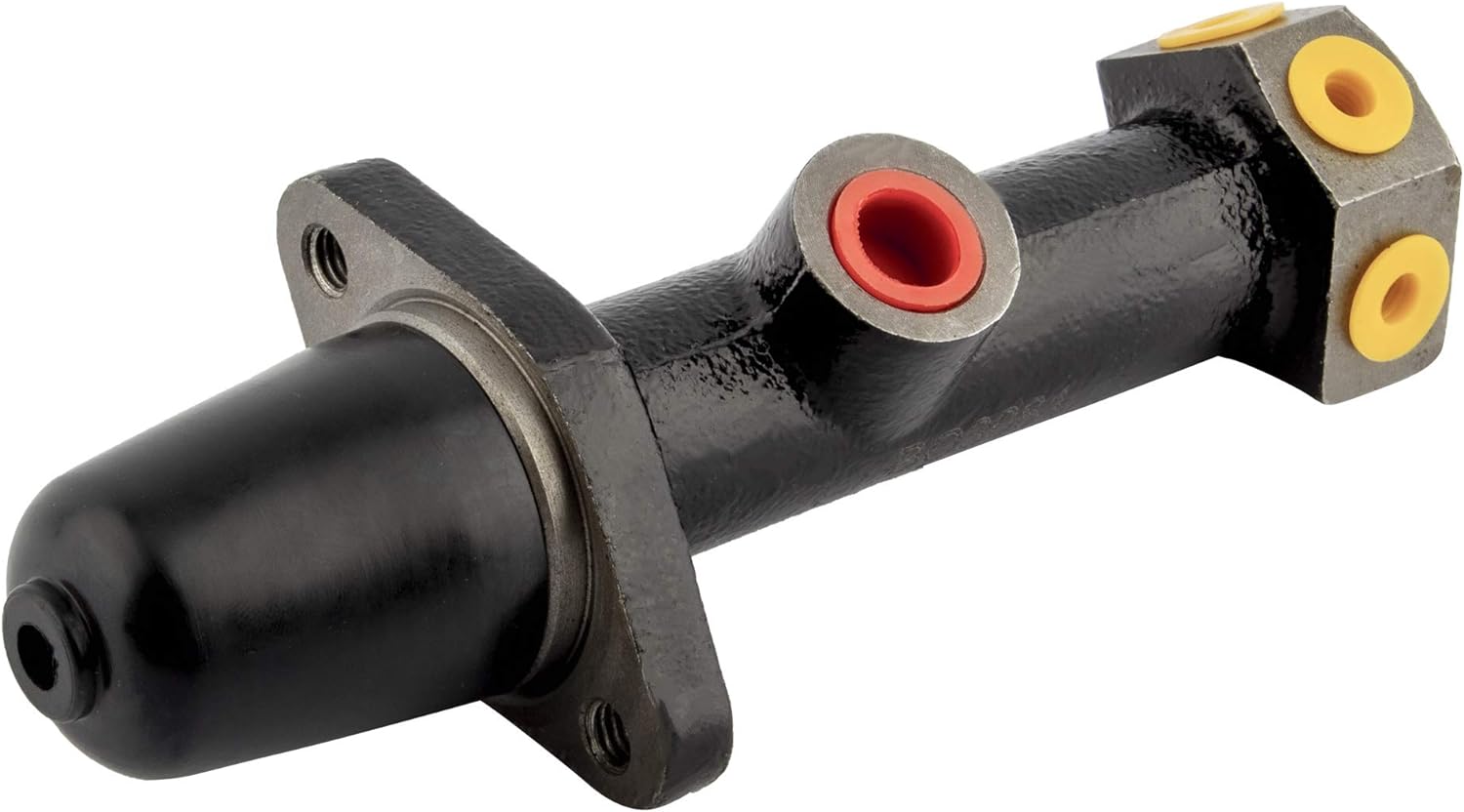

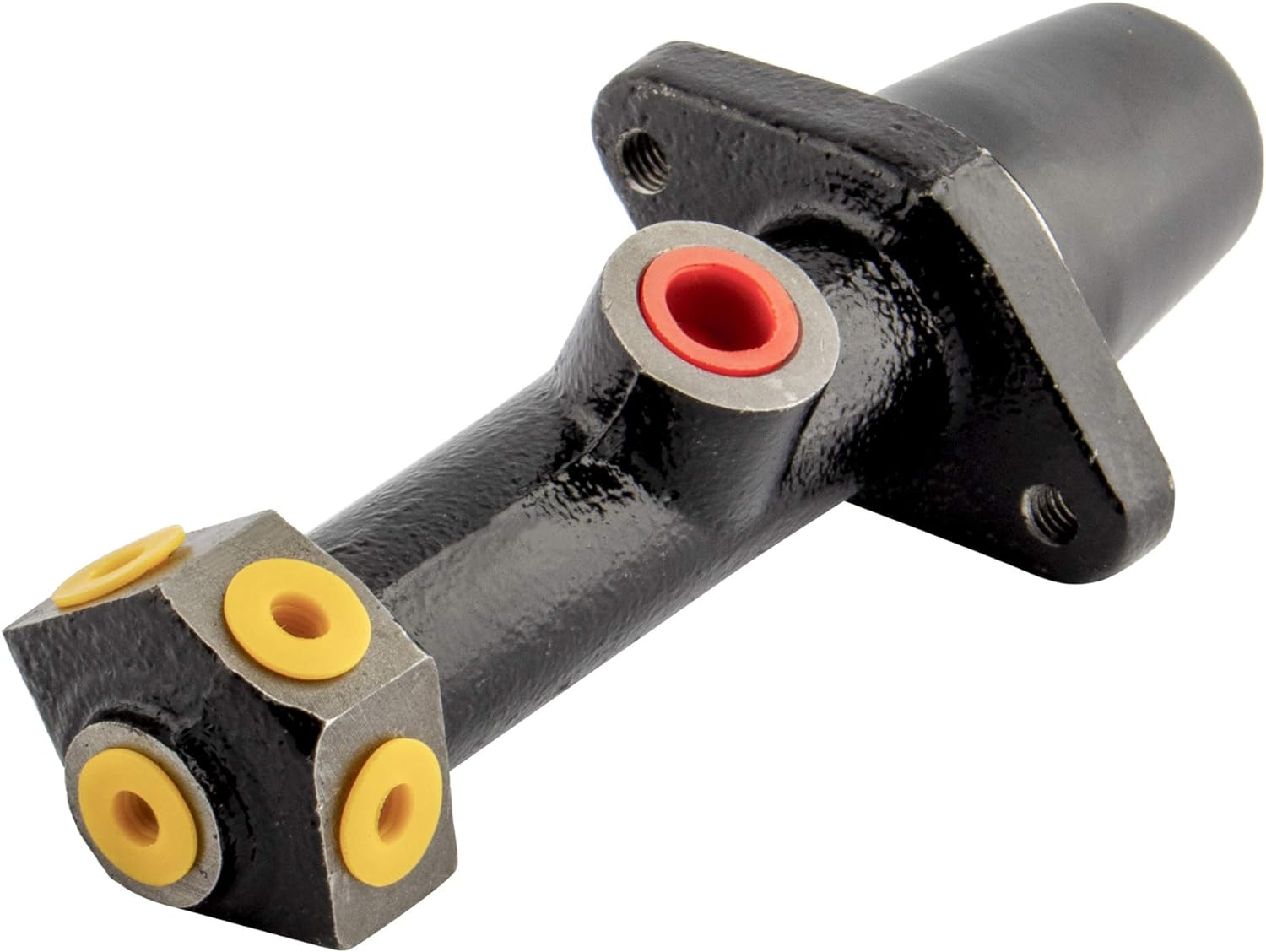

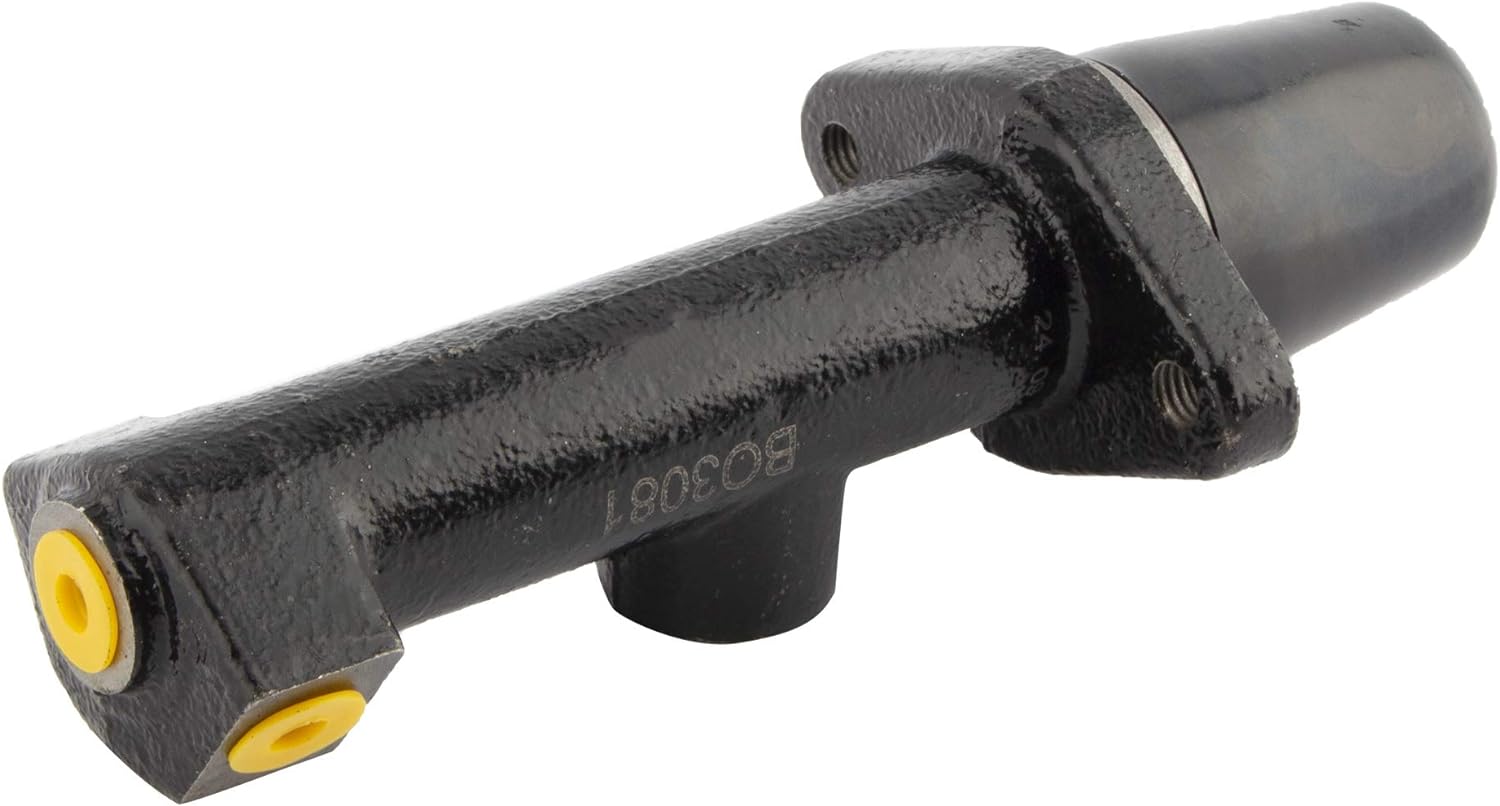

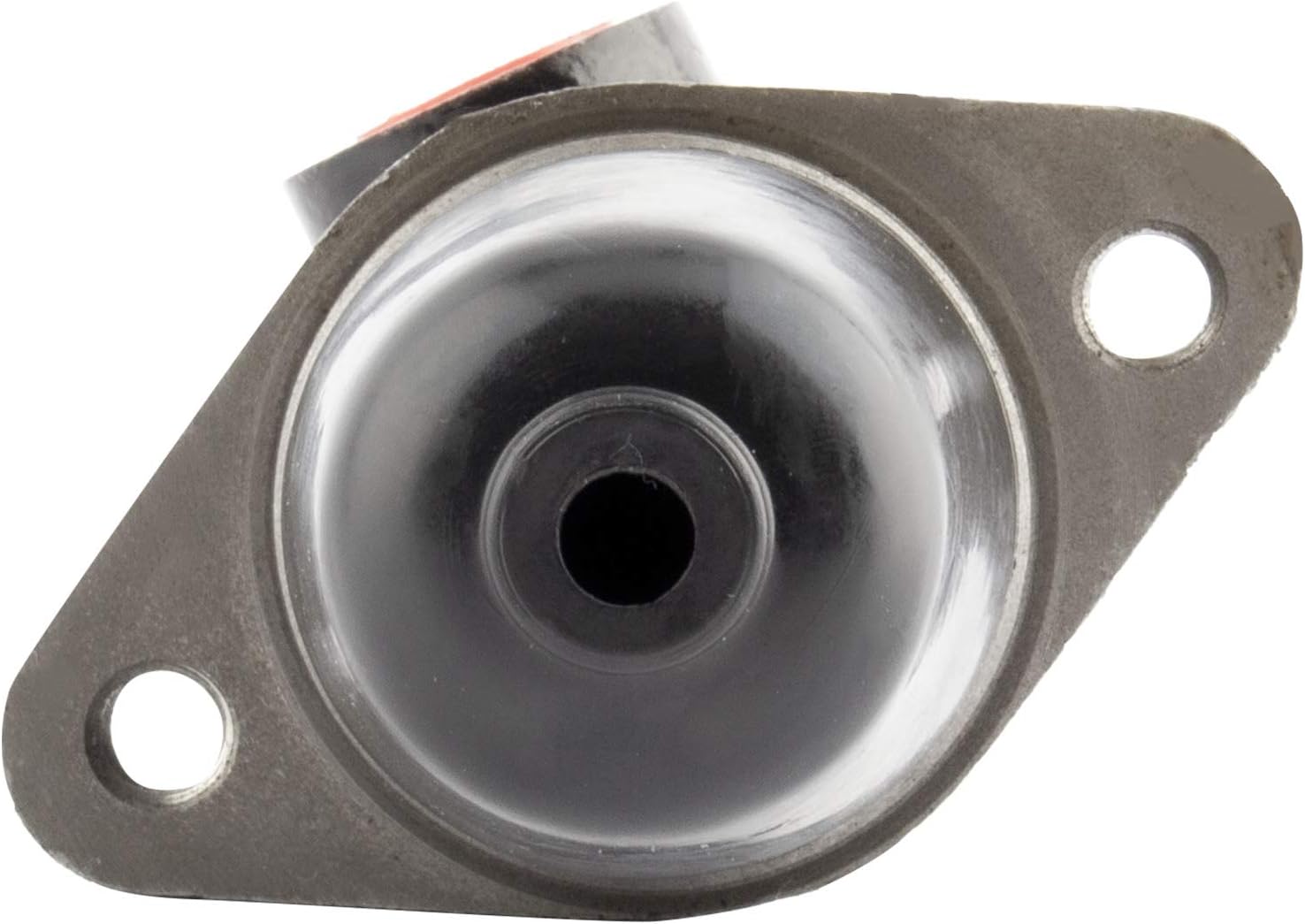

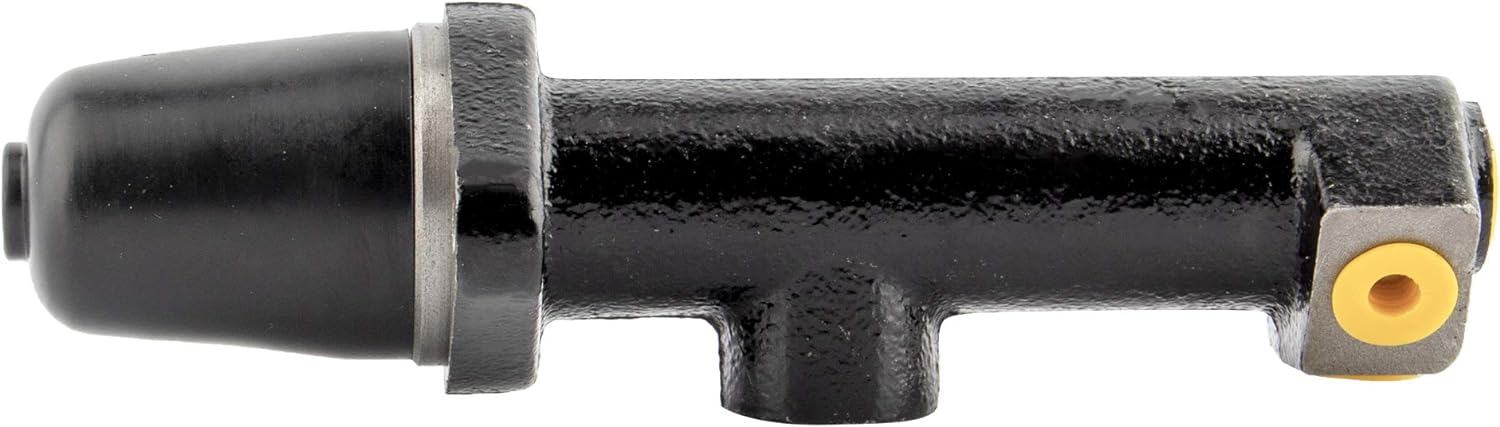

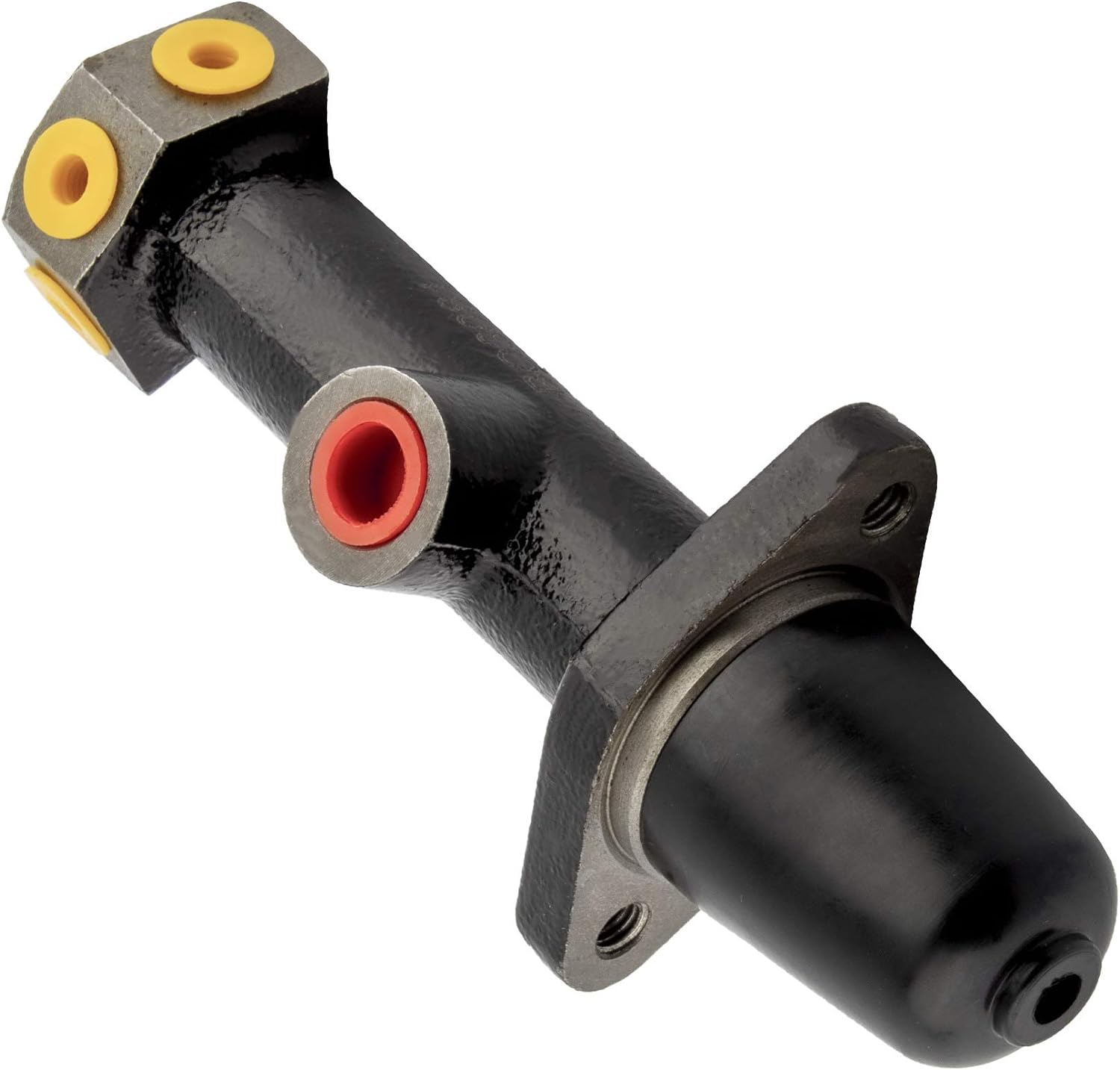

BOXI Brake Master Cylinder for 1965-1977 Volkswagen Beetle | Replaces OE #1113611023BCH
BOXI SKU#: BX06400013-1
$24.03
1 in stock
BOXIDirect-Fit OE ReplacementBrake Master Cylinder
Check if this part fits your vehicle
Select your vehicle to check fitment (23 compatible configurations)
Ship to Home
Available (1 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference
View All (20) →
Replaces OE #: 1113611023BCH, 113611023BBR, M90547113611023B, 113 611 023 B, 1336272 +15 more
Two Year Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications
View All Specifications →
- Package Included
- 1x Brake Master Cylinder
- Notes
- Instruction is not included. Professional installation is recommended
- Replaces OE Number
- M90547 113611023B 1113611023BCH 113611023BBR
- Condition
- New
- Master Cylinder Body Material
- Cast Iron
Direct-fit BOXI replacement part compatible with 1972-1973 Volkswagen 411 Base, 1971-1972 Volkswagen 411 Base, 1972 Volkswagen 411 Base, 1973-1974 Volkswagen 412 Base and additional configurations. Replaces OE / interchange part numbers: 1113611023BCH, 113611023BBR, M90547113611023B, 113 611 023 B, 1336272, M900110, 83-94101, M-20101. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Package Included
1x Brake Master Cylinder
Notes
Instruction is not included. Professional installation is recommended
Replaces OE Number
M90547 113611023B 1113611023BCH 113611023BBR
Application Note
Replacement for Volkswagen Beetle 1965-1970, 1977 Base Sedan/Convertible 2-Door 1.2L 1.3L 1.5L 1.6L
Application Note
Replacement for Volkswagen Karmann Ghia 1965-1966 Base 1.2L 1.3L
| Weight | 1.65 lbs |
|---|---|
| Dimensions | 7.87 × 3.14 × 2.36 in |
| Brand | BOXI |
| Condition | New |
| Master Cylinder Body Material | Cast Iron |
| Bleeder Kit Included | Yes |
| Reservoir Material | Plastic |
| Dust Boot Included | No |
| Reservoir Type | Remote |
| Pedal Rod Included | No |
| Reservoir Included | No |
| Brake Booster Included | No |
| Port 1 Thread Type (Forward) | Bubble Flare |
| Port 2 Thread Type | Flare |
| Port 1 Thread Size (Forward) (in) | 3/8 Inch |
| Port 1 Thread Size (Forward) (mm) | M10-1.0 |
| Port 2 Thread Size (in) | 3/8 Inch |
| Port 2 Thread Size (mm) | M10-1.0 |
| Bore Size (in) | 0.690 Inch |
| Bore Size (mm) | 17.47mm |
| Number Of Ports | 4 |
| Number Of Outlets | 4 |
| Number Of Pistons | 1 |
| Number Of Mounting Holes | 2 |
| Sensor Included | No |
| Gasket Or Seal Included | No |
| Warranty Terms | Two Year |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1972 – 1973 | Volkswagen | 411 | Base | H4 – 1.7L 1679cc 103ci GAS MFI type EA – 2 valve OHV |
| 1971 – 1972 | Volkswagen | 411 | Base | H4 – 1.7L 1679cc 103ci GAS MFI type W – 2 valve OHV |
| Base | H4 – 1.7L 1679cc 103ci GAS MFI type Z – 2 valve OHV | |||
| Base | H4 – 1.7L 1679cc GAS MFI type W – 2 valve OHV | |||
| Base | H4 – 1.7L 1679cc GAS MFI type Z – 2 valve OHV | |||
| 1972 | Volkswagen | 411 | Base | H4 – 1.7L 1679cc GAS MFI type EA – 2 valve OHV |
| 1973 – 1974 | Volkswagen | 412 | Base | H4 – 1.7L 1679cc 103ci GAS MFI type EA – 2 valve OHV |
| 1973 | Volkswagen | 412 | Base | H4 – 1.7L 1679cc 103ci GAS MFI type EB – 2 valve OHV |
| Base | H4 – 1.7L 1679cc 103ci GAS MFI type W – 2 valve OHV | |||
| Base | H4 – 1.7L 1679cc 103ci GAS MFI type Z – 2 valve OHV | |||
| 1974 | Volkswagen | 412 | Base | H4 – 1.7L 1679cc GAS type EA |
| Base | H4 – 1.8L 1795cc 110ci GAS 2x1BBL type AW – 2 valve OHV | |||
| Base | H4 – 1.8L 1795cc 110ci GAS MFI type EC – 2 valve OHV | |||
| 1965 – 1966 | Volkswagen | Beetle | Base | H4 – 1.2L 1192cc 73ci GAS 1BBL – 2 valve OHV |
| 1966 | Volkswagen | Beetle | Base | H4 – 1.3L 1285cc 78ci GAS 1BBL – 2 valve OHV |
| 1967 – 1969 | Volkswagen | Beetle | Base | H4 – 1.5L 1457cc 92ci GAS type H |
| Base | H4 – 1.5L 1493cc 91ci GAS 1BBL – 2 valve OHV | |||
| 1970 | Volkswagen | Beetle | Base | H4 – 1.6L 1584cc 97ci GAS 1BBL type B – 2 valve OHV |
| Base | H4 – 1.6L 1584cc 97ci GAS 2x1BBL type AE – 2 valve OHV | |||
| Base | H4 – 1.6L 1584cc 97ci GAS type B | |||
| 1977 | Volkswagen | Beetle | Base | H4 – 1.6L 1584cc 97ci GAS MFI type AJ – 2 valve OHV |
| 1965 | Volkswagen | Karmann Ghia | Base | H4 – 1.2L 1192cc 73ci GAS 1BBL – 2 valve OHV |
| 1966 | Volkswagen | Karmann Ghia | Base | H4 – 1.3L 1285cc 78ci GAS 1BBL – 2 valve OHV |
OEM & Aftermarket Interchange Part Numbers
| Brand | OEM Part Number | Aftermarket Interchange Number |
|---|---|---|
| Volkswagen (OEM) | 1113611023BCH, 113611023BBR, M90547113611023B, 1336272, 83-94101, 20-1136272, MC90547, MC36272, 131.33501 | BX06400013-1, M-20101, 130.33501 |
| Centric / Raybestos | 1113611023BCH, 113611023BBR, M90547113611023B | 130.33501, MC251140 |
| Cardone | 1113611023BCH, 113611023BBR, M90547113611023B | 11-36272 |
| Dorman | 1113611023BCH, 113611023BBR, M90547113611023B | 072-8030 |
| Aftermarket Interchange | 1113611023BCH, 113611023BBR, M90547113611023B | M-20101, F90547, 90547, 11553 |
