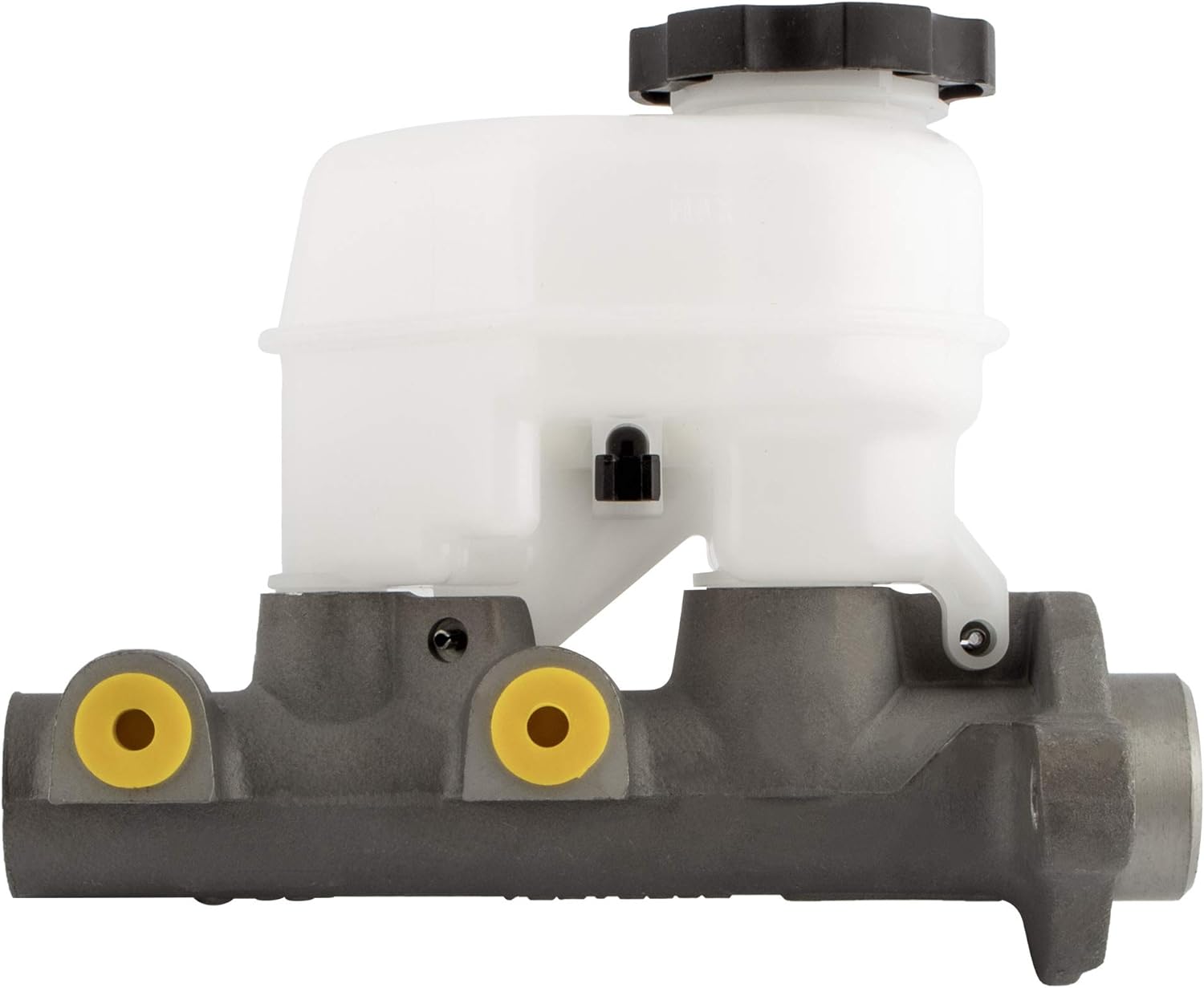

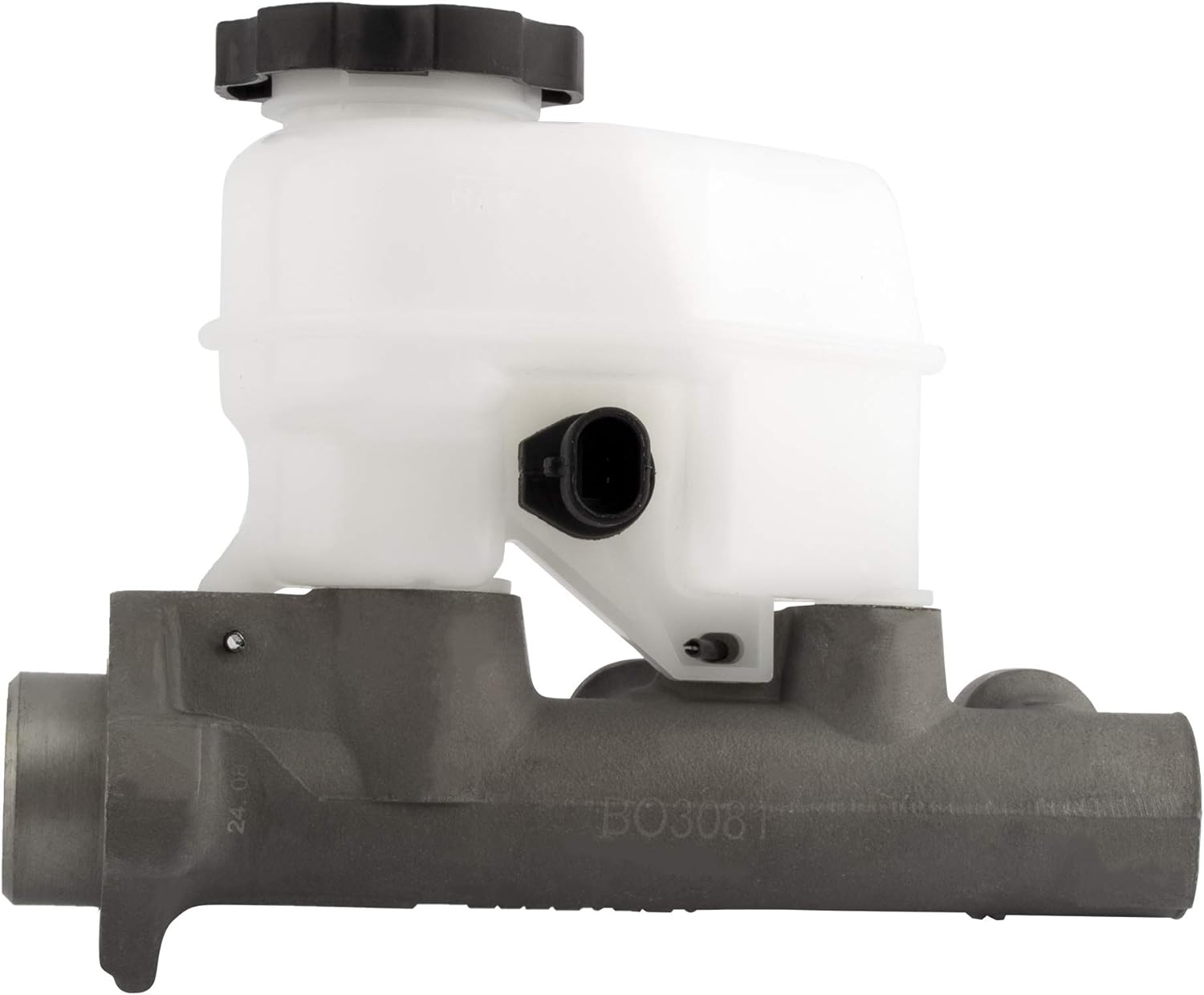

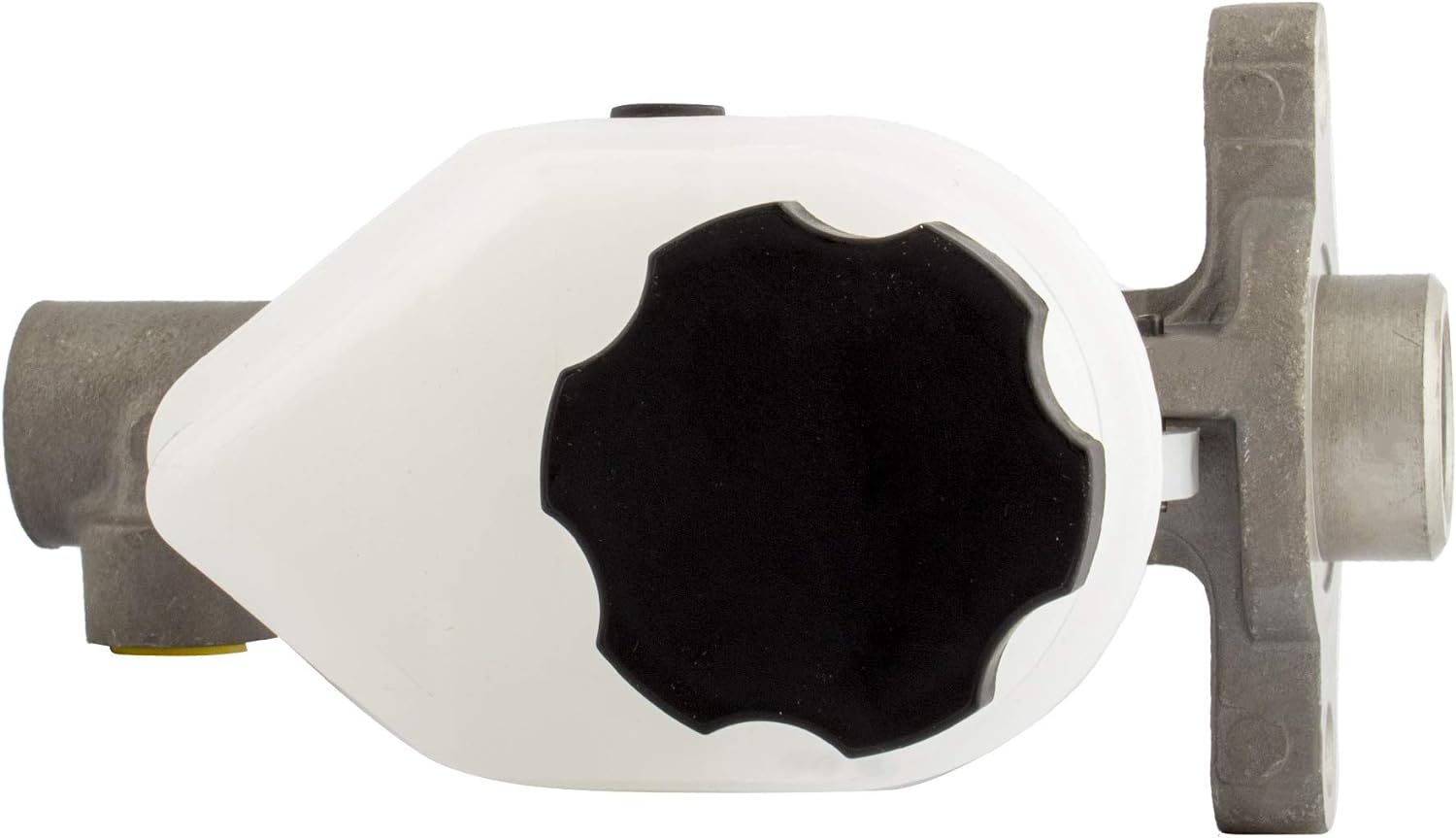

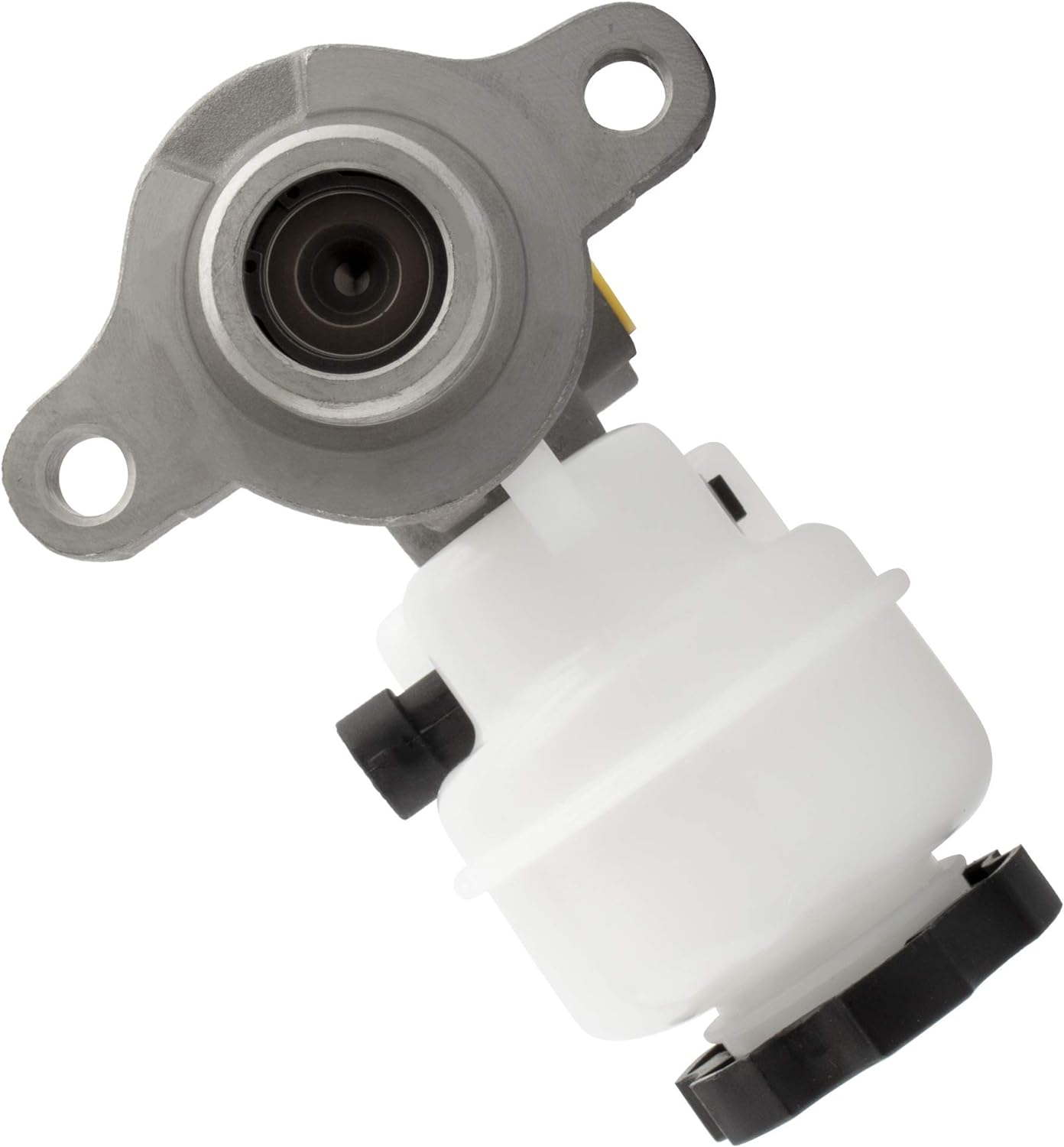

BOXI Brake Master Cylinder for 1998-2008 Pontiac Grand Prix | Replaces OE #18026277
BOXI SKU#: BX06400010-1
$43.99
2 in stock
BOXIDirect-Fit OE ReplacementBrake Master Cylinder
Check if this part fits your vehicle
Select your vehicle to check fitment (58 compatible configurations)
Ship to Home
Available (2 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference
View All (26) →
Replaces OE #: 18026277, 18039288, 18M819, M39040118060780, 174783 +21 more
Two Year Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications
View All Specifications →
- Package Included
- 1 x Brake Master Cylinder
- Notes
- Instruction is not included. Professional installation is recommended
- Replaces OE Number
- 18026277, 18039288, 18060780; 174-783, 18M819, 783-36111, 83-36111, M901054, M-82111, 13337, 13-3183, 10-3183, 130.62111, 131.62111, MC252090, M2714, NM2714A, MC390401, F134488, MC134488
- Condition
- New
- Master Cylinder Body Material
- Aluminum
Direct-fit BOXI replacement part compatible with 2005-2009 Buick Allure CX, 2005-2009 Buick Allure CXL, 2005-2008 Buick Allure CXS, 2008-2009 Buick Allure Super and additional configurations. Replaces OE / interchange part numbers: 18026277, 18039288, 18M819, M39040118060780, 174783, M901054, 783-36111, 83-36111. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.
Package Included
1 x Brake Master Cylinder
Notes
Instruction is not included. Professional installation is recommended
Replaces OE Number
18026277, 18039288, 18060780; 174-783, 18M819, 783-36111, 83-36111, M901054, M-82111, 13337, 13-3183, 10-3183, 130.62111, 131.62111, MC252090, M2714, NM2714A, MC390401, F134488, MC134488
Position & Application Summary
See Full Submodel & Engine Table →- 2005-2009 for Buick Allure
- 2005-2009 for Buick LaCrosse
- 1999-2005 for Buick Century
- 1999-2004 for Buick Regal
- 2000-2005 for Chevrolet Impala
- 2000-2005 for Chevrolet Monte Carlo
- 2000-2005 for Chevrolet Venture
- 2000-2004 for Oldsmobile Silhouette
- 2000-2002 for Oldsmobile Intrigue
- 1998-2008 for Pontiac Grand Prix
- 2000-2005 for Pontiac Montana
| Weight | 1.83 lbs |
|---|---|
| Dimensions | 8.19 × 7.24 × 4.96 in |
| Brand | BOXI |
| Condition | New |
| Master Cylinder Body Material | Aluminum |
| Bleeder Kit Included | No |
| Reservoir Material | Plastic |
| Dust Boot Included | No |
| Reservoir Type | Integral |
| Pedal Rod Included | No |
| Reservoir Included | Yes |
| Brake Booster Included | No |
| Port 1 Thread Type (Forward) | Bubble Flare |
| Port 2 Thread Type | Flare |
| Port 1 Thread Size (Forward) (in) | 1/2 Inch |
| Port 1 Thread Size (Forward) (mm) | M12-1.0 |
| Port 2 Thread Size (in) | 1/2 Inch |
| Port 2 Thread Size (mm) | M12-1.0 |
| Bore Size (in) | 1 Inch |
| Bore Size (mm) | 25.4mm |
| Number Of Ports | 2 |
| Number Of Pistons | 1 |
| Number Of Mounting Holes | 2 |
| Sensor Included | Yes |
| Gasket Or Seal Included | No |
| Warranty Terms | Two Year |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2005 – 2009 | Buick | Allure | CX CXL | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| 2005 – 2008 | Buick | Allure | CXS | V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC |
| 2008 – 2009 | Buick | Allure | Super | V8 – 5.3L 5328cc 325ci GAS MFI vin C type LS4 – 2 valve OHV |
| 2000 – 2003 | Buick | Century | Custom | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 2005 | Buick | Century | Custom Limited Special Edition | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 1999 | Buick | Century | Custom Limited | V6 – 3.1L 189ci GAS MFI vin M type L82 – 2 valve OHV |
| 2000 – 2002 | Buick | Century | Limited | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 2005 – 2009 | Buick | LaCrosse | CX CXL | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| 2005 – 2008 | Buick | LaCrosse | CXS | V6 – 3.6L 3564cc 217ci GAS MFI vin 7 type LY7 – 4 valve DOHC |
| 2008 – 2009 | Buick | LaCrosse | Super | V8 – 5.3L 5328cc 325ci GAS MFI vin C type LS4 – 2 valve OHV |
| 1999 – 2004 | Buick | Regal | GS | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV |
| LS | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | |||
| 1999 | Buick | Regal | GS | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2000 | Buick | Regal | GSE | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV |
| LSE | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV | |||
| 2000 – 2002 | Chevrolet | Impala | Base | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2000 – 2005 | Chevrolet | Impala | Base LS | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2003 | Chevrolet | Impala | LS Sport | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2003 – 2005 | Chevrolet | Impala | Police | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2004 – 2005 | Chevrolet | Impala | SS | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV |
| 2000 – 2002 | Chevrolet | Monte Carlo | LS | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2005 | Chevrolet | Monte Carlo | LT | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2004 – 2005 | Chevrolet | Monte Carlo | SS | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV |
| 2000 – 2004 | Chevrolet | Monte Carlo | SS | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2002 | Chevrolet | Monte Carlo | SS 35th Anniversary Edition SS Dale Earnhardt Signature Edition | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2003 | Chevrolet | Monte Carlo | SS High Sport SS Pace Car | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2000 – 2004 | Chevrolet | Venture | Base | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2000 – 2005 | Chevrolet | Venture | LS LT Plus | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2000 – 2003 | Chevrolet | Venture | Value Warner Bros. | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2000 – 2002 | Oldsmobile | Intrigue | GL GLS GX | V6 – 3.5L 214ci GAS MFI vin H – 4 valve DOHC |
| 2000 – 2004 | Oldsmobile | Silhouette | GL GLS Premiere | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
| 2006 – 2008 | Pontiac | Grand Prix | Base | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| 2006 – 2007 | Pontiac | Grand Prix | GT | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 4 type L32 – 2 valve OHV |
| 2005 | Pontiac | Grand Prix | GT | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| 1998 – 2003 | Pontiac | Grand Prix | GT | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| GTP | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 1 type L67 – 2 valve OHV | |||
| 2004 | Pontiac | Grand Prix | GT1 GT2 | V6 – 3.8L 3800cc 231ci GAS MFI vin 2 type L26 – 2 valve OHV |
| 2004 – 2005 | Pontiac | Grand Prix | GTP | V6 – 3.8L 3800cc 231ci GAS MFI Supercharged vin 4 type L32 – 2 valve OHV |
| 2000 – 2003 | Pontiac | Grand Prix | SE | V6 – 3.1L 189ci GAS MFI vin J type LG8 – 2 valve OHV |
| 1998 – 1999 | Pontiac | Grand Prix | SE | V6 – 3.1L 189ci GAS MFI vin M type L82 – 2 valve OHV |
| 1998 – 2002 | Pontiac | Grand Prix | SE | V6 – 3.8L 3800cc 231ci GAS MFI vin K type L36 – 2 valve OHV |
| 2000 – 2005 | Pontiac | Montana | Base | V6 – 3.4L 207ci GAS MFI vin E type LA1 – 2 valve OHV |
OEM & Aftermarket Interchange Part Numbers
| Brand | OEM Part Number | Aftermarket Interchange Number |
|---|---|---|
| Buick (OEM) | 18026277, 18039288, 83-36111, NM2714A, MCA390401, F134488, 18060780, 131.62111 | BX06400010-1, 18M819, 174783 |
| Centric / Raybestos | 18026277, 18039288, 83-36111 | 130.62111, MC252090, MC390401, MC134488 |
| StrongArm | 18026277, 18039288, 83-36111 | 1333 |
| Cardone | 18026277, 18039288, 83-36111 | 13-3183, 10-3183, 10-2714 |
| Aftermarket Interchange | 18026277, 18039288, 83-36111 | 18M819, 174783, 783-36111, M-82111, 390401, 13337 |
