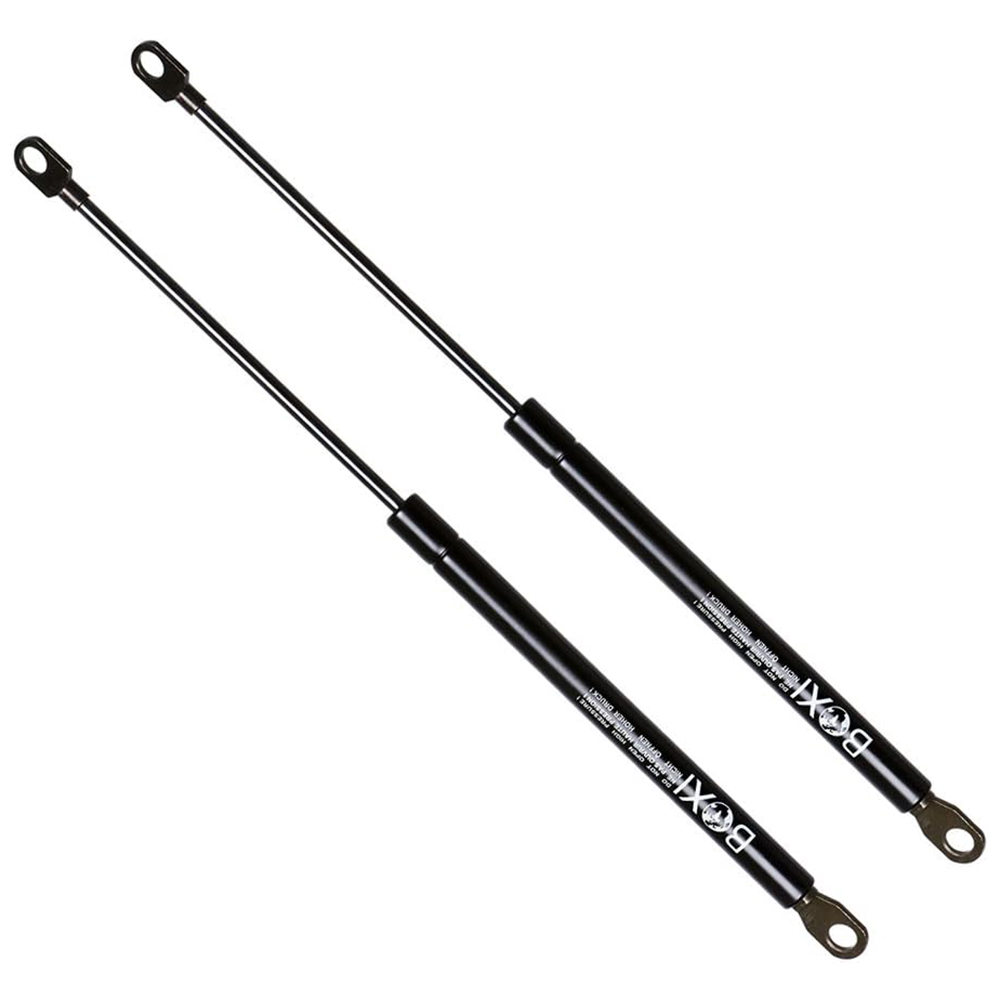

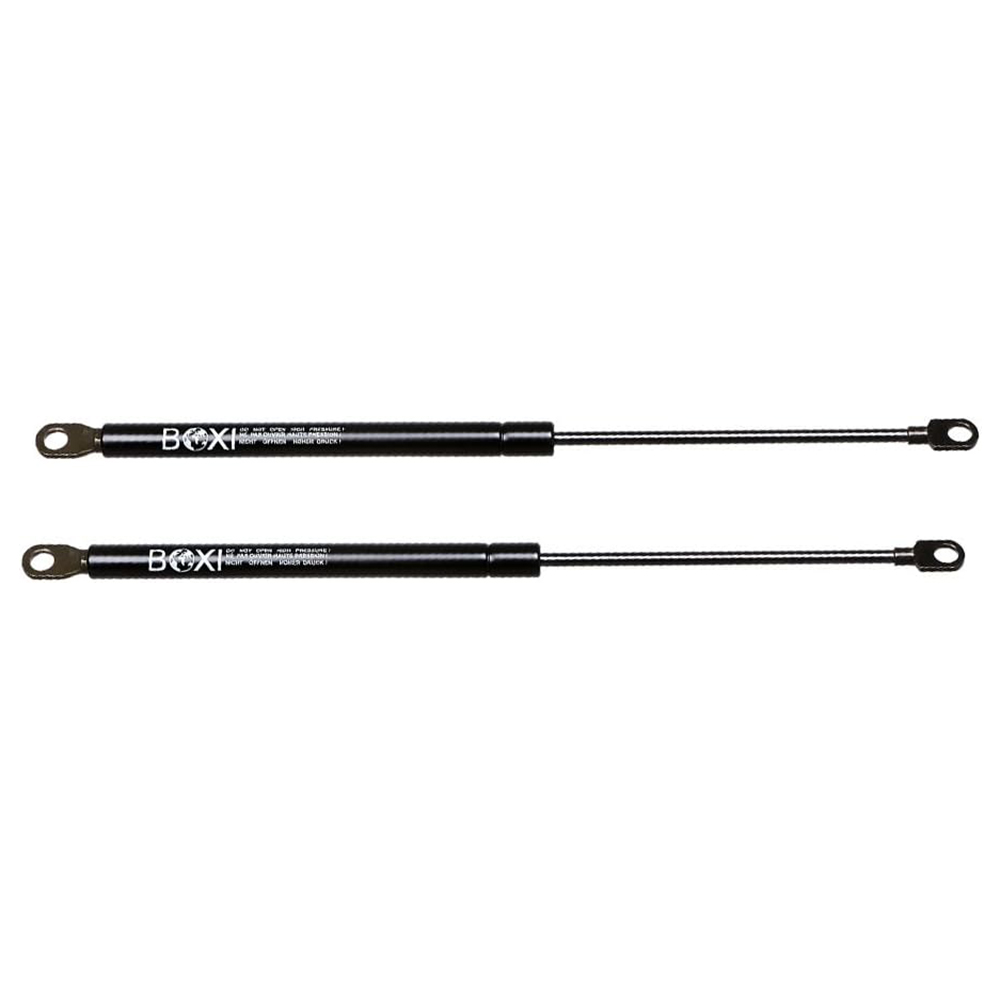

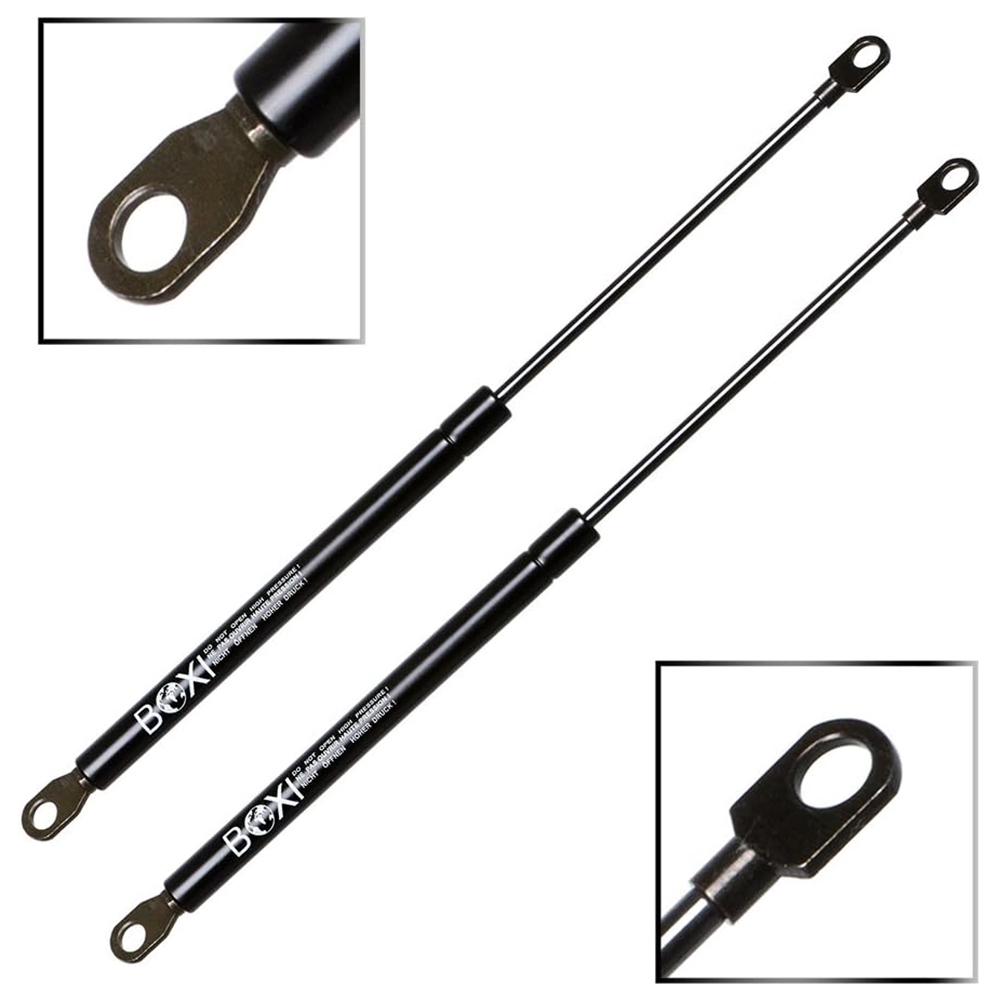

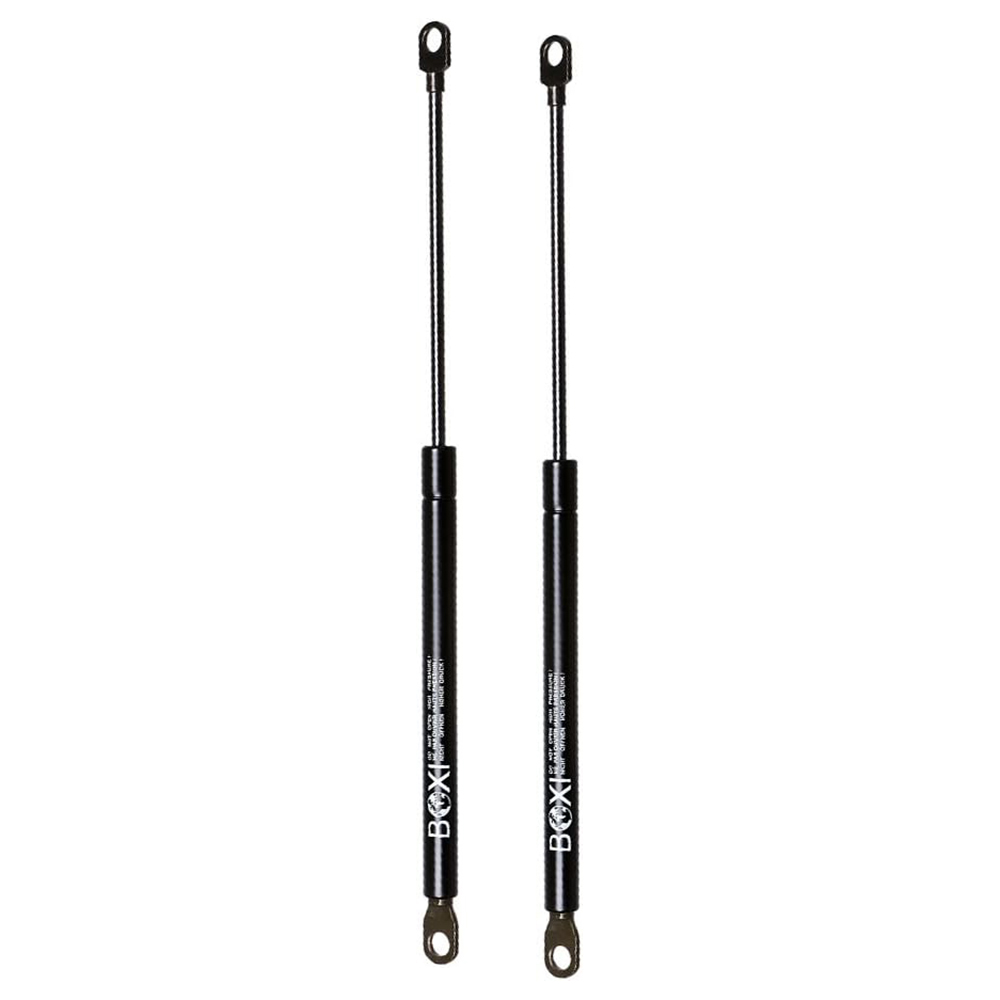

BOXI Lift Supports – Universal | Replaces OE #BXC300054683-2

BOXI SKU#: BXC300054683-2

$22.99

  • 5 Years Warranty

29 in stock

BOXIDirect-Fit OE ReplacementLift Supports – Universal
Part #: BXC300054683-2|Line: BOXI|Warranty: 5 Years|In Stock (29)
Fitment list not published for this part yet Cross-check the OE / interchange numbers below, or pick your vehicle and we will show parts that fit it.
Ship to Home Available (29 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
5 Years Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Key Specifications View All Specifications →
Package Included
2pcs Universal Lift Supports
Application
Universal
Hardware Included:
No
Extended Length (in)
11.5
Extended Length (mm):
292

Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.

Package Included 2pcs Universal Lift Supports
Application Universal
Application Note ext.ser.num 223N
Application Note Force (lbs) 50.00
Application Note Extended Length [Inches]: 11.5''
Application Note Compressed Length [Inches]: 7.25''
Application Note 2pcs Universal Lift Supports
Application Note Uses include Automotive, Truck, Industrial, Marine, ATV Vehicles, Household cabinets, RV Vehicles and many other applications.
Weight 0.88 lbs
Dimensions 13.78 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

292
Stroke (in):

4.26
Stroke (mm):

108
Compressed Length (in)

Compressed Length (mm):

184
Force (Lbs)

Force (Newtons)

223
Cylinder Diameter (in):

0.59
Cylinder Diameter (mm):

15
Rod Diameter (in):

0.24
Rod Diameter (mm):

6
Body Connection:

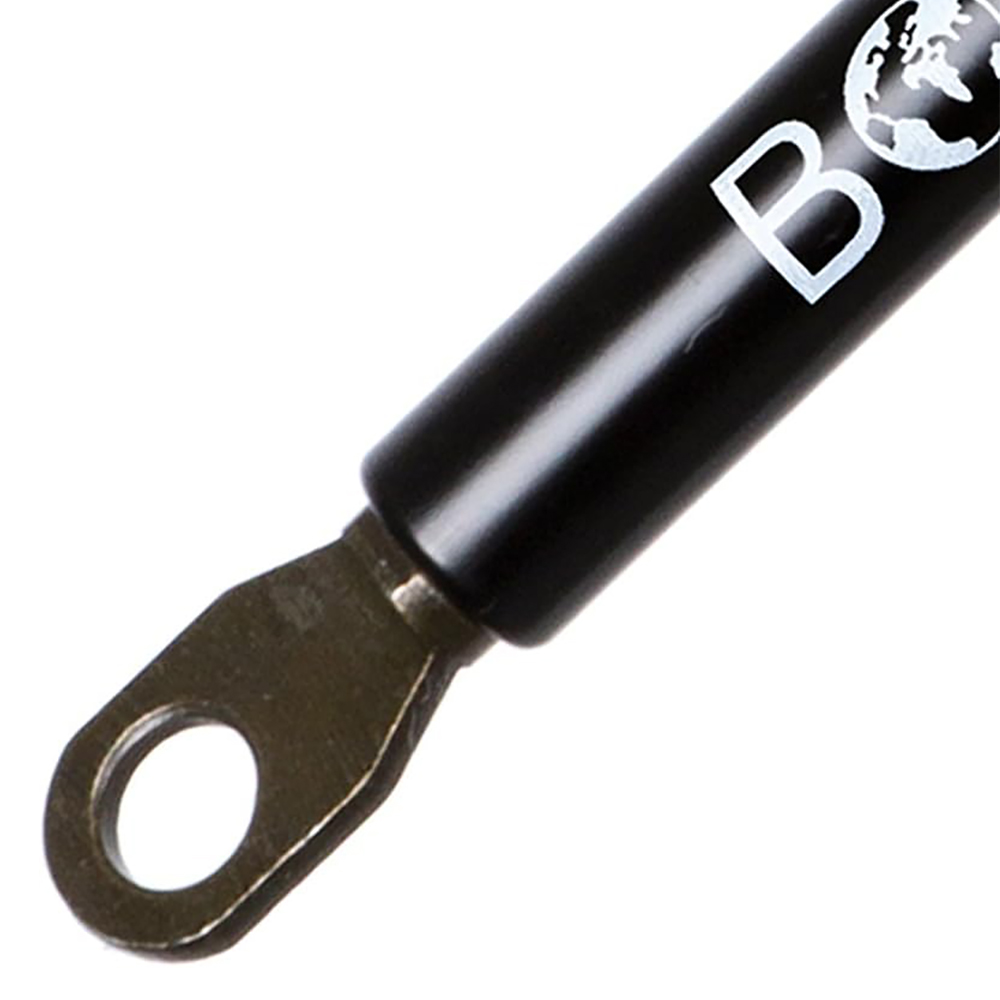

Eyelet Hole=10.2mm=13/32"=.402"
Shaft Connection:

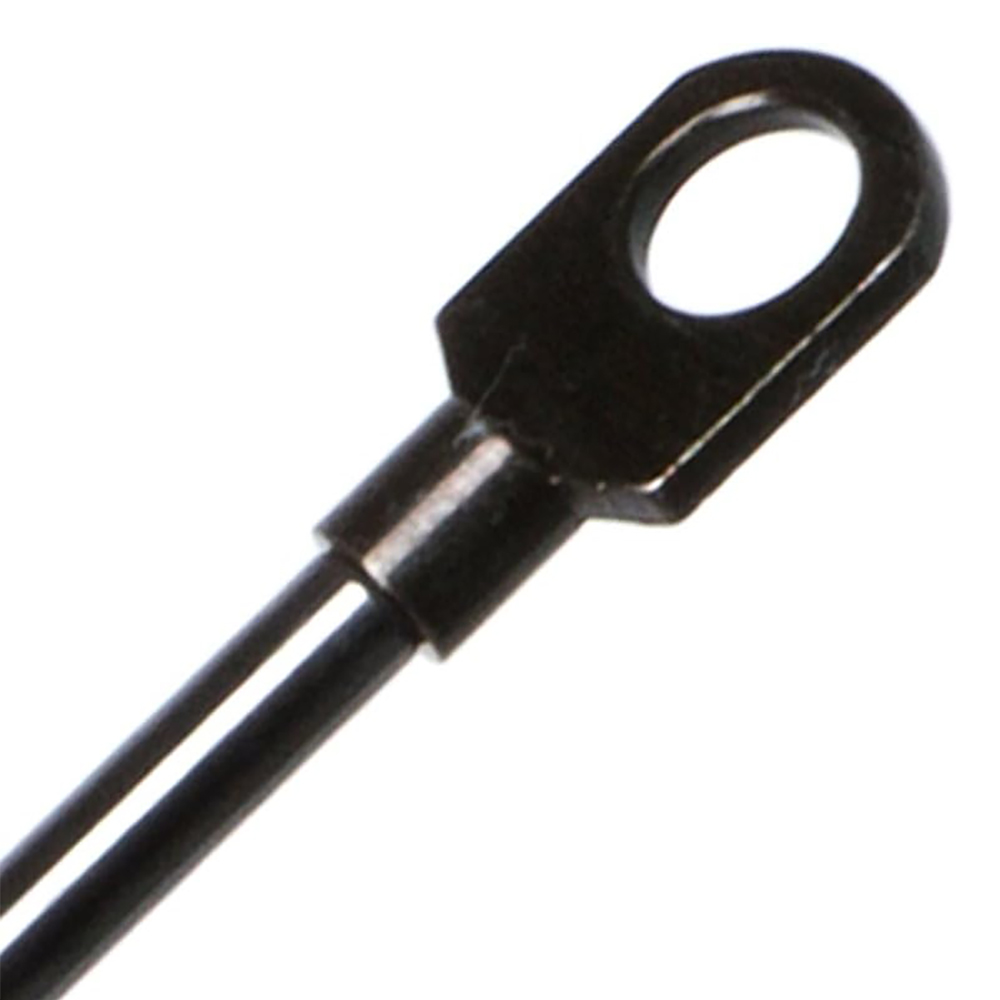

Eyelet Hole=10.2mm=13/32"=.402"
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number
