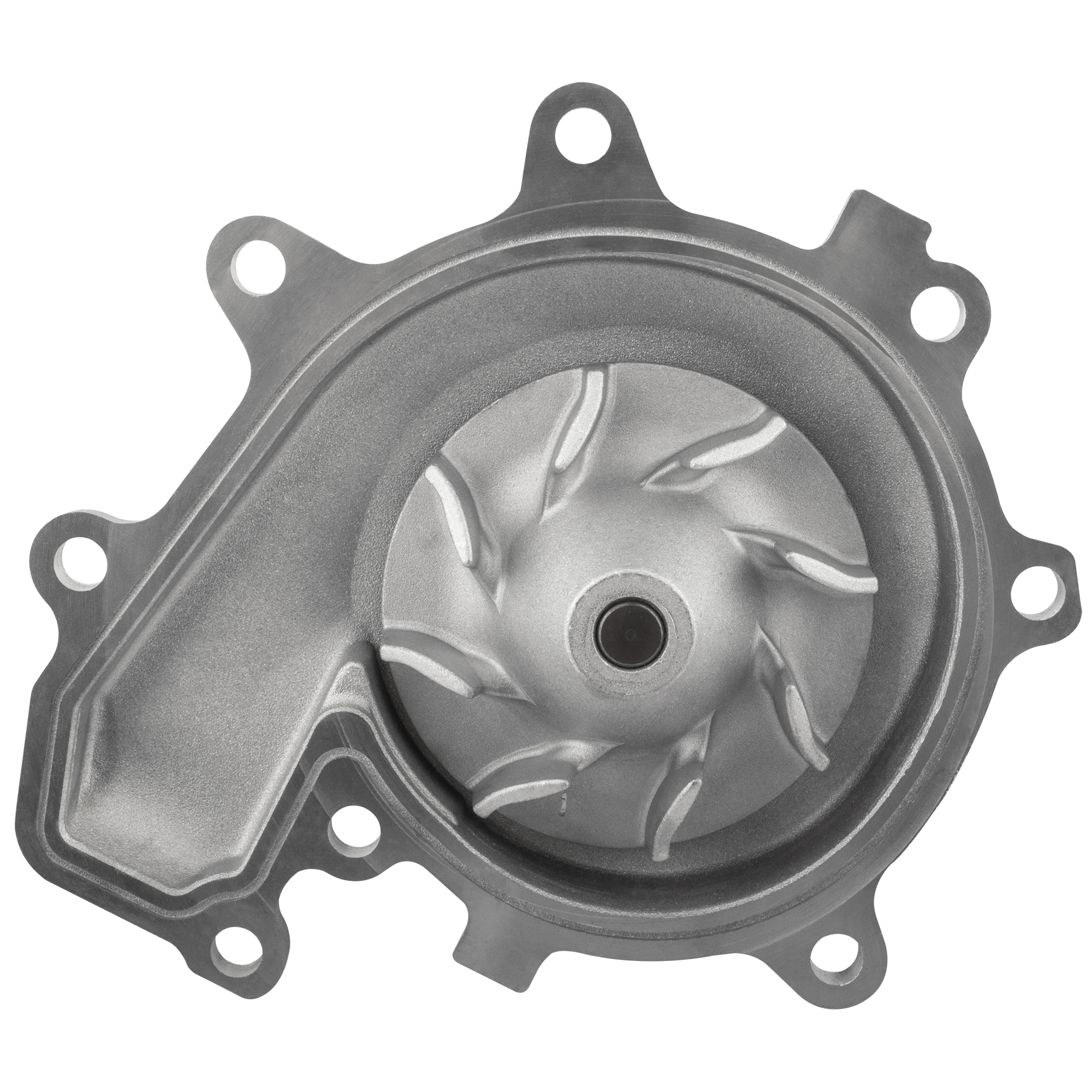

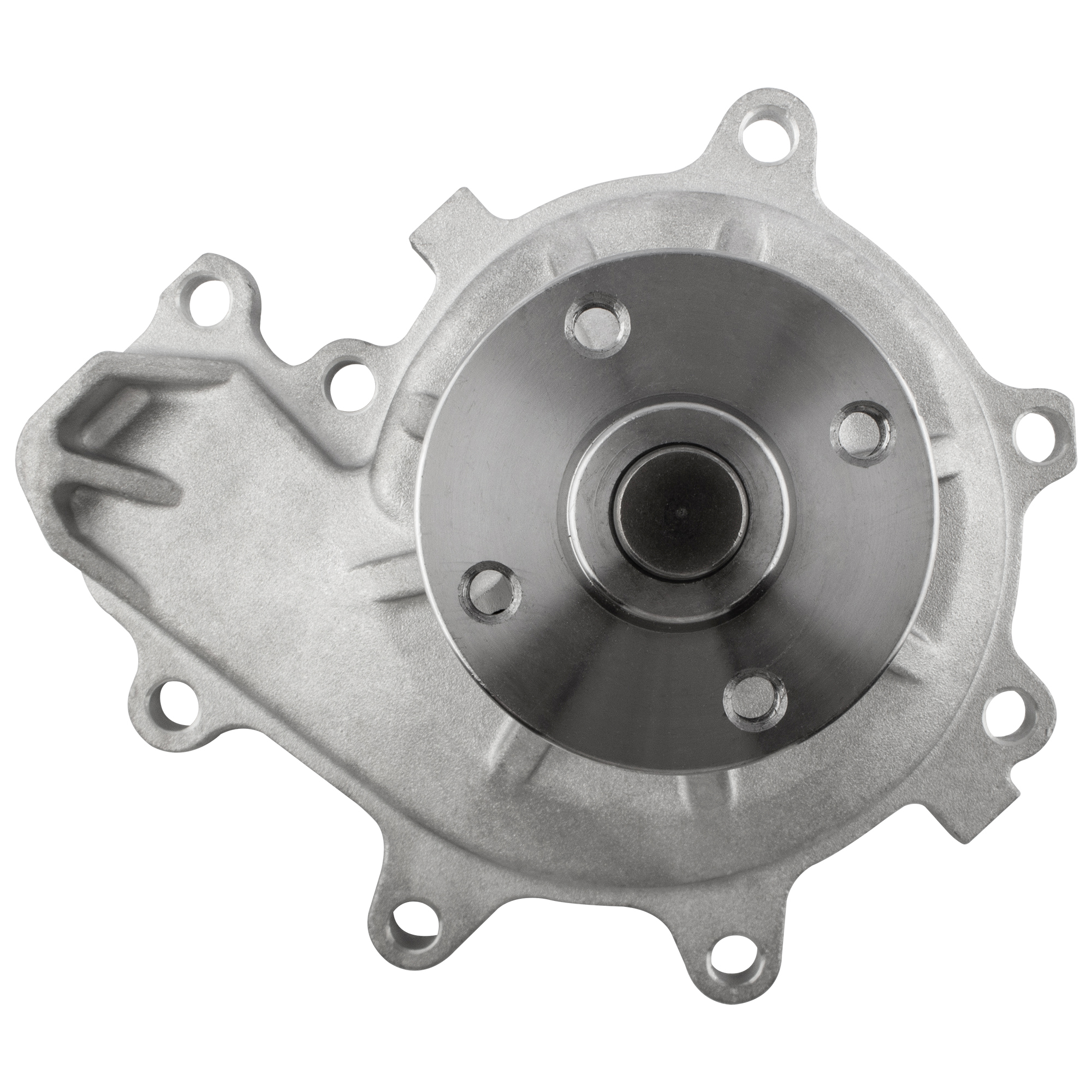

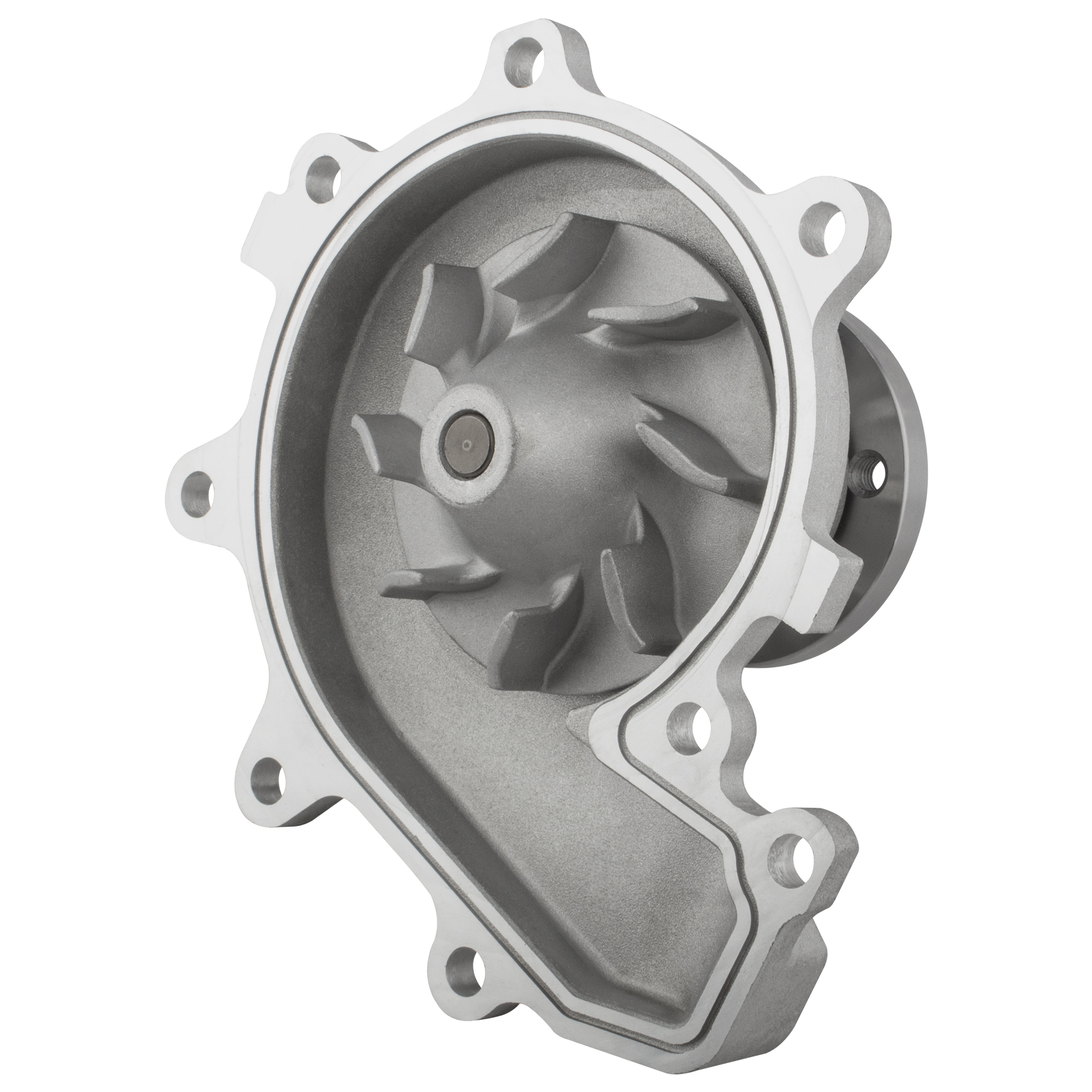

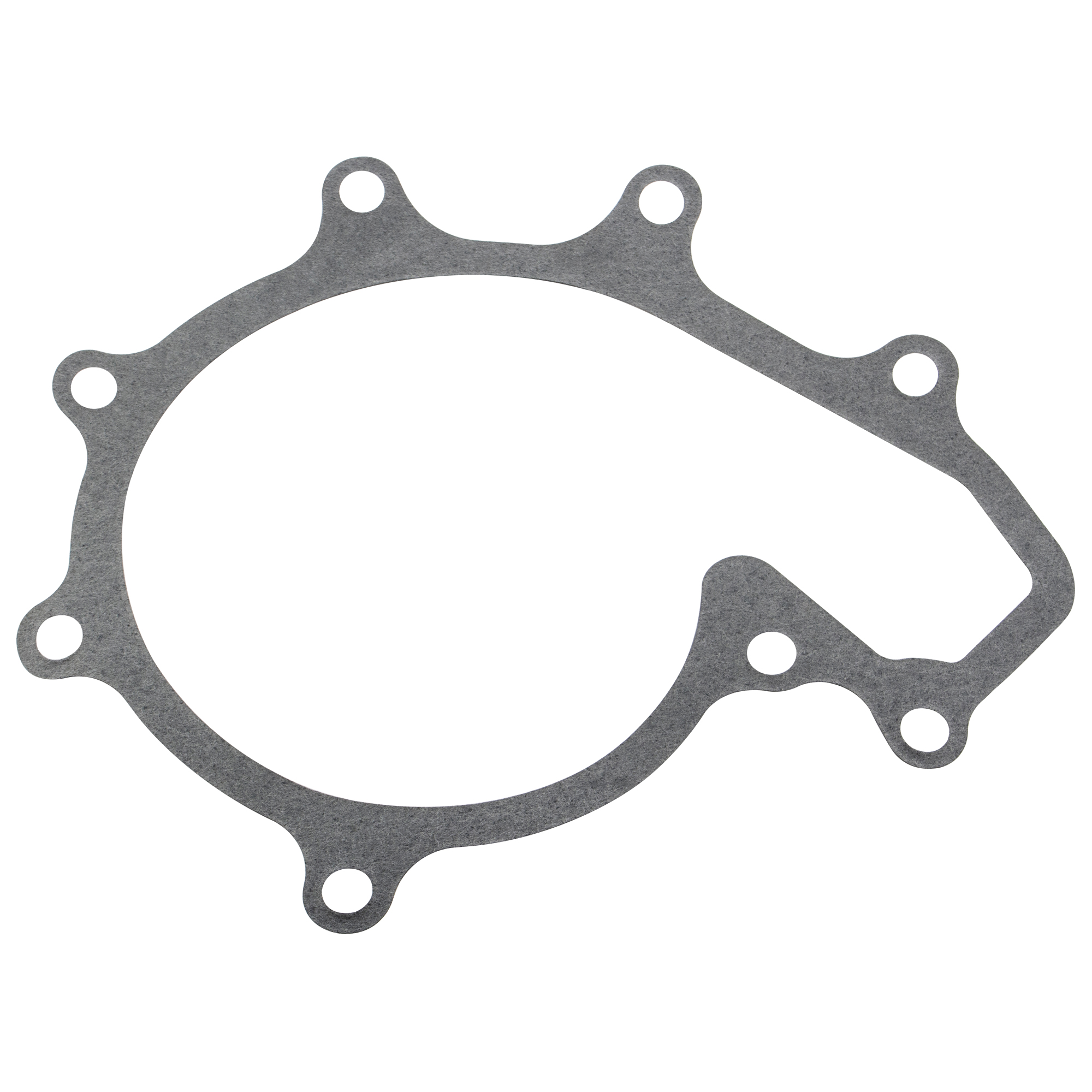

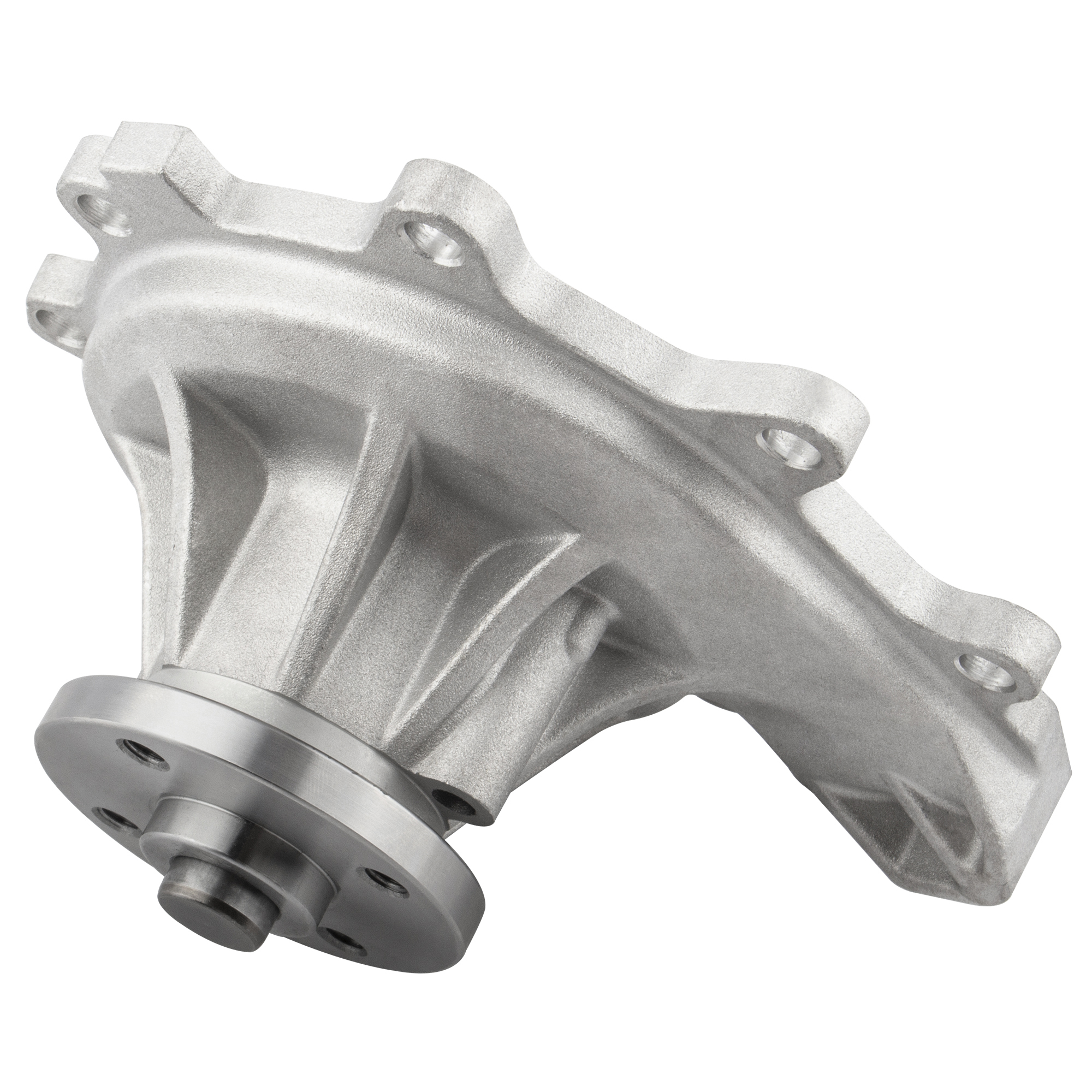

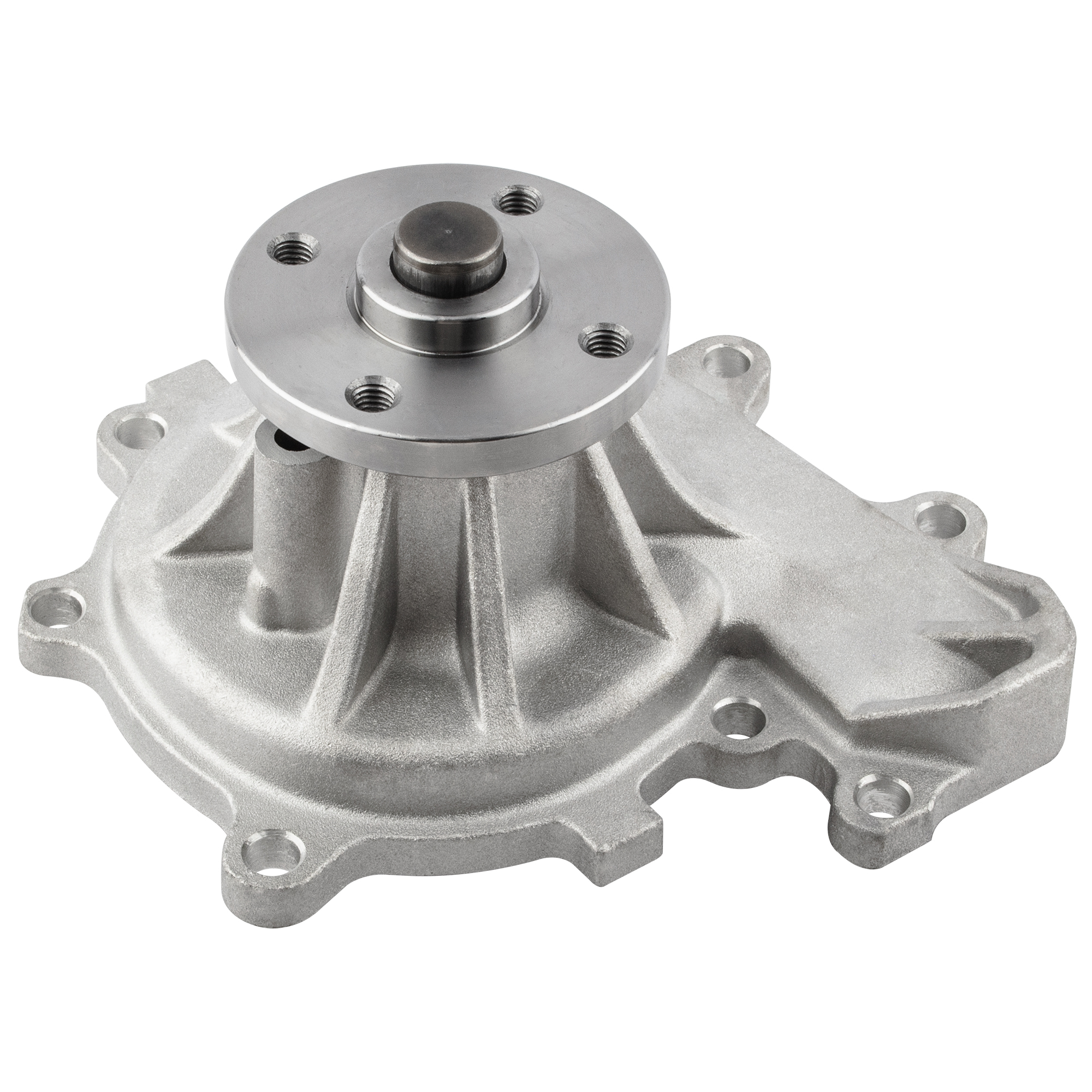

BOXI Water Pump w/Gasket Fit For Chevy W3500/W4500/W5500/W5500Hd Tiltmaster 00-04 / for GMC W3500/W4500/W5500/W5500Hd Forward 00-04 / for Isuzu NPR/NPR-HD/NQR 98-04 4.8L Turbo / 897073951Z WP103
BOXI SKU#: BX03600042-1
$23.59
BOXI Water Pump with Gasket for 1998-2004 Isuzu NPR/NPR-HD/NQR, 2000-2004 Chevy/GMC W3500-W5500 (4.8L Turbo). Replaces OE: 897073951Z, 897109676Z, GWIS-42A, WP103. Verify fitment before ordering.
OE / Interchange Part Numbers: 8970739510, 897073951Z897109676Z, WP103
41 in stock
Package Included:1xWater Pump
Notes:Instruction is not included. Professional installation is recommended
Replaces OE Number: 897073951Z 897109676Z 8970739510 GWIS-42A 8-97149-237-0 8-97314-118-0 WP103
Fits the following vehicles:
Replace For Chevrolet W3500 Tiltmaster 2001-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For Chevrolet W4500 Tiltmaster 2000-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For Chevrolet W5500 Tiltmaster 2001-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For Chevrolet W5500Hd Tiltmaster 2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For GMC W3500 Forward 2001-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For GMC W4500 Forward 2000-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For GMC W5500 Forward 2001-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For GMC W5500Hd Forward 2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For Isuzu NPR 1998-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For Isuzu NPR-HD 1999-2004 I4 4.8L 4HE1-TC Turbo Diesel
Replace For Isuzu NQR 1998-2004 I4 4.8L 4HE1-TC Turbo Diesel
| Weight | 3.66 lbs |
|---|---|
| Dimensions | 8.15 × 6.54 × 6.1 in |
| Brand | BOXI |
| Condition | New |
| Housing Material | Aluminum |
| Gasket Or Seal Included | Yes |
| Impeller Material | Steel |
| Instructions Included | No |
| Rotation Direction | Clockwise |
| Back Housing Included | No |
| Number Of Mounting Holes | 8 |
| Number Of Impeller Vanes | 8 |
| Drive Style | Belt |
| Pulley Included | No |
| Warranty Terms | Two Year |
| Interchange Part Number | 19200-PR4-003, 19200-PR4-013, AW9224, WP-867, 135-1270, 18-670, 70-72-270, T1123, 131-2082 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1999 – 2004 | Chevrolet | W3500 Tiltmaster | W3S042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 2000 – 2003 | Chevrolet | W5500 Tiltmaster | W5R042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 2003 – 2004 | Chevrolet | W5500 Tiltmaster | W5S042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 2004 | Chevrolet | W5500HD Tiltmaster | W5S042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 1999 – 2004 | GMC | W3500 Forward | W3S042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 1999 – 2004 | GMC | W4500 Forward | W4S042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 2000 – 2003 | GMC | W5500 Forward | W5R042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 2003 – 2004 | GMC | W5500 Forward | W5S042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 2004 | GMC | W5500HD Forward | W5S042 | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 1998 – 2004 | Isuzu | NPR | Base | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 1999 – 2004 | Isuzu | NPR-HD | Base | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
| 1999 – 2004 | Isuzu | NQR | Base | 4.8L 290Cu. In. l4 DIESEL Turbocharged |
