BOXI Water Pump for 2007-2021 Toyota Tundra | Replaces OE #1610009490

$34.53

  • Two Year Warranty

1 in stock

BOXIDirect-Fit OE ReplacementWater Pump
Part #: BX03600035-1|Line: BOXI|Warranty: Two Year|In Stock (1)
Check if this part fits your vehicle Select your vehicle to check fitment (49 compatible configurations)
Ship to Home Available (1 in stock)
Free Next-Day Dispatch · Direct from Montclair, CA U.S. Warehouse
Direct OE Cross-Reference View All (25) →
Replaces OE #: 1610009490, 1610009491, 1610039495, 1610039496, 1704000 +20 more
Two Year Limited Warranty
100% Factory Tested · Direct Fit Replacement · 30-Day Easy Returns
Package Included
1xWater Pump
Notes
Instruction is not included. Professional installation is recommended
Replaces OE Number
AW6197,1704000,42290,WP-2137,20954,131-2403,1610039495,1610009491,1610009490,131-2403,1610039496
Condition
New
Housing Material
Aluminum

Direct-fit BOXI replacement part compatible with 2008-2011 Lexus LX570 Base, 2013-2021 Lexus LX570 Base, 2008-2011 Toyota Land Cruiser Base, 2013-2021 Toyota Land Cruiser Base and additional configurations. Replaces OE / interchange part numbers: 1610009490, 1610009491, 1610039495, 1610039496, 1704000, 20954, 42290, AW6197. Ships from Montclair, CA across the United States with a 30-day return policy. Verify exact year, submodel, and engine in the Vehicle Fitment Guide before ordering.

Package Included 1xWater Pump
Notes Instruction is not included. Professional installation is recommended
Replaces OE Number AW6197,1704000,42290,WP-2137,20954,131-2403,1610039495,1610009491,1610009490,131-2403,1610039496

Position & Application Summary

See Full Submodel & Engine Table →
  • For Lexus LX570 2008-2011 V8 5.7L 3URFE DOHC Engine
  • For Lexus LX570 2013-2019 V8 5.7L 3URFE DOHC Engine
  • For Toyota Land Cruiser 2008-2011 V8 5.7L 3URFE DOHC Engine
  • For Toyota Land Cruiser 2013-2019 V8 5.7L 3URFE DOHC Engine
  • For Toyota Sequoia 2008-2019 V8 5.7L 3URFE/3URFBE DOHC Engine
  • For Toyota Tundra 2007-2019 V8 5.7L 3URFE/3URFBE DOHC Engine
Weight 3.06 lbs
Dimensions 9.09 × 8.58 × 5.75 in
Brand

BOXI

Condition

New

Housing Material

Aluminum

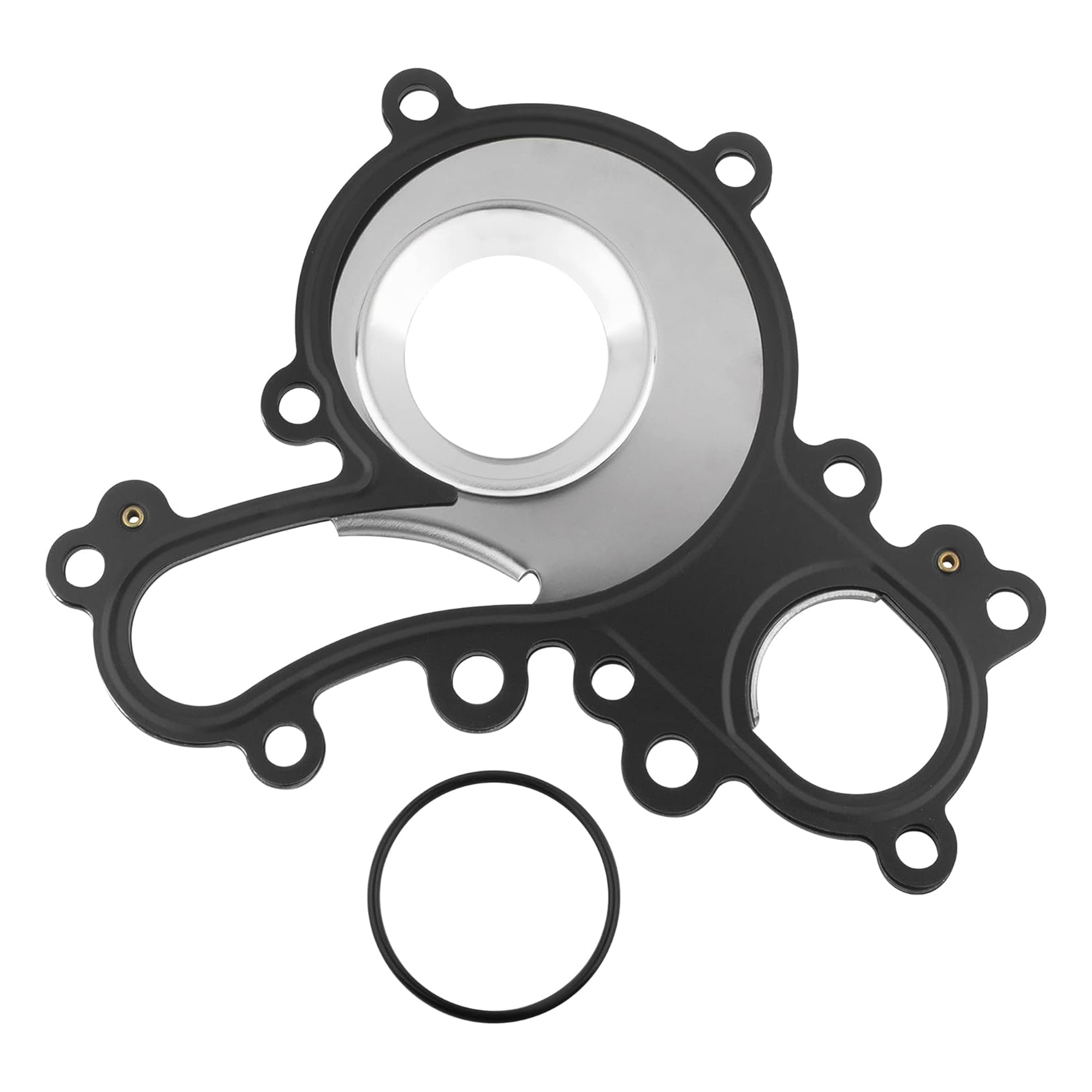

Gasket Or Seal Included

Yes

Impeller Material

Steel

Instructions Included

No

Rotation Direction

Clockwise

Back Housing Included

No

Number Of Mounting Holes

11

Number Of Impeller Vanes

7

Hub Height (in)

2.480 Inch

Hub Height (mm)

62.99mm

Drive Style

Belt

Pulley Included

No

Warranty Terms

Two Year

Compatible Vehicle Applications

Verify Year, Make, Model, Submodel, and Engine compatibility before ordering.

YearMakeModelSubmodelEngine
2008 – 2011LexusLX570BaseV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2013 – 2021LexusLX570BaseV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2008 – 2011ToyotaLand CruiserBase
VX
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2013 – 2021ToyotaLand CruiserBaseV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2020 – 2021ToyotaLand CruiserHeritage EditionV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2013 – 2016ToyotaLand CruiserVXV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2017 – 2021ToyotaLand CruiserVX-RV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2010 – 2016ToyotaSequoiaBaseV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2009 – 2018ToyotaSequoiaLimited
Platinum
SR5
V8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2021ToyotaSequoiaLimited
Platinum
V8 – 5.7L 5663cc 345ci GAS DI type 3UR-FE – 4 valve DOHC
NightshadeV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2008 – 2021ToyotaSequoiaLimited
Platinum
SR5
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2020 – 2021ToyotaSequoiaTRD ProV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2018ToyotaSequoiaTRD SportV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2018 – 2021ToyotaSequoiaTRD SportV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2021ToyotaTundra1794
Limited
V8 – 5.7L 5663cc 345ci GAS DI type 3UR-FE – 4 valve DOHC
Nightshade
TRAIL
TRD Off-Road Premium
TRD Sport Premium
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2018 – 2020ToyotaTundra1794V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2014 – 2018ToyotaTundra1794 Edition
SR
V8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2014 – 2021ToyotaTundra1794 Edition
SR
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2009 – 2013ToyotaTundraBaseV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2007 – 2013ToyotaTundraBaseV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2020 – 2021ToyotaTundraBase
TRD Off-Road
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2009 – 2018ToyotaTundraLimitedV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2007 – 2021ToyotaTundraLimited
SR5
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2010ToyotaTundraPlatinumV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
PlatinumV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2013 – 2018ToyotaTundraPlatinumV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2013 – 2021ToyotaTundraPlatinumV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2009 – 2011ToyotaTundraSR5V8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2013 – 2019ToyotaTundraSR5V8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
2015 – 2017ToyotaTundraTRD ProV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
TRD ProV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2019 – 2021ToyotaTundraTRD ProV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2020ToyotaTundraTRD SportV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC

OEM & Aftermarket Interchange Cross-Reference

Click any highlighted OE number to view all compatible replacement parts for that factory number.

OEM & Aftermarket Interchange Part Numbers

BrandOEM Part NumberAftermarket Interchange Number
Lexus (OEM)1610009490, 1610009491, 1610039495, 1610039496, 1704000, 1610009495, NP016197, BWP2137BX03600035-1, 20954, 42290
Timken / National1610009490, 1610009491, 1610039495512479
Dorman1610009490, 1610009491, 1610039495131-2403
Aftermarket Interchange1610009490, 1610009491, 161003949520954, 42290, AW6197, T4000, 1600-285022, P2137, 571729, 18-1952, 224078, CP6197, T2300, US6197, WPT-804, 97301, 320954
