BOXI Timing Chain Kit fit for ford Edge for Lincoln MKX MKZ for Mazda CX-9 3.7L 3.5L 2007 2008 2009 | Replaces OE# TK4198 AT4Z-6306-A 7T4Z-6268-CA

BOXI SKU#: BX03400056-10

$76.89

BOXI Timing Chain Kit for Ford Edge (2007-2008), Lincoln MKX (2007-2008), Lincoln MKZ (2007-2008), and Mazda CX-9 (2007-2009) with 3.5L/3.7L V6 engines. Replaces OE numbers TK4198, AT4Z-6306-A, 7T4Z-6268-CA and more. Verify fitment before ordering.

OE / Interchange Part Numbers: TK10830, TKFDT335, TS25202

  • Two Year Warranty

75 in stock

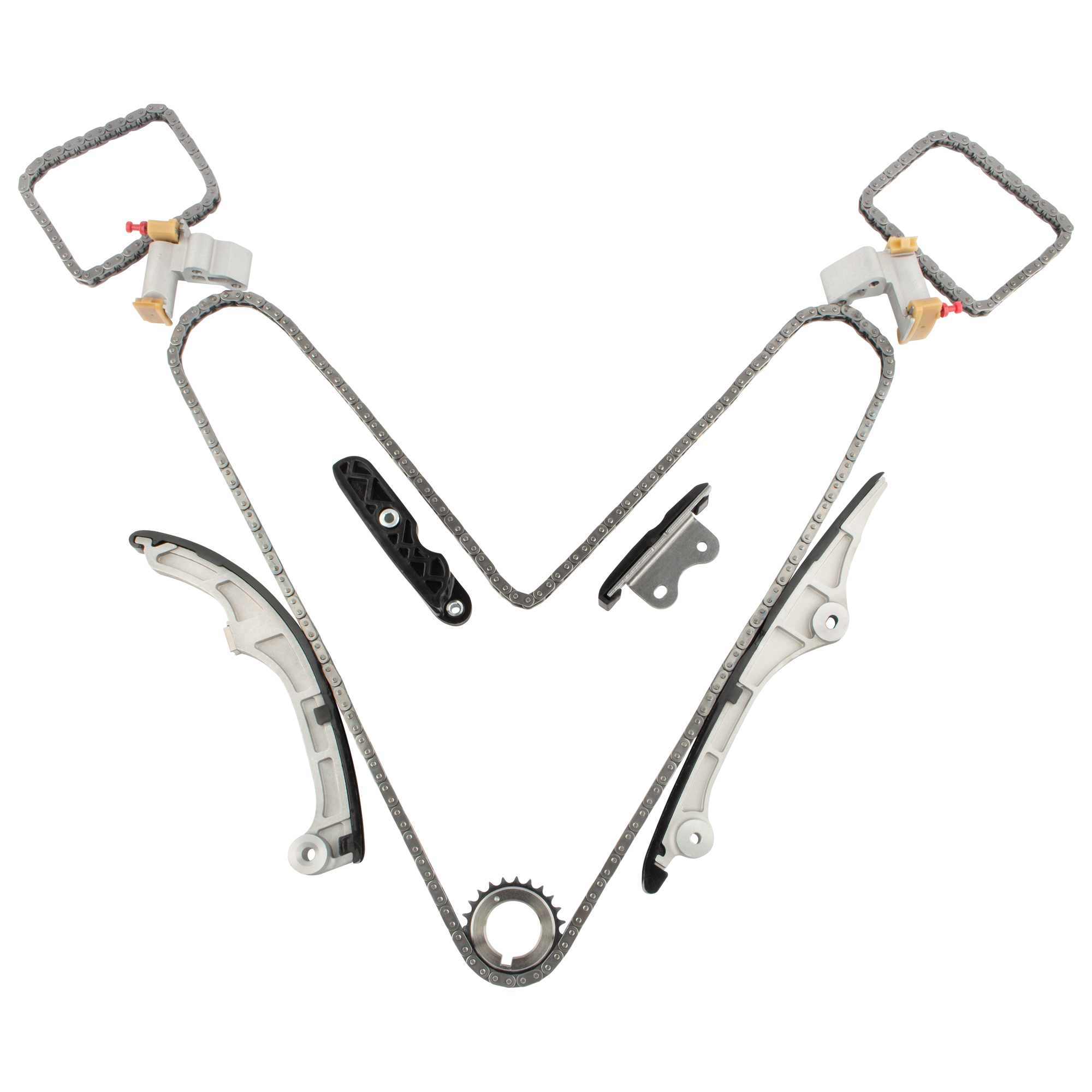

Package Includes:
1x Timing Chain (primary lower 202 links)
2x Timing Chains (Upper – cam to cam 2 req)
1x Timing Chain tensioner (RH upper chain tensioner)
1x Timing Chain tensioner (LH upper chain tensioner)

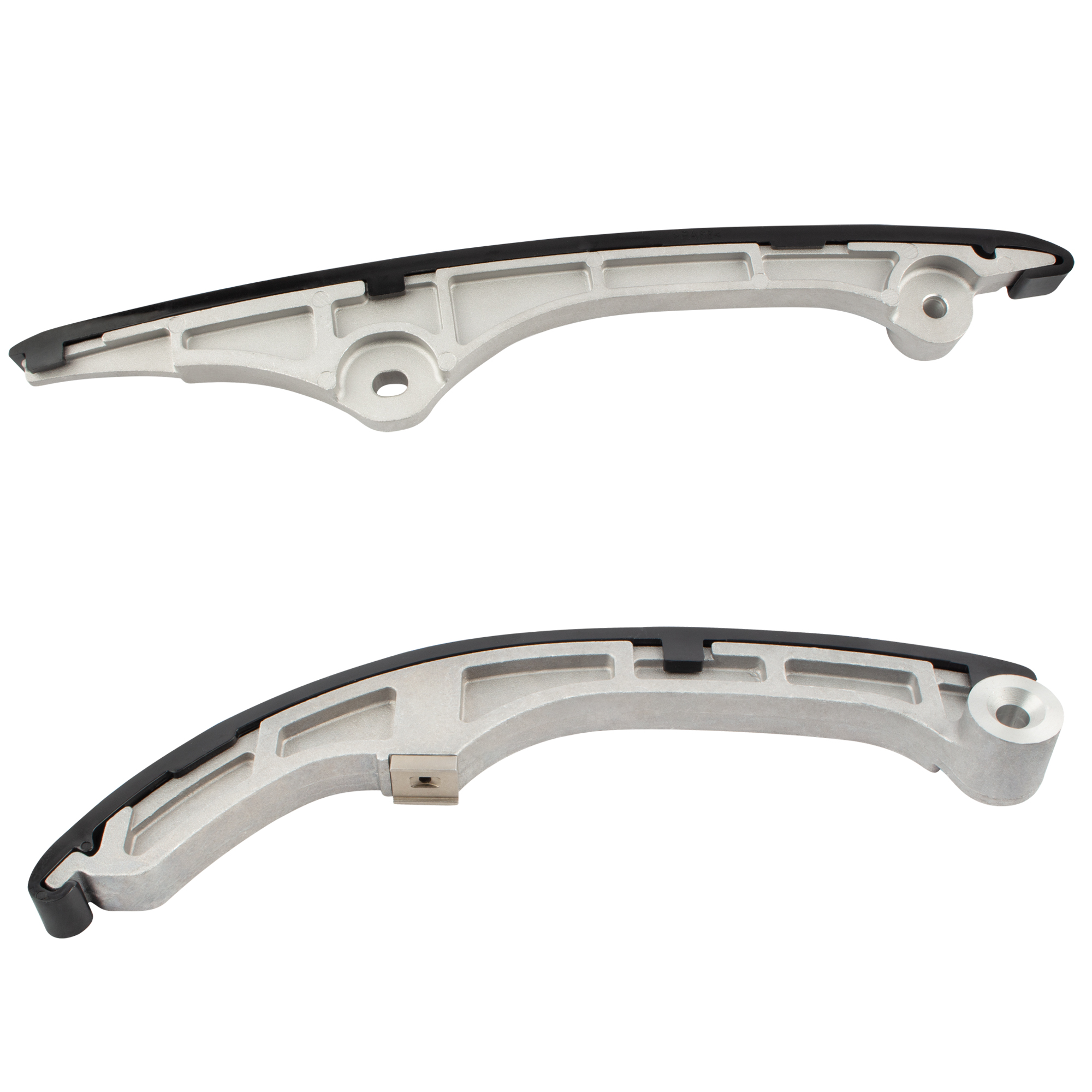

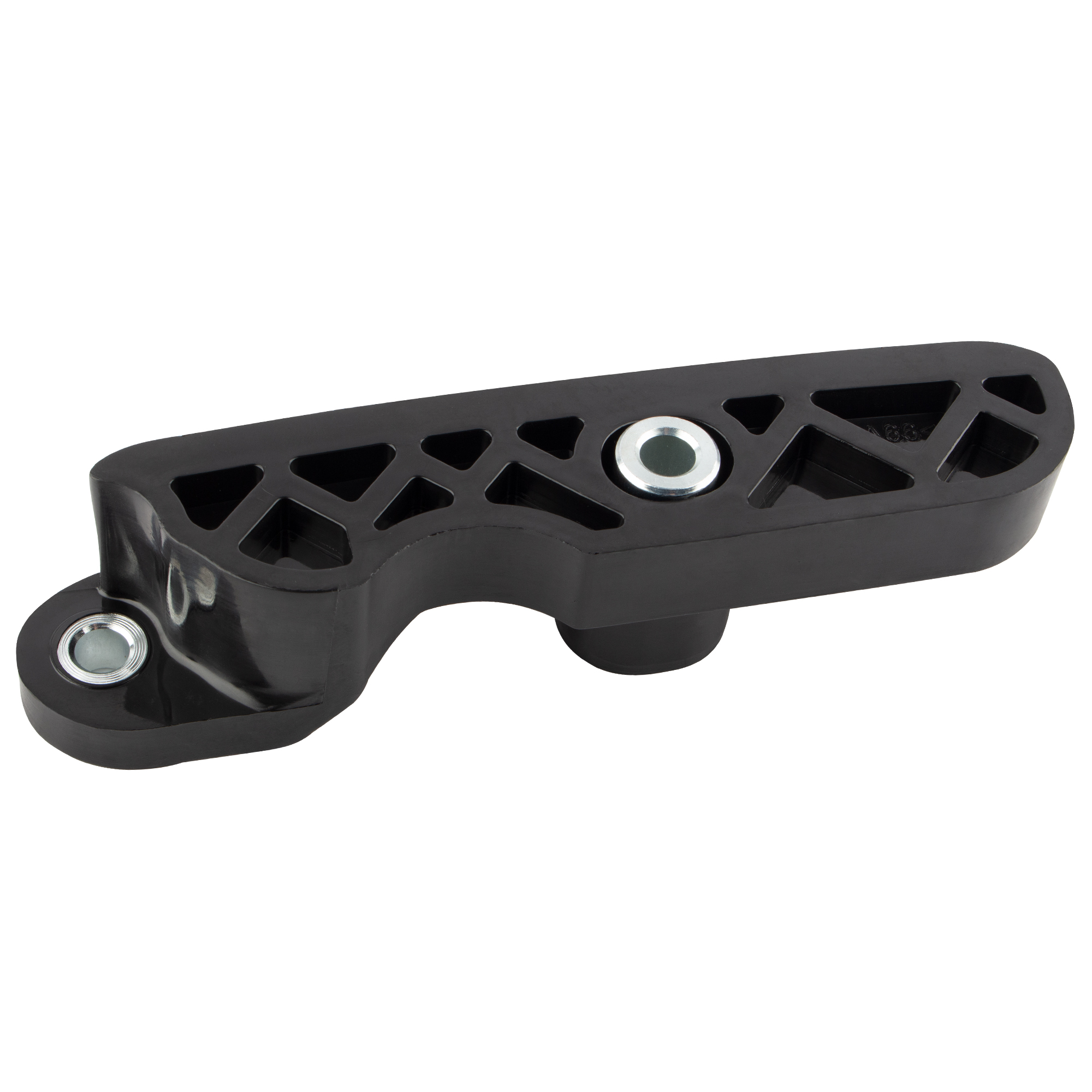

1x Guide Rail (Right – fixed short rail)
1x Guide Rail (Left – fixed short rail)
1x Guide Rail (Right – tensioner rail)
1x Guide Rail (Left – fixed long rail)
1x Sprocket

Notes:Instruction is not included. Professional installation is recommended
Replaces OE Number:TK4198 AT4Z-6306-A 7T4Z-6256-A 7T4Z-6268-CA AT4Z-6268-C 7T4Z-6K254-BA 7T4Z-6K254-AA BA5Z-6L266-B BA5Z-6K255-A BA5Z-6B274-A AT4Z-6K297-A AT4Z-6K297-B TK10830 TS25202 TKFDT335

Fits the following vehicles:
2007-2008 for ford Edge 3.5L 3496CC 213Cu. In. V6 GAS DOHC Naturally Aspirated

2007-2008 for Lincoln MKX 3.5L 3496CC 213Cu. In. V6 GAS DOHC Naturally Aspirated
2007-2007 for Lincoln MKZ 3.5L 3490CC 213Cu. In. V6 GAS DOHC Naturally Aspirated
2007-2008 for Lincoln MKZ 3.5L 3496CC 213Cu. In. V6 GAS DOHC Naturally Aspirated

2007-2007 for Mazda CX-9 3.5L 3496CC 213Cu. In. V6 GAS DOHC Naturally Aspirated
2008-2009 for Mazda CX-9 3.7L 3726CC 227Cu. In. V6 GAS DOHC Naturally Aspirated

Package Includes:
1x Timing Chain (primary lower 202 links)
2x Timing Chains (Upper – cam to cam 2 req)
1x Timing Chain tensioner (RH upper chain tensioner)
1x Timing Chain tensioner (LH upper chain tensioner)
1x Guide Rail (Right – fixed short rail)
1x Guide Rail (Left – fixed short rail)
1x Guide Rail (Right – tensioner rail)
1x Guide Rail (Left – fixed long rail)
1x Sprocket

Weight 4.5 lbs
Dimensions 13.07 × 9.61 × 2.17 in
Warranty Terms

Two Year
YearMakeModelSubmodelEngine
2008 – 2010FordEdgeLimitedV6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2007 – 2010FordEdgeSE
SEL		V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2007FordEdgeSEL PlusV6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2009 – 2010FordEdgeSportV6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2016 – 2019FordExplorerPlatinumV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2013 – 2019FordExplorerSportV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2009 – 2019FordFlexLimitedV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2009 – 2012FordFlexSEV6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
SELV6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2011 – 2012FordFlexTitaniumV6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2010 – 2012FordFusionSportV6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2013 – 2019FordPolice Interceptor SedanBaseV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2014 – 2019FordPolice Interceptor UtilityBaseV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2008 – 2012FordTaurusLimited
SEL		V6 – 3.5L 3496cc 213ci GAS MFI vin W – 4 valve DOHC
2009 – 2012FordTaurusSEV6 – 3.5L 3496cc 213ci GAS MFI vin W – 4 valve DOHC
2010 – 2019FordTaurusSHOV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2008 – 2009FordTaurus XEddie Bauer
Limited
SEL		V6 – 3.5L 3496cc 213ci GAS MFI vin W – 4 valve DOHC
2009 – 2013LincolnMKSBaseV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
V6 – 3.7L 3726cc 227ci GAS MFI vin R – 4 valve DOHC
2010 – 2016LincolnMKSEcoBoostV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
2010 – 2019LincolnMKTBaseV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
V6 – 3.7L 3726cc 227ci GAS MFI vin R – 4 valve DOHC
2010 – 2016LincolnMKTEcoBoostV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
2018LincolnMKTEliteV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2014 – 2018LincolnMKTLimousineV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2015 – 2018LincolnMKTLiveryV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
2018 – 2019LincolnMKTReserveV6 – 3.5L 3496cc 213ci GAS DI Turbocharged vin T – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI Turbocharged vin T – 4 valve DOHC
2007 – 2010LincolnMKXBase
Premium		V6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
2007 – 2012LincolnMKZBaseV6 – 3.5L 3496cc 213ci GAS MFI vin C – 4 valve DOHC
V6 – 3.5L 3496cc 213ci GAS MFI vin T – 4 valve DOHC
2011 – 2013Mazda6GTV6 – 3.7L 3726cc 227ci GAS MFI vin B – 4 valve DOHC
2009 – 2013Mazda6SV6 – 3.7L 3726cc 227ci GAS MFI vin B – 4 valve DOHC
2007 – 2015MazdaCX-9GRAND TOURING
Sport
Touring		V6 – 3.5L 3496cc 213ci GAS MFI – 4 valve DOHC
V6 – 3.7L 3726cc 227ci GAS MFI vin A – 4 valve DOHC
V6 – 3.7L 3726cc 227ci GAS MFI vin V – 4 valve DOHC
V6 – 3.7L 3726cc 227ci GAS MPI type MZR – 4 valve DOHC
2008 – 2015MazdaCX-9GS
GT		V6 – 3.7L 3726cc 227ci GAS MFI vin A – 4 valve DOHC
V6 – 3.7L 3726cc 227ci GAS MFI vin V – 4 valve DOHC
