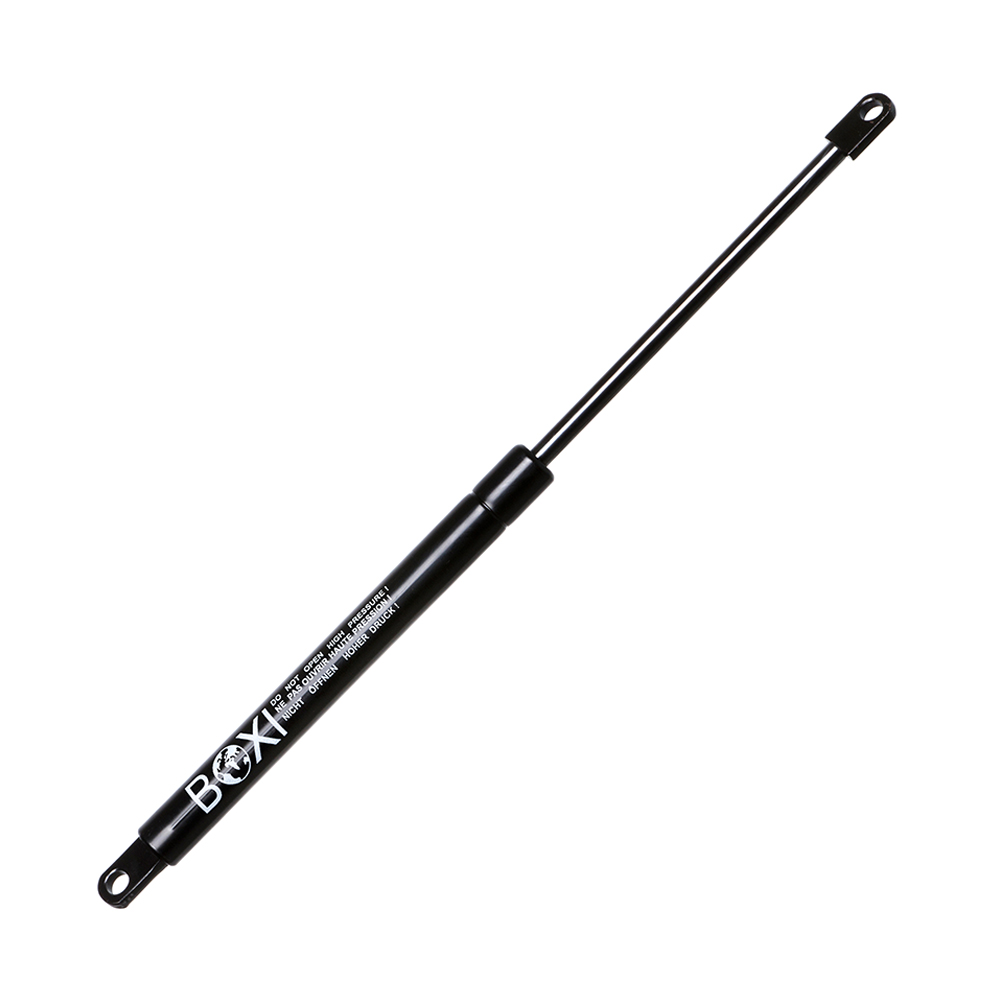

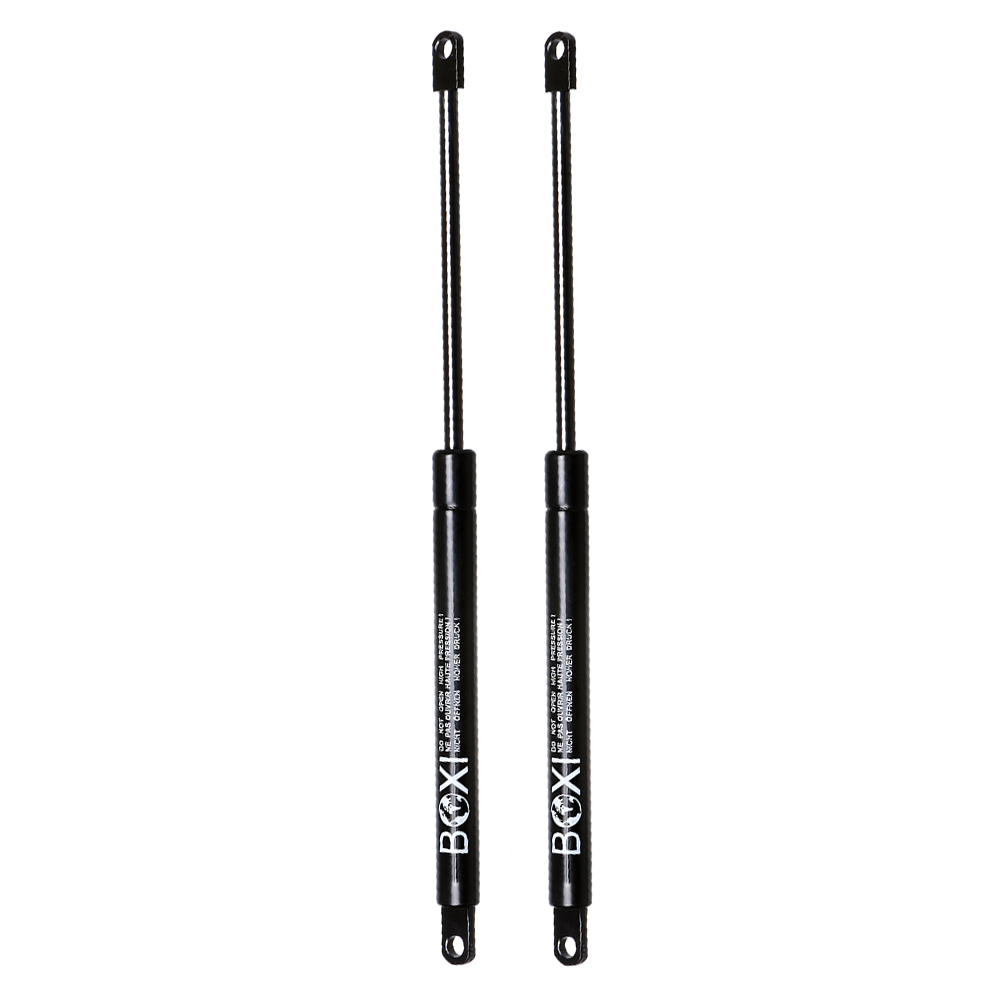

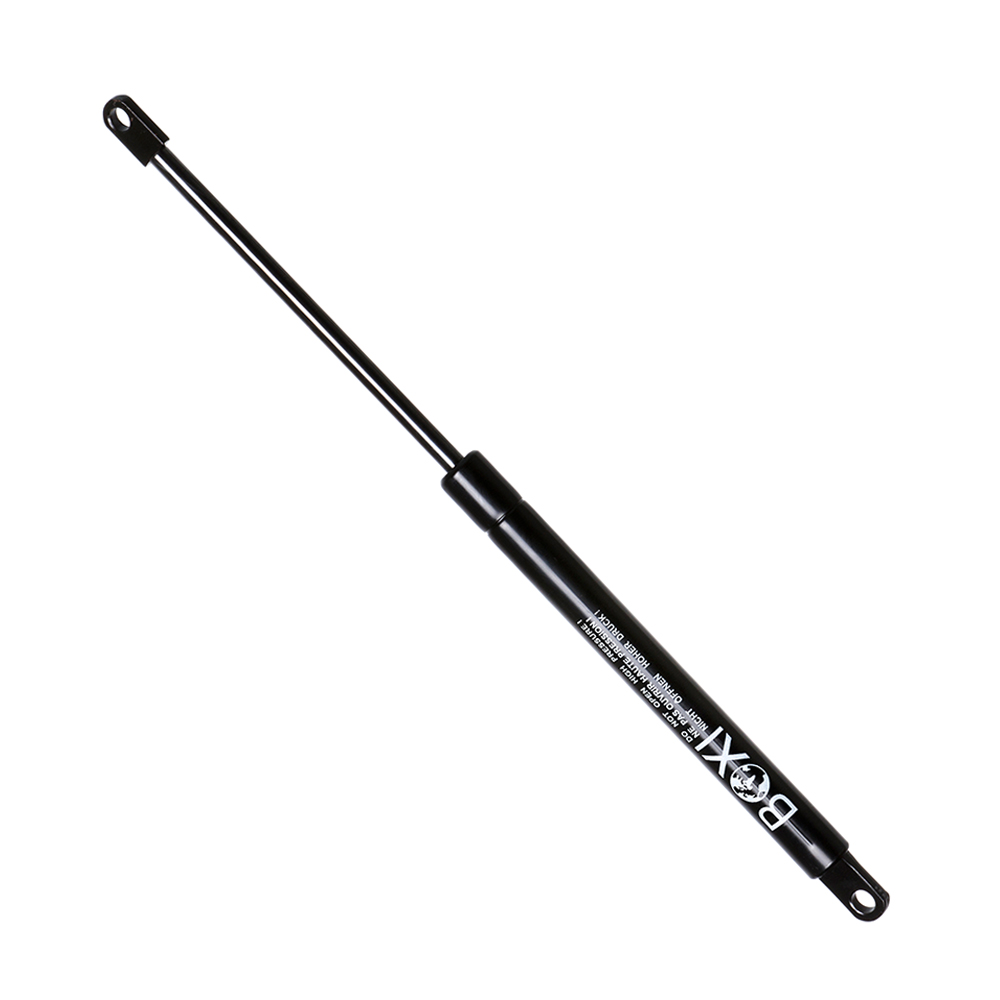

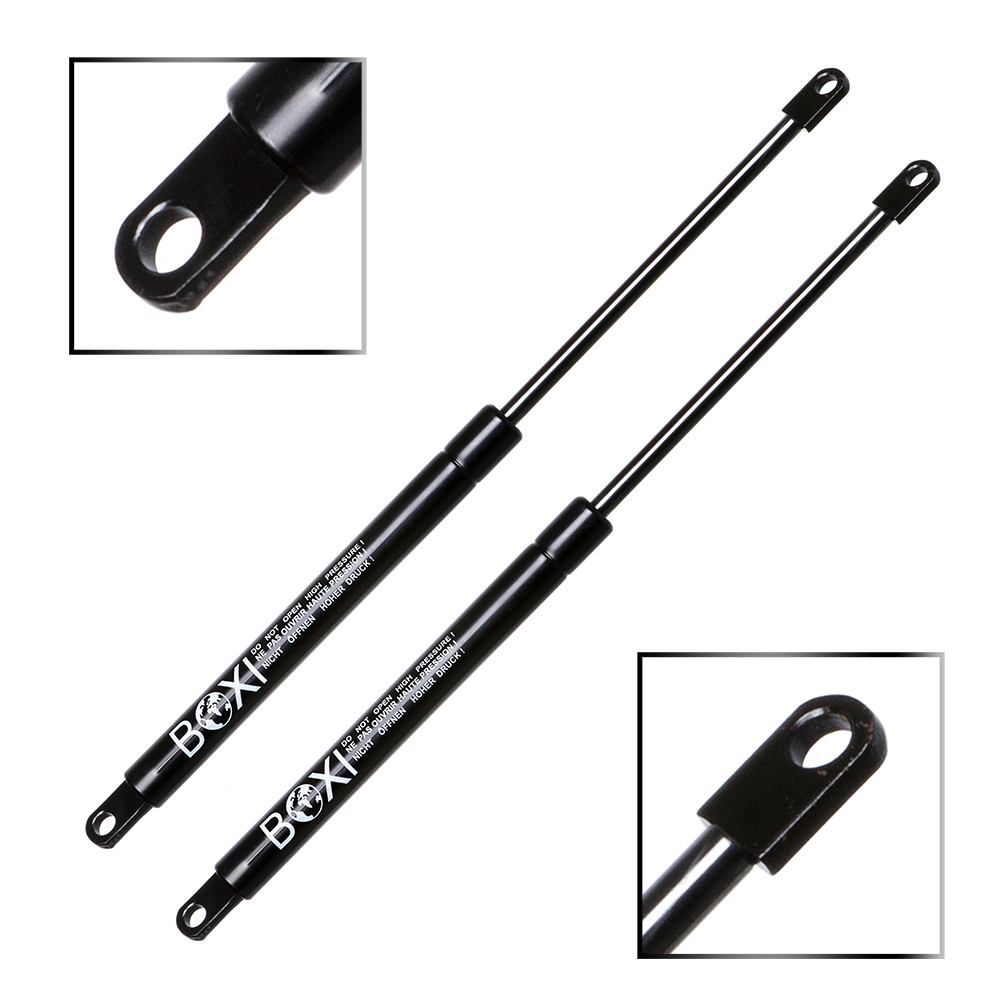

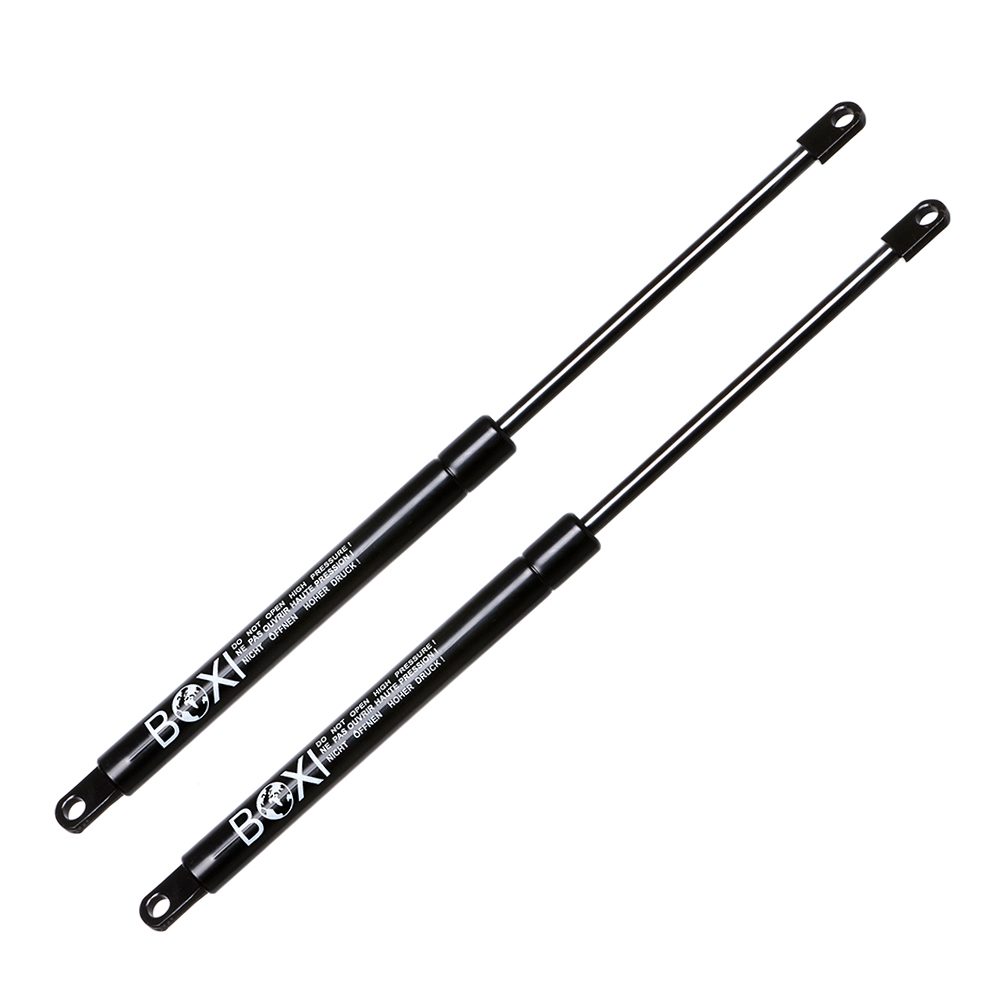

Qty(2) BOXI Hatchback with Out Spoiler Lift Supports Struts Shocks Springs Dampers for Dodge Shadow 1986-1994, Plymouth Sundance 1986-1994,SG314002,4490

BOXI SKU#: BXC300042016-2

$19.85

BOXI replacement sensor (OE: BXC300042016). Fits select vehicles; refer to listing for specifics. Shop now at Tetron Auto Parts. Verify fitment before ordering.

OE / Interchange Part Numbers: 13679, 4490, 72627, 8194185, 8467IV, 901217, 95004, D95004, SG314002

  • 5 Years Warranty

56 in stock

Placement on Vehicle:Hatchback
Package Included:2pcs Hatchback Lift Supports

Extended Length [in] 17.26
Compressed Length [in] 11.04

Fits the following Dodge Shadow Years:

1986-1994 | America Hatchback | With Out Spoiler
1986-1994 | Base Hatchback | With Out Spoiler
1986-1994 | Duster Hatchback | With Out Spoiler
1991-1994 | ES Hatchback | With Out Spoiler
1986-1994 | High Line Hatchback | With Out Spoiler
1988-1991 | Shelby Hatchback | With Out Spoiler

Fits the following Plymouth Sundance Years:

1986-1994 | America Hatchback | With Out Spoiler
1986-1994 | Base Hatchback | With Out Spoiler
1986-1994 | Duster Hatchback | With Out Spoiler
1986-1994 | High Line Hatchback | With Out Spoiler

Weight 1.09 lbs
Dimensions 19.69 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

438
Stroke (in):

6.91
Stroke (mm):

175
Compressed Length (in)

Compressed Length (mm):

263
Force (Lbs)

Force (Newtons)

391
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

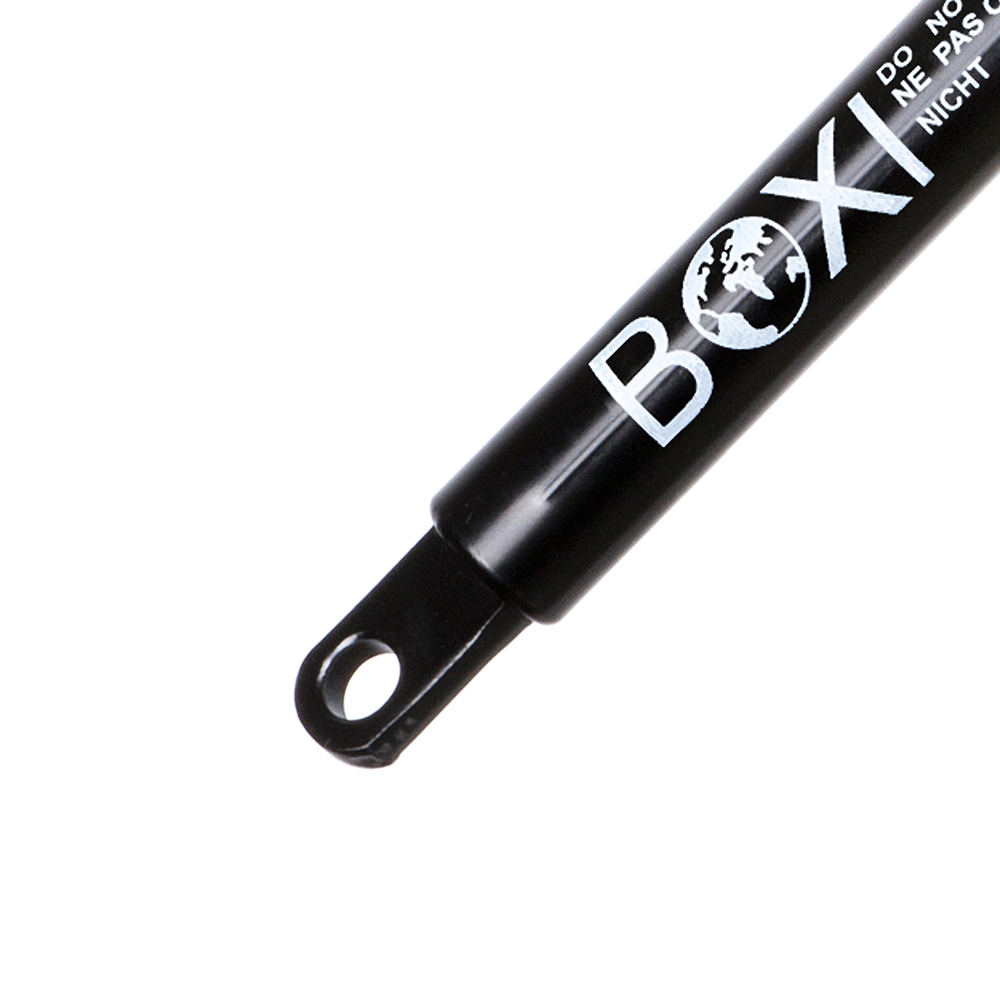

Body Connection:

Eyelet Hole

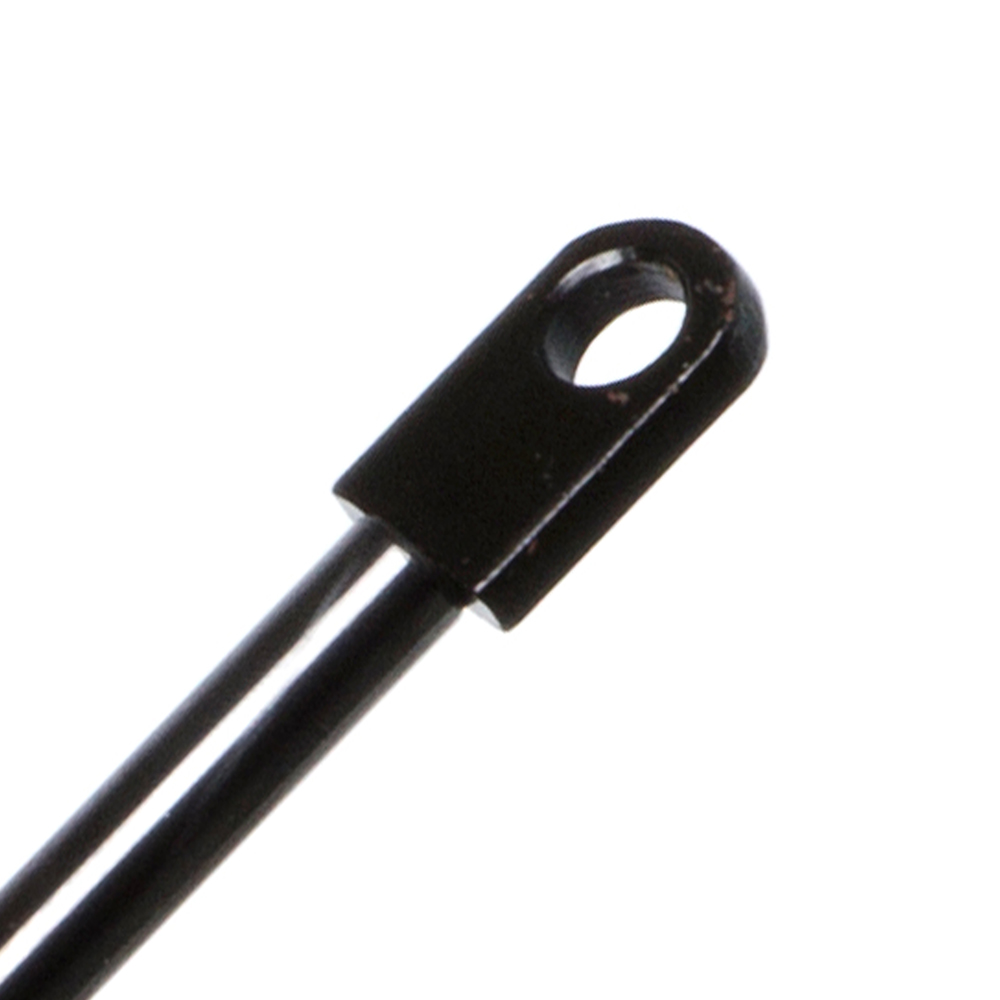

Shaft Connection:

Eyelet Hole
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

TFS613173, 613173, SG314002, D95004, D4490, 901707, 901217, 819-4185, 5241 308, 510-565, 4658384, 4658 383, 4658 120, 4490
YearMakeModelSubmodelEngine
1989 – 1994ChryslerShadowBaseL4 – 2.2L 135ci GAS 2BBL vin C – 2 valve SOHC
L4 – 2.5L 2500cc 153ci GAS 2BBL – 2 valve SOHC
L4 – 2.5L 2500cc 153ci GAS MFI Turbocharged – 2 valve SOHC
L4 – 2.5L 2500cc 153ci GAS TBI – 2 valve SOHC
1991 – 1993ChryslerShadowConvertibleL4 – 2.5L 2500cc 153ci GAS MFI Turbocharged – 2 valve SOHC
L4 – 2.5L 2500cc 153ci GAS TBI – 2 valve SOHC
1990ChryslerShadowEquipado
Tipico		L4 – 2.5L 2500cc 153ci GAS 2BBL – 2 valve SOHC
1989 – 1991ChryslerShadowGTSL4 – 2.2L 135ci GAS MFI Turbocharged vin P – 2 valve SOHC
L4 – 2.5L 2500cc 153ci GAS MFI Turbocharged – 2 valve SOHC
1993ChryslerShadowTurboL4 – 2.5L 2500cc 153ci GAS MFI Turbocharged – 2 valve SOHC
1991 – 1992DodgeShadowAMERICAL4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1987 – 1994DodgeShadowBaseL4 – 2.2L 135ci GAS MFI Turbocharged vin E – 2 valve SOHC
L4 – 2.2L 135ci GAS TBI Turbocharged vin C – 2 valve SOHC
L4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS MFI Turbocharged vin J – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1988 – 1994DodgeShadowESL4 – 2.2L 135ci GAS MFI Turbocharged vin E – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS MFI Turbocharged vin J – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
V6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1991 – 1993DodgeShadowHigh LineL4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS MFI Turbocharged vin J – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
V6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1987 – 1989DodgeShadowShelbyL4 – 2.2L 135ci GAS MFI Turbocharged vin E – 2 valve SOHC
L4 – 2.2L 135ci GAS TBI Turbocharged vin A – 2 valve SOHC
1991 – 1992PlymouthSundanceAMERICAL4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC
High LineL4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1987 – 1994PlymouthSundanceBaseL4 – 2.2L 135ci GAS MFI Turbocharged vin E – 2 valve SOHC
L4 – 2.2L 135ci GAS TBI vin D – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS MFI Turbocharged vin J – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
1992 – 1994PlymouthSundanceDusterL4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
V6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
1988 – 1992PlymouthSundanceRSL4 – 2.2L 135ci GAS MFI Turbocharged vin E – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS MFI Turbocharged vin J – 2 valve SOHC
L4 – 2.5L 2507cc 153ci GAS TBI vin K – 2 valve SOHC
V6 – 3.0L 2972cc 181ci GAS MFI vin 3 – 2 valve SOHC
