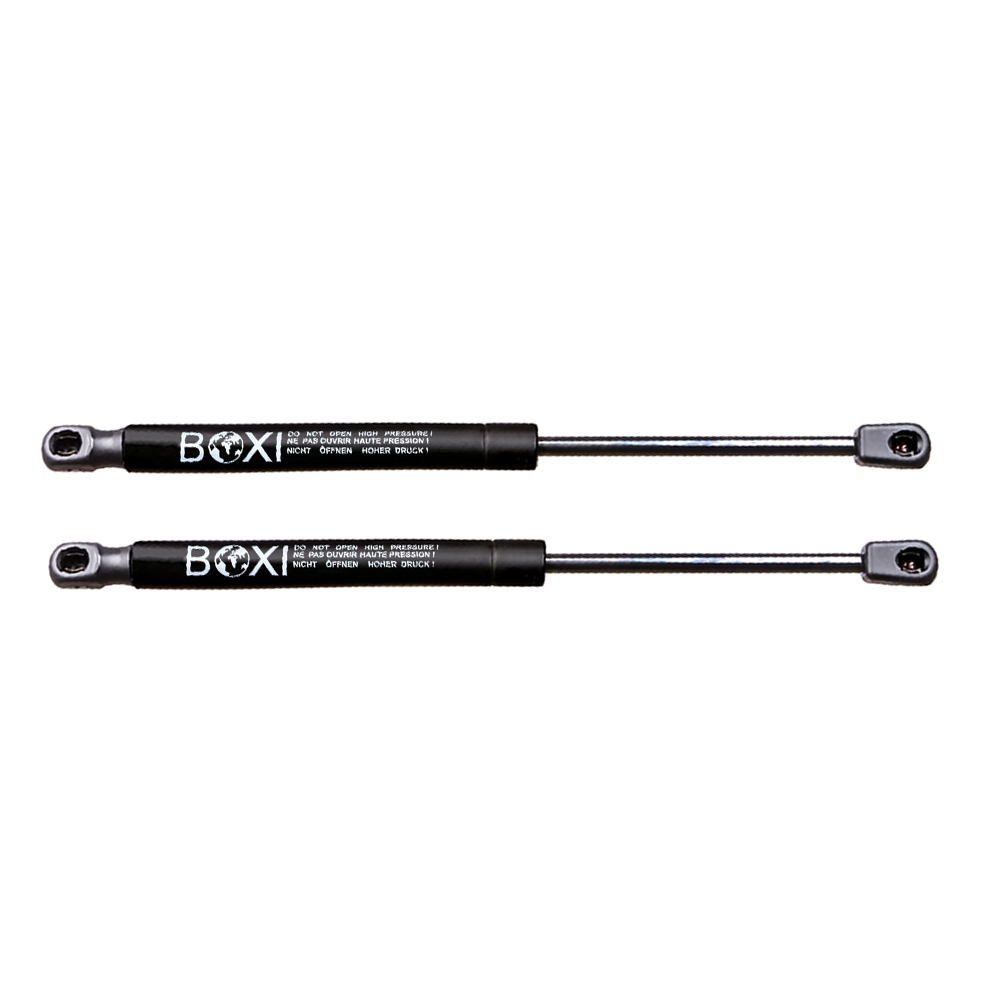

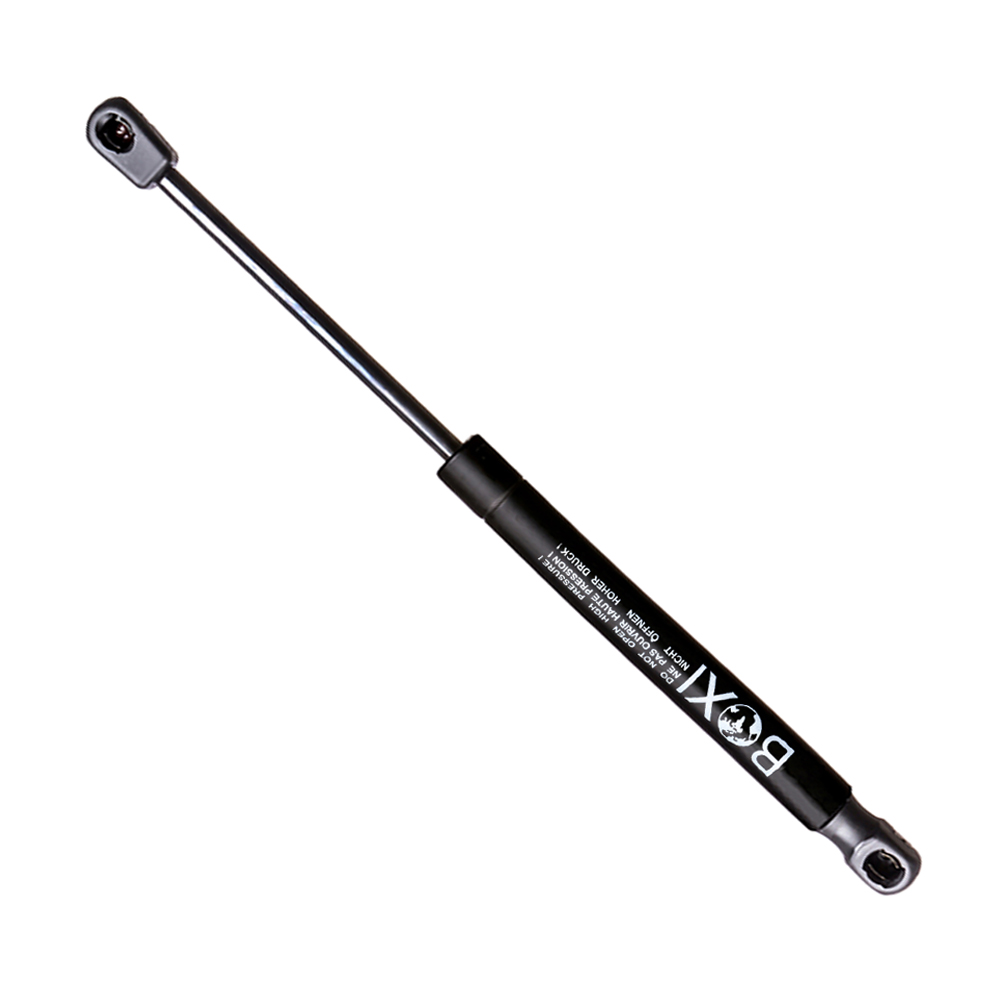

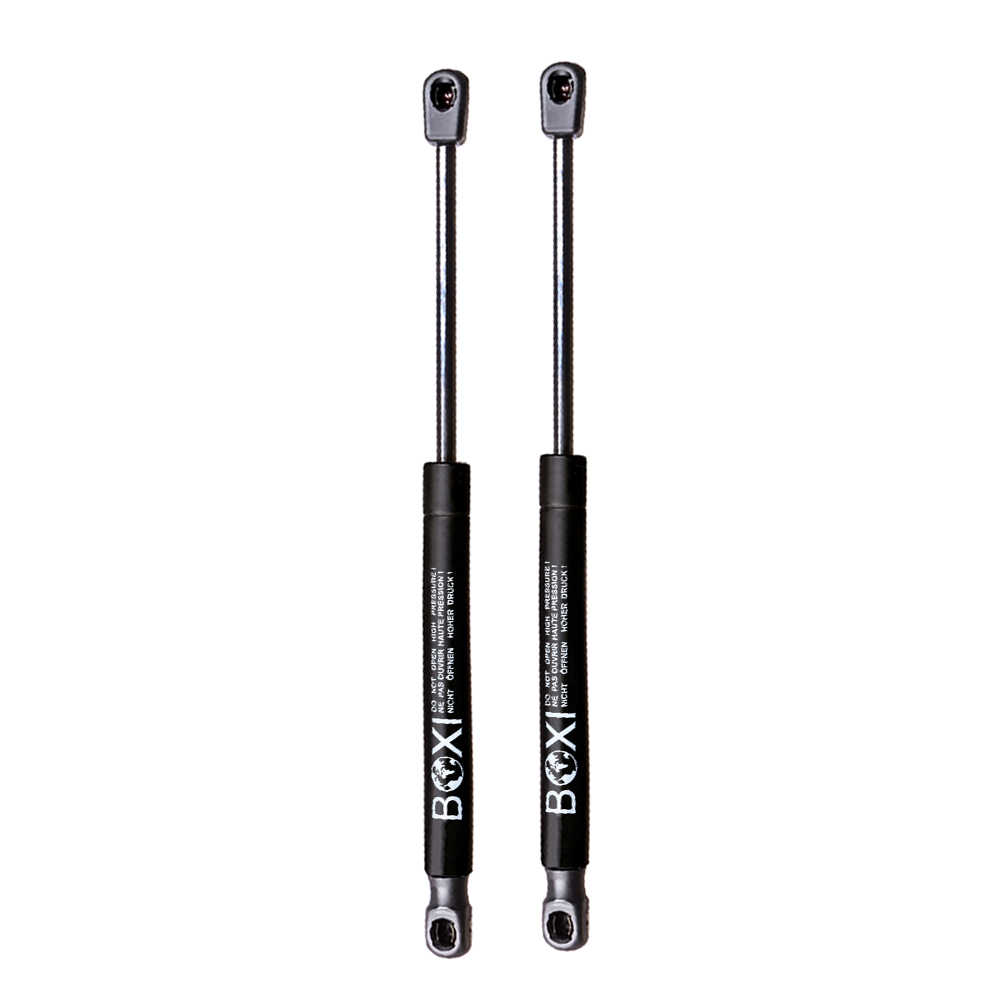

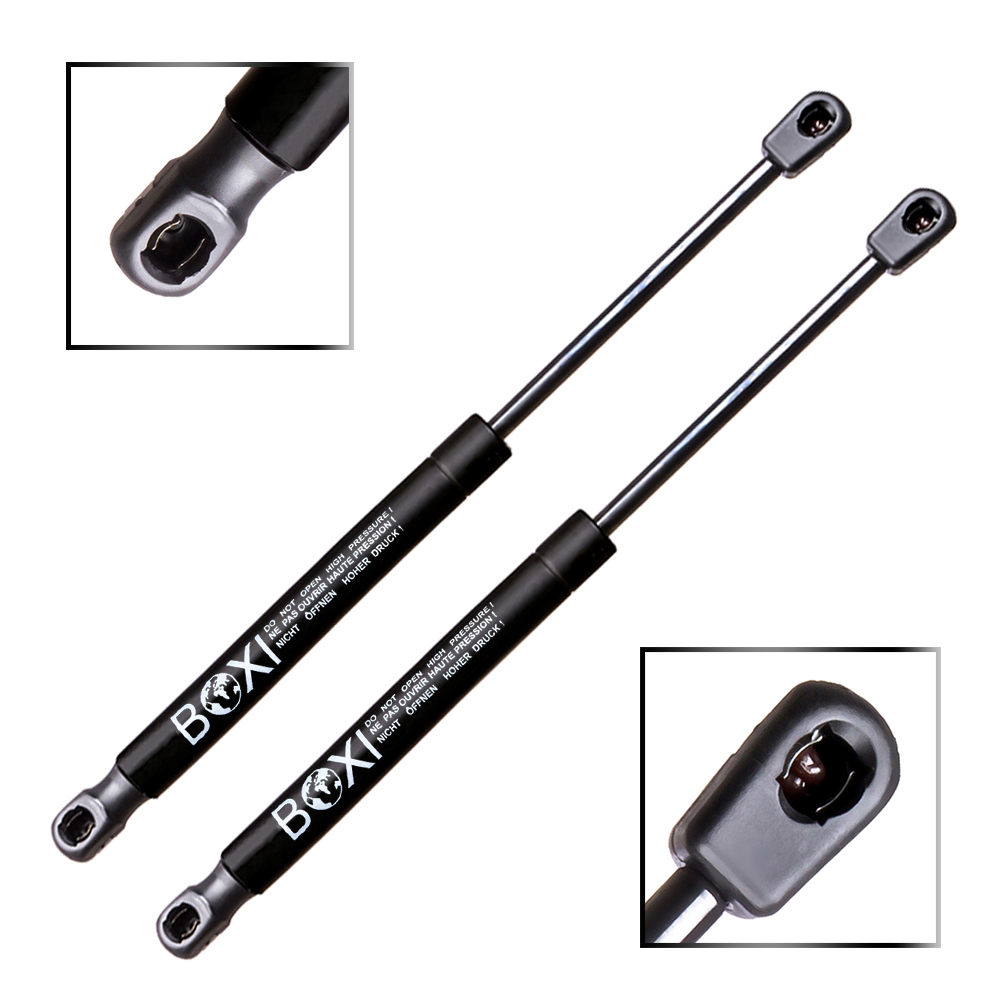

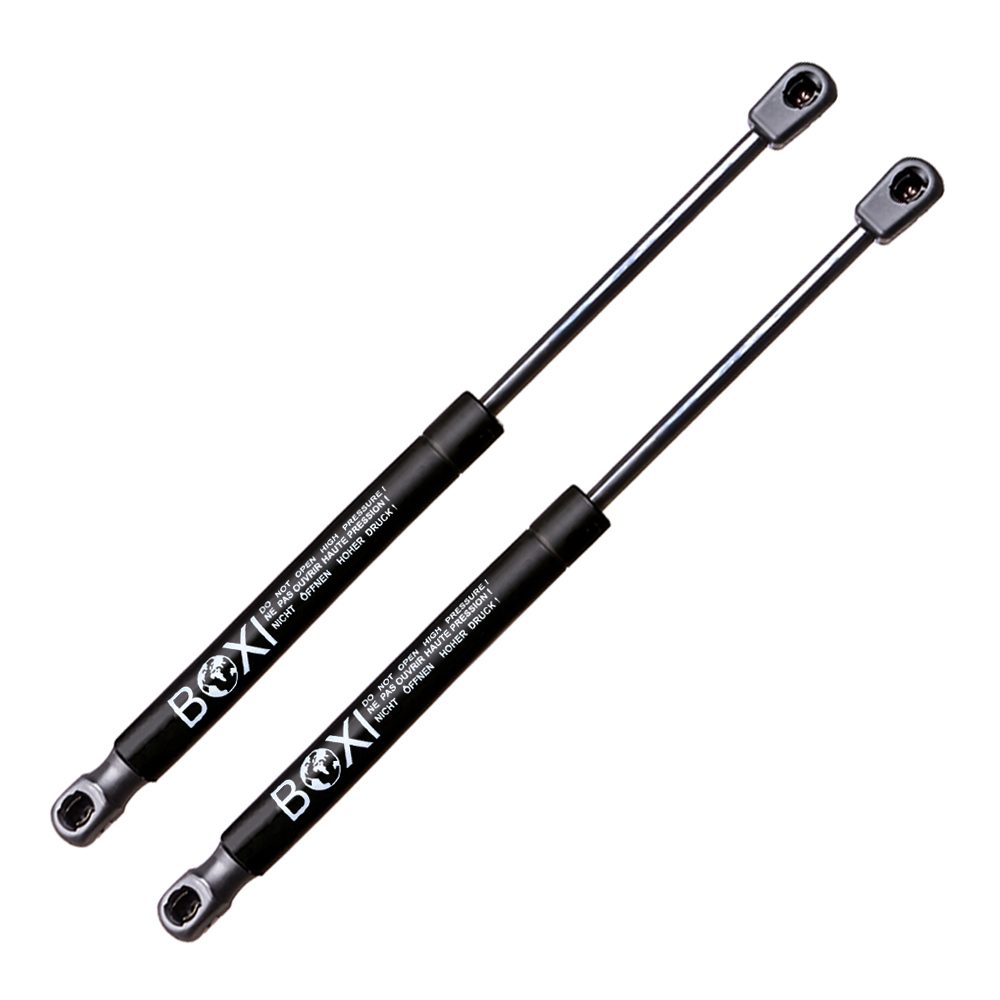

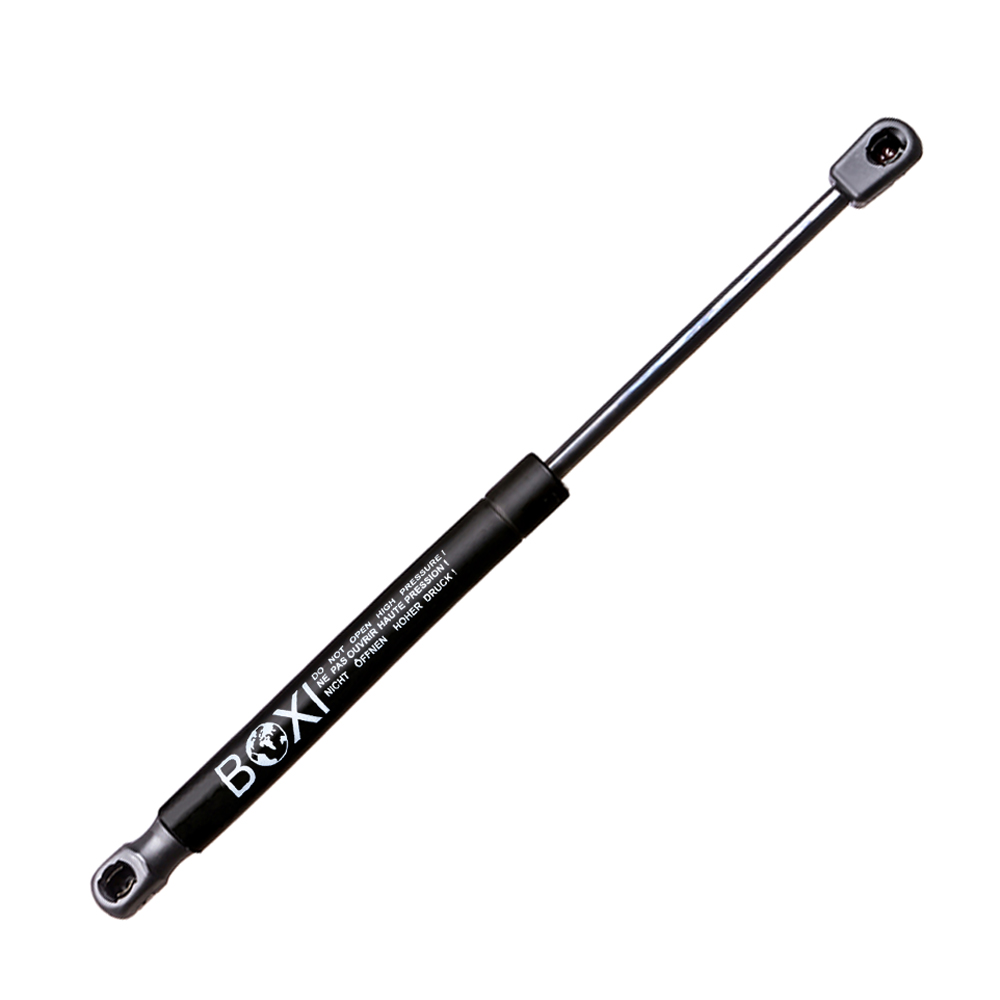

BOXI Rear Tailgate Lift Supports Shock Struts Compatible for Hyundai Santa Fe Sport 2015 2016 2017 / Replace# 7017 817714Z500 817814Z500 (2-PC Set)

BOXI SKU#: BXC300038094-2

$22.30

BOXI Rear Tailgate Lift Supports compatible with Hyundai Santa Fe Sport 2015-2017. Replaces OE numbers 7017 817714Z500 817814Z500. Verify fitment before ordering.

OE / Interchange Part Numbers: 97017, C97017

  • 5 Years Warranty

54 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Vehicle Location – Liftgate-Without Power Liftgate Vehicle Mfg To 02/02/17
Fits the following Hyundai Santa Fe Sport Years:
2015-2017 | 2.0T Sport Utility 4-Door
2015-2017 | 2.0T Ultimate Sport Utility 4-Door
2015-2017 | Base Sport Utility 4-Door
2015-2017 | Limited Sport Utility 4-Door
2015-2017 | Luxury Sport Utility 4-Door
2015-2017 | Premium Sport Utility 4-Door
2015-2017 | SE Sport Utility 4-Door

Weight 1.4 lbs
Dimensions 23.62 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

560
Stroke (in):

8.48
Stroke (mm):

215
Compressed Length (in)

Compressed Length (mm):

345
Force (Lbs)

Force (Newtons)

587
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

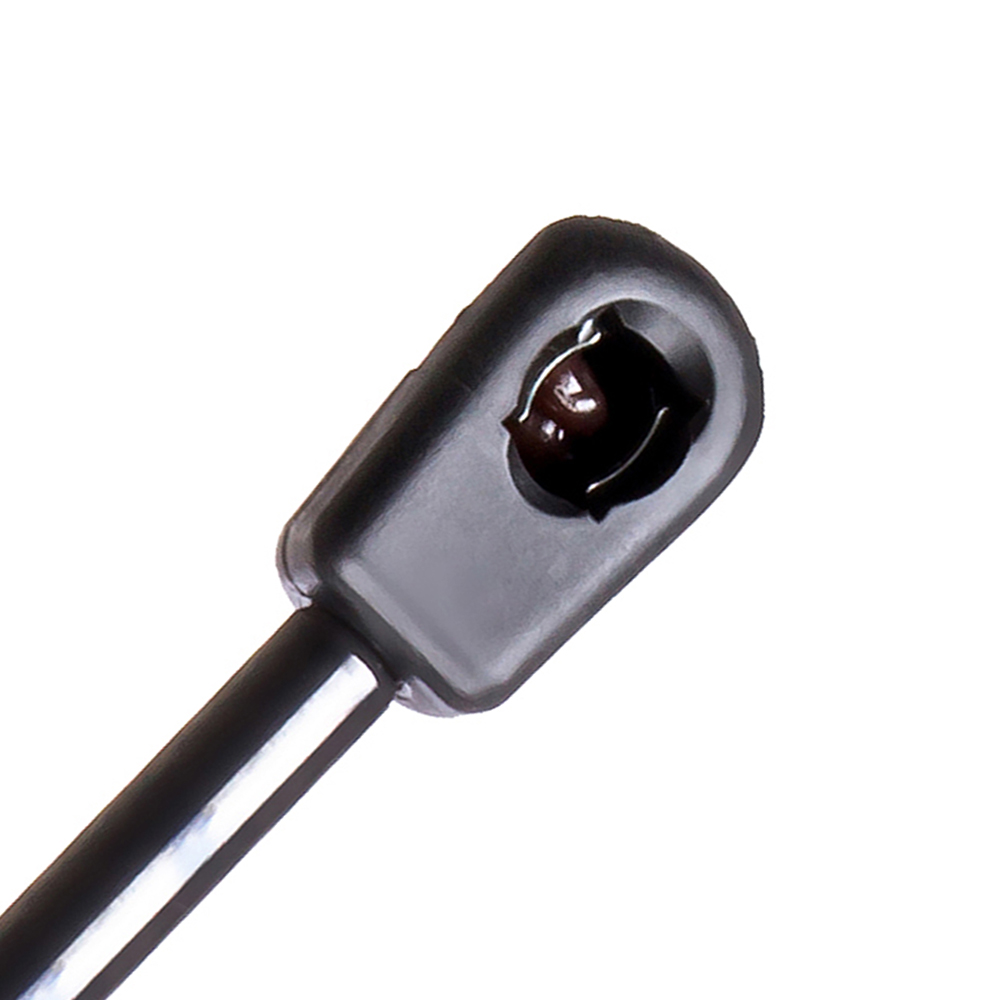

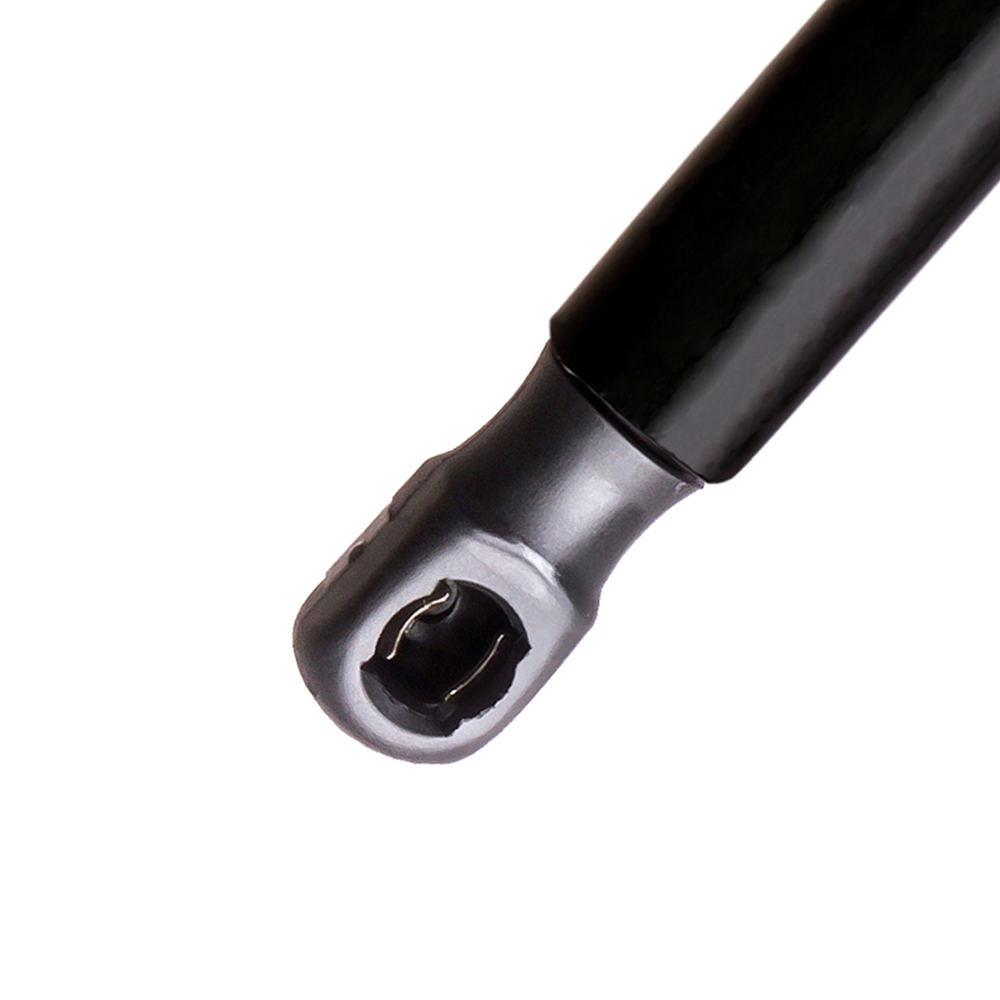

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

817704Z500, 81771-4Z500, 81781-4Z500, 819-8289, C97017, 900273, C7017, 900214
YearMakeModelSubmodelEngine
2015 – 2017HyundaiSanta Fe Sport2.0T
Limited		L4 – 2.0L 1998cc 122ci GAS DI Turbocharged vin A – 4 valve DOHC
Base
Luxury		L4 – 2.4L 2359cc GAS DI vin B – 4 valve DOHC
Premium
SE		L4 – 2.0L 1998cc 122ci GAS DI Turbocharged vin A – 4 valve DOHC
L4 – 2.4L 2359cc GAS DI vin B – 4 valve DOHC
2017HyundaiSanta Fe Sport2.0T UltimateL4 – 2.0L 1998cc 122ci GAS DI Turbocharged vin A – 4 valve DOHC
