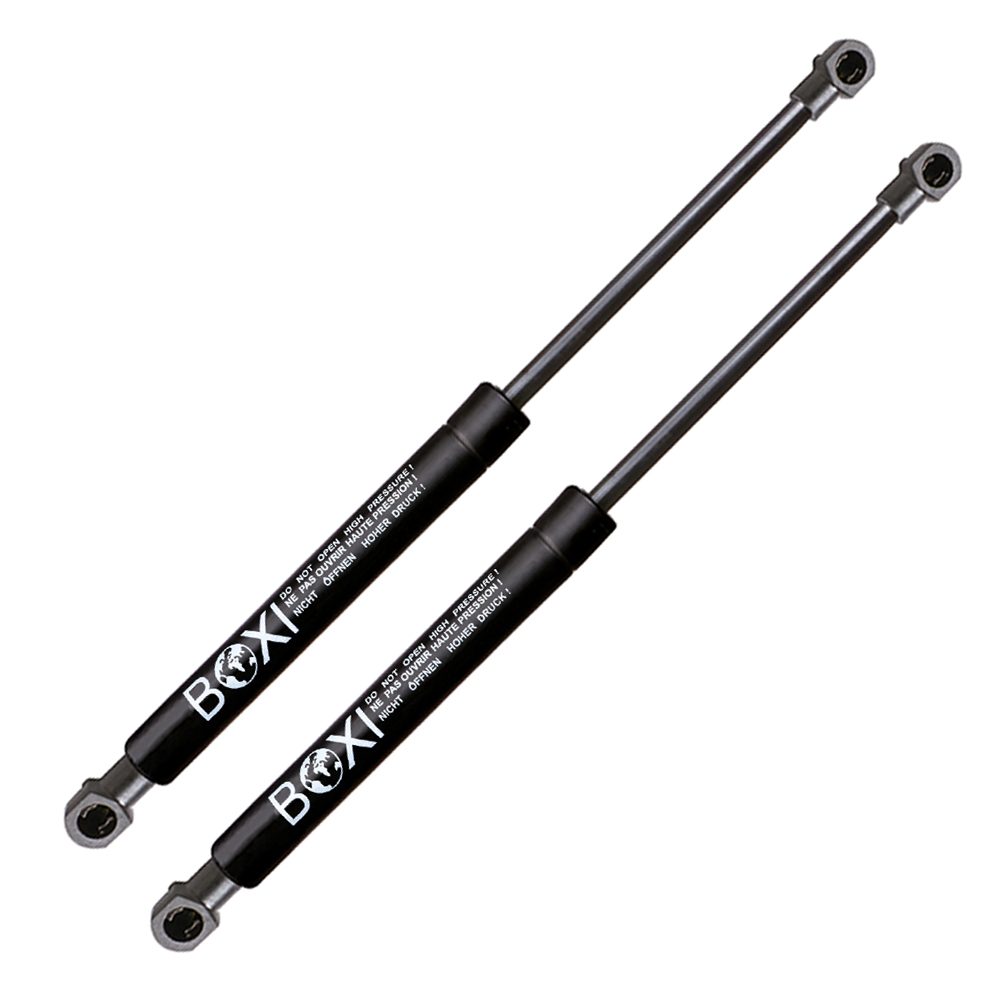

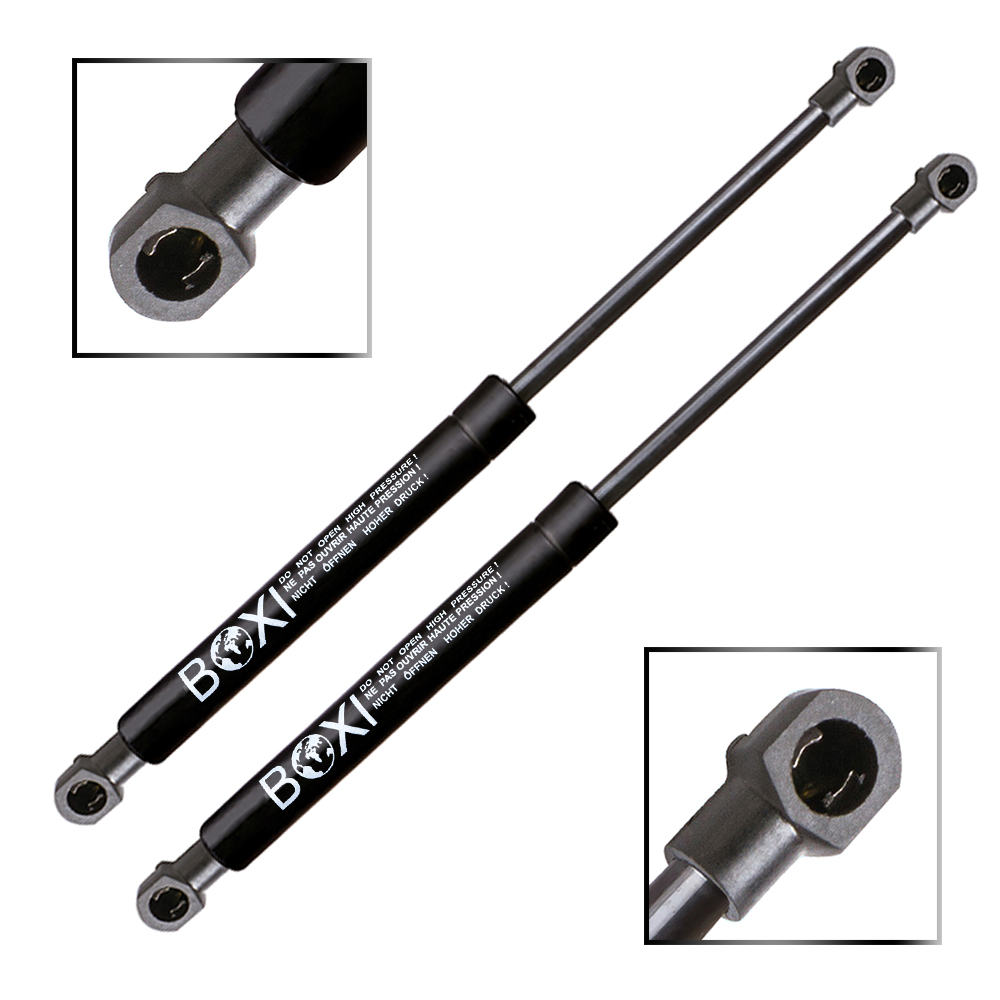

BOXI 2pcs Front Hood Gas Charged Lift Supports Struts Shocks Gas Struts Shocks Springs Supports Dampers for Hyundai Sonata 2002 2003 2004 2005 | Replaces 4383 SG367009 014237 811613D000
BOXI SKU#: BXC300038039-2
$20.12
BOXI Front Hood Gas Charged Lift Supports for 2002-2005 Hyundai Sonata (Base, GL, GLS, LX). Replaces part numbers 4383, SG367009. Verify fitment before ordering.
OE / Interchange Part Numbers: 14237, 1529QZ, 4383, 811613D000, 811613D001, 8196131, 95336, D95336, SG367009
119 in stock
Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports
Extended Length [in] 19.29
Compressed Length [in] 12.04
Fits the following Hyundai Sonata Years:
2002-2005 for Hyundai Sonata Base Sedan 4-Door Hood
2002-2005 for Hyundai Sonata GL Sedan 4-Door Hood
2002-2005 for Hyundai Sonata GLS Sedan 4-Door Hood
2002-2005 for Hyundai Sonata LX Sedan 4-Door Hood
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 21.65 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 490 |
| Stroke (in): | 7.68 |
| Stroke (mm): | 195 |
| Compressed Length (in) | |
| Compressed Length (mm): | 295 |
| Force (Lbs) | |
| Force (Newtons) | 414 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |
| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | TFS612735, GSA08951, GSA09172, 612735, SG367009, D95336, D4383, 926 23012 810, 901729, 819-6131, 81161-3D001, 81161-3D000, 8116130000, 510-1023, 4383 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2002 – 2004 | Hyundai | Sonata | Base | L4 – 2.4L 2351cc GAS MFI – 4 valve DOHC |
| L4 – 2.4L 2351cc GAS MFI vin S – 4 valve DOHC | ||||
| 2003 – 2005 | Hyundai | Sonata | GL | L4 – 2.4L 2351cc GAS MFI – 4 valve DOHC |
| L4 – 2.4L 2351cc GAS MFI vin S – 4 valve DOHC | ||||
| V6 – 2.7L 2656cc GAS MFI – 4 valve DOHC | ||||
| 2002 – 2005 | Hyundai | Sonata | GLS LX | V6 – 2.7L 2656cc GAS MFI – 4 valve DOHC |
| 2005 | Hyundai | Sonata | GLX | V6 – 2.7L 2656cc GAS MFI – 4 valve DOHC |
| VE | L4 – 2.4L 2351cc GAS MFI – 4 valve DOHC | |||
| V6 – 2.7L 2656cc GAS MFI – 4 valve DOHC |
