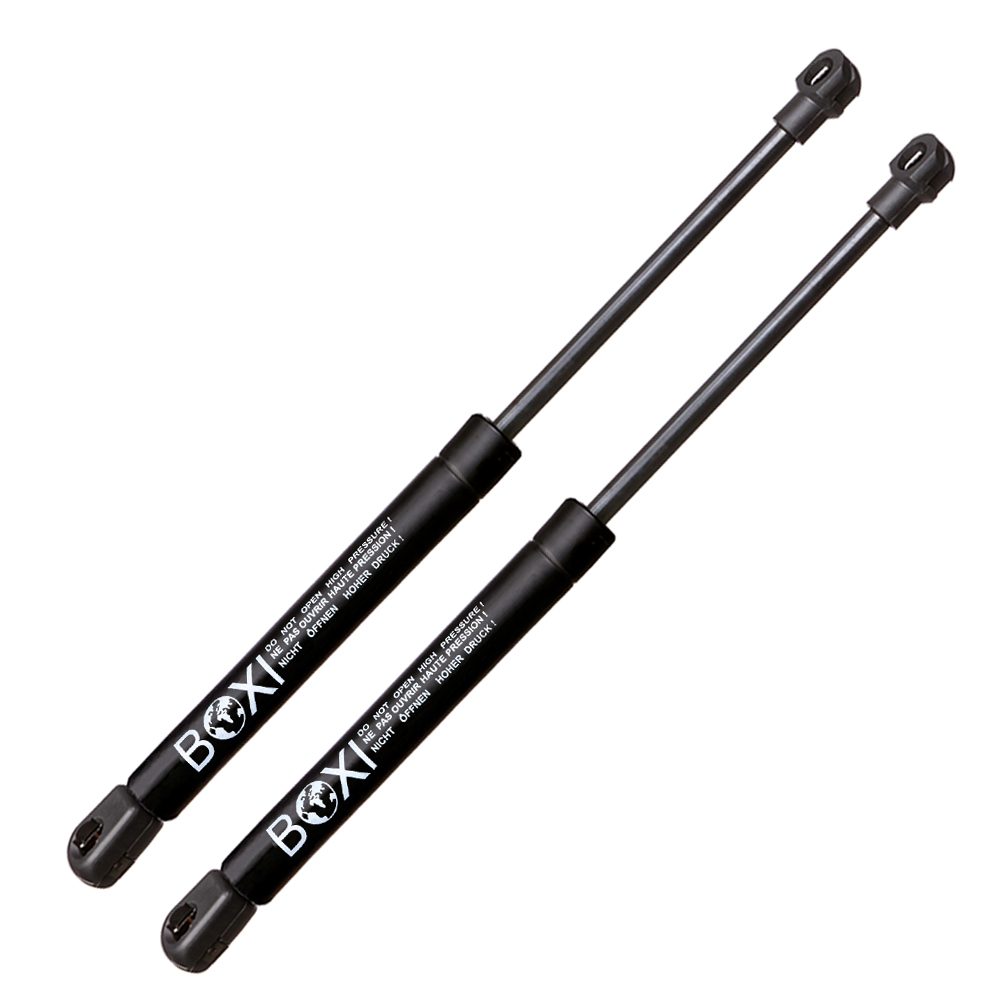

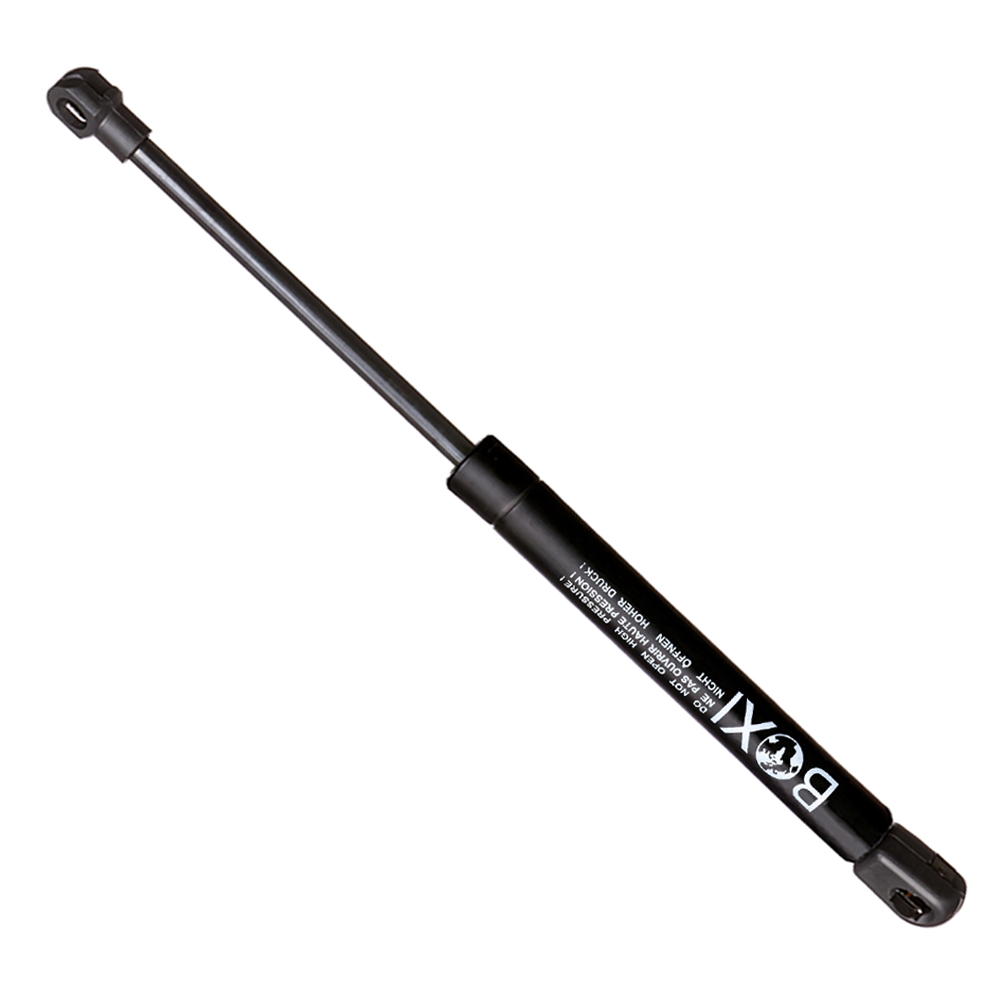

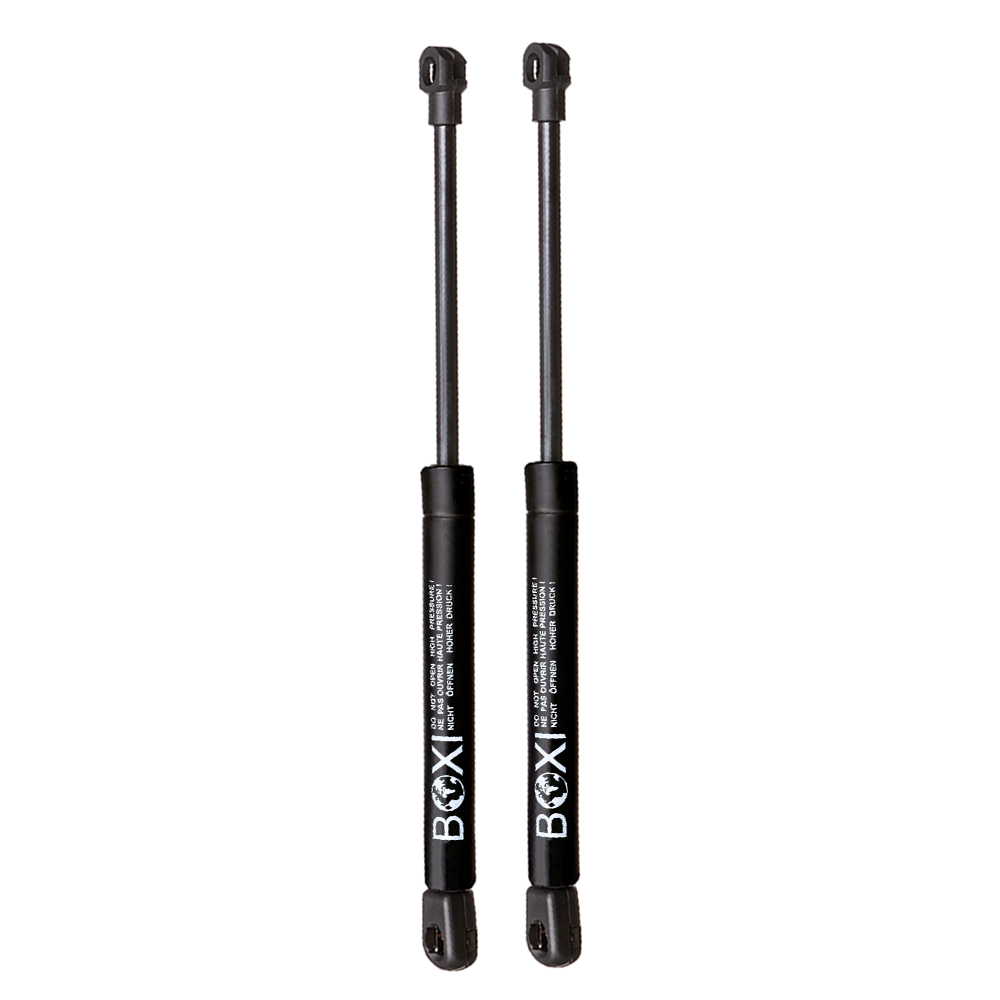

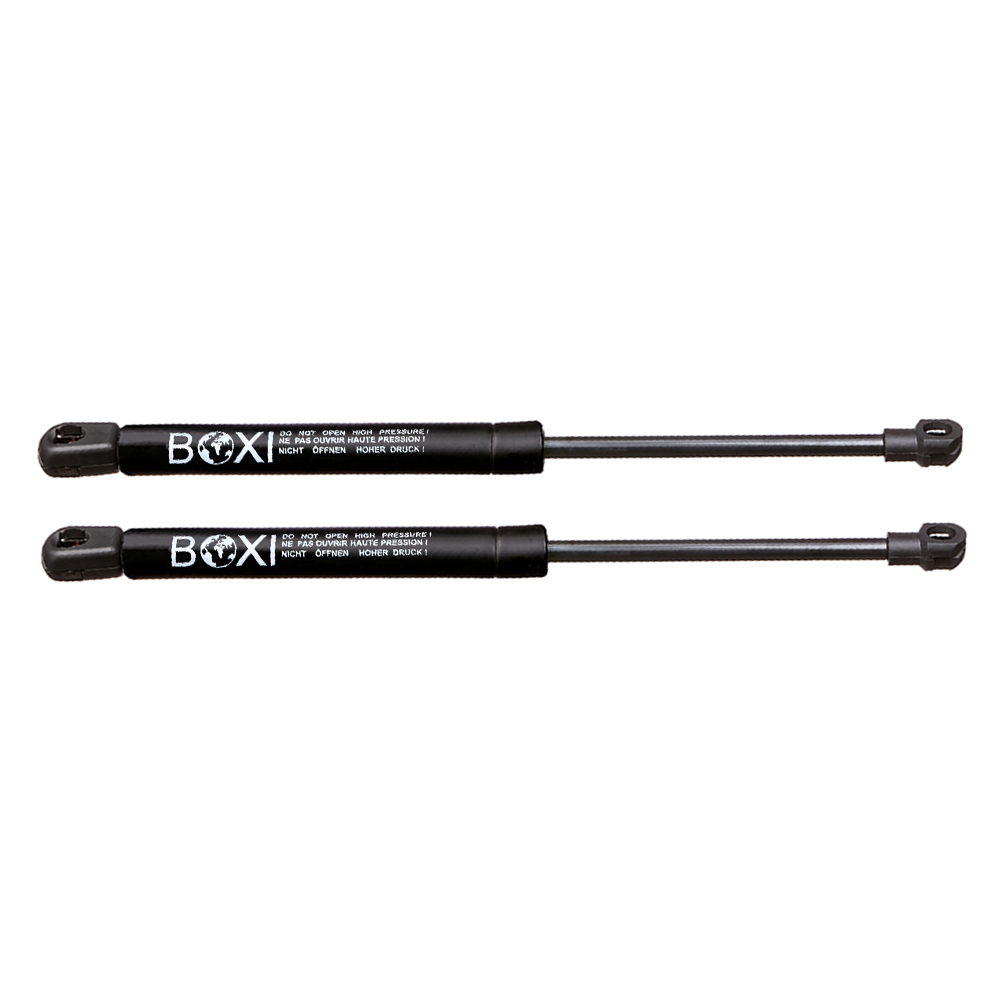

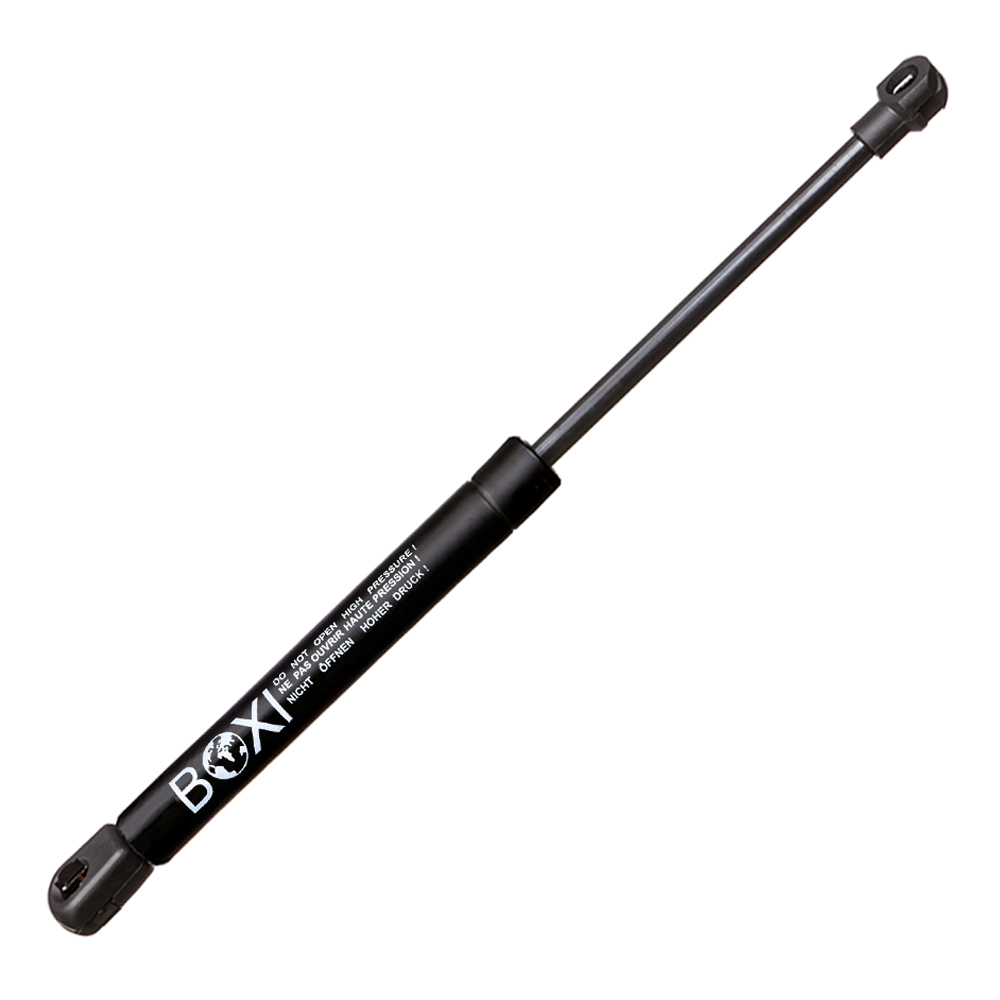

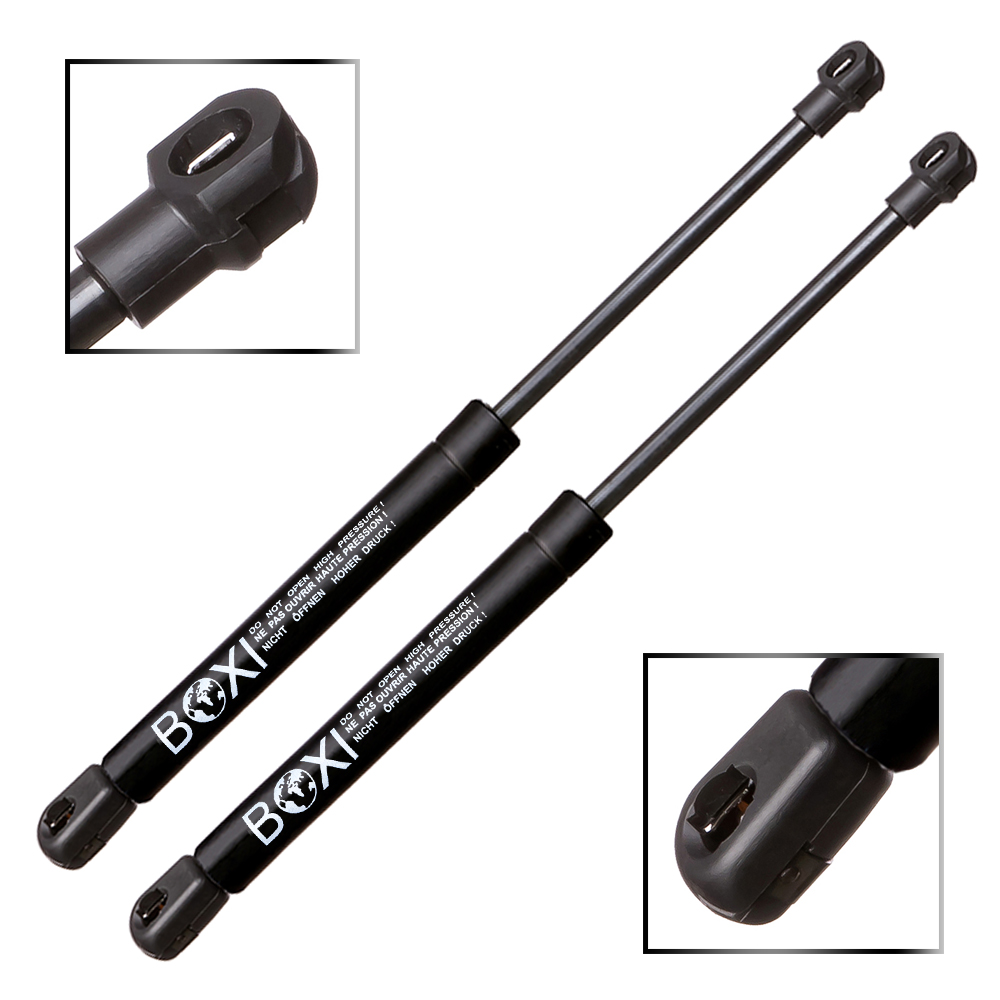

BOXI Rear Hatch Tailgate Lift Supports Shock Struts Replacement for Hyundai Accent 2003-2005 Hatchback 2-PC Set/Replaces 6516 SG267014 81770-25560
BOXI SKU#: BXC300038016-2
$19.39
BOXI rear hatch tailgate lift support struts for 2003-2005 Hyundai Accent Hatchback models (Base, GL, GLS, GT). Replaces OE numbers 6516 SG267014, 81770-25560. Verify fitment before ordering.
OE / Interchange Part Numbers: 0392RJ, 0399SY, 2592TZ, 2599TR, 8177025560, 8177025561, 8178025561, 8196259, 95601, C95601, SG267014
66 in stock
Placement on Vehicle:Hatchback
Package Included:2pcs Hatchback Lift Supports
Fit: Hyundai Accent 2003 – 2005 Hatchback
Extended Length [in] 23.09
Compressed Length [in] 15.34
Fits the following Hyundai Accent Years:
2003-2005 | Base Hatchback
2003-2005 | GL Hatchback
2003-2005 | GLS Hatchback
2003-2005 | GT Hatchback
| Weight | 1.55 lbs |
|---|---|
| Dimensions | 25.59 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 586 |
| Stroke (in): | 8.88 |
| Stroke (mm): | 225 |
| Compressed Length (in) | |
| Compressed Length (mm): | 361 |
| Force (Lbs) | |
| Force (Newtons) | 569 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

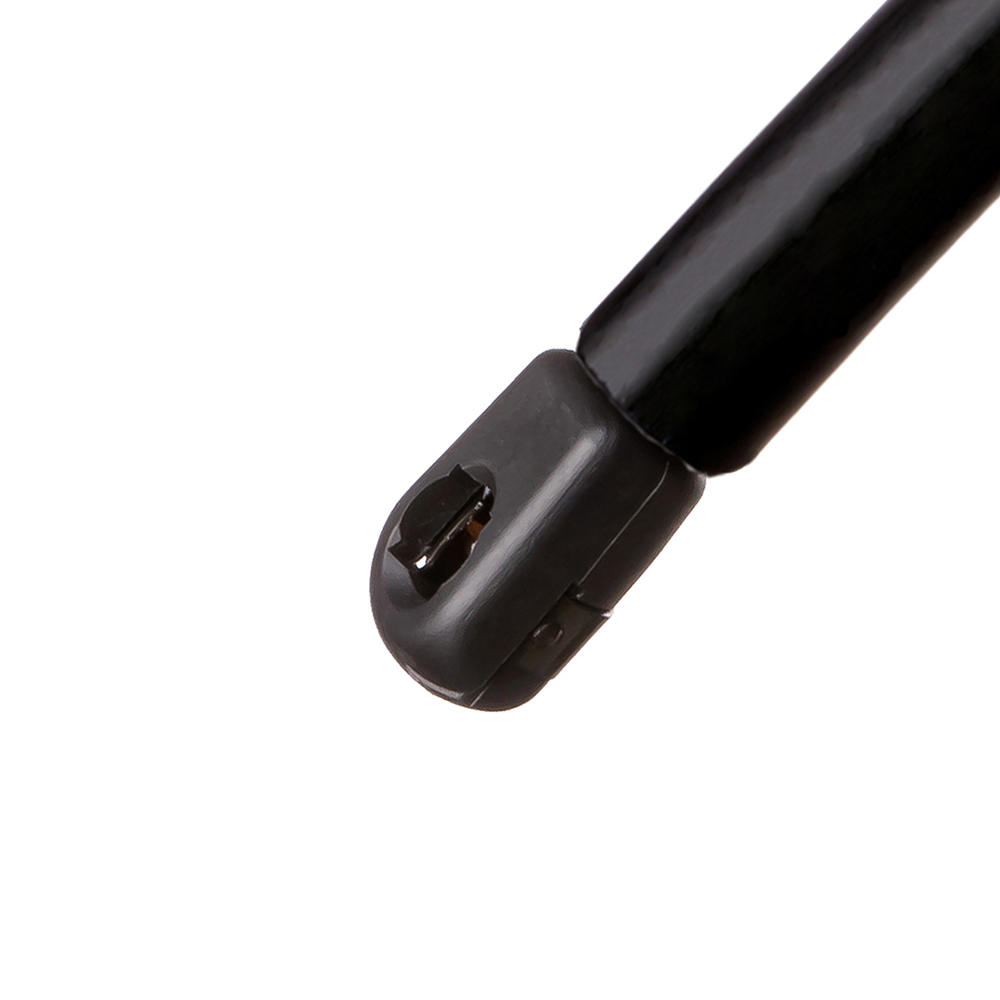

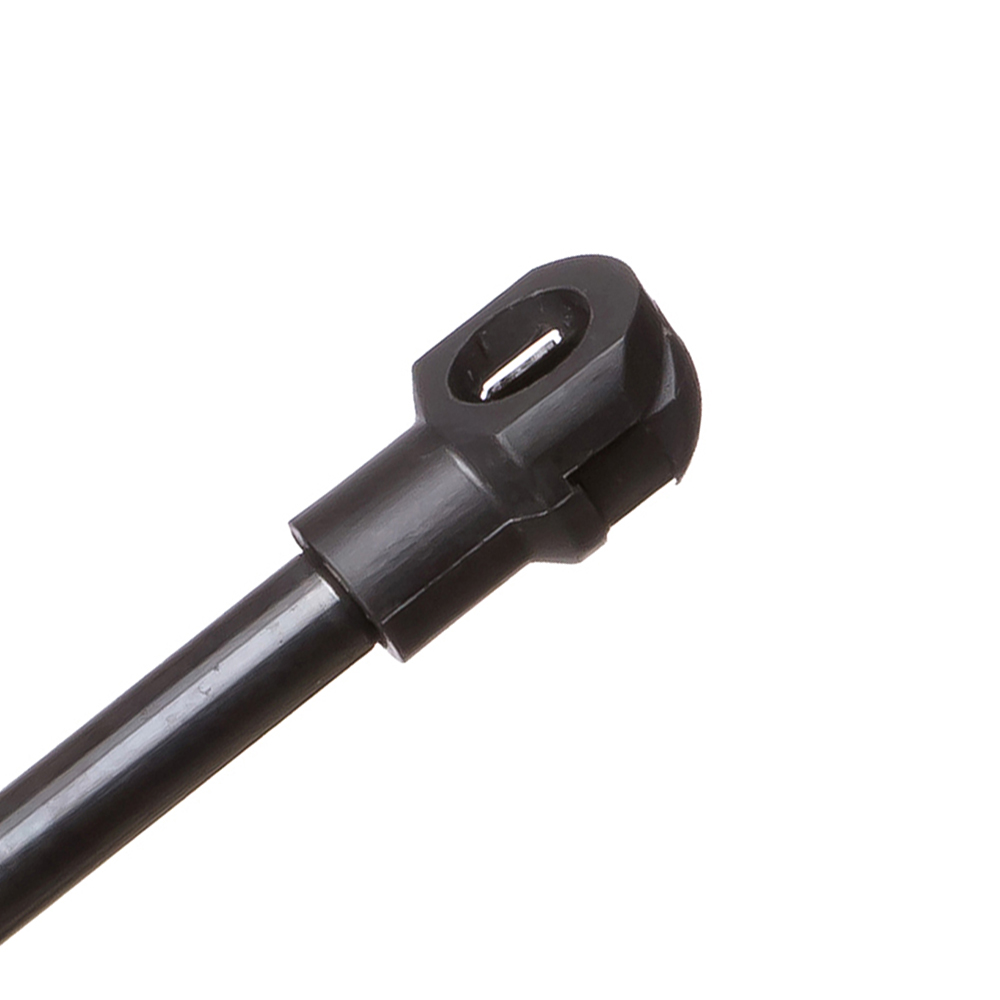

| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 81770-25551, 81770-25560, TFS611319, 819-6587, SG267014, SG267003, C95601, C6516, 926 23005 810, 901753, 819-6259, 8177025561, 6516 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2003 – 2004 | Hyundai | Accent | Base GL | L4 – 1.6L 1600cc GAS MFI vin C – 4 valve DOHC |
| 2005 | Hyundai | Accent | GLS | L4 – 1.6L 1600cc GAS MFI vin C – 4 valve DOHC |
| 2003 | Hyundai | Accent | GS | L4 – 1.5L 1495cc GAS MFI vin N type G4EK – 3 valve SOHC |
| 2004 – 2005 | Hyundai | Accent | GT | L4 – 1.6L 1600cc GAS MFI vin C – 4 valve DOHC |
