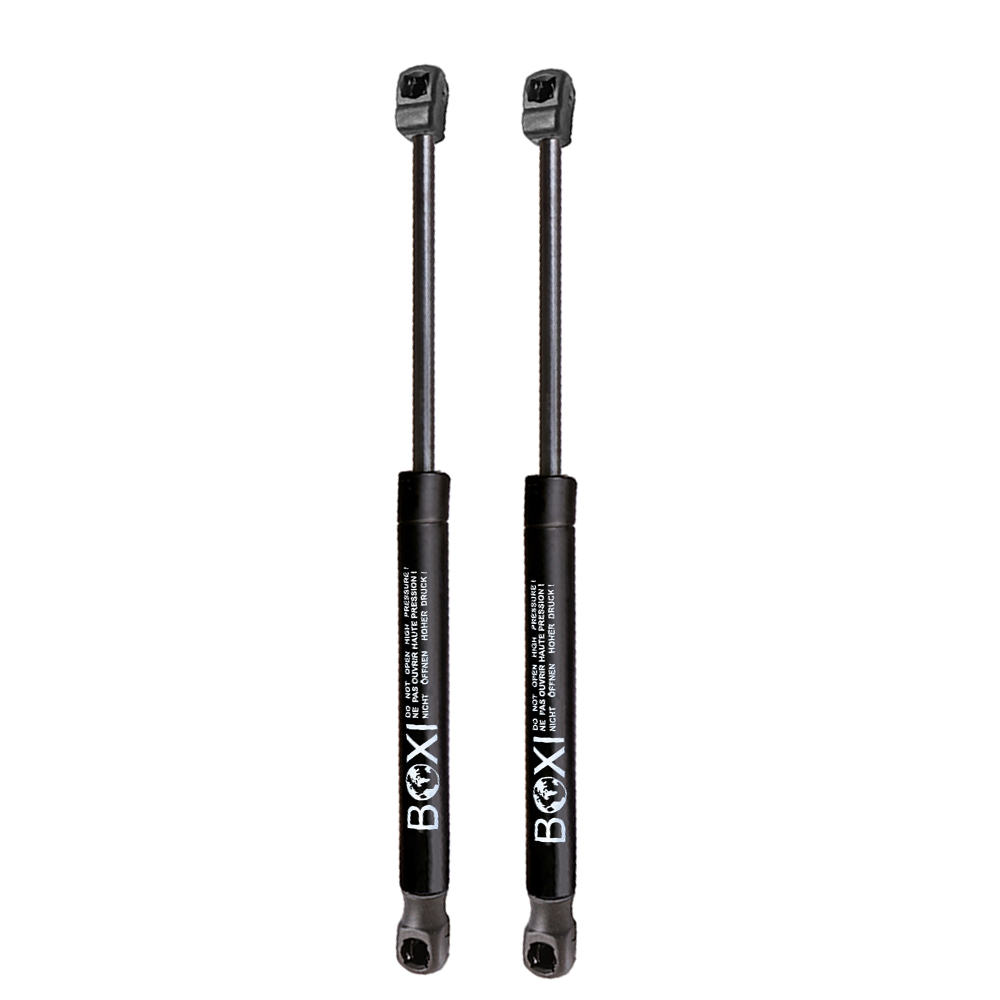

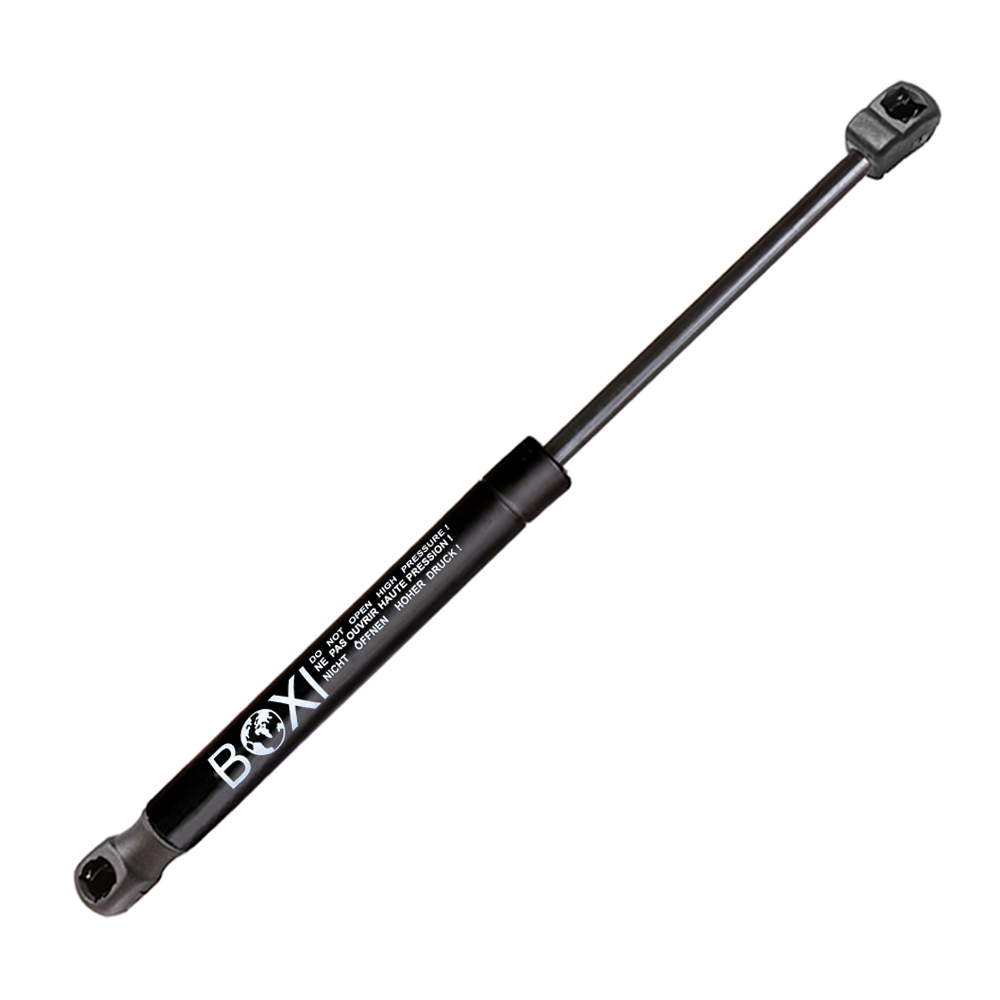

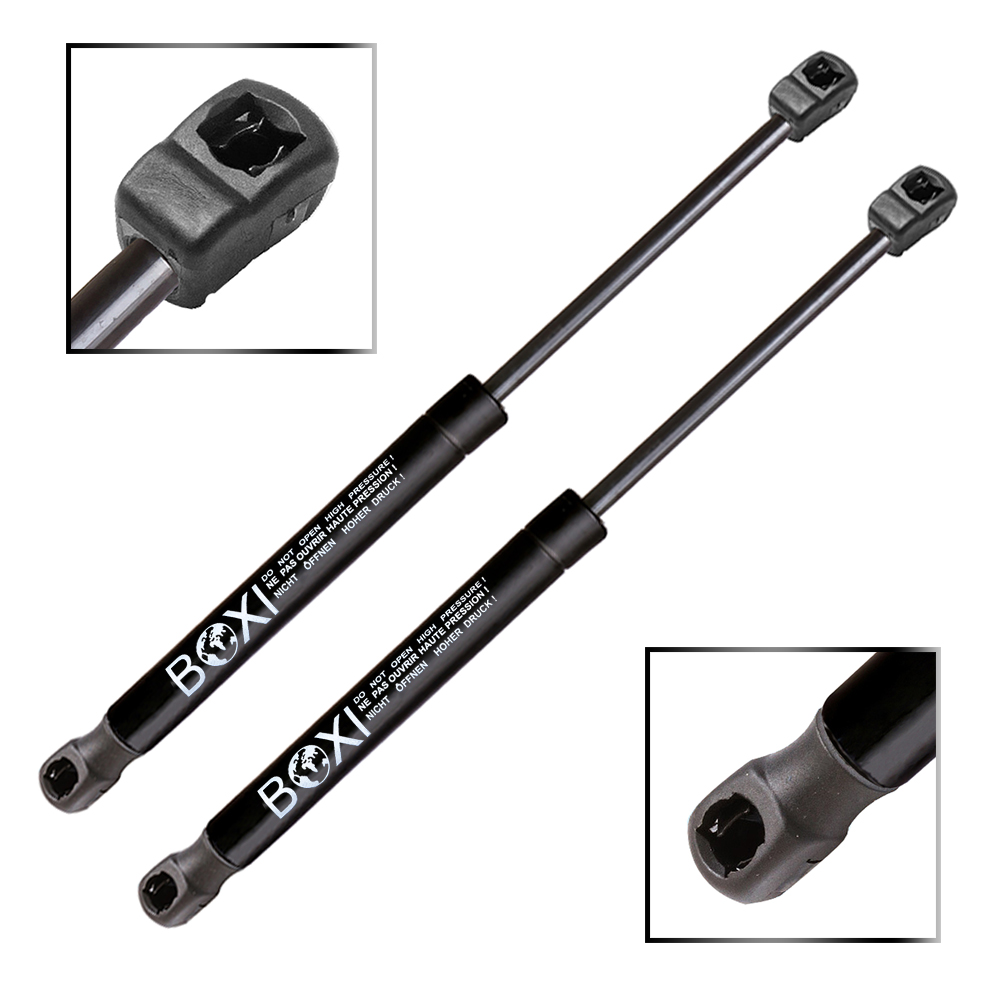

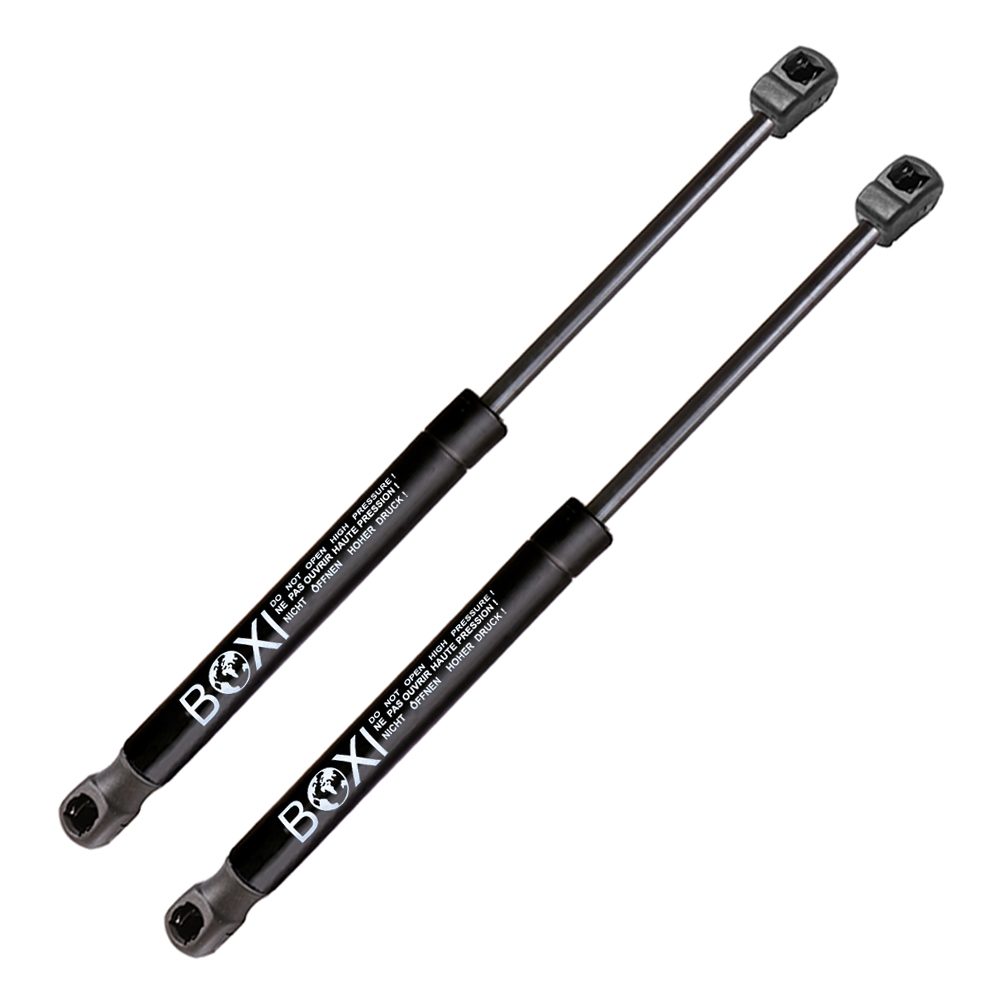

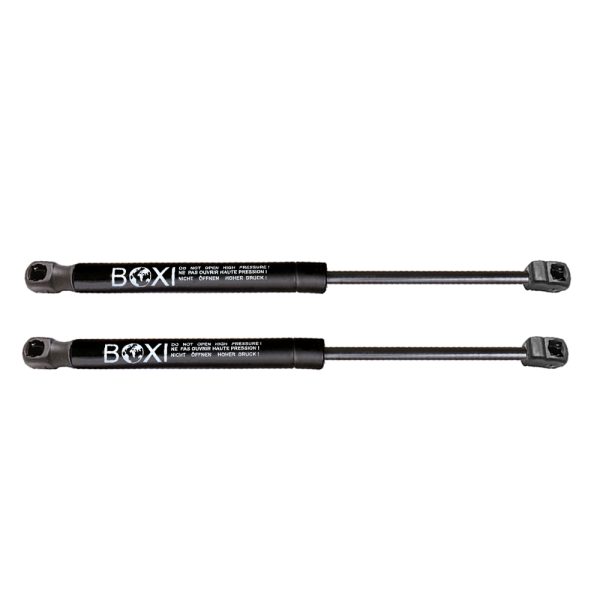

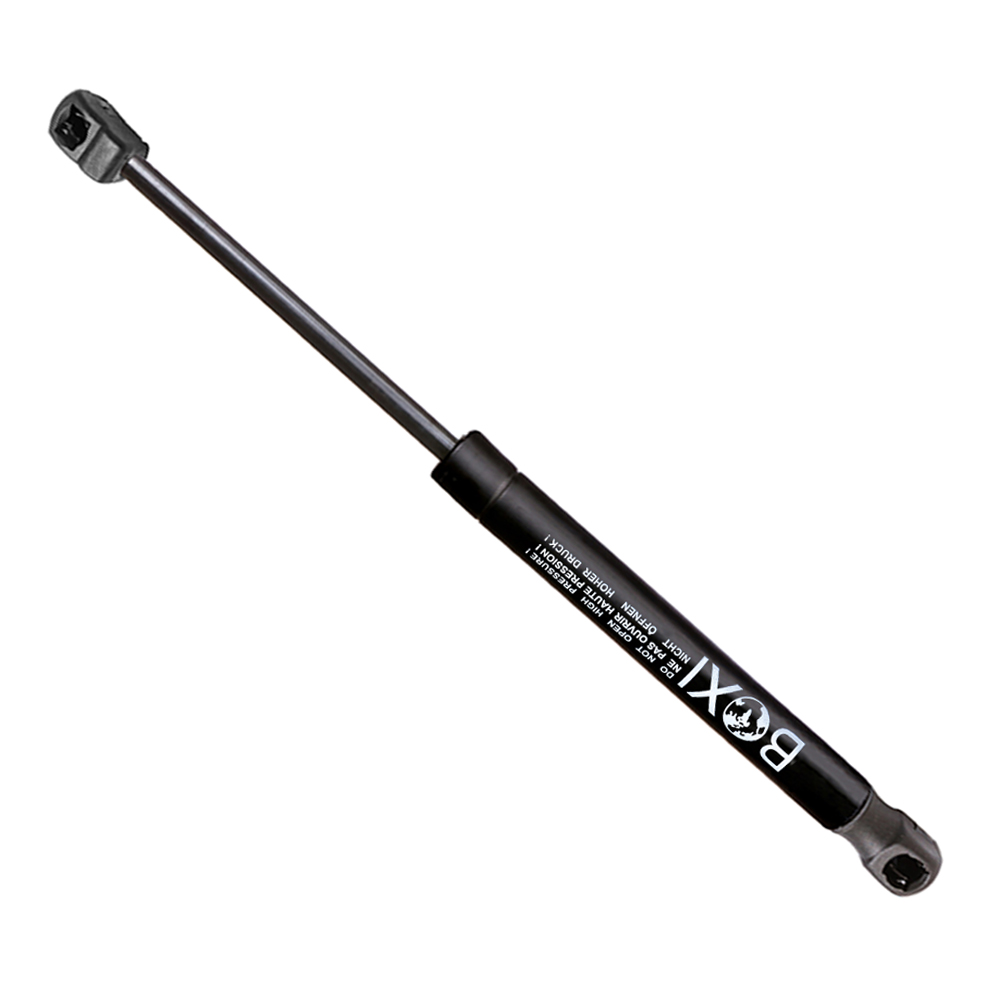

BOXI Qty (2) Hatchback Liftgate Lift Supports Gas Shocks Springs Struts Fits 2012 2013 2014 2015 2016 2017 for Kia Rio Base/EX/LX/SX Hatchback | Replaces PM3644 817701W200

BOXI SKU#: BXC300037049-2

$25.34

BOXI hatchback liftgate lift supports compatible with 2012-2017 Kia Rio Base, EX, LX, SX hatchback models. Replaces OE part numbers PM3644 and 817701W200. Verify fitment before ordering.

OE / Interchange Part Numbers: 817701W200, 817701W210, 817801W200, 817801W210, PM3644, PQB267, PQB268

  • 5 Years Warranty

55 in stock

Placement on Vehicle:Hatchback
Package Included:2pcs Hatchback Lift Supports

Fits the following Kia Rio Years:
2012-2017 | Base Hatchback 4-Door Hatch
2012-2017 | EX Hatchback 4-Door Hatch
2012-2017 | LX Hatchback 4-Door Hatch
2012 | LX+ Hatchback 4-Door Hatch
2012-2017 | SX Hatchback 4-Door Hatch

Weight 1.2 lbs
Dimensions 21.65 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

492
Stroke (in):

7.59
Stroke (mm):

200
Compressed Length (in)

Compressed Length (mm):

292
Force (Lbs)

Force (Newtons)

400
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

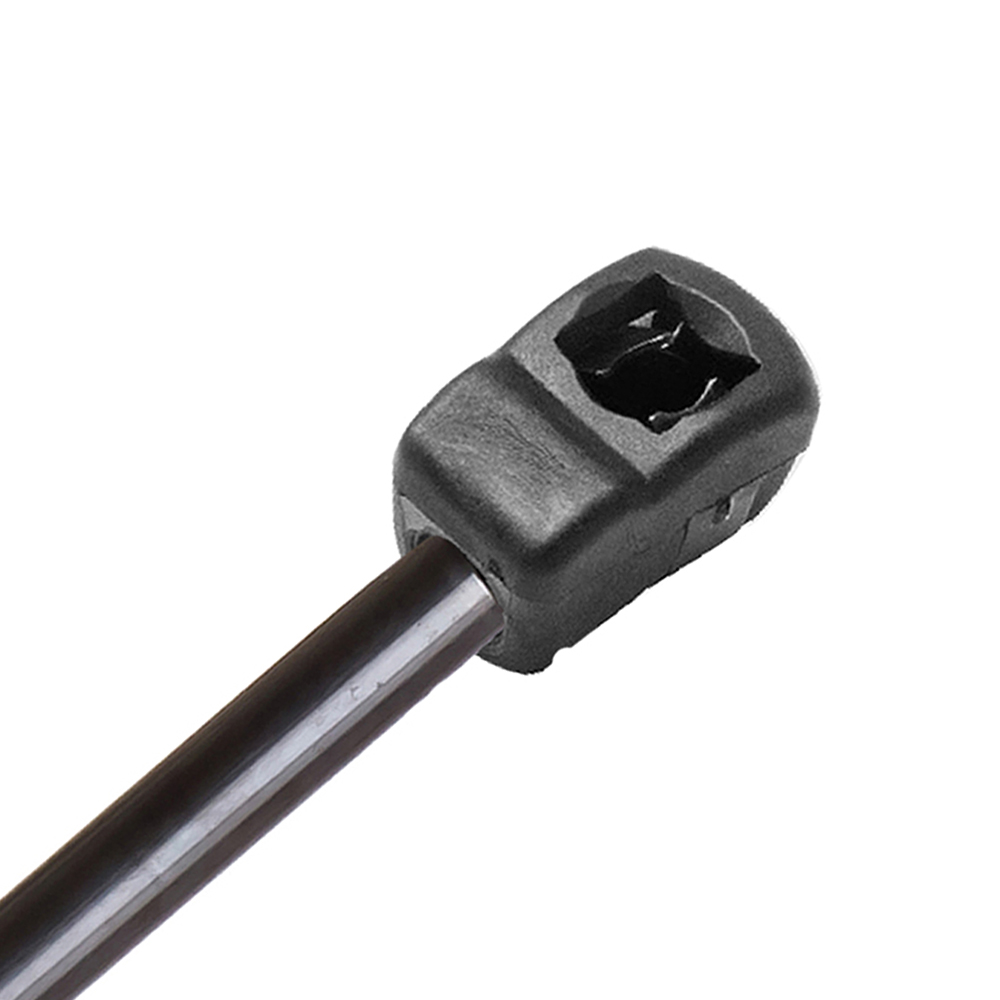

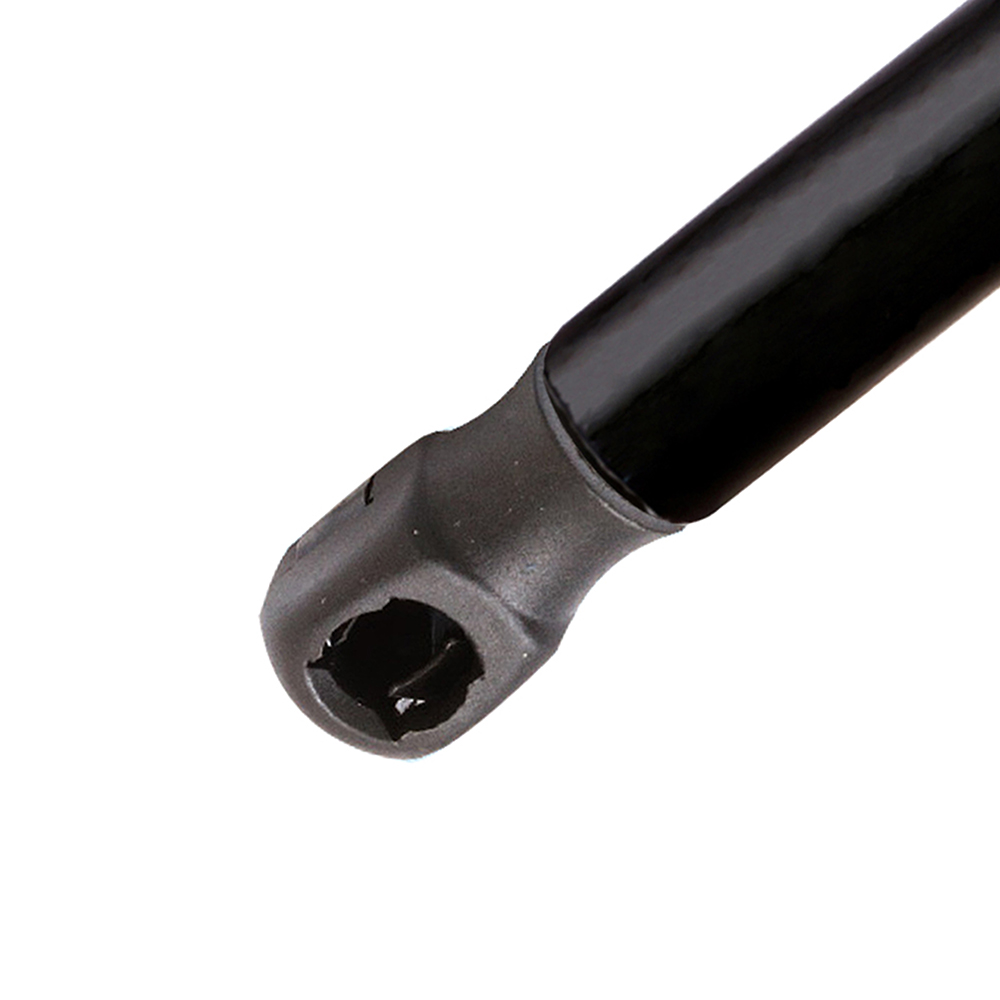

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

817801W210, 81780-1W200, 817801W200, 817701W210, 81770-1W200, 817701W200
YearMakeModelSubmodelEngine
2012 – 2017KiaRioEX
LX		L4 – 1.6L 1588cc 98ci GAS MPI – 4 valve
L4 – 1.6L 1591cc 97ci GAS DI vin 3 type G4FD – 4 valve DOHC
SXL4 – 1.6L 1591cc 97ci GAS DI vin 3 type G4FD – 4 valve DOHC
2012 – 2013KiaRioLX+L4 – 1.6L 1591cc 97ci GAS DI vin 3 type G4FD – 4 valve DOHC
