Free Shipping on All Orders — Plus Local Delivery & Pick-Up Options!

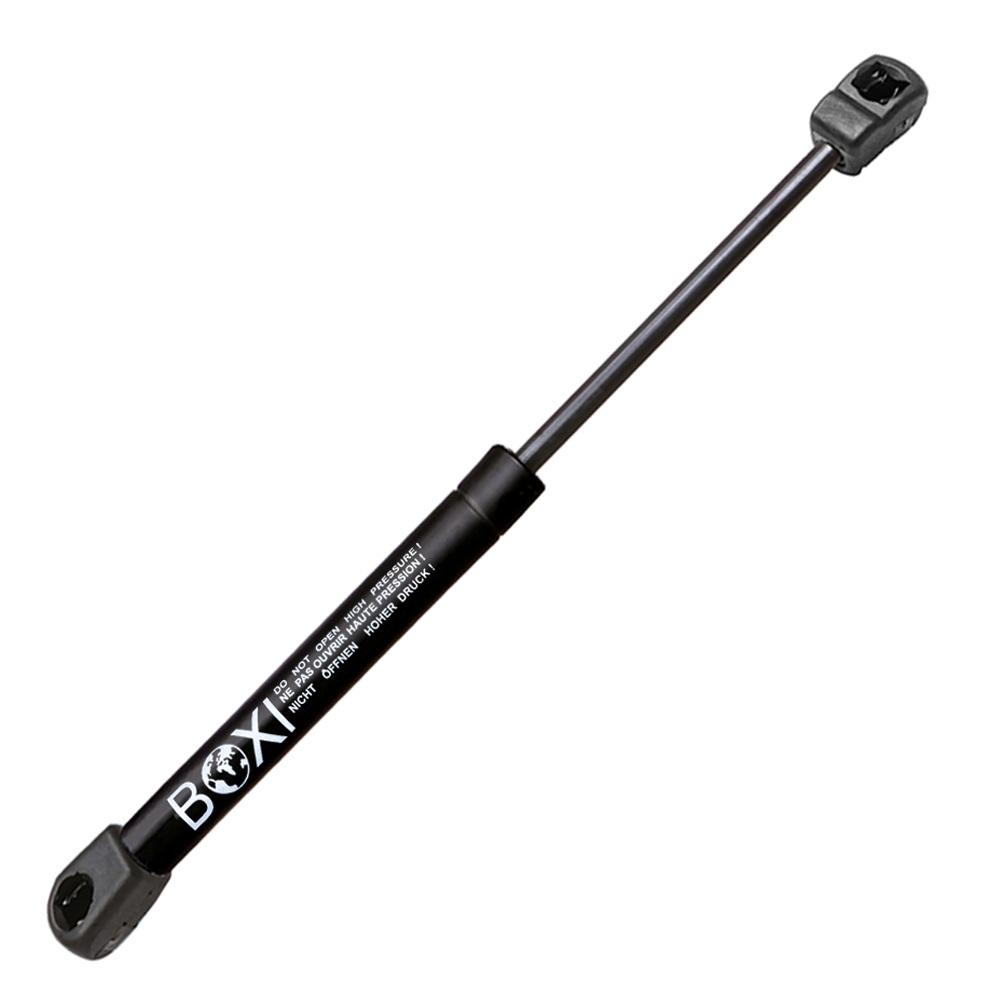

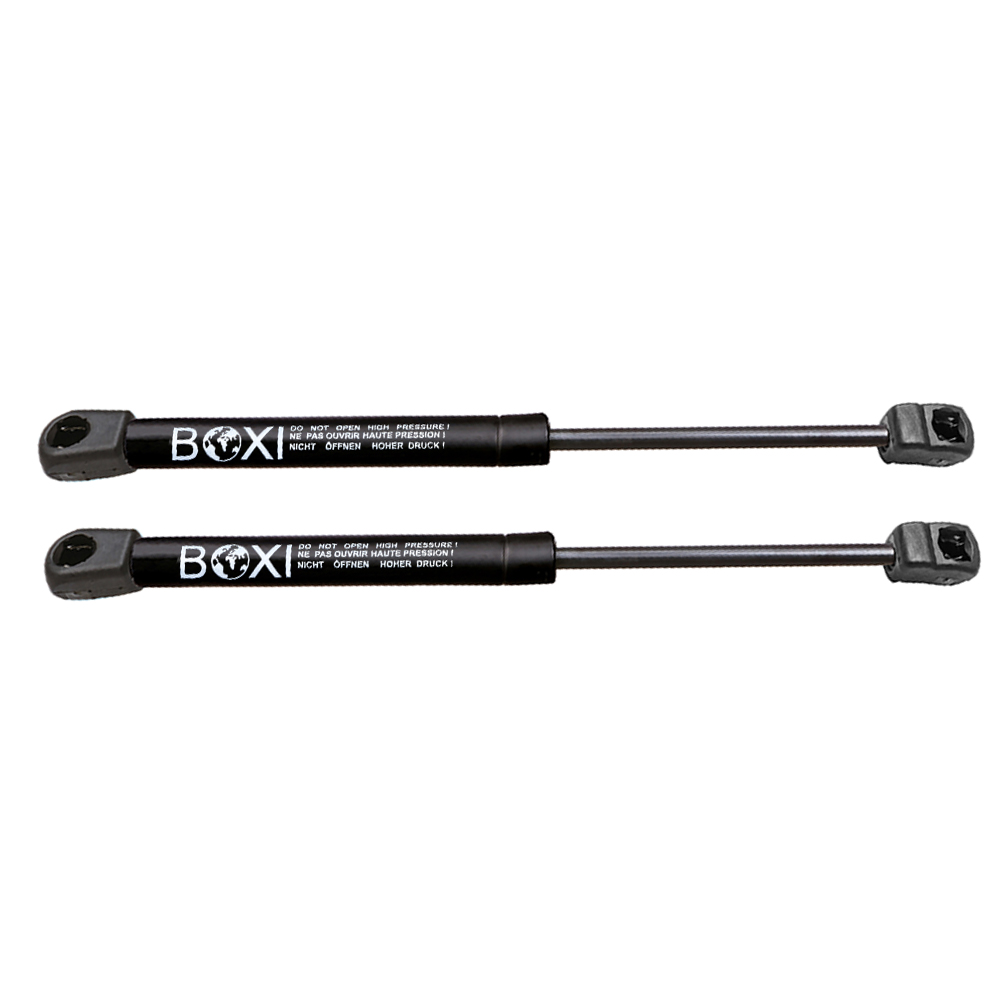

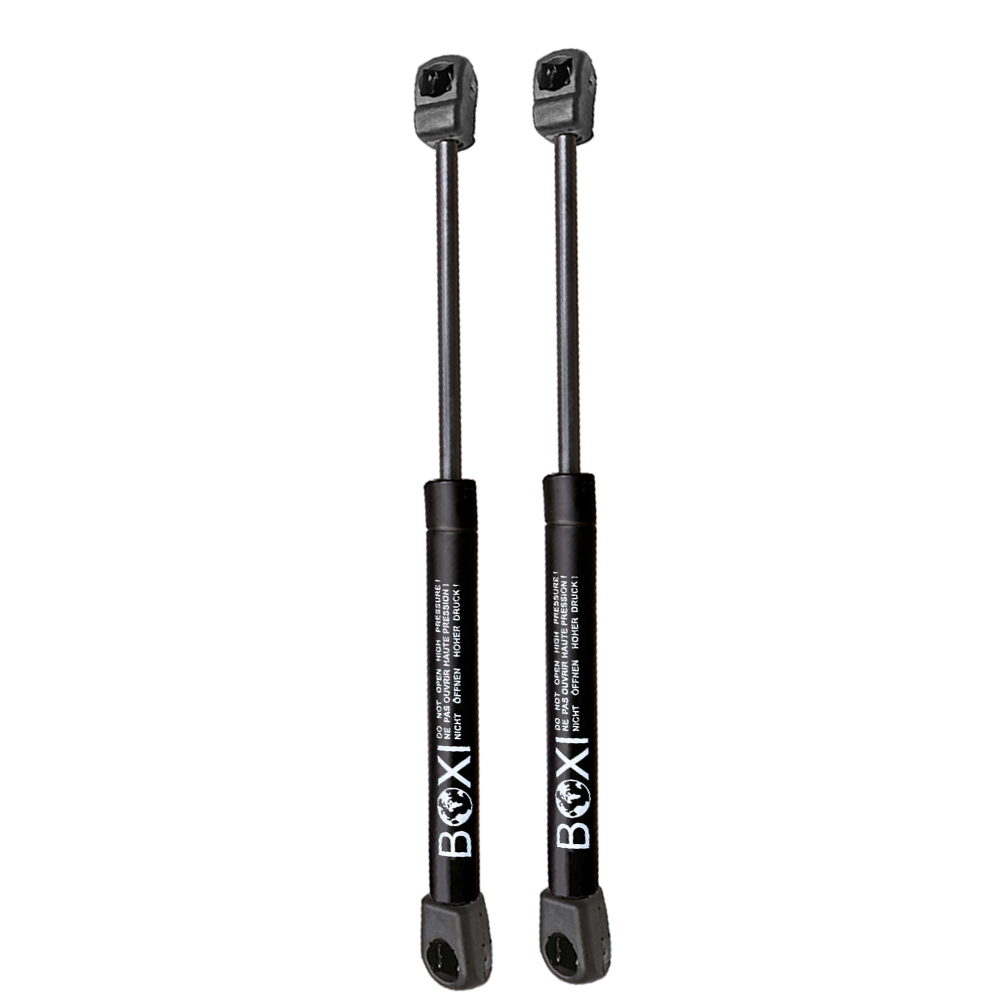

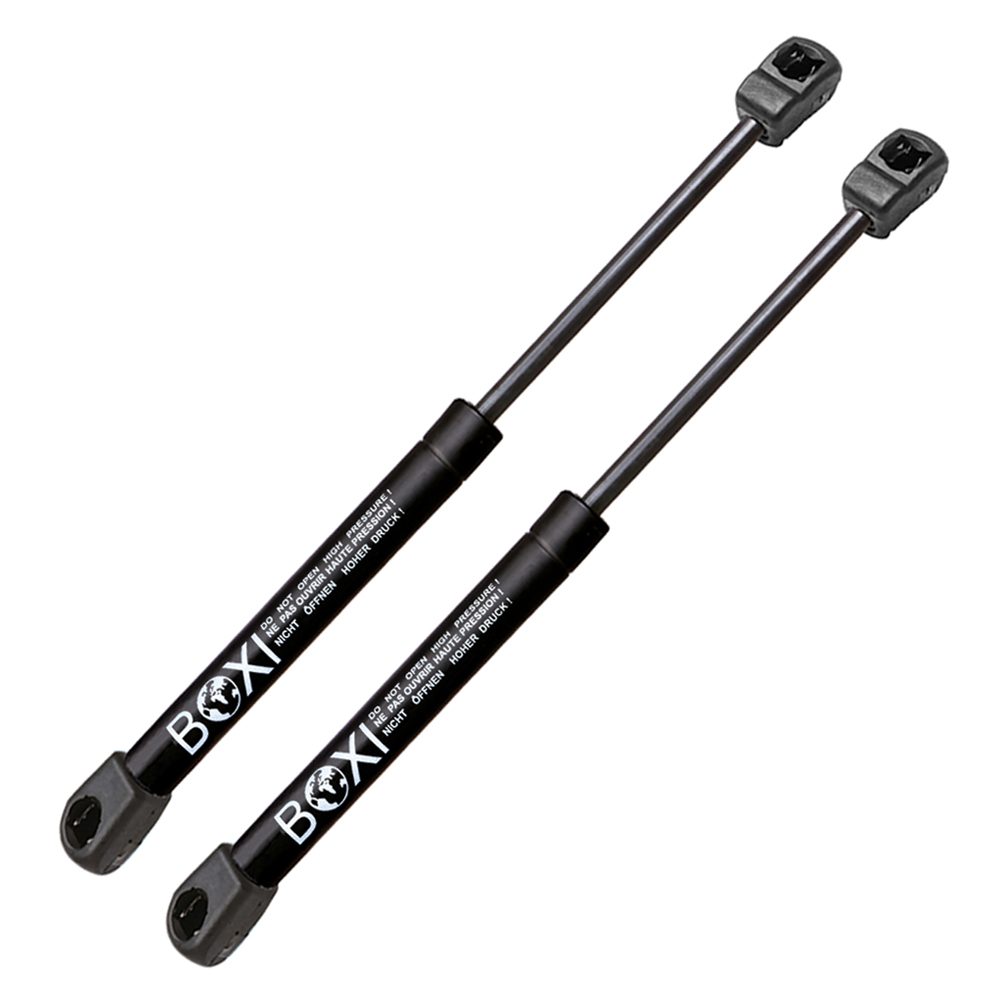

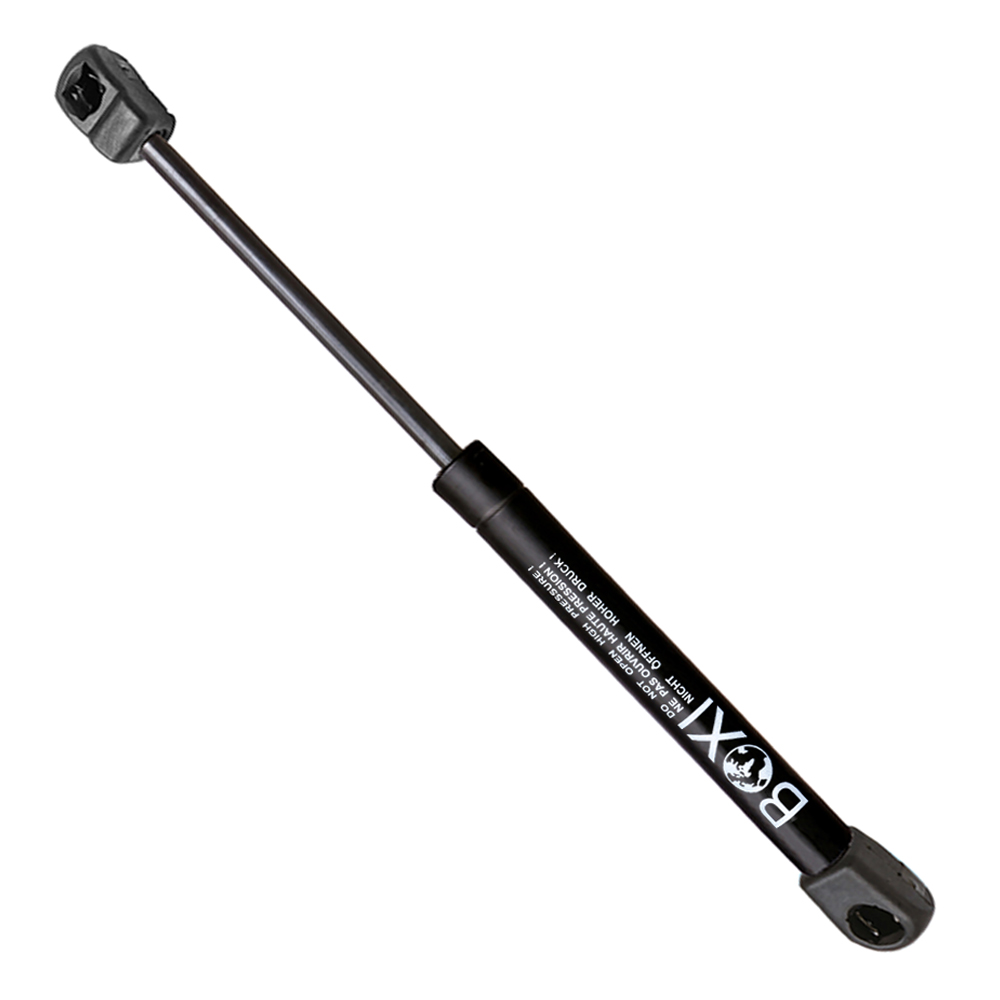

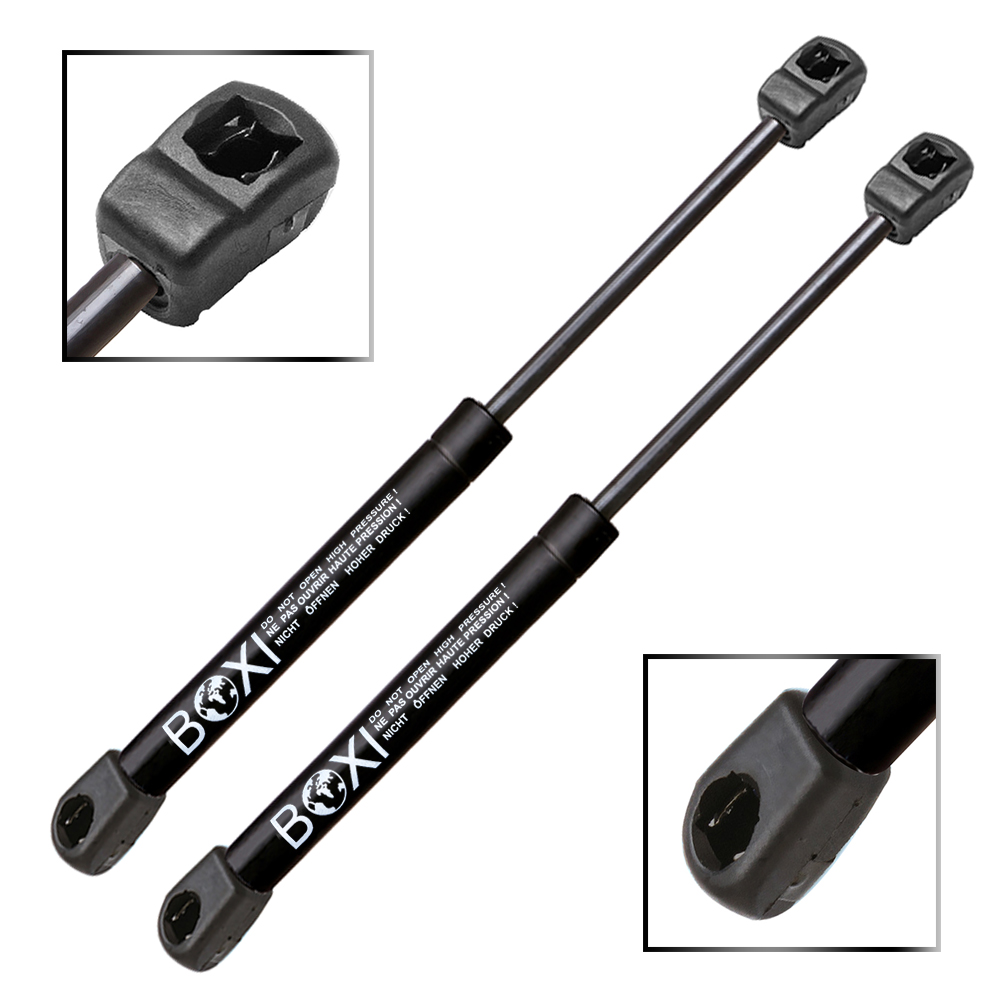

BOXI 2pcs Front Hood Lift Supports Struts Shocks Gas Struts Shocks Springs Supports for Kia Sedona 2002 2003 2004 2005 2006 Passenger Van Hood | Replaces 6314 SG350011

BOXI SKU#: BXC300037028-2

$19.76

BOXI front hood lift supports/shocks for 2002-2006 Kia Sedona (Base, EX, LX). Replaces OE 6314 SG350011. Set of 2 struts. Verify fitment before ordering.

OE / Interchange Part Numbers: 1561RK, 6314, 8559IK, 95364, E95364, SG350011

  • 5 Years Warranty

210 in stock

Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports

Extended Length [in] 15.64
Compressed Length [in] 9.89

Fits the following Kia Sedona Years:
2002-2006 | Base Passenger Van 4-Door Hood-Models With 2 Hood Supports
2003-2006 | EX Mini Passenger Van 4-Door Hood-Models With 2 Hood Supports
2003-2005 | EX Mini Passenger Van 5-Door Hood
2003-2006 | LX Mini Passenger Van 4-Door Hood-Models With 2 Hood Supports
2003-2005 | LX Mini Passenger Van 5-Door Hood

Weight 1.01 lbs
Dimensions 17.72 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

397
Stroke (in):

6.19
Stroke (mm):

157
Compressed Length (in)

Compressed Length (mm):

240
Force (Lbs)

Force (Newtons)

440
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

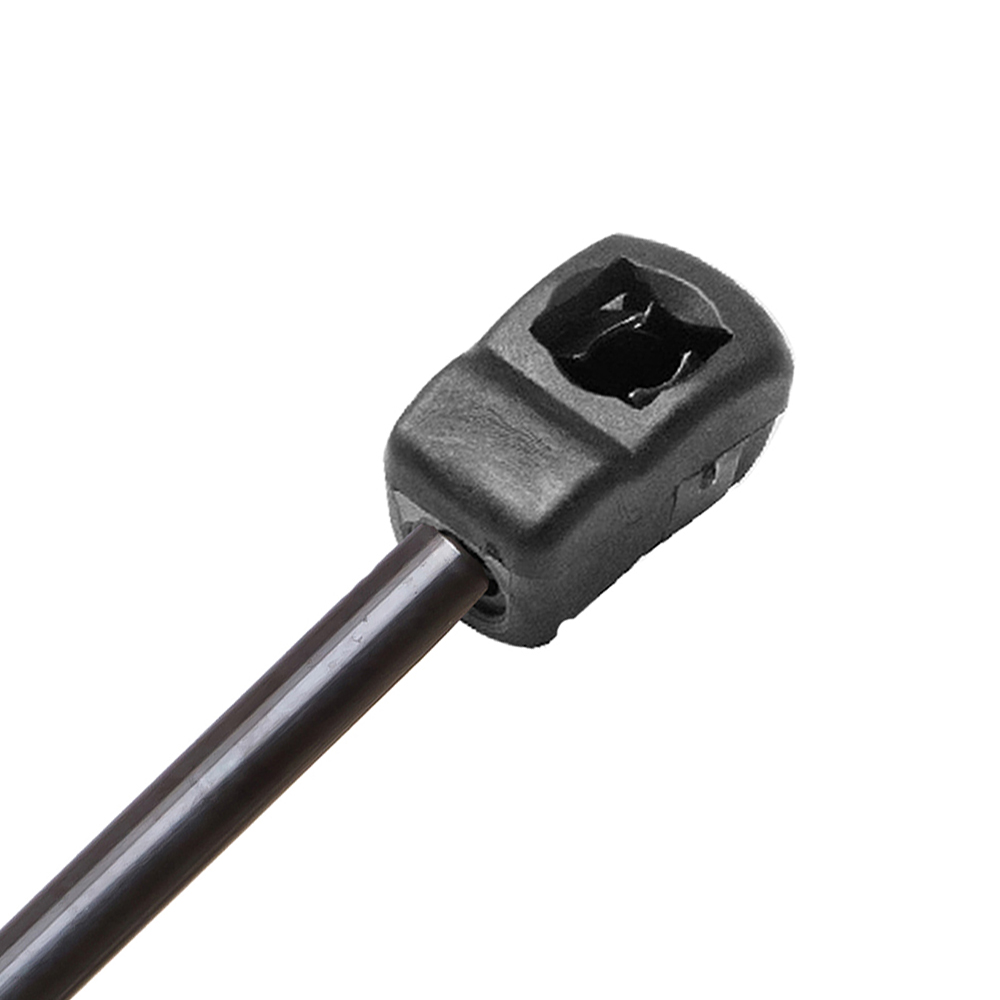

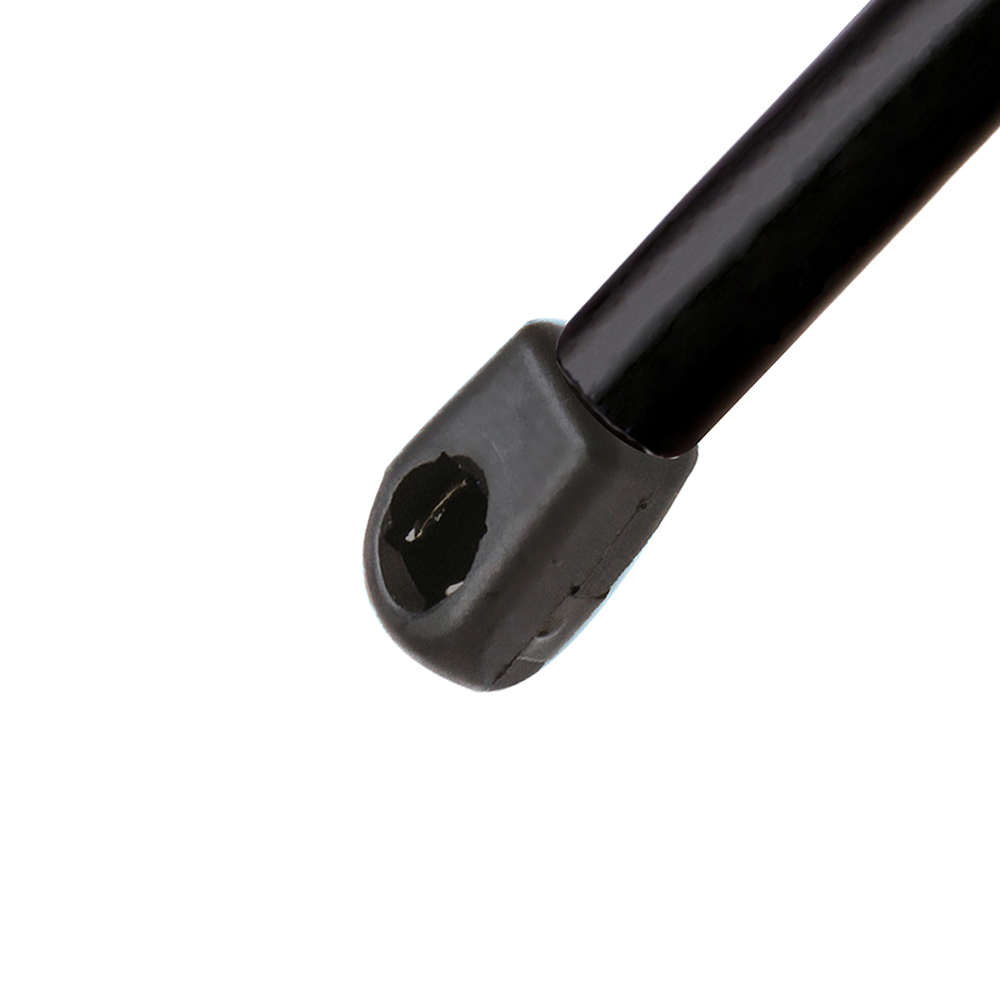

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

0K53Y-62-620, 0K53Y-62-620A, 0K53Y-63-620, 0K53Z-62-620A, 0K53Z-63-620A, 0K53Z56620B, 0K53Z56630B, 0K52Y-62-620A, TFS613471, 613471, SG350011, OK53Y56630, OK53Y56620, E95364, E6314, 926 28008 810, 901730, 819-6503, 6314, 0K53Y-56-630, 0K53Y-56-620
YearMakeModelSubmodelEngine
2003 – 2005KiaSedonaEX
LX		V6 – 3.5L 3497cc GAS MFI – 4 valve DOHC
V6 – 3.5L 3497cc GAS MFI vin 1 – 4 valve DOHC
