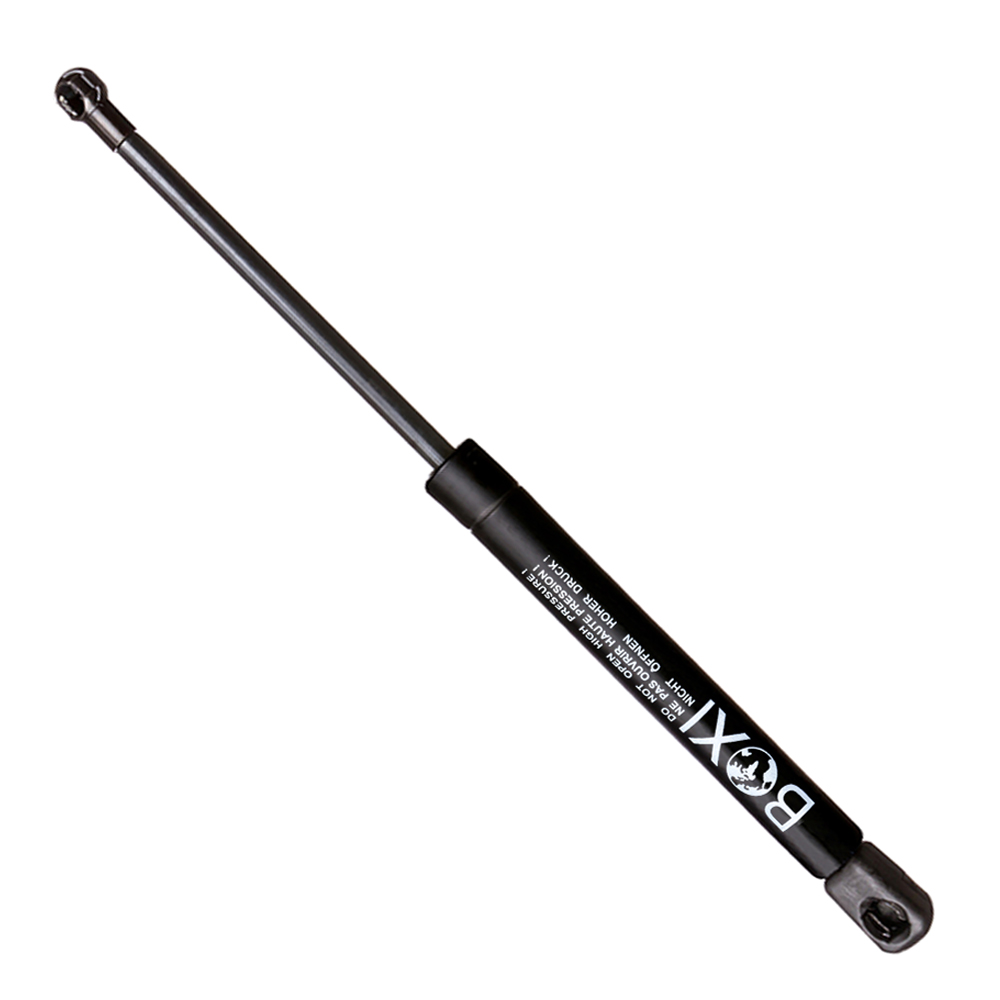

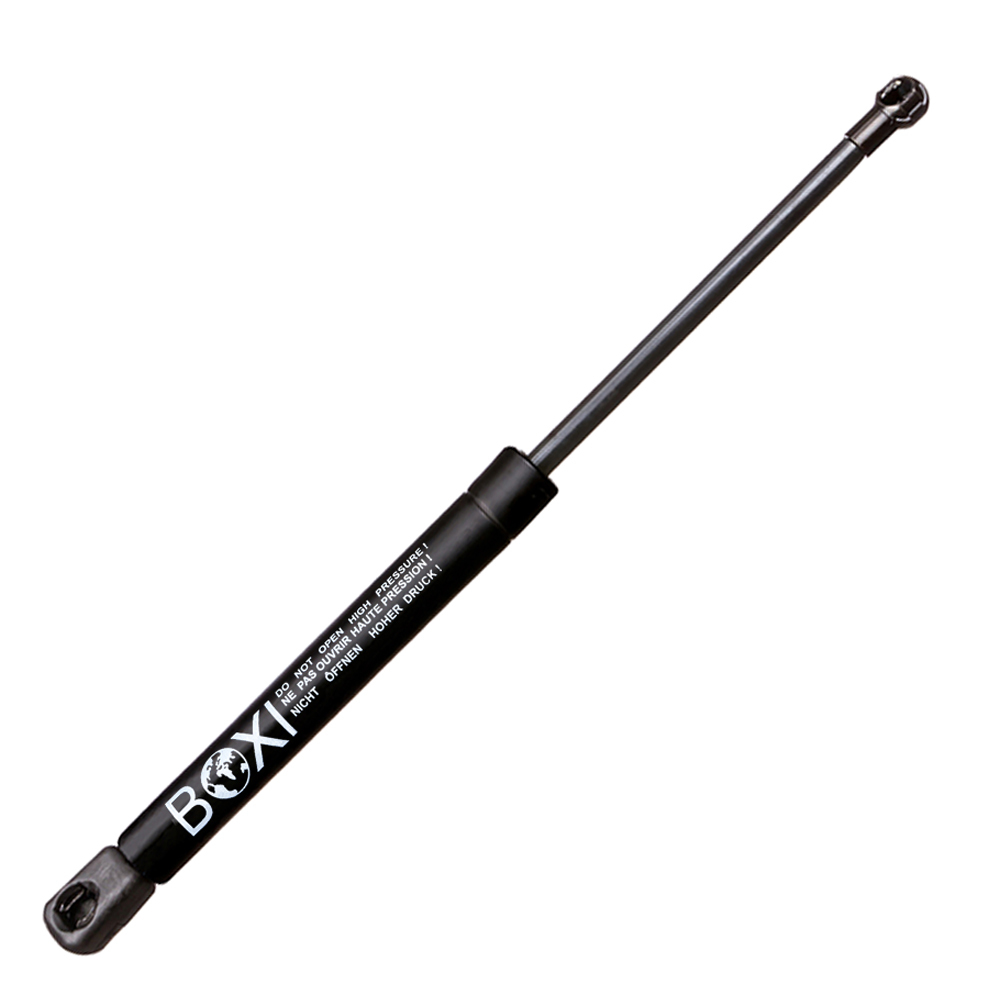

BOXI Rear Tailgate Lift Supports Struts Compatible for Toyota RAV4 2012-2017 Without Power Liftgate 2-PC / 6842 PM3679 68950-0R010 SG229045 4B-853269
BOXI SKU#: BXC300035186-2
$19.39
BOXI Rear Tailgate Lift Supports Struts for 2012-2017 Toyota RAV4 without power liftgate. Replaces OE numbers 6842, PM3679, 68950-0R010, SG229045, 4B-853269. Verify fitment before ordering.
77 in stock
Placement on Vehicle:Liftgate

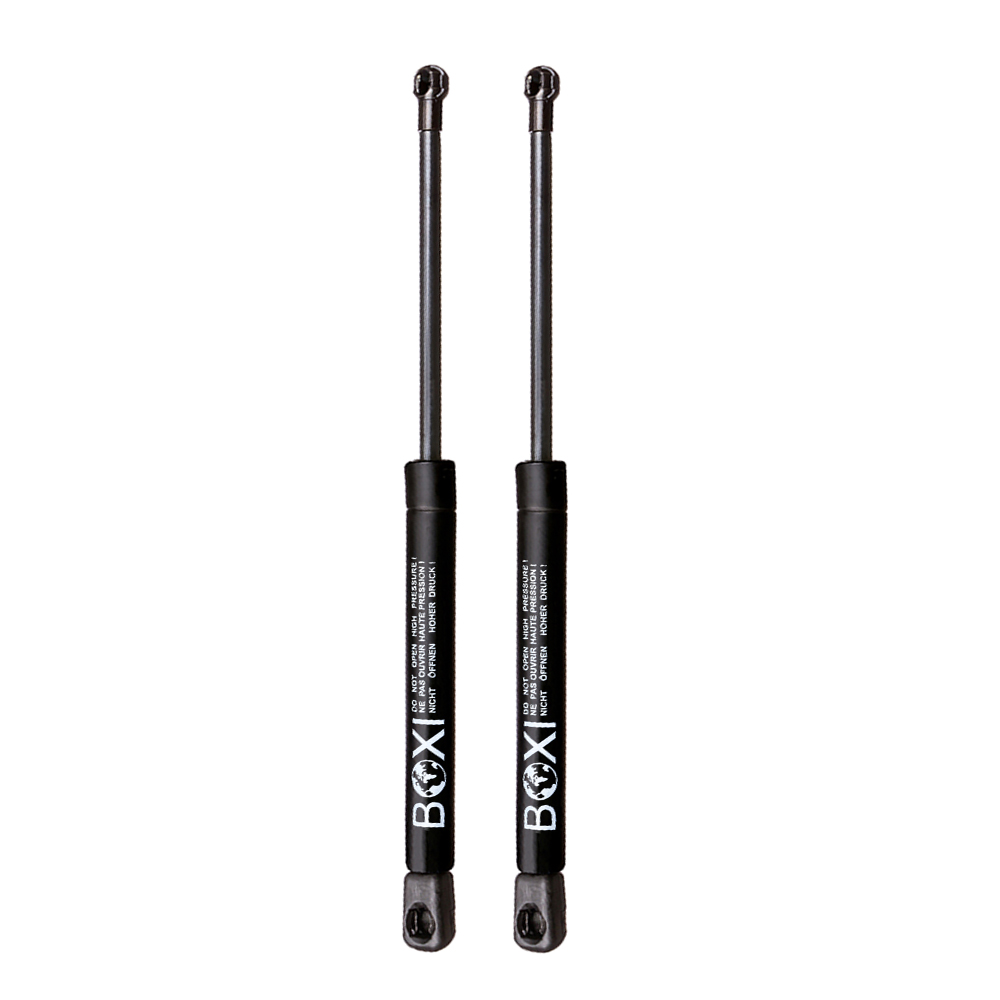

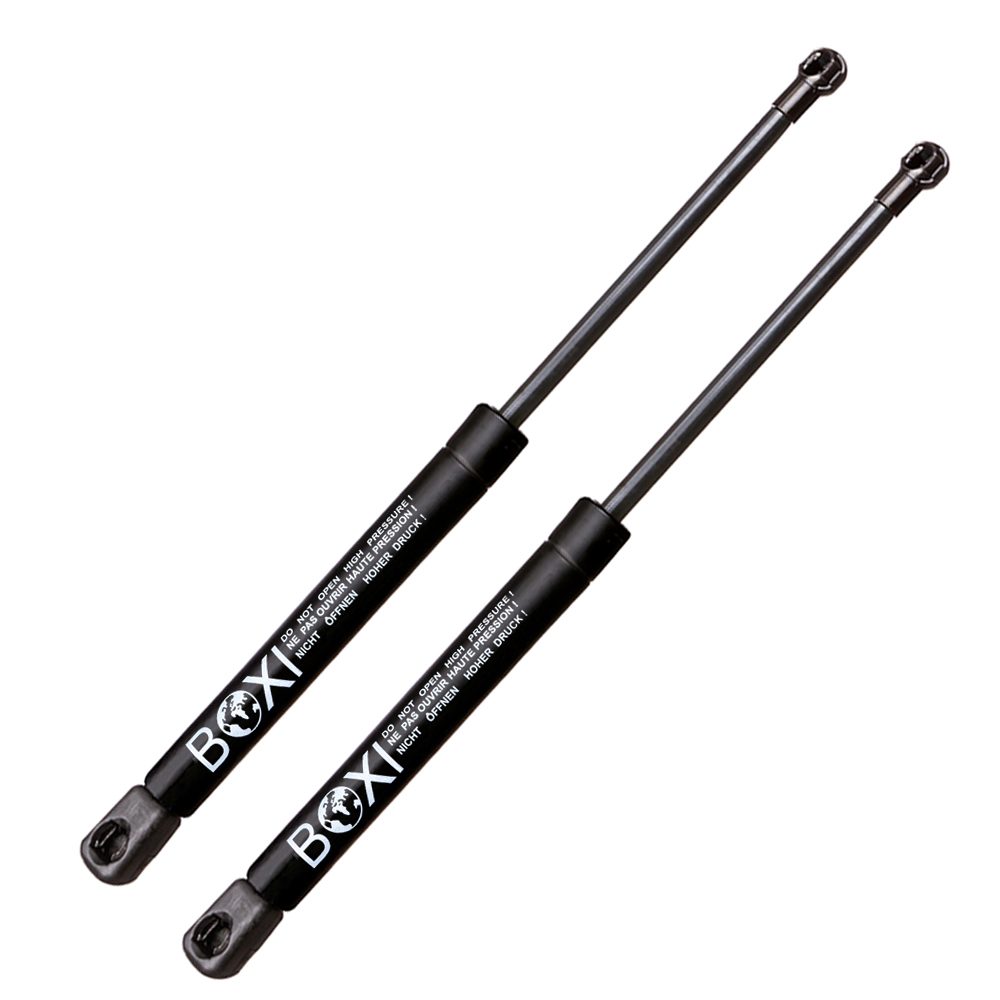

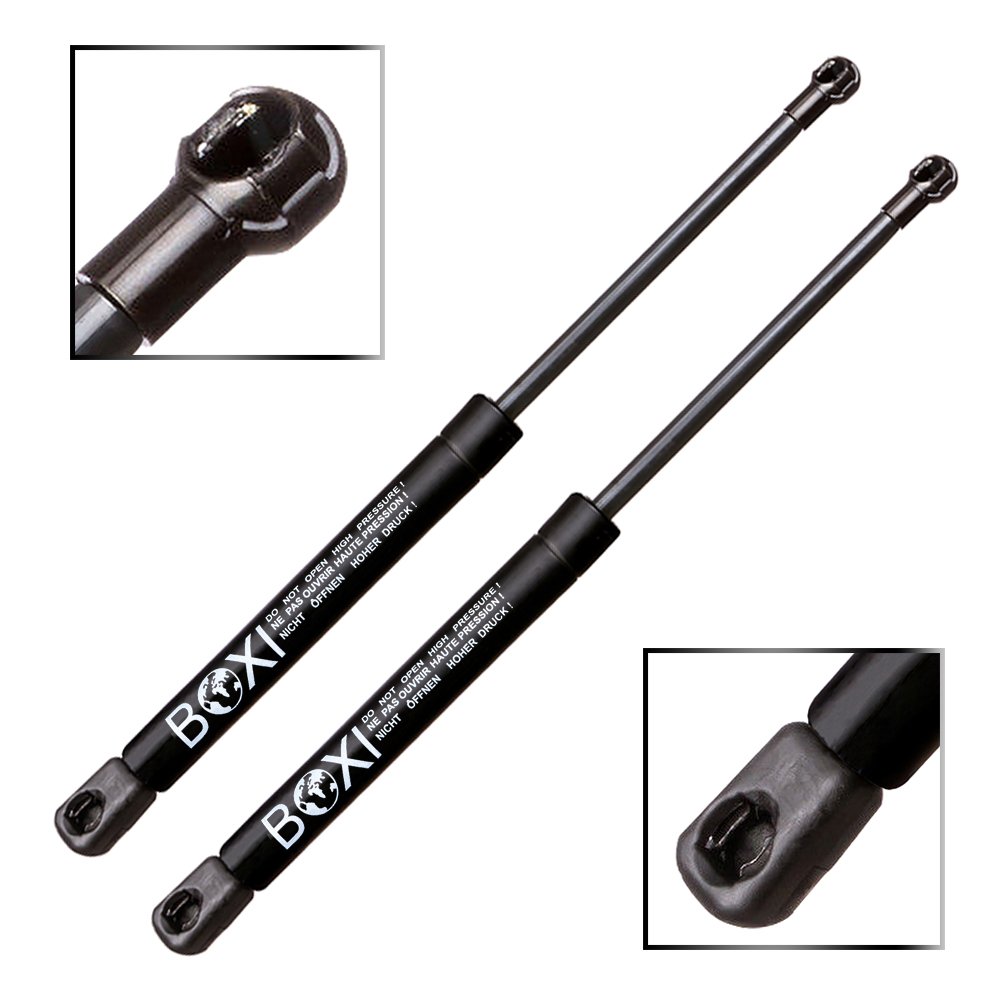

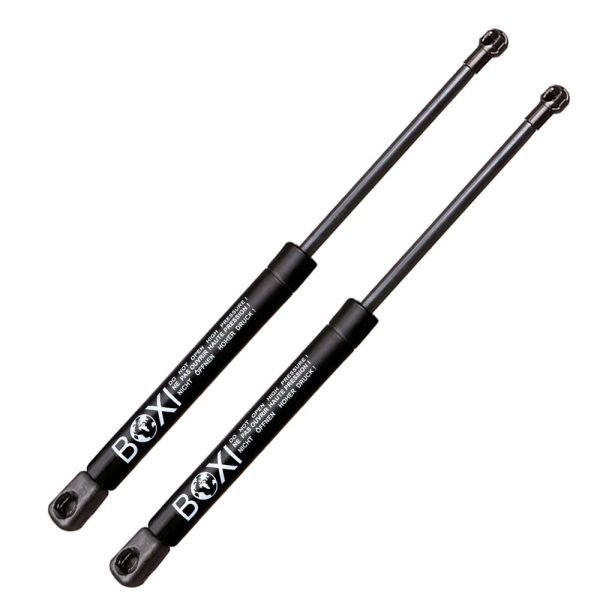

Package Included:2pcs Liftgate Lift Supports
Fits the following vehicles:
2012-2017 Toyota RAV4 Base Sport Utility 4-Door Liftgate-Without Power Liftgate
2012-2017 Toyota RAV4 LE Sport Utility 4-Door Liftgate-Without Power Liftgate
2012-2017 Toyota RAV4 Limited Sport Utility 4-Door Liftgate-Without Power Liftgate
2012-2017 Toyota RAV4 XLE Sport Utility 4-Door Liftgate-Without Power Liftgate
| Weight | 1.65 lbs |
|---|---|
| Dimensions | 21.65 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 504 |
| Stroke (in): | 6.39 |
| Stroke (mm): | 160 |
| Compressed Length (in) | |
| Compressed Length (mm): | 344 |
| Force (Lbs) | |
| Force (Newtons) | 820 |
| Cylinder Diameter (in): | 0.87 |
| Cylinder Diameter (mm): | 22 |
| Rod Diameter (in): | 0.39 |
| Rod Diameter (mm): | 10 |

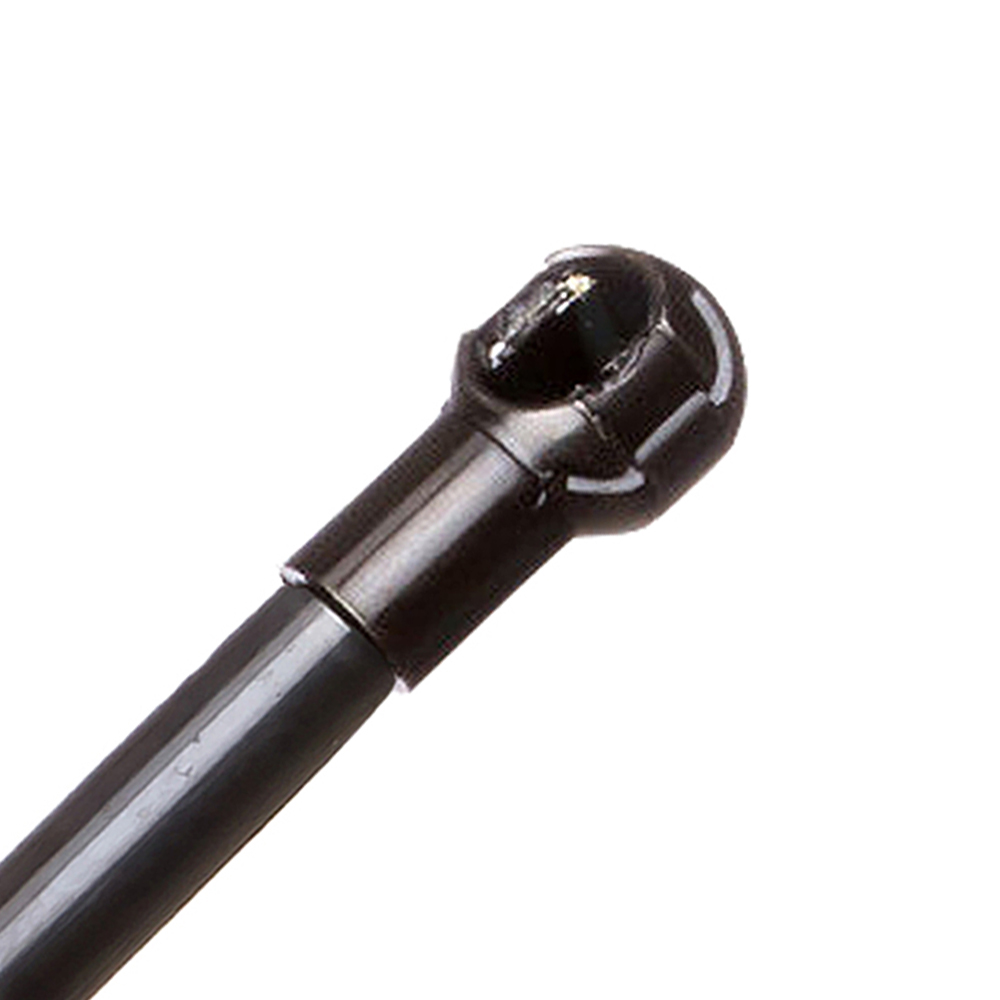

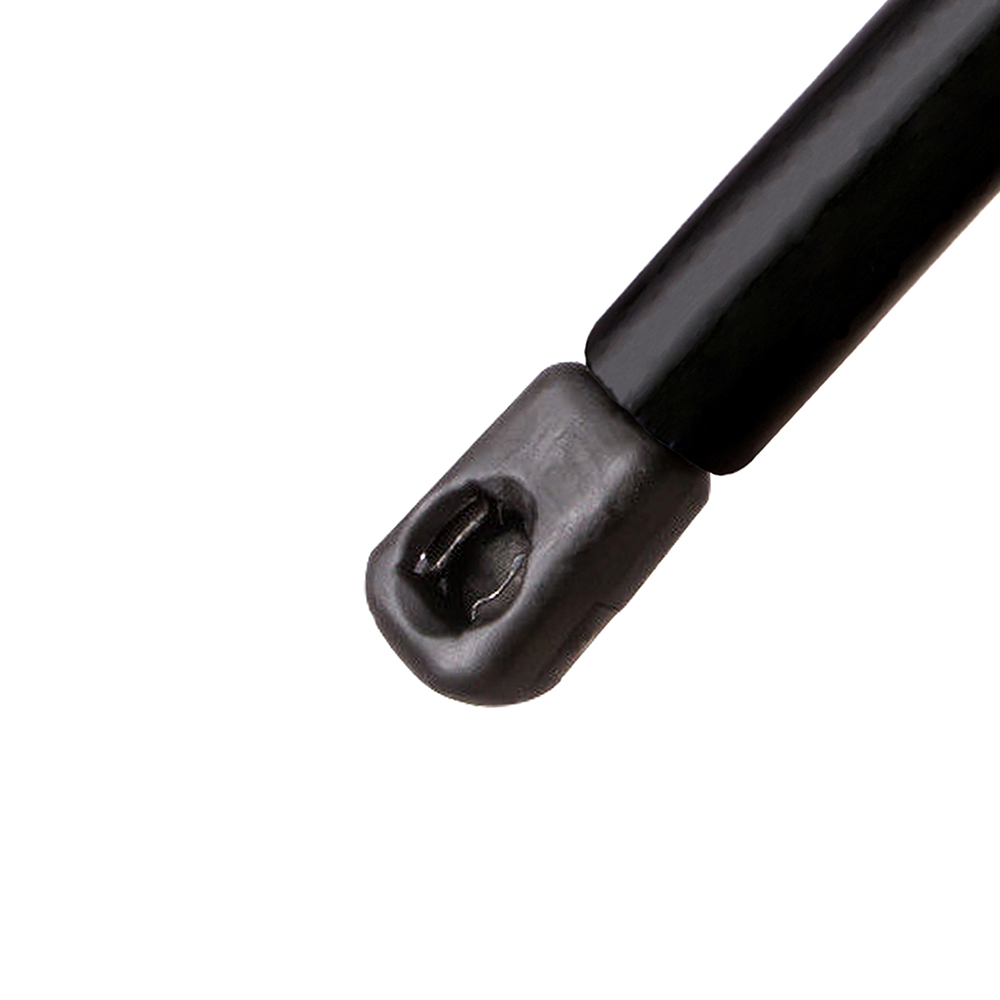

| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 689500R010, 68960-0R010, 819-7083, D96842, SG229045, D6842, 900258 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2013 – 2014 | Toyota | RAV4 | EV | BATTERY EV |
| 2016 | Toyota | RAV4 | Hybrid Limited Hybrid XLE | L4 – 2.5L 2494cc 152ci FULL HYBRID EV-GAS MFI type 2AR-FXE – 4 valve DOHC |
| SE | L4 – 2.5L 2488cc 152ci GAS MPI type 2AR-FE – 4 valve DOHC | |||
| L4 – 2.5L 2494cc 152ci GAS MFI type 2AR-FE – 4 valve DOHC | ||||
| 2013 – 2016 | Toyota | RAV4 | LE Limited XLE | L4 – 2.5L 2488cc 152ci GAS MPI type 2AR-FE – 4 valve DOHC |
| L4 – 2.5L 2494cc 152ci GAS MFI type 2AR-FE – 4 valve DOHC | ||||
| 2013 – 2015 | Toyota | RAV4 | Limited Platinum | L4 – 2.5L 2488cc 152ci GAS MPI type 2AR-FE – 4 valve DOHC |
