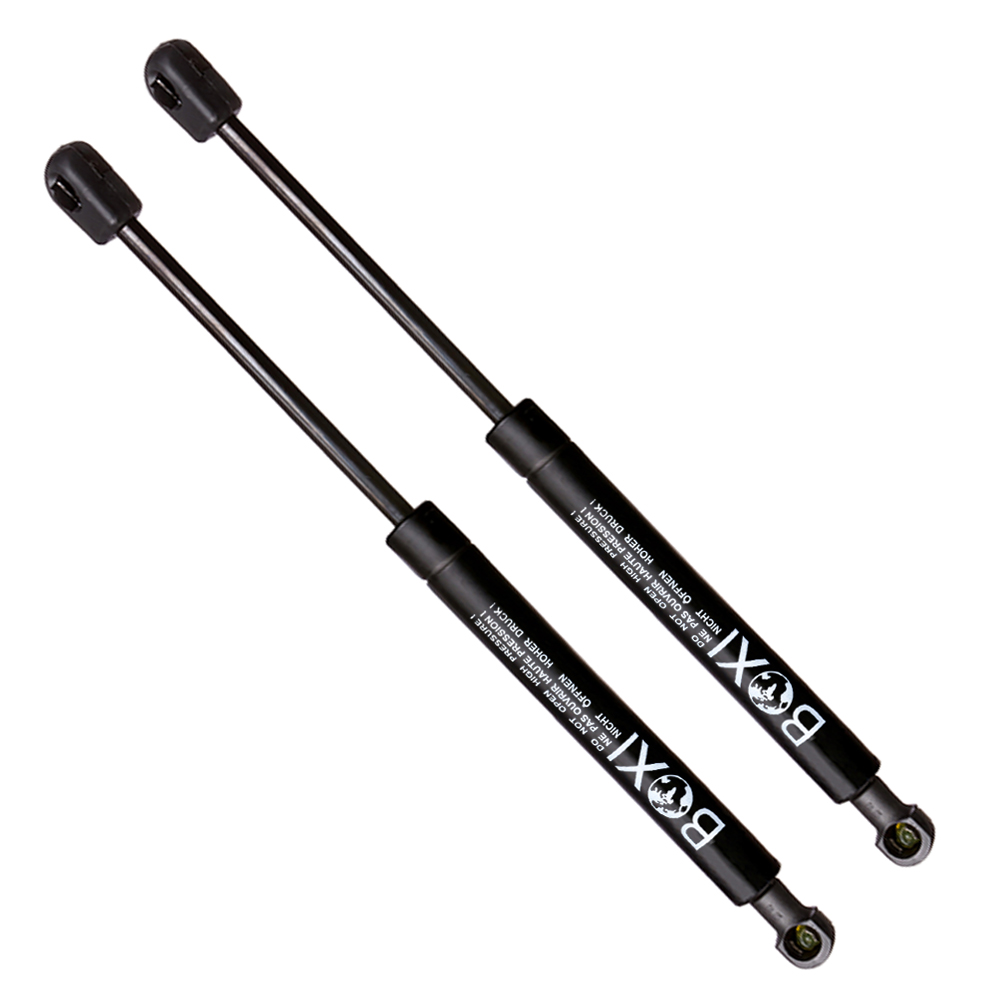

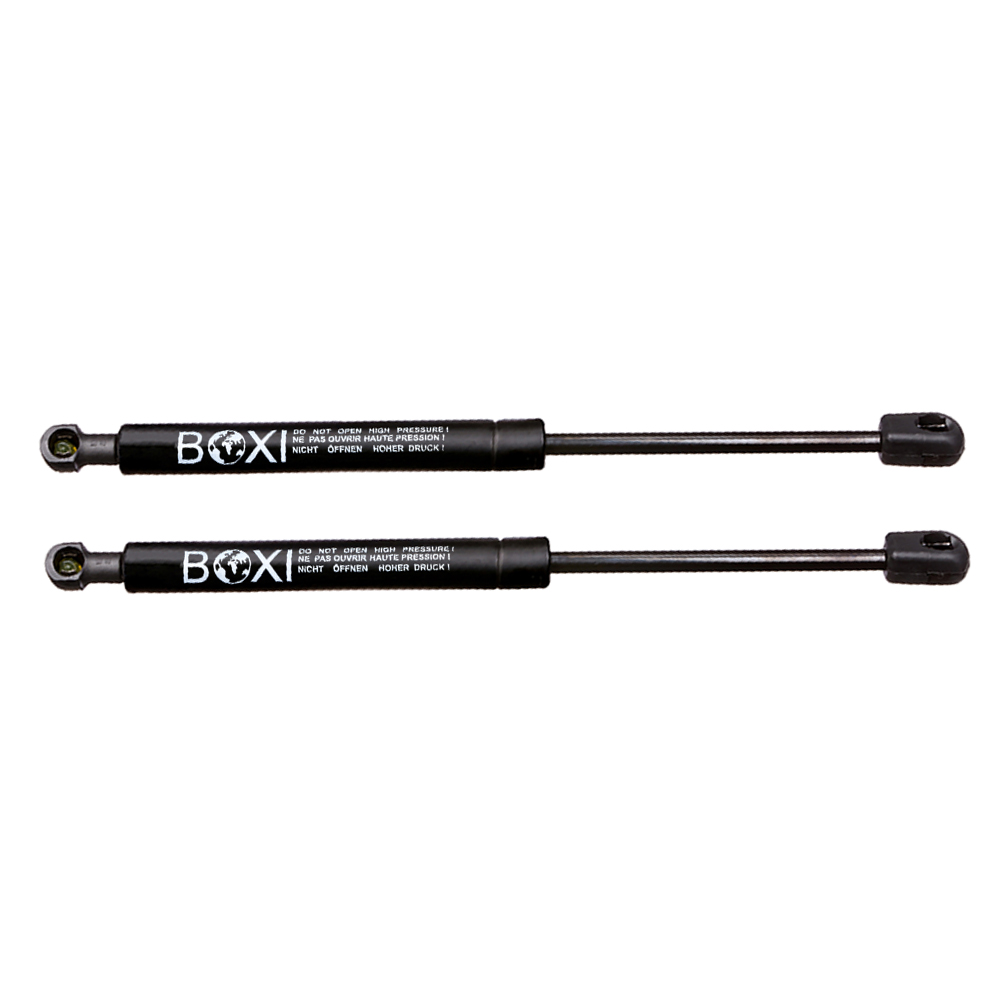

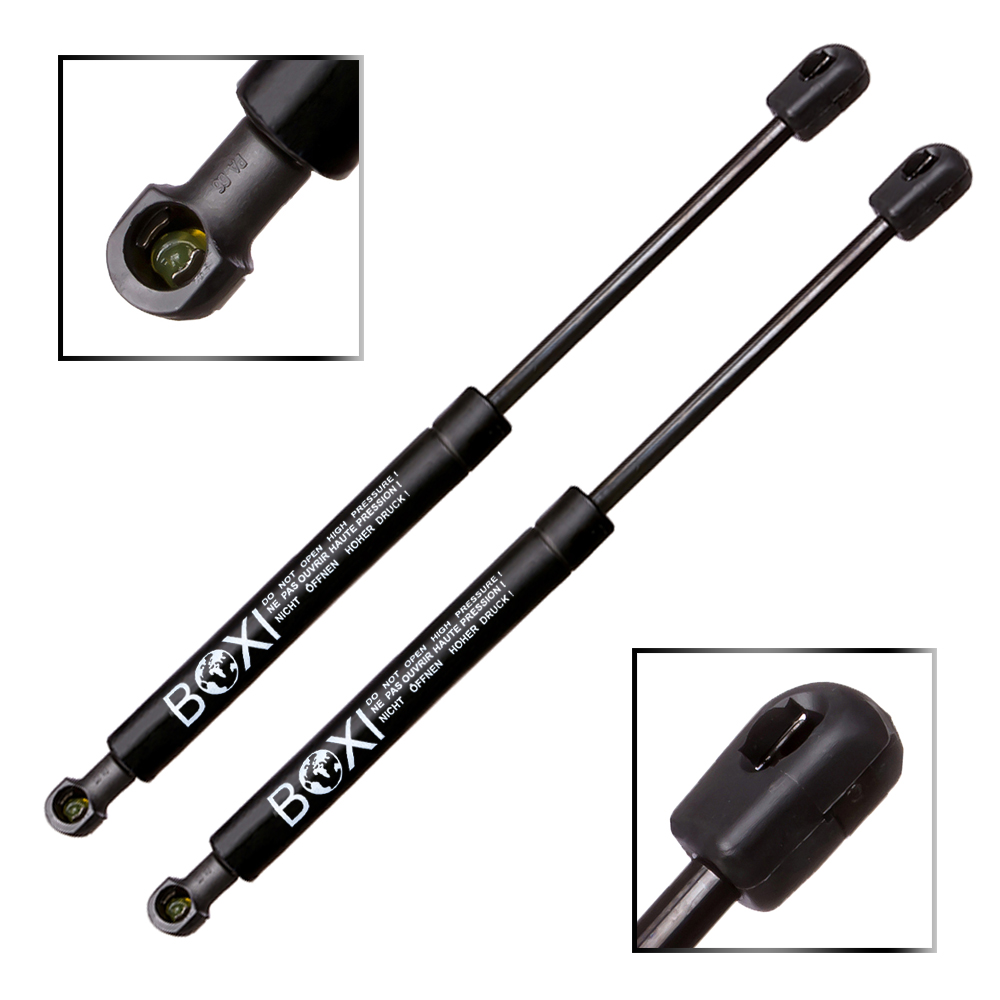

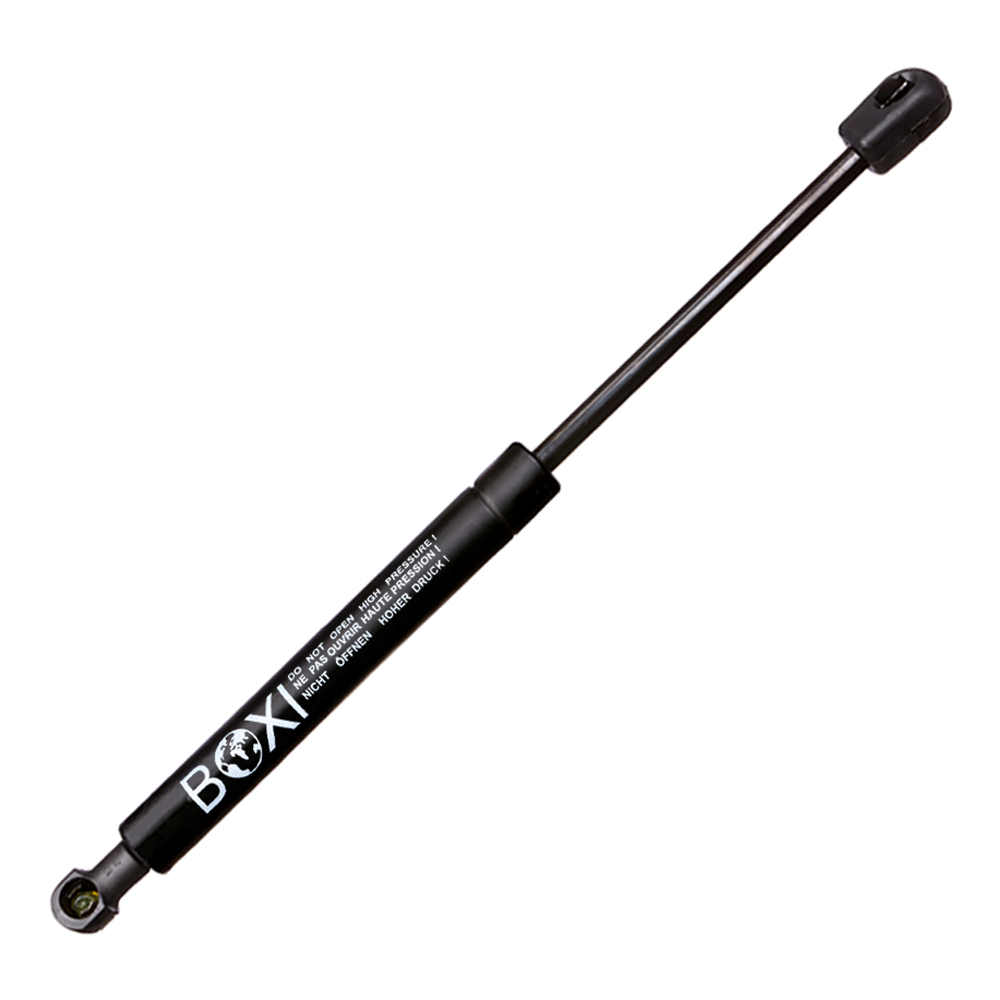

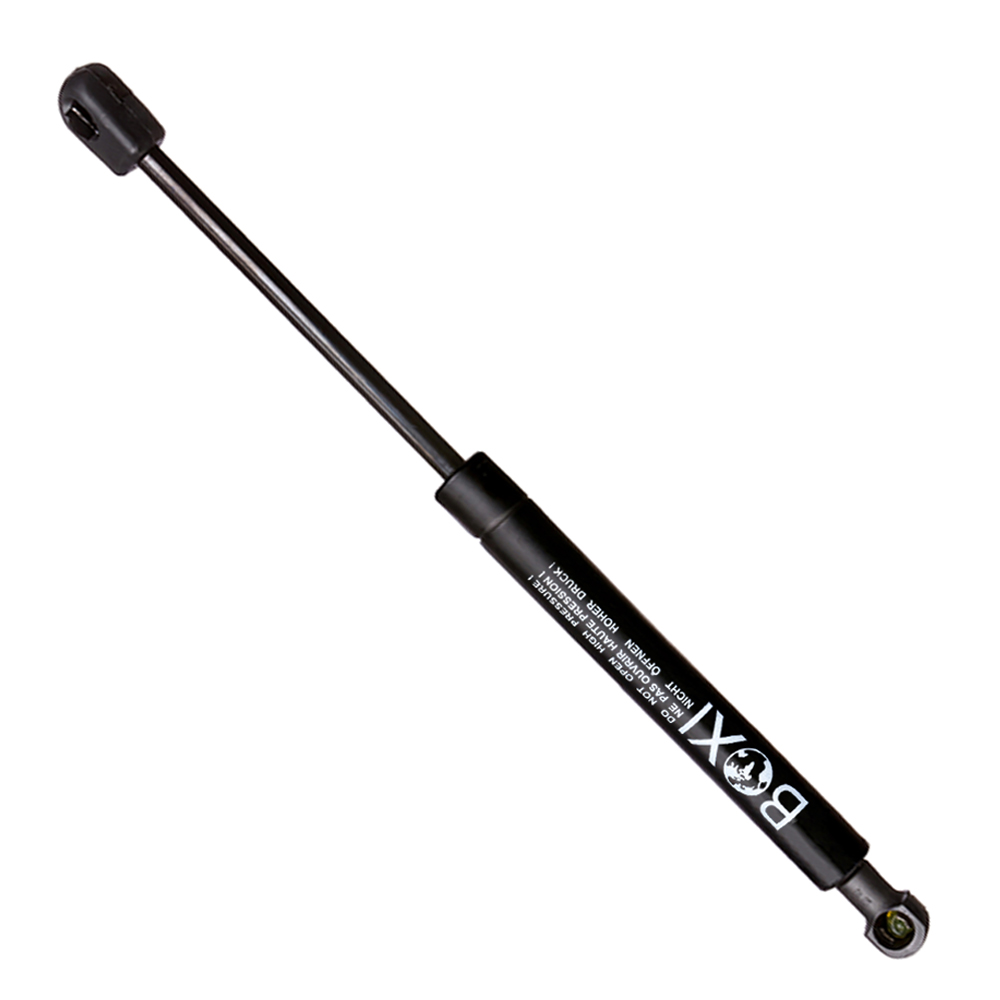

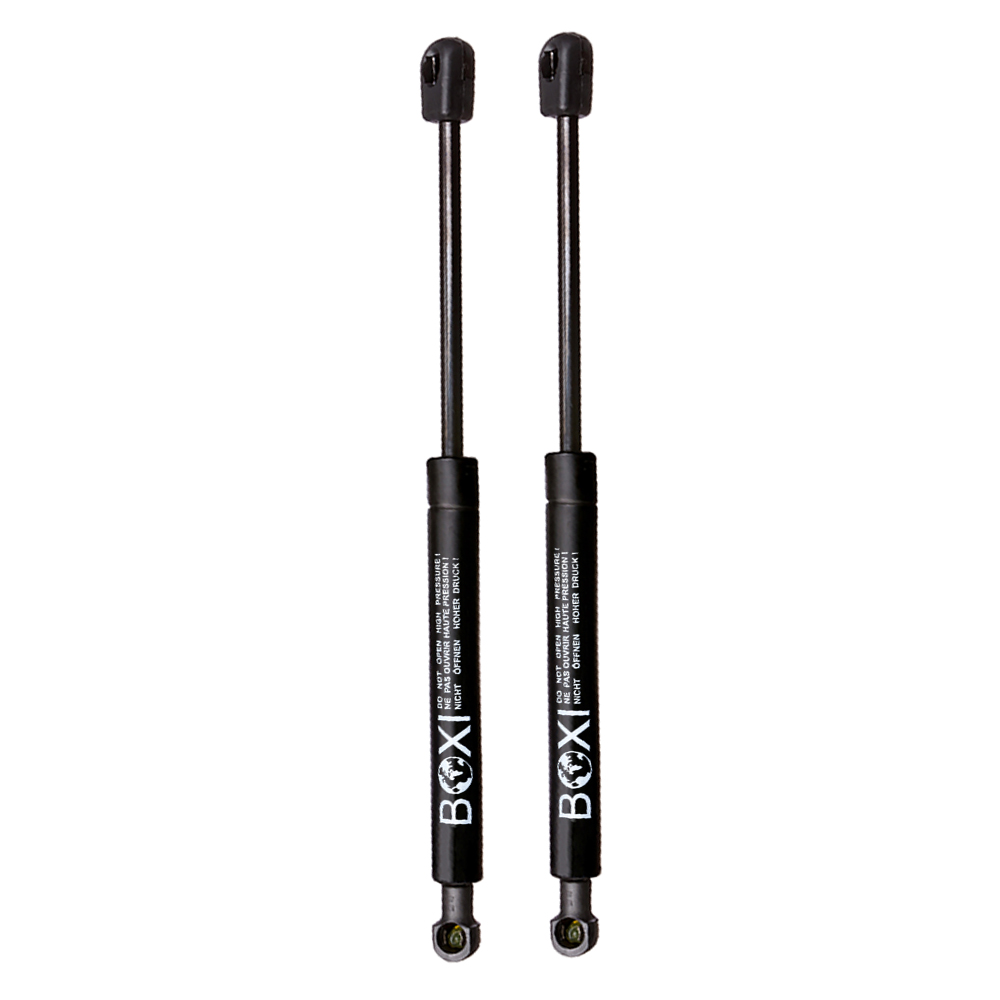

BOXI Qty (2) Front Hood Lift Supports Gas Shocks Springs Struts for Toyota Tundra 2014 2015 2016 2017 2018 2019 2020 2021 2022 Hood-Exc TRD Sport Package | Replaces 7168 534400C030

BOXI SKU#: BXC300035185-2

$27.68

BOXI hood lift supports fit Toyota Tundra models 2014-2022 (excludes TRD Sport Package). Replaces OE numbers 7168, 534400C030. Verify fitment before ordering.

OE / Interchange Part Numbers: 500C03, 500C04, 500C050, 7168, PM3479

  • 5 Years Warranty

73 in stock

Placement on Vehicle:Front Hood
Package Included:2pcs Front Hood Lift Supports

Vehicle Location – Hood-Exc TRD Sport Package
Fits the following Toyota Tundra Years:
2018-2019 | 1794 Crew Cab Pickup 4-Door
2014-2019 | 1794 Edition Extended Crew Cab Pickup 4-Door
2014-2022 | 1794 Edition Standard Cab Pickup 2-Door
2014-2021 | Base Crew Cab Pickup 4-Door
2014-2021 | Base Extended Crew Cab Pickup 4-Door
2014-2021 | Base Standard Cab Pickup 2-Door
2014-2021 | Limited Crew Cab Pickup 4-Door
2014-2021 | Limited Extended Crew Cab Pickup 4-Door
2014-2022 | Limited Standard Cab Pickup 2-Door
2017-2019 | Ltd Crew Cab Pickup 4-Door
2014-2019 | Platinum Extended Crew Cab Pickup 4-Door
2014-2021 | Platinum Sport Utility 4-Door
2014-2022 | Platinum Standard Cab Pickup 2-Door
2014-2016 | SR Crew Cab Pickup 2-Door
2014-2021 | SR Crew Cab Pickup 4-Door
2019 | SR Extended Crew Cab Pickup 4-Door
2014-2022 | SR Standard Cab Pickup 2-Door
2014-2016 | SR Standard Cab Pickup 4-Door
2014-2021 | SR5 Crew Cab Pickup 4-Door
2014-2019 | SR5 Extended Crew Cab Pickup 4-Door
2014-2022 | SR5 Standard Cab Pickup 2-Door
2014-2019 | TRD Pro Crew Cab Pickup 4-Door
2014-2019 | TRD Pro Extended Crew Cab Pickup 4-Door
2015-2022 | TRD Pro Standard Cab Pickup 2-Door

Weight 1.5 lbs
Dimensions 27.56 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

646
Stroke (in):

8.86
Stroke (mm):

225
Compressed Length (in)

Compressed Length (mm):

421
Force (Lbs)

Force (Newtons)

258
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

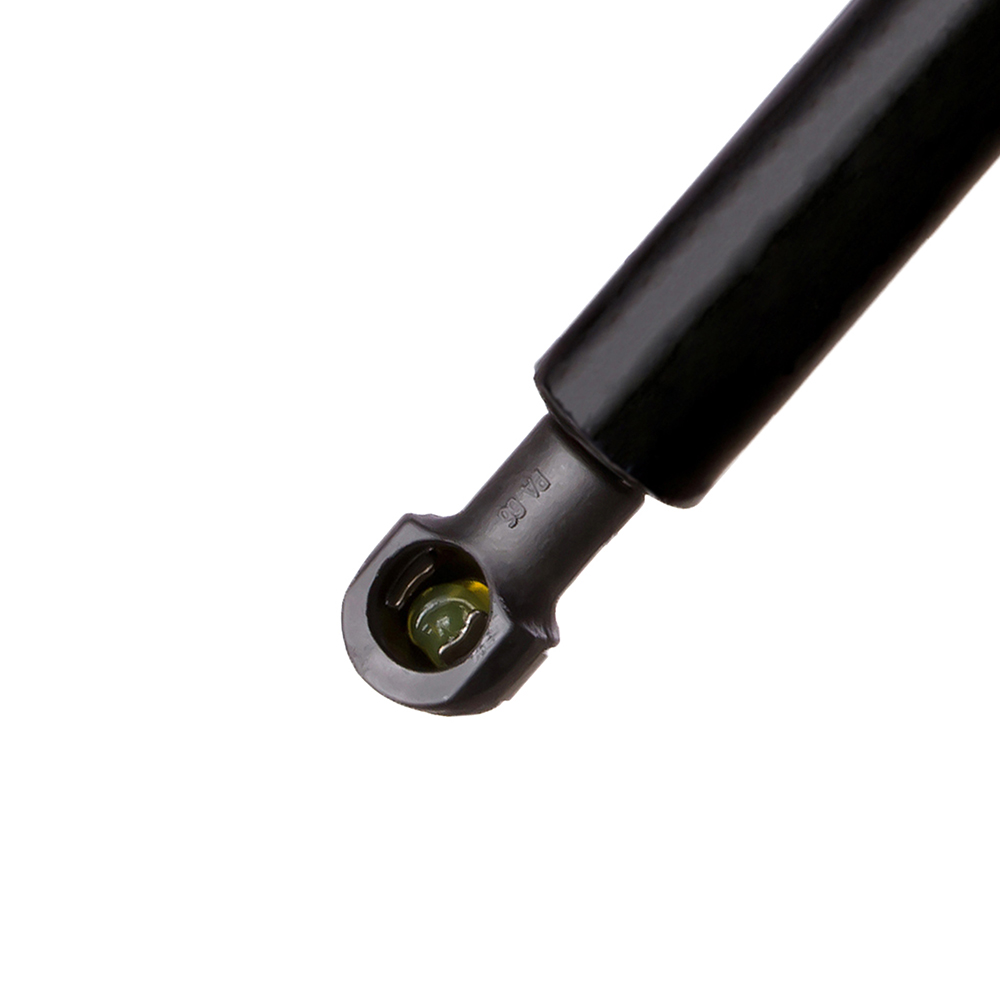

Body Connection:

Ball Socket

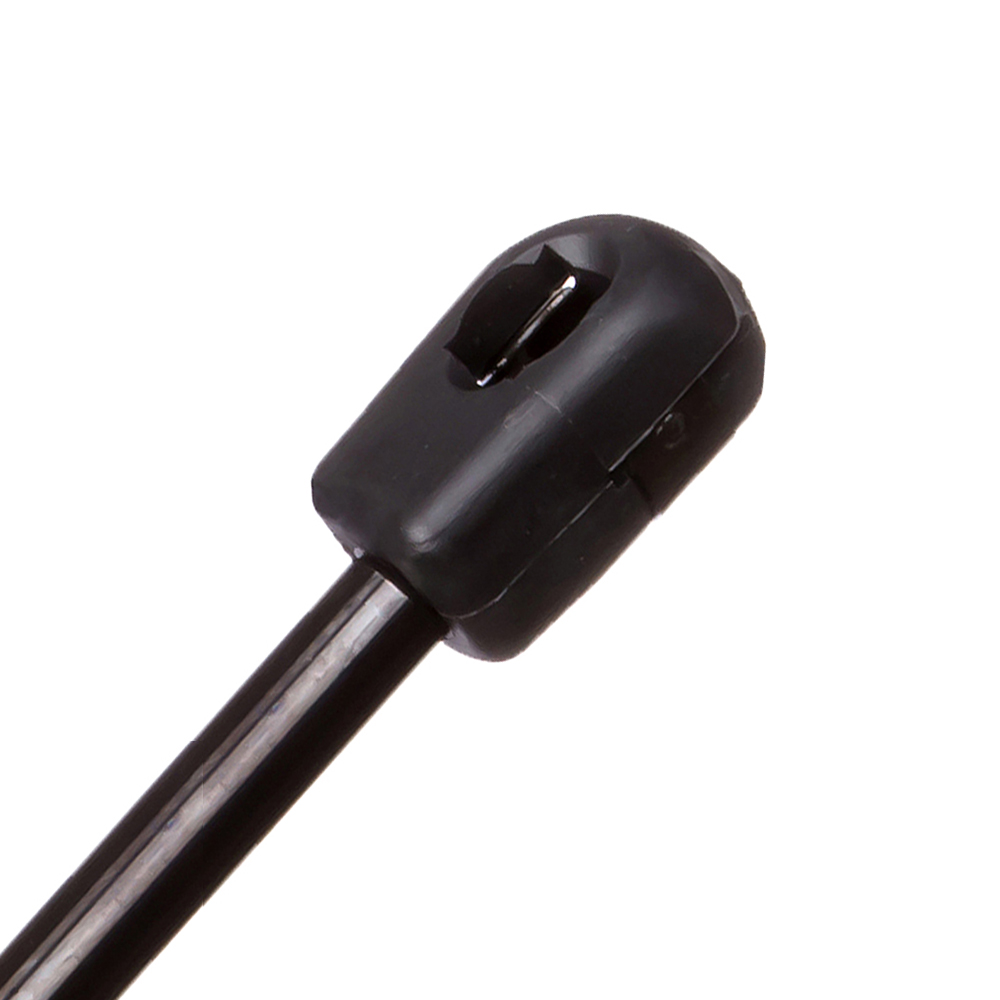

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

53440-0C030, 534400C050, 53450-0C030, 534500C050, 6655, C97168, SG329073, C7168, 610756
YearMakeModelSubmodelEngine
2018 – 2021ToyotaTundra1794V8 – 5.7L 5663cc 345ci GAS DI type 3UR-FE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2014 – 2021ToyotaTundra1794 Edition
Platinum		V8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
LimitedV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci GAS DI type 3UR-FE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
SRV6 – 4.0L 3956cc 241ci GAS MFI type 1GR-FE – 4 valve DOHC
V8 – 4.6L 4608cc GAS MFI type 1UR-FE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
SR5V8 – 4.6L 4608cc GAS MFI type 1UR-FE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2020 – 2021ToyotaTundraBase
TRD Off-Road		V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2021ToyotaTundraNightshade
TRAIL
TRD Off-Road Premium
TRD Sport Premium		V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2015 – 2021ToyotaTundraTRD ProV8 – 5.7L 5663cc 345ci FLEX MFI type 3UR-FBE – 4 valve DOHC
V8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
2020ToyotaTundraTRD SportV8 – 5.7L 5663cc 345ci GAS MFI type 3UR-FE – 4 valve DOHC
