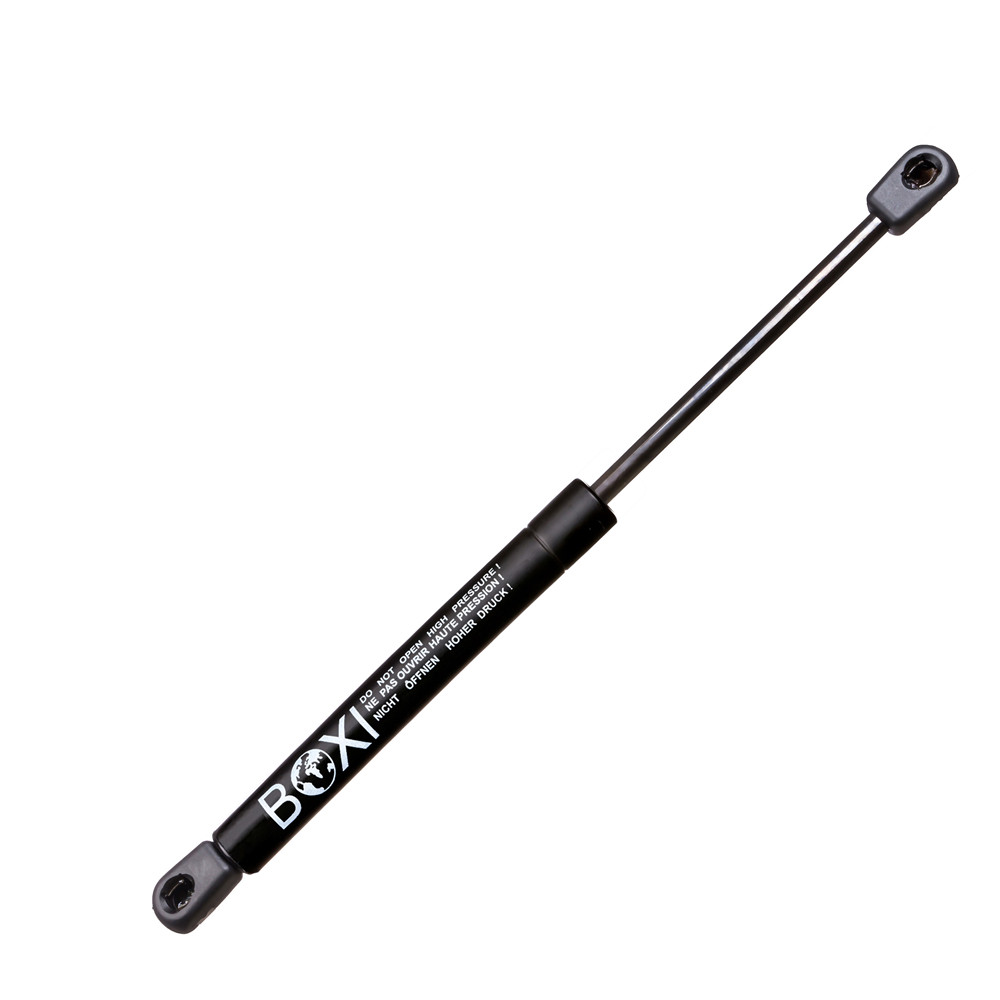

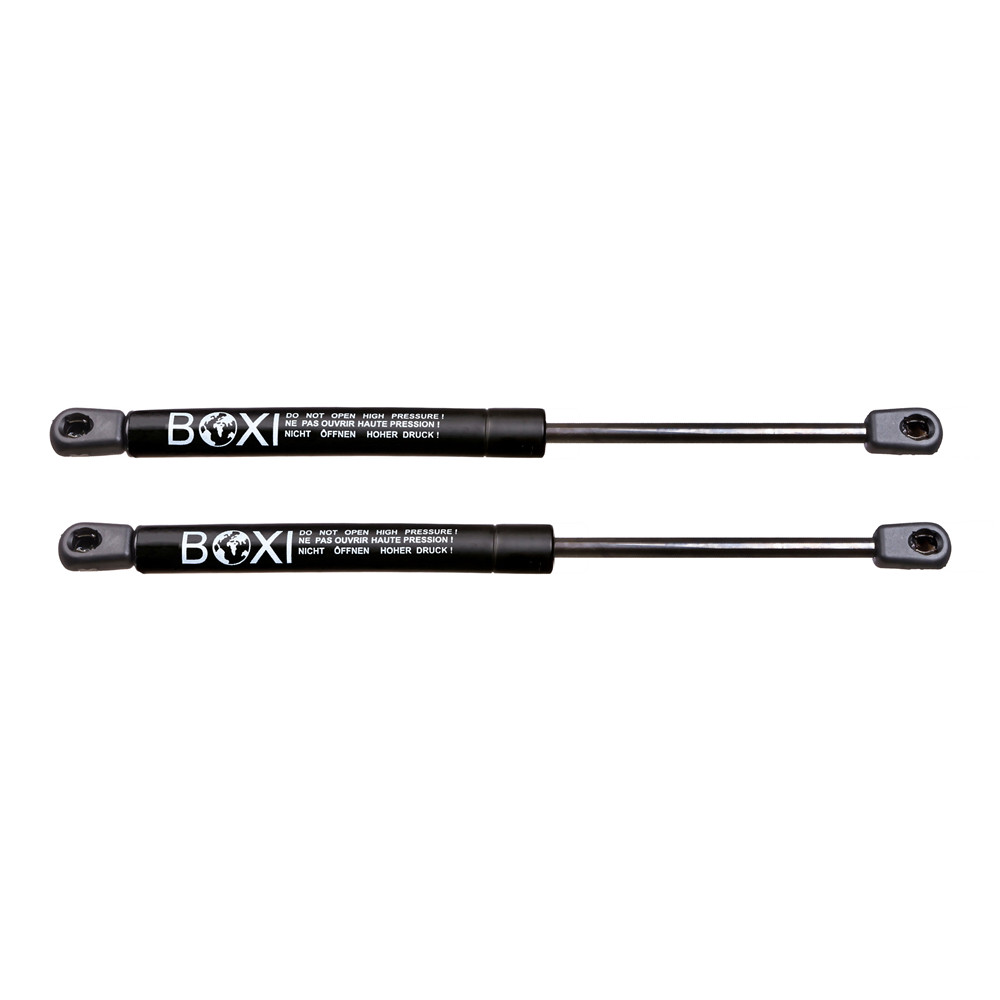

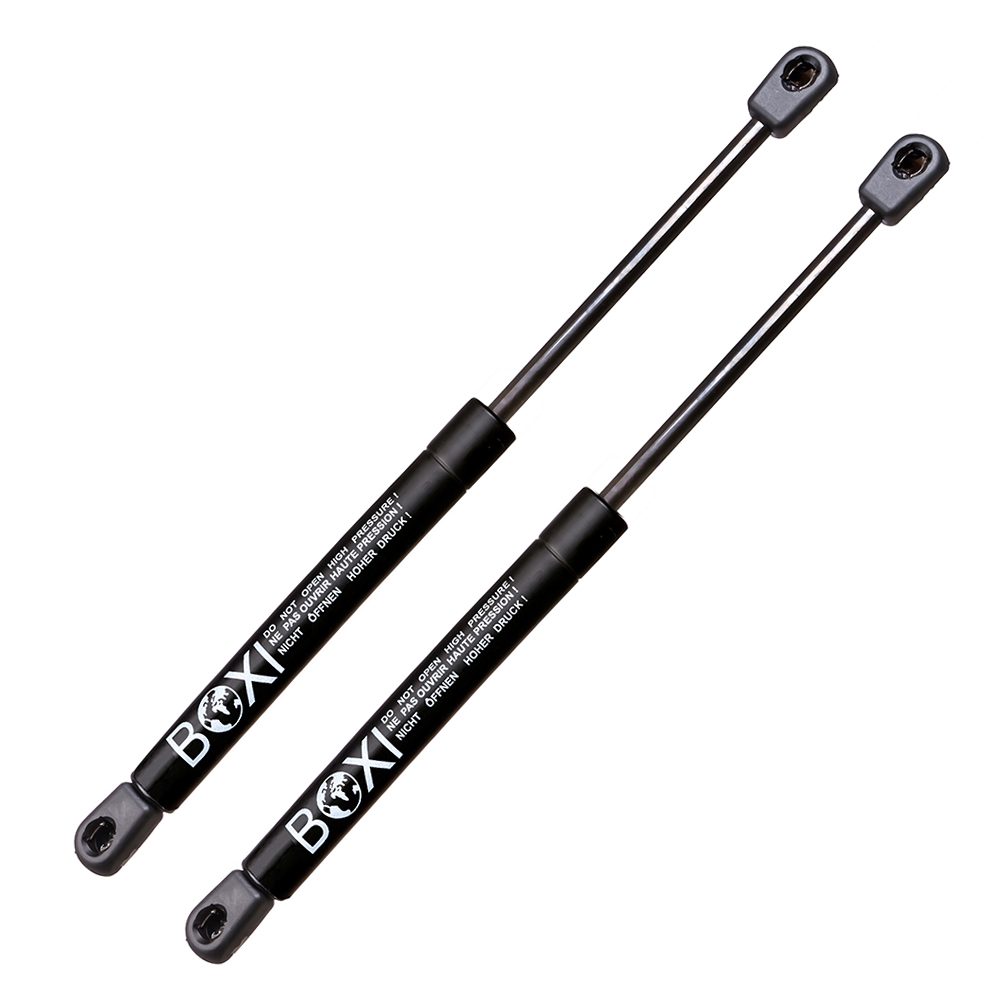

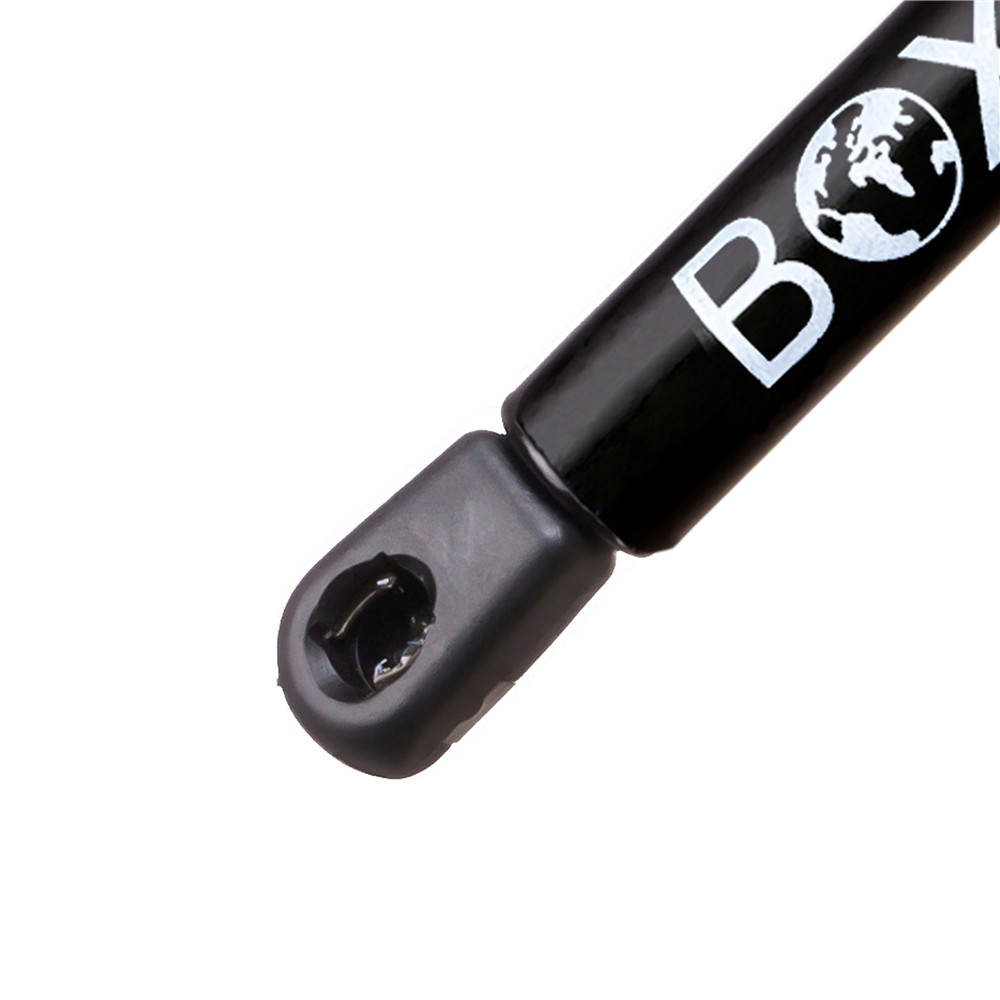

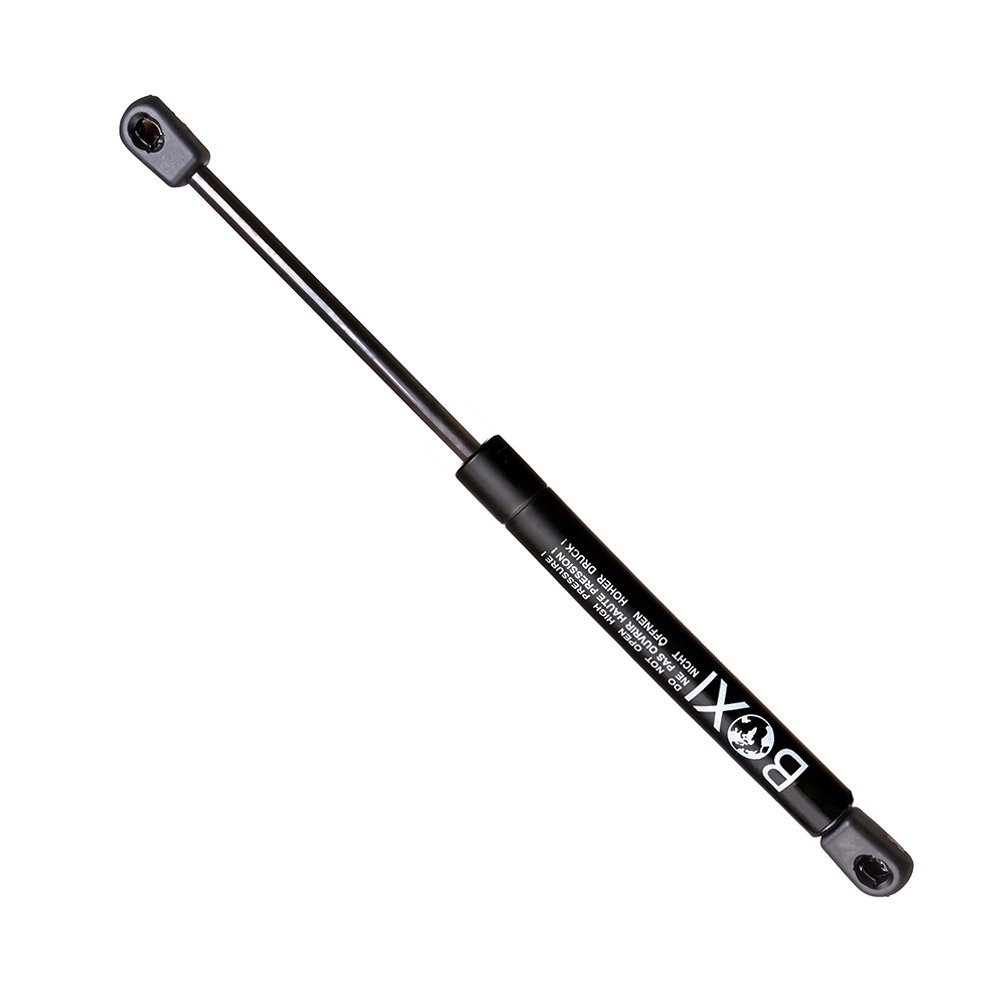

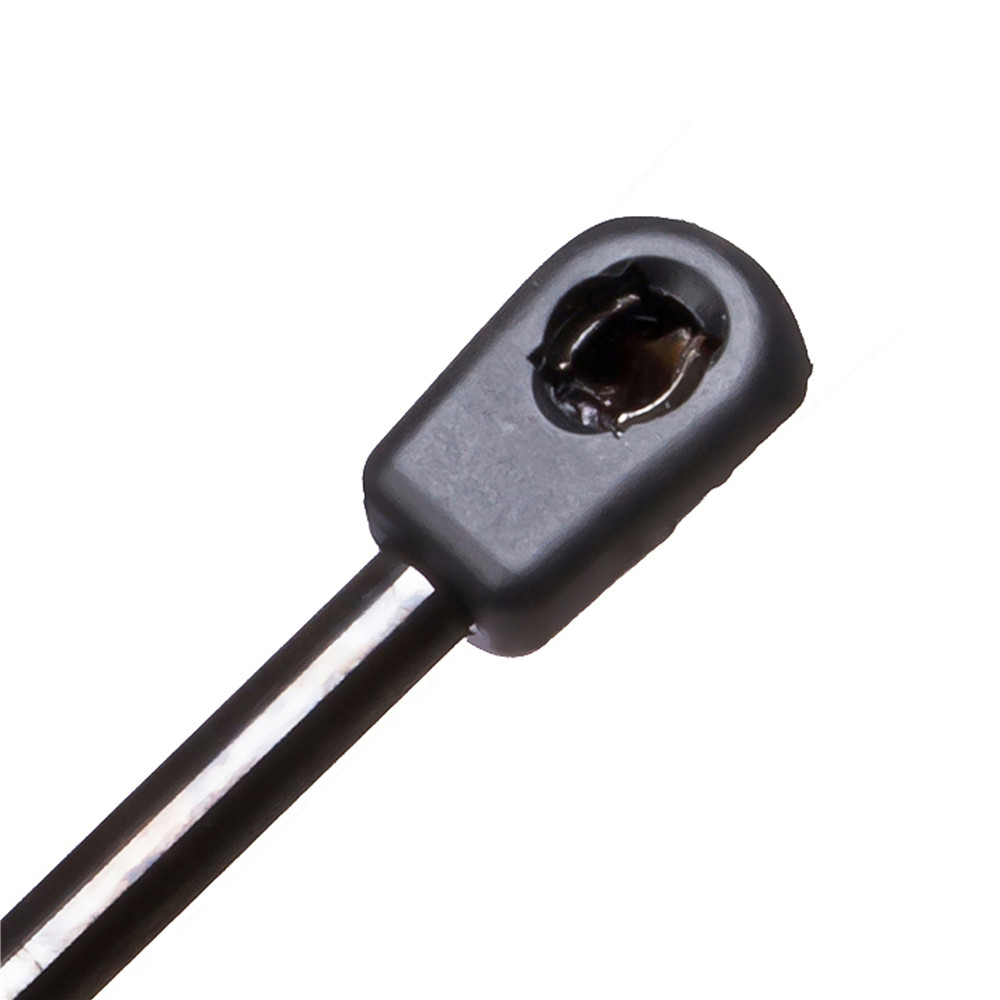

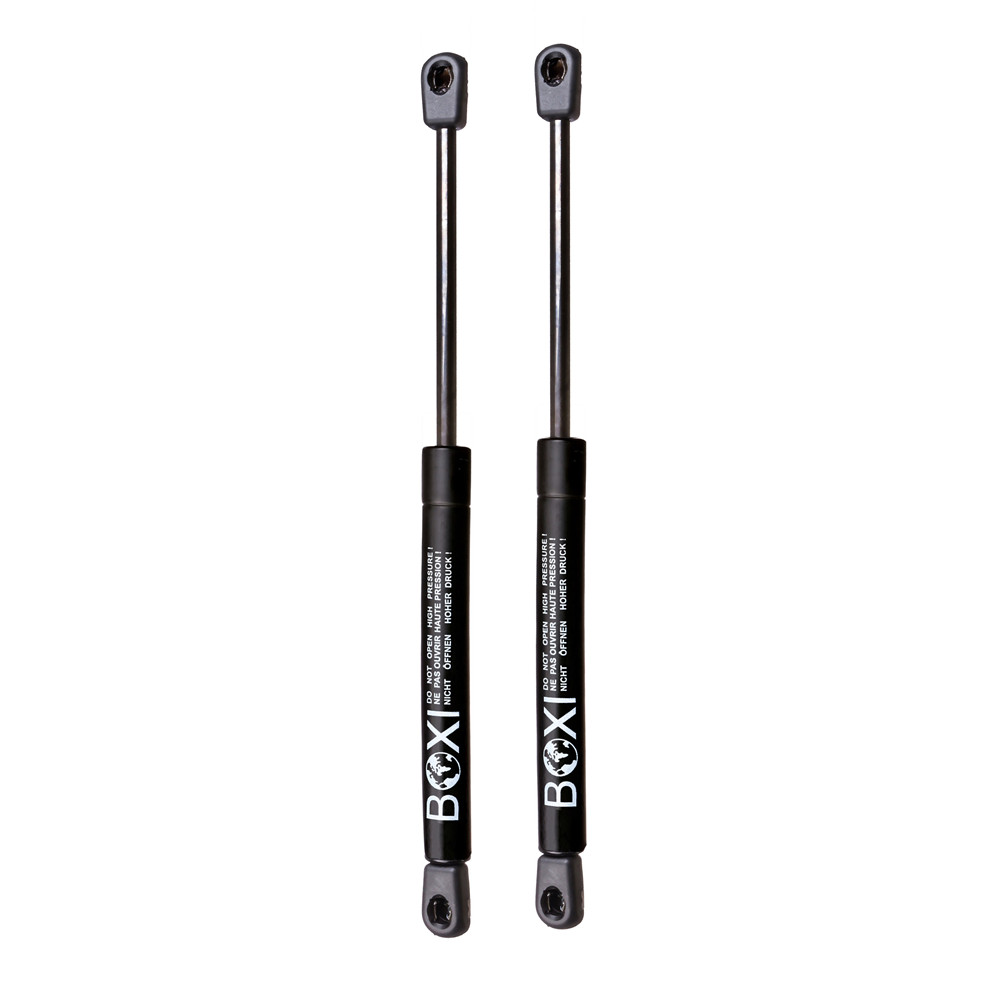

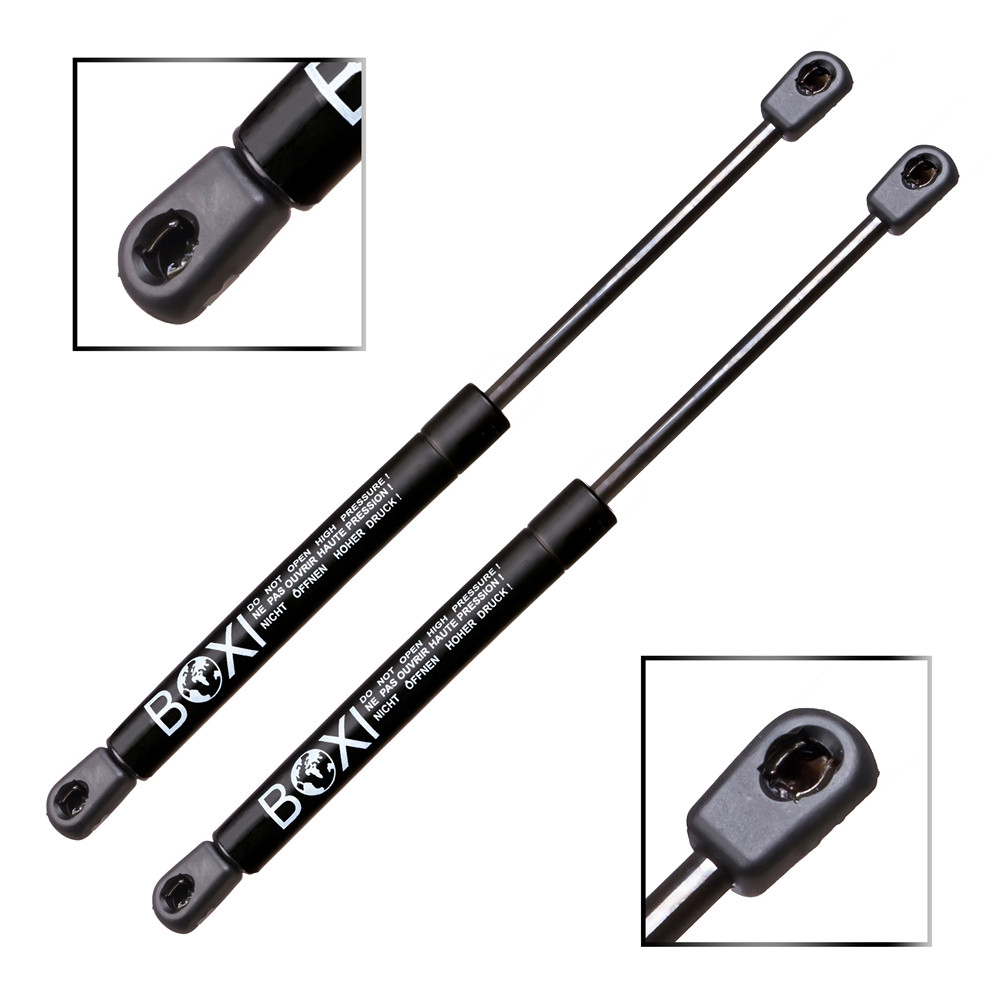

BOXI 2pcs Liftgate Lift Supports Struts Shocks Gas Struts Shocks Springs Supports for Toyota Sienna 2004-2010 Mini Cargo/Passenger Van-with Power Liftgate | Replaces SG229013 68905AE010 4590

BOXI SKU#: BXC300035109-2

$19.79

BOXI two-piece hydraulic liftgate support struts for 2004-2010 Toyota Sienna (CE, LE, XLE, Limited, SE). Direct replacements for OE SG229013 and 68905AE010. Verify fitment before ordering.

OE / Interchange Part Numbers: 14192, 4590, 6890508020, 68905AE010, 68905AE011, 68905AE013, 68905AE014, 68905AE015, 68905AF010, 7964XD, 8196086, 8363PU

  • 5 Years Warranty

460 in stock

Placement on Vehicle:2pcs Liftgate Lift Supports
Package Included:Liftgate

Liftgate-With Power Liftgate
Fits the following Toyota Sienna Years:
2004-2010 | Base Mini Cargo Van 4-Door
2004-2010 | Base Mini Cargo Van 5-Door
2004-2010 | Base Mini Passenger Van 4-Door
2004-2010 | Base Mini Passenger Van 5-Door
2004-2010 | Base Passenger Van 5-Door
2004-2010 | CE Mini Cargo Van 4-Door
2004-2010 | CE Mini Cargo Van 5-Door
2004-2010 | CE Mini Passenger Van 4-Door
2004-2010 | CE Mini Passenger Van 5-Door
2004-2010 | LE Mini Passenger Van 4-Door
2004-2010 | LE Mini Passenger Van 5-Door
2004-2010 | Limited Mini Passenger Van 4-Door
2004-2010 | Limited Mini Passenger Van 5-Door
2004-2010 | SE Mini Passenger Van 4-Door
2004-2010 | SE Mini Passenger Van 5-Door
2004-2005 | XLE Limited Mini Passenger Van 5-Door
2004-2010 | XLE Mini Passenger Van 4-Door
2004-2010 | XLE Mini Passenger Van 5-Door

Weight 2.1 lbs
Dimensions 27.56 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

637
Stroke (in):

9.82
Stroke (mm):

250
Compressed Length (in)

Compressed Length (mm):

387
Force (Lbs)

Force (Newtons)

609
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10
Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

SACSG229013, TFS610658, 819-6086, 8196086, SG229027, GSA08964, GSA09186, 610658, 926 51036 810, SG229013, C95466, C4590, 901533, 68905AE011, 4590
YearMakeModelSubmodelEngine
2006 – 2010ToyotaSiennaCE
LE
Limited
XLE		V6 – 3.3L 3300cc 202ci GAS MFI type 3MZ-FE – 4 valve DOHC
V6 – 3.5L 3456cc GAS MFI type 2GRFE – 4 valve DOHC
