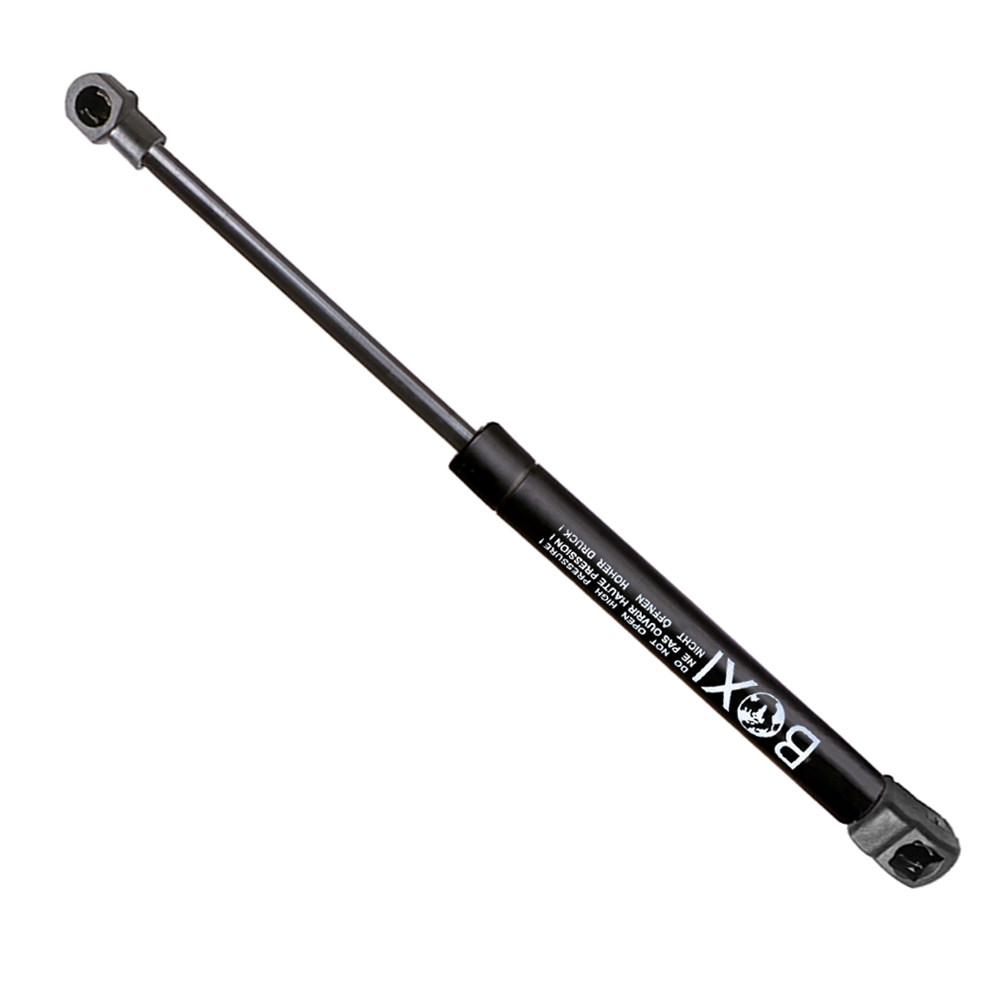

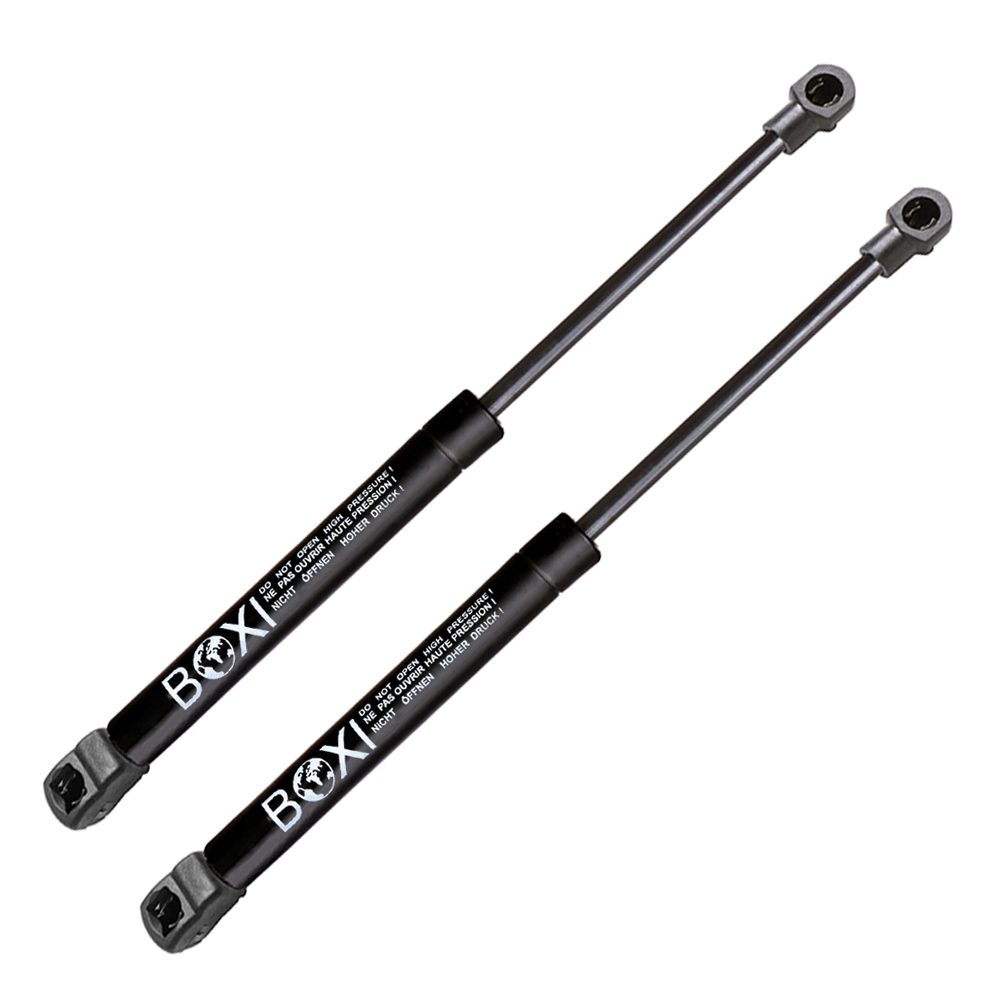

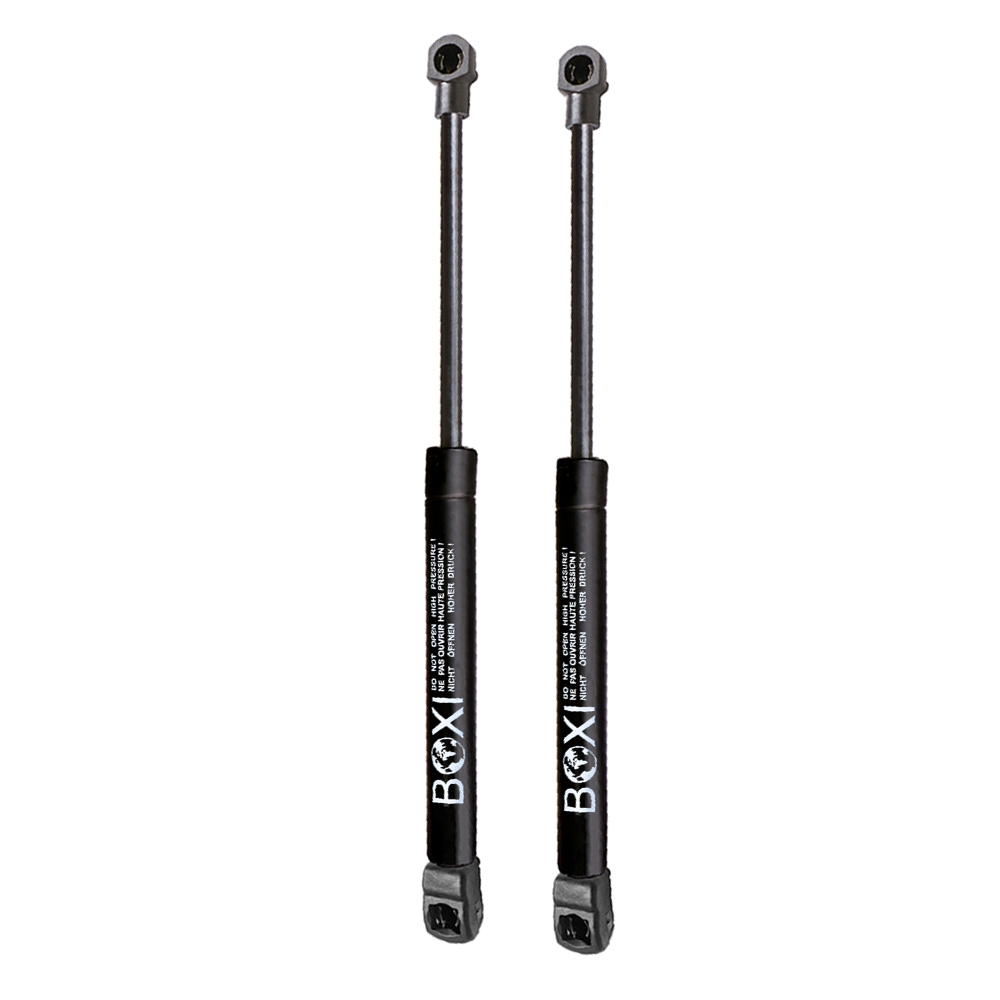

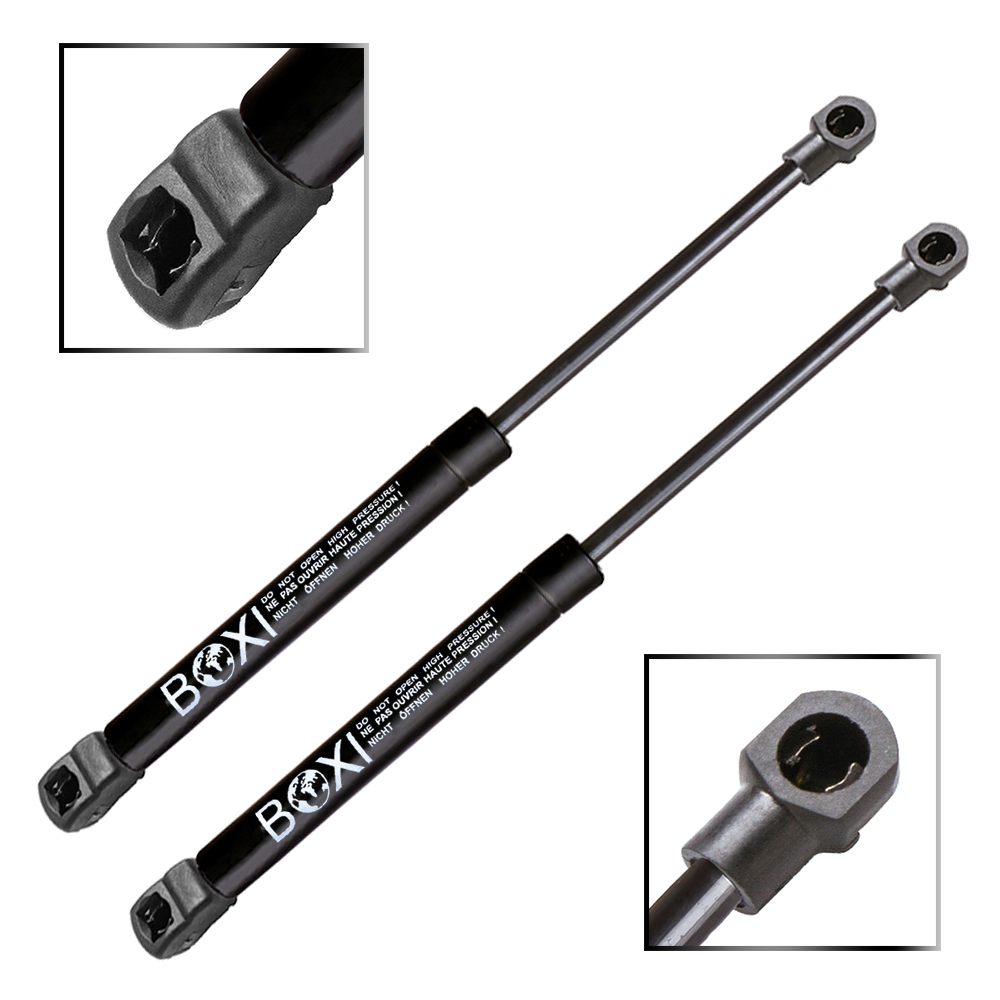

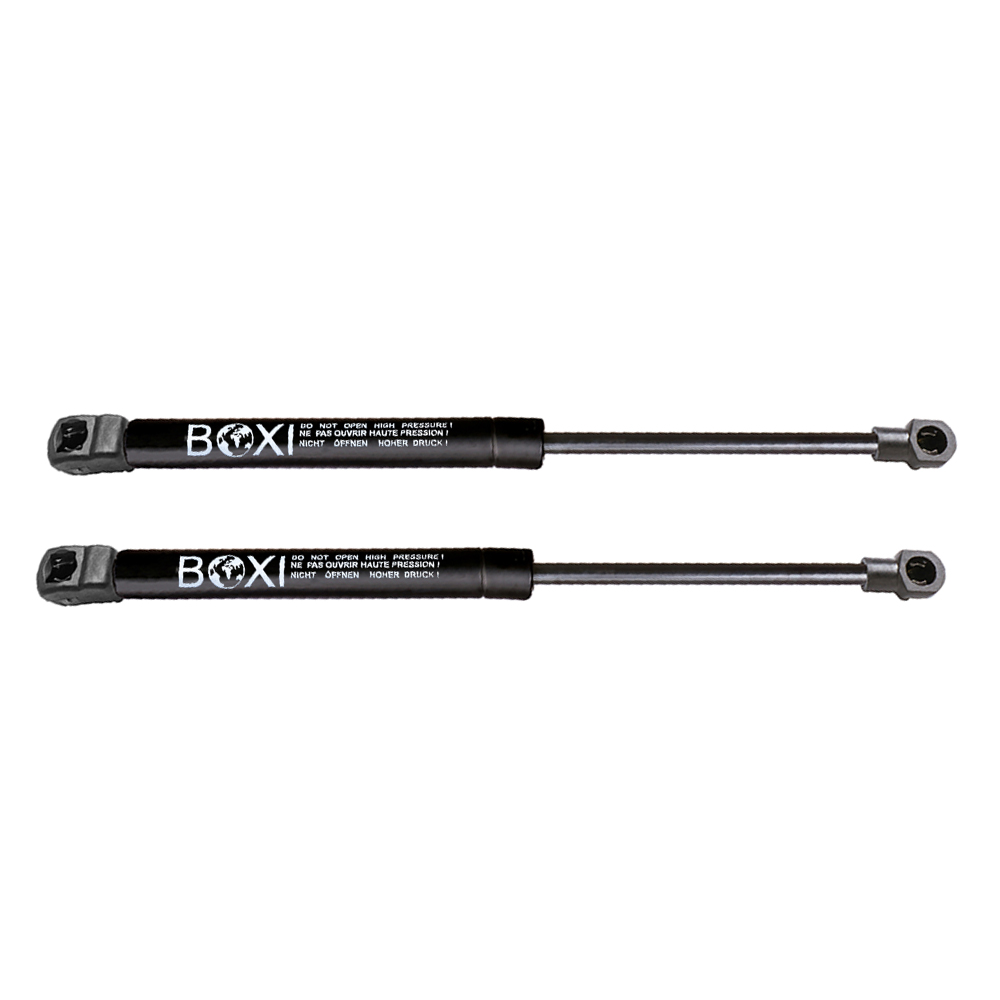

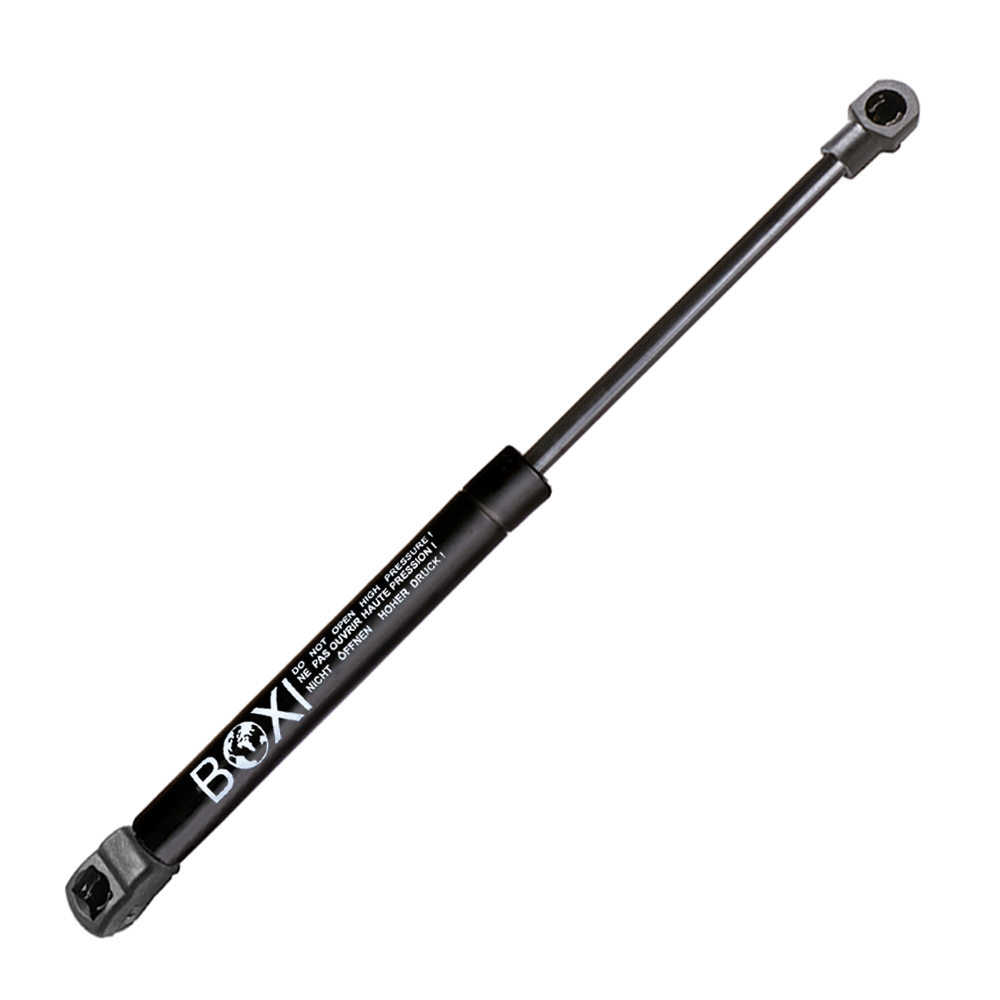

BOXI 2pcs Hatchback Lift Supports Struts Shocks Spring Dampers for Toyota Corolla E12U 2002-2011 Base Hatchback 2-Door / 4-Door / 68950-02040
BOXI SKU#: BXC300035096-2
$19.39
BOXI hatchback lift supports (pair) for 2002-2011 Toyota Corolla E12U Base hatchbacks (2-door & 4-door). Left + right side included. Replaces OE# 68950-02040. Verify fitment before ordering.
OE / Interchange Part Numbers: 612972
72 in stock
Placement on Vehicle:Hatchback
Package Included:2pcs Hatchback Lift Supports
Fit for Toyota Corolla 2002-2011 Base Hatchback 2 Door / 4 Door REAR – LEFT + RIGHT Side
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 21.65 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 468 |
| Stroke (in): | 6.47 |
| Stroke (mm): | 165 |
| Compressed Length (in) | |
| Compressed Length (mm): | 303 |
| Force (Lbs) | |
| Force (Newtons) | 440 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

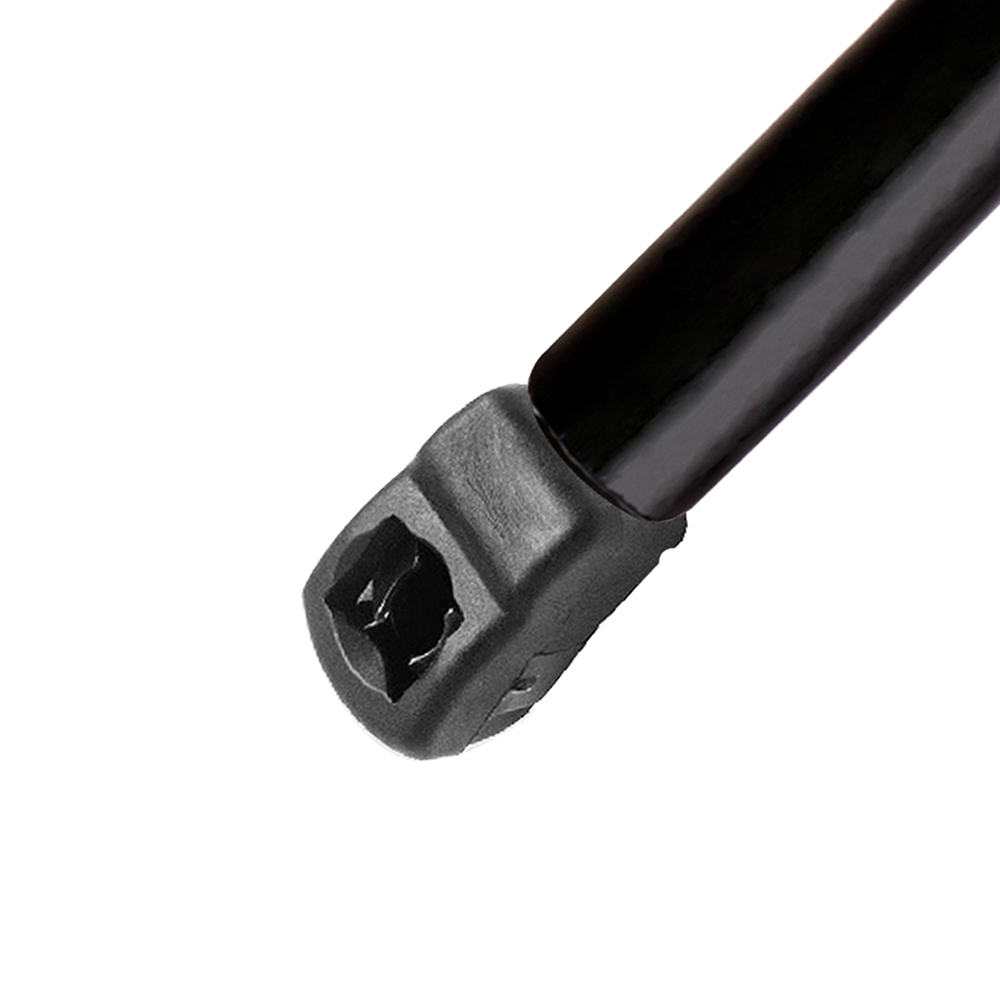

| Body Connection: | Ball Socket |

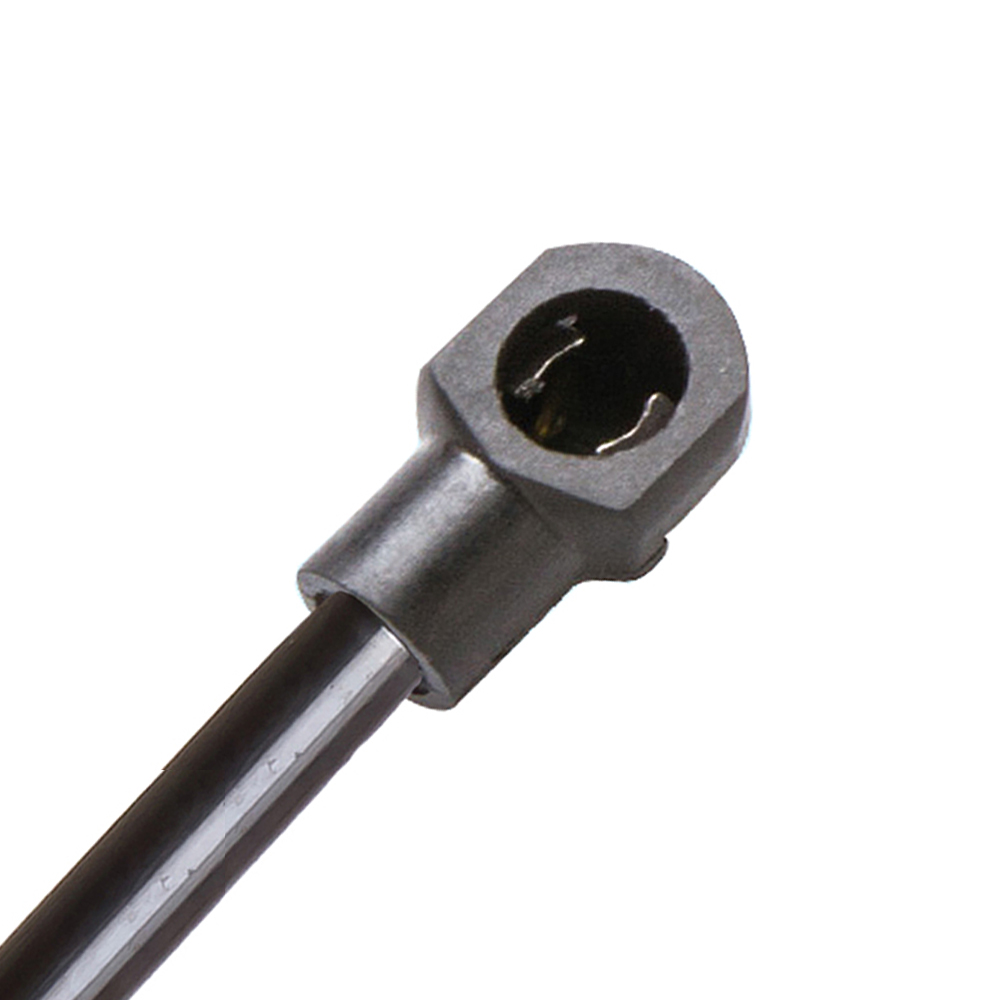

| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 68950-02042, 6895002042, 68950-02041, 6895002041, 68950-02040 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2009 – 2011 | Toyota | Corolla | Base Sedan 4-Door XLE Sedan 4-Door | 1.8L 1798CC 110Cu. In. l4 GAS DOHC Naturally Aspirated |
| 2004 – 2011 | Toyota | Corolla | CE Sedan 4-Door LE Sedan 4-Door S Sedan 4-Door | 1.8L 1798CC 110Cu. In. l4 GAS DOHC Naturally Aspirated |
| 1.8L 1794CC l4 GAS DOHC Naturally Aspirated | ||||
| 2008 | Toyota | Corolla | Sport Sedan 4-Door | 1.8L 1794CC l4 GAS DOHC Naturally Aspirated |
| 2005 – 2011 | Toyota | Corolla | XRS Sedan 4-Door | 2.4L 2362CC l4 GAS DOHC Naturally Aspirated |
| 1.8L 1795CC l4 GAS DOHC Naturally Aspirated |
