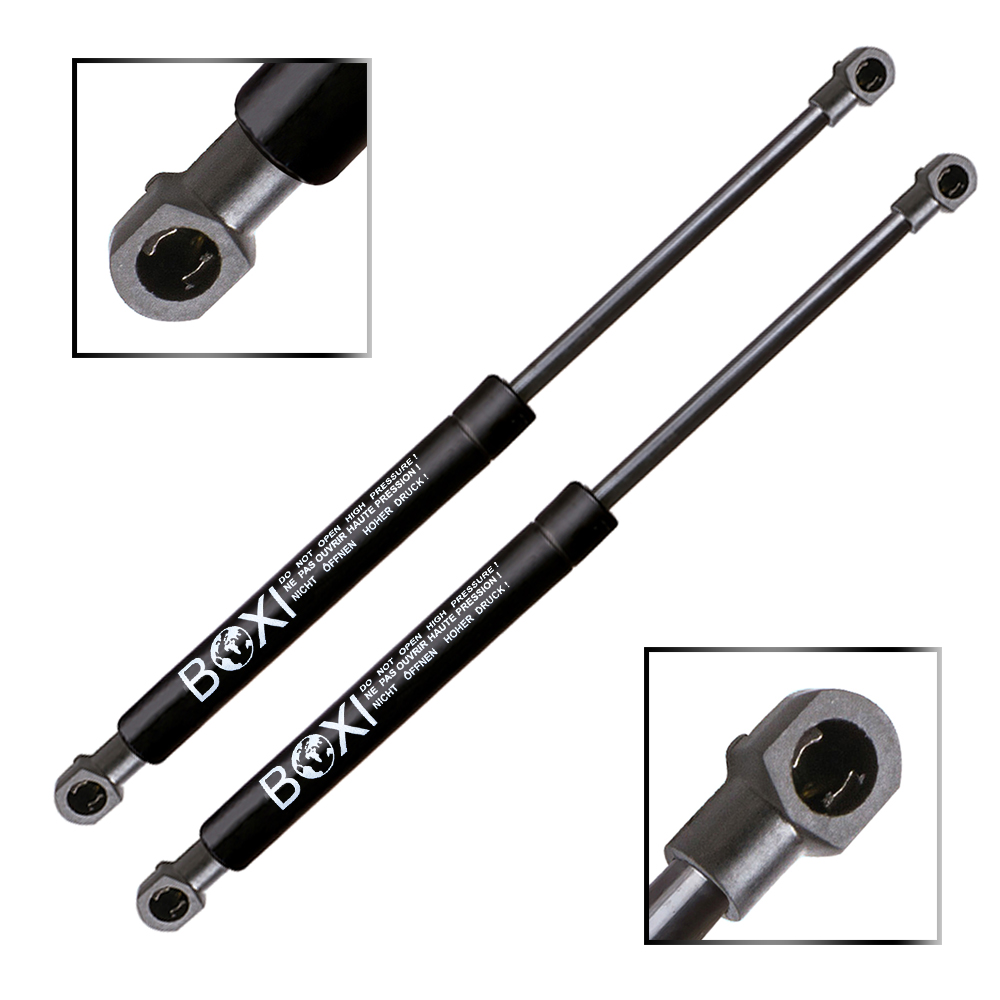

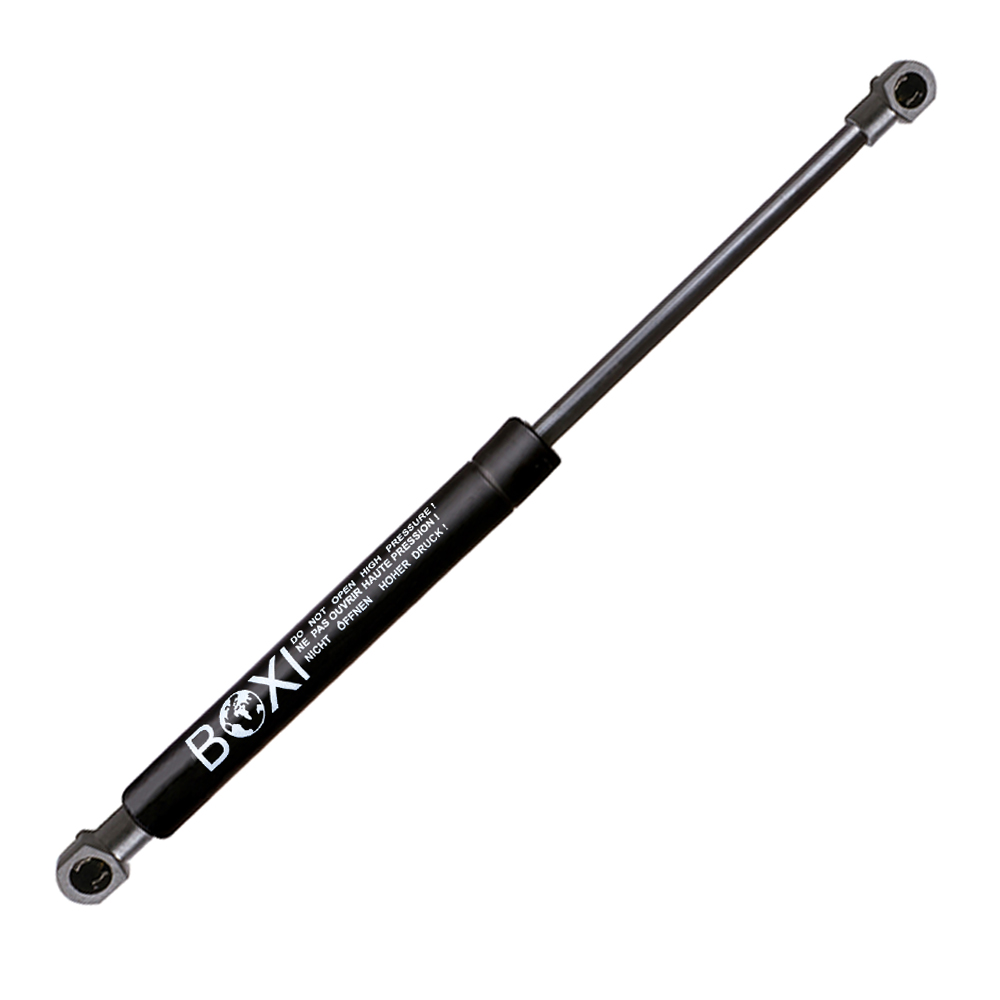

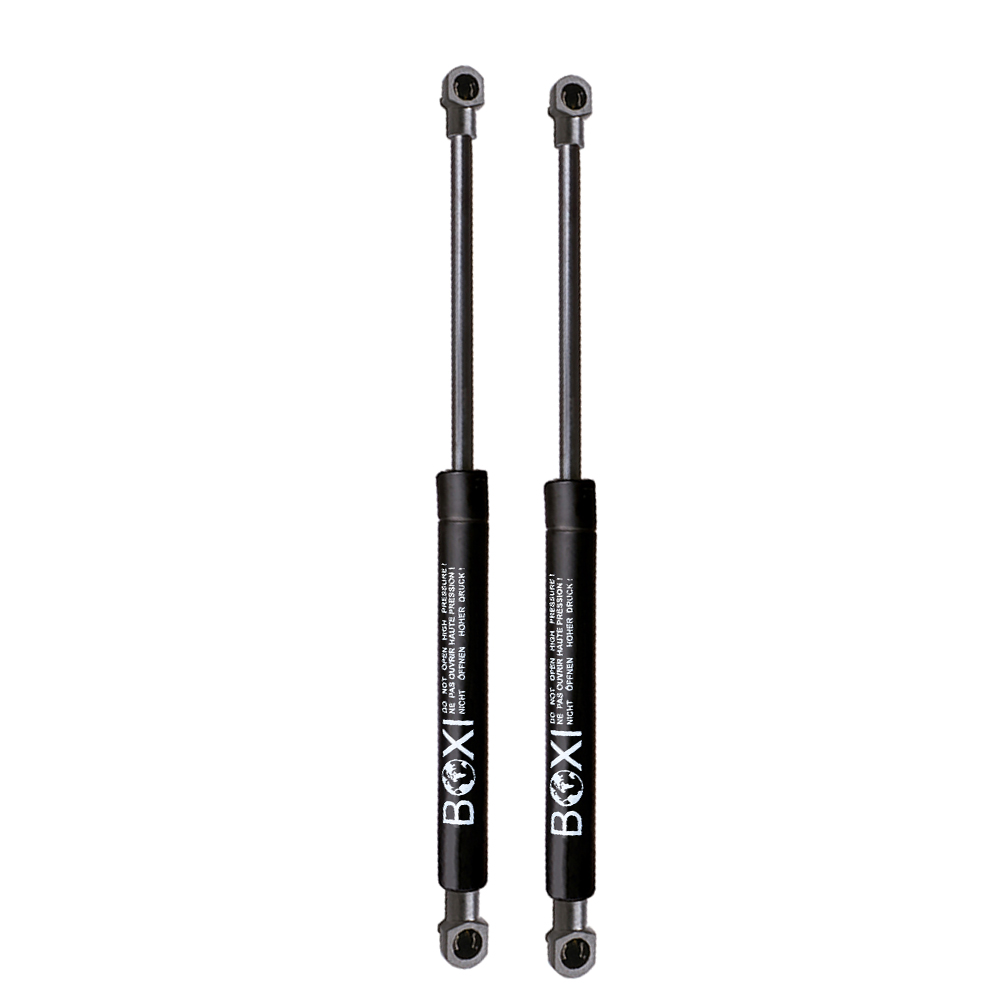

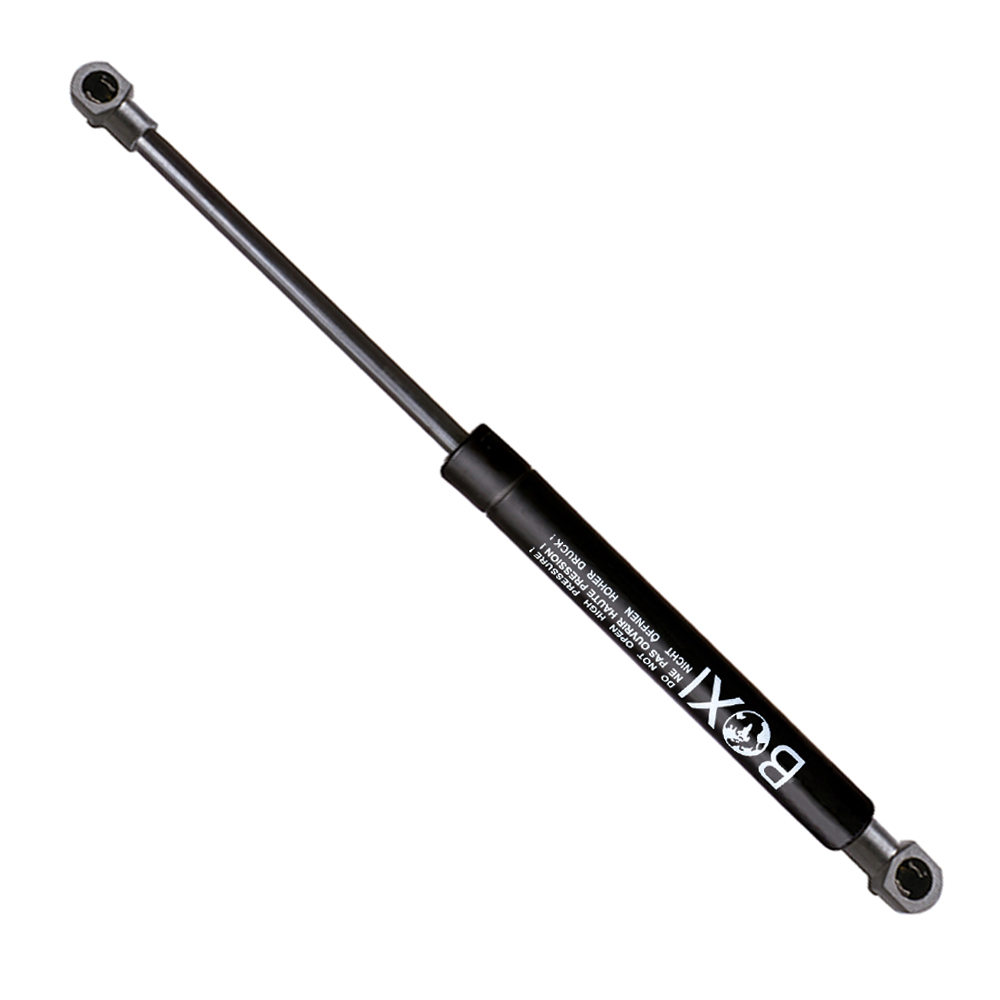

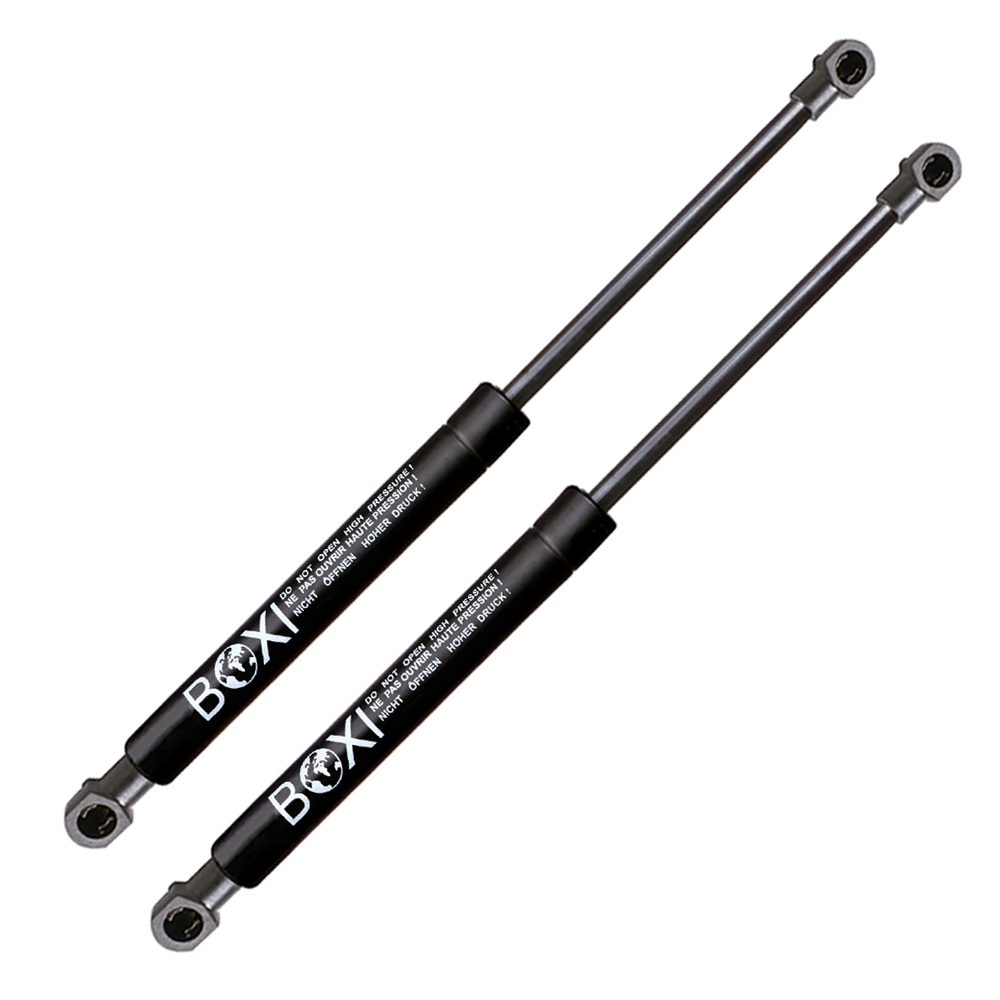

BOXI Qty (2) Liftgate Lift Supports Gas Shocks Springs Struts Fit for Honda Fit 2015 2016 2017 2018 2019 2020 Hatchback 4-Door Hatch | Replaces PM3315 74820T5RA01 74870T5RA01
BOXI SKU#: BXC300034094-2
$25.98
BOXI liftgate lift supports gas shocks struts for Honda Fit 2015-2020 Hatchback 4-door models. Fits all trims and replaces OE numbers PM3315, 74820T5RA01, 74870T5RA01. Verify fitment before ordering.
OE / Interchange Part Numbers: 296862, 74820T5RA01, 74870T5RA01, PM3315, SG326026
138 in stock
Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports
Fits the following Honda Fit Years:
2015-2020 | Base Hatchback 4-Door Hatch
2015-2020 | Cool Hatchback 4-Door Hatch
2015-2020 | EX Hatchback 4-Door Hatch
2015-2020 | EX-L Hatchback 4-Door Hatch
2015-2020 | Fun Hatchback 4-Door Hatch
2015-2020 | Hit Hatchback 4-Door Hatch
2015-2020 | LX Hatchback 4-Door Hatch
| Weight | 1.05 lbs |
|---|---|
| Dimensions | 19.69 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 428 |
| Stroke (in): | 6.69 |
| Stroke (mm): | 170 |
| Compressed Length (in) | |
| Compressed Length (mm): | 258 |
| Force (Lbs) | |
| Force (Newtons) | 520 |
| Cylinder Diameter (in): | 0.71 |
| Cylinder Diameter (mm): | 18 |
| Rod Diameter (in): | 0.31 |
| Rod Diameter (mm): | 8 |

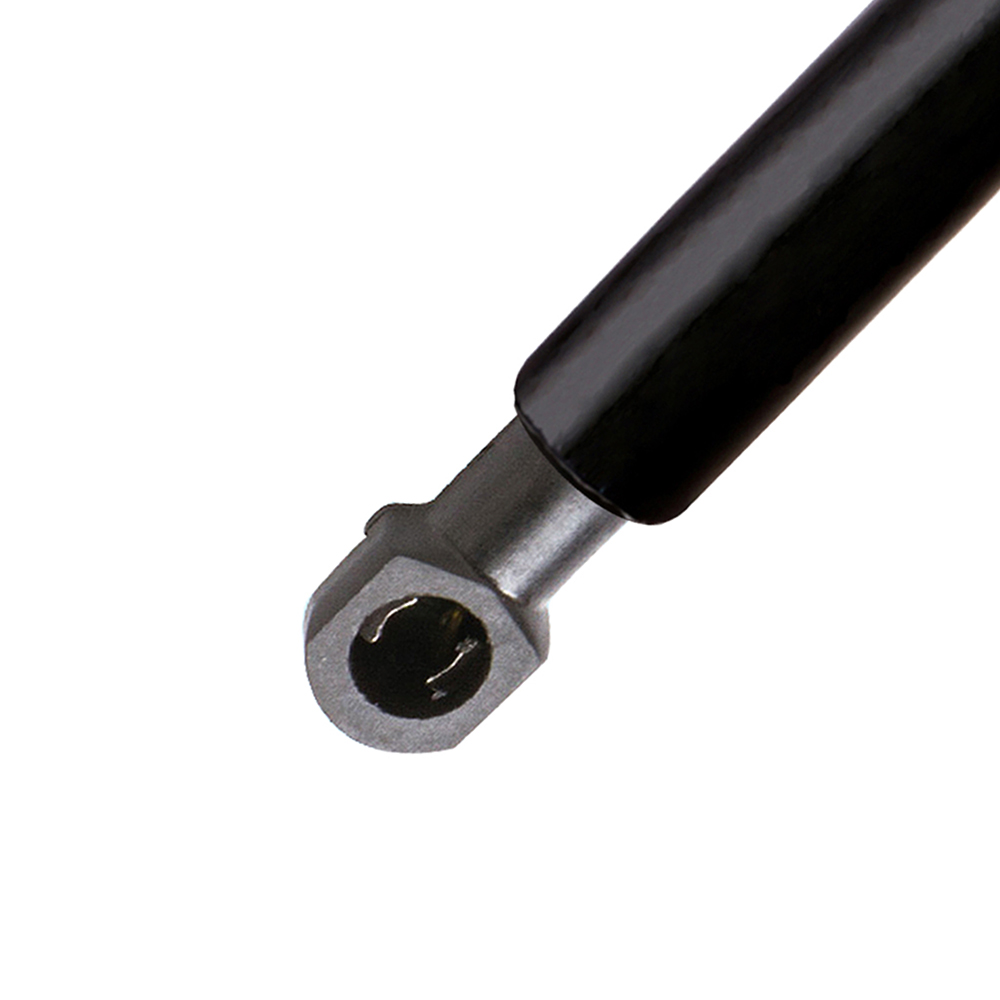

| Body Connection: | Ball Socket |

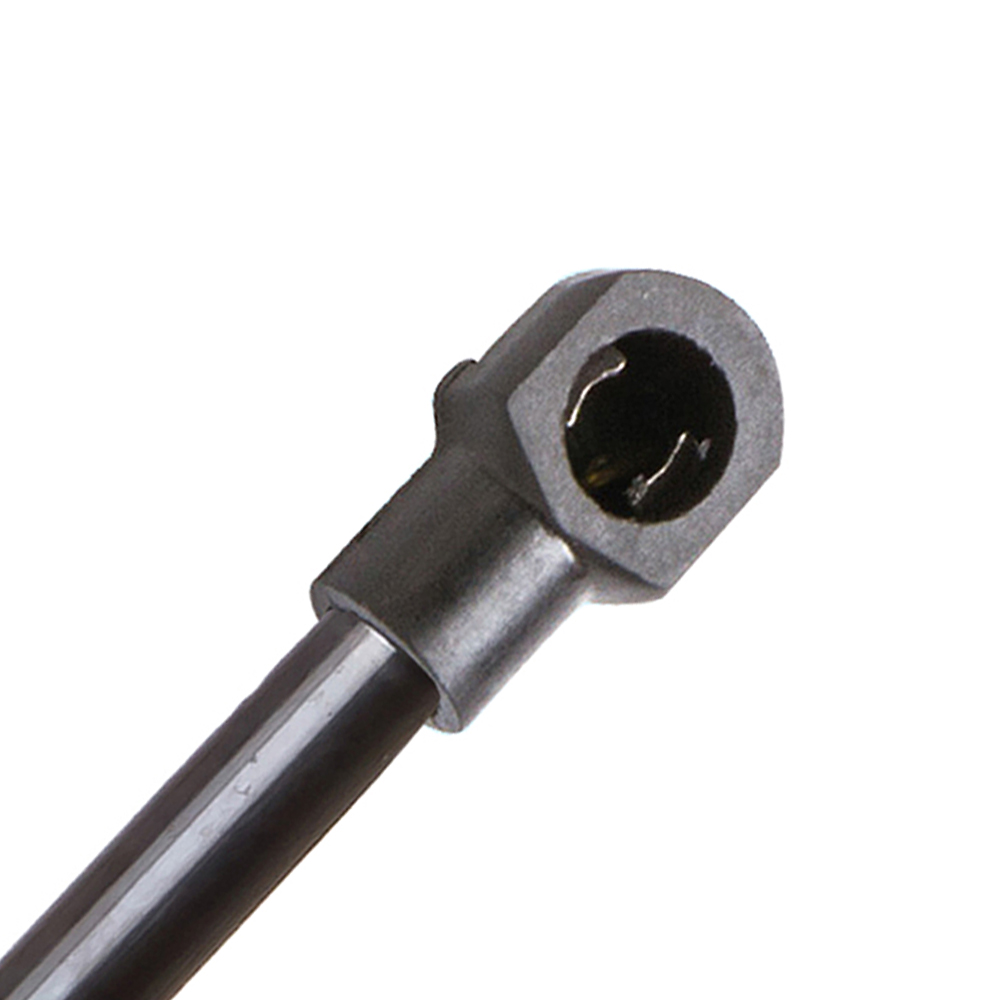

| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | 74820-T5R-A01, 74870-T5R-A01, D97235, SG326026, 613315, D7235 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2019 | Honda | Fit | 1 Million Edition | L4 – 1.5L 1497cc GAS DI type L15B1 – 4 valve DOHC |
| 2015 – 2017 | Honda | Fit | Cool | L4 – 1.5L 1497cc GAS DI type L15B1 – 4 valve DOHC |
| L4 – 1.5L 1497cc GAS MFI type L15A7 – 4 valve SOHC | ||||
| 2015 – 2020 | Honda | Fit | DX EX EX-L LX | L4 – 1.5L 1497cc GAS DI type L15B1 – 4 valve DOHC |
| Fun Hit | L4 – 1.5L 1497cc GAS DI type L15B1 – 4 valve DOHC | |||
| L4 – 1.5L 1497cc GAS MFI type L15A7 – 4 valve SOHC | ||||
| 2017 | Honda | Fit | SE | L4 – 1.5L 1497cc GAS DI type L15B1 – 4 valve DOHC |
| 2018 – 2020 | Honda | Fit | Sport | L4 – 1.5L 1497cc GAS DI type L15B1 – 4 valve DOHC |
