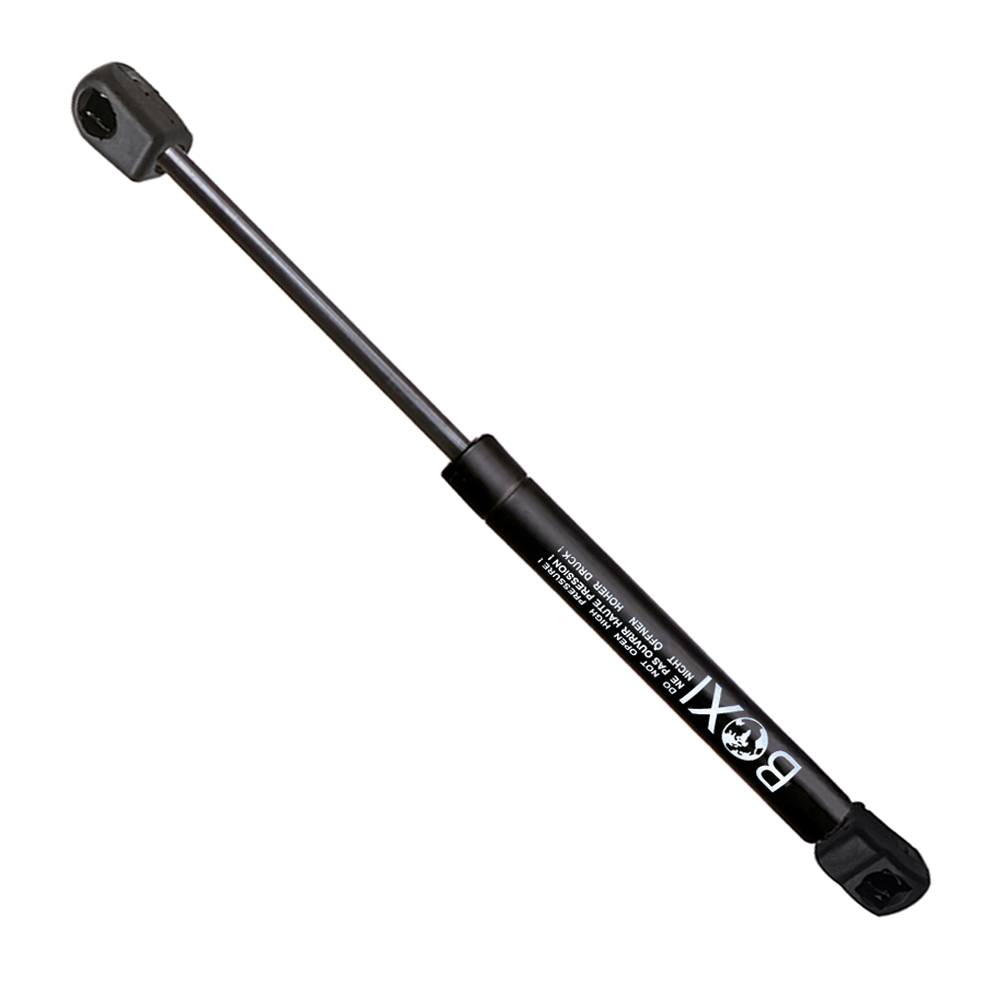

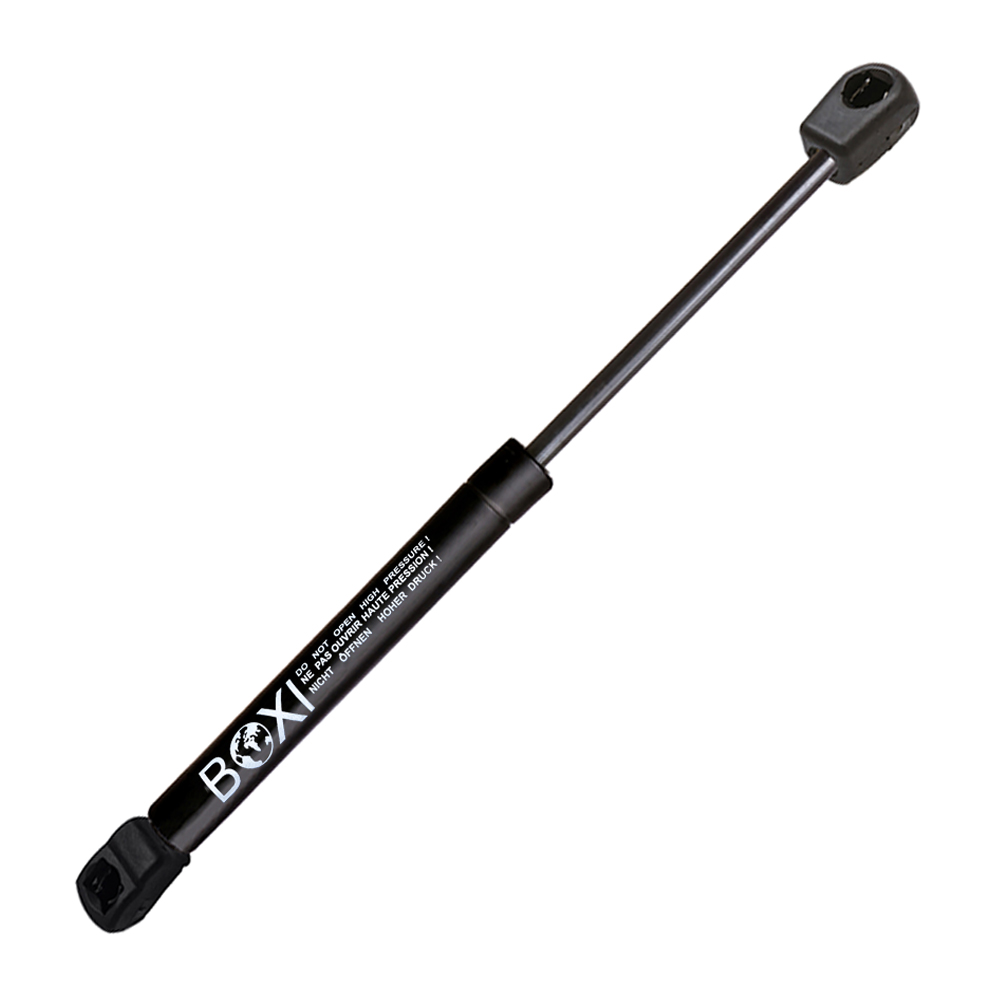

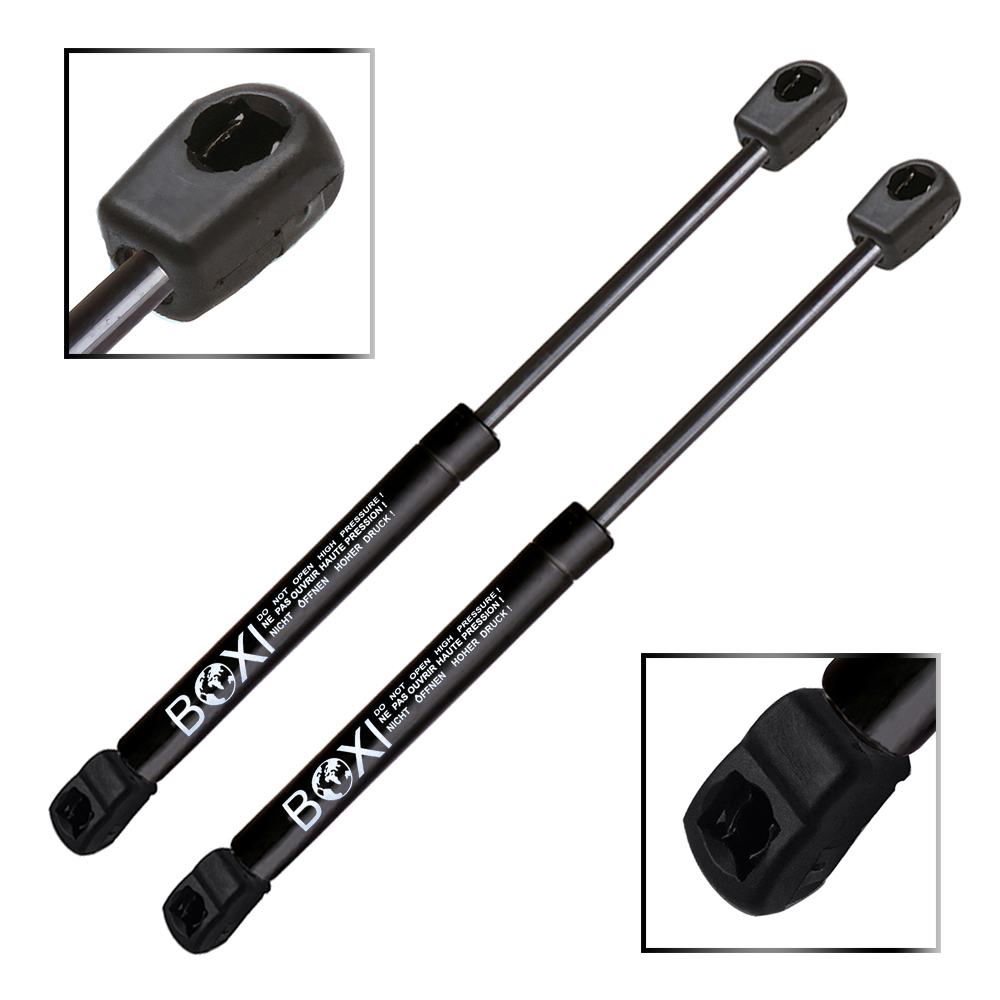

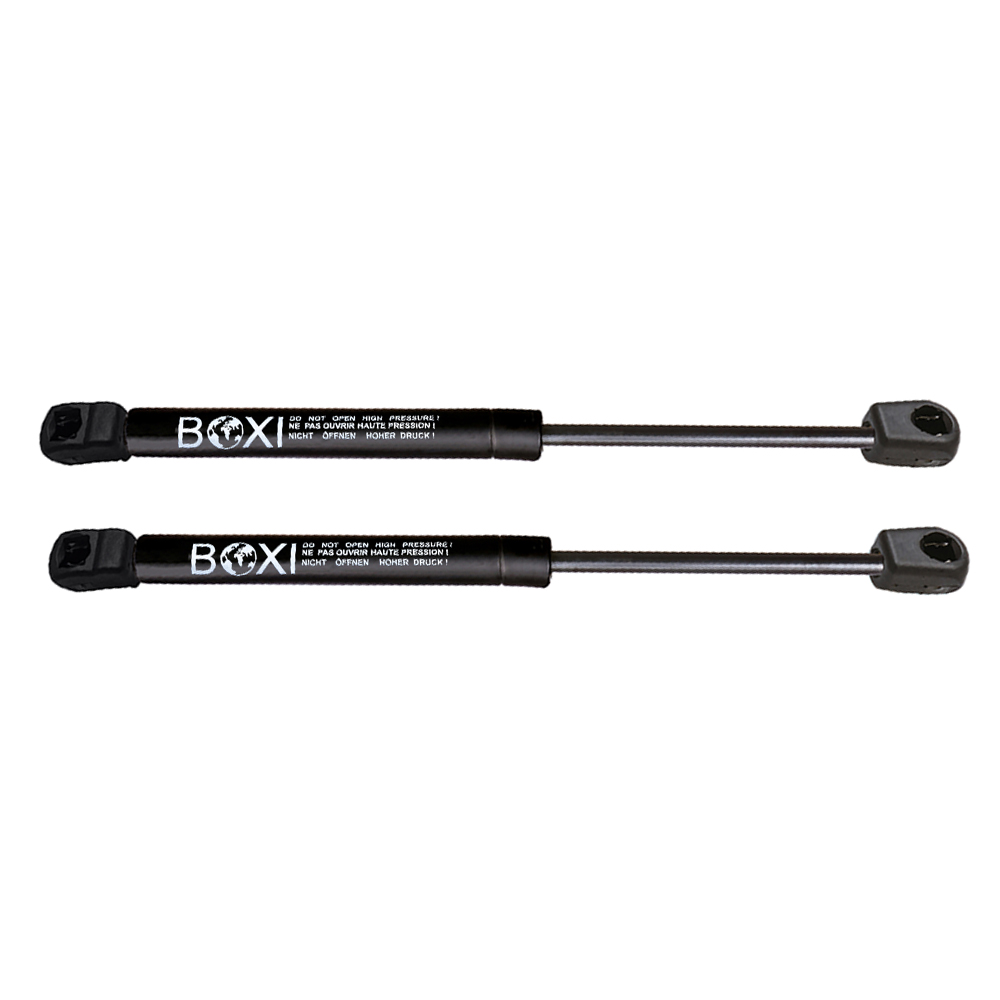

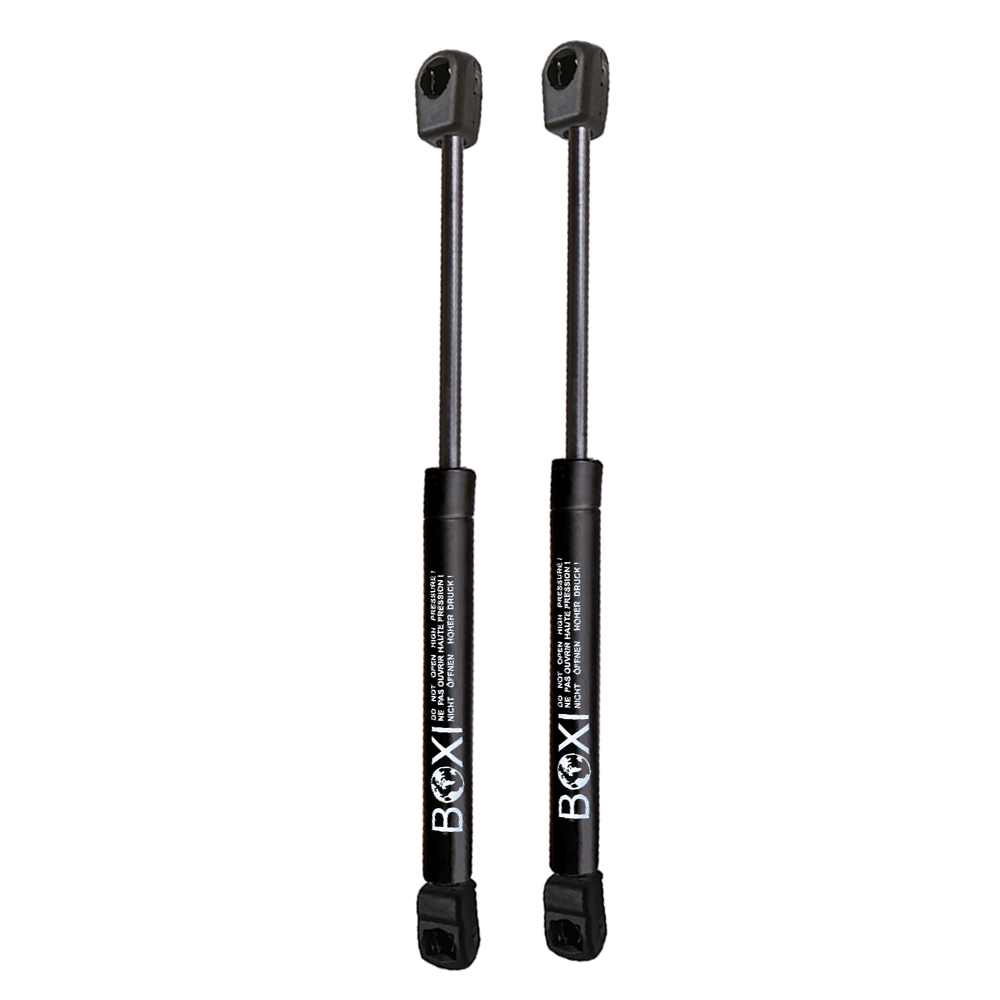

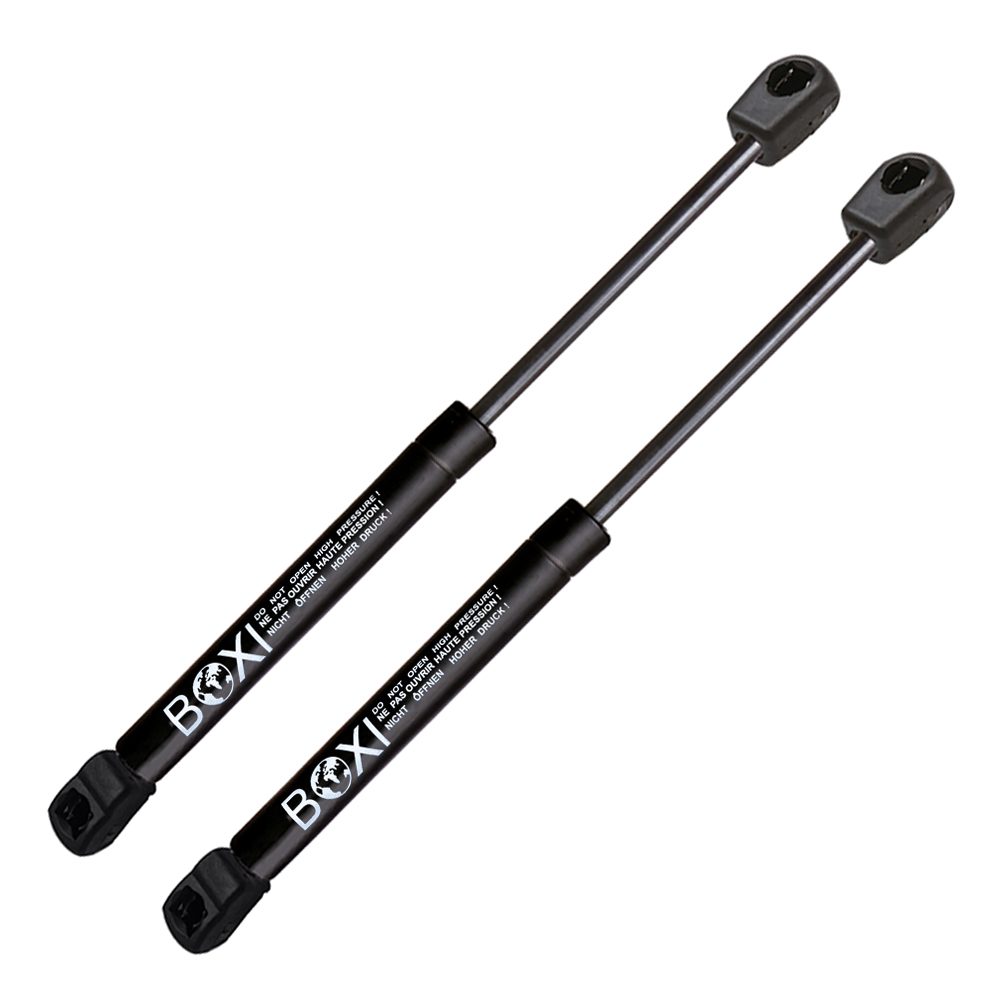

BOXI 2pcs Liftgate Lift Supports Struts Shocks Gas Struts Shocks Springs Supports Fit for Honda Pilot 2003 2004 2005 2006 2007 Sport Utility 4-Door Liftgate | Replace SG226013 74820S9VA01

BOXI SKU#: BXC300034067-2

$19.95

BOXI 2pcs tailgate lift supports for Honda Pilot 2003-2007 models. Replaces OE numbers SG226013 and 74820S9VA01. Verify fitment before ordering.

OE / Interchange Part Numbers: 14187, 4214TO, 4373, 4674TE, 6906XK, 6955XM, 74820S9VA01, 74820S9VA021, 74870S9VA01, 74870S9VA021, 8196081, 95374

  • 5 Years Warranty

306 in stock

Placement on Vehicle:Liftgate
Package Included:2pcs Liftgate Lift Supports

Fits the following Honda Pilot Years:
2003-2007 | Base Sport Utility 4-Door
2003-2007 | EX Sport Utility 4-Door
2004-2007 | EX-L Sport Utility 4-Door
2003-2006 | EXL Sport Utility 4-Door
2003-2007 | LX Sport Utility 4-Door
2003-2007 | SE-L Sport Utility 4-Door
2003-2007 | Special Edition Sport Utility 4-Door
2003-2007 | Value Package Sport Utility 4-Door

Weight 2.15 lbs
Dimensions 27.56 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

644
Stroke (in):

7.88
Stroke (mm):

200
Compressed Length (in)

Compressed Length (mm):

444
Force (Lbs)

Force (Newtons)

649
Cylinder Diameter (in):

0.87
Cylinder Diameter (mm):

22
Rod Diameter (in):

0.39
Rod Diameter (mm):

10

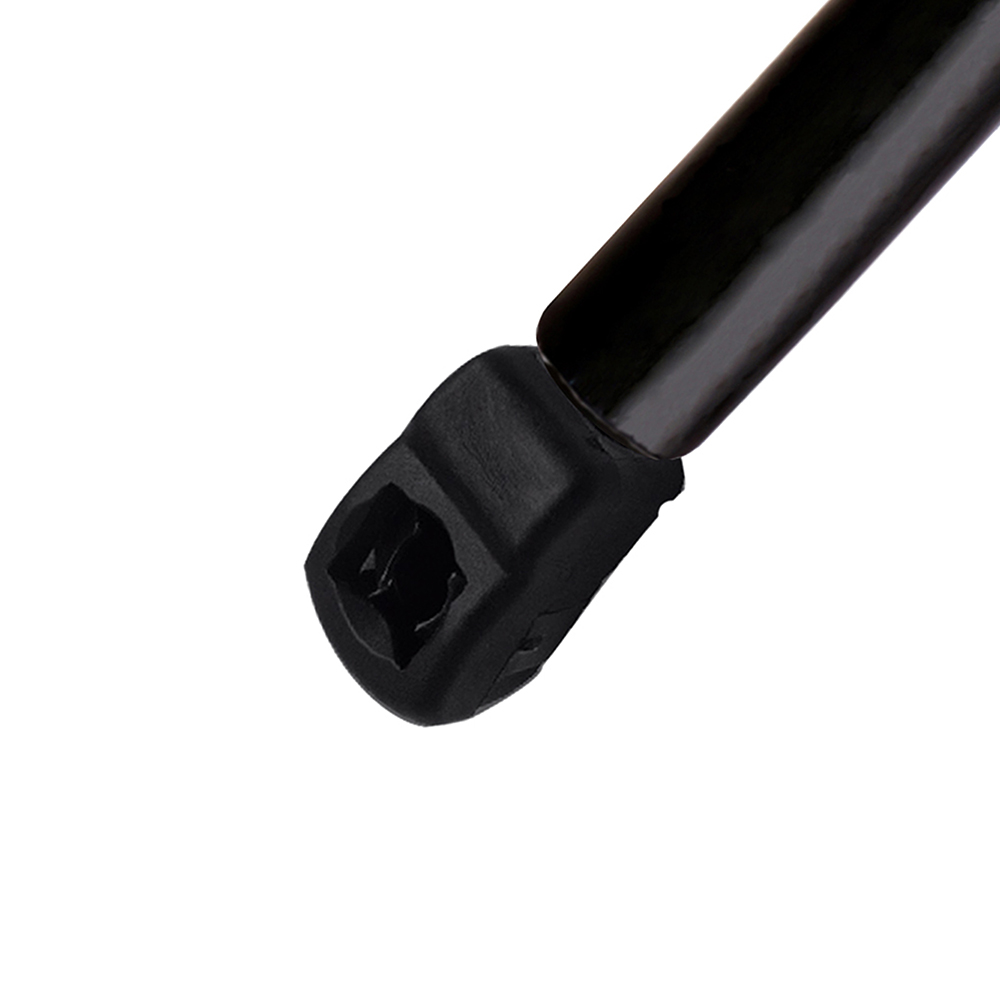

Body Connection:

Ball Socket

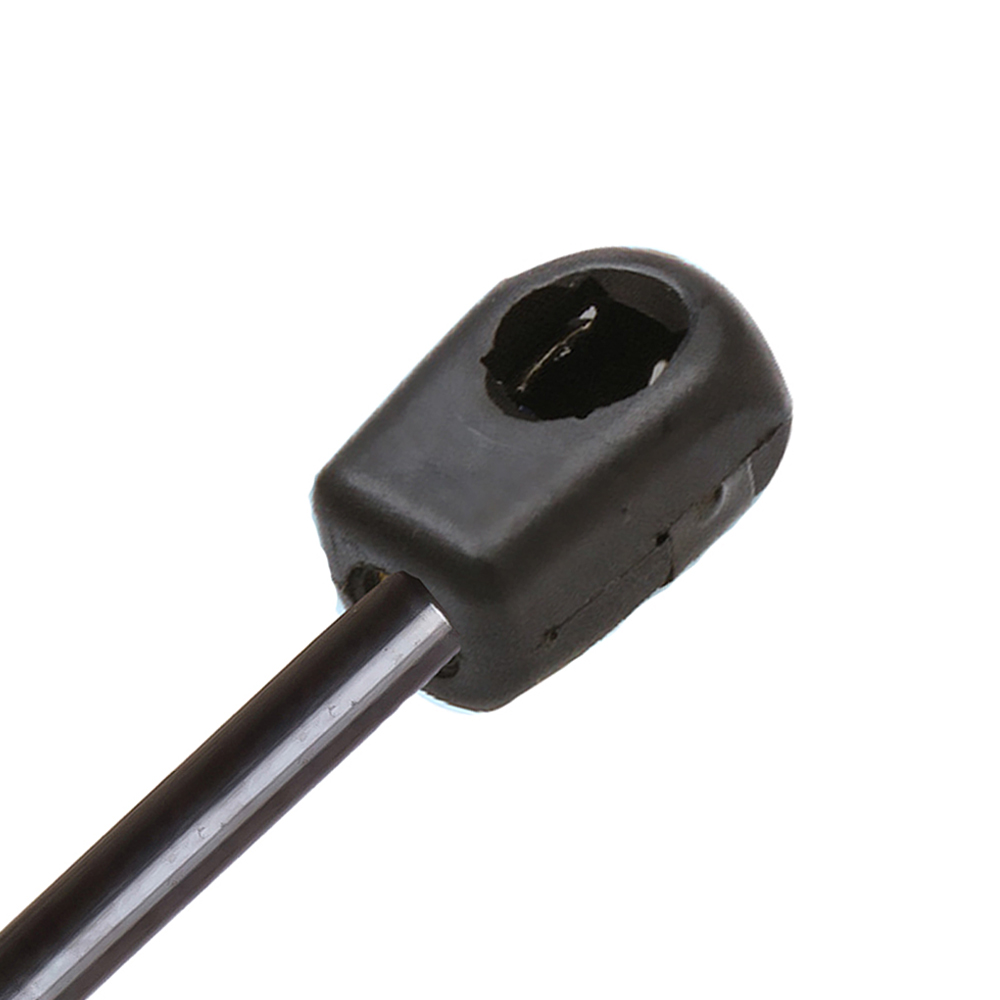

Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

1201-423529, TFS610655, 819-6081, 8196081, 610655, SG226013, SG225015, C95374, C4373, 926 21024 810, 901630, 74820S9VA01, 4373
YearMakeModelSubmodelEngine
2003 – 2018HondaPilotEXV6 – 3.5L 3471cc GAS DI type J35Y6 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35A6 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35A9 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35Z1 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35Z4 – 4 valve SOHC
V6 – 3.5L 3475cc GAS MFI type J35A4 – 4 valve SOHC
LXV6 – 3.5L 3471cc GAS DI type J35Y6 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35A6 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35A9 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35Z1 – 4 valve SOHC
V6 – 3.5L 3475cc GAS MFI type J35A4 – 4 valve SOHC
2004 – 2018HondaPilotEX-LV6 – 3.5L 3471cc GAS DI type J35Y6 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35A6 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35A9 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35Z1 – 4 valve SOHC
V6 – 3.5L 3475cc GAS MFI type J35A4 – 4 valve SOHC
2016 – 2018HondaPilotEliteV6 – 3.5L 3471cc GAS DI type J35Y6 – 4 valve SOHC
TouringV6 – 3.5L 3471cc GAS DI type J35Y6 – 4 valve SOHC
V6 – 3.5L 3471cc GAS MFI type J35Z4 – 4 valve SOHC
