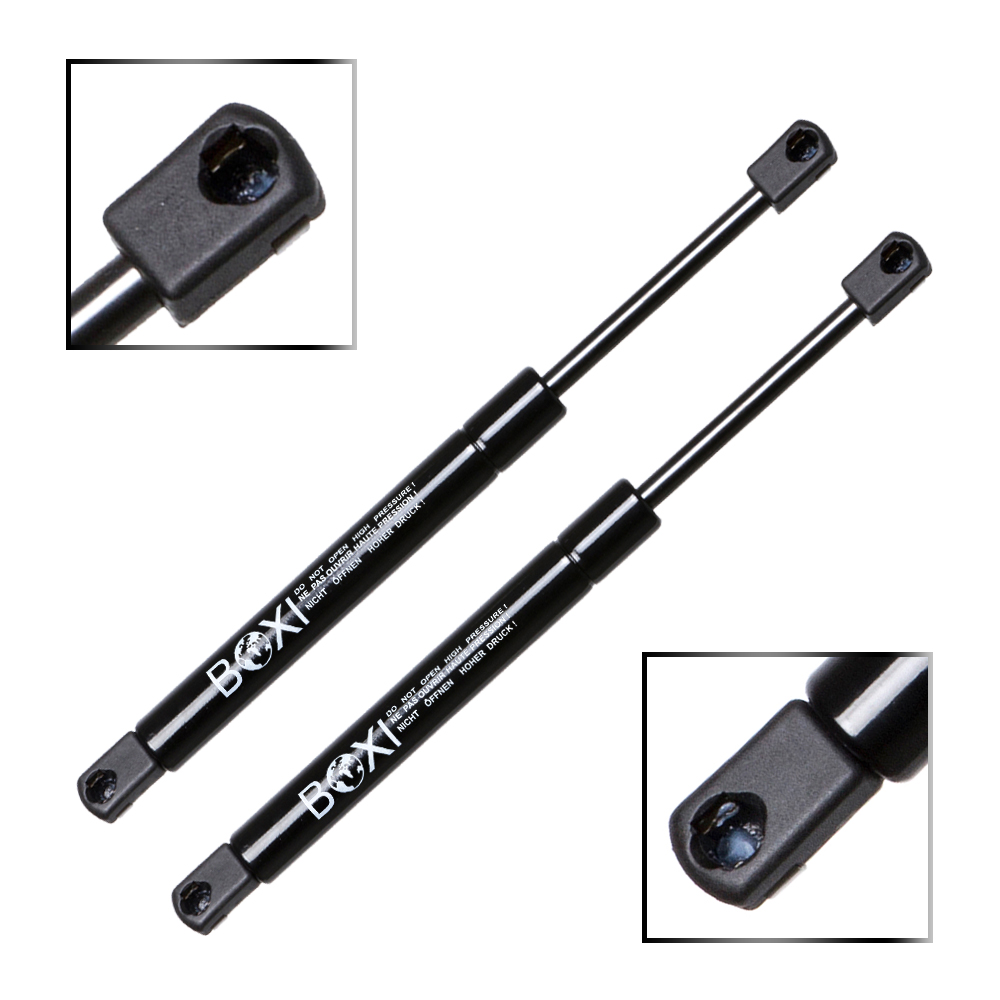

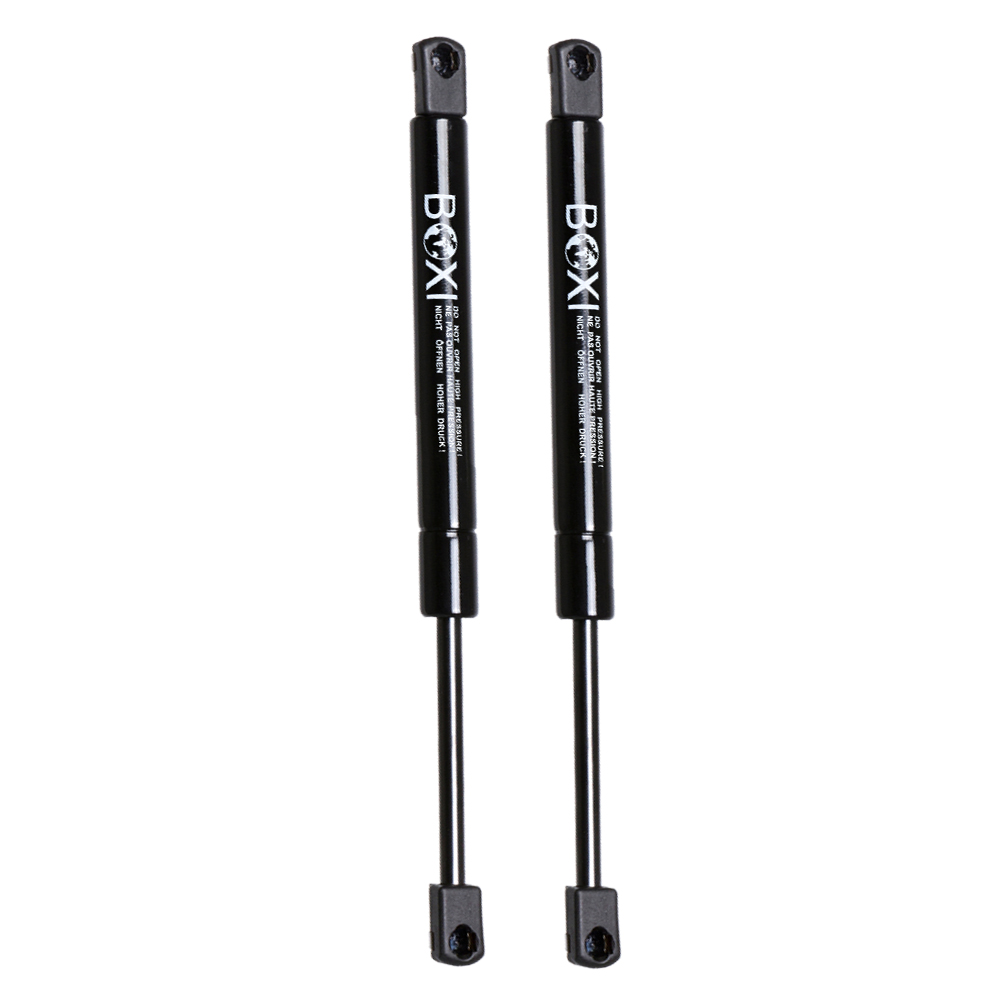

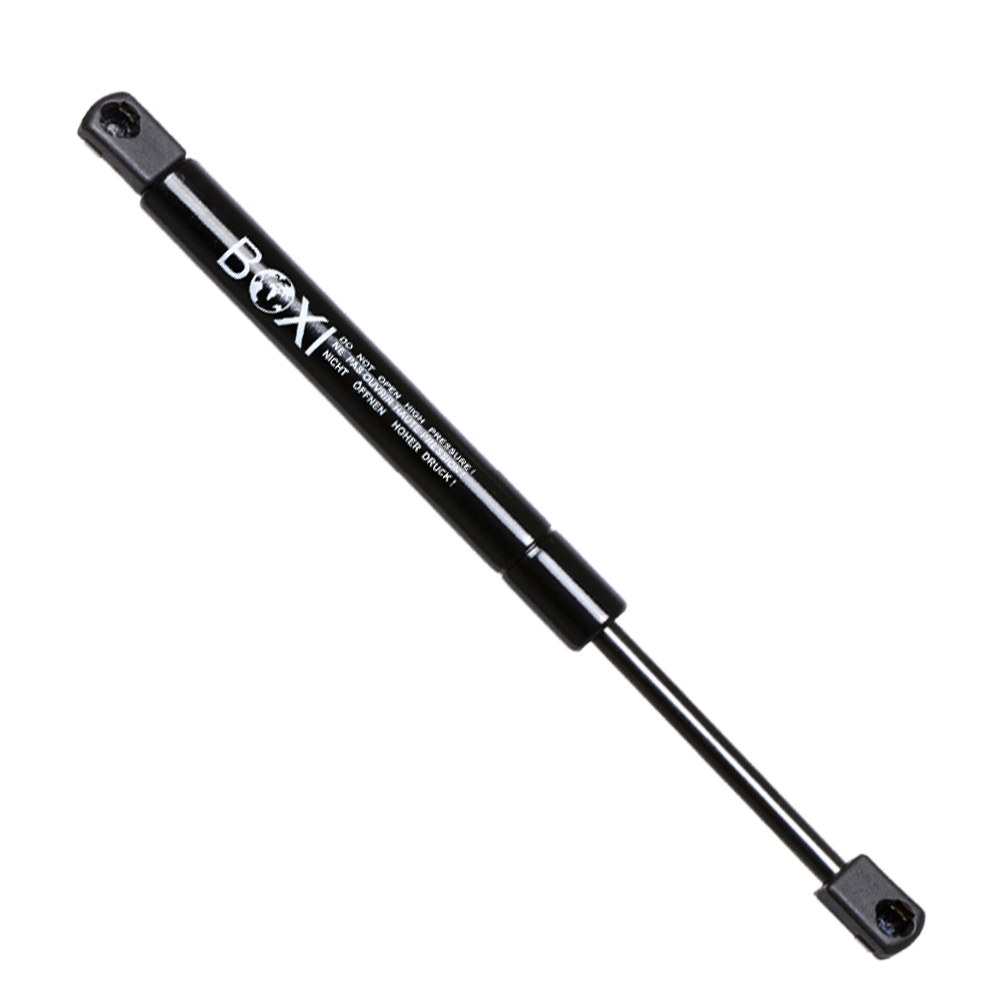

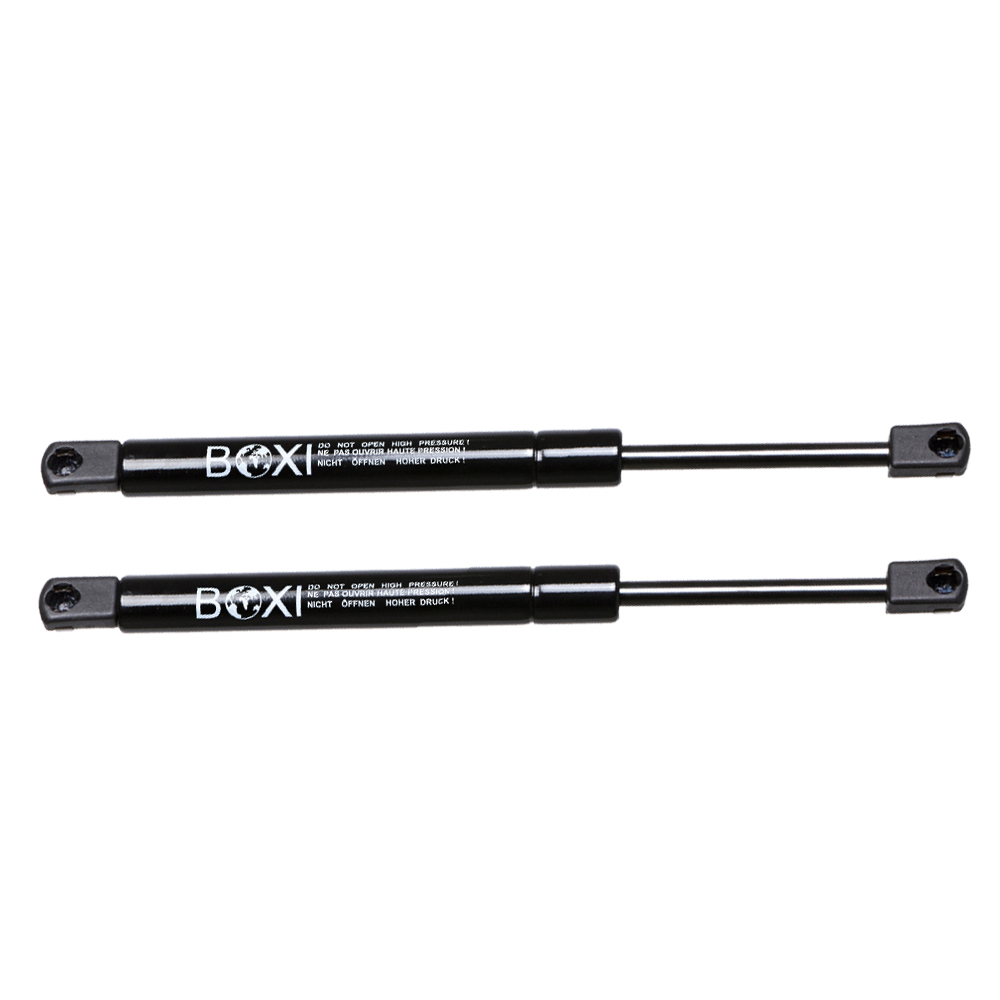

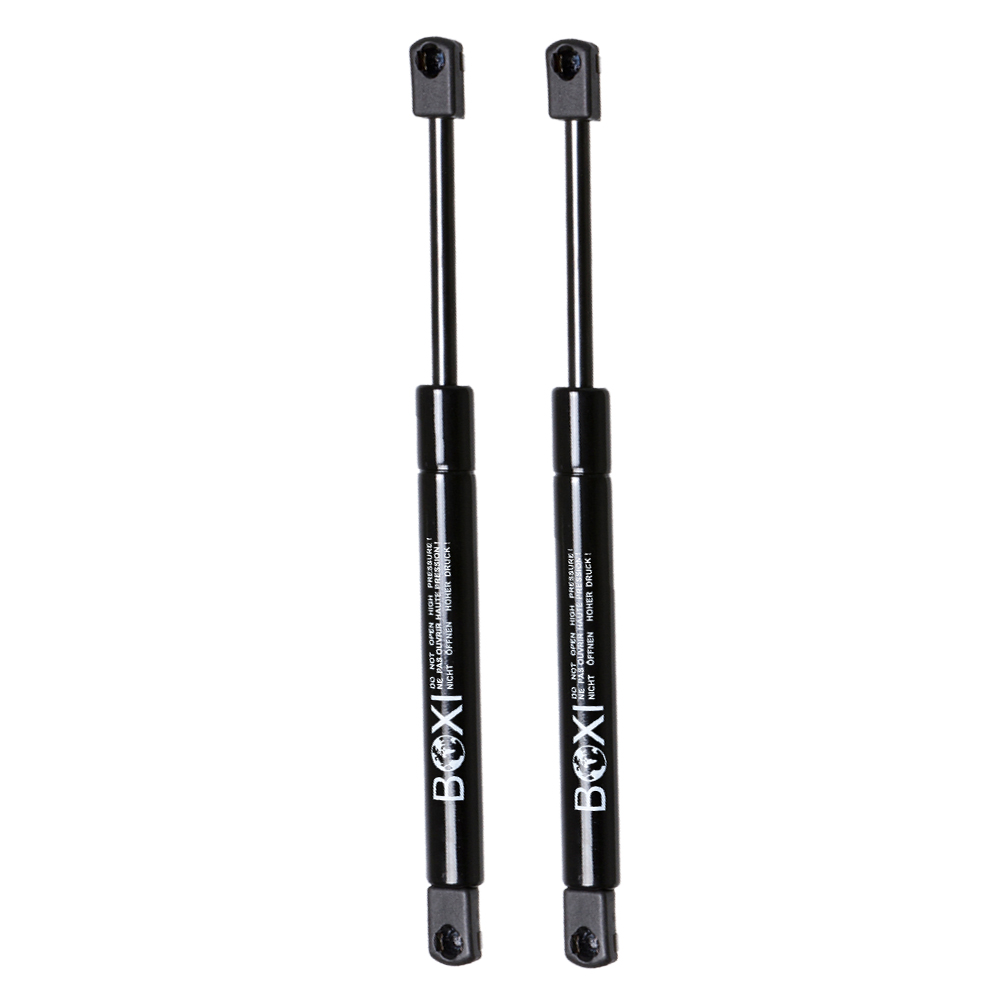

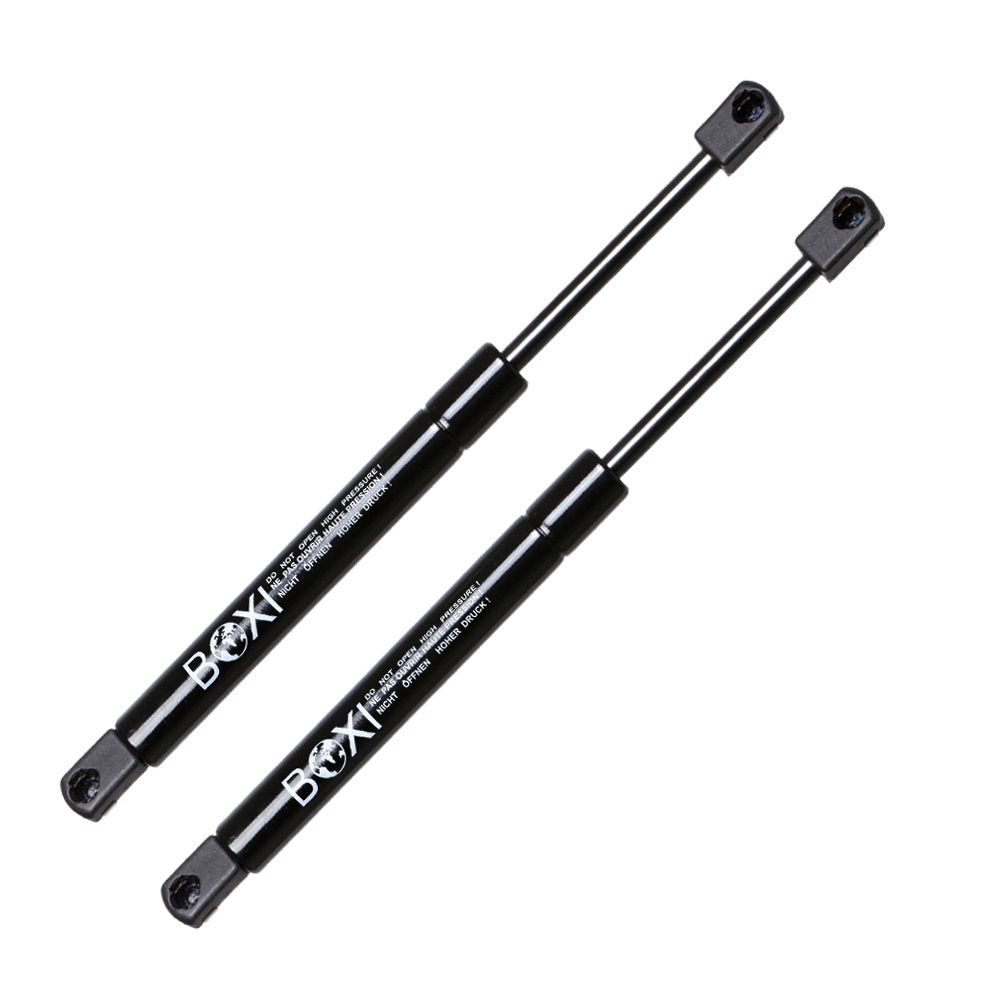

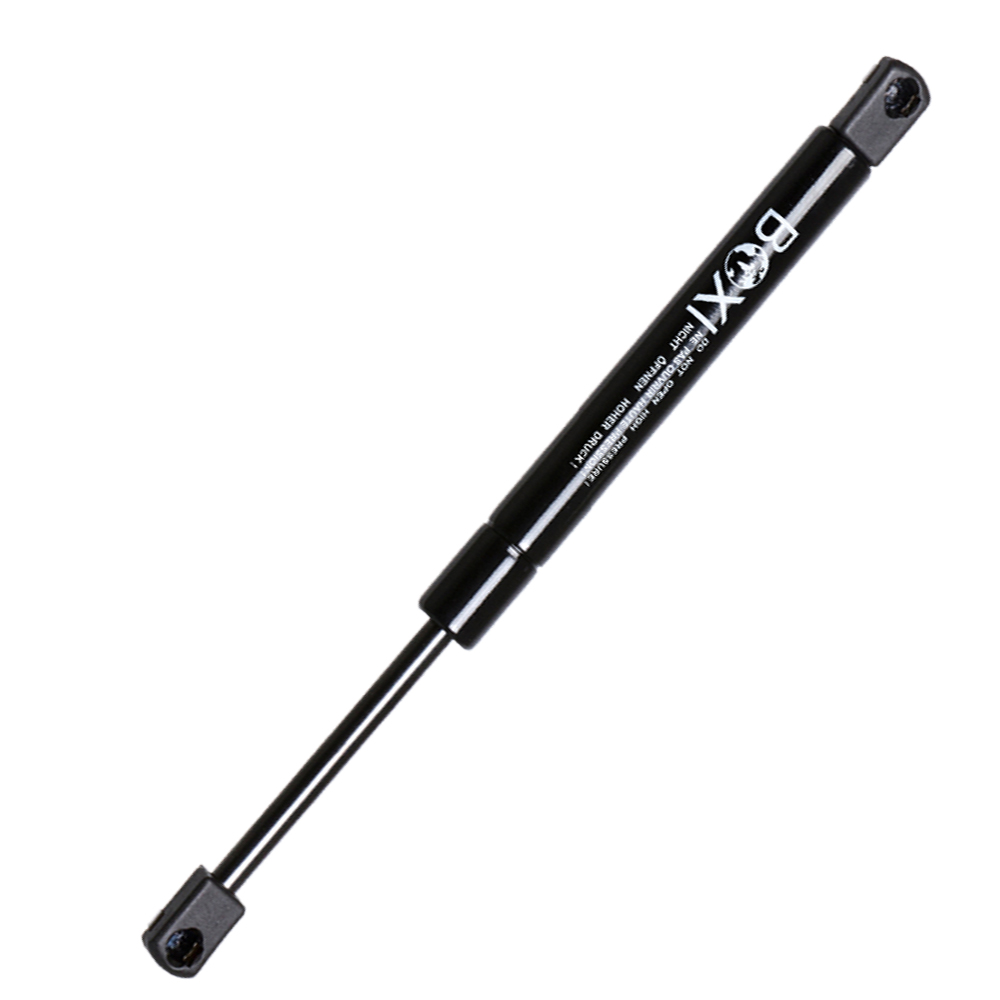

BOXI 2pcs Trunk Lift Supports Struts Shocks Gas Struts Shocks Springs Supports for Mitsubishi Eclipse 1996-1997 / for Mitsubishi Eclipse Spyder 1996-1999 Convertible 2-Door / 4667 MR153573 SG314023
BOXI SKU#: BXC300033034-2
$19.59
BOXI Trunk Lift Supports are compatible with Mitsubishi Eclipse 1996-1999 Convertible 2-Door and Spyder variants. OE numbers: 4667, MR153573, SG314023. Verify fitment before ordering.
OE / Interchange Part Numbers: 10805, 4667, 5215RJ, 612633, 72305, 8194742, 95752, D95752, MR153573, MR170840, SG314023, SG314024
84 in stock
Placement on Vehicle:Rear Trunk

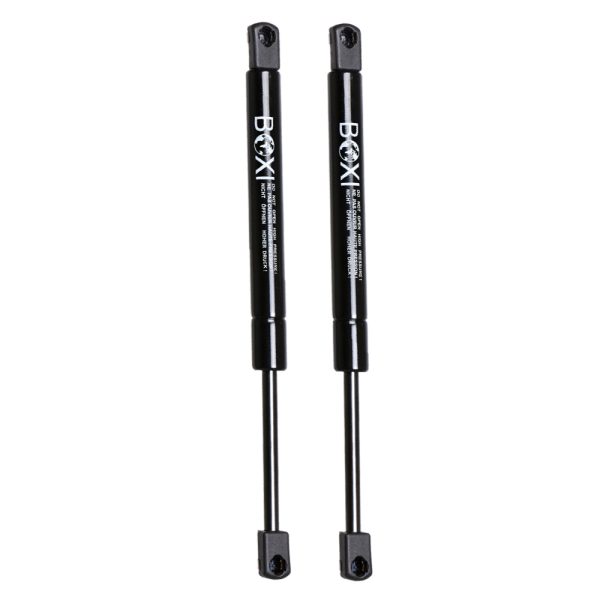

Package Included:2pcs Rear Trunk Lift Supports
Extended Length [in] 19.55
Compressed Length [in] 11.51
Fits the following Mitsubishi Eclipse Years:
1996-1997 | Base Convertible 2-Door Trunk
1996-1999 | Spyder GS Convertible 2-Door Trunk
1996-1999 | Spyder GST Convertible 2-Door Trunk
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 21.65 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 497 |
| Stroke (in): | 8.01 |
| Stroke (mm): | 204 |
| Compressed Length (in) | |
| Compressed Length (mm): | 293 |
| Force (Lbs) | |
| Force (Newtons) | 151 |
| Cylinder Diameter (in): | 0.59 |
| Cylinder Diameter (mm): | 15 |
| Rod Diameter (in): | 0.24 |
| Rod Diameter (mm): | 6 |

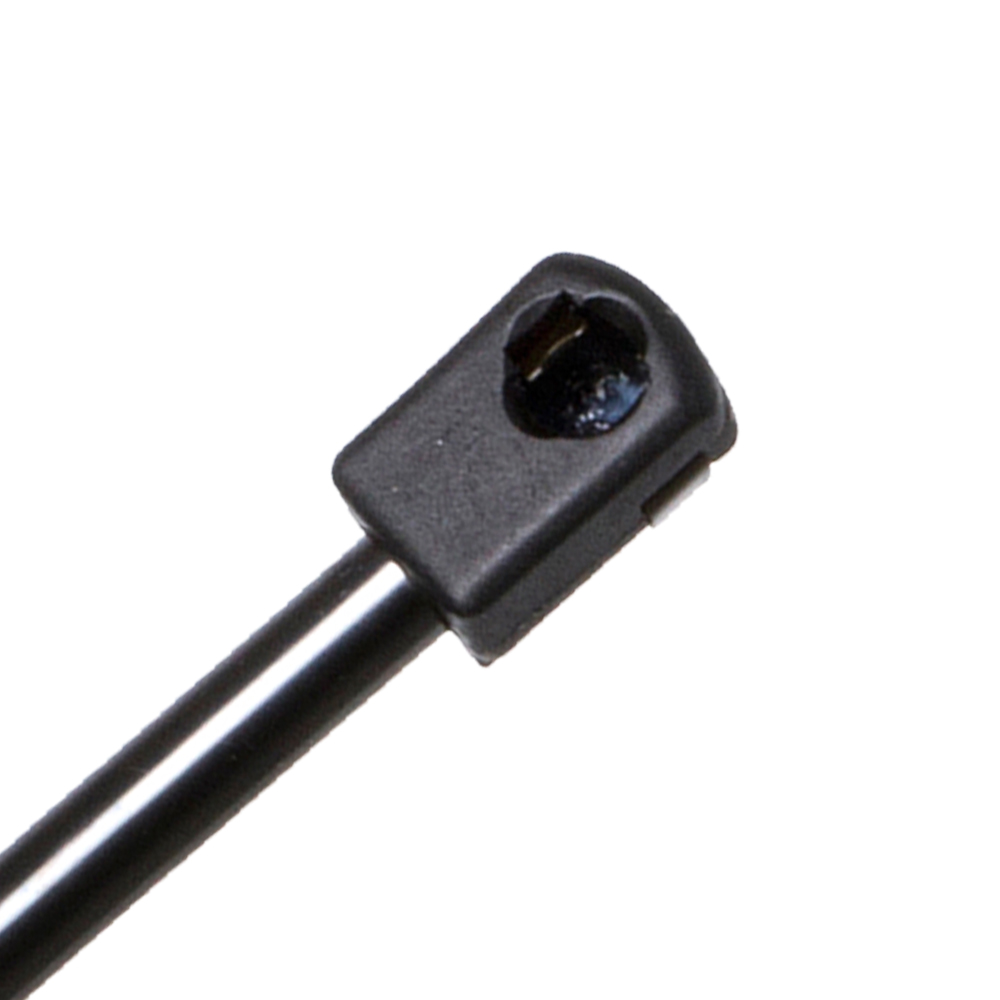

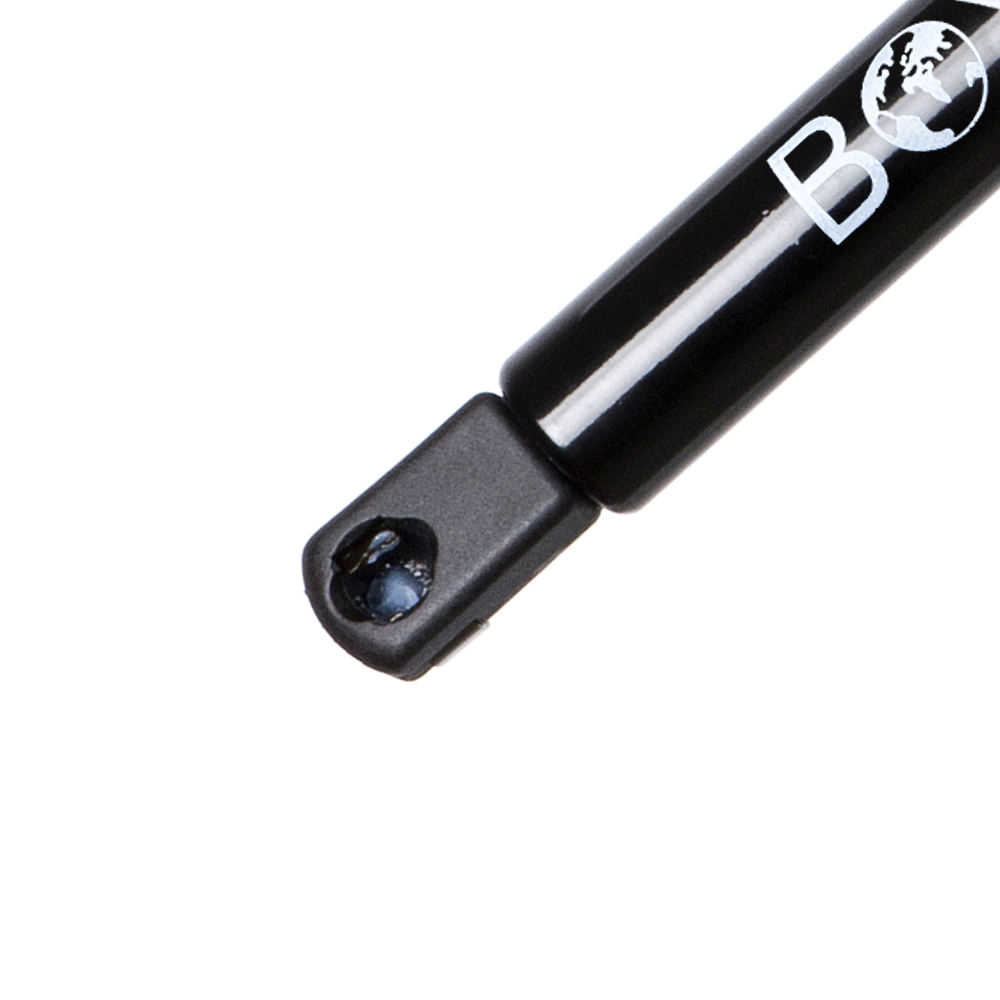

| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | TFS612633, 8194742, 612633, SG314024, MR170840, MR153573, D95752, D4667, 901791, 819-4742, 510-160, 4667 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1996 – 1997 | Mitsubishi | Eclipse | Base | L4 – 2.0L 1996cc 122ci GAS MFI vin Y type 420A – 4 valve DOHC |
| 1996 – 1999 | Mitsubishi | Eclipse | GS RS | L4 – 2.0L 1996cc 122ci GAS MFI vin Y type 420A – 4 valve DOHC |
| GST GSX Spyder GST | L4 – 2.0L 1997cc 122ci GAS MFI Turbocharged vin F type 4G63 – 4 valve DOHC | |||
| L4 – 2.0L 1997cc 122ci GAS MFI Turbocharged vin F type 4G63T – 4 valve DOHC | ||||
| Spyder GS | L4 – 2.4L 2351cc GAS MFI vin G type 4G64 – 4 valve SOHC |
