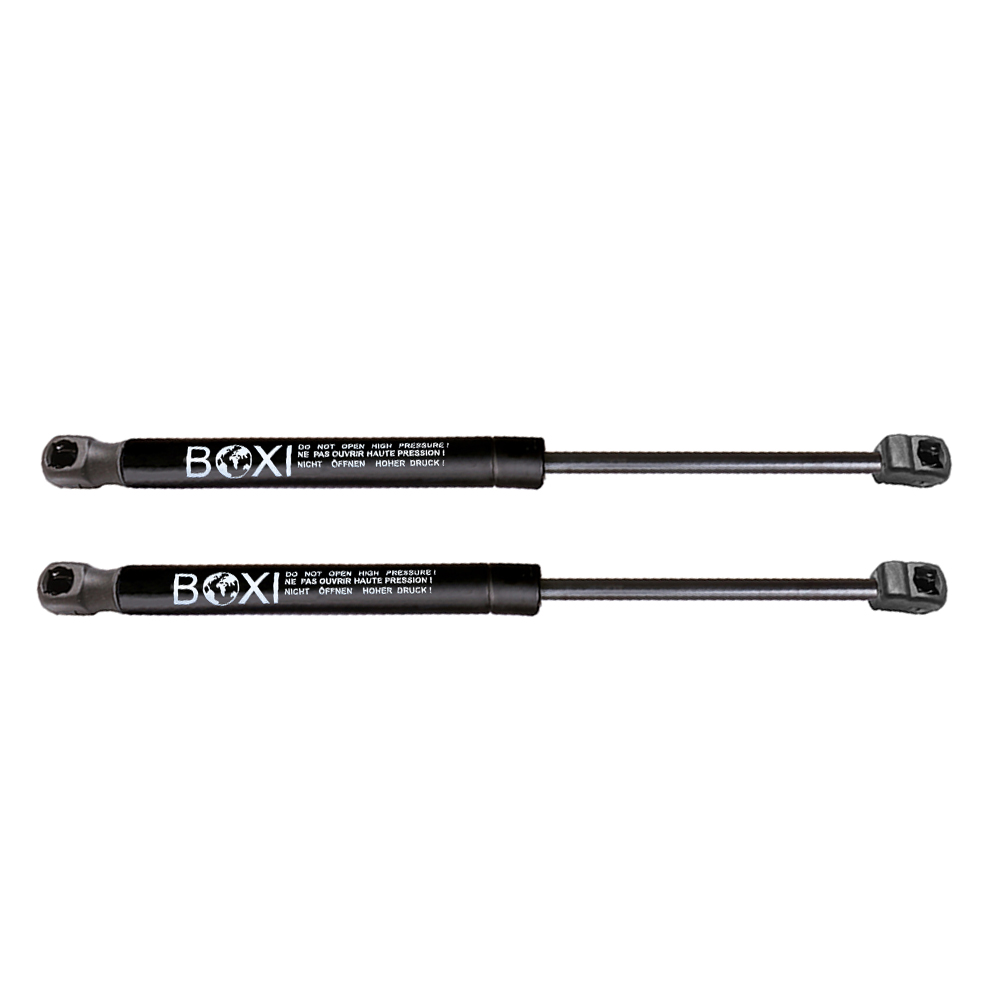

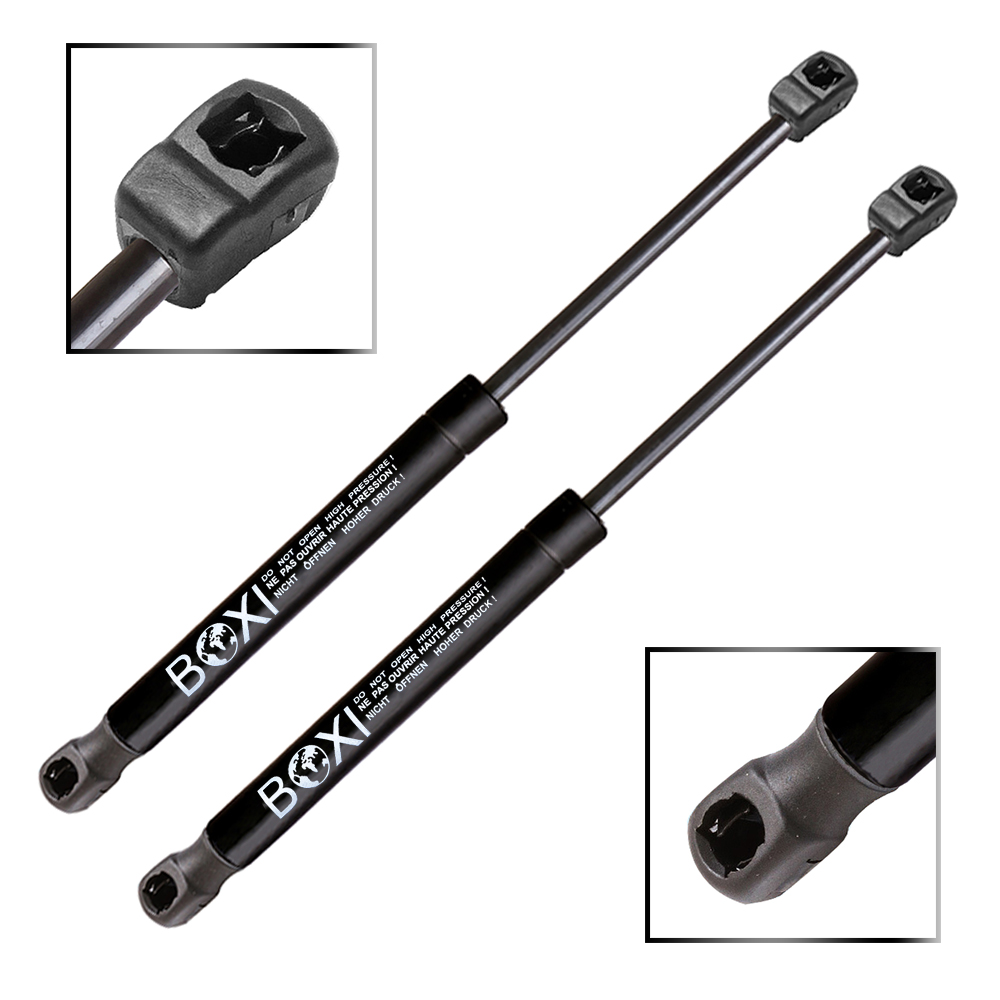

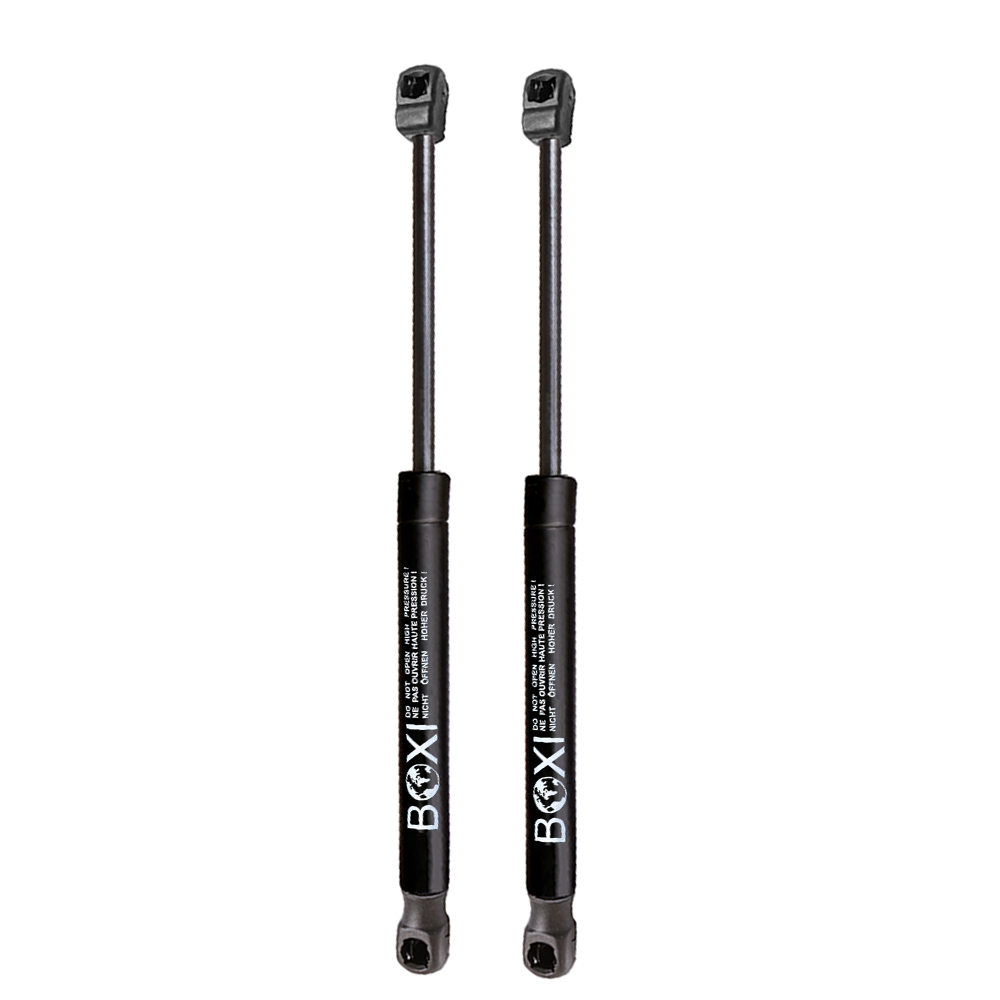

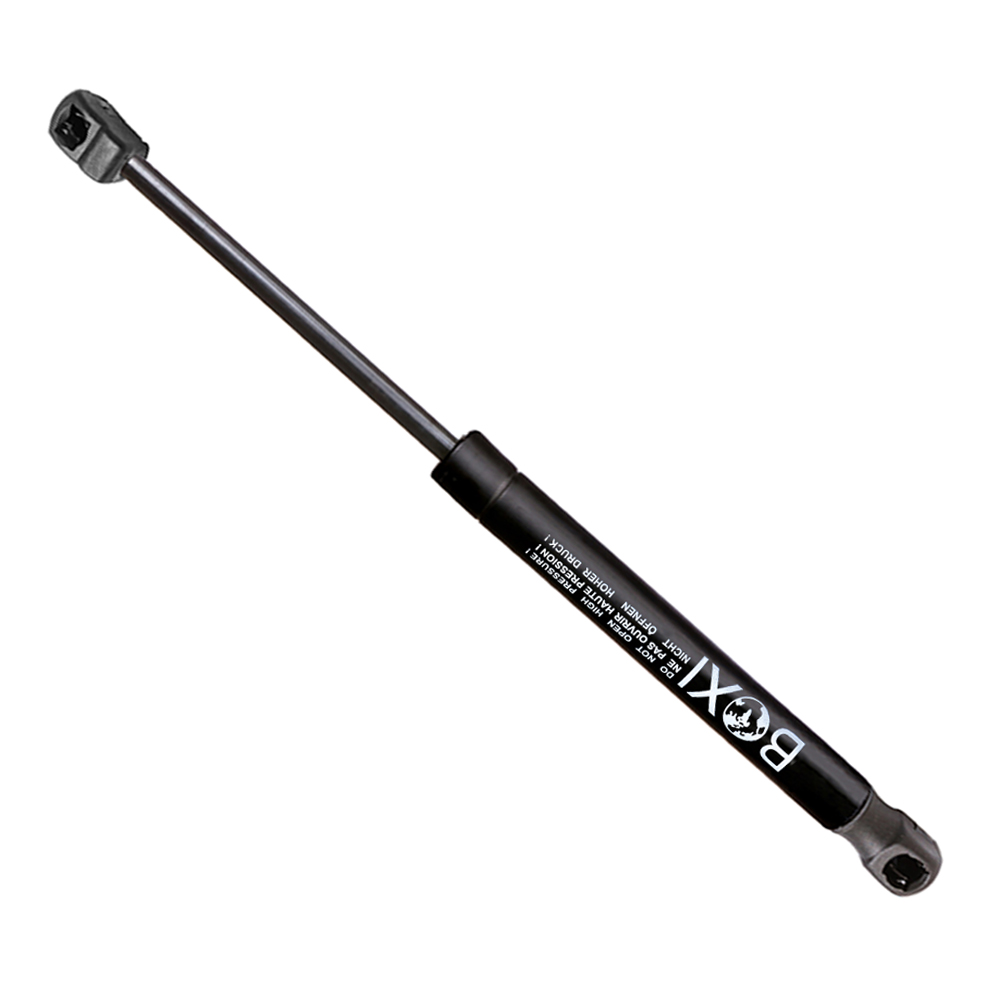

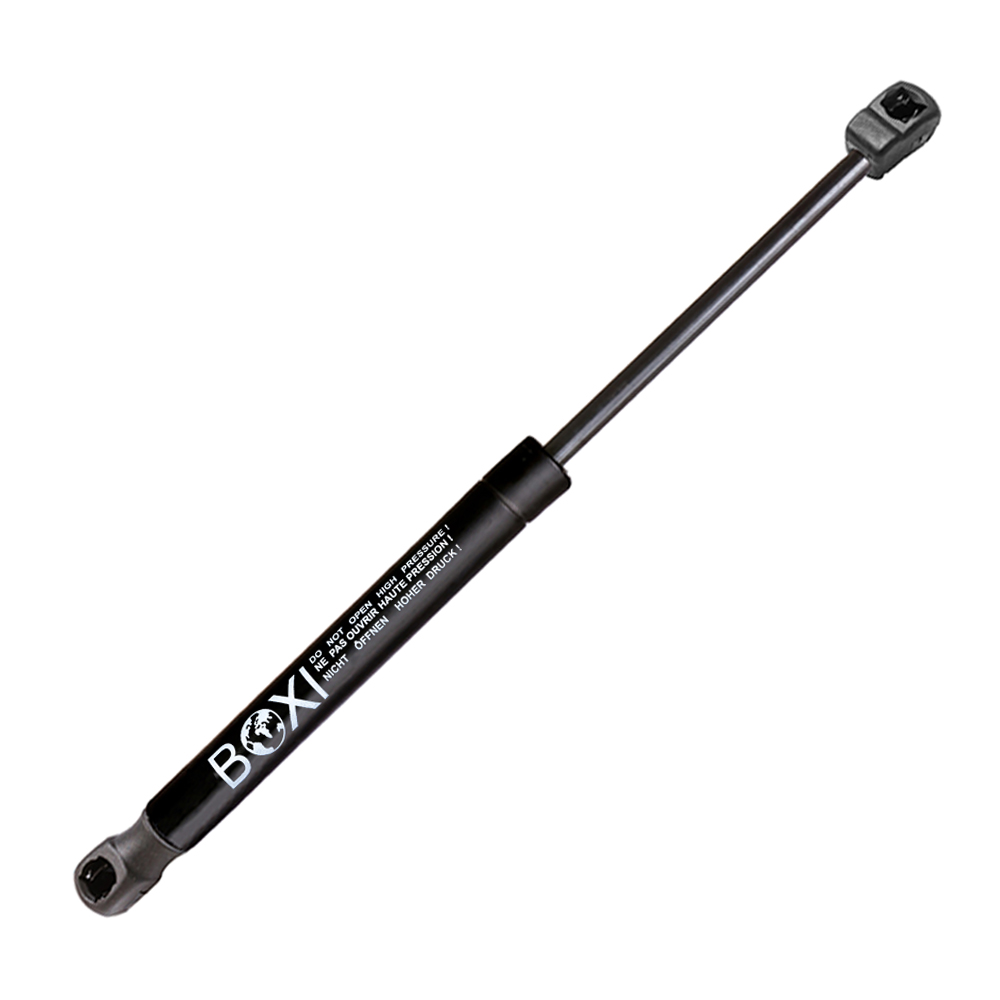

BOXI Qty (2) Rear Gate Lift Supports Gas Shocks Springs Struts Fit for Subaru Outback 2015 / Outback 2.5i/3.6R 2015-2019 Wagon 4-Door Liftgate-Supplied W/O Brackets | PM3782 63260AL02A 63260AL02B

BOXI SKU#: BXC300032014-2

$22.73

BOXI tailgate lift support (2-pack) for Subaru Outback 2.5i & 3.6R Wagon 4-Door models from 2015 to 2019. Replaces OE numbers 568355, 583173, 63260AL02A. Verify fitment before ordering.

OE / Interchange Part Numbers: 63260AL02A, 63260AL02B, 63260AL03A, PM3782

  • 5 Years Warranty

49 in stock

Placement on Vehicle:Rear Gate
Package Included:2pcs Rear Gate Lift Supports

Vehicle Location – Tailgate (L-R)-Supplied without Bracket (Must Reuse)
Fits the following Subaru Outback 2.5i Years:
2015-2019 | Limited Wagon 4-Door
2018-2019 | Premier Wagon 4-Door
2015-2019 | Premium Wagon 4-Door
2015-2019 | Touring Wagon 4-Door
2015-2019 | Wagon 4-Door

Fits the following Subaru Outback 3.6R Years:
2015-2019 | Limited Wagon 4-Door
2018-2019 | Premier Wagon 4-Door
2017 | Premium Wagon 4-Door
2015-2019 | Touring Wagon 4-Door

Fits the following Subaru Outback Years:
2015 | Base Wagon 4-Door
2015 | Limited Wagon 4-Door
2015 | Premium Wagon 4-Door

Weight 1.3 lbs
Dimensions 23.62 × 2.56 × 1.38 in
Brand

BOXI
Hardware Included:

No
Extended Length (in)

Extended Length (mm):

535
Stroke (in):

8.66
Stroke (mm):

220
Compressed Length (in)

Compressed Length (mm):

315
Force (Lbs)

Force (Newtons)

520
Cylinder Diameter (in):

0.71
Cylinder Diameter (mm):

18
Rod Diameter (in):

0.31
Rod Diameter (mm):

8

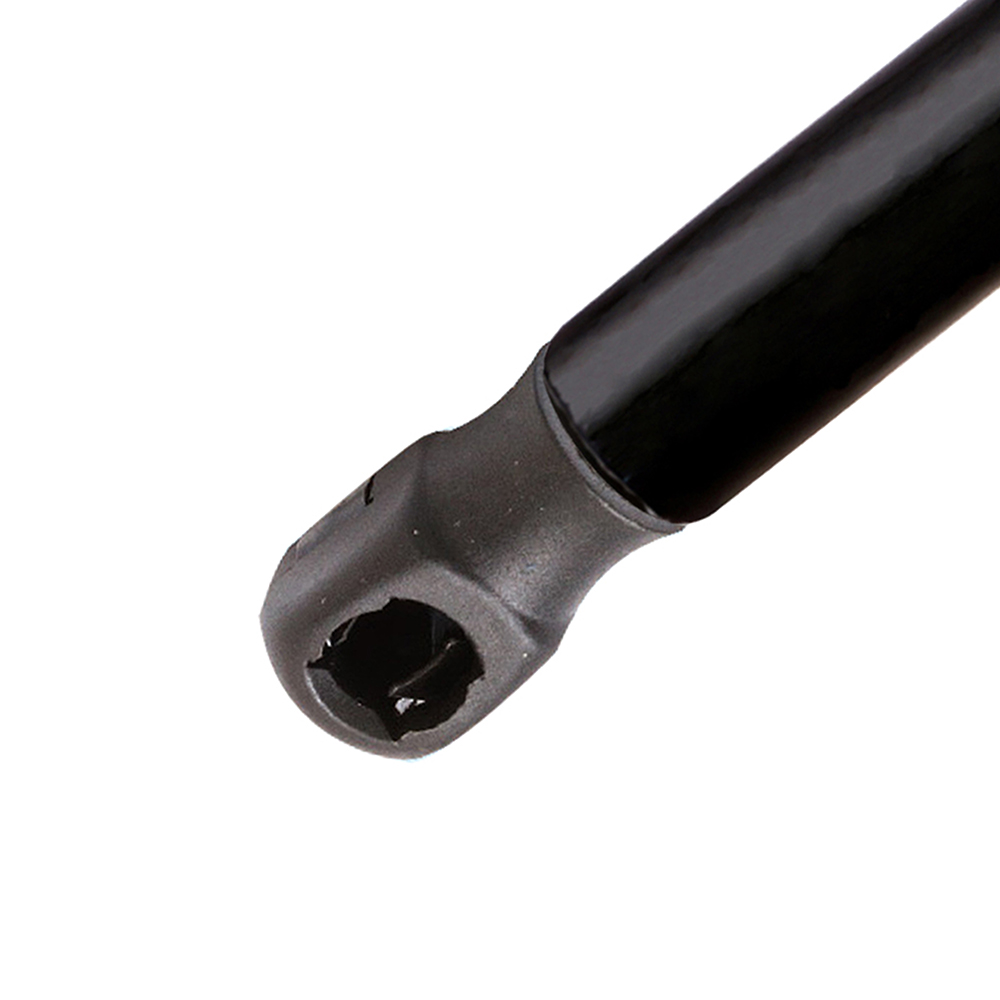

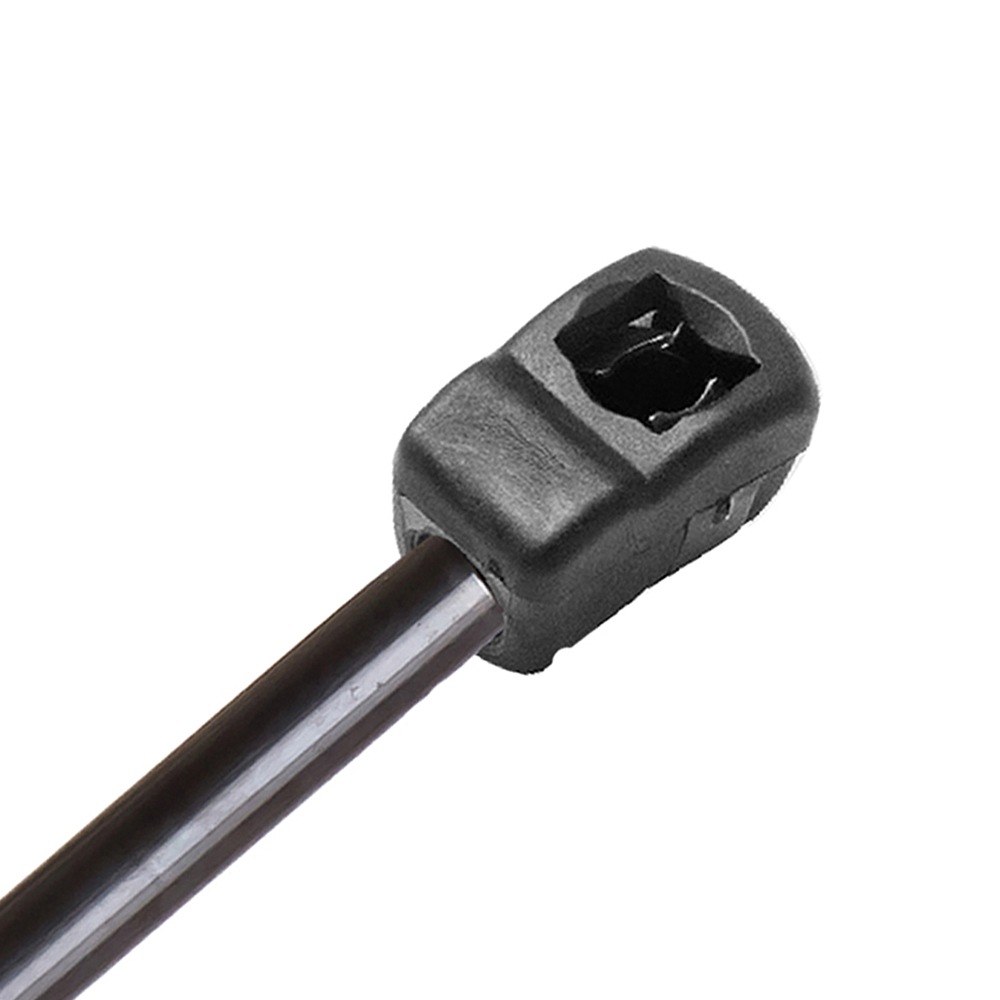

Body Connection:

Ball Socket
Shaft Connection:

Ball Socket
Type:

Gas
Material

Steel
Unit of Measure:

Each
Warranty Terms

5 Years
Interchange Part Number

63260AL02A, 63260AL02B, PM3782, 63260AL03A
YearMakeModelSubmodelEngine
2015 – 2019SubaruOutback2.5i Limited Wagon 4-Door
2.5i Premium Wagon 4-Door
2.5i Touring Wagon 4-Door
2.5i Wagon 4-Door		2.5L 2498CC 152Cu. In. H4 GAS DOHC Naturally Aspirated
3.6R Limited Wagon 4-Door
3.6R Touring Wagon 4-Door		3.6L 3630CC H6 GAS DOHC Naturally Aspirated
2018 – 2019SubaruOutback2.5i Premier Wagon 4-Door2.5L 2498CC 152Cu. In. H4 GAS DOHC Naturally Aspirated
3.6R Premier Wagon 4-Door3.6L 3630CC H6 GAS DOHC Naturally Aspirated
2017SubaruOutback3.6R Premium Wagon 4-Door3.6L 3630CC H6 GAS DOHC Naturally Aspirated
2015SubaruOutbackBase Wagon 4-Door2.5L 2458CC H4 GAS SOHC Naturally Aspirated
Limited Wagon 4-Door
Premium Wagon 4-Door		2.5L 2498CC 152Cu. In. H4 GAS DOHC Naturally Aspirated
3.6L 3630CC H6 GAS DOHC Naturally Aspirated
