Qty(2) BOXI Hatchback Gas Charged Lift Supports Struts Shocks Spring Dampers Props for Nissan 300ZX 1989-1996 Coupe 2-Door Hatch with Out Spoiler, Excluding 2+2 Model 4814
BOXI SKU#: BXC300031137-2
$25.92

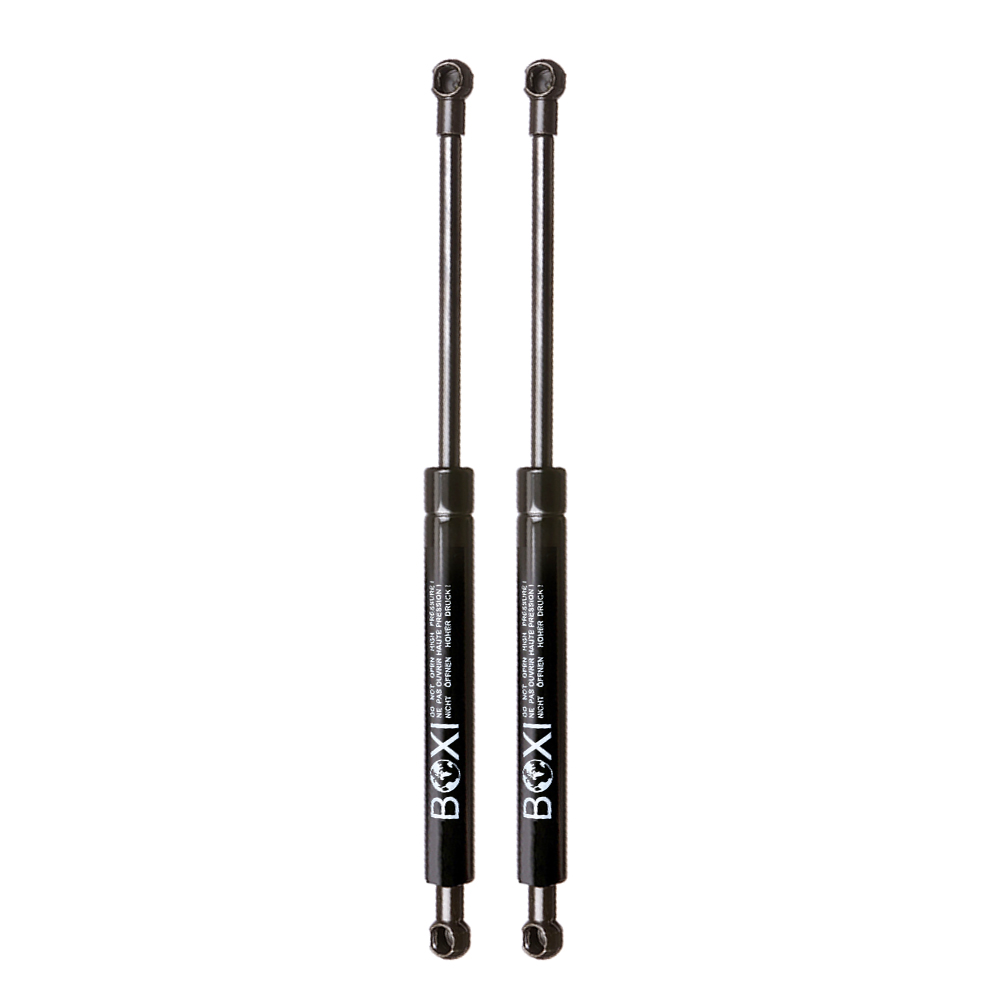

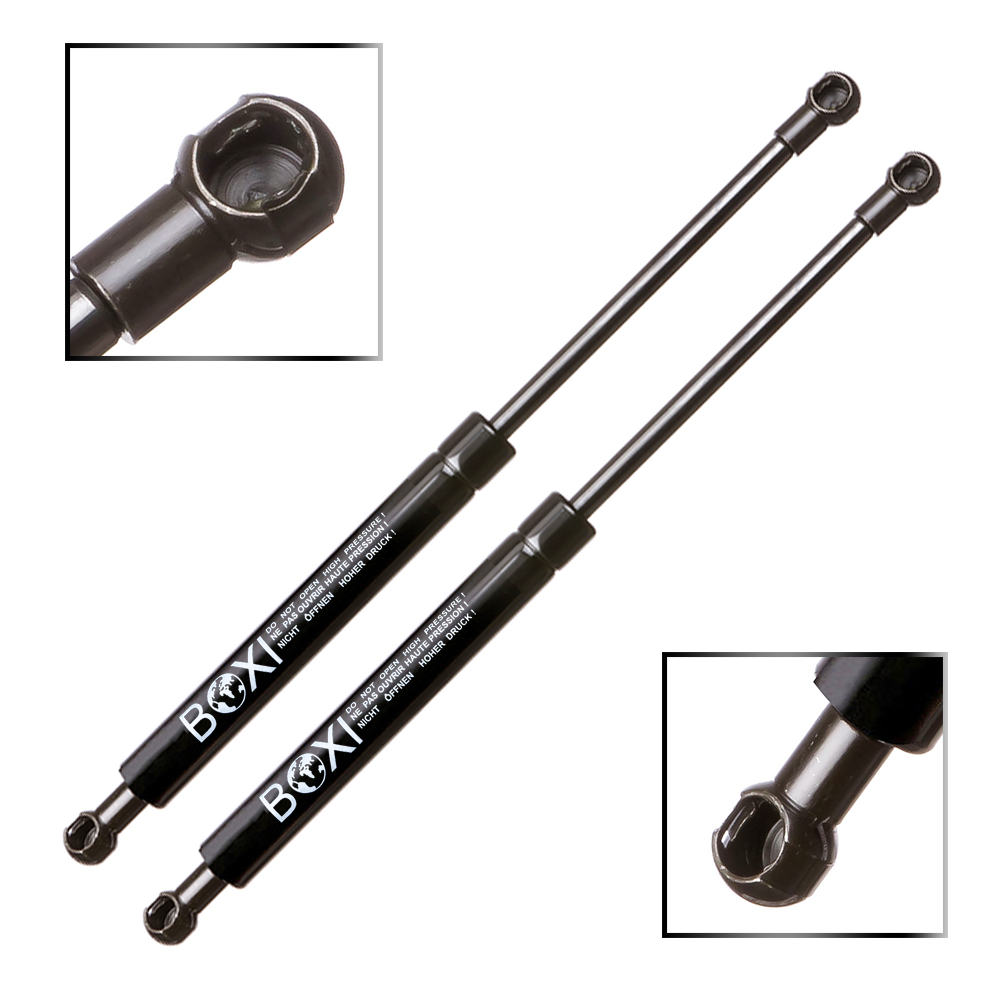

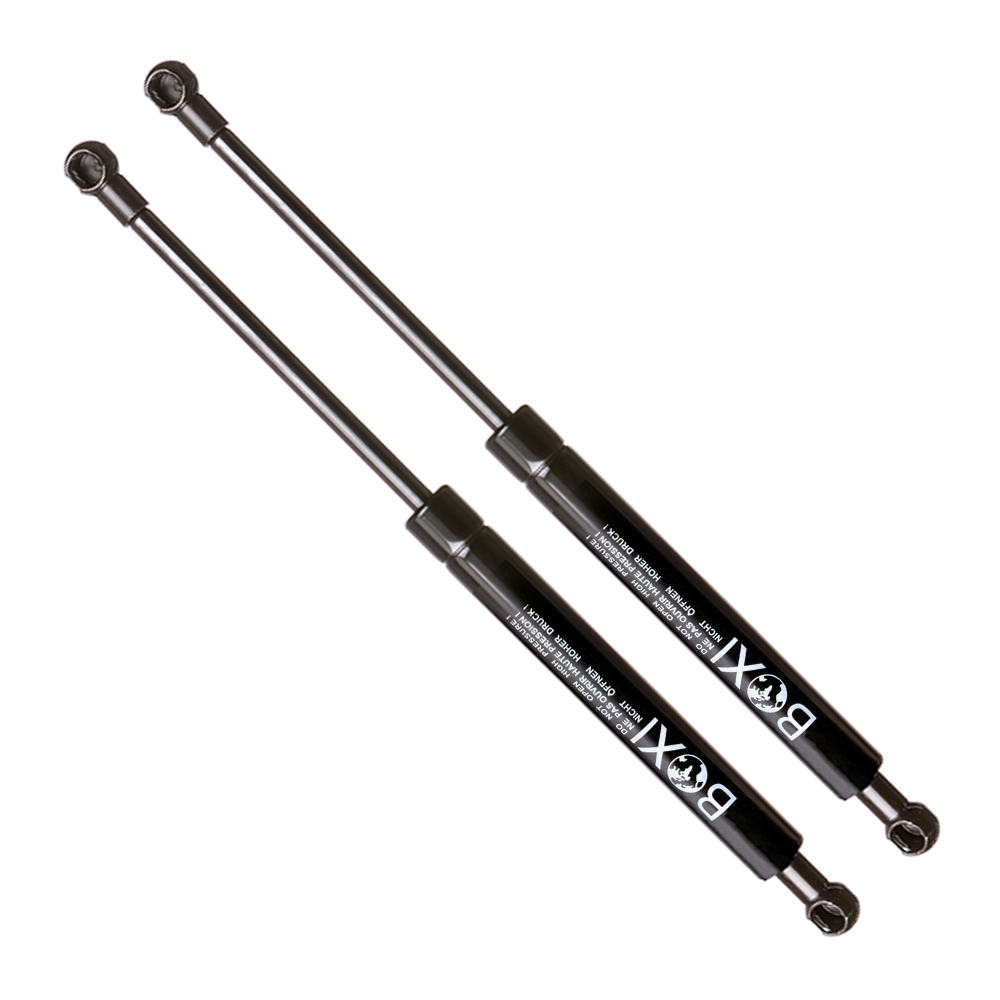

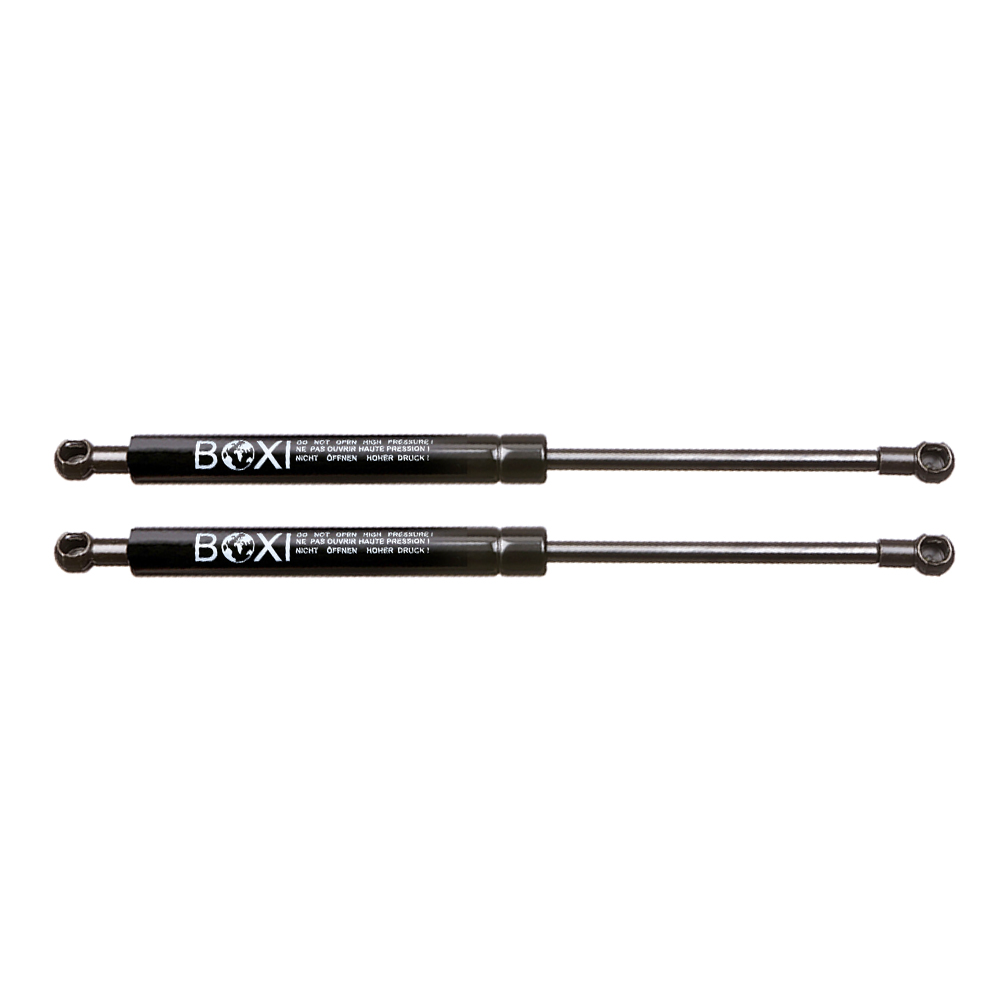

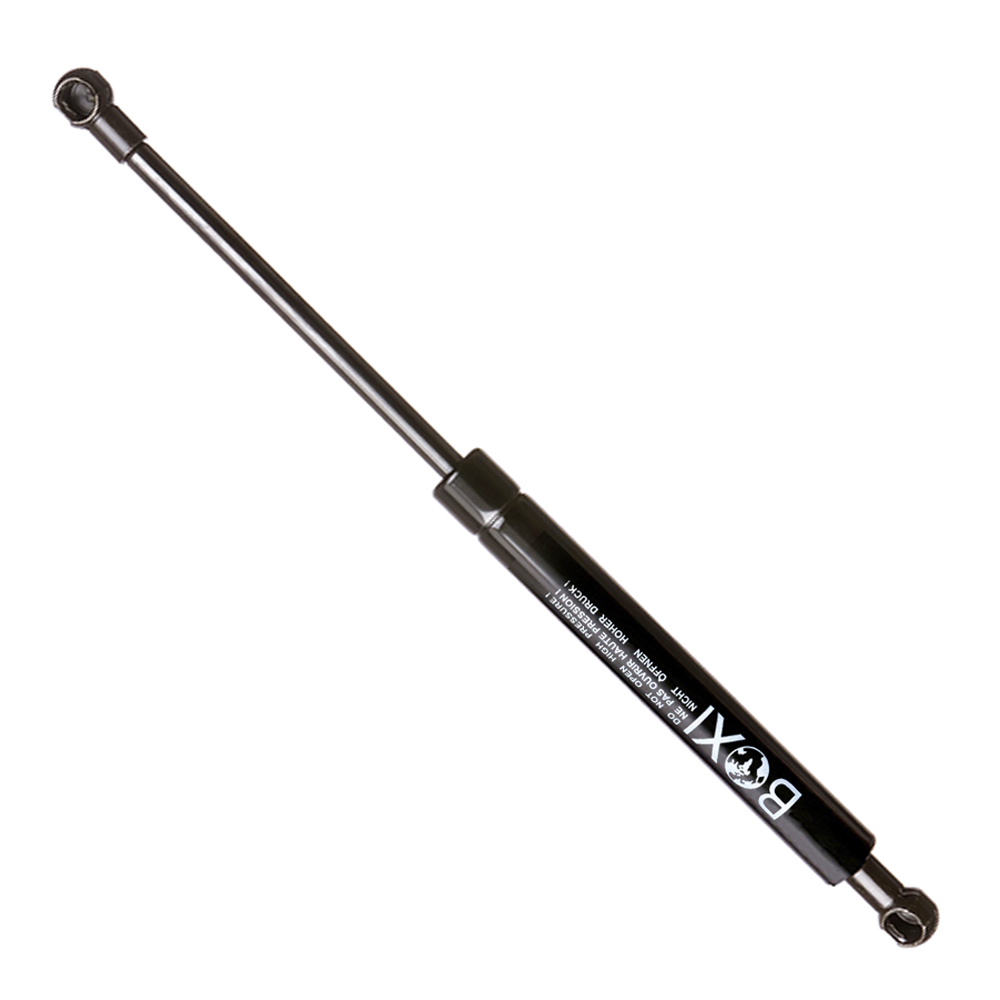

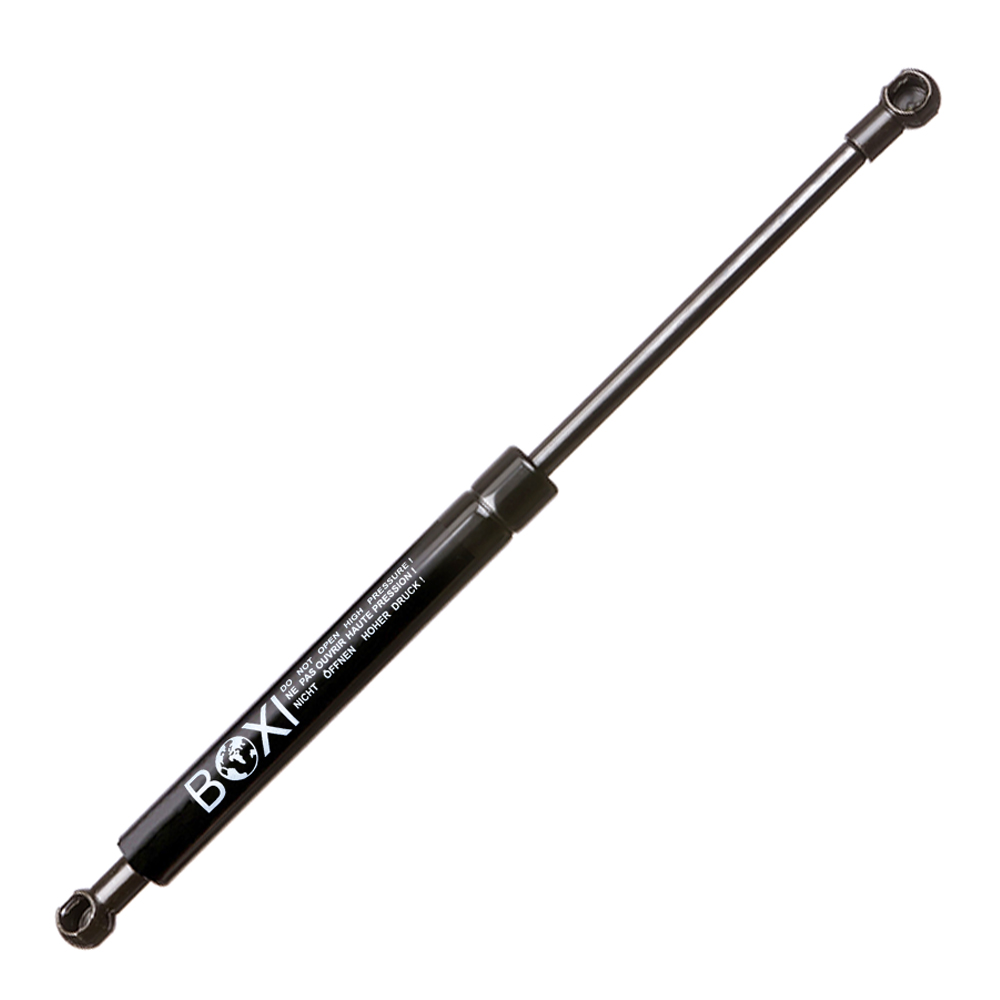

This is a set of two BOXI gas charged lift supports (struts) for the hatchback of 1989-1996 Nissan 300ZX Coupe models. Fits Base and Turbo Coupe with out spoiler, excluding the 2+2 model. Verify fitment before ordering.
OE / Interchange Part Numbers: 10822, 4814, 8195432, 95842, B95842
45 in stock
Placement on Vehicle:Hatchback
Package Included:2pcs Hatchback Lift Supports
Vehicle Location – Hatchback
Extended Length [in] 27.18
Compressed Length [in] 20.09
Fits the following Nissan 300ZX Years:
1989-1996 | Base Coupe | With Out Spoiler, Excluding 2+2 model
1989-1996 | Turbo Coupe | With Out Spoiler, Excluding 2+2 model
| Weight | 2.31 lbs |
|---|---|
| Dimensions | 29.53 × 2.56 × 1.38 in |
| Brand | BOXI |
| Hardware Included: | No |
| Extended Length (in) | |
| Extended Length (mm): | 690 |
| Stroke (in): | 7.89 |
| Stroke (mm): | 200 |
| Compressed Length (in) | |
| Compressed Length (mm): | 490 |
| Force (Lbs) | |
| Force (Newtons) | 427 |
| Cylinder Diameter (in): | 0.87 |
| Cylinder Diameter (mm): | 22 |
| Rod Diameter (in): | 0.39 |
| Rod Diameter (mm): | 10 |

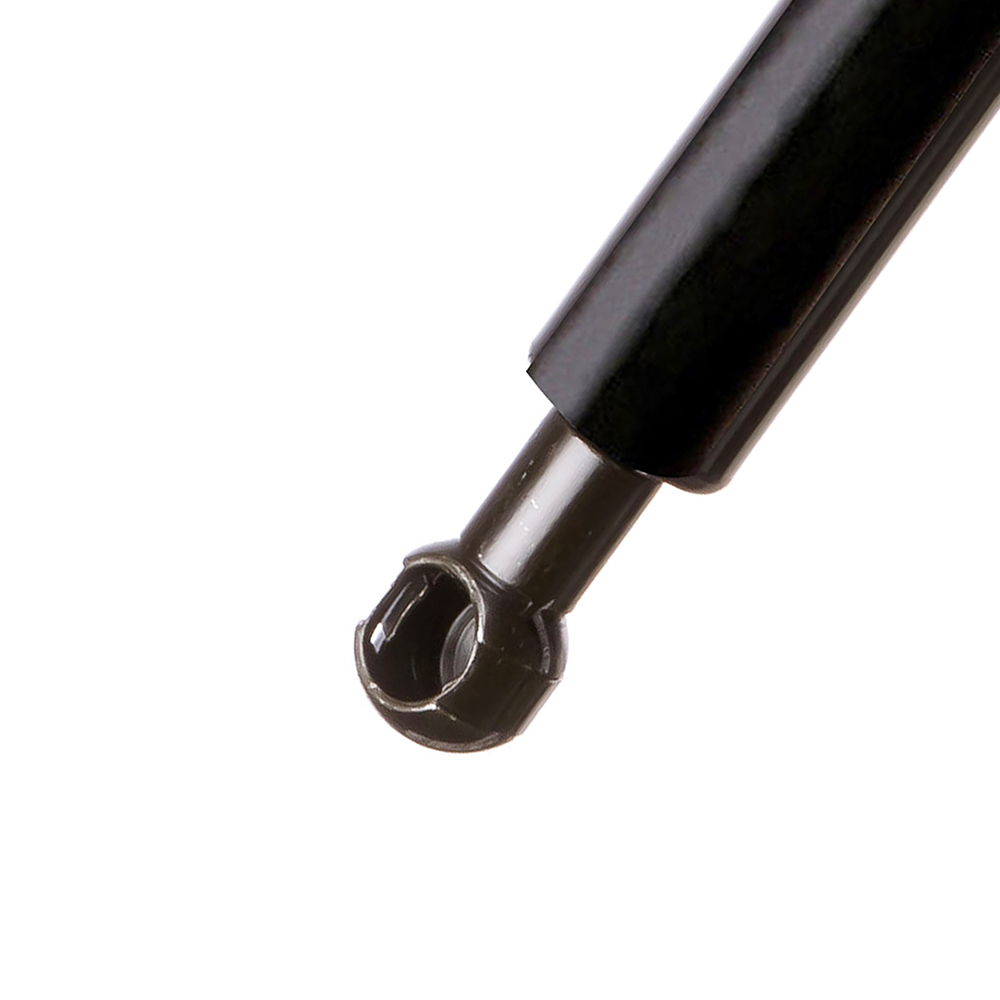

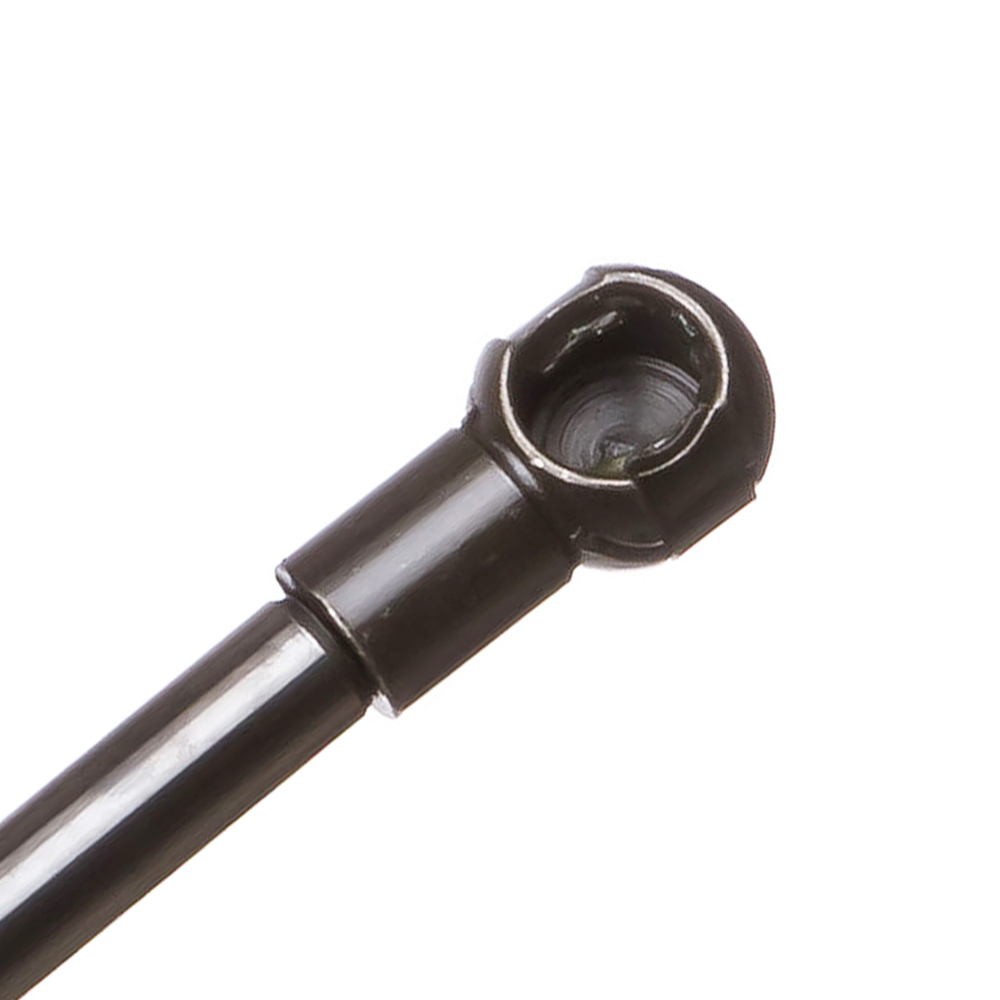

| Body Connection: | Ball Socket |
| Shaft Connection: | Ball Socket |
| Type: | Gas |
| Material | Steel |
| Unit of Measure: | Each |
| Warranty Terms | 5 Years |
| Interchange Part Number | SAM4814, TFS610425, 610425, SG125010, B95842, B4814, 9045030P01, 901768, 819-5432, 510-757, 4814 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1995 – 1996 | Nissan | 300ZX | 2+2 | V6 – 3.0L 2960cc 181ci GAS MFI vin R type VG30DE – 4 valve DOHC |
| 1989 – 1996 | Nissan | 300ZX | Base | V6 – 3.0L 2960cc 181ci GAS MFI vin R type VG30DE – 4 valve DOHC |
| V6 – 3.0L 2960cc 181ci GAS TBI vin H type VG30 – 2 valve SOHC | ||||
| Turbo | V6 – 3.0L 2960cc 181ci GAS MFI Turbocharged vin C type VG30DETT – 4 valve DOHC | |||
| V6 – 3.0L 2960cc 181ci GAS MFI Turbocharged vin C type VG30T – 2 valve SOHC |
